Disassembly And Assembly Of Subassemblies
>>
Main Control Valve Body
>>
Notes
Main Control Valve Body: Notes

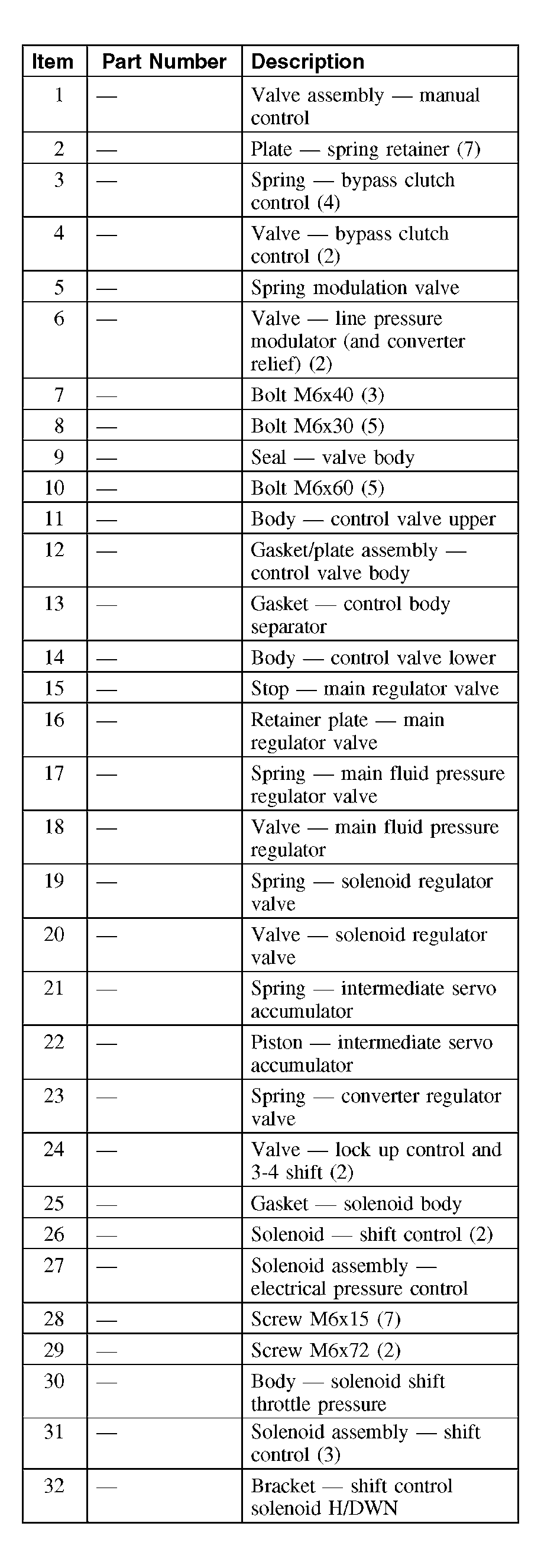

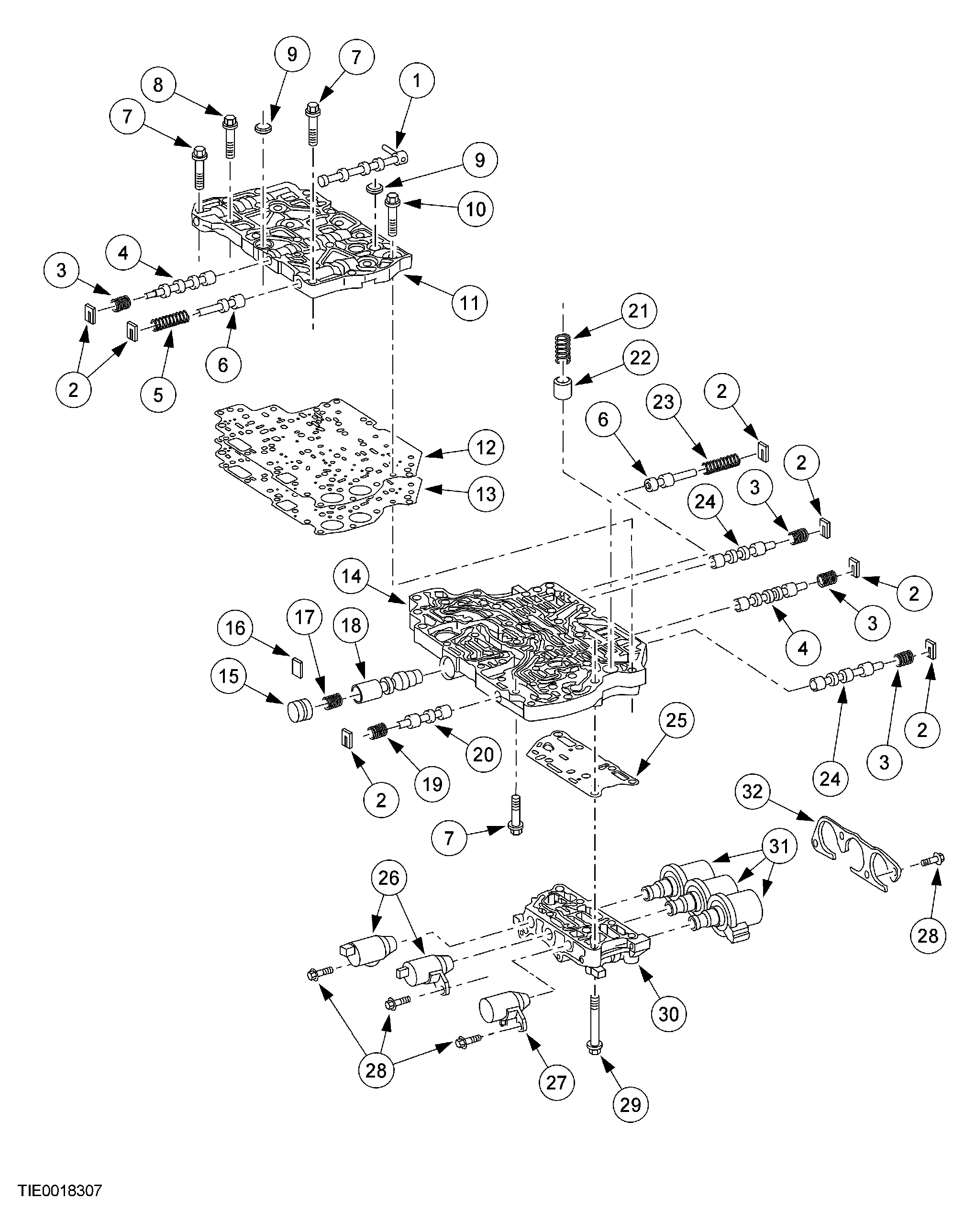

Fig 1: Exploded View Of Main Control Valve Body (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 2: Exploded View Of Main Control Valve Body (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
