Home >> Ford >> 2005 >> Focus ZXW SES, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Disassembly And Assembly Of Subassemblies >> Direct Clutch >> Notes

Direct Clutch: Notes

SPECIAL TOOL SPECIFICATION

G03951486
 Compressor, Spring Washer 307-209
MATERIAL SPECIFICATION

Item Specification
Automatic Transmission Fluid XT-5-QM MERCON® V

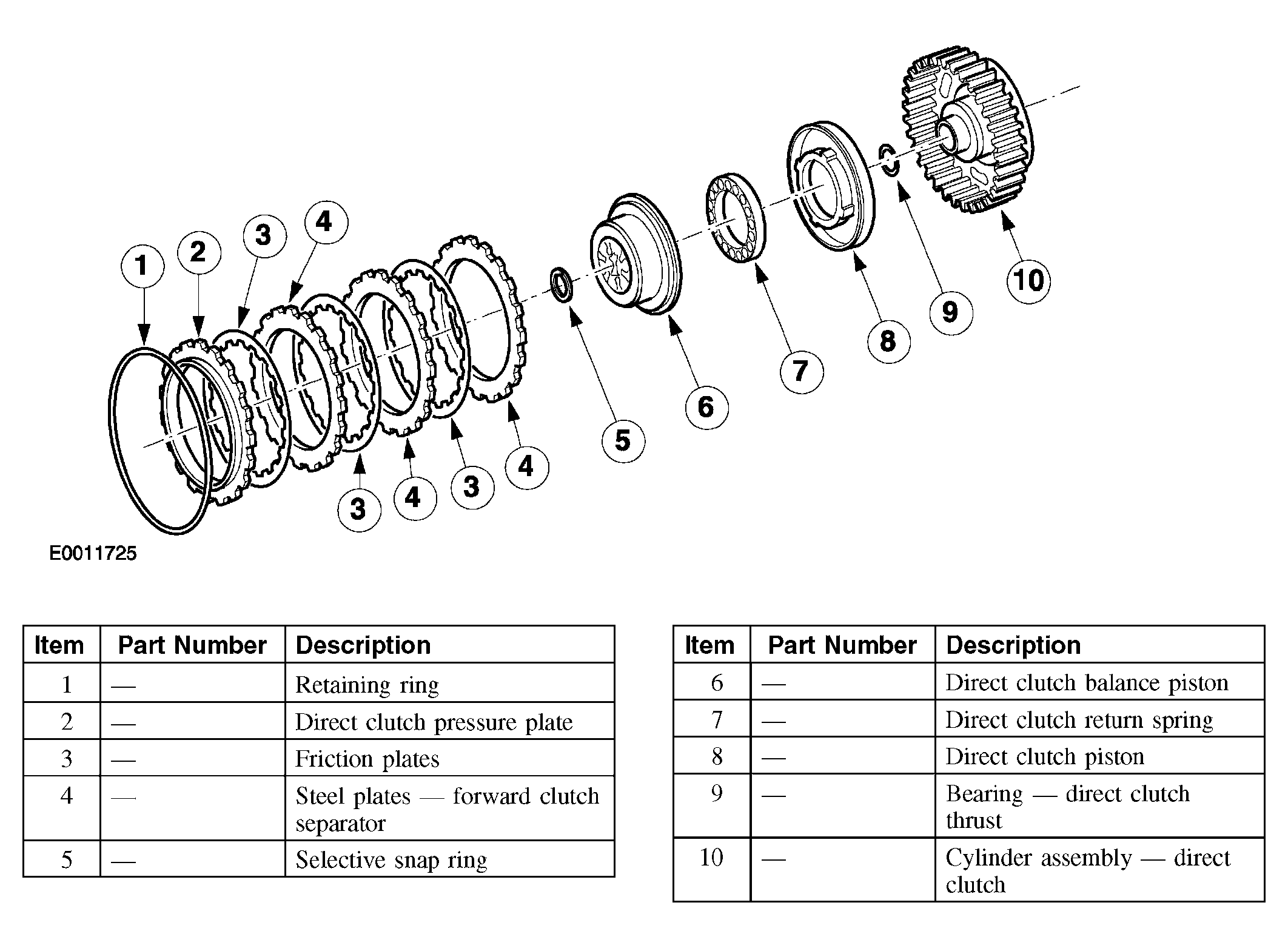

Fig 1: Exploded View Of Direct Clutch
G03951487Courtesy of FORD MOTOR CO.
