Exhaust System - Exploded View

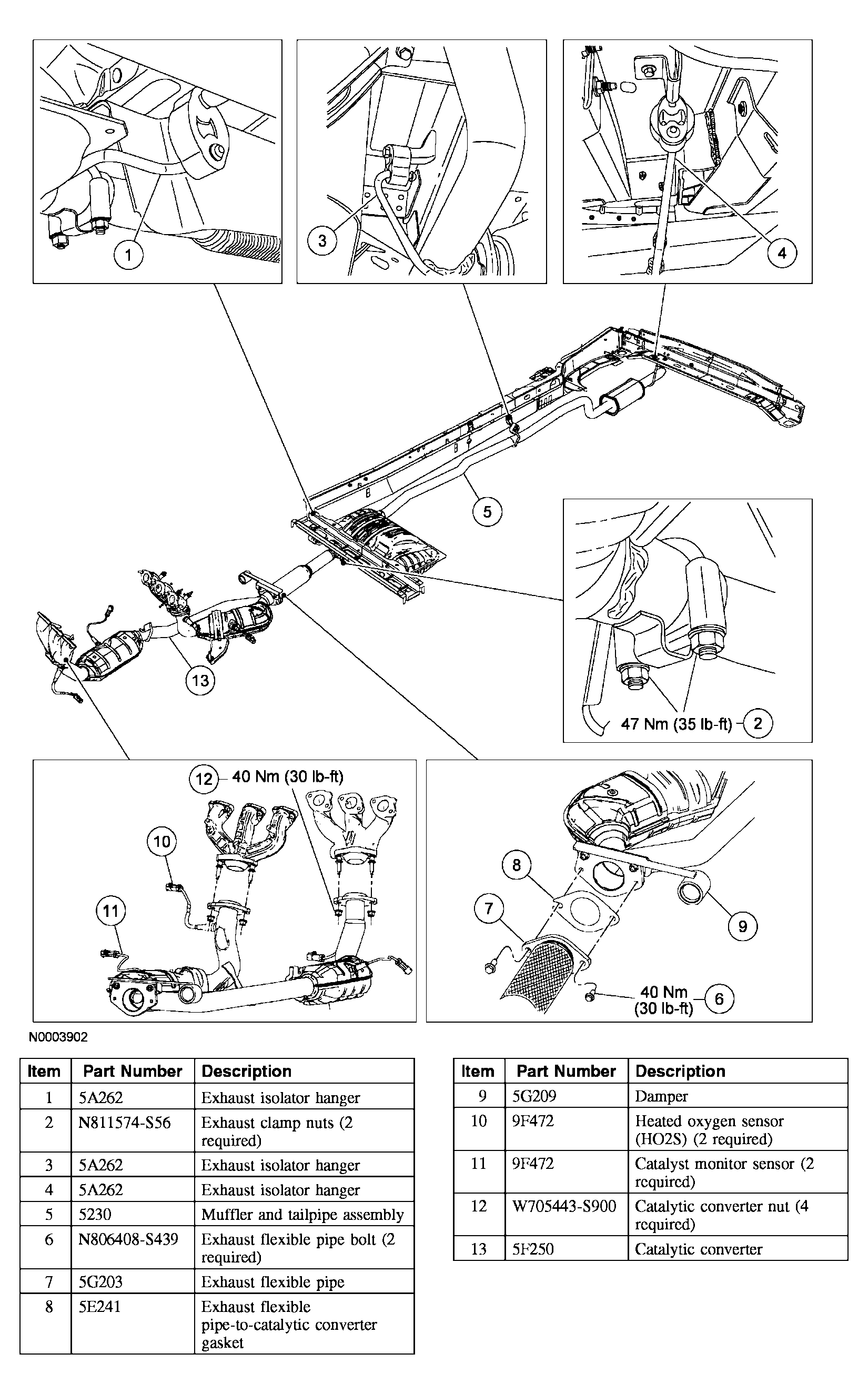

Fig 1: Exploded View Of Exhaust System

G04005417

Courtesy of FORD MOTOR CO.

For additional information, refer to the appropriate component removal and installation procedures.
