Home >> Ford >> 2005 >> Freestar Base >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine >> In-Vehicle Repair >> Engine Lubrication Components - Exploded View

Engine Lubrication Components - Exploded View

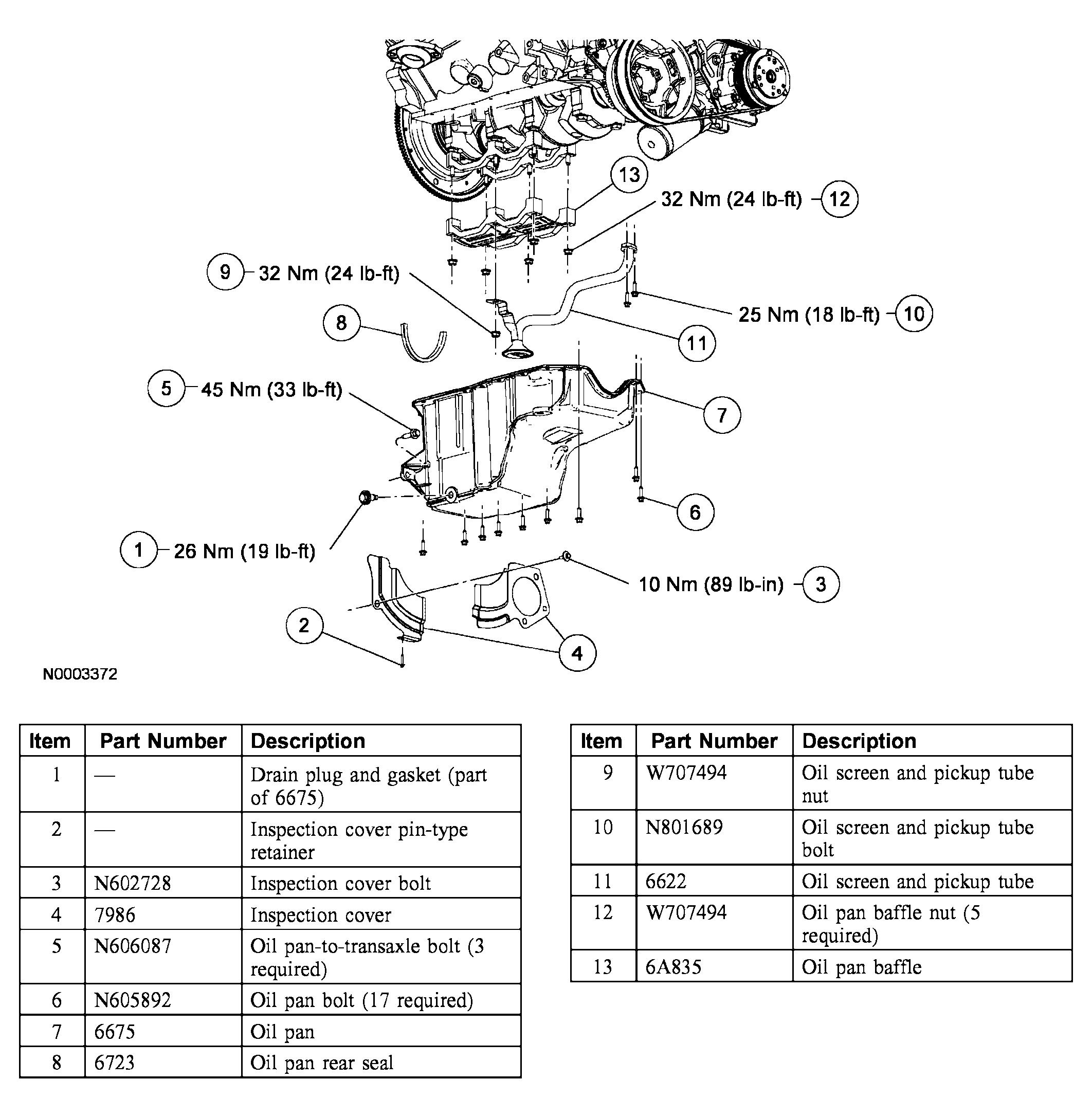

Fig 1: Exploded View Of Engine Lubrication Components
G04003998Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the appropriate procedures.
