Home >> Ford >> 2005 >> Freestar Base >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine >> In-Vehicle Repair >> Valve Train Components - Exploded View

Valve Train Components - Exploded View

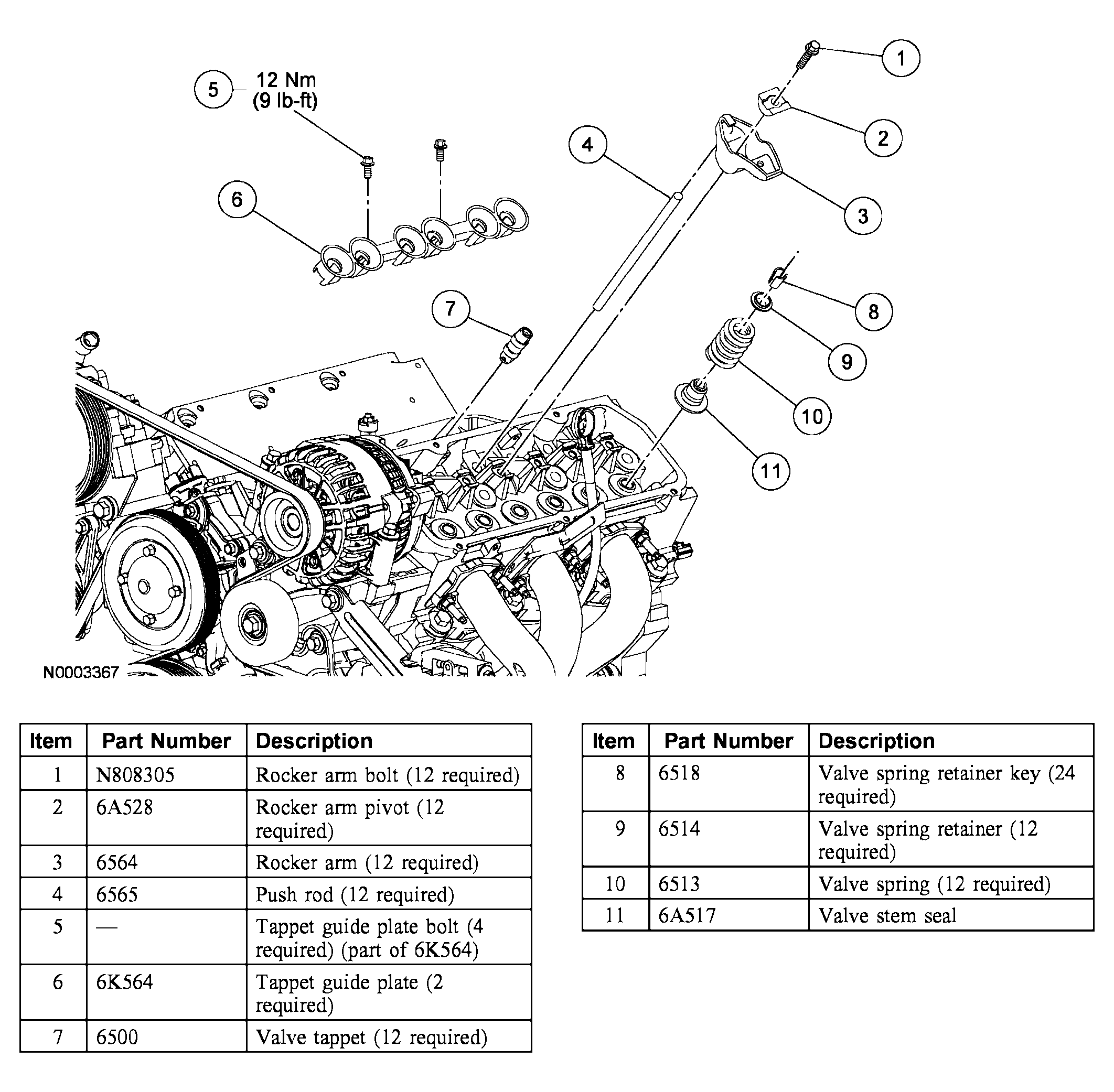

Fig 1: Exploded View Of Valve Train Components
G04003977Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the appropriate procedures.
