Home >> Ford >> 2005 >> Freestar Base >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Disassembly And Assembly Of Subassemblies >> Sun and Shell Assembly - Disassembly >> Notes

Sun and Shell Assembly - Disassembly: Notes

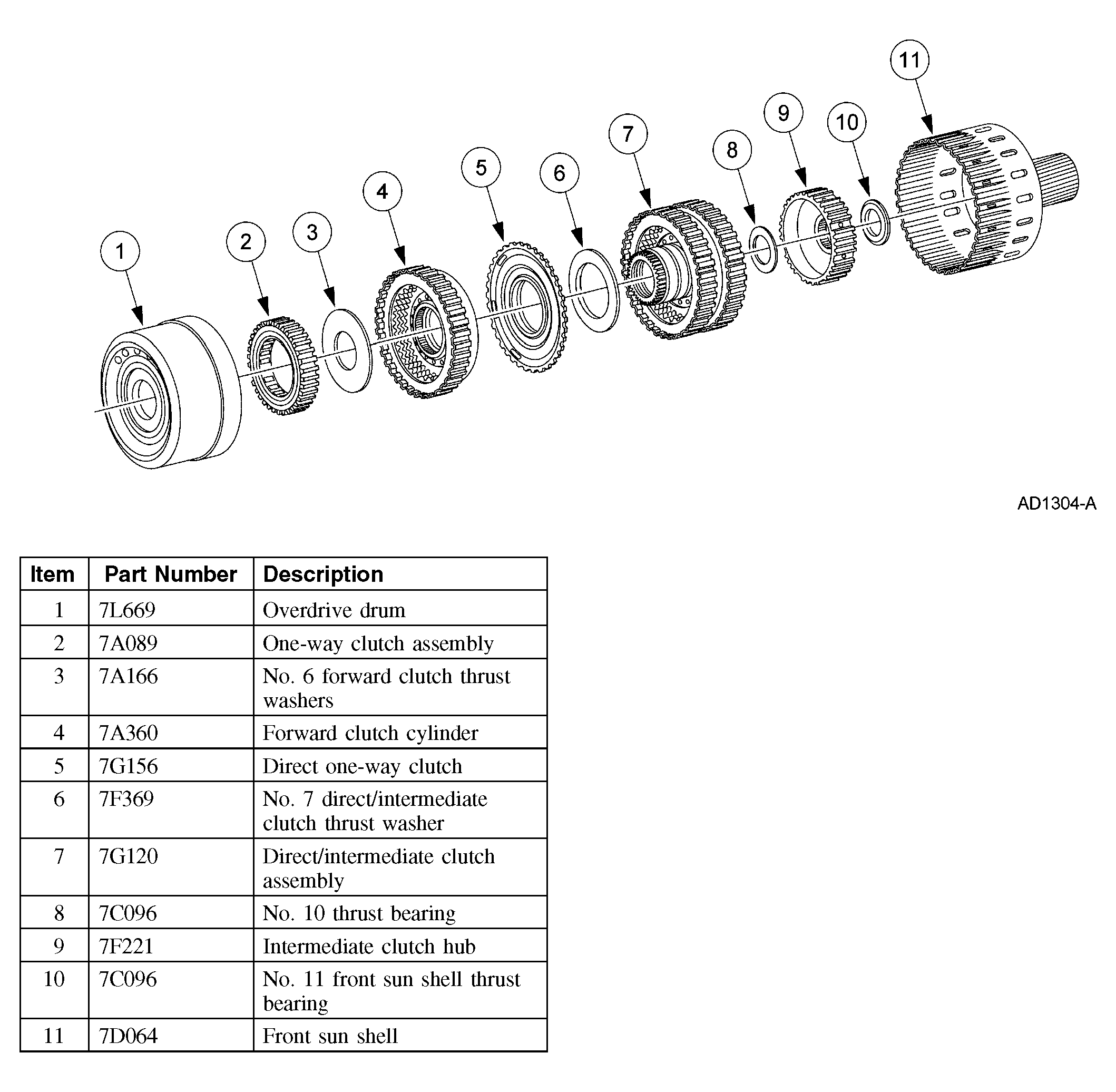

Fig 1: Identifying Front Sun Shell & Overdrive Drum Components

G04005009

Courtesy of FORD MOTOR CO.
