Home >> Ford >> 2005 >> Freestar SES >> Repair and Diagnosis >> Accessories & Equipment >> Accessories Control Systems >> Component Testing >> Component Testing >> Multifunction Switch, Wiper/Washer Portion

Multifunction Switch, Wiper/Washer Portion

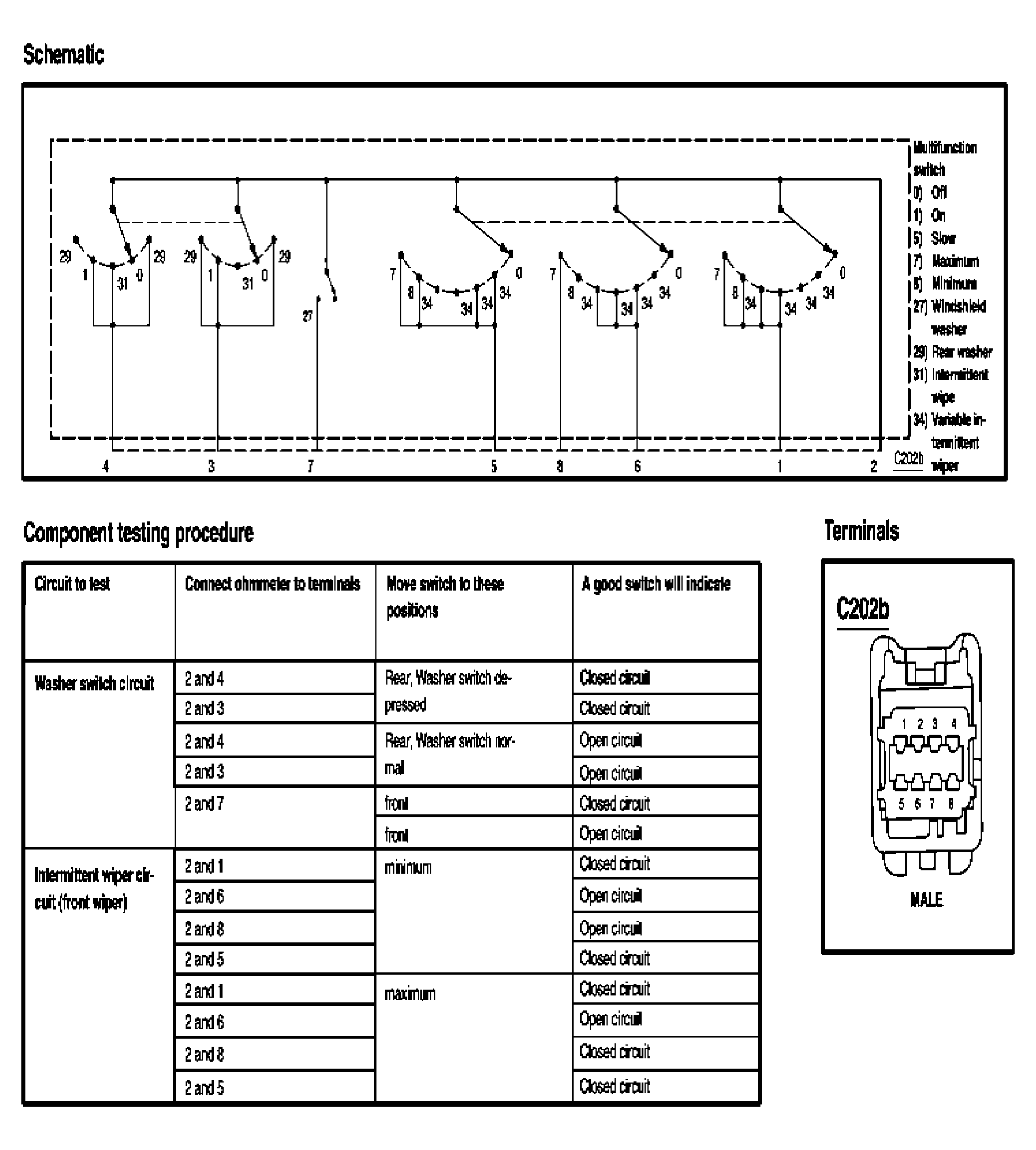

Fig 1: Multifunction Switch, Wiper/Washer Portion - Component Testing (1 Of 2)
G03994121Courtesy of FORD MOTOR CO.

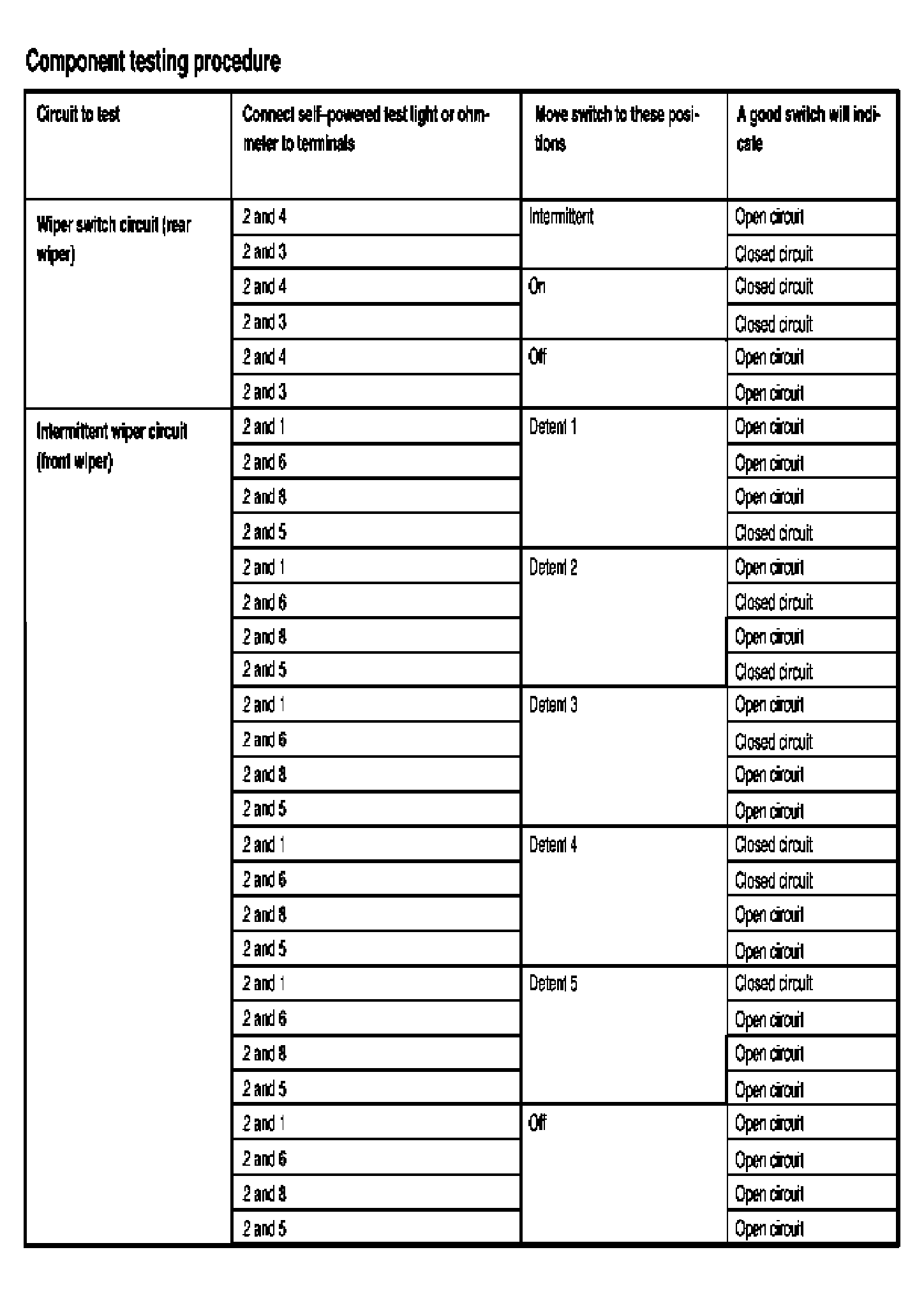

Fig 2: Multifunction Switch, Wiper/Washer Portion - Component Testing (2 Of 2)
G03994122Courtesy of FORD MOTOR CO.
