Engine Lubrication Components - Exploded View

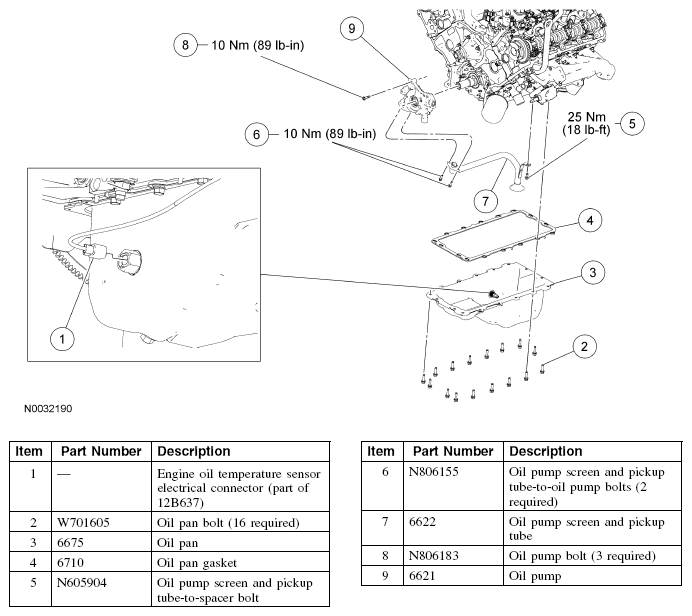

Fig 1: Exploded View Of Engine Lubrication Components With Torque Specifications

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the appropriate procedure.
