Home >> Ford >> 2006 >> Expedition RWD >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine >> In-Vehicle Repair >> Intake Manifold >> Notes

Intake Manifold: Notes

MATERIALS

Item Specification
Metal Surface Prep
ZC-31		 -
Silicone Gasket Remover
ZC-30		 -

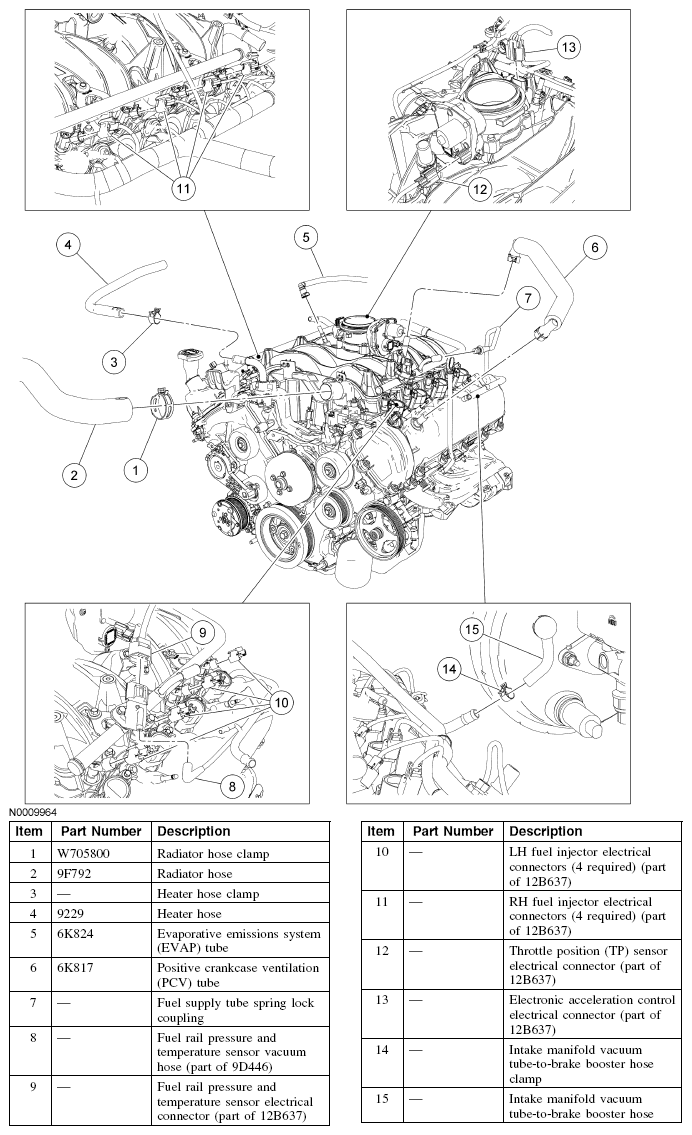

Fig 1: Identifying Intake Manifold Components (1 Of 2)
G04626891Courtesy of FORD MOTOR CO.

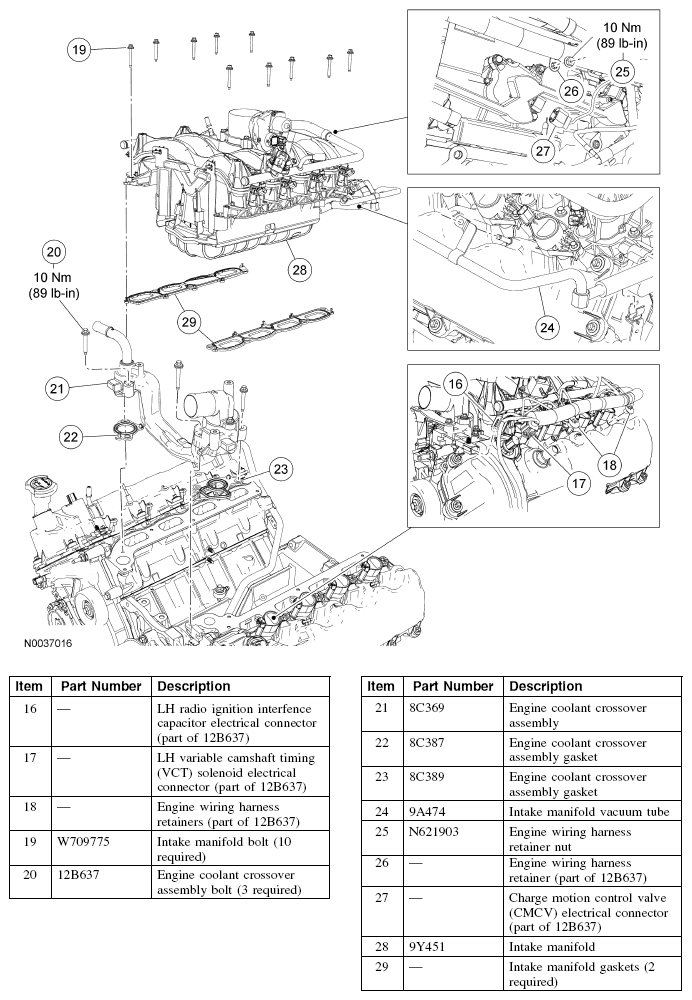

Fig 2: Intake Manifold Replacement Components With Torque Specifications (2 Of 2)
G04626892Courtesy of FORD MOTOR CO.
