Home >> Ford >> 2006 >> Explorer 4.6 8, RWD >> Repair and Diagnosis >> Steering >> Steering Column >> Removal And Installation >> Steering Column >> Notes

Steering Column: Notes

NOTE: Steering wheel is removed for clarity.

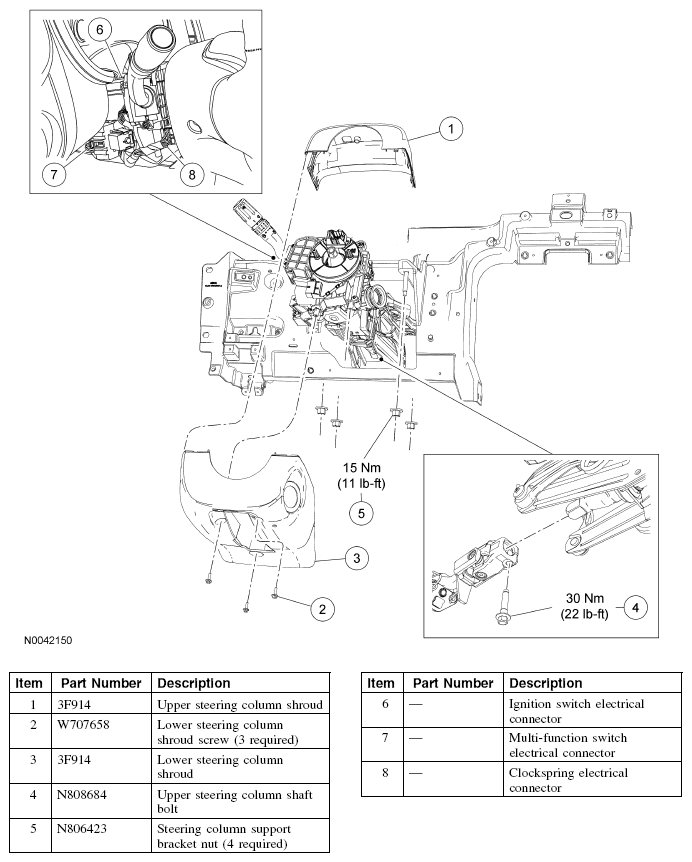

Fig 1: Steering Column With Torque Specifications

G04637832

Courtesy of FORD MOTOR CO.
