Home >> Ford >> 2006 >> Focus ZX4 ST >> Repair and Diagnosis >> Electrical >> Starter >> Starting System >> Removal And Installation >> Starter Motor >> Notes

Starter Motor: Notes

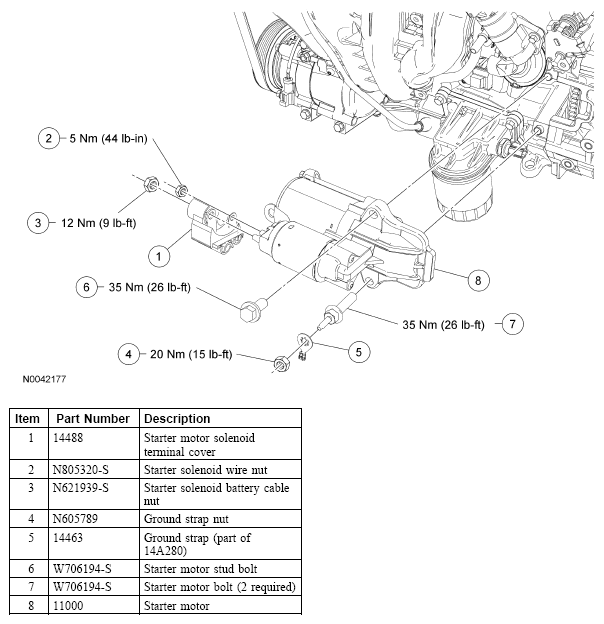

Fig 1: Starter Motor Assembly - Exploded View With Torque Specifications

G04652556

Courtesy of FORD MOTOR CO.
