Engine Lubrication Components - Exploded View

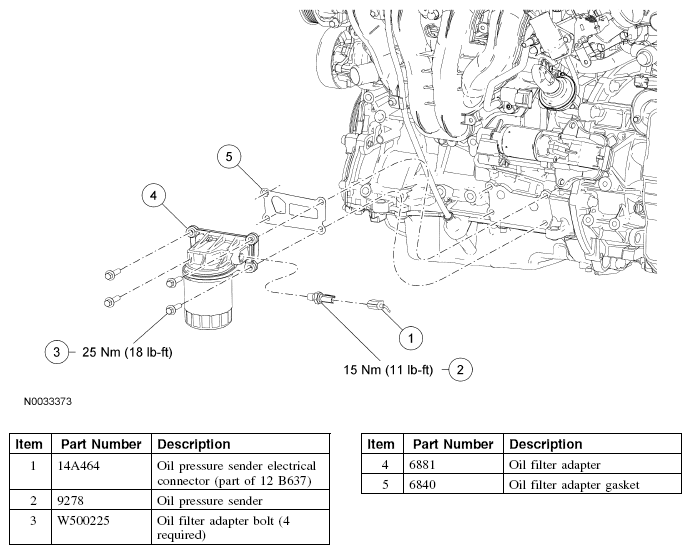

Fig 1: Exploded View Of Engine Lubrication Components - Oil Filter Adapter And Oil Pressure Sender With Torque Specifications

Courtesy of FORD MOTOR CO.

NOTE: Automatic transmission shown, manual transmission similar.

Fig 2: Exploded View Of Engine Lubrication Components With Torque Specifications

Courtesy of FORD MOTOR CO.

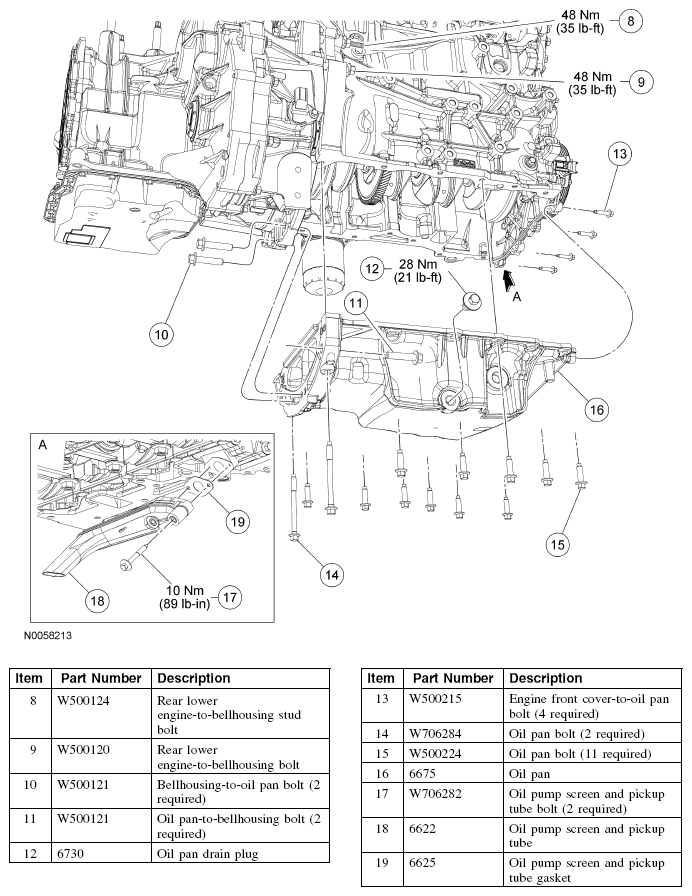

Fig 3: Exploded View Of Engine Lubrication Components - Oil Pan, Oil Pump Screen And Pickup Tube With Torque Specifications

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the procedures in this article.
