Lower End Components - Exploded View

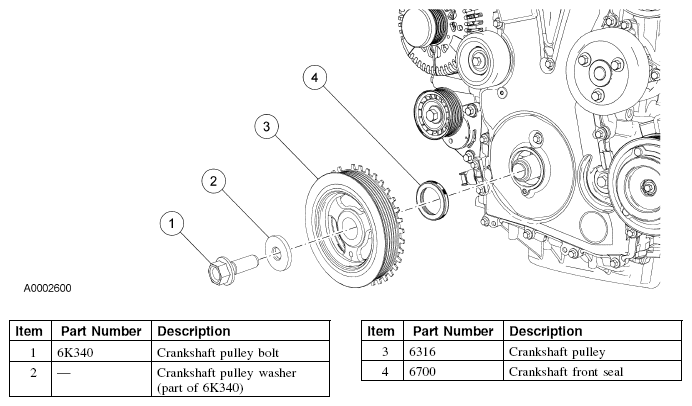

Fig 1: Exploded View Of Lower End Components - Crankshaft Pulley And Crankshaft Front Seal

Courtesy of FORD MOTOR CO.

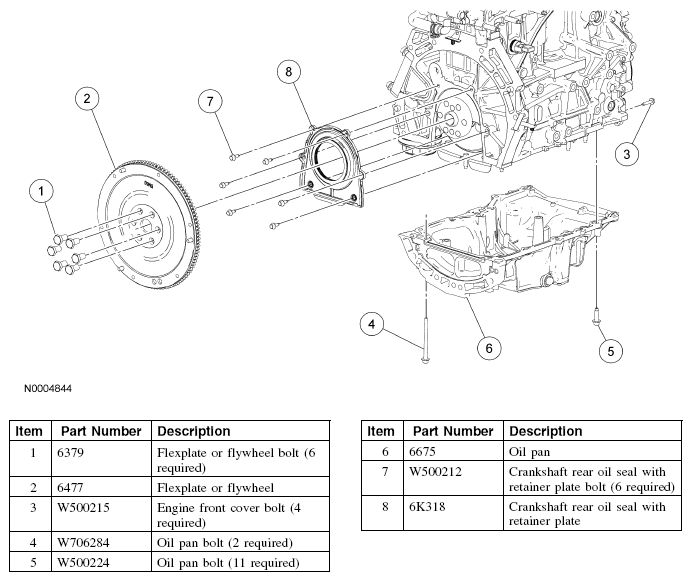

Fig 2: Exploded View Of Lower End Components - Flywheel And Crankshaft Rear Seal With Retainer Plate

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the procedures in this article.
