Valve Train Components - Exploded View

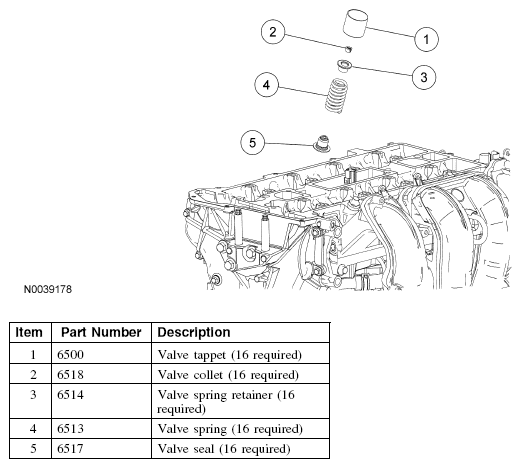

Fig 1: Exploded View Of Valve Train Components
G04652031Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures in this article.
