Connector Views
Connector Views

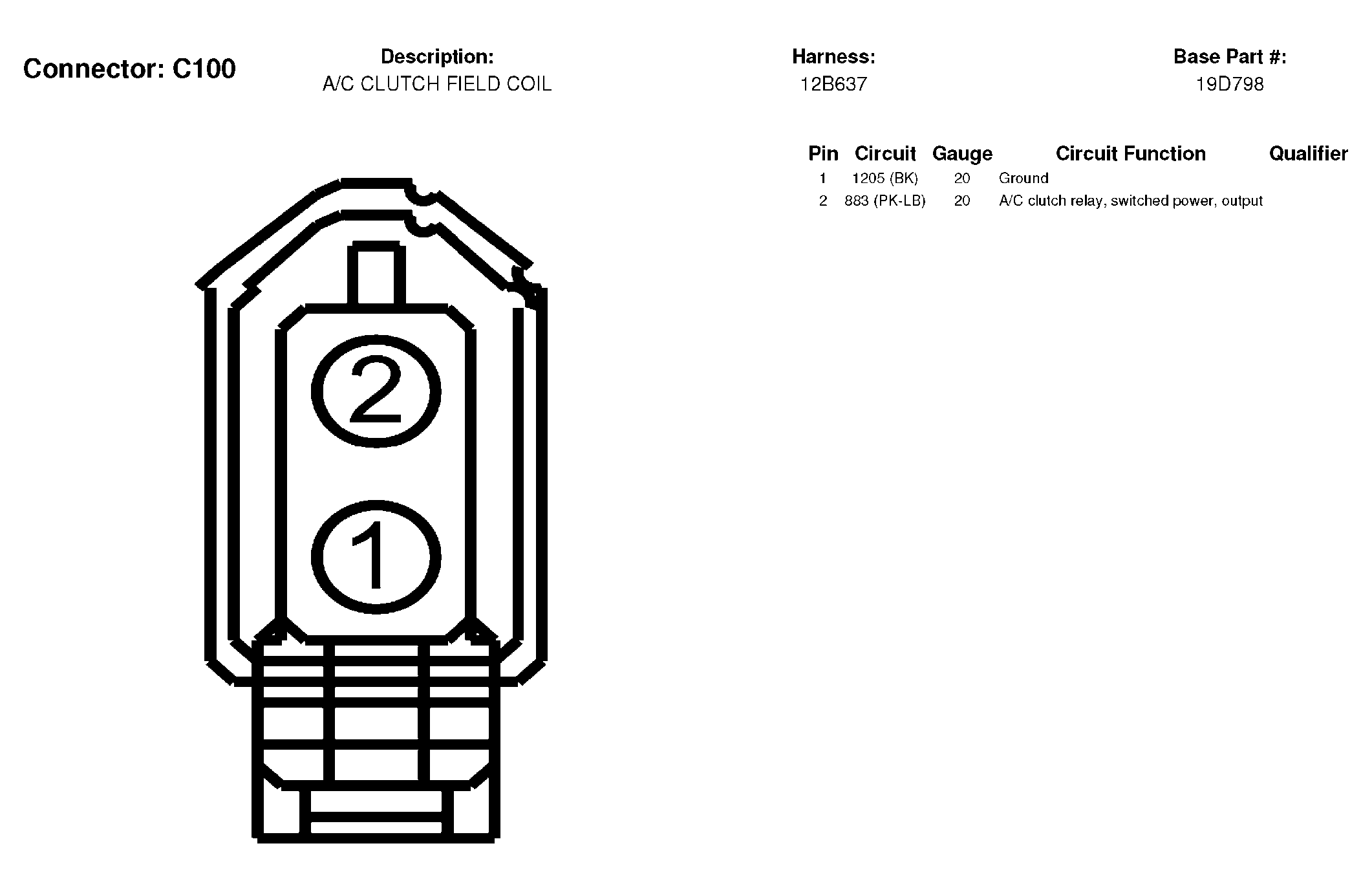

Fig 1: A/C Clutch Field Coil Connector End View (C100)
Courtesy of FORD MOTOR CO.

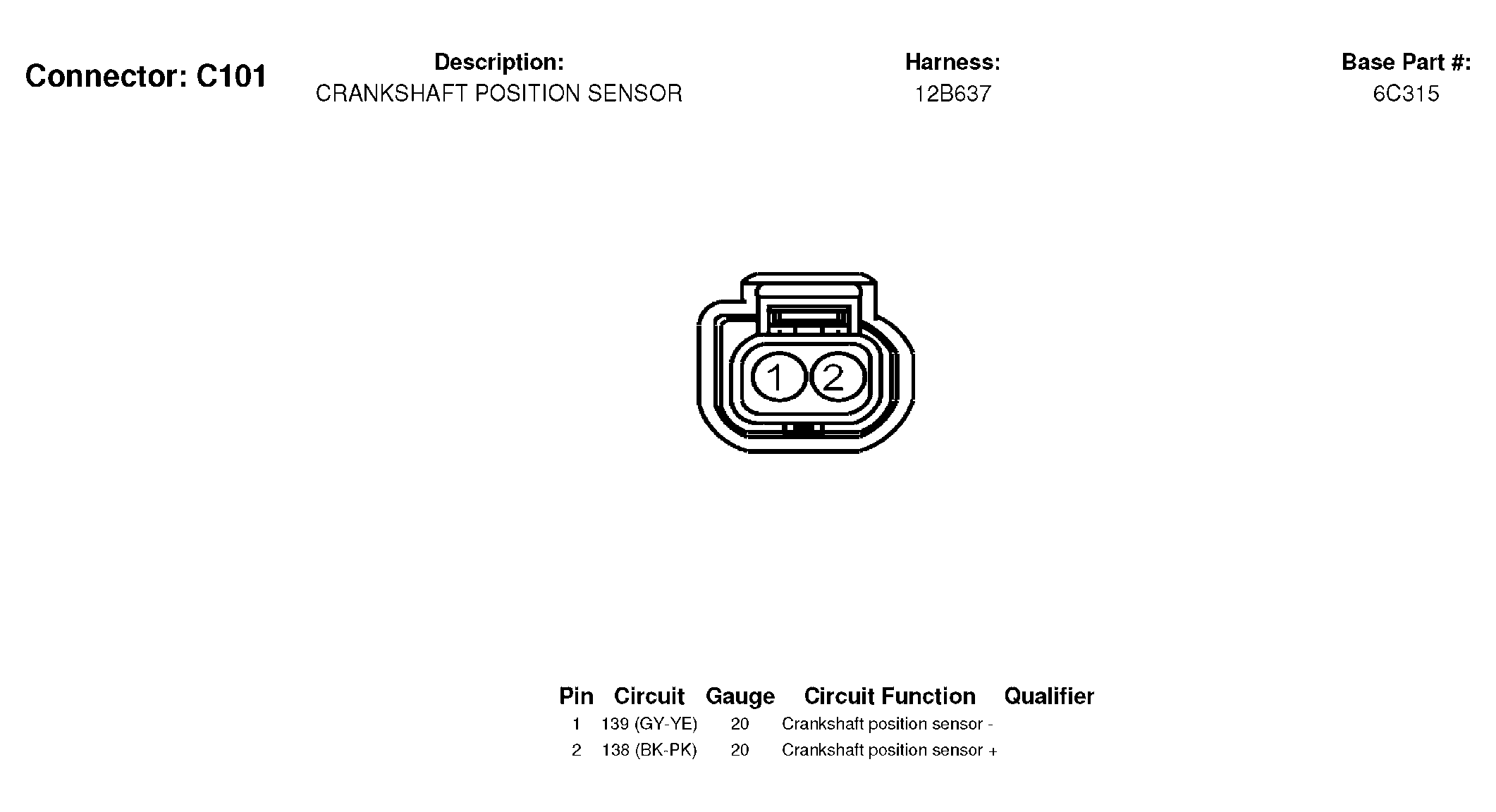

Fig 2: Crankshaft Position Sensor Connector End View (C101)
Courtesy of FORD MOTOR CO.

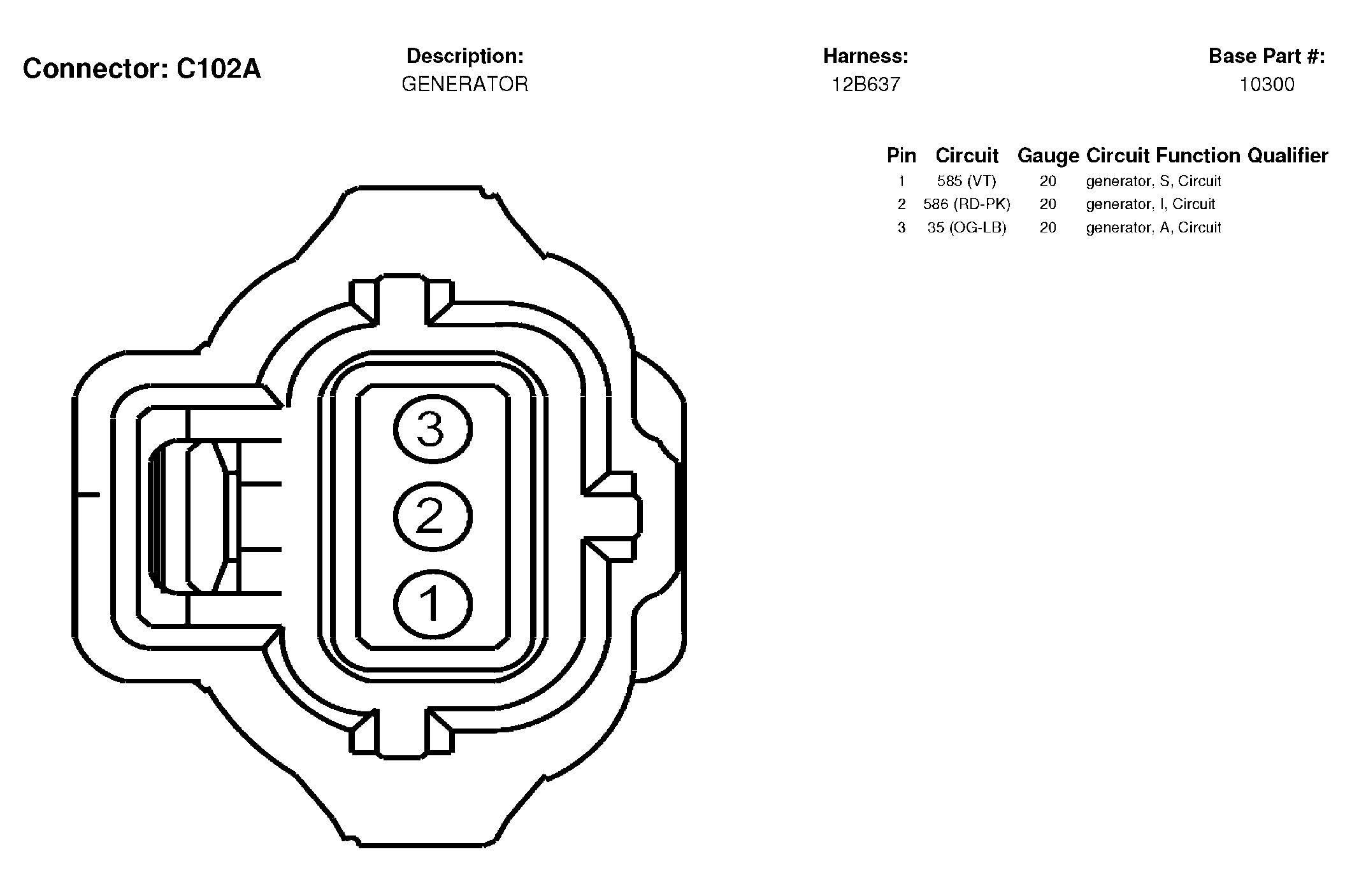

Fig 3: Generator Connector End View (C102A)
Courtesy of FORD MOTOR CO.

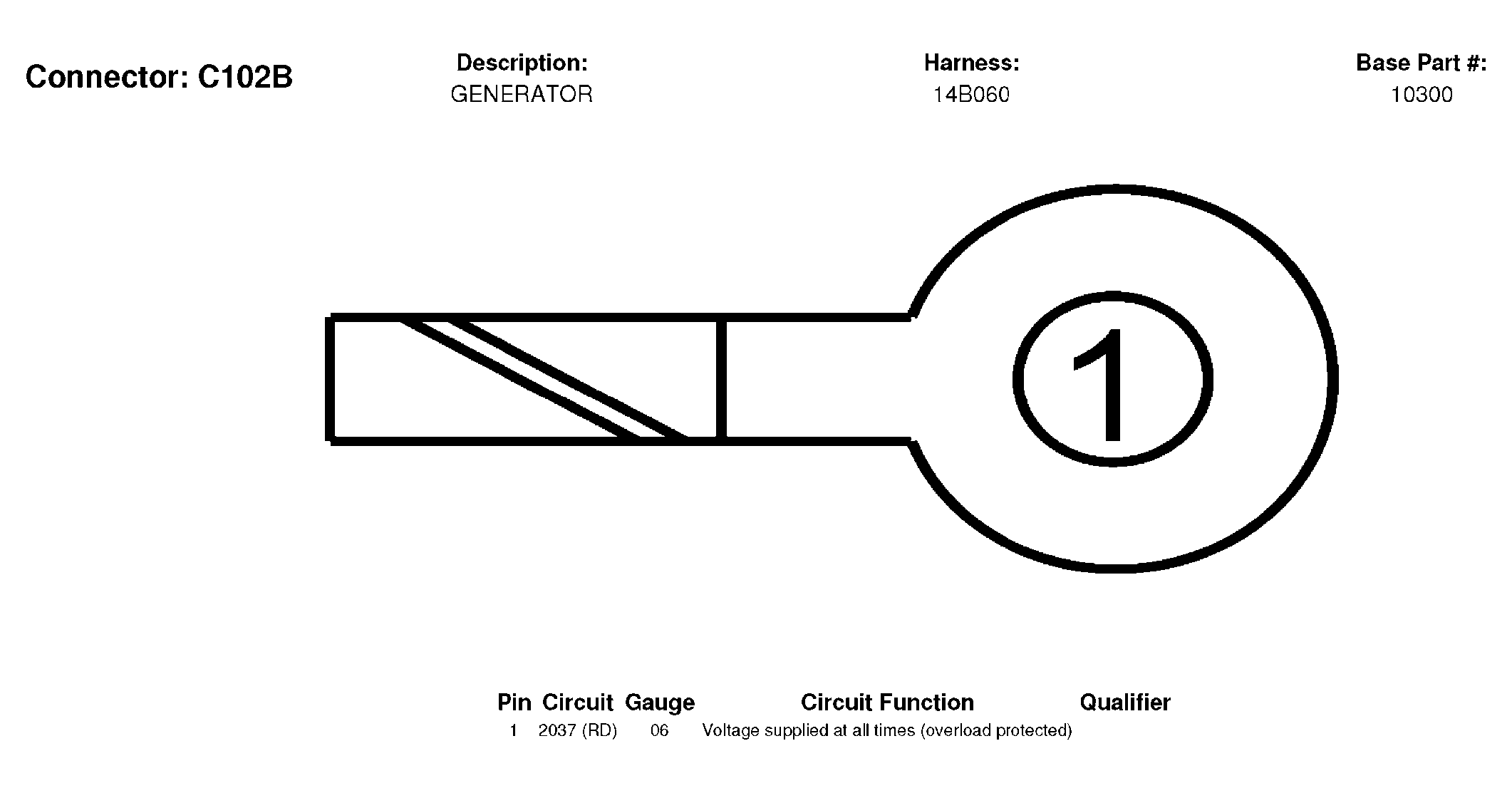

Fig 4: Generator Connector End View (C102B)
Courtesy of FORD MOTOR CO.

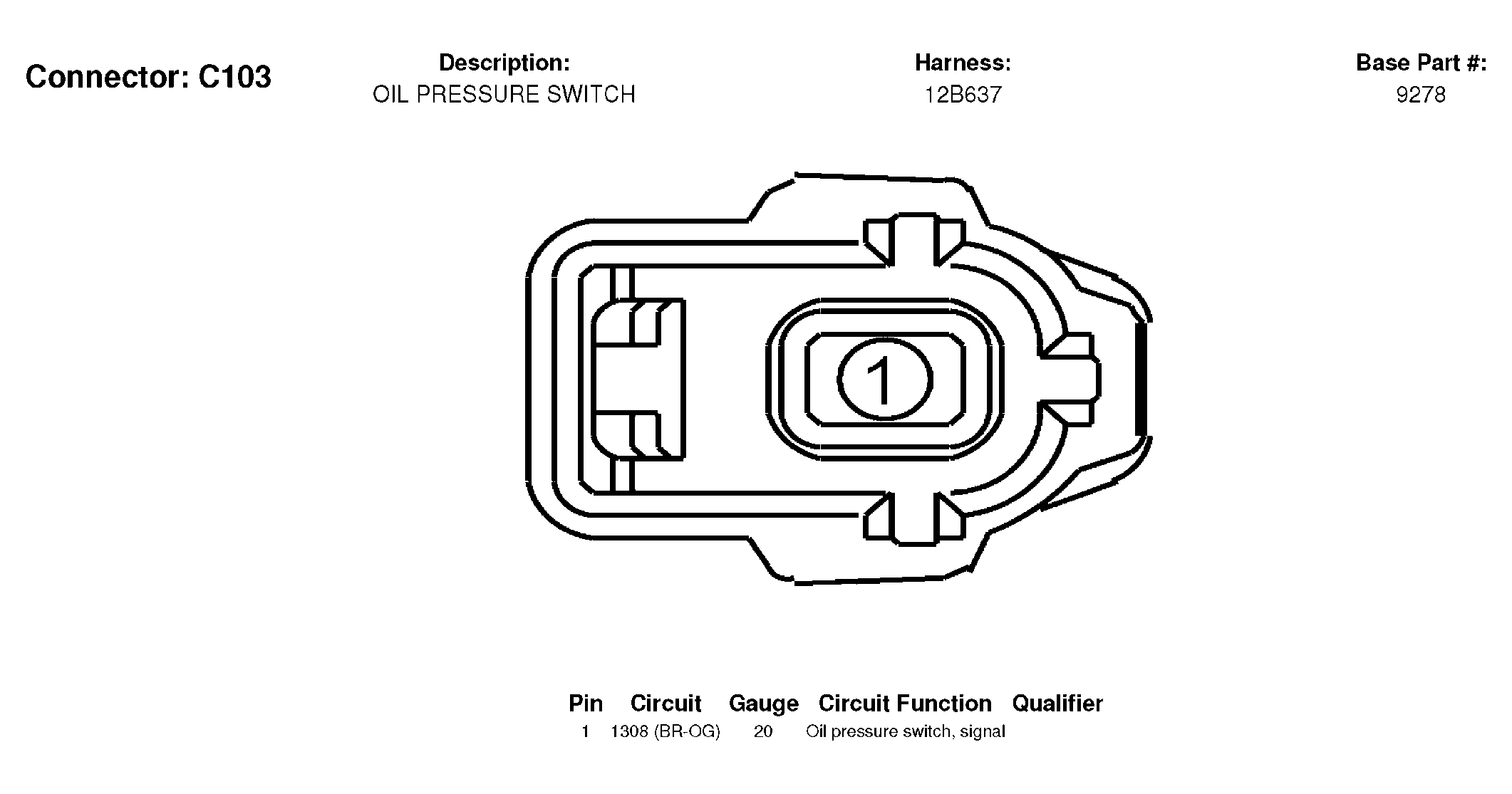

Fig 5: Oil Pressure Switch Connector End View (C103)
Courtesy of FORD MOTOR CO.

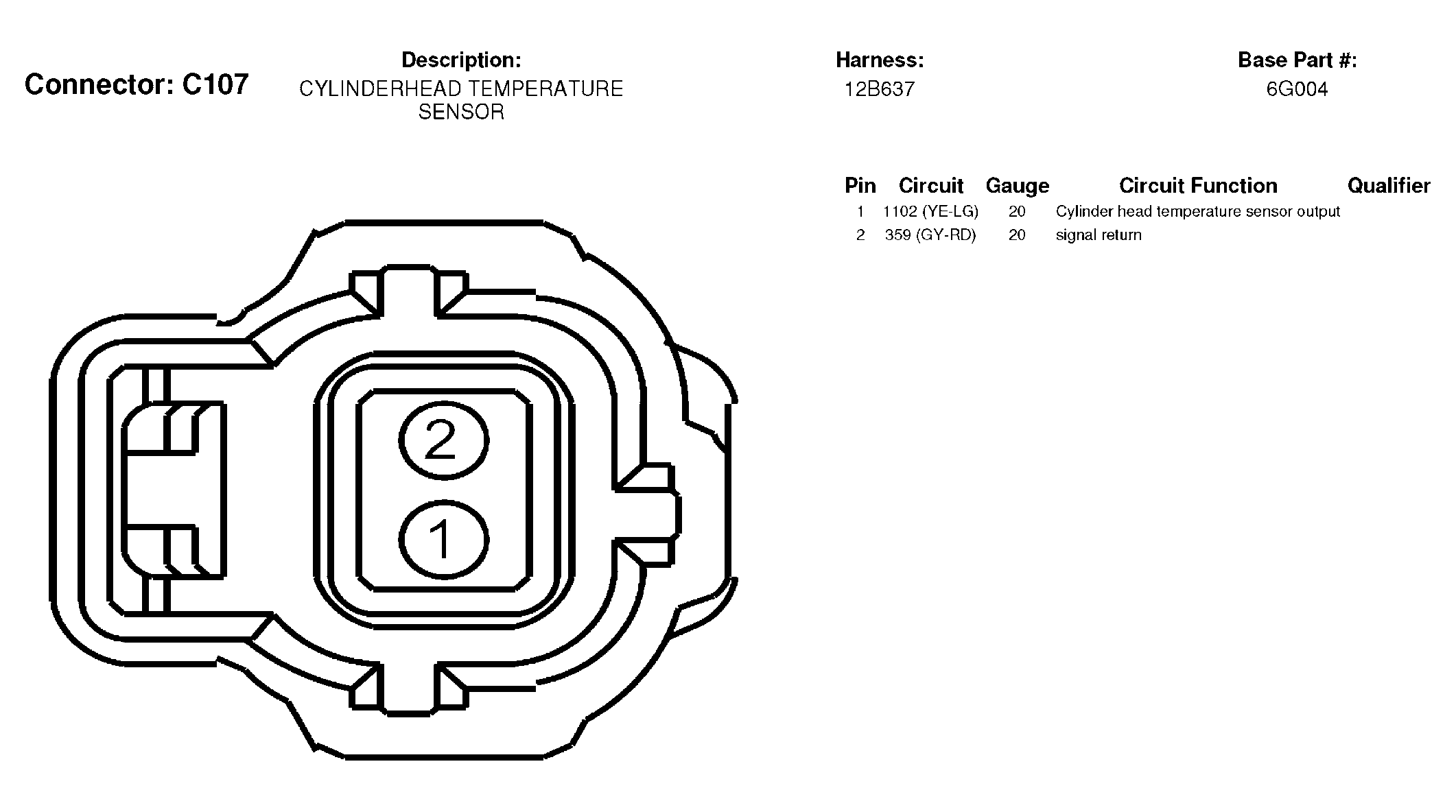

Fig 6: Cylinder Head Temperature Sensor Connector End View (C107)
Courtesy of FORD MOTOR CO.

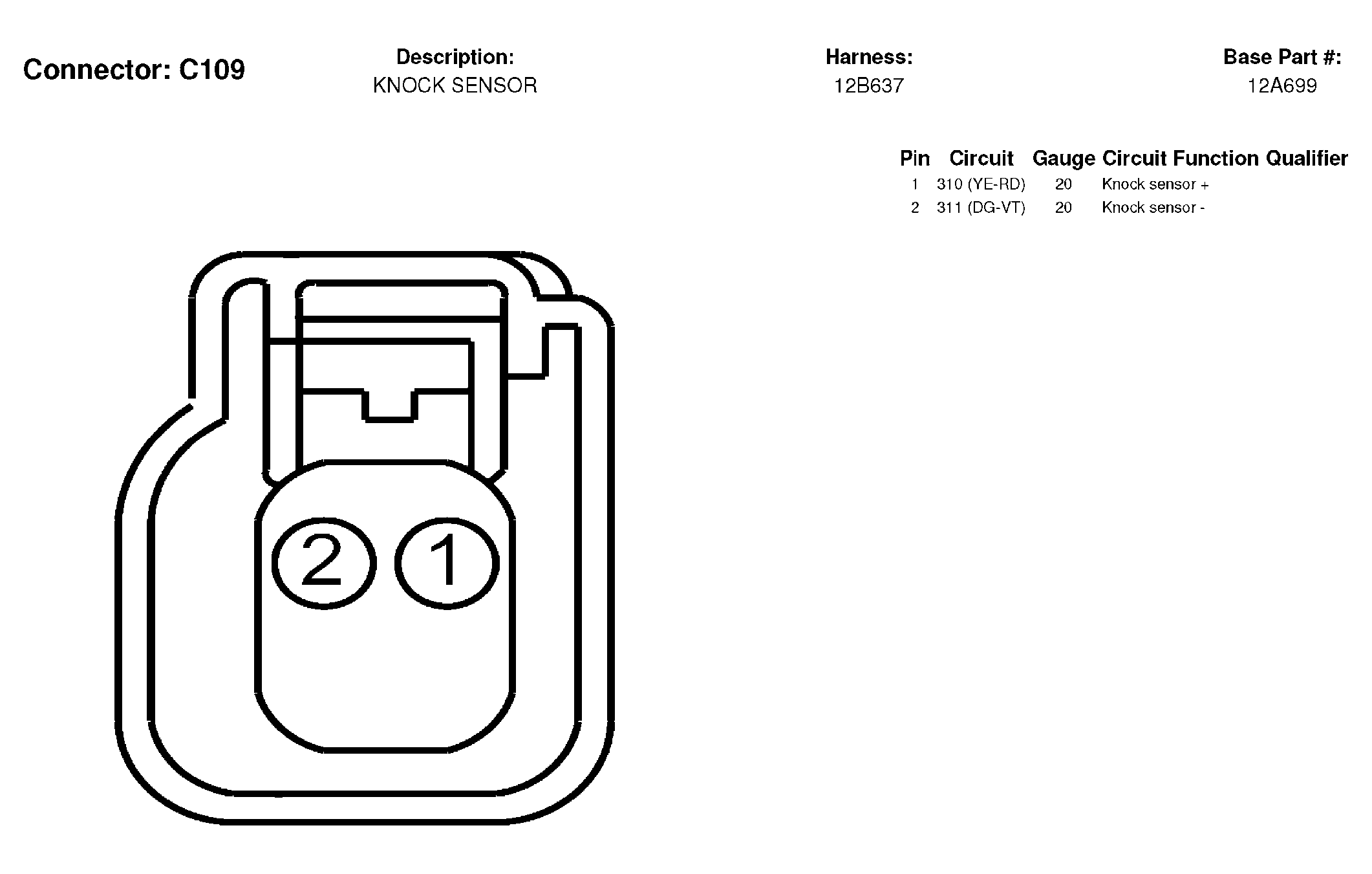

Fig 7: Knock Sensor Connector End View (C109)
Courtesy of FORD MOTOR CO.

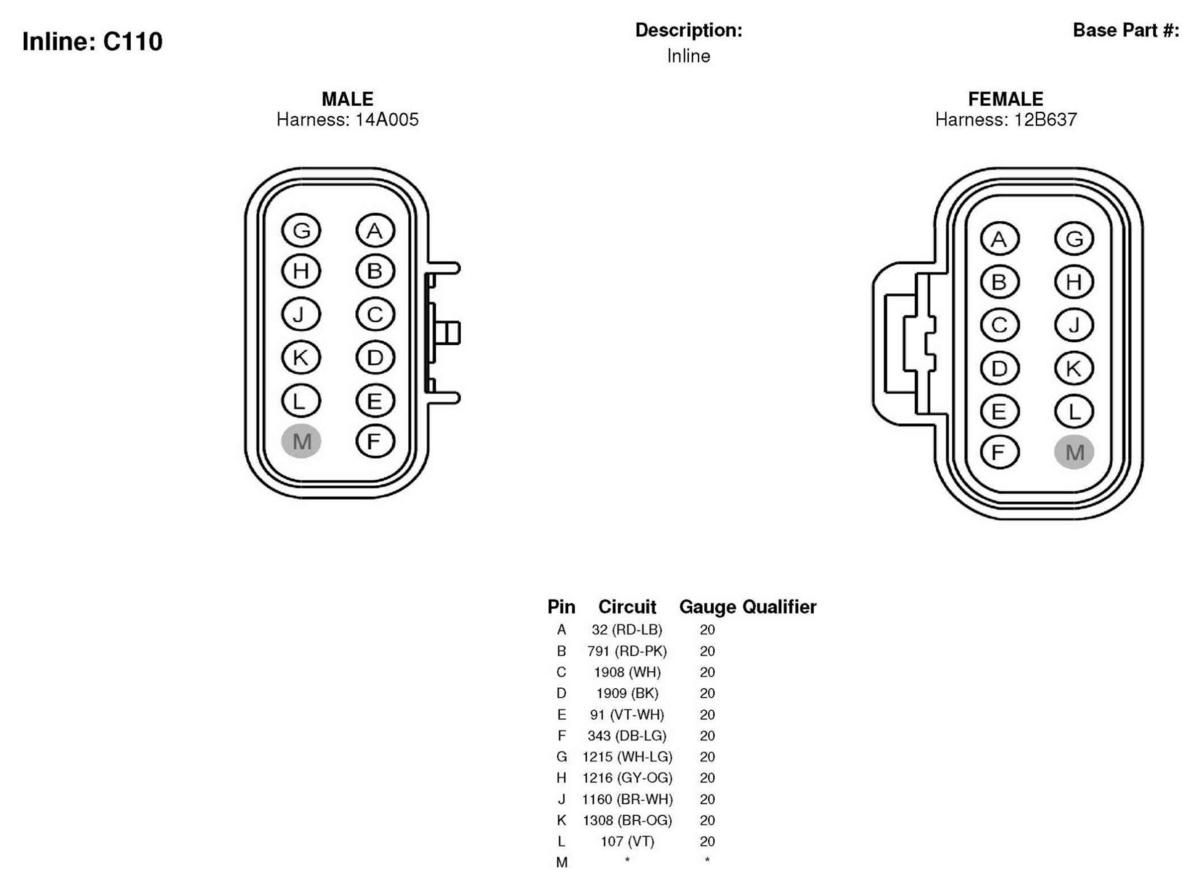

Fig 8: Inline Connector End View (C110)
Courtesy of FORD MOTOR CO.

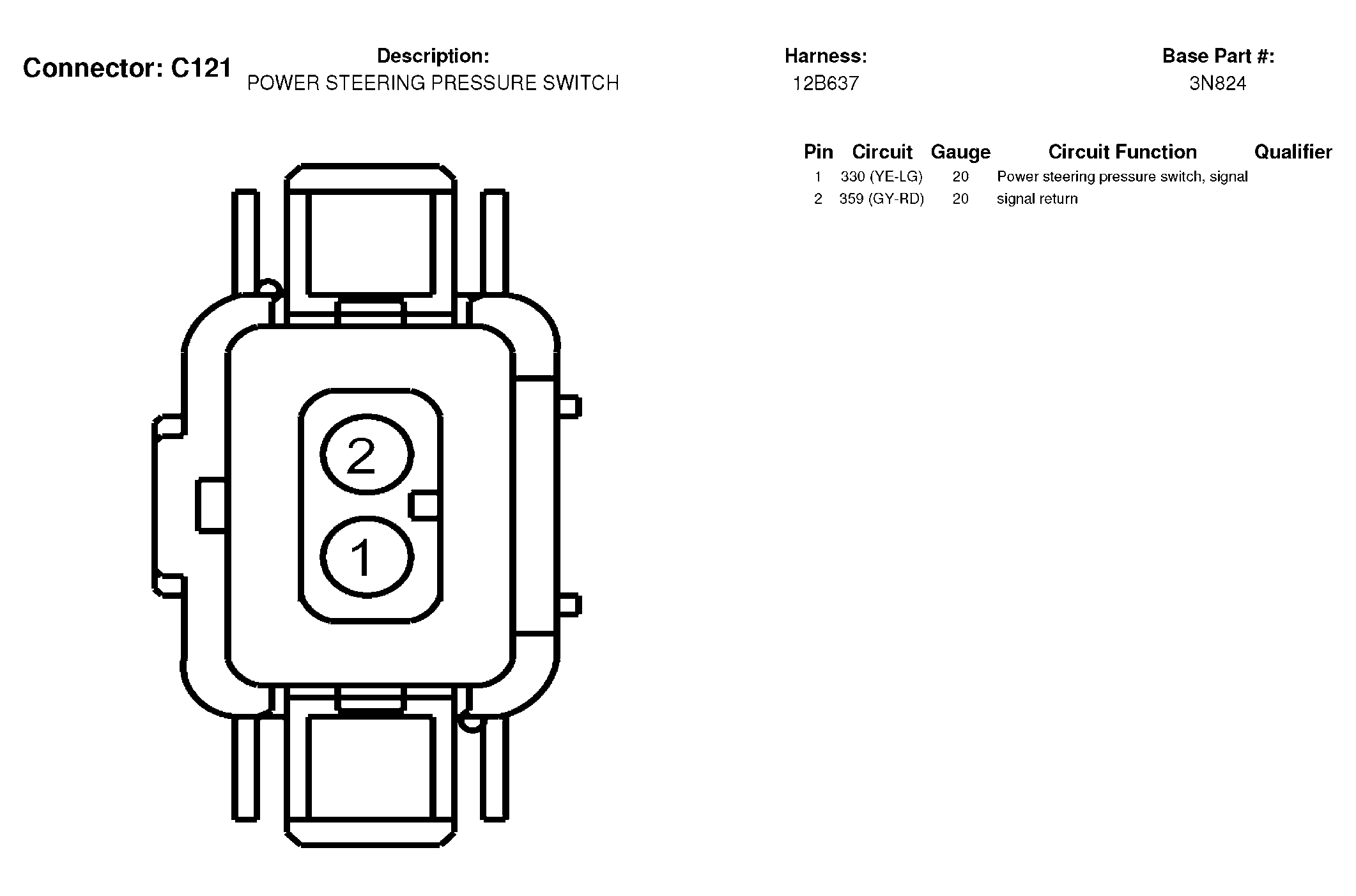

Fig 9: Power Steering Pressure Switch Connector End View (C121)
Courtesy of FORD MOTOR CO.

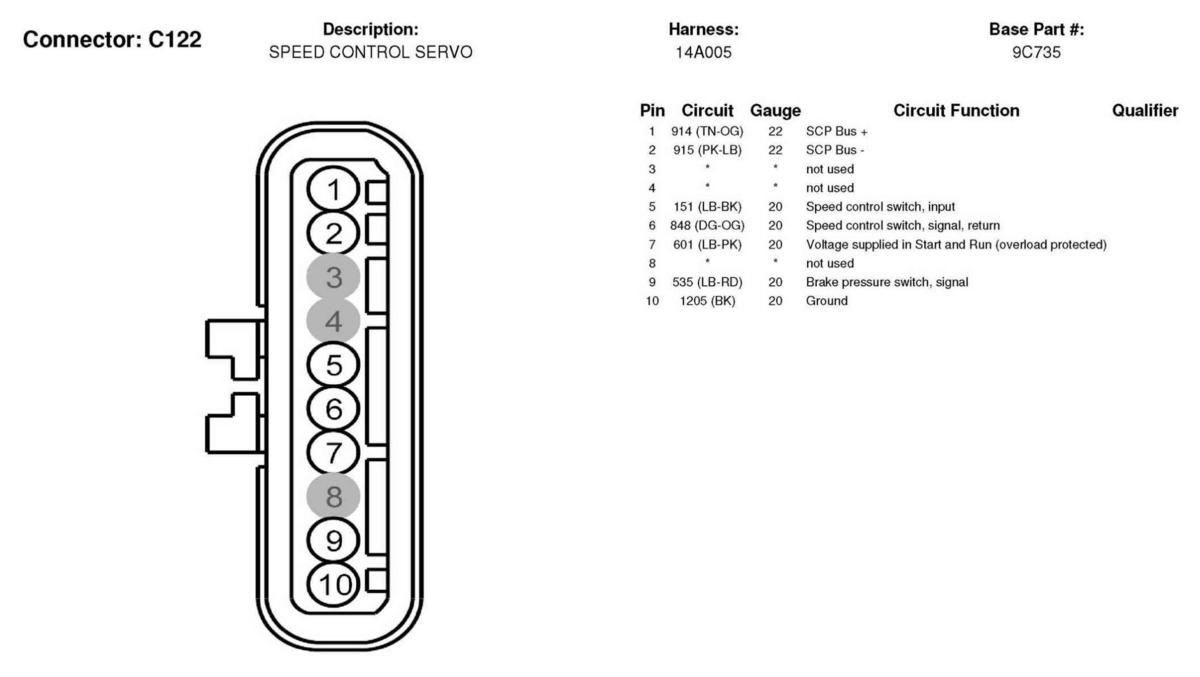

Fig 10: Speed Control Servo Connector End View (C122)
Courtesy of FORD MOTOR CO.

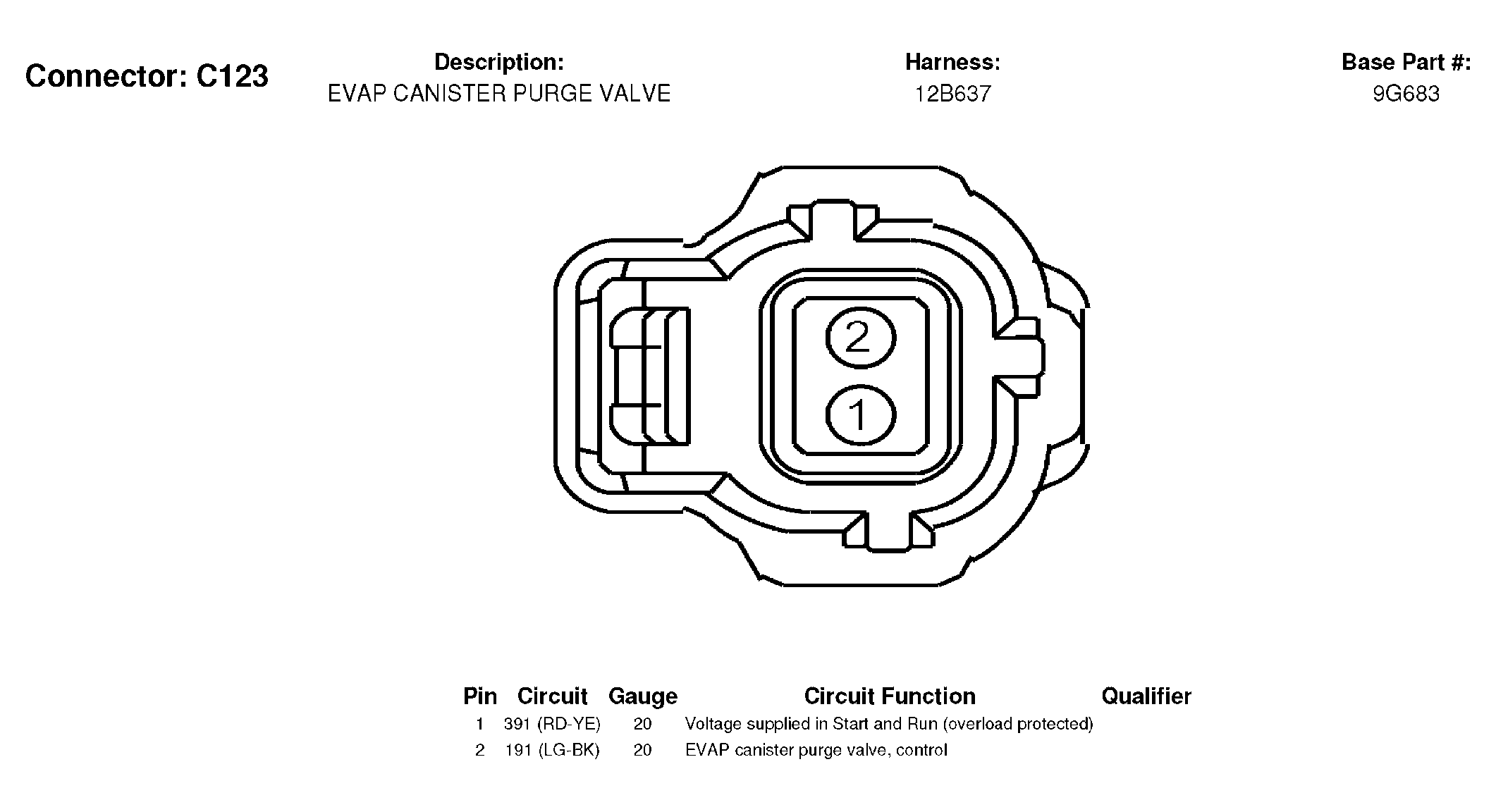

Fig 11: EVAP Canister Purge Valve Connector End View (C123)
Courtesy of FORD MOTOR CO.

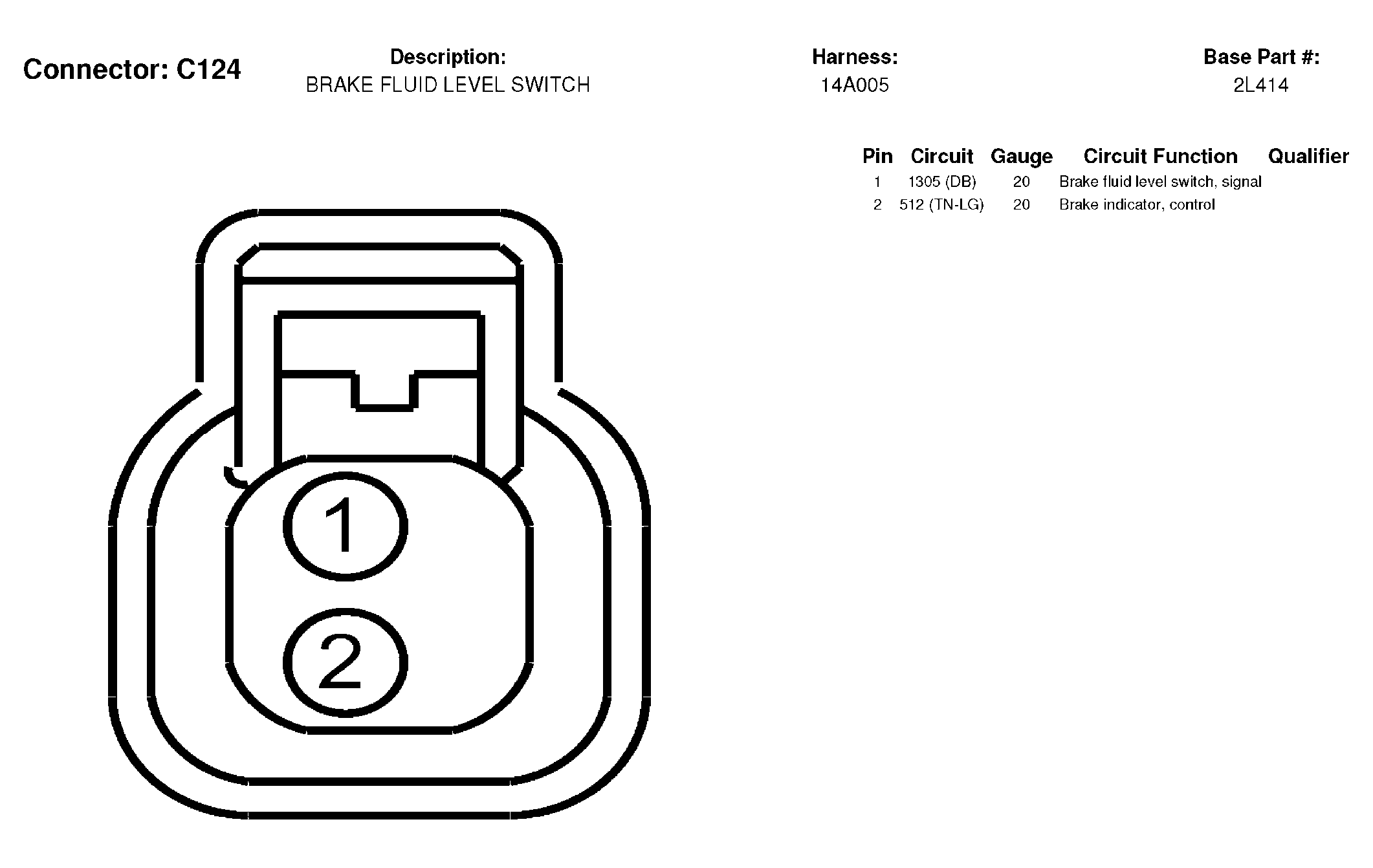

Fig 12: Brake Fluid Level Switch Connector End View (C124)
Courtesy of FORD MOTOR CO.

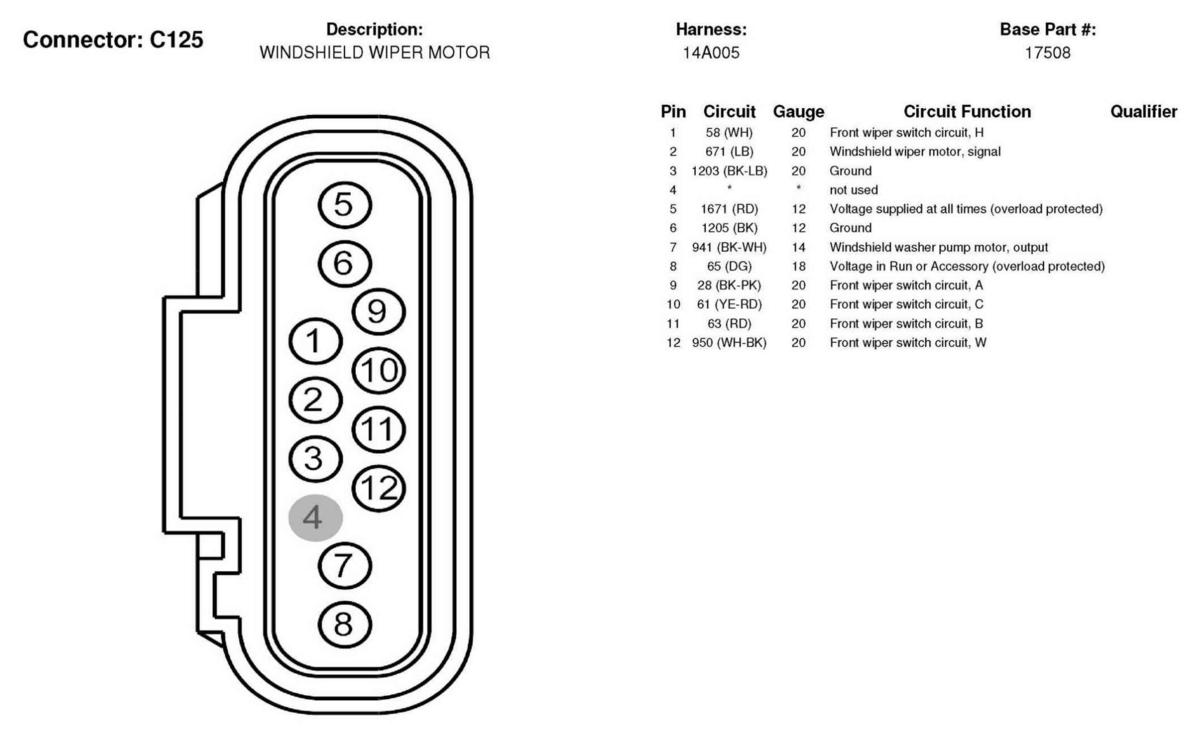

Fig 13: Windshield Wiper Motor Connector End View (C125)
Courtesy of FORD MOTOR CO.

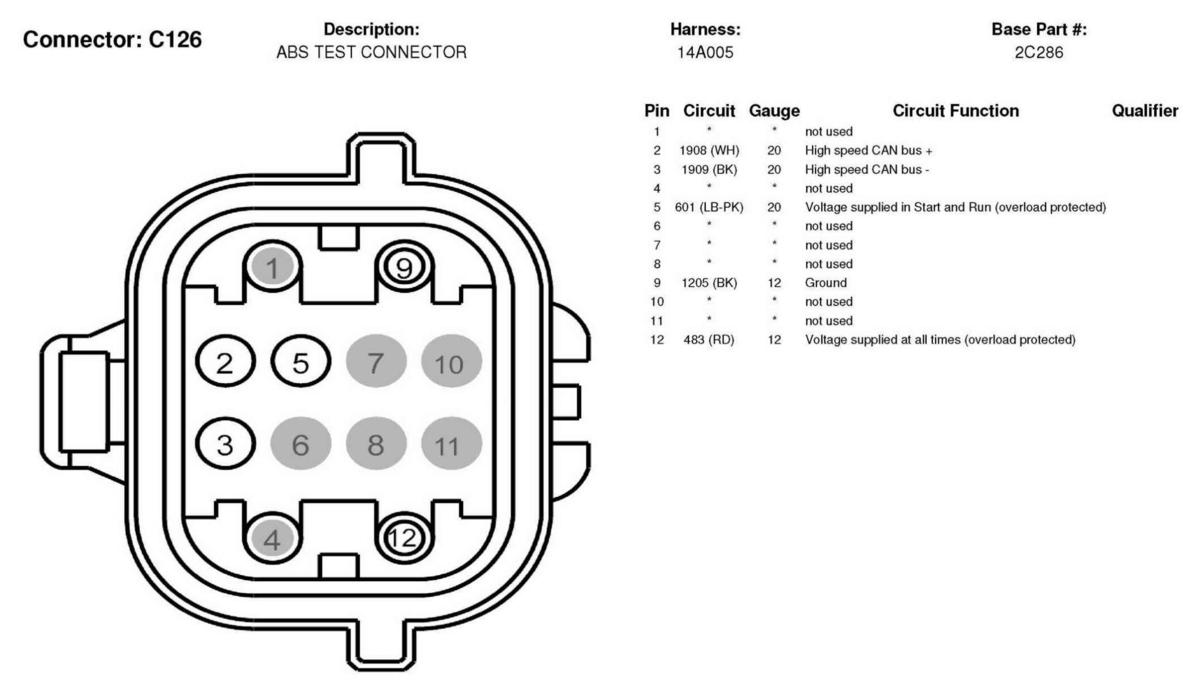

Fig 14: ABS Test Connector, Connector End View (C126)
Courtesy of FORD MOTOR CO.

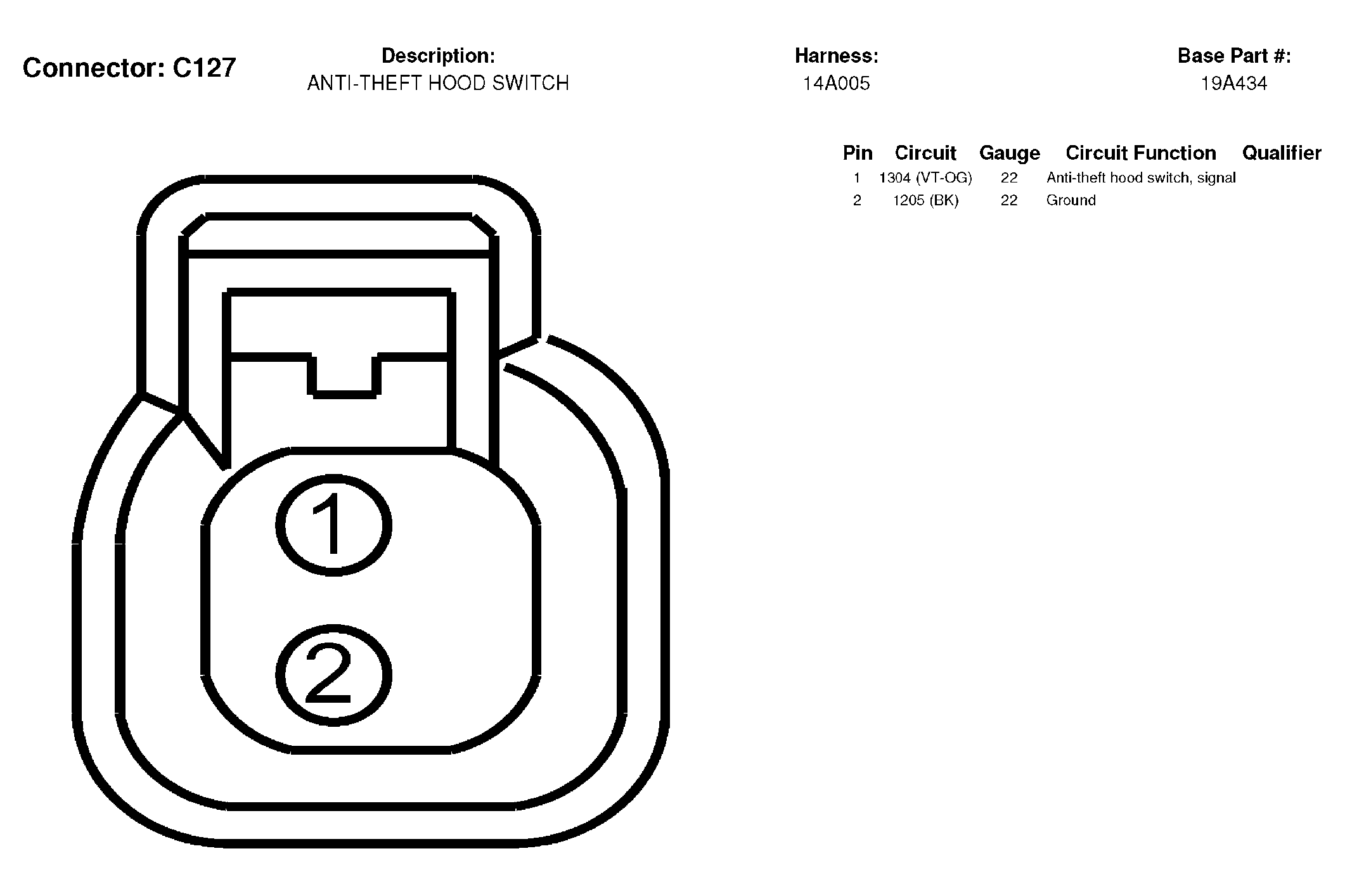

Fig 15: Anti-Theft Hood Switch Connector End View (C127)
Courtesy of FORD MOTOR CO.

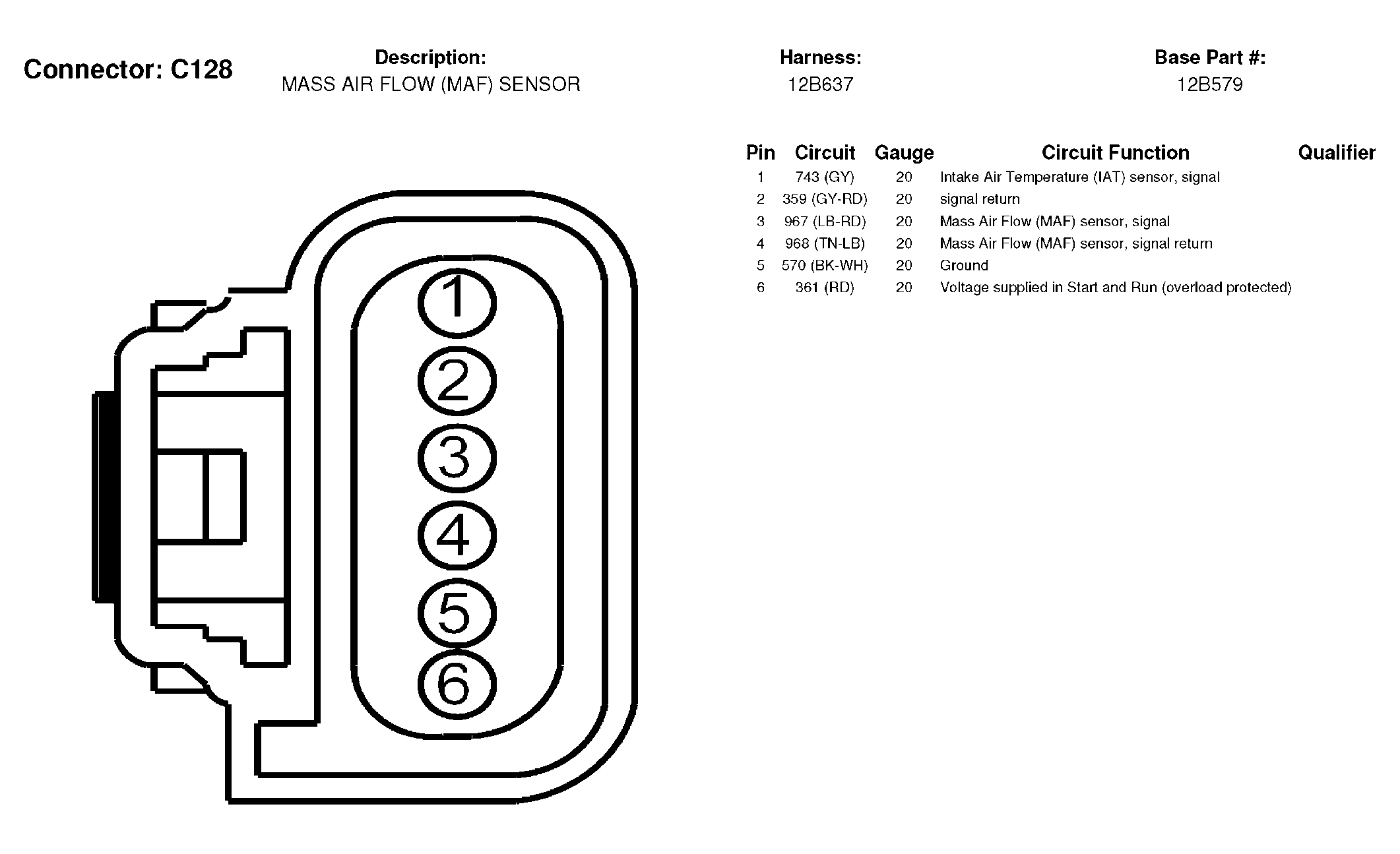

Fig 16: Mass Air Flow (MAF) Sensor Connector End View (C128)
Courtesy of FORD MOTOR CO.

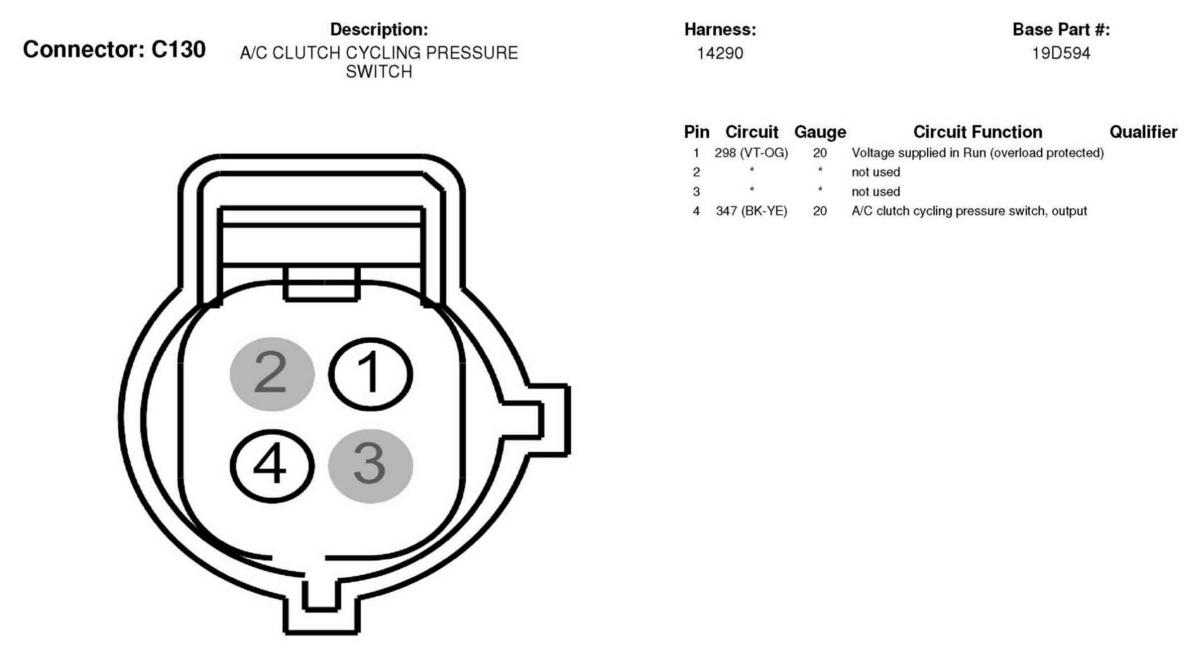

Fig 17: A/C Clutch Cycling Pressure Switch Connector End View (C130)
Courtesy of FORD MOTOR CO.

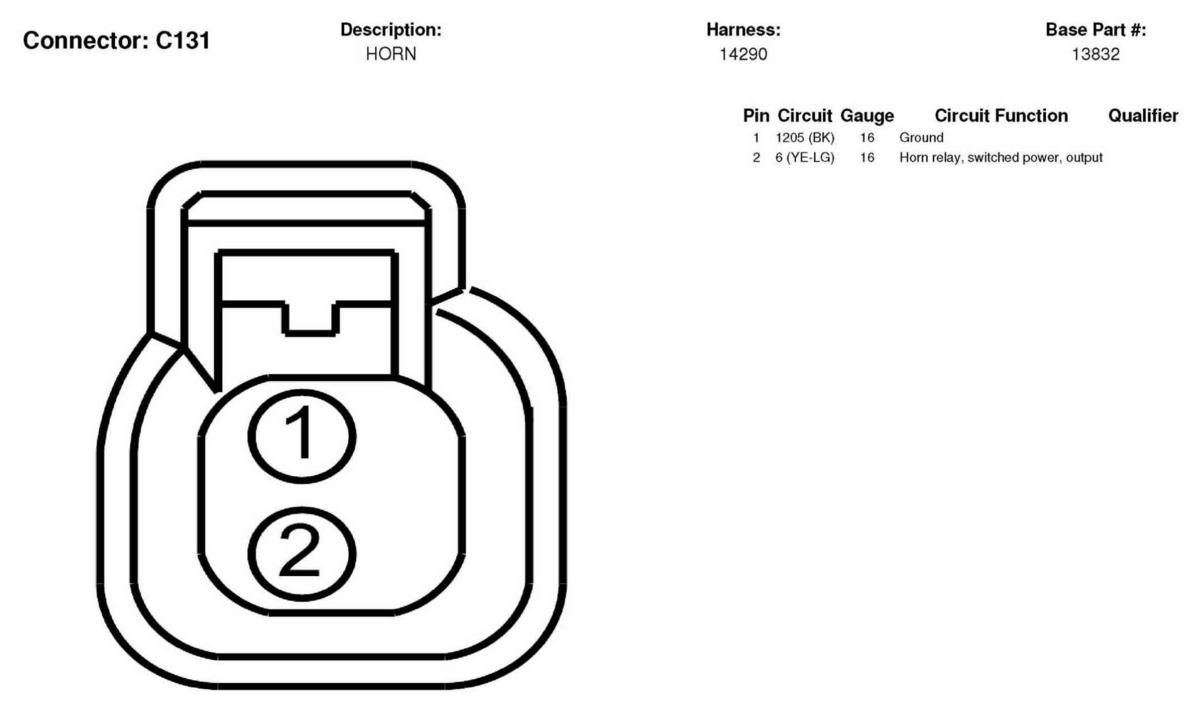

Fig 18: Horn Connector End View (C131)
Courtesy of FORD MOTOR CO.

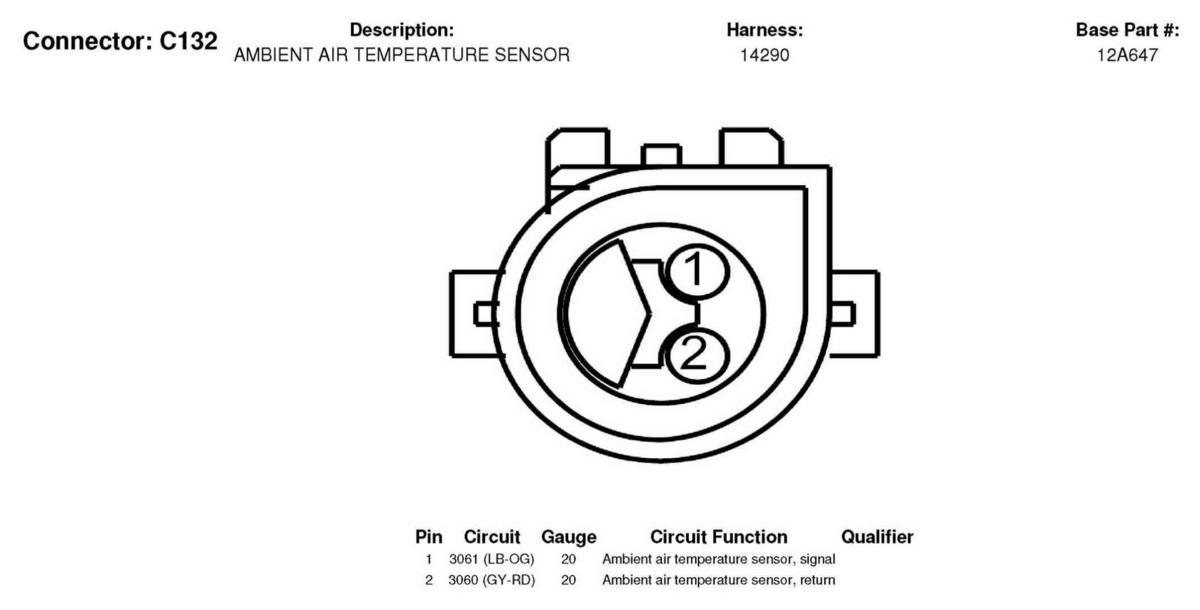

Fig 19: Ambient Air Temperature Sensor Connector End View (C132)
Courtesy of FORD MOTOR CO.
Fig 20: Two-Way Washer Pump Motor Connector End View (C137)
Courtesy of FORD MOTOR CO.

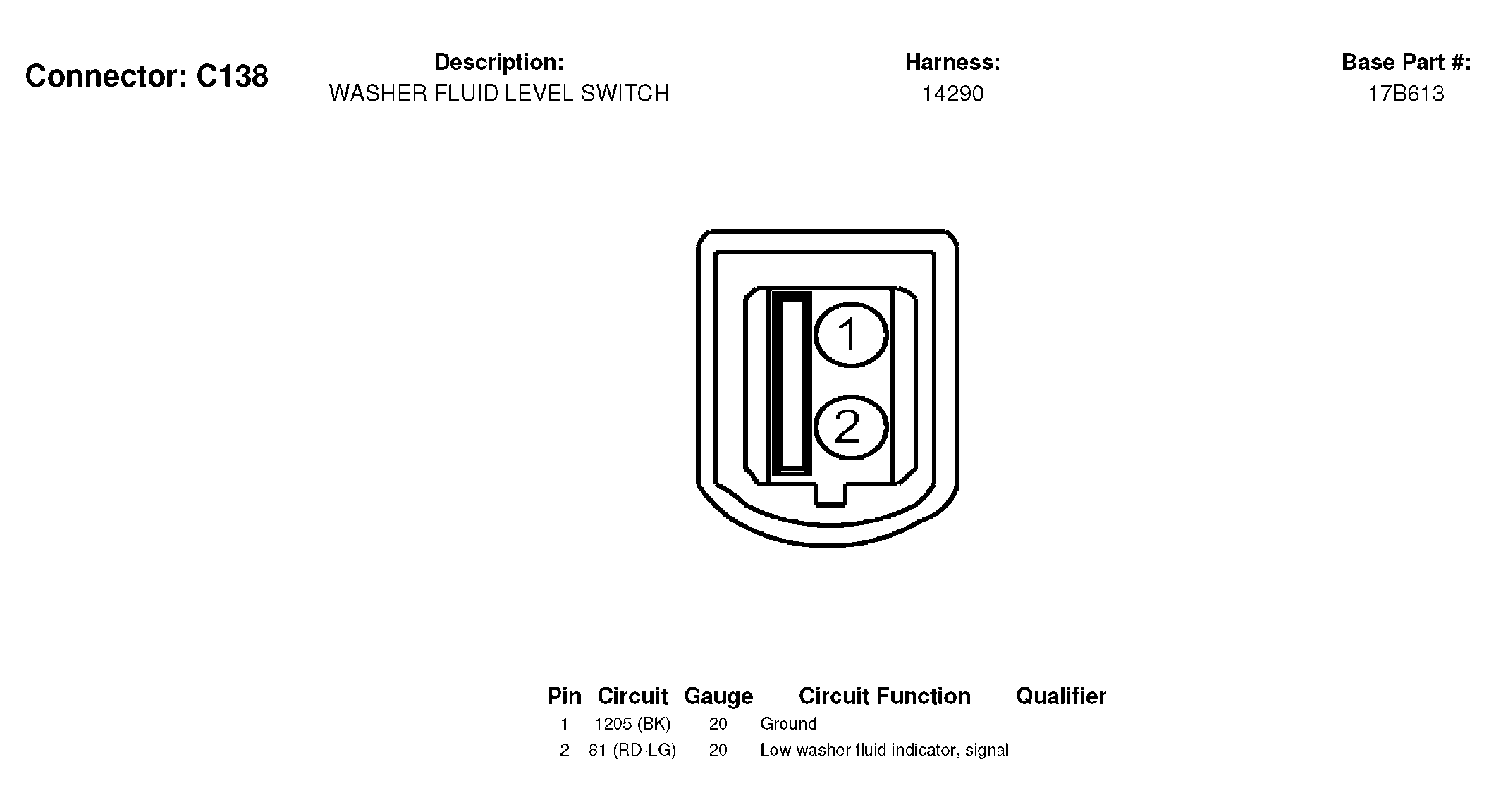

Fig 21: Washer Fluid Level Switch Connector End View (C138)
Courtesy of FORD MOTOR CO.

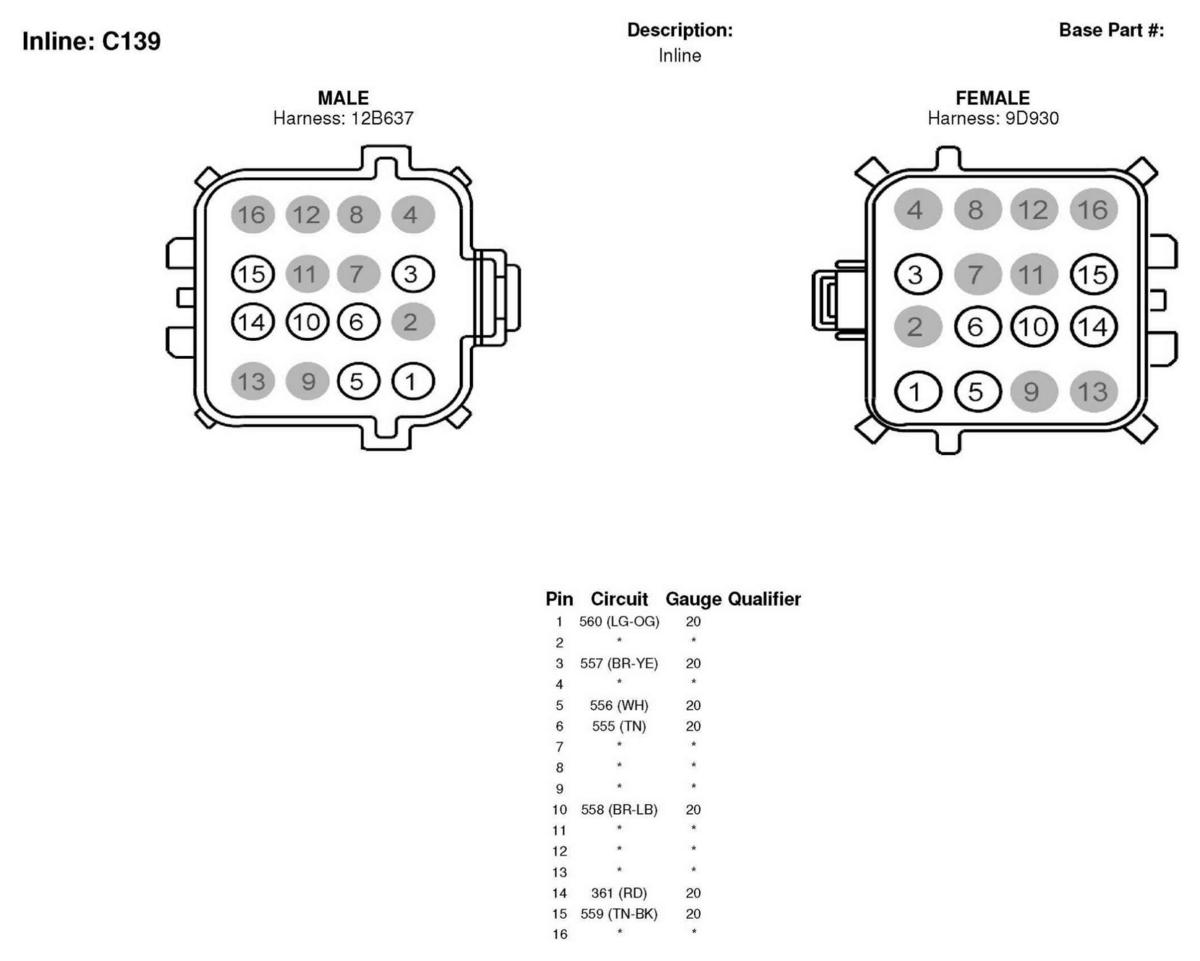

Fig 22: Inline Connector End View (C139)
Courtesy of FORD MOTOR CO.
Fig 23: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)
Courtesy of FORD MOTOR CO.

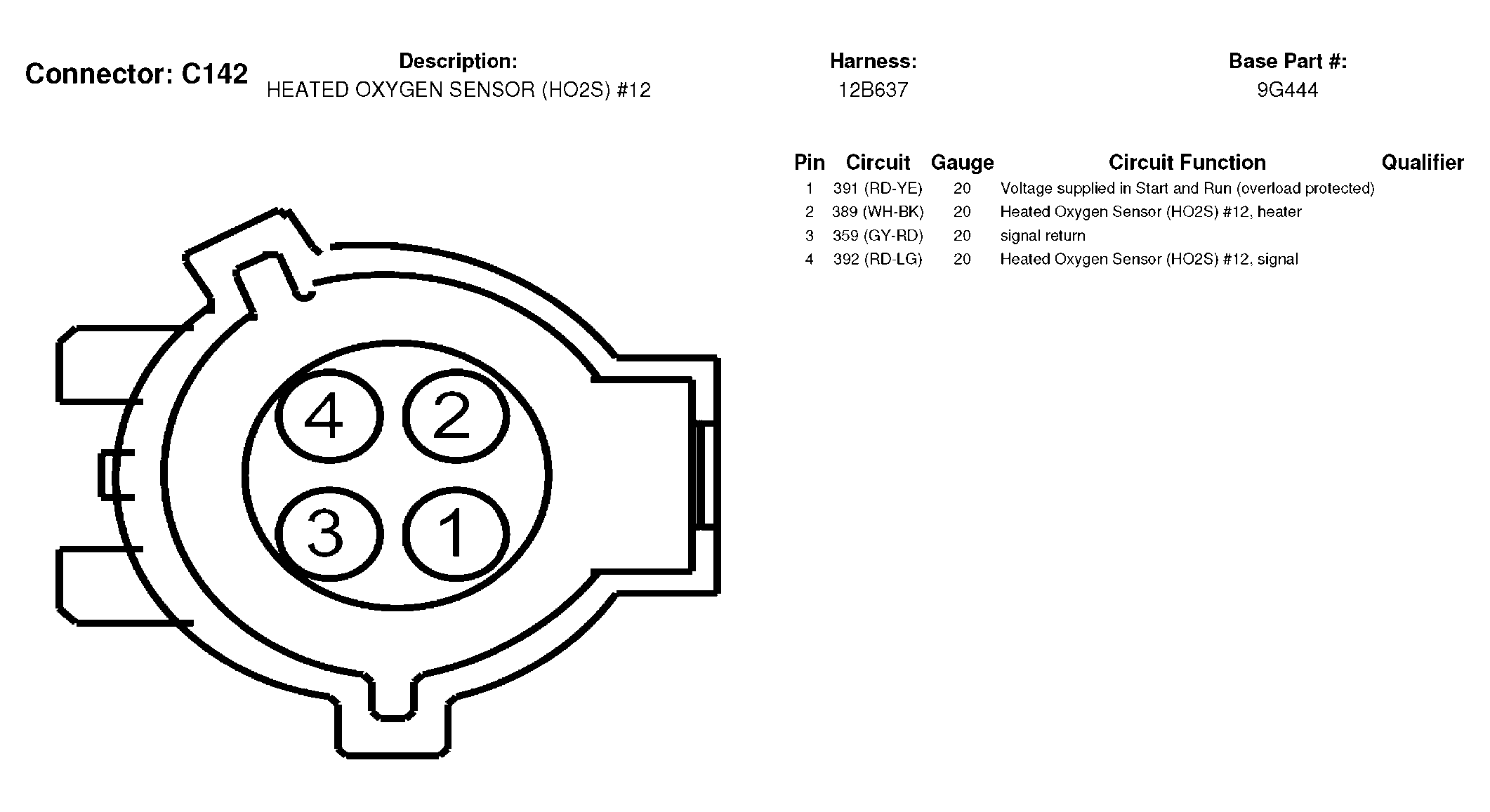

Fig 24: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)
Courtesy of FORD MOTOR CO.

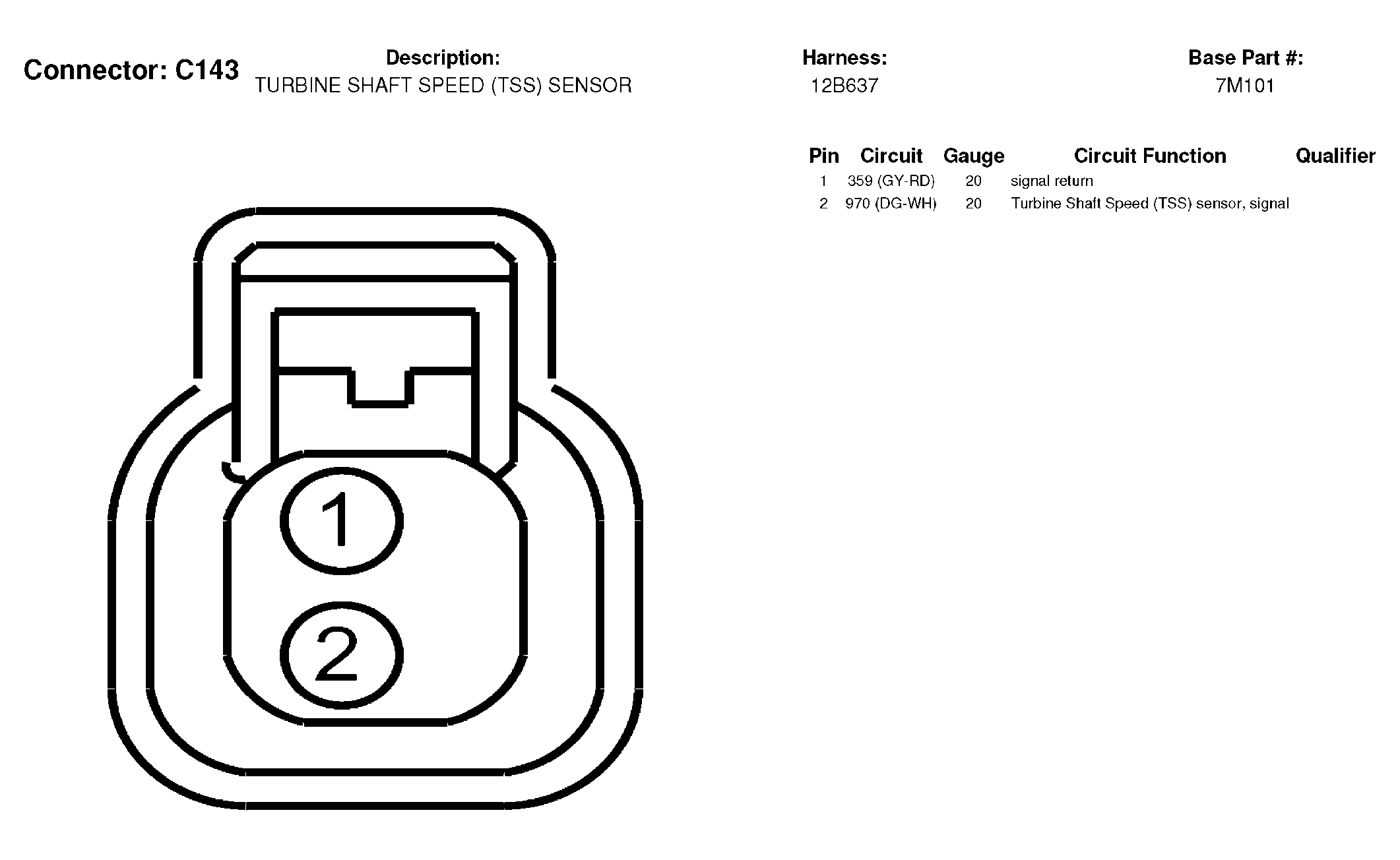

Fig 25: Turbine Shaft Speed (TSS) Sensor Connector End View (C143)
Courtesy of FORD MOTOR CO.

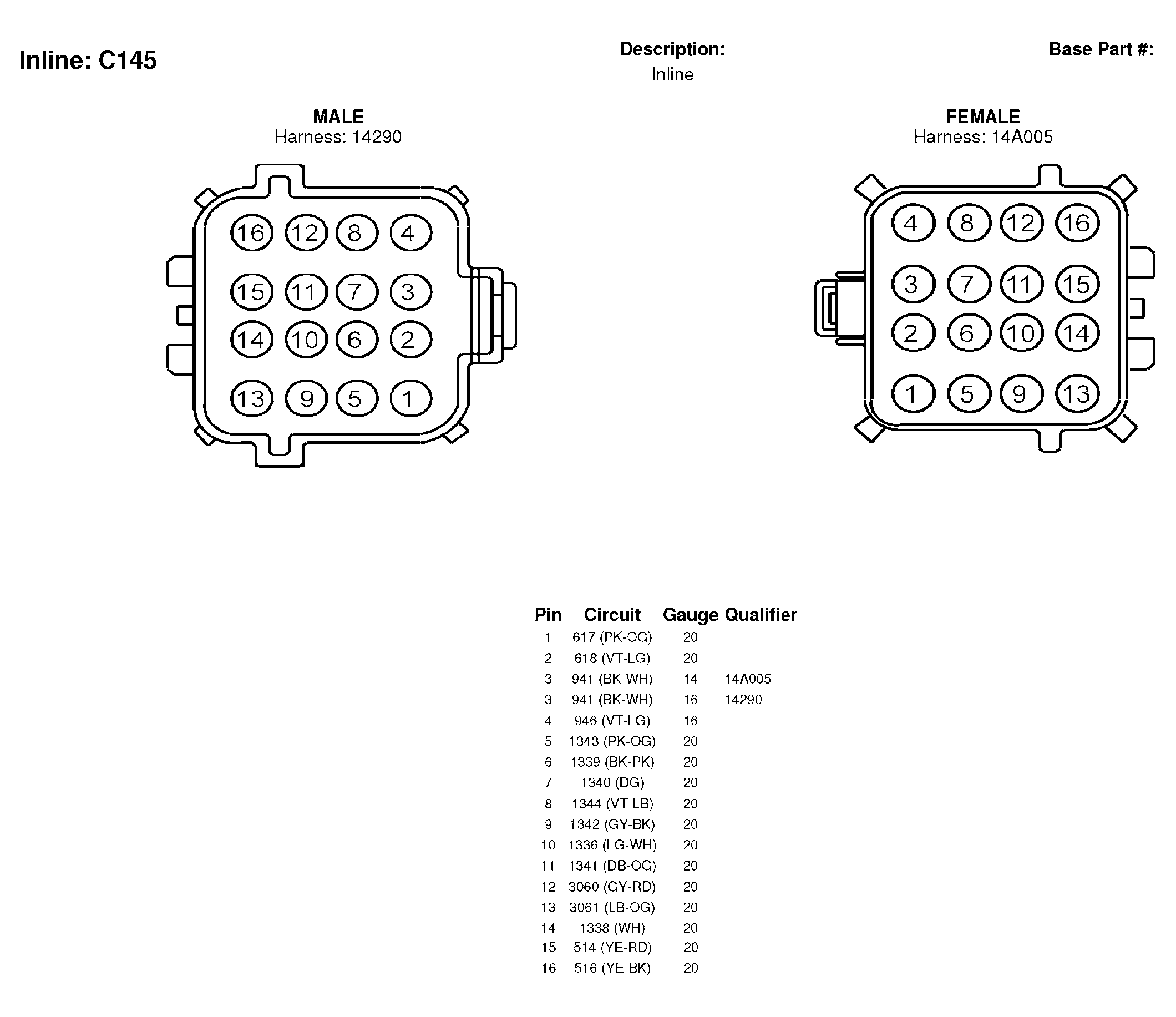

Fig 26: Inline Connector End View (C145)
Courtesy of FORD MOTOR CO.
Fig 27: Inline Connector End View (C147)
Courtesy of FORD MOTOR CO.

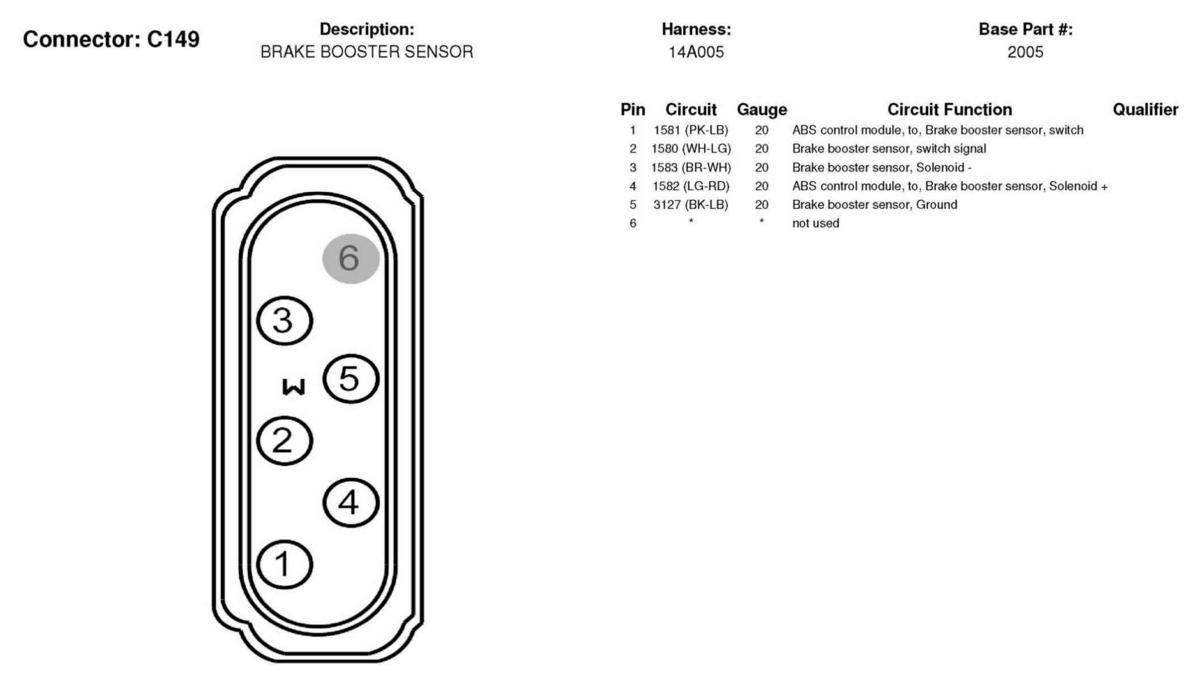

Fig 28: Brake Booster Sensor Connector End View (C149)
Courtesy of FORD MOTOR CO.

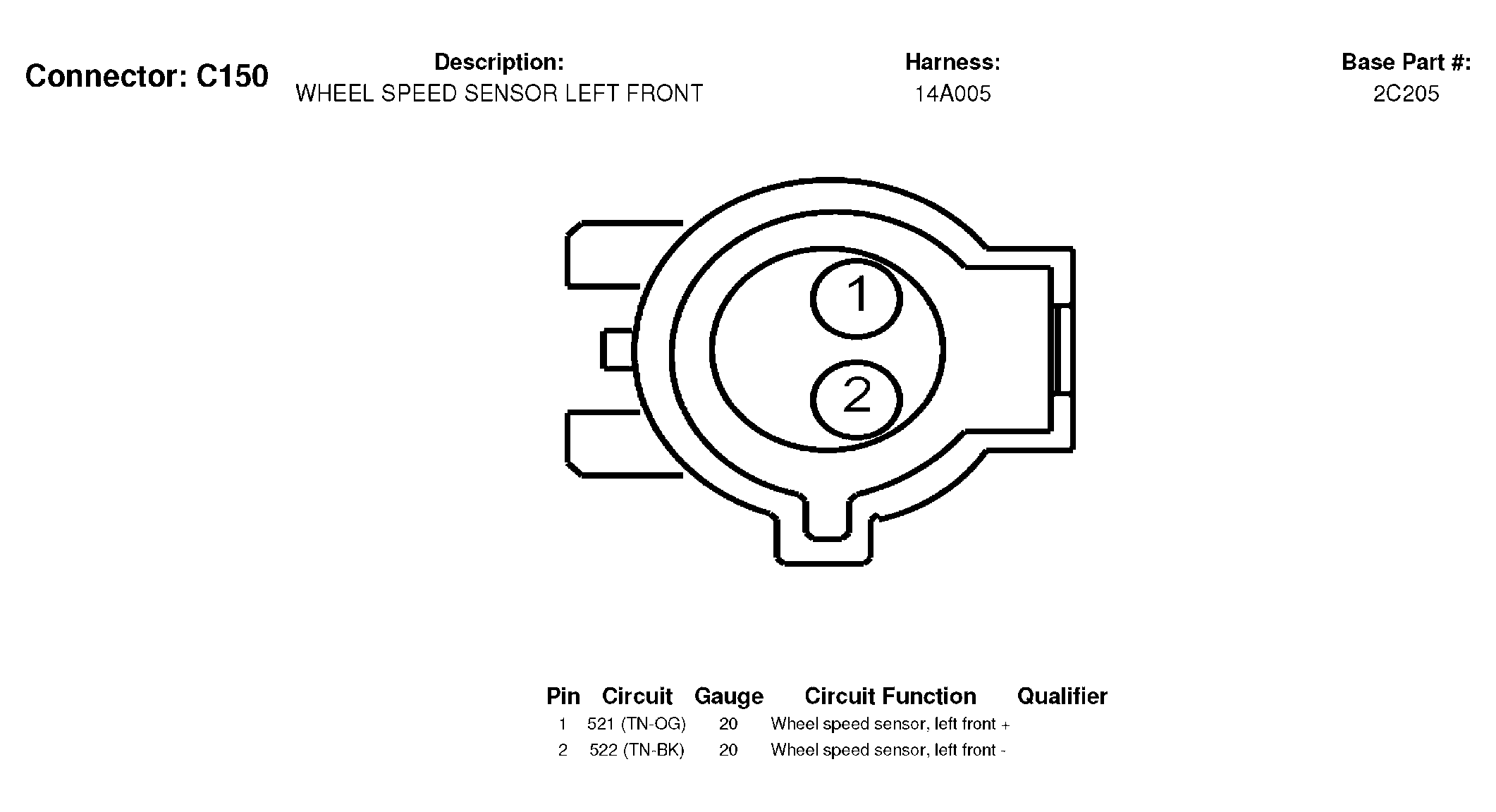

Fig 29: Wheel Speed Sensor Left Front Connector End View (C150)
Courtesy of FORD MOTOR CO.

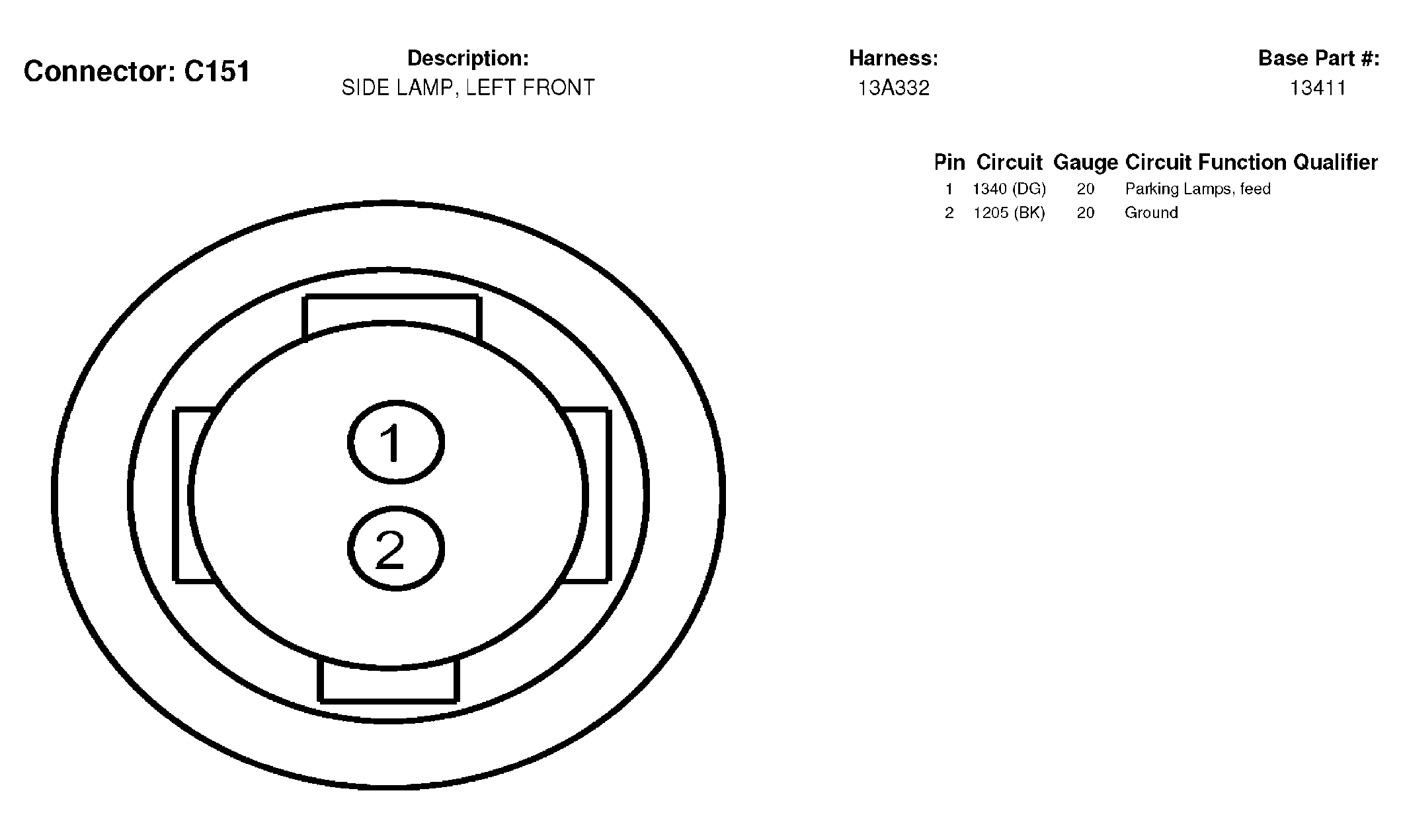

Fig 30: Side Lamp, Left Front Connector End View (C151)
Courtesy of FORD MOTOR CO.

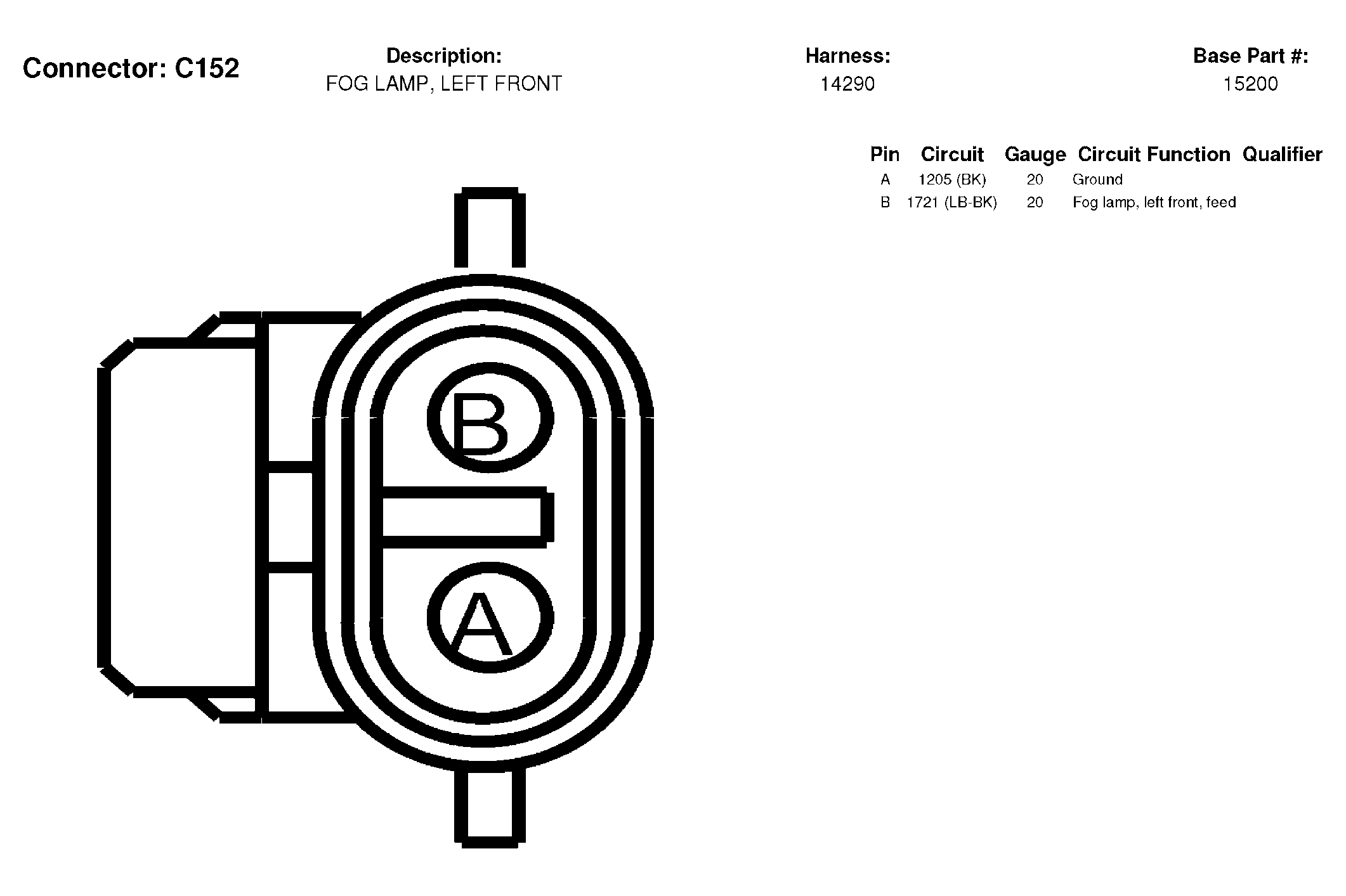

Fig 31: Fog Lamp, Left Front Connector End View (C152)
Courtesy of FORD MOTOR CO.

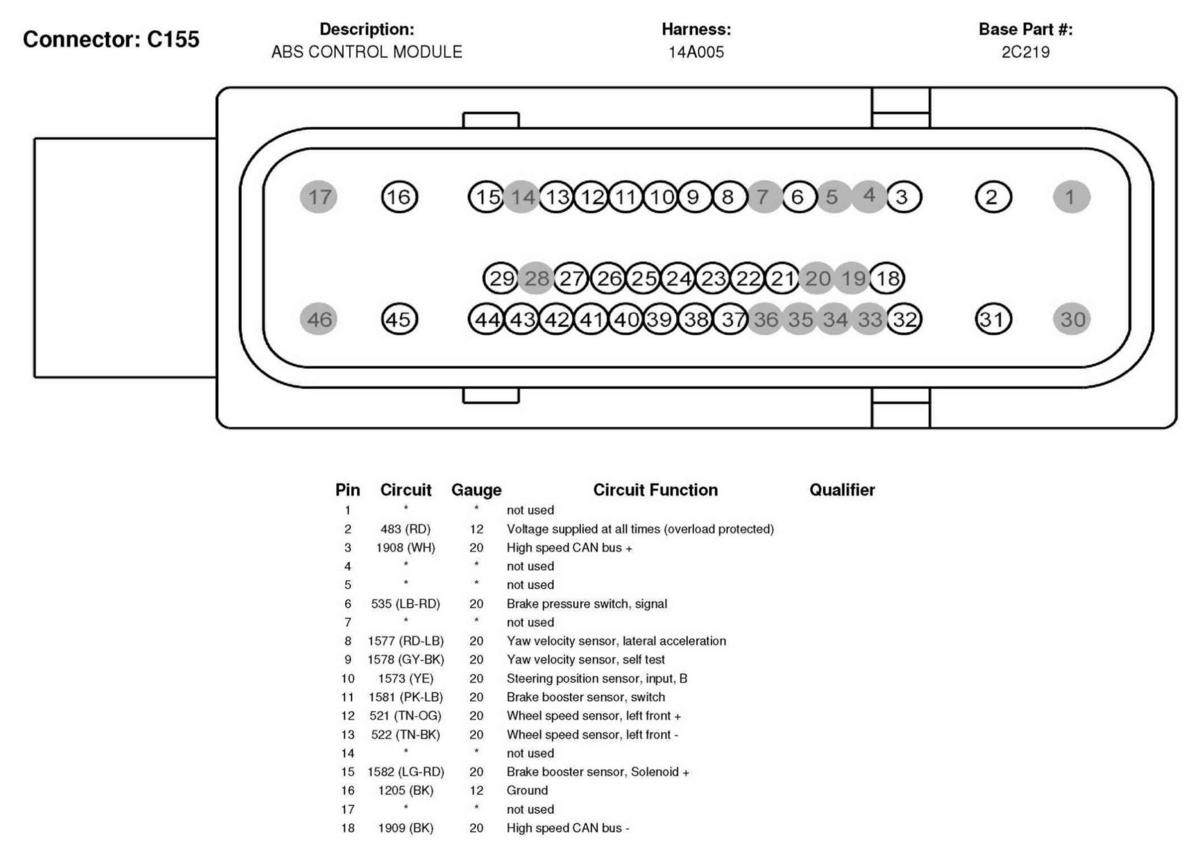

Fig 32: ABS Control Module Connector End View (C155) (1 Of 2)
Courtesy of FORD MOTOR CO.

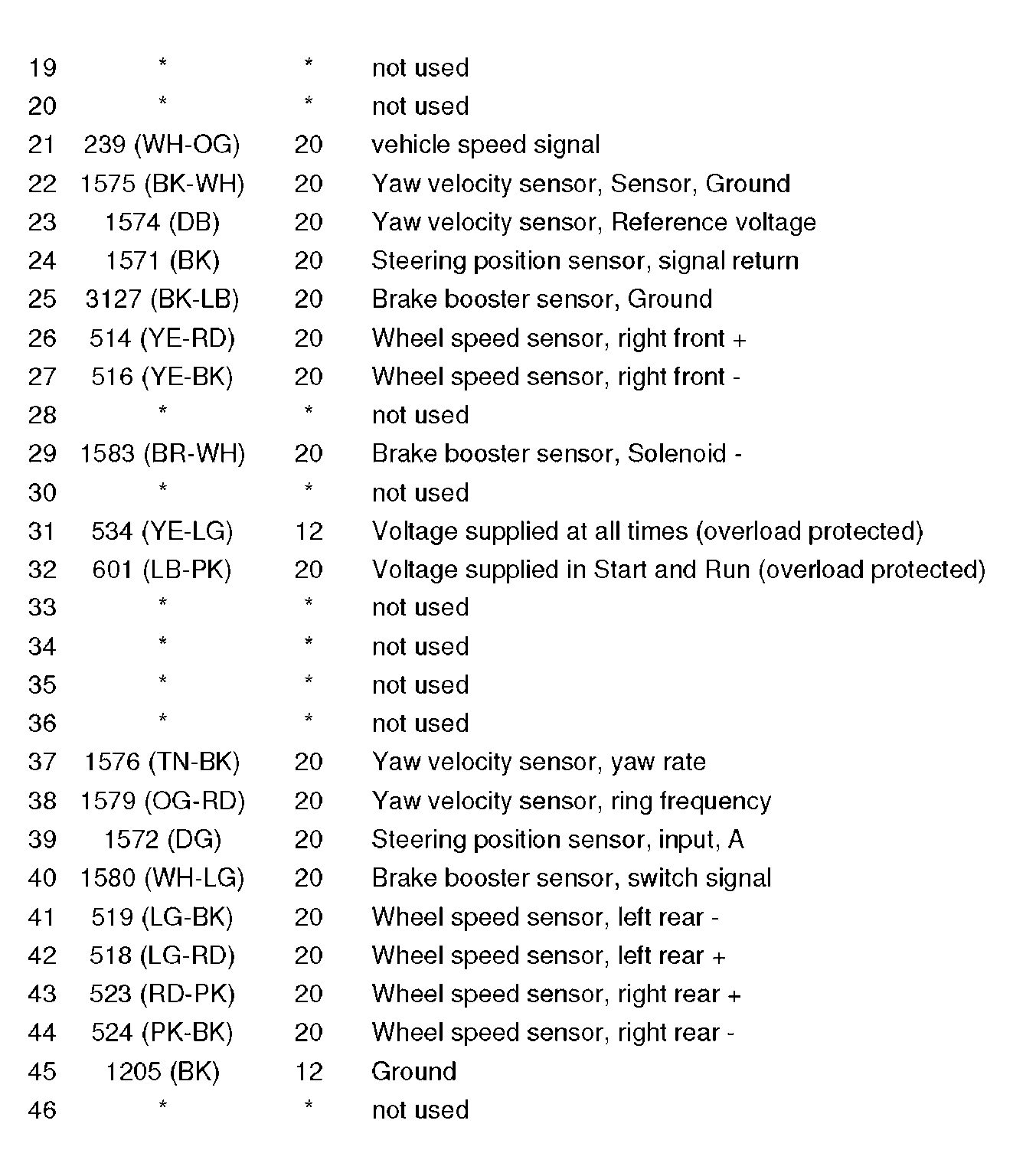

Fig 33: ABS Control Module Connector End View (C155) (2 Of 2)
Courtesy of FORD MOTOR CO.

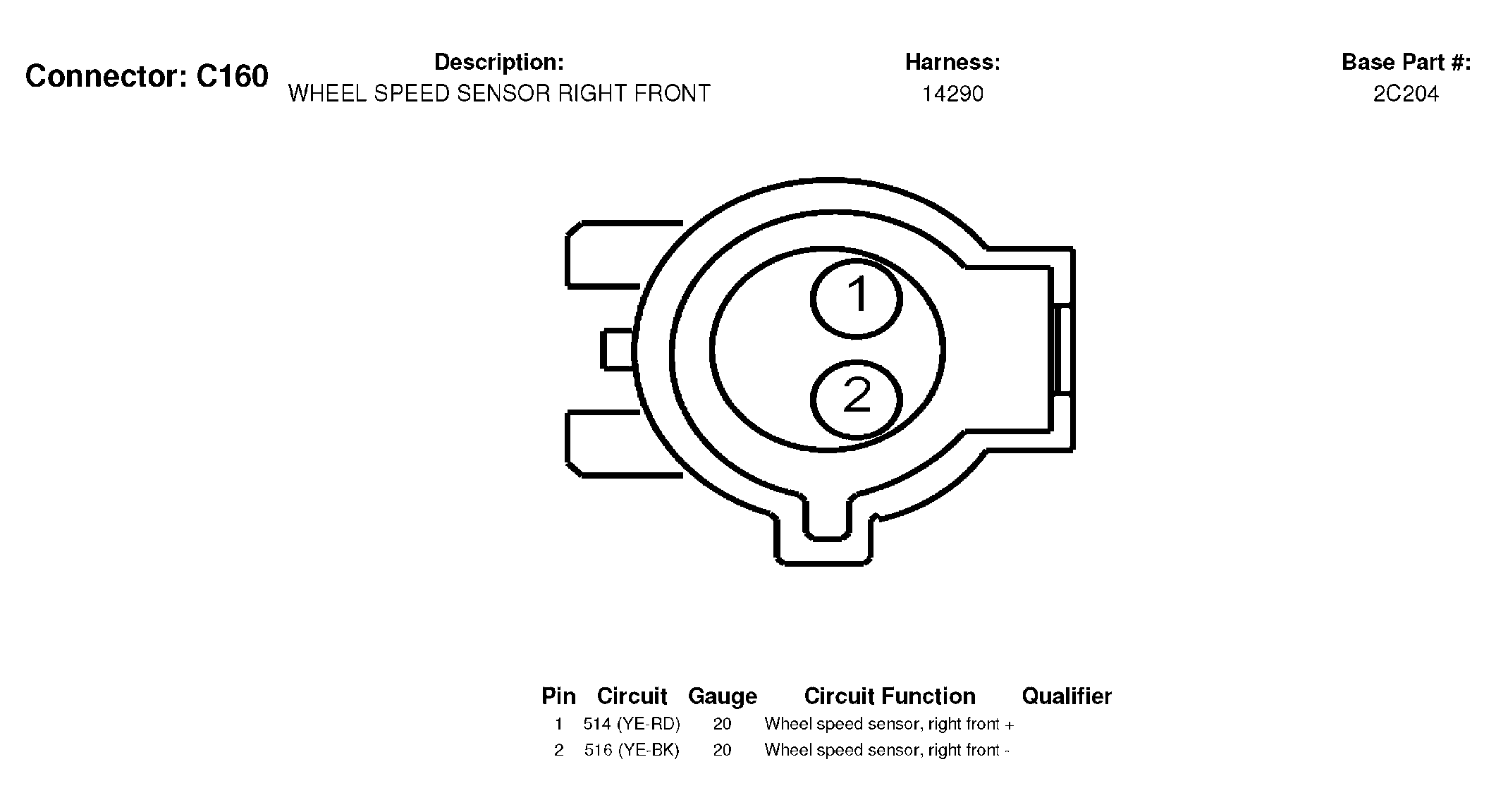

Fig 34: Wheel Speed Sensor Right Front Connector End View (C160)
Courtesy of FORD MOTOR CO.

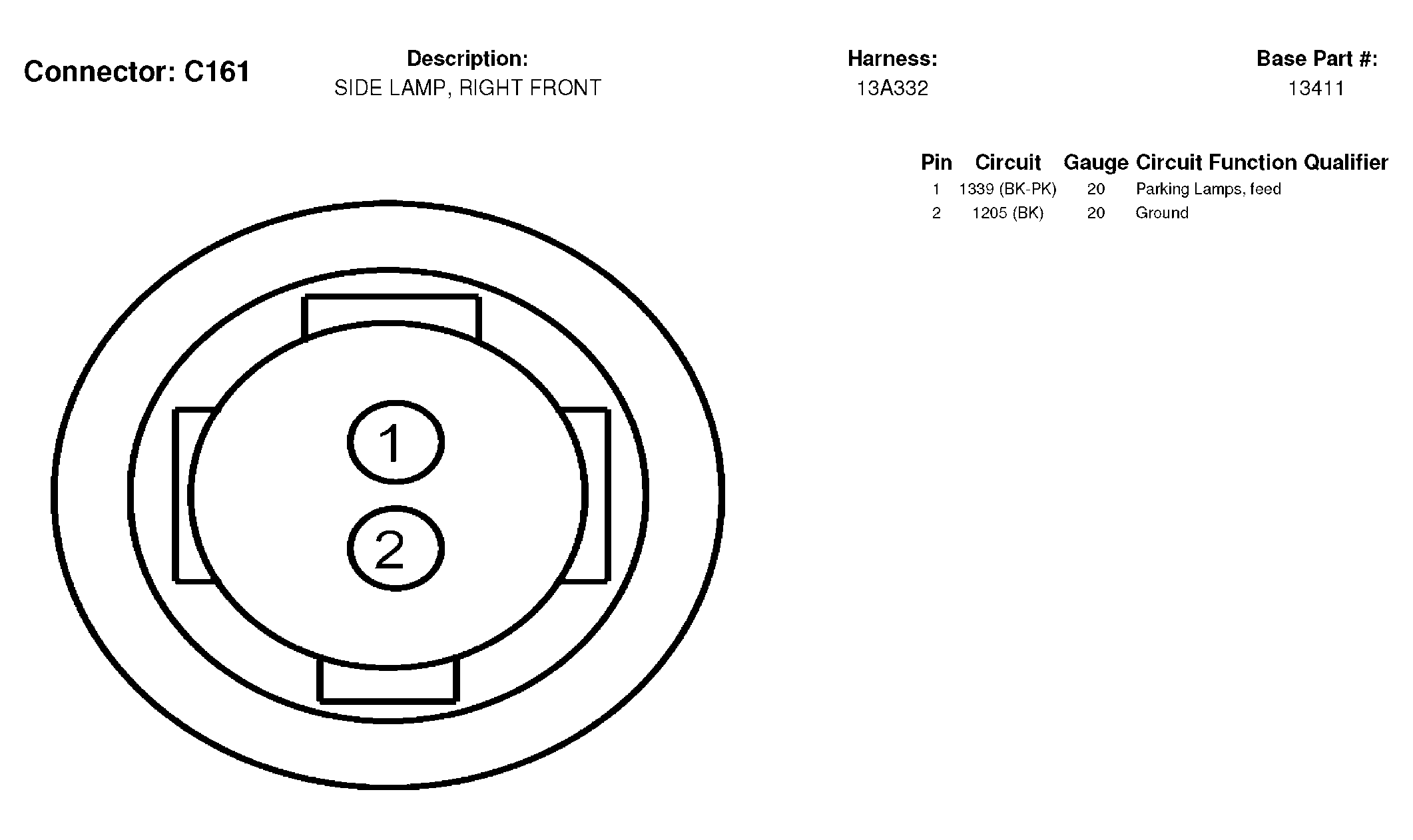

Fig 35: Side Lamp, Right Front Connector End View (C161)
Courtesy of FORD MOTOR CO.

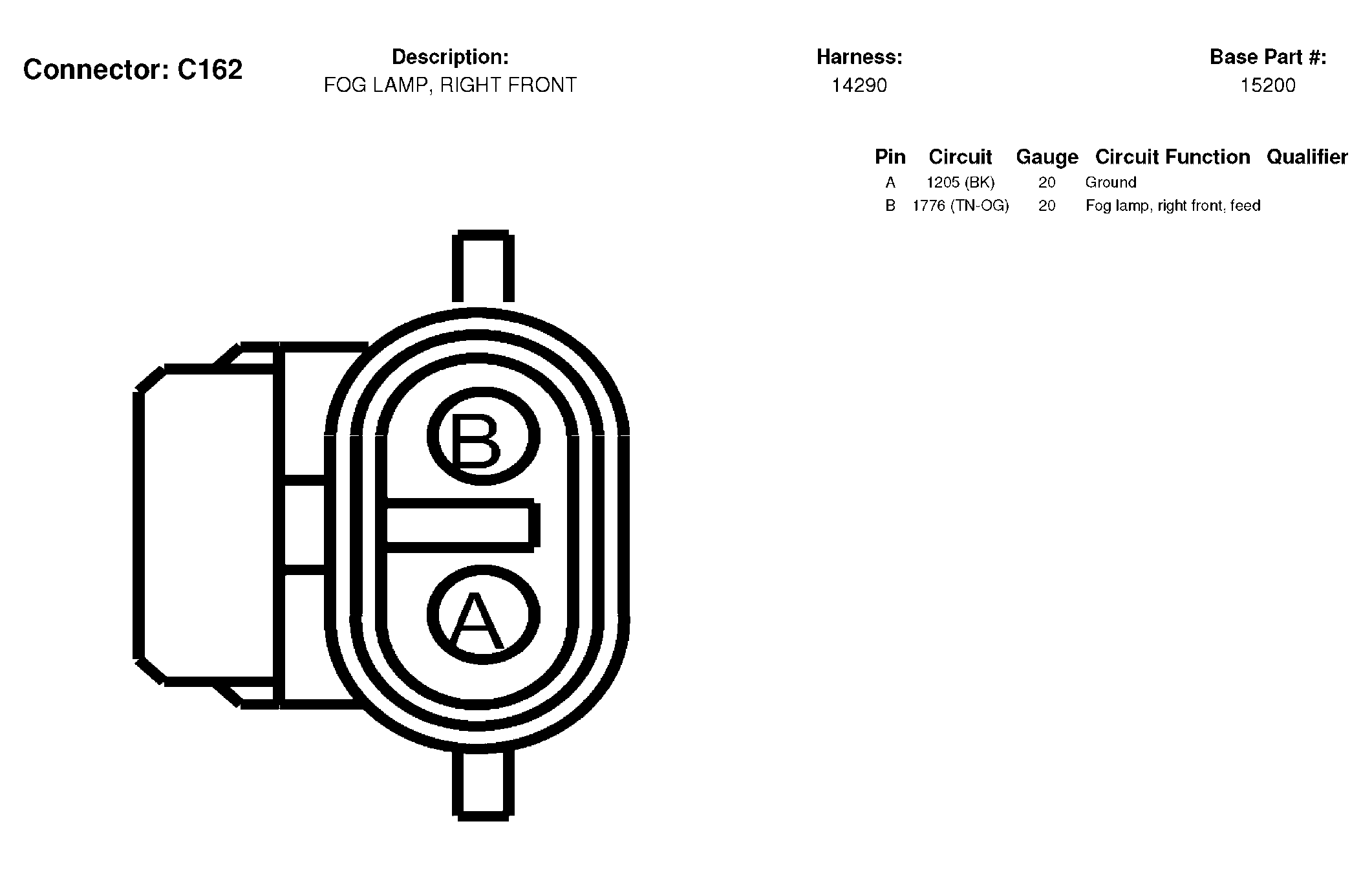

Fig 36: Fog Lamp, Right Front Connector End View (C162)
Courtesy of FORD MOTOR CO.

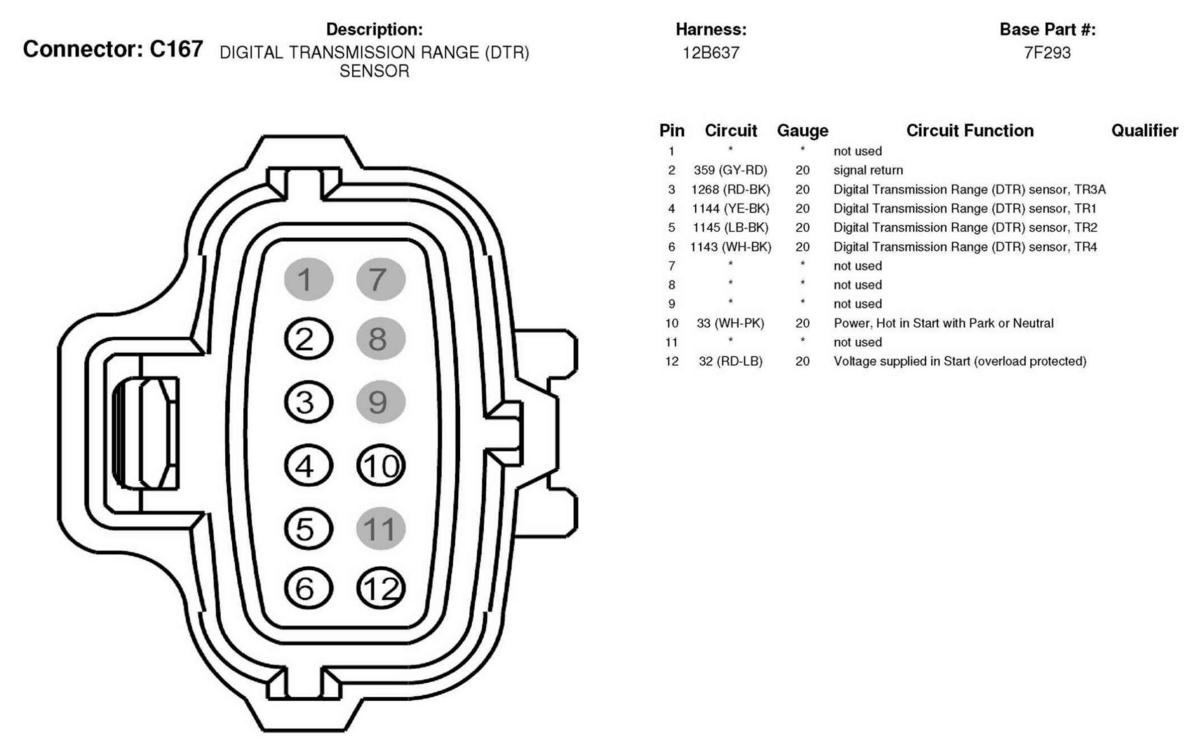

Fig 37: Digital Transmission Range (DTR) Sensor Connector End View (C167)
Courtesy of FORD MOTOR CO.

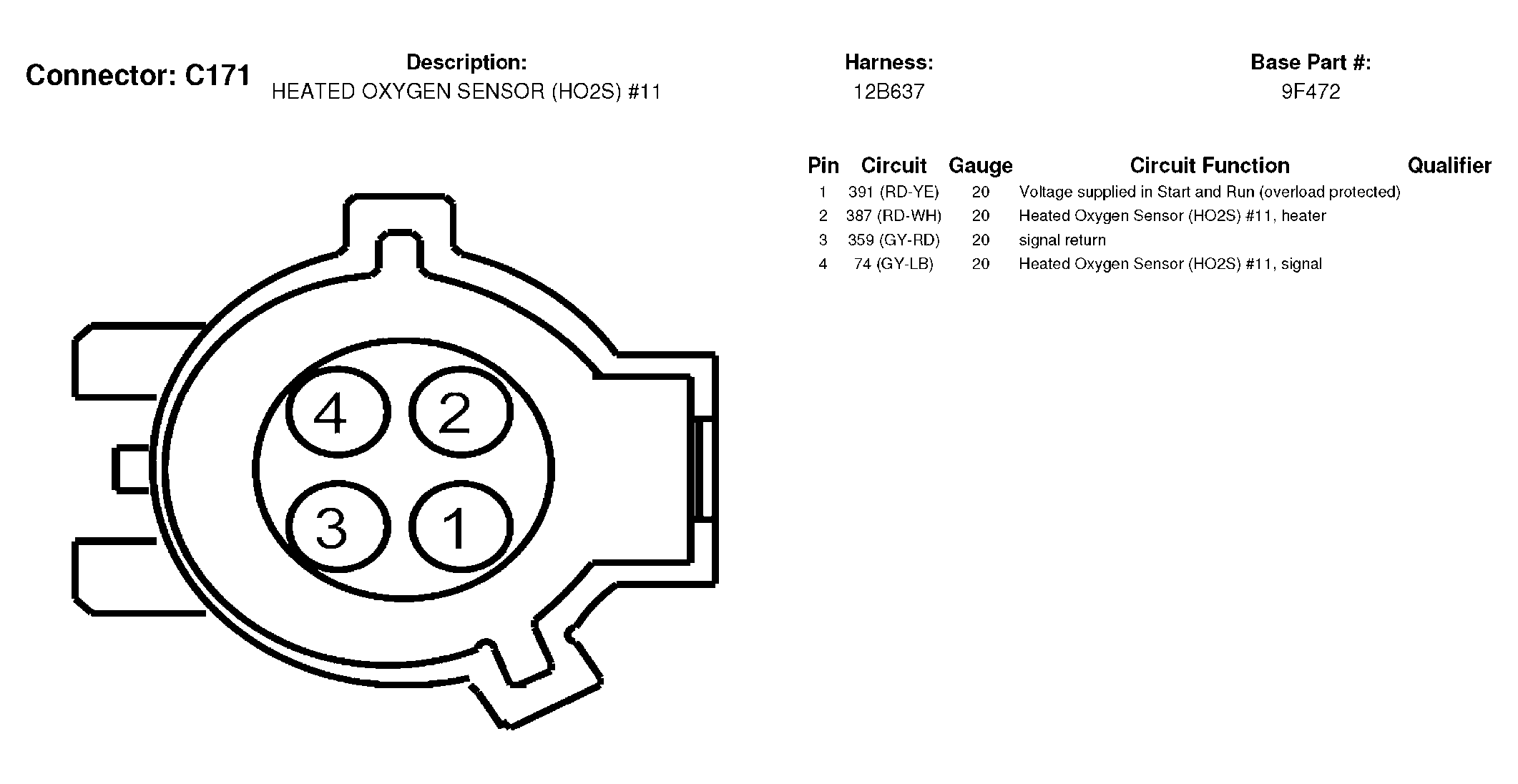

Fig 38: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)
Courtesy of FORD MOTOR CO.

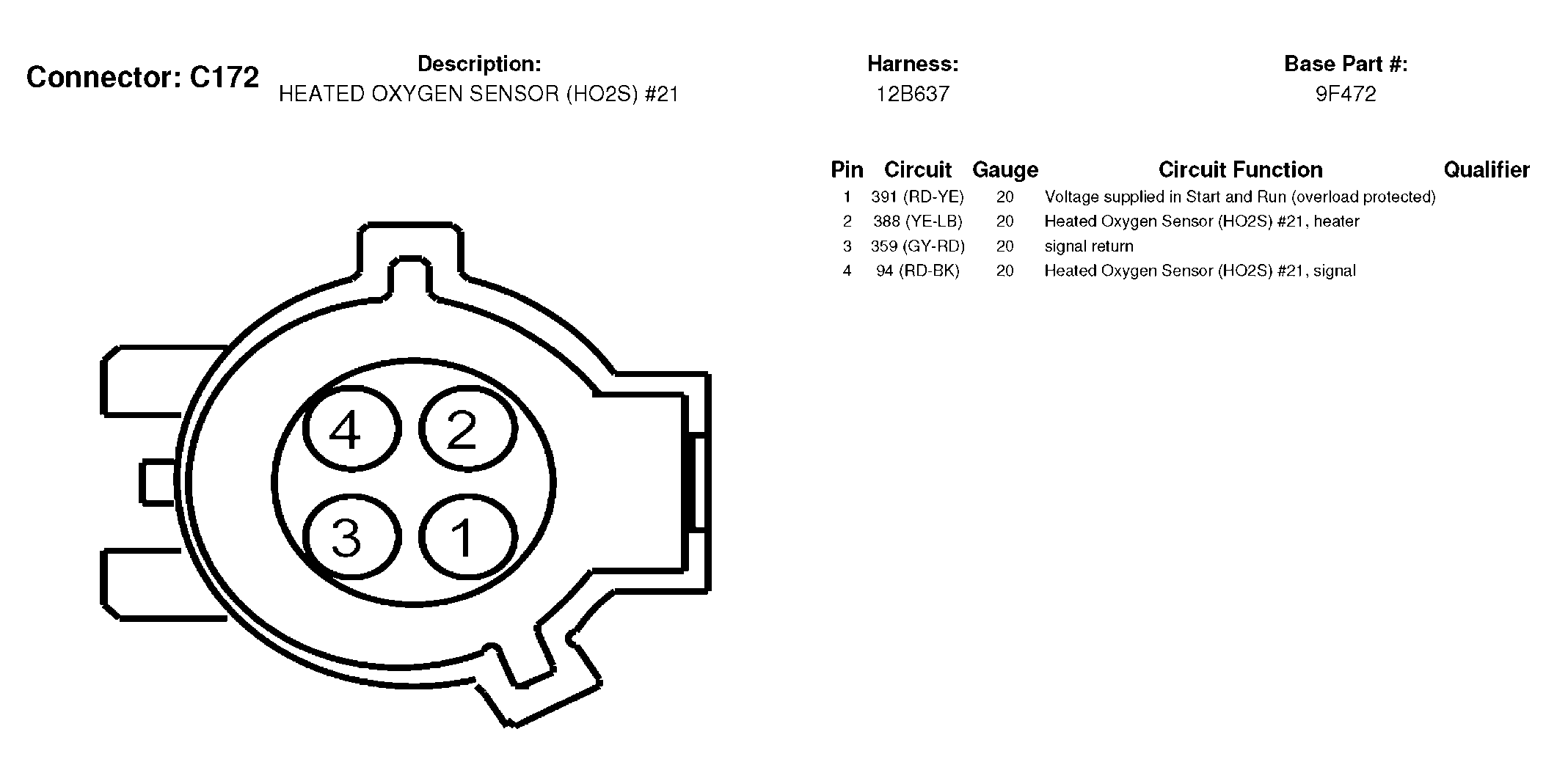

Fig 39: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)
Courtesy of FORD MOTOR CO.

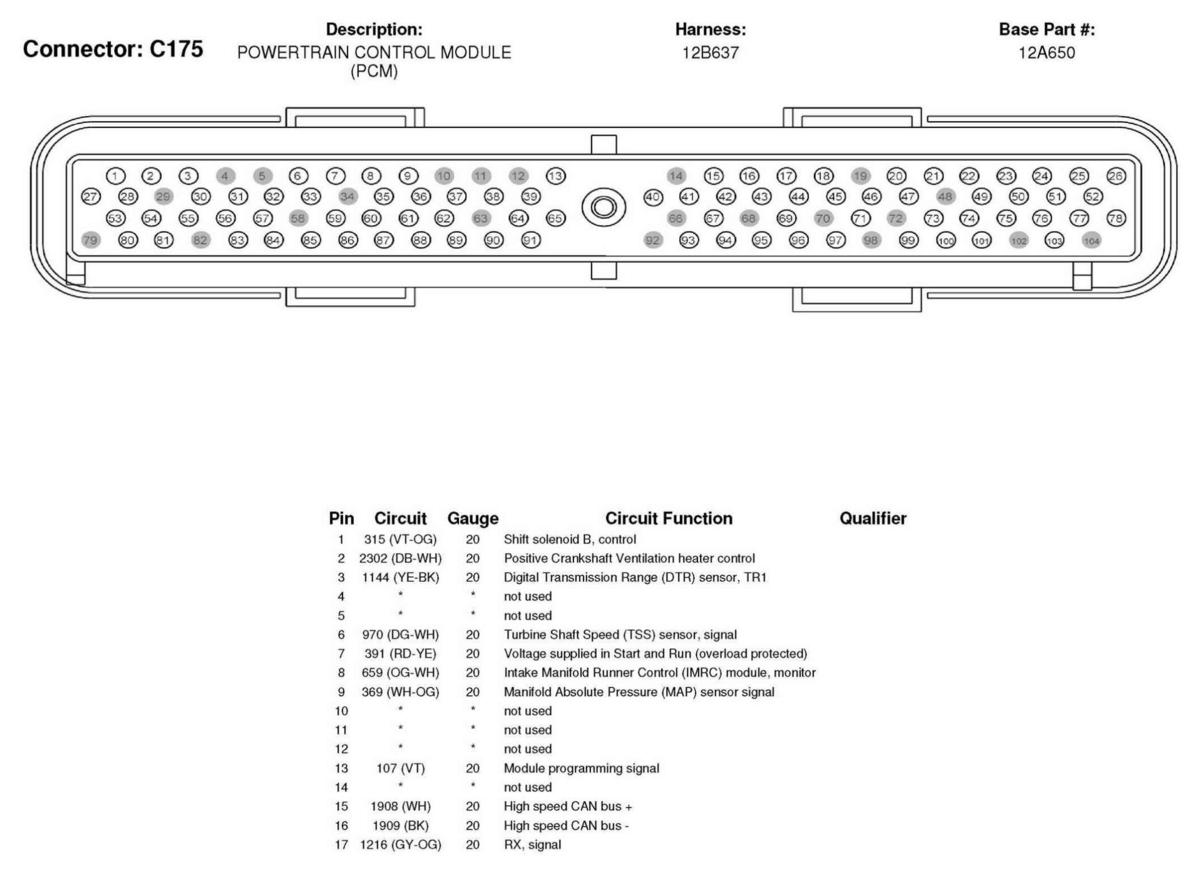

Fig 40: Powertrain Control Module (PCM) Connector End View (C175) (1 Of 3)
Courtesy of FORD MOTOR CO.

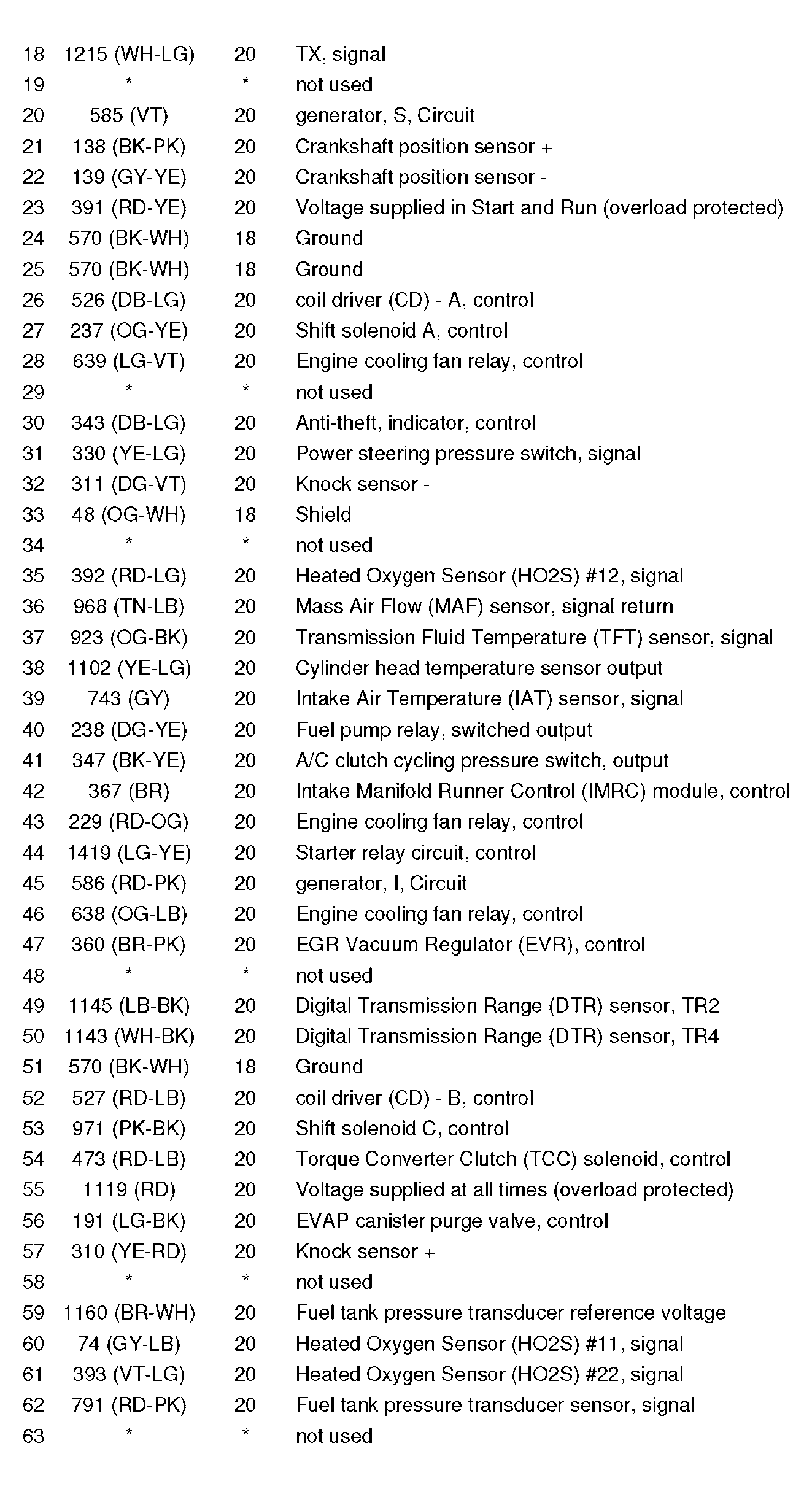

Fig 41: Powertrain Control Module (PCM) Connector End View (C175) (2 Of 3)
Courtesy of FORD MOTOR CO.

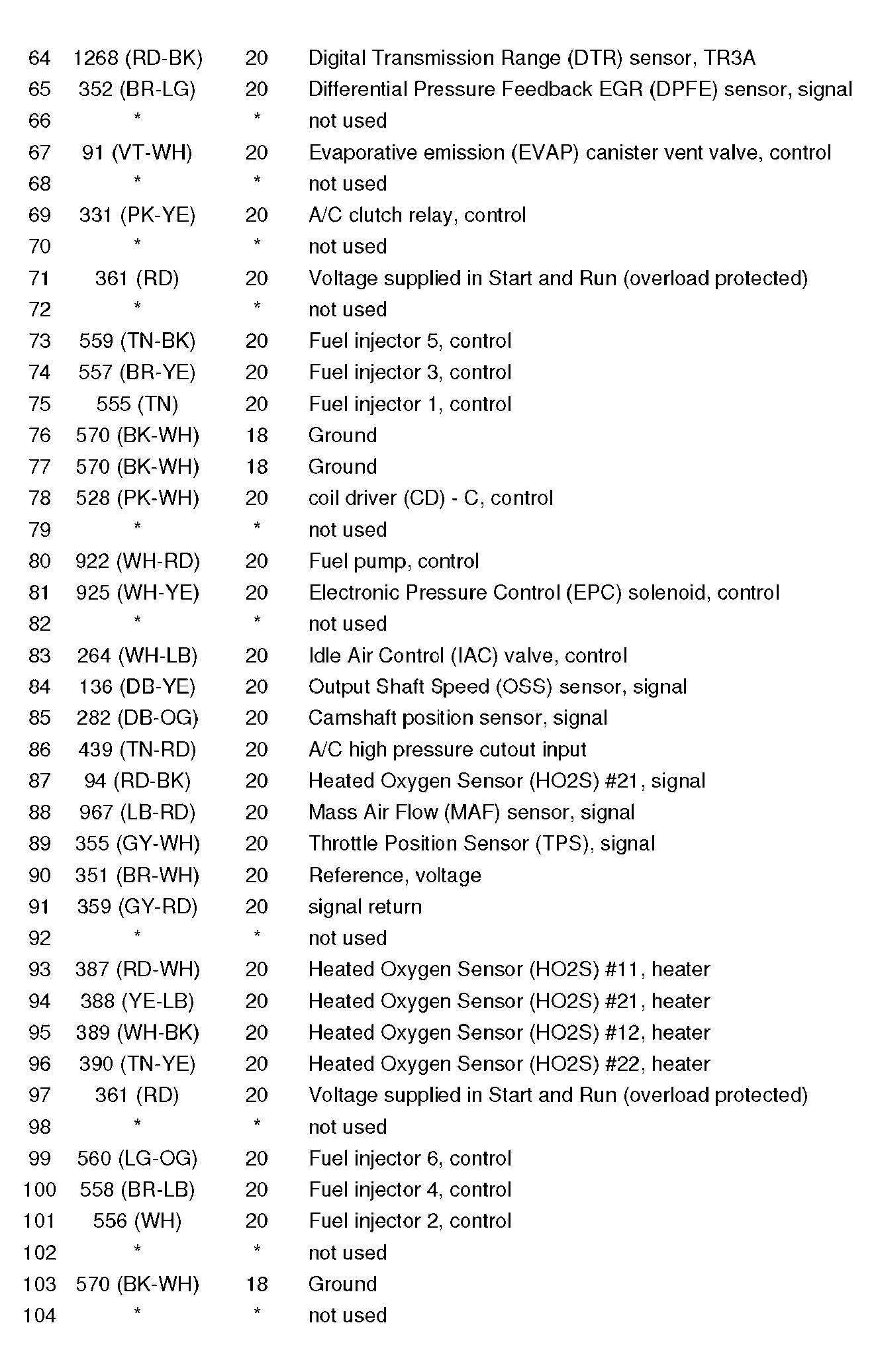

Fig 42: Powertrain Control Module (PCM) Connector End View (C175) (3 Of 3)
Courtesy of FORD MOTOR CO.

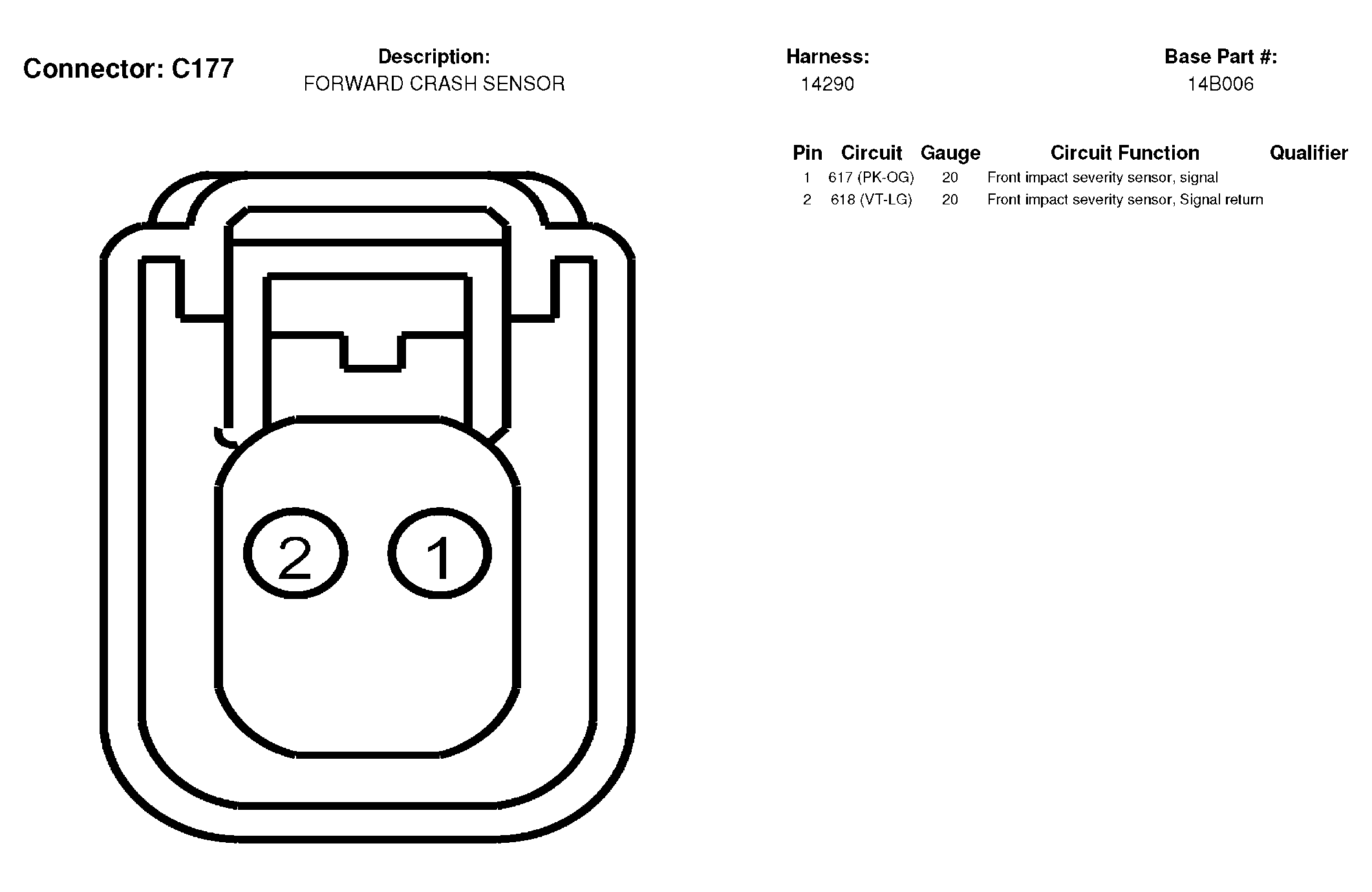

Fig 43: Forward Crash Sensor Connector End View (C177)
Courtesy of FORD MOTOR CO.

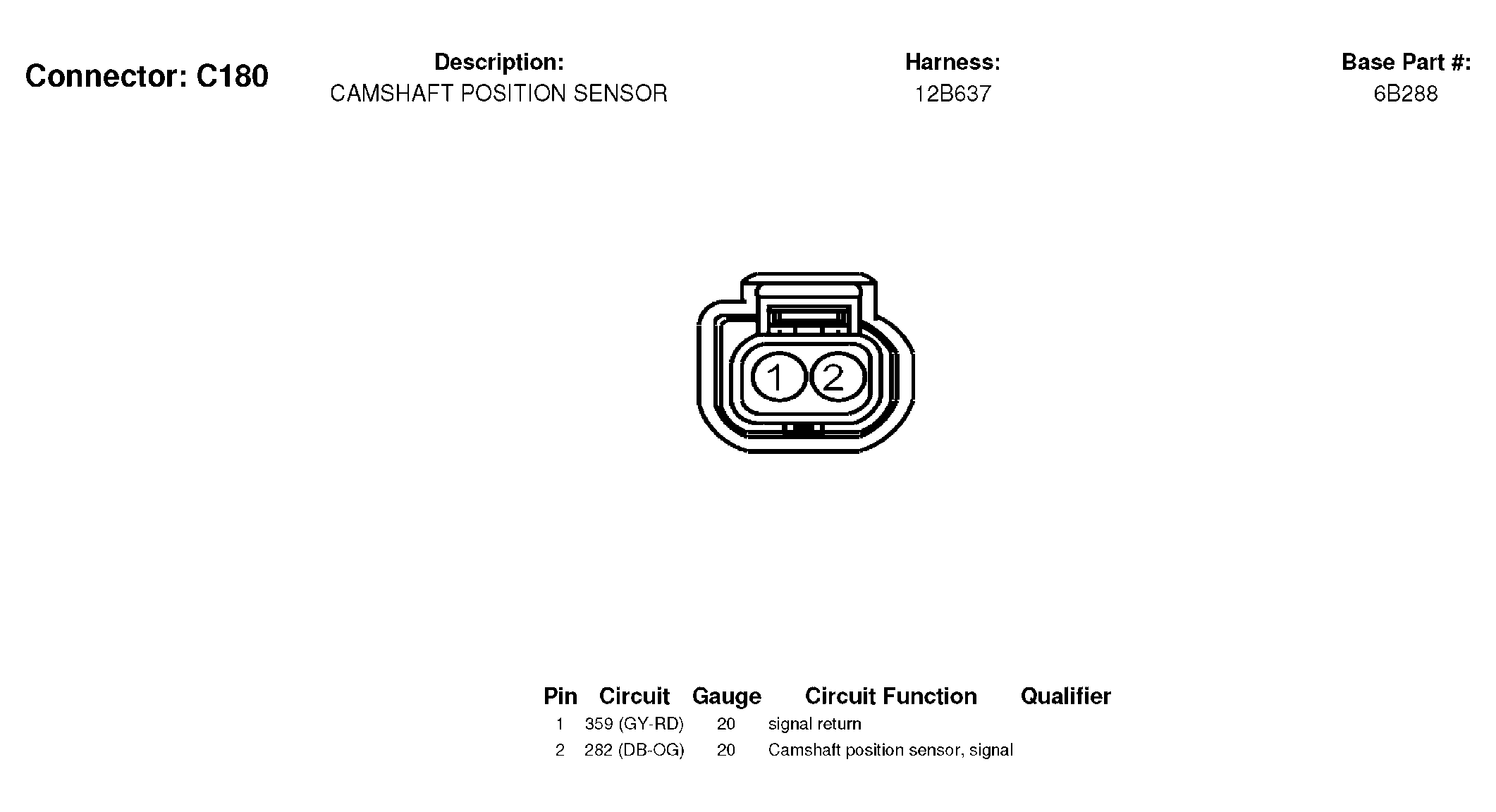

Fig 44: Camshaft Position Sensor Connector End View (C180)
Courtesy of FORD MOTOR CO.

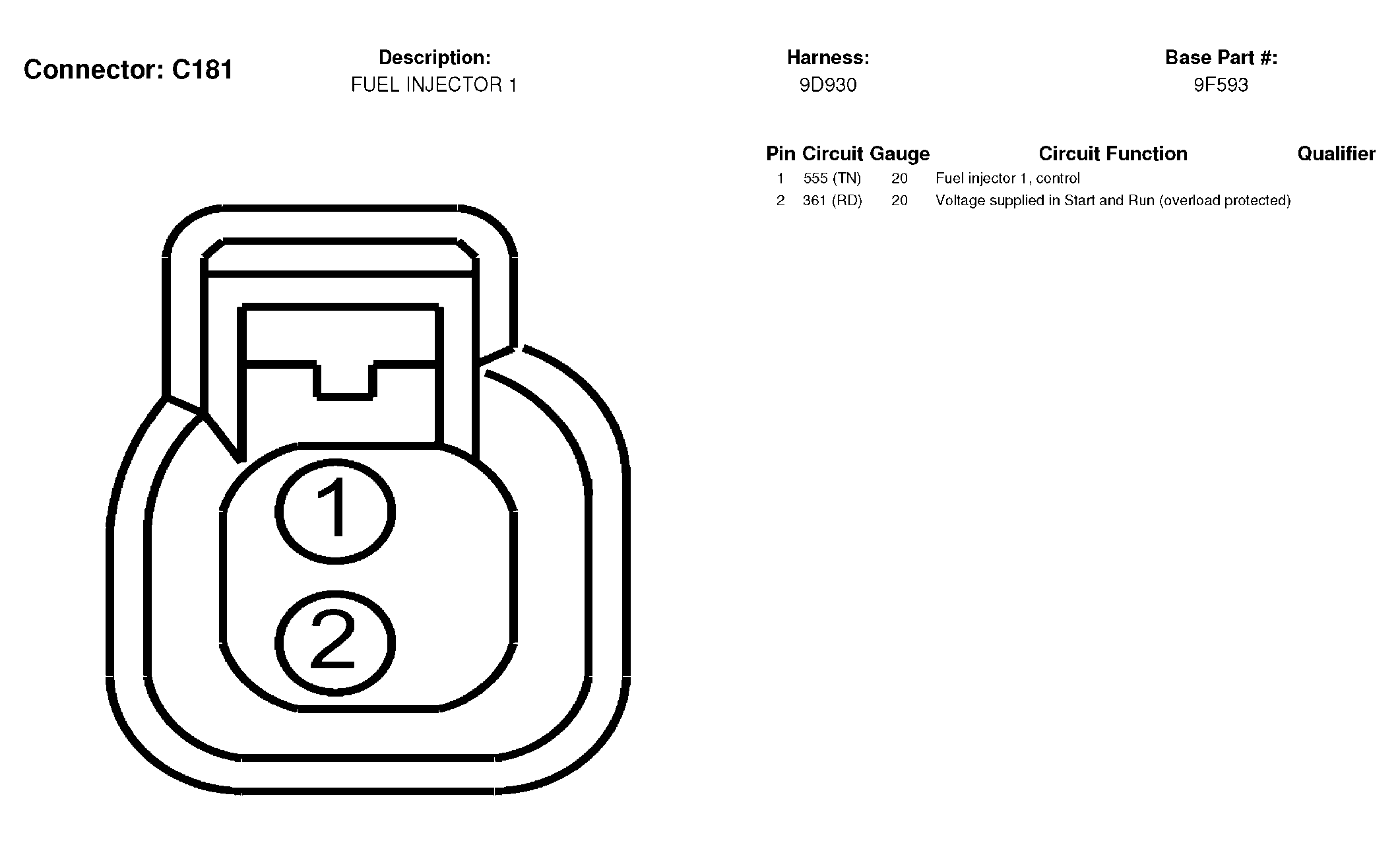

Fig 45: Fuel Injector 1 Connector End View (C181)
Courtesy of FORD MOTOR CO.
Fig 46: Fuel Injector 2 Connector End View (C182)
Courtesy of FORD MOTOR CO.
Fig 47: Fuel Injector 3 Connector End View (C183)
Courtesy of FORD MOTOR CO.

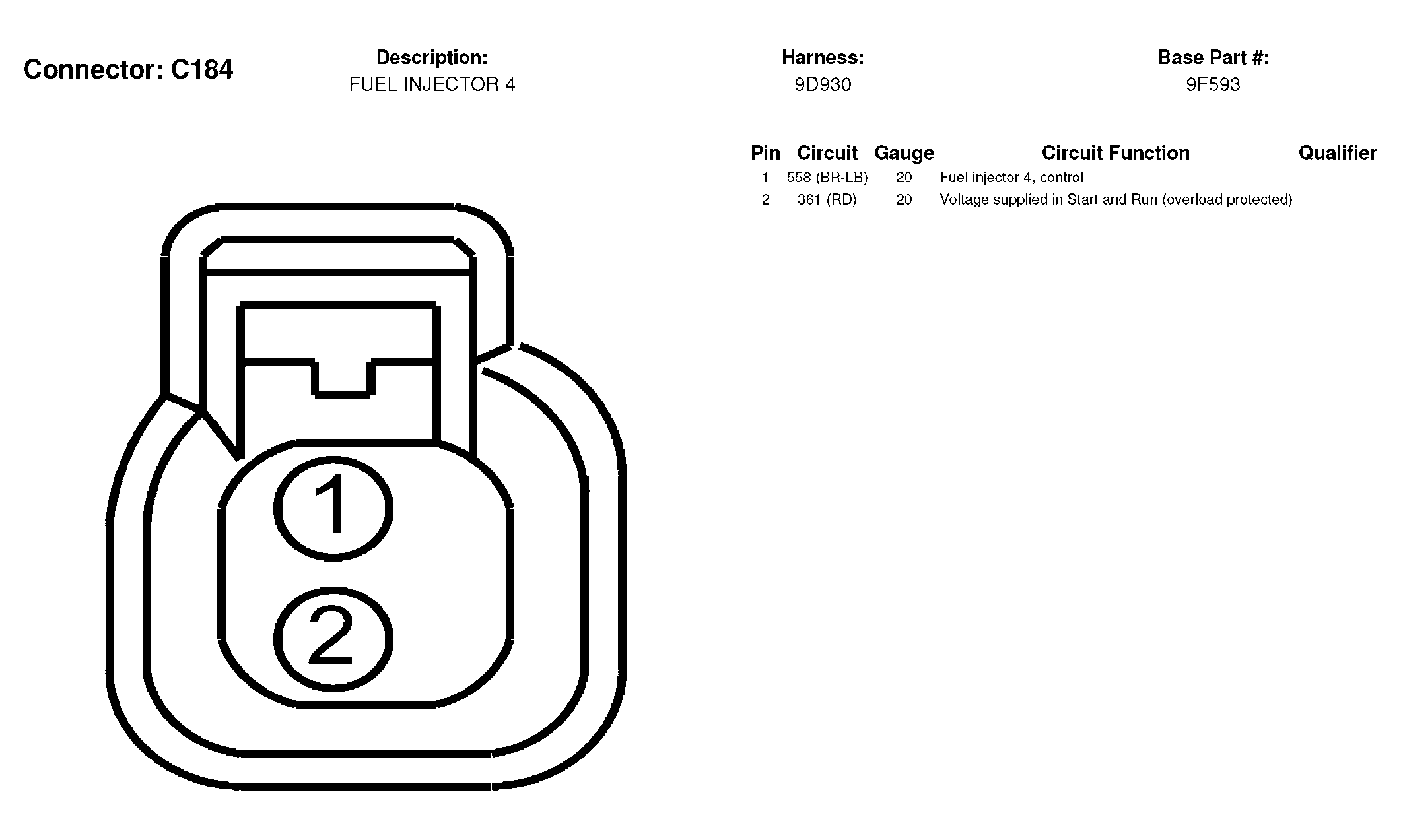

Fig 48: Fuel Injector 4 Connector End View (C184)
Courtesy of FORD MOTOR CO.
Fig 49: Fuel Injector 5 Connector End View (C185)
Courtesy of FORD MOTOR CO.

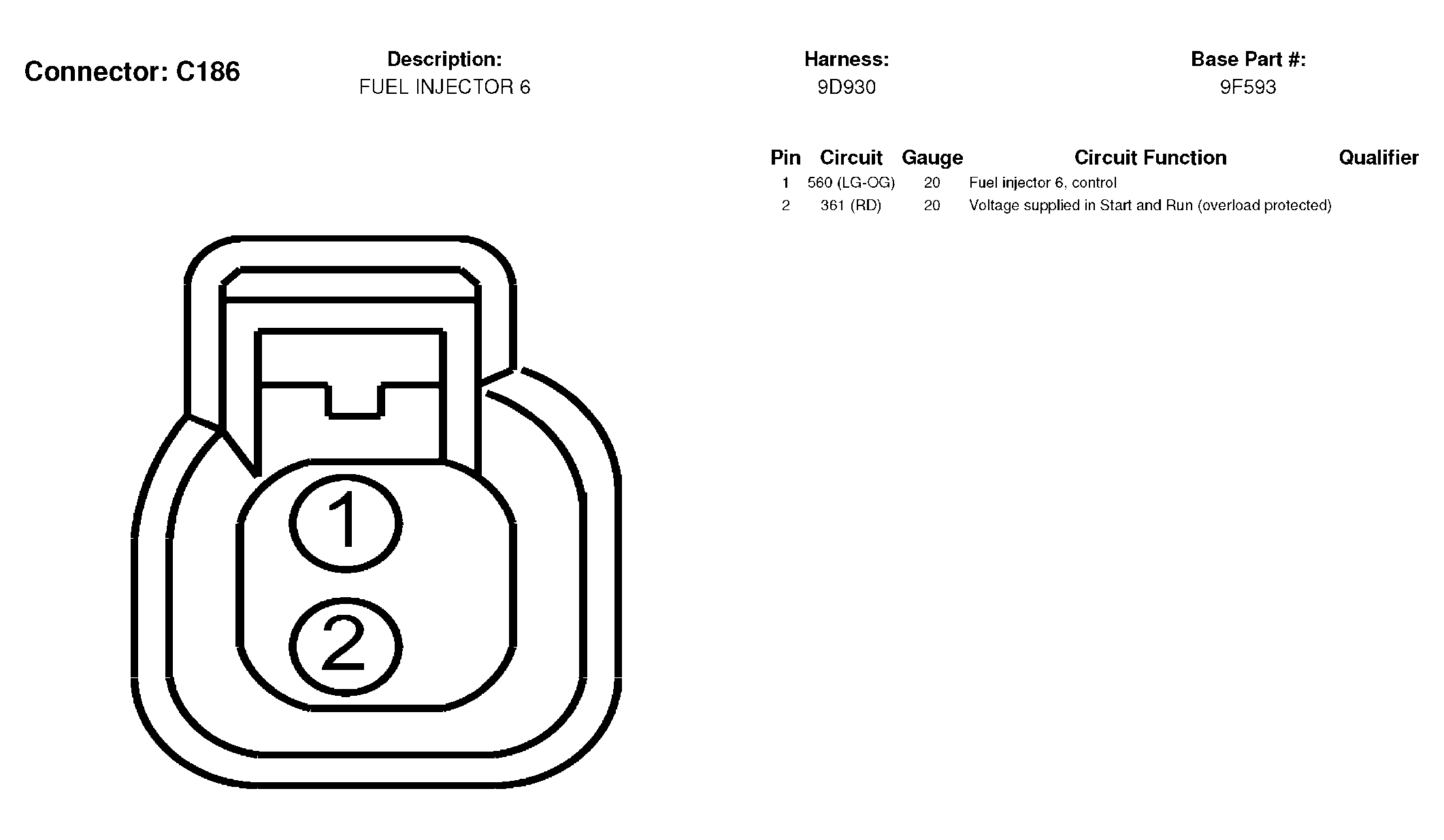

Fig 50: Fuel Injector 6 Connector End View (C186)
Courtesy of FORD MOTOR CO.

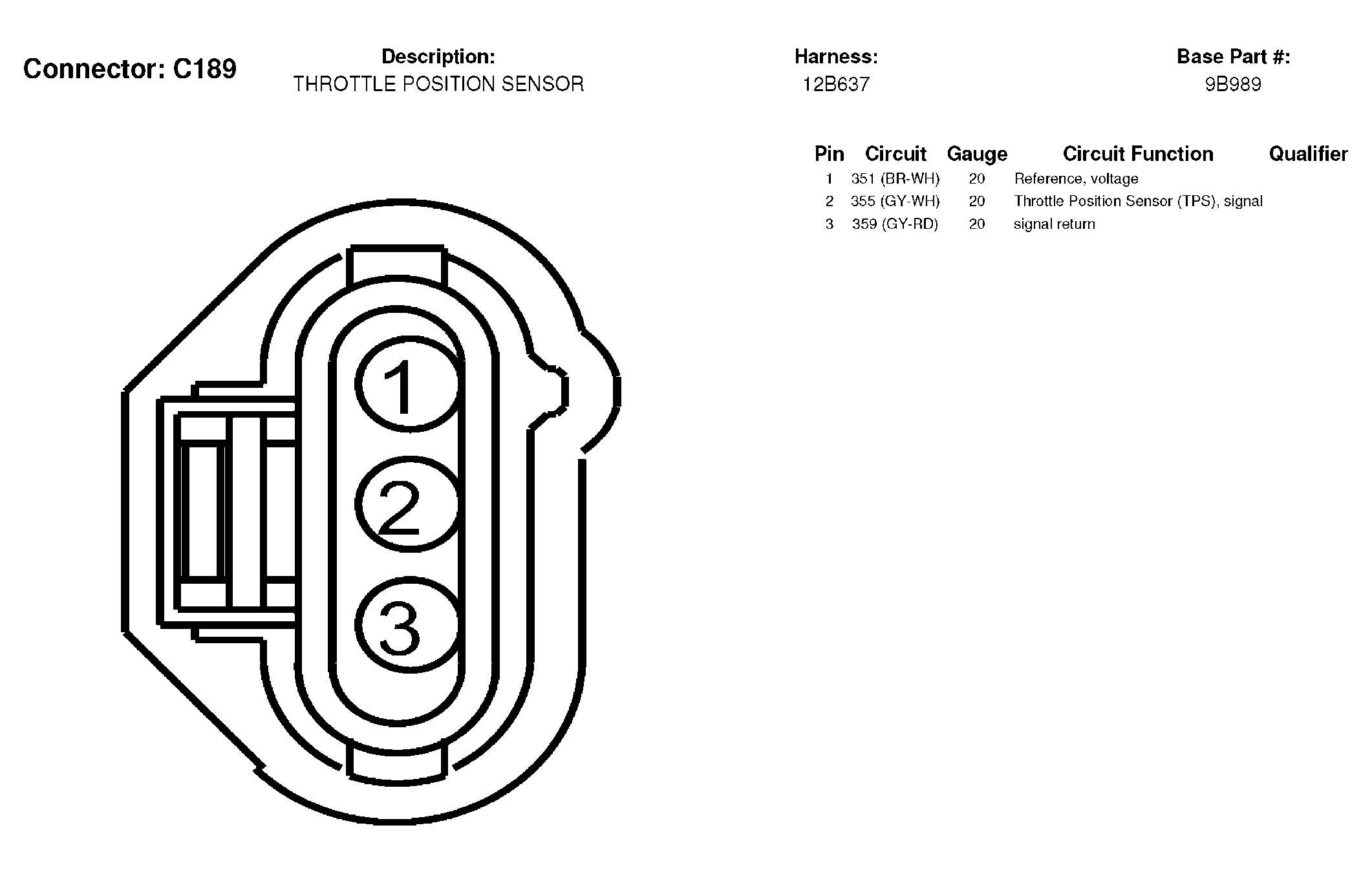

Fig 51: Throttle Position Sensor Connector End View (C189)
Courtesy of FORD MOTOR CO.

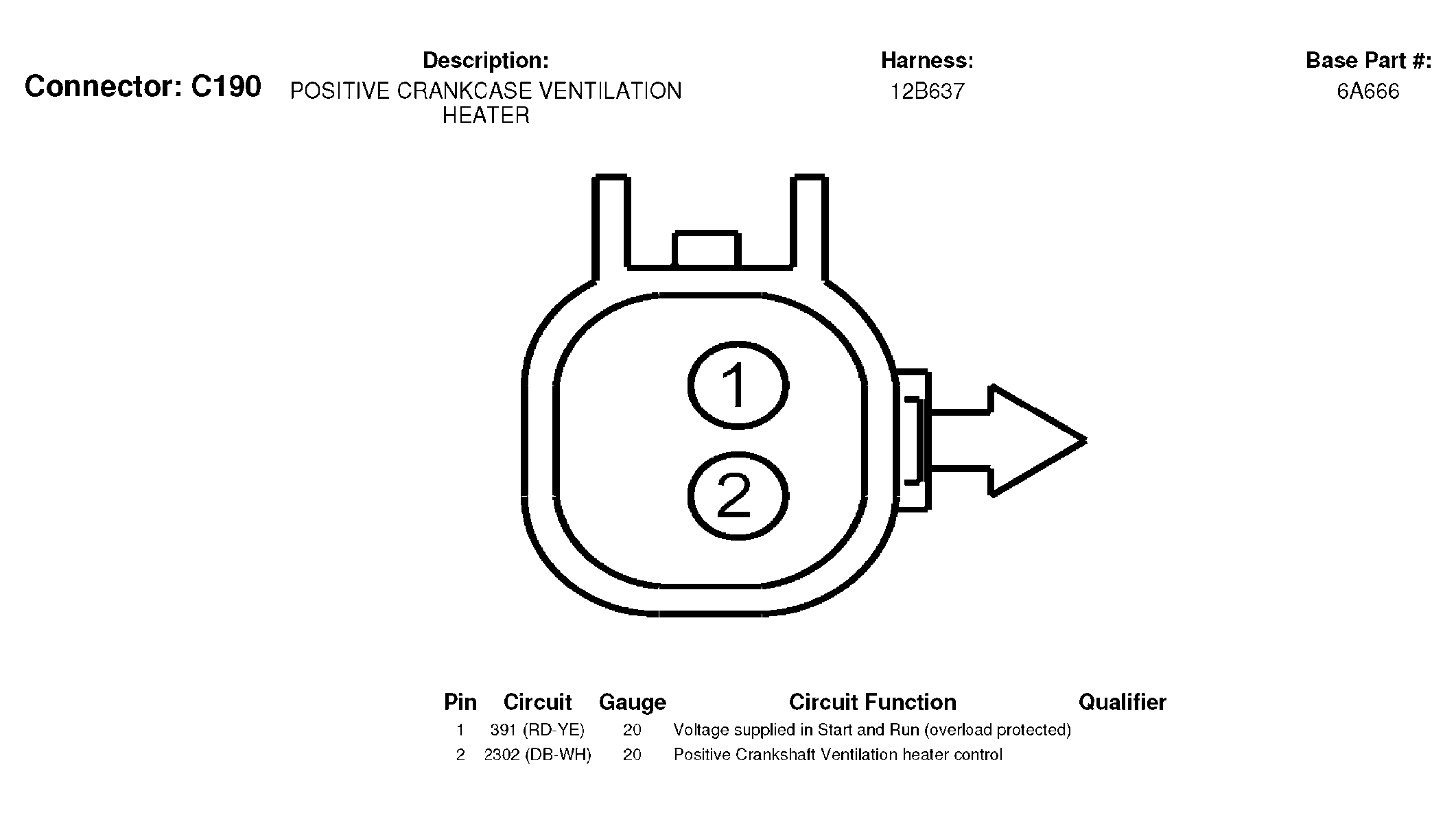

Fig 52: Positive Crankcase Ventilation Heater Connector End View (C190)
Courtesy of FORD MOTOR CO.

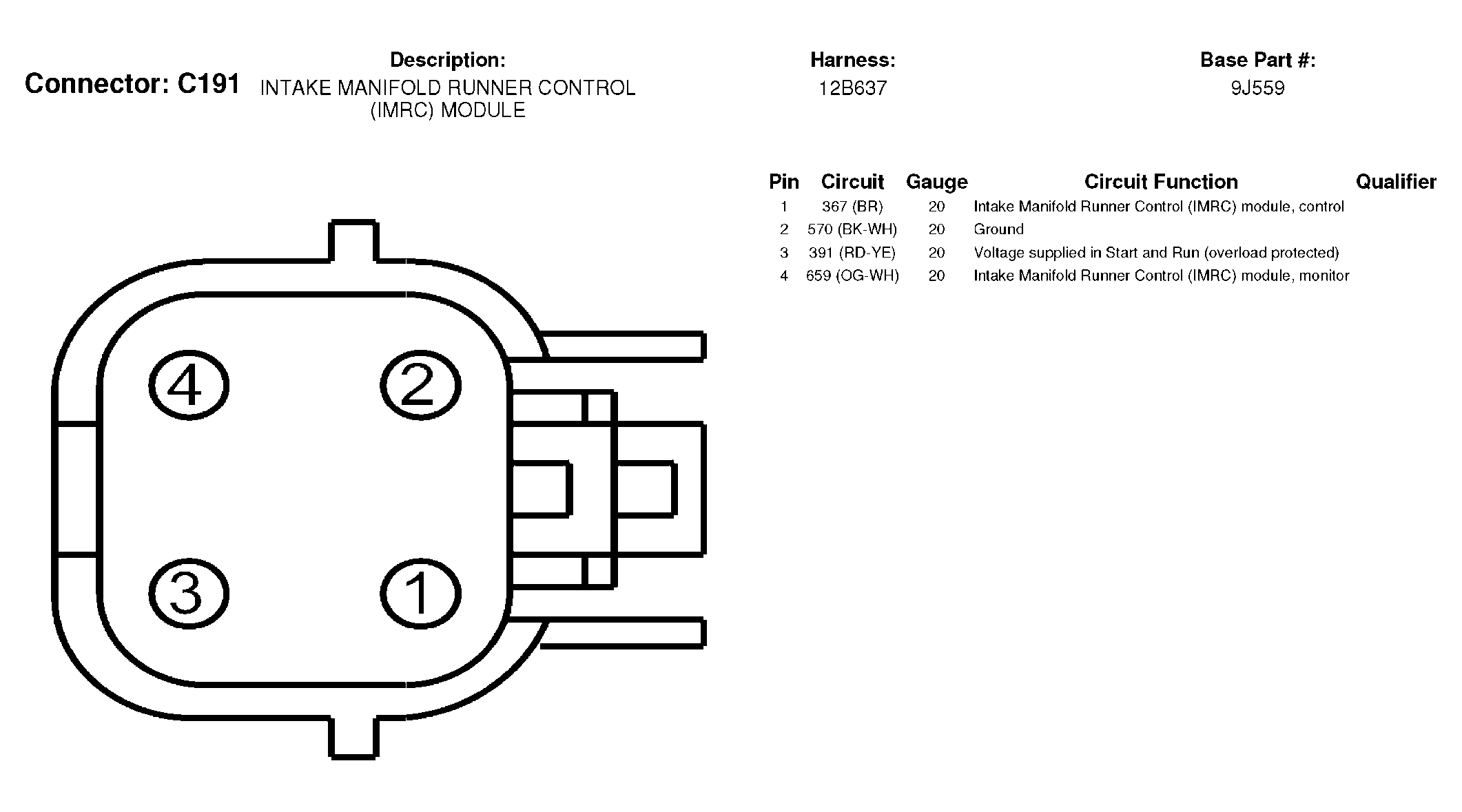

Fig 53: Intake Manifold Runner Control (IMRC) Module Connector End View (C191)
Courtesy of FORD MOTOR CO.

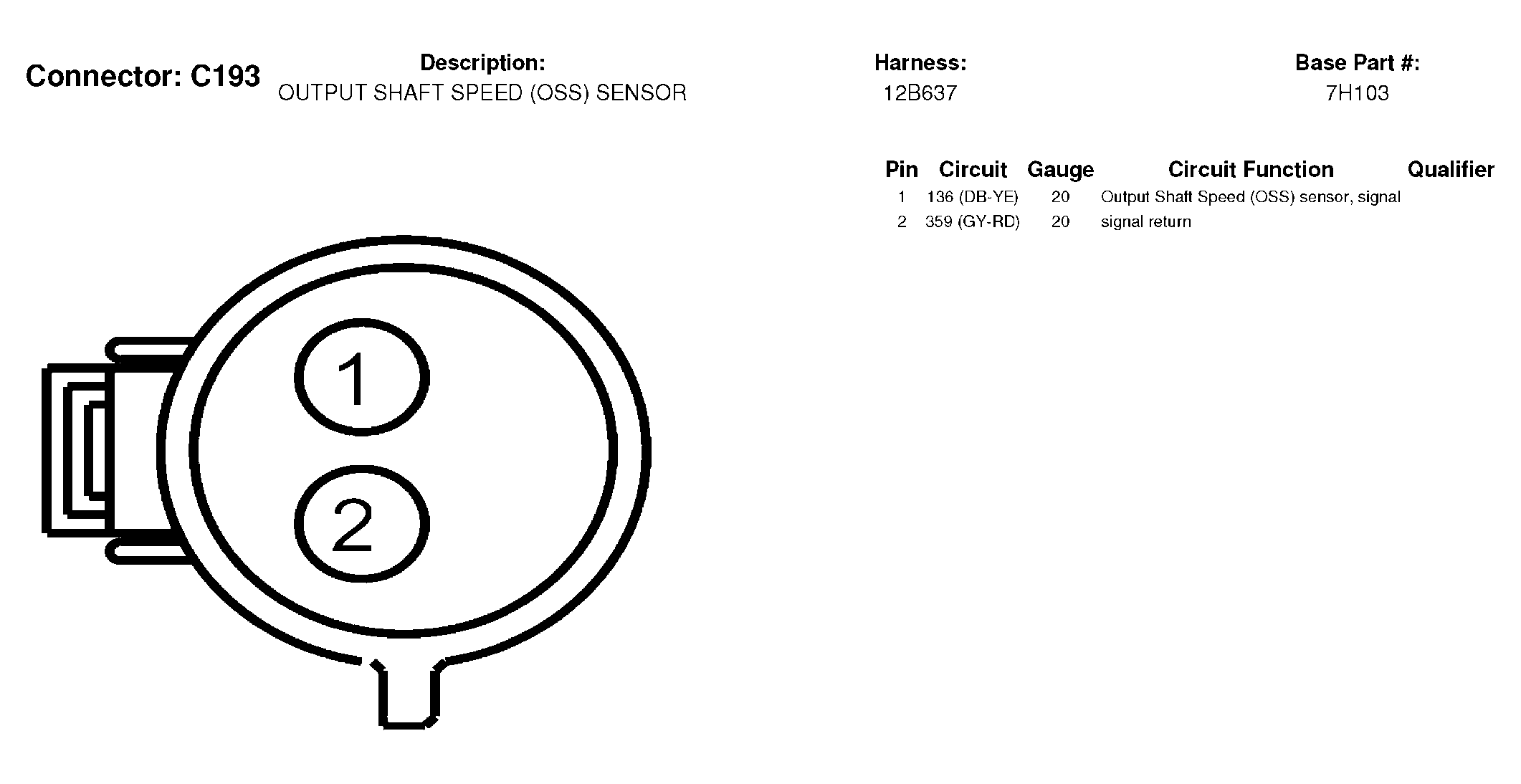

Fig 54: Output Shaft Speed (OSS) Sensor Connector End View (C193)
Courtesy of FORD MOTOR CO.

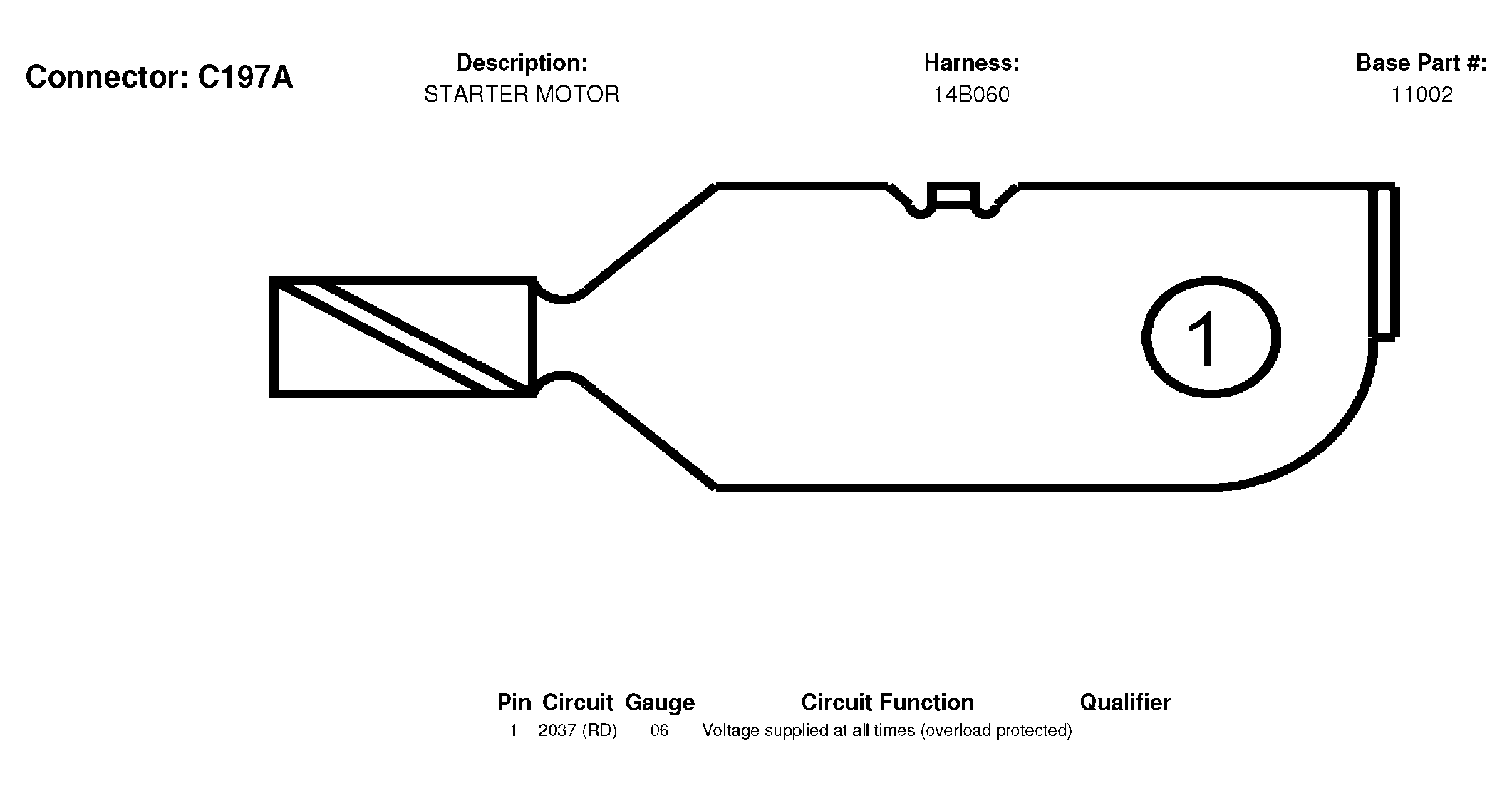

Fig 55: Starter Motor Connector End View (C197A)
Courtesy of FORD MOTOR CO.

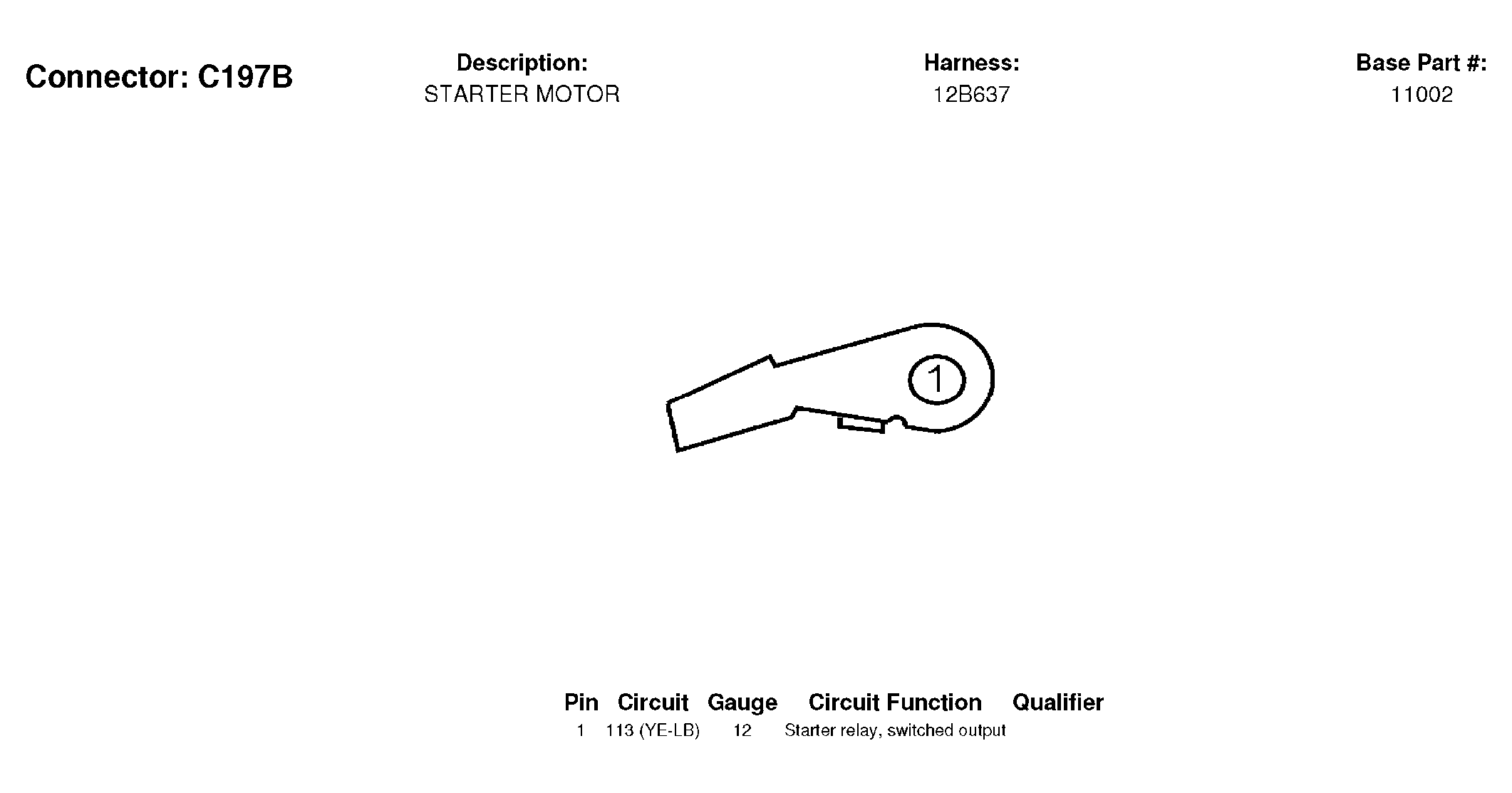

Fig 56: Starter Motor Connector End View (C197B)
Courtesy of FORD MOTOR CO.

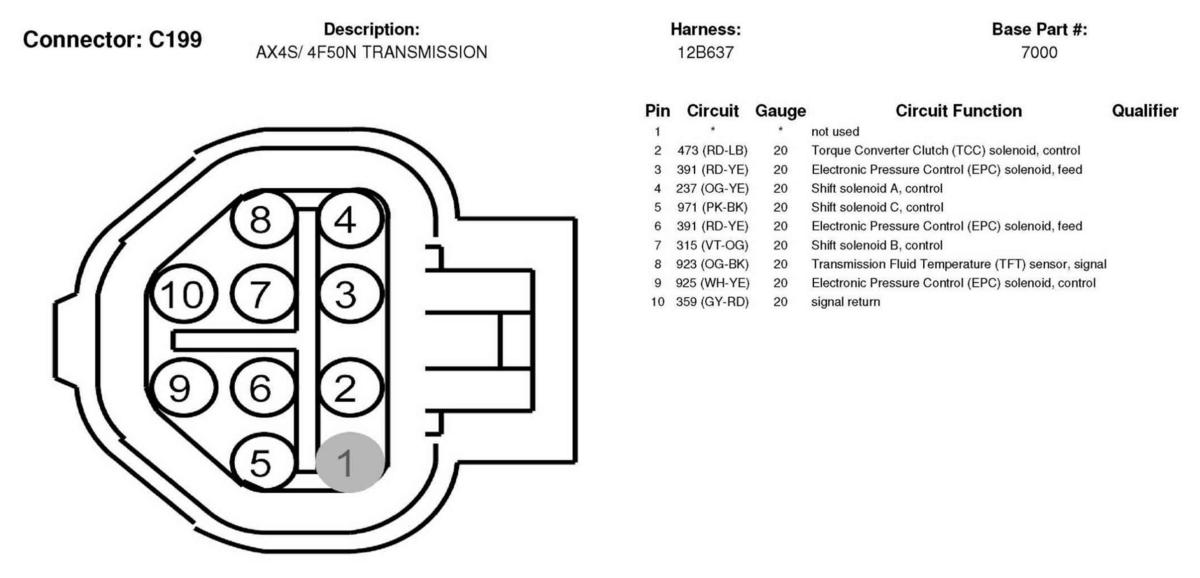

Fig 57: AX4S/4F50N Transmission Connector End View (C199)
Courtesy of FORD MOTOR CO.

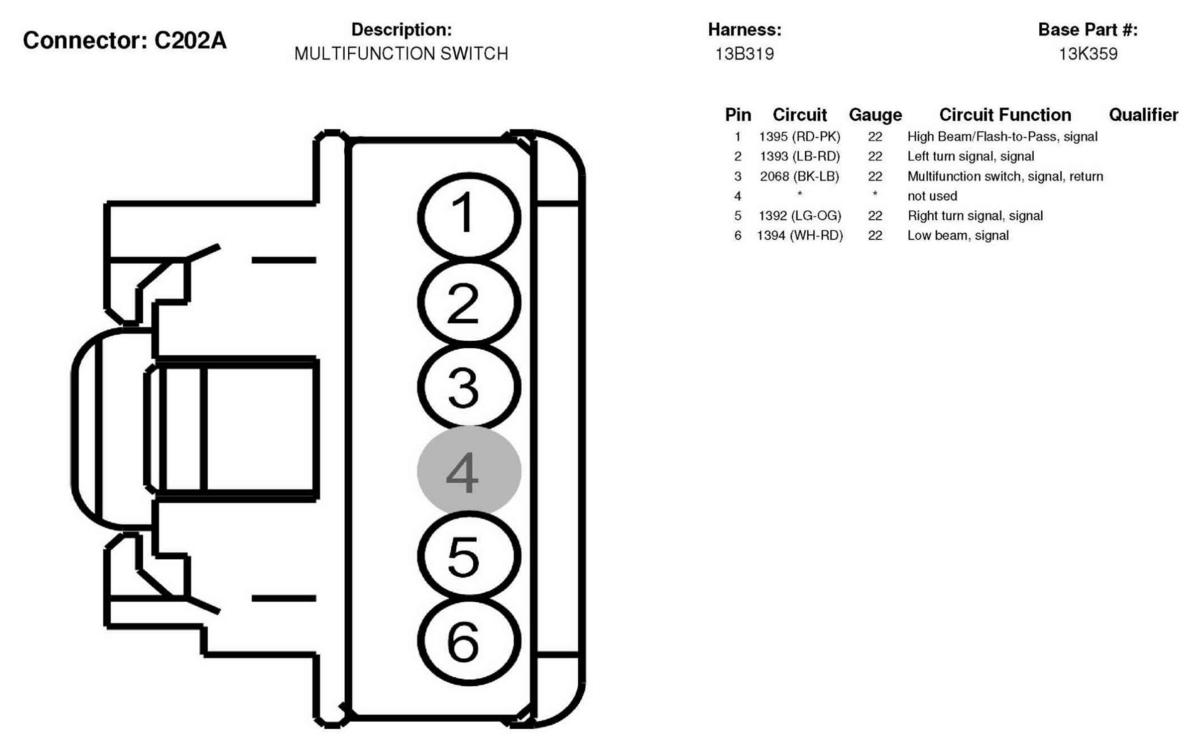

Fig 58: Multifunction Switch Connector End View (C202A)
Courtesy of FORD MOTOR CO.

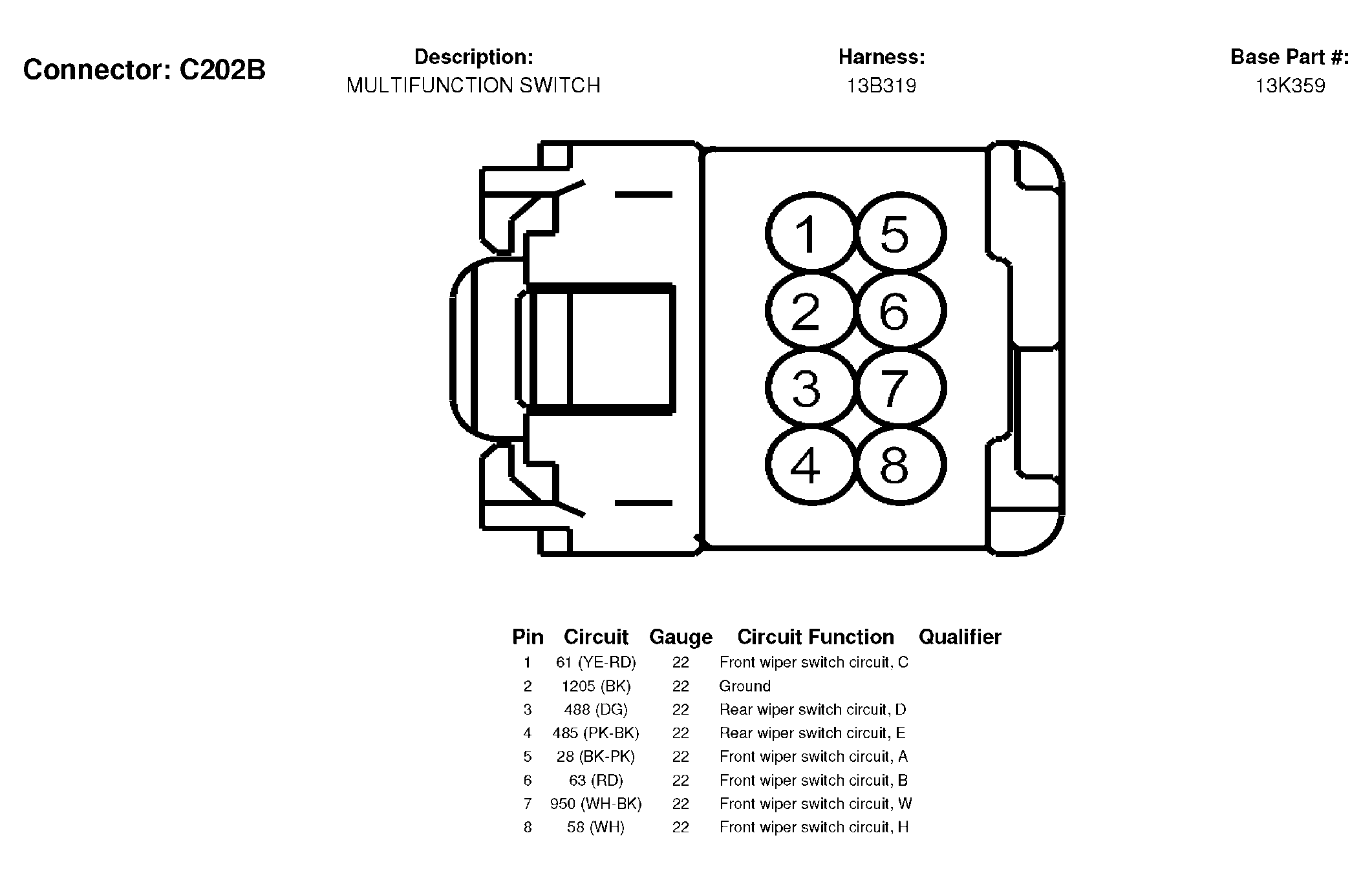

Fig 59: Multifunction Switch Connector End View (C202B)
Courtesy of FORD MOTOR CO.

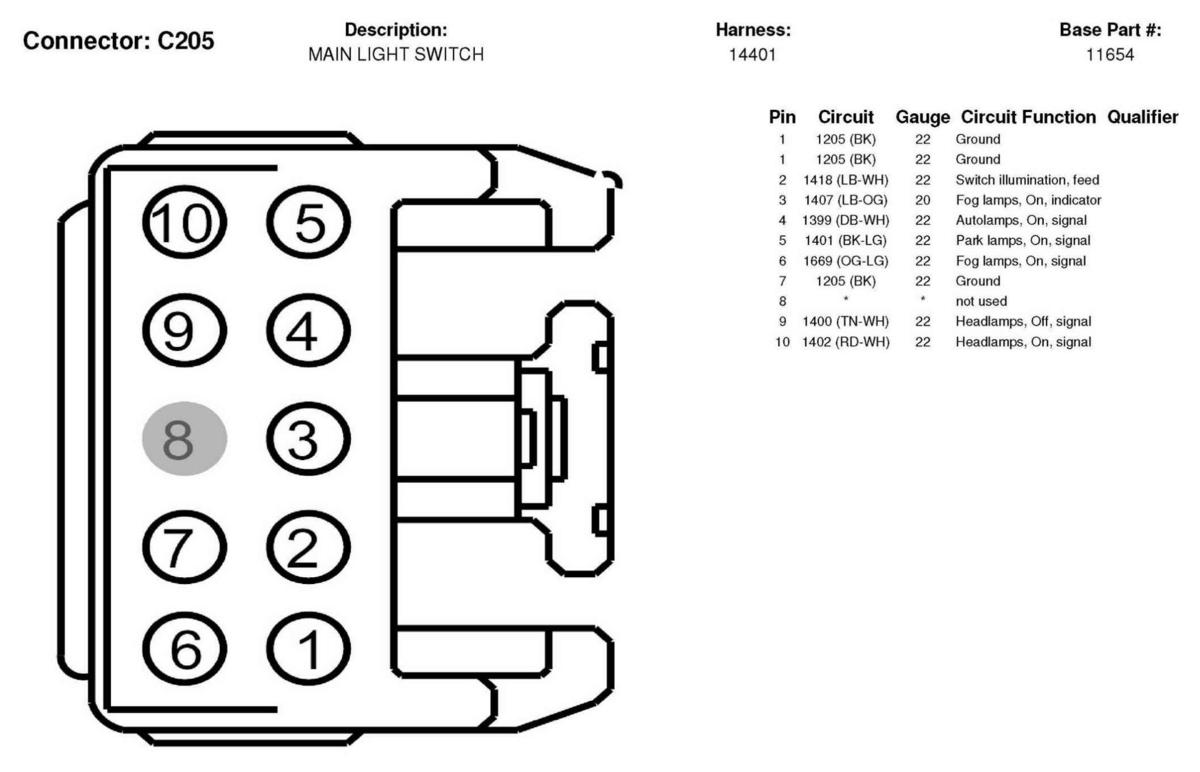

Fig 60: Main Light Switch Connector End View (C205)
Courtesy of FORD MOTOR CO.

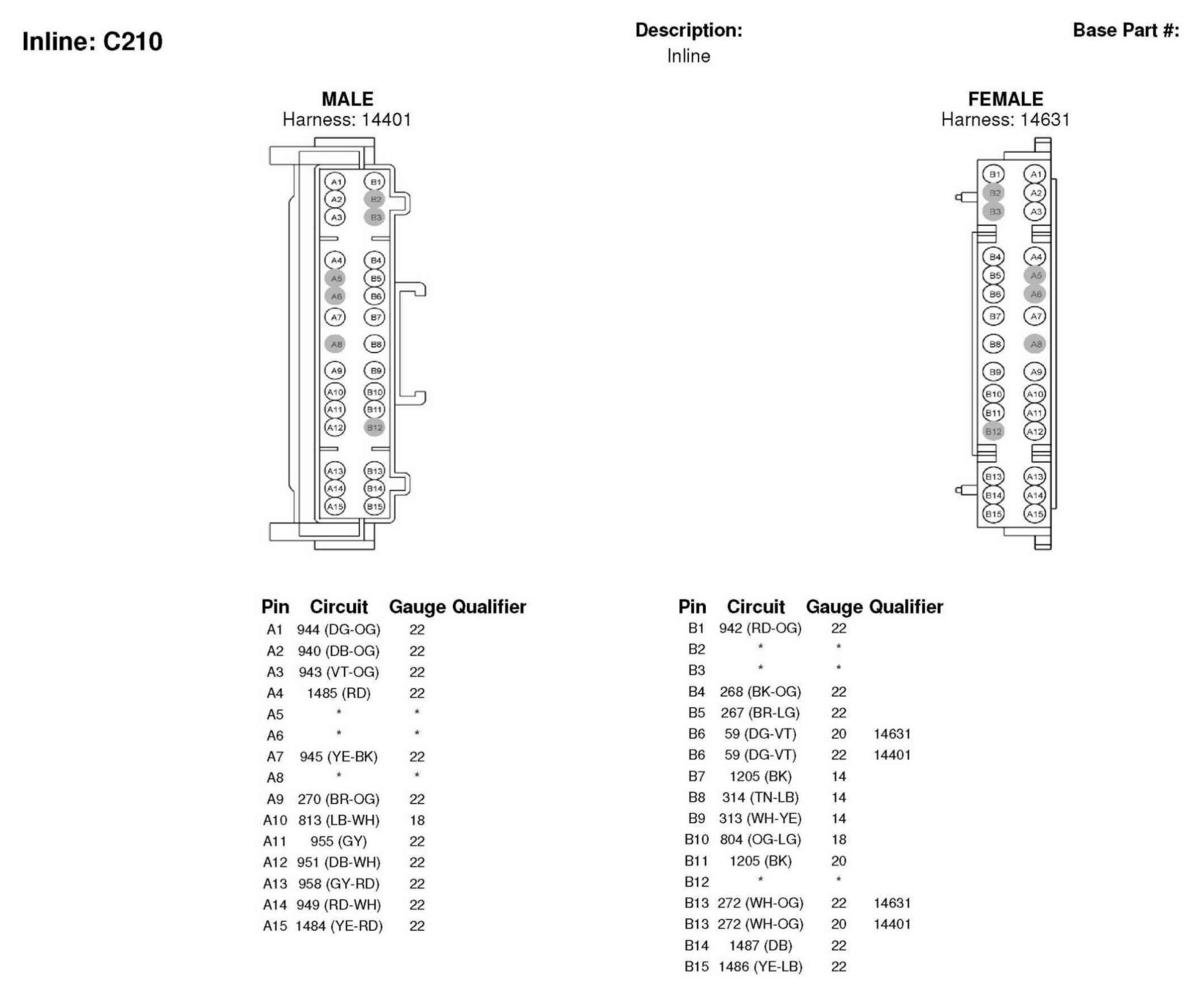

Fig 61: Inline Connector End View (C210)
Courtesy of FORD MOTOR CO.
Fig 62: Inline Connector End View (C211)
Courtesy of FORD MOTOR CO.

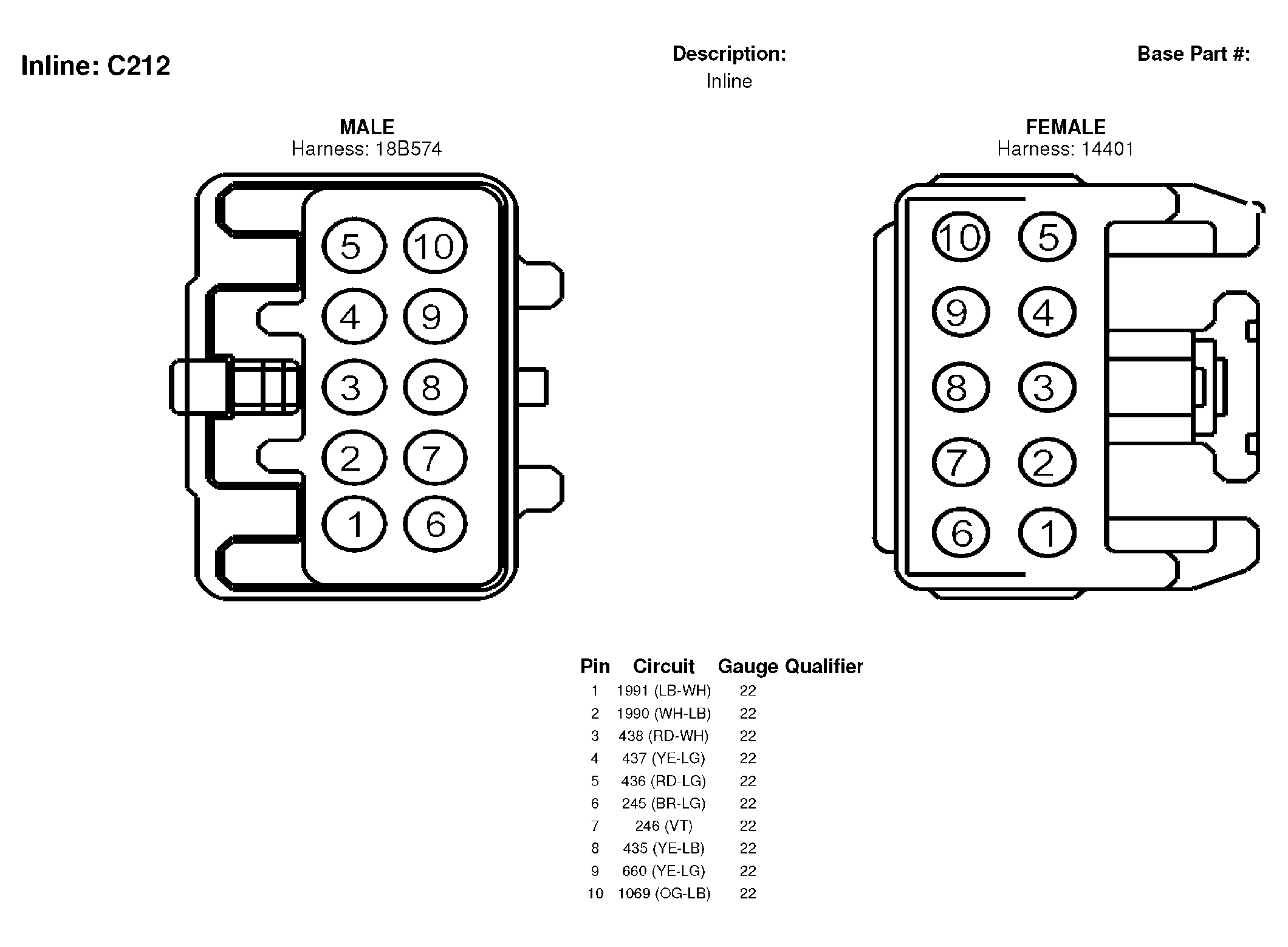

Fig 63: Inline Connector End View (C212)
Courtesy of FORD MOTOR CO.

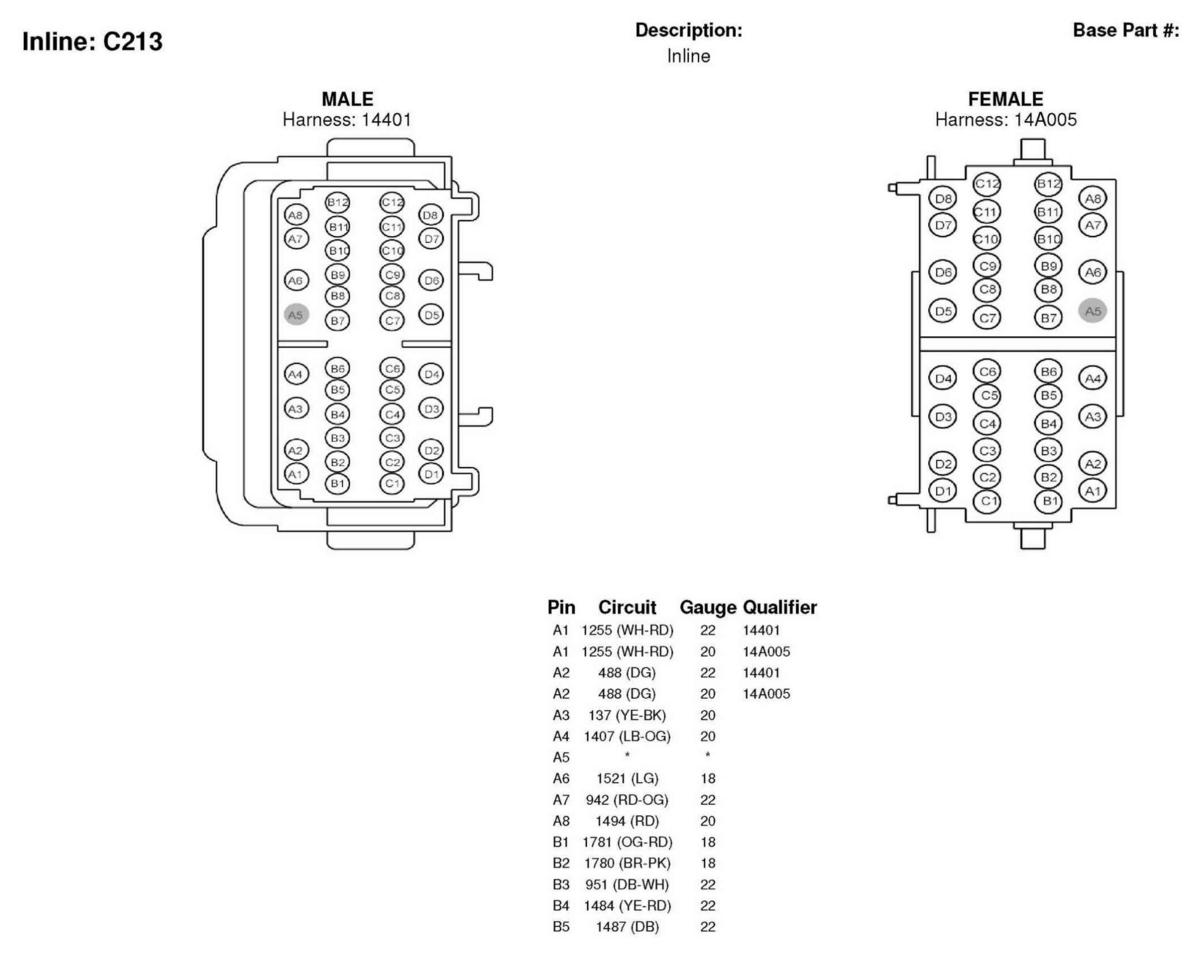

Fig 64: Inline Connector End View (C213) (1 Of 2)
Courtesy of FORD MOTOR CO.

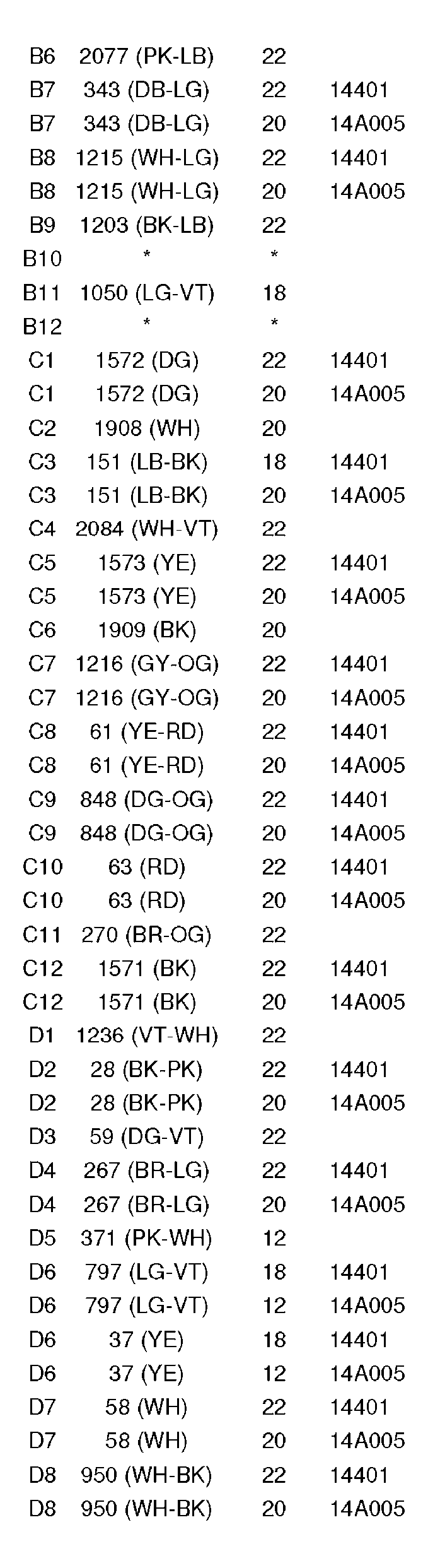

Fig 65: Inline Connector End View (C213) (2 Of 2)
Courtesy of FORD MOTOR CO.

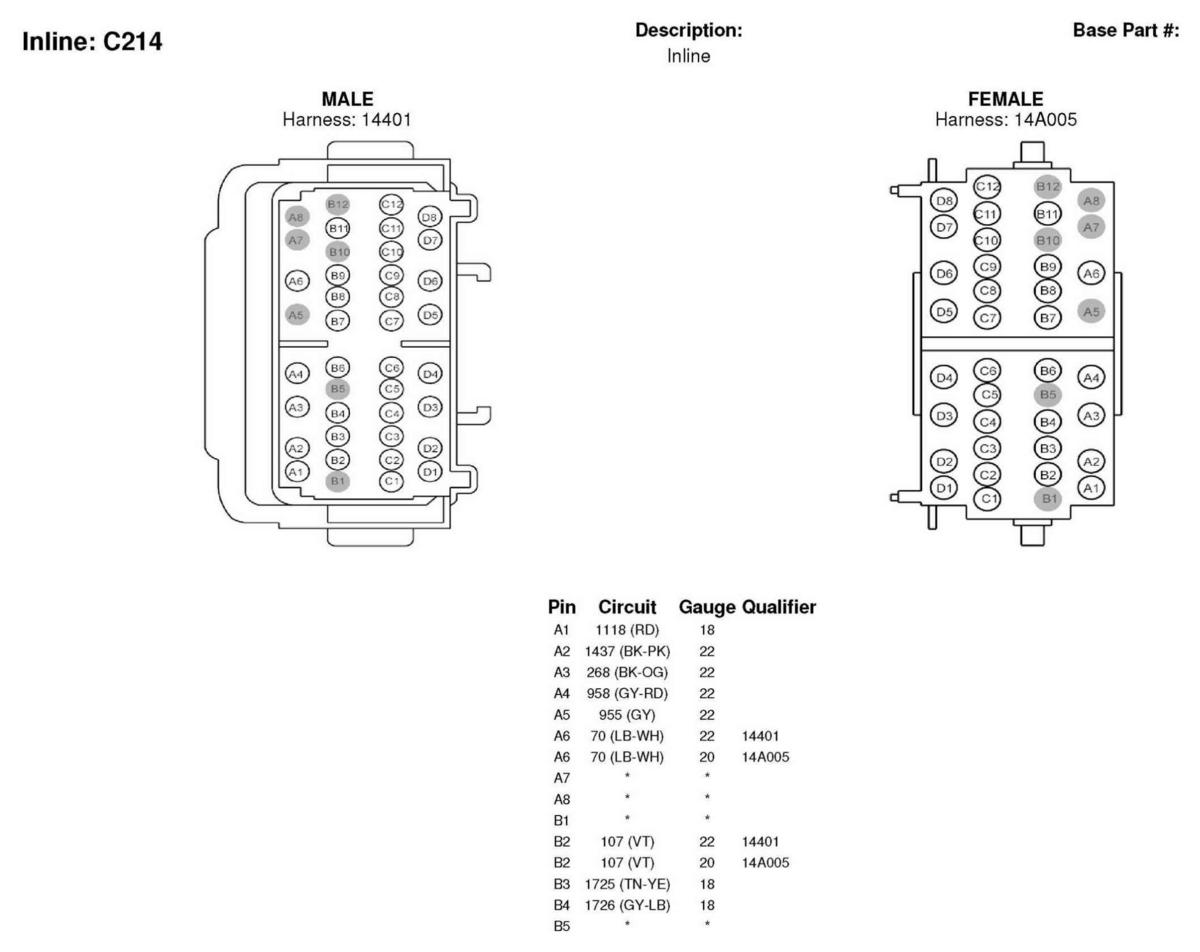

Fig 66: Inline Connector End View (C214) (1 Of 2)
Courtesy of FORD MOTOR CO.

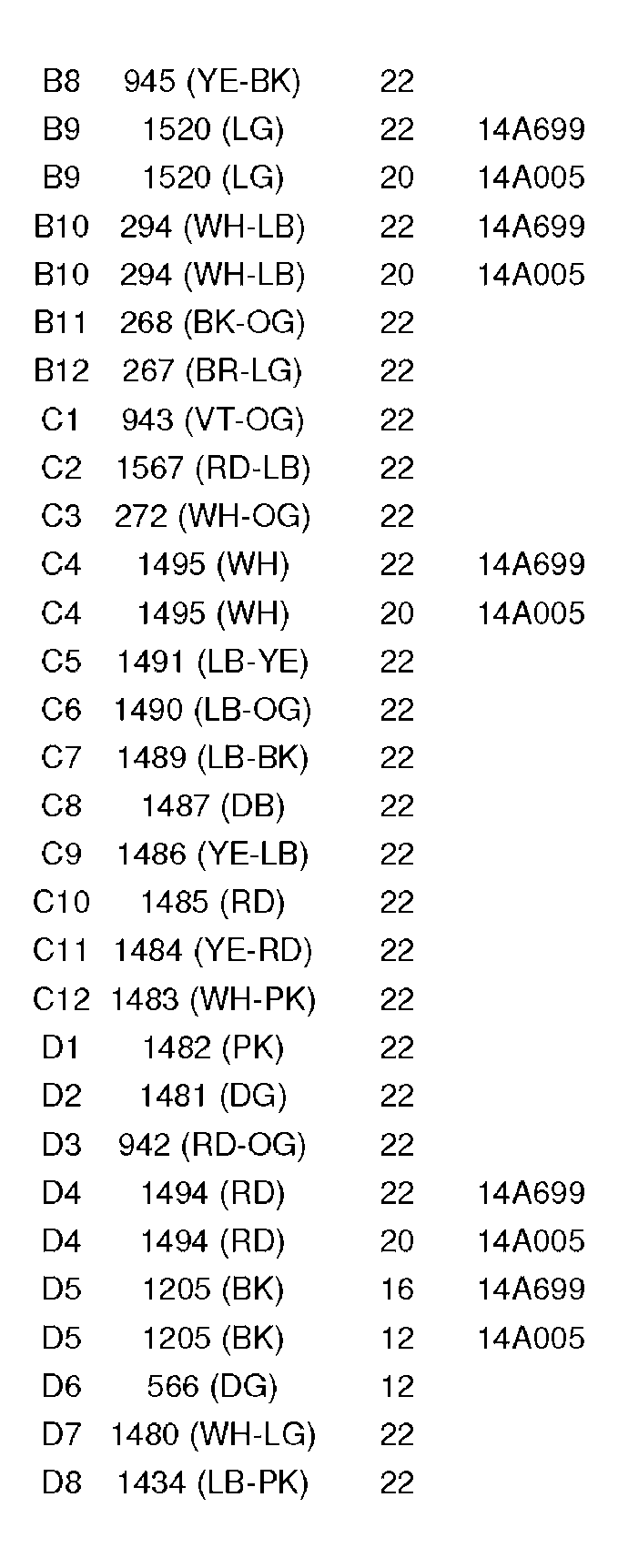

Fig 67: Inline Connector End View (C214) (2 Of 2)
Courtesy of FORD MOTOR CO.
Fig 68: Inline Connector End View (C215)
Courtesy of FORD MOTOR CO.

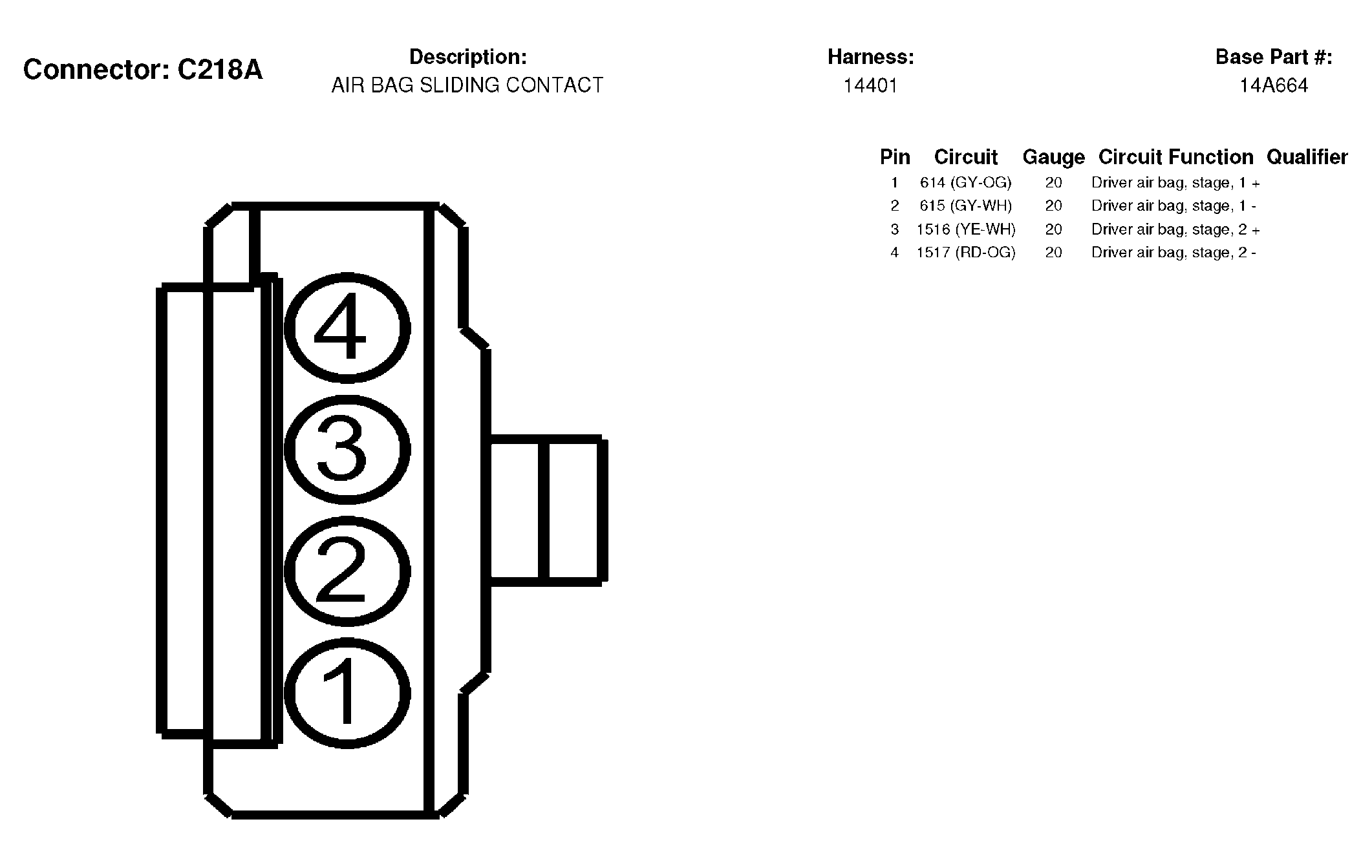

Fig 69: Air Bag Sliding Contact Connector End View (C218A)
Courtesy of FORD MOTOR CO.

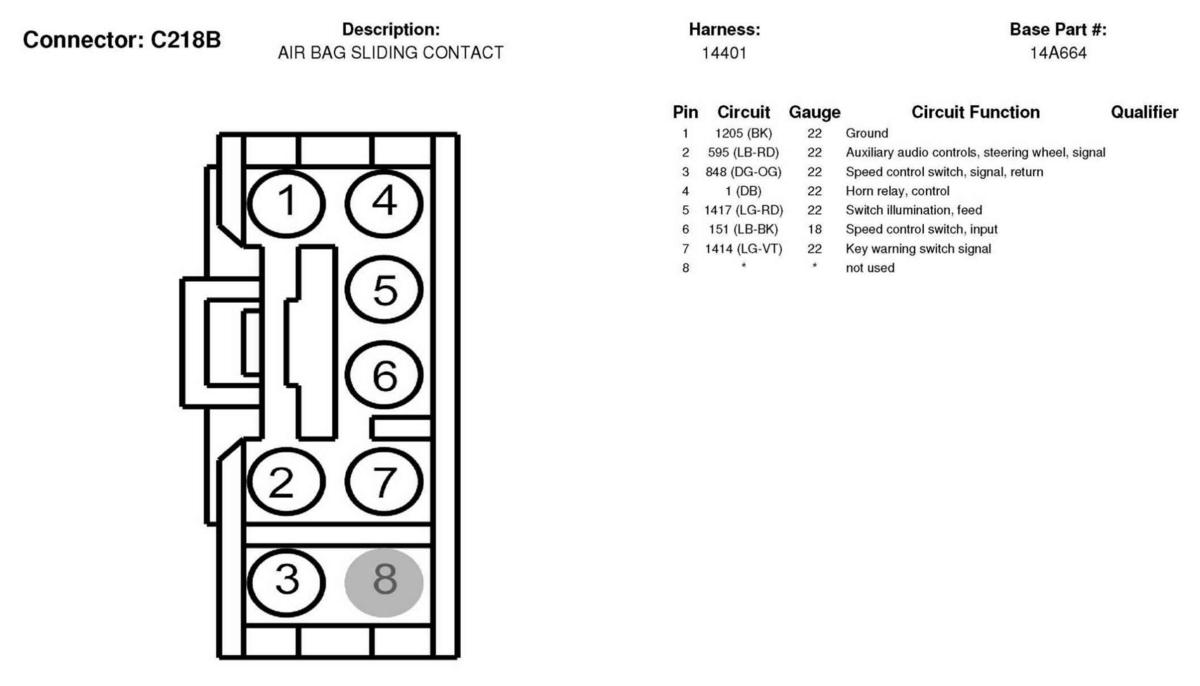

Fig 70: Air Bag Sliding Contact Connector End View (C218B)
Courtesy of FORD MOTOR CO.

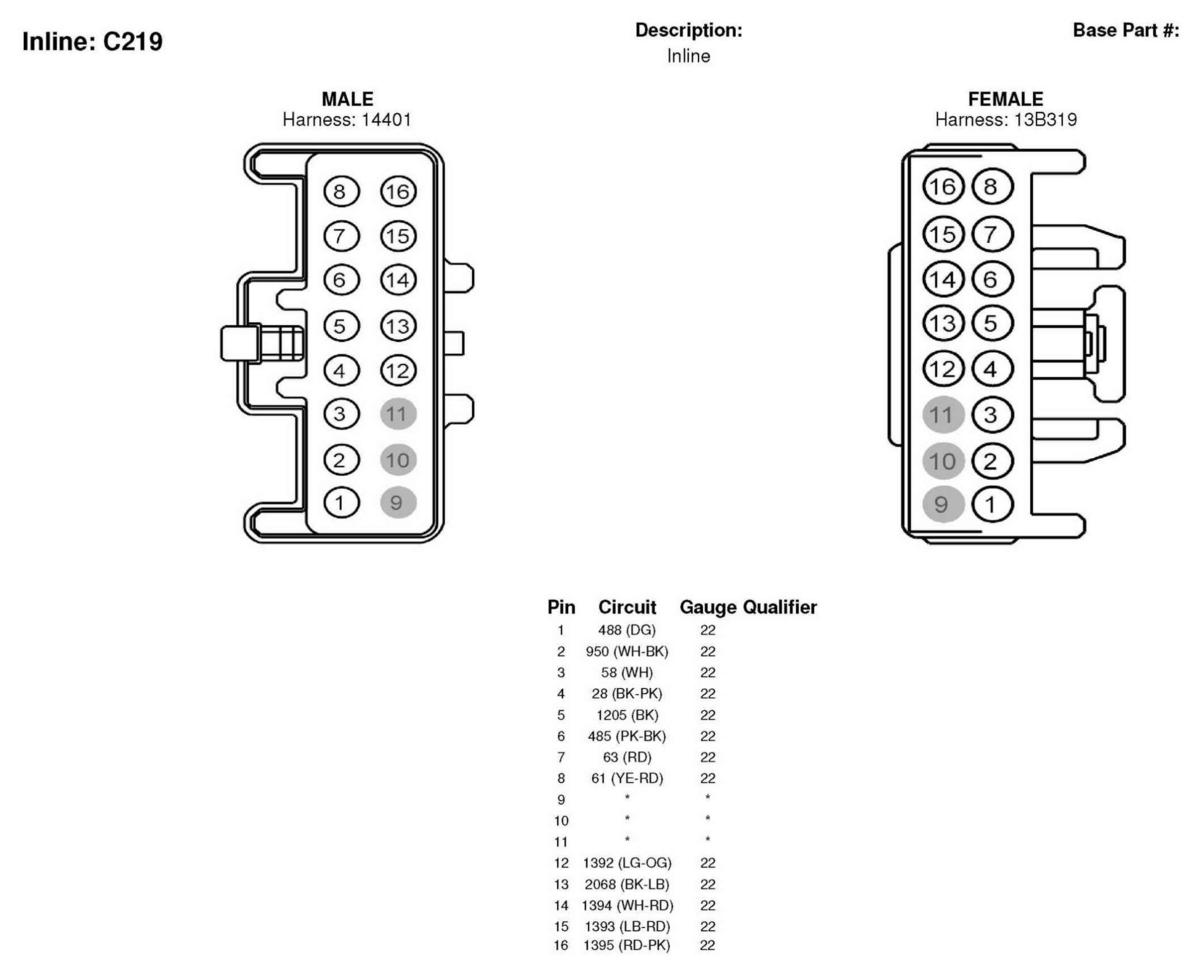

Fig 71: Inline Connector End View (C219)
Courtesy of FORD MOTOR CO.

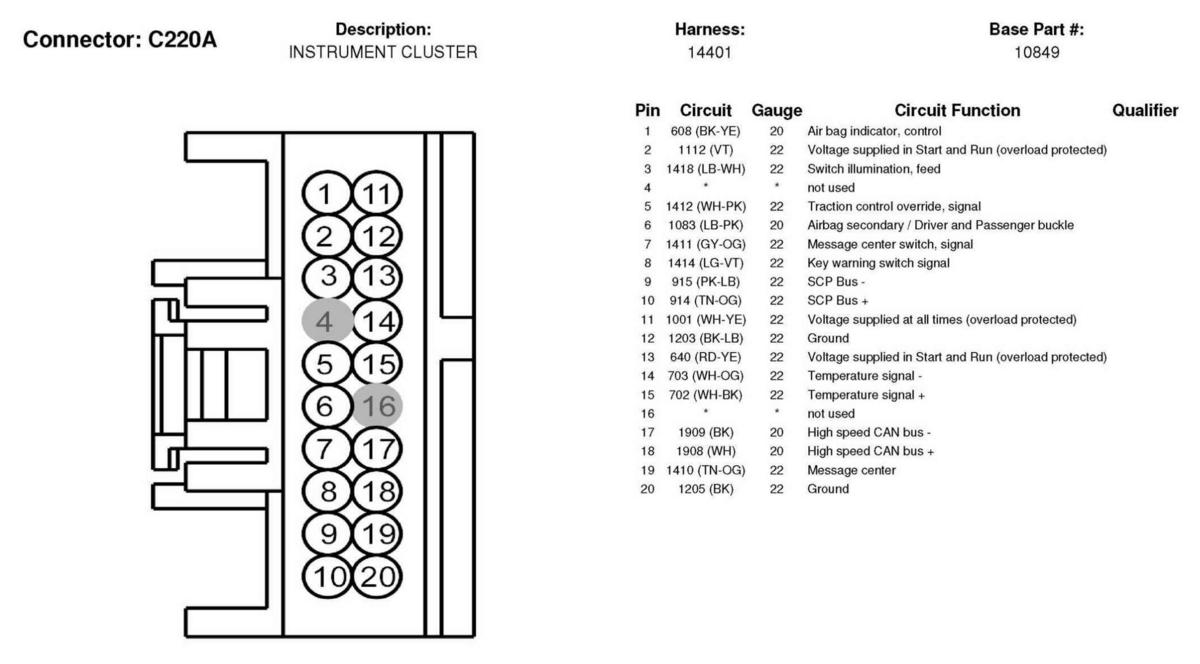

Fig 72: Instrument Cluster Connector End View (C220A)
Courtesy of FORD MOTOR CO.

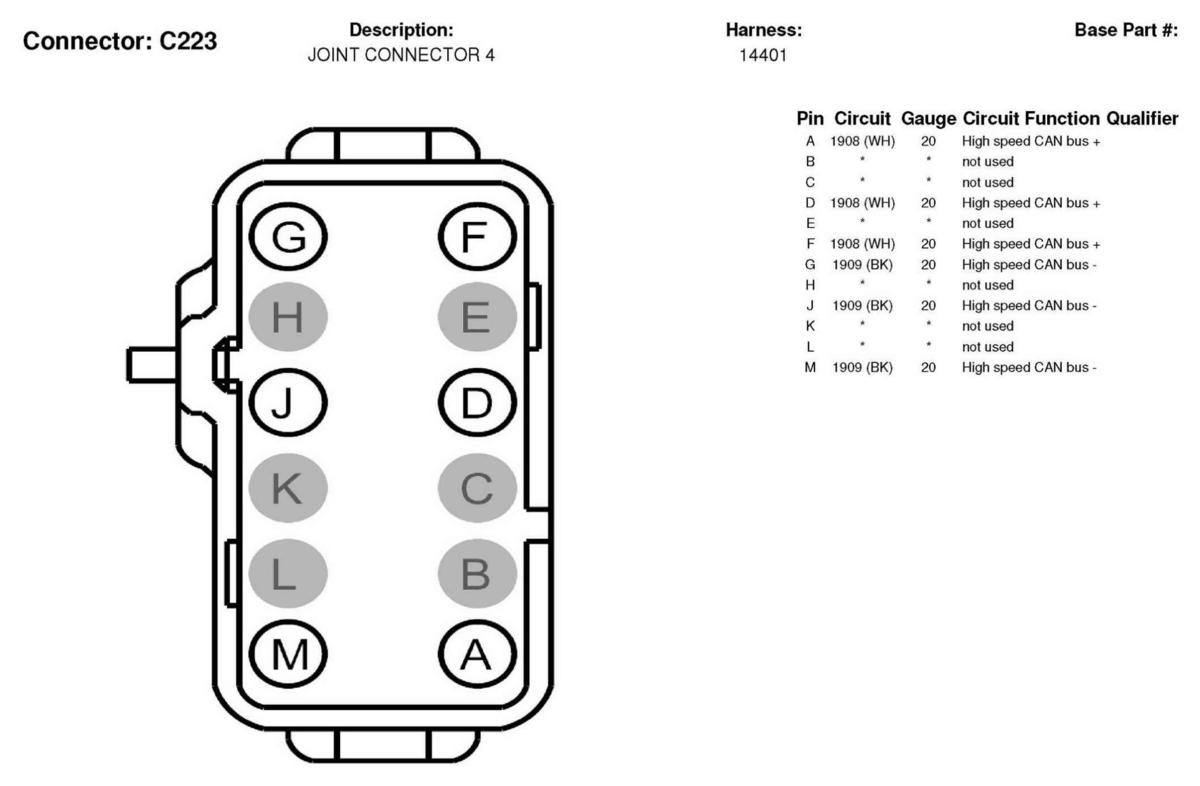

Fig 73: Joint Connector 4 Connector End View (C223)
Courtesy of FORD MOTOR CO.

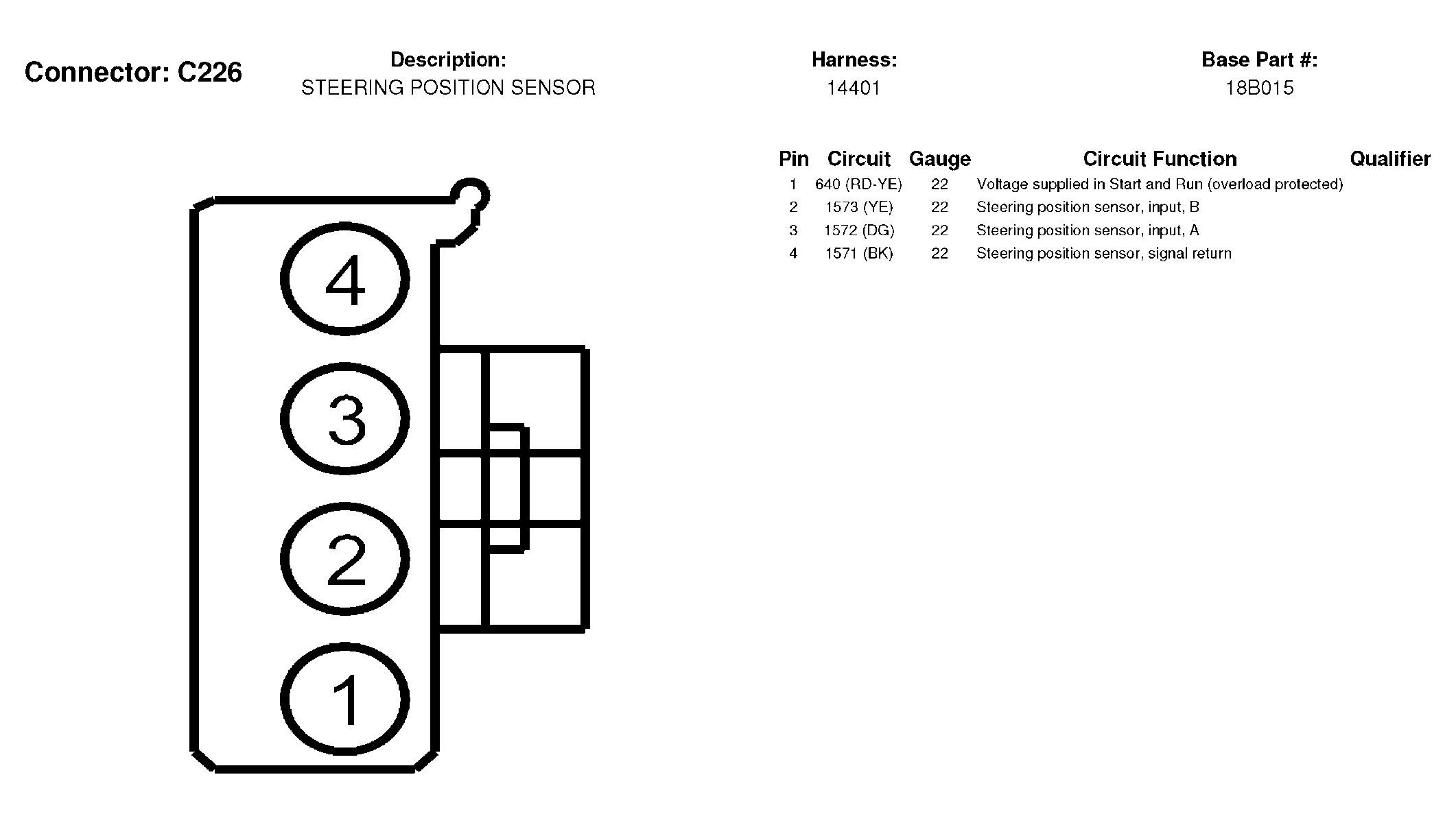

Fig 74: Steering Position Sensor Connector End View (C226)
Courtesy of FORD MOTOR CO.

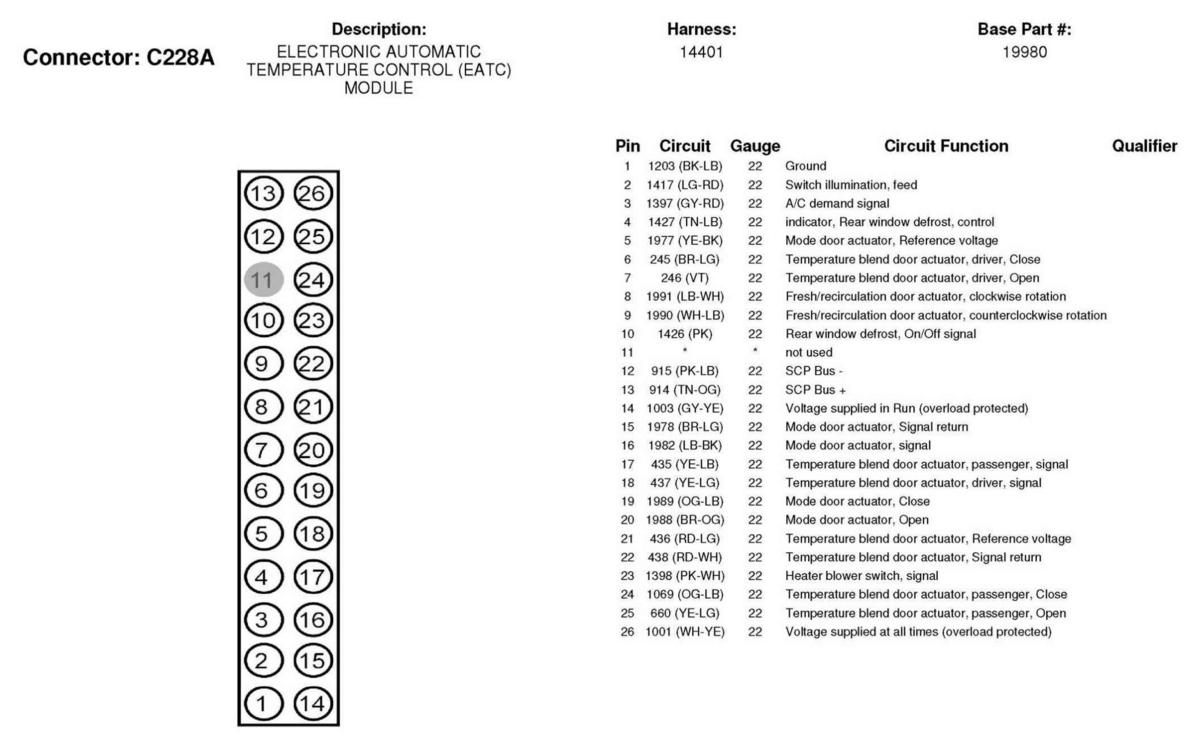

Fig 75: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228A)
Courtesy of FORD MOTOR CO.

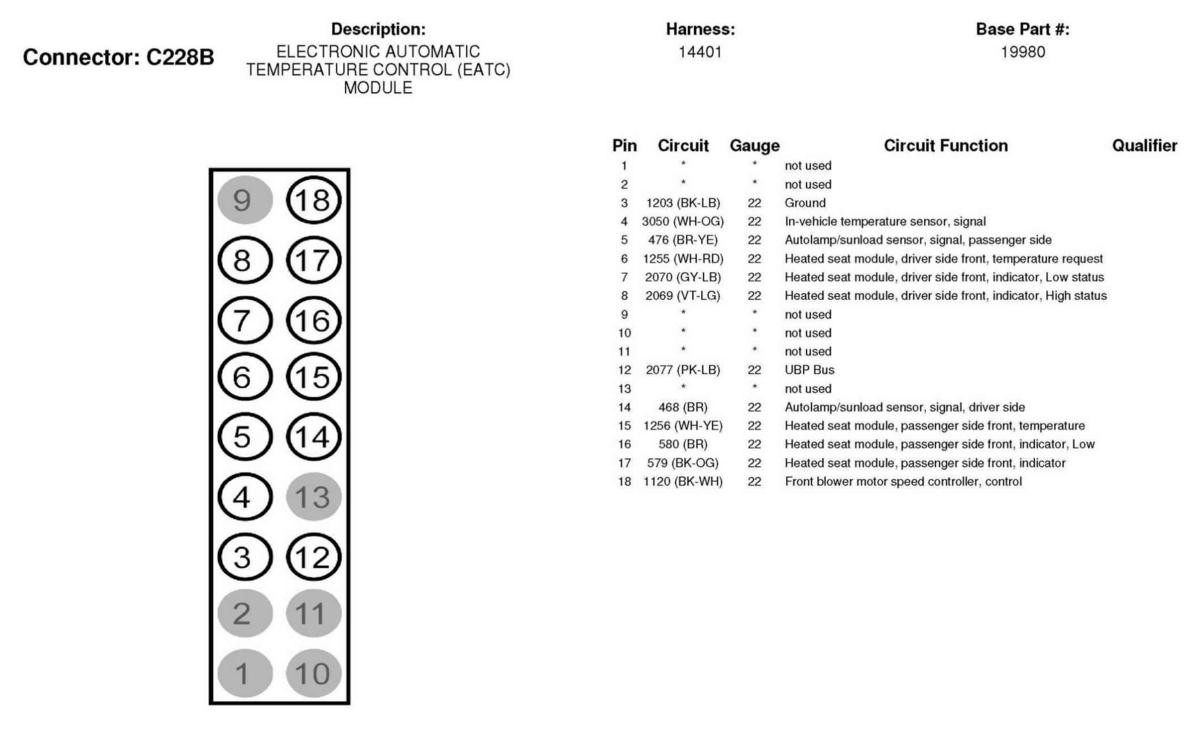

Fig 76: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228B)
Courtesy of FORD MOTOR CO.

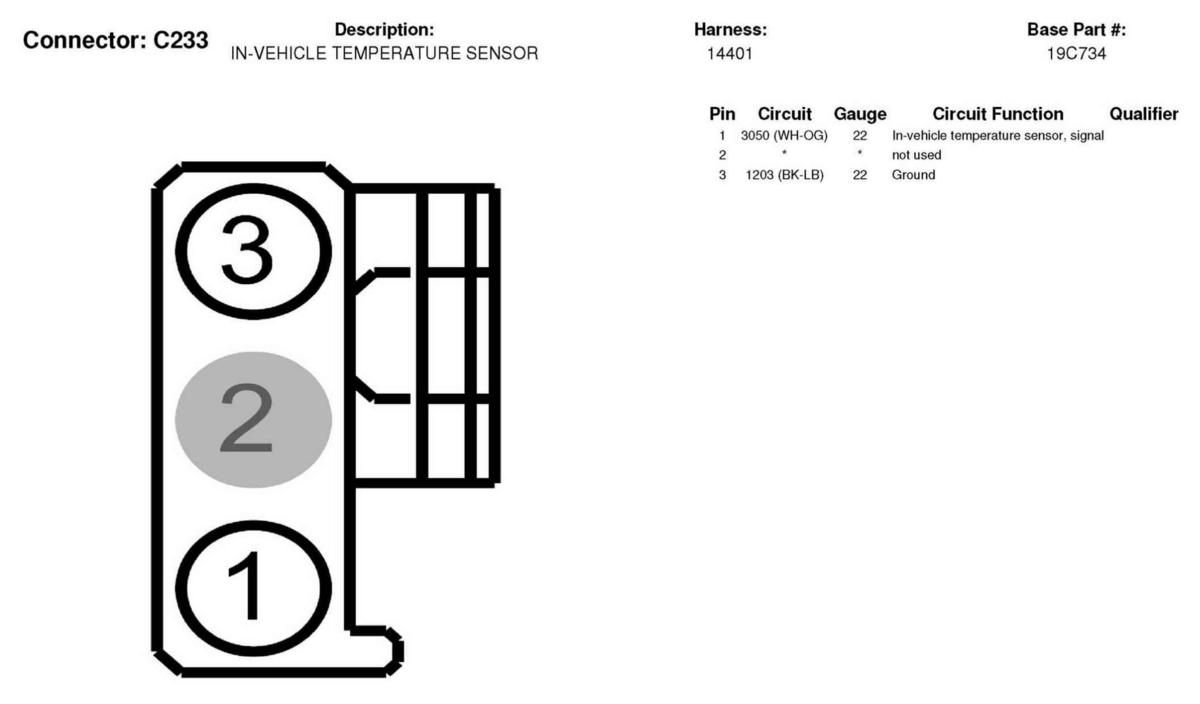

Fig 77: In-Vehicle Temperature Sensor Connector End View (C233)
Courtesy of FORD MOTOR CO.

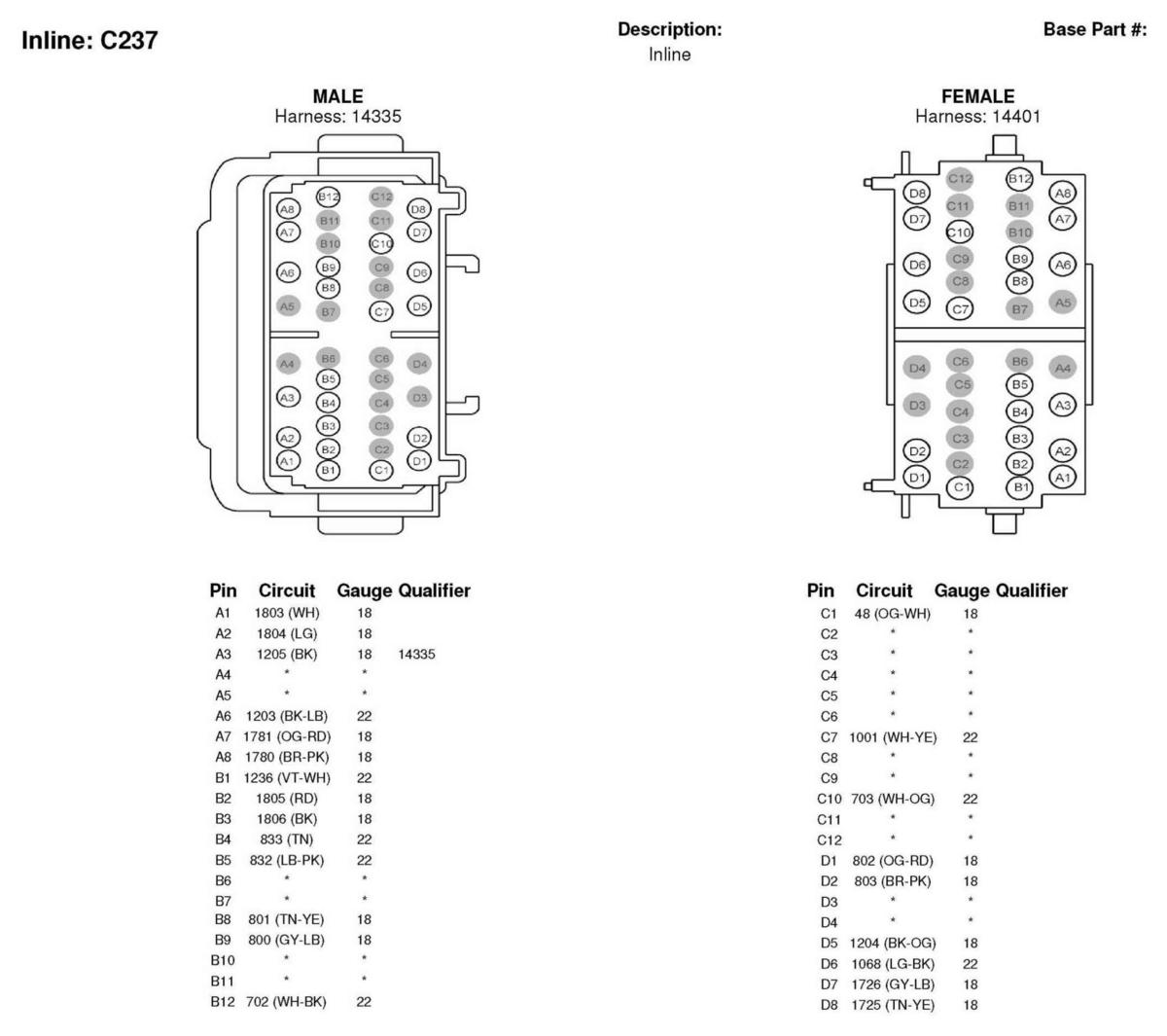

Fig 78: Inline Connector End View (C237)
Courtesy of FORD MOTOR CO.

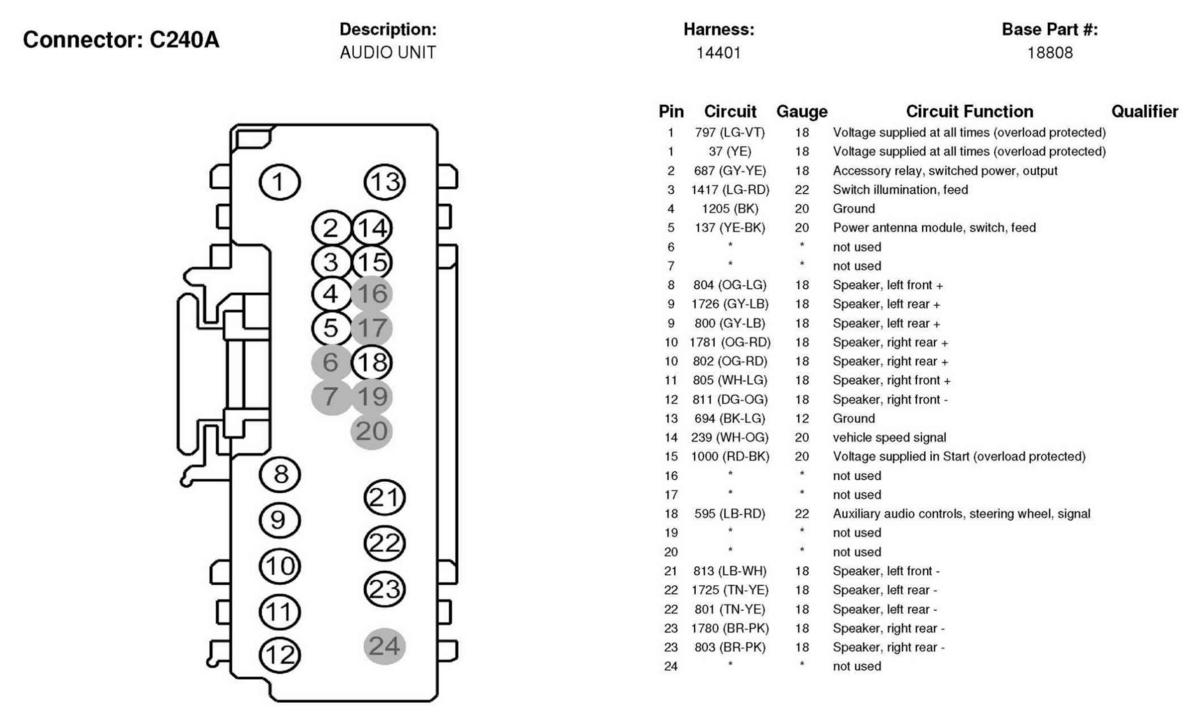

Fig 79: Audio Unit Connector End View (C240A)
Courtesy of FORD MOTOR CO.

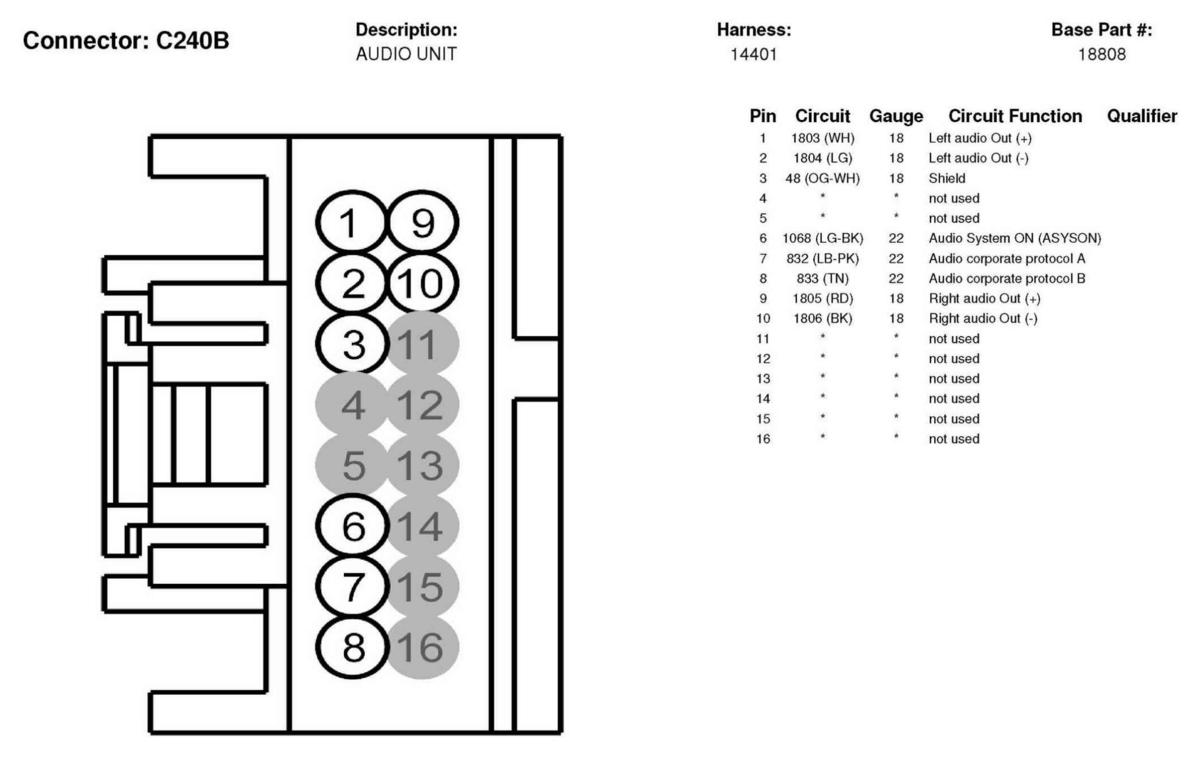

Fig 80: Audio Unit Connector End View (C240B)
Courtesy of FORD MOTOR CO.

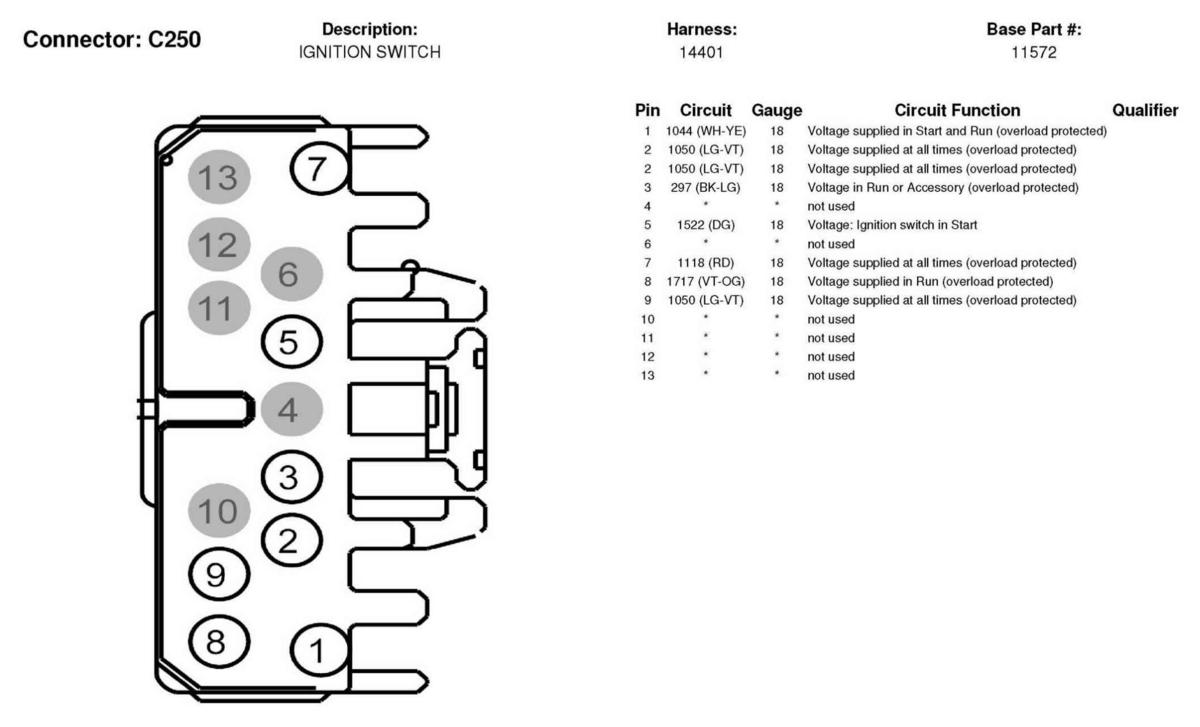

Fig 81: Ignition Switch Connector End View (C250)
Courtesy of FORD MOTOR CO.

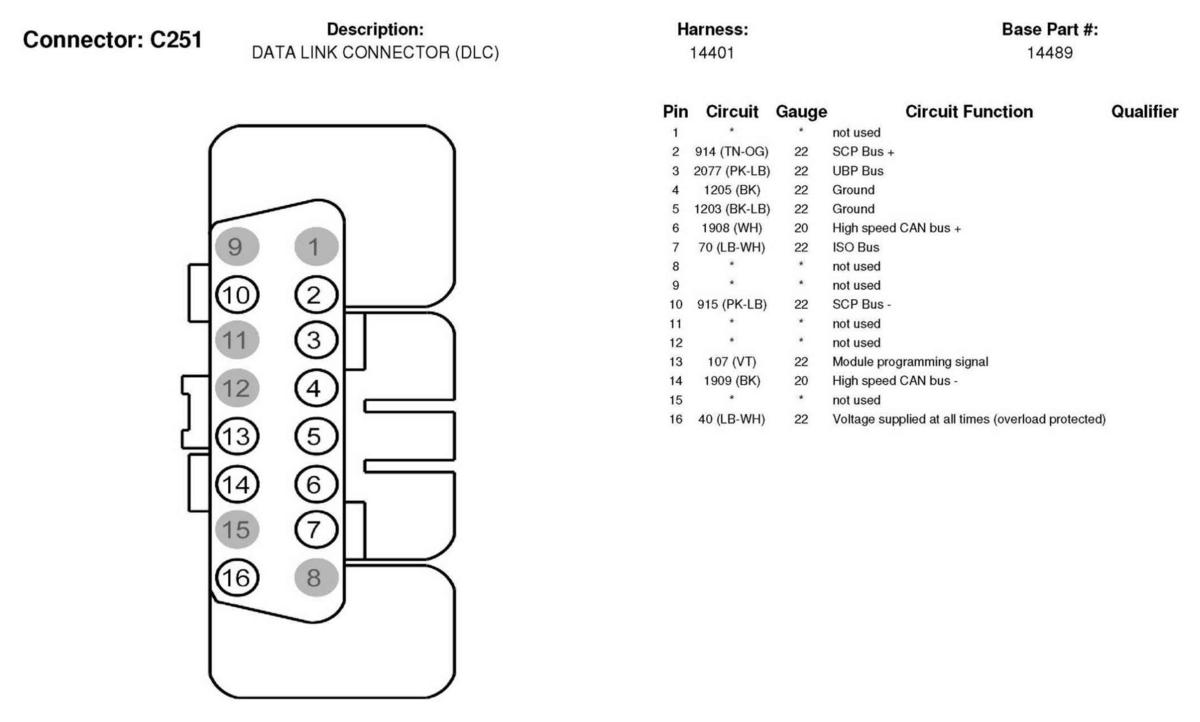

Fig 82: Data Link Connector (DLC) Connector End View (C251)
Courtesy of FORD MOTOR CO.

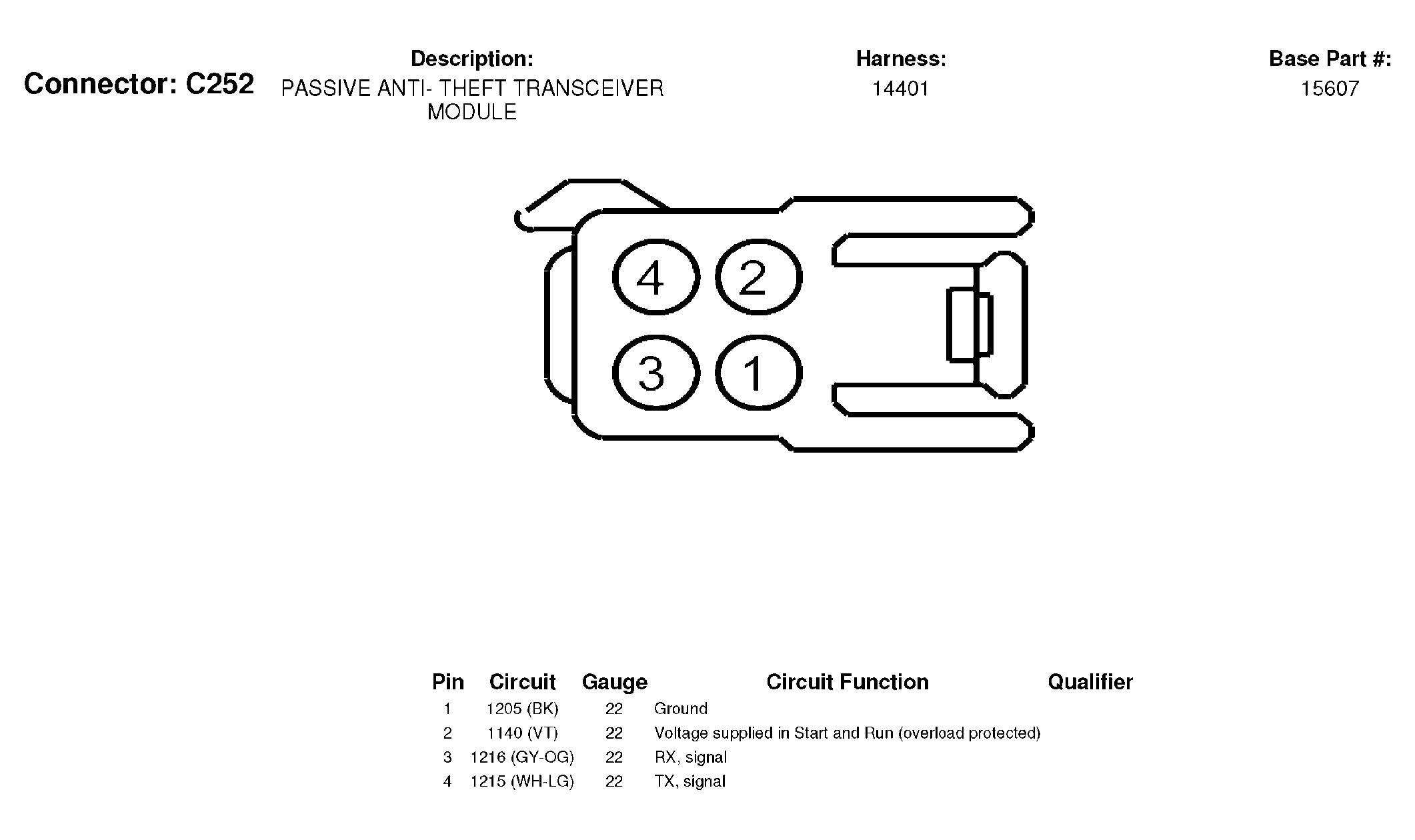

Fig 83: Passive Anti-Theft Transceiver Module Connector End View (C252)
Courtesy of FORD MOTOR CO.

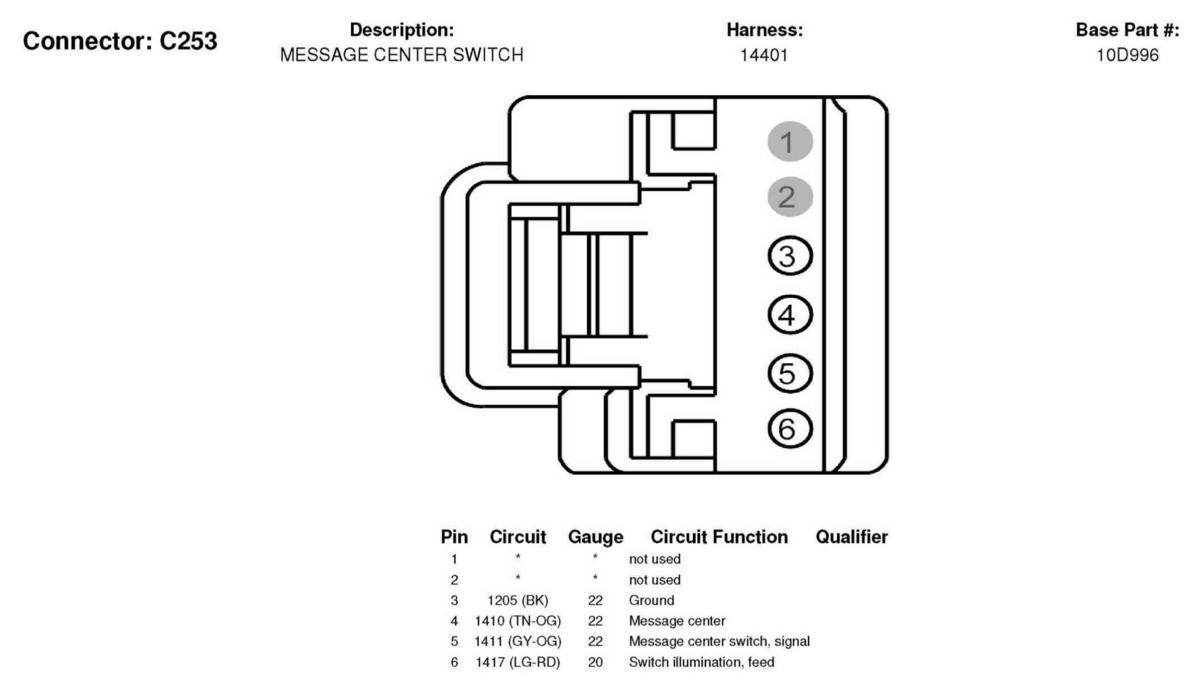

Fig 84: Message Center Switch Connector End View (C253)
Courtesy of FORD MOTOR CO.
Fig 85: Passenger Air Bag Module Connector End View (C256)
Courtesy of FORD MOTOR CO.

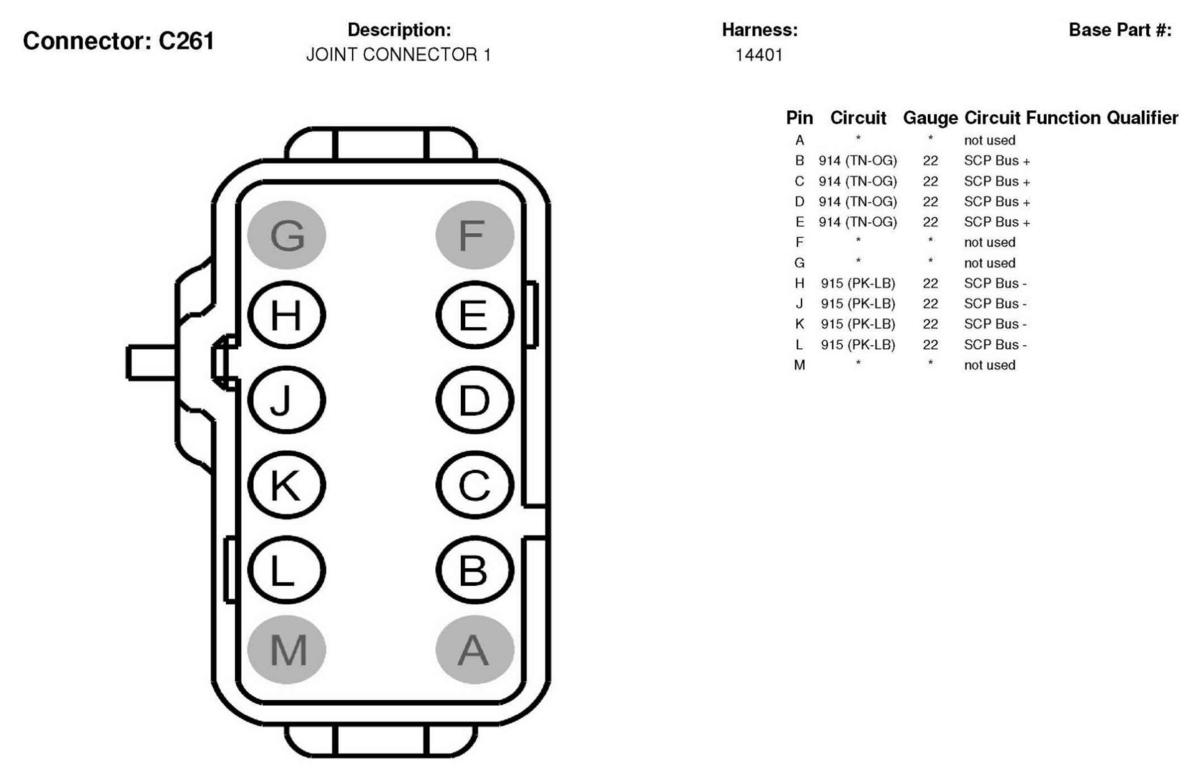

Fig 86: Joint Connector 1 Connector End View (C261)
Courtesy of FORD MOTOR CO.

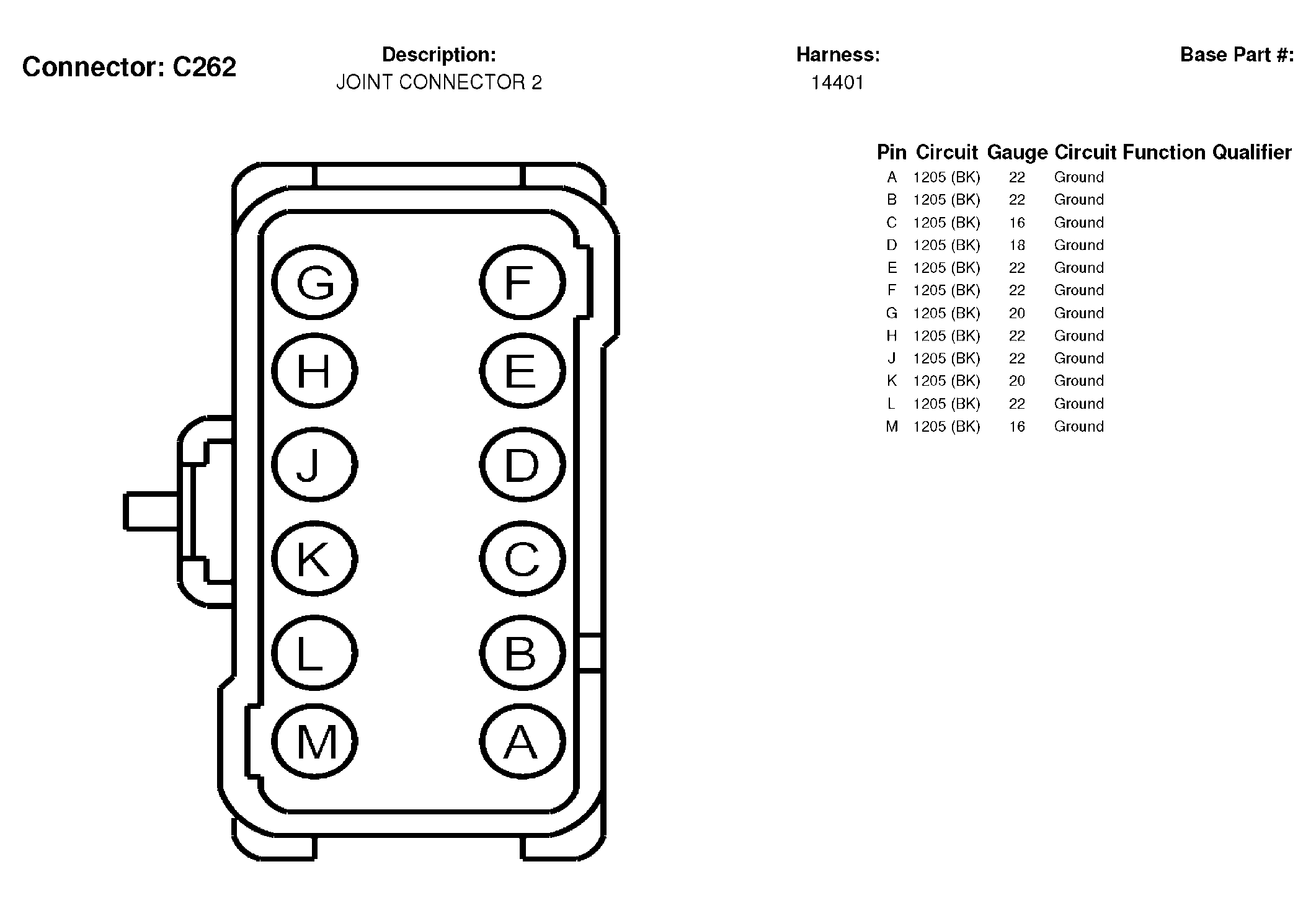

Fig 87: Joint Connector 2 Connector End View (C262)
Courtesy of FORD MOTOR CO.

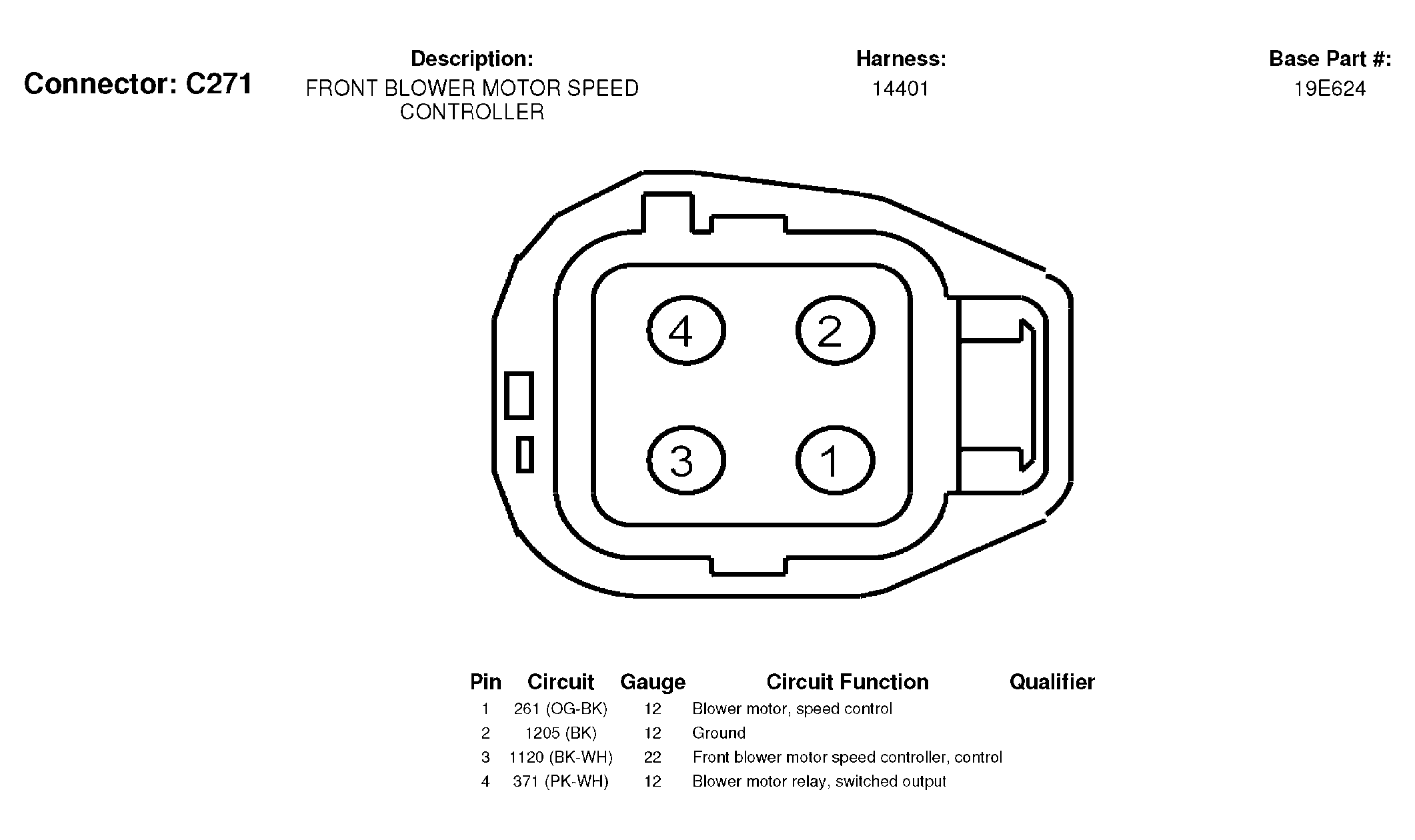

Fig 88: Front Blower Motor Speed Controller Connector End View (C271)
Courtesy of FORD MOTOR CO.

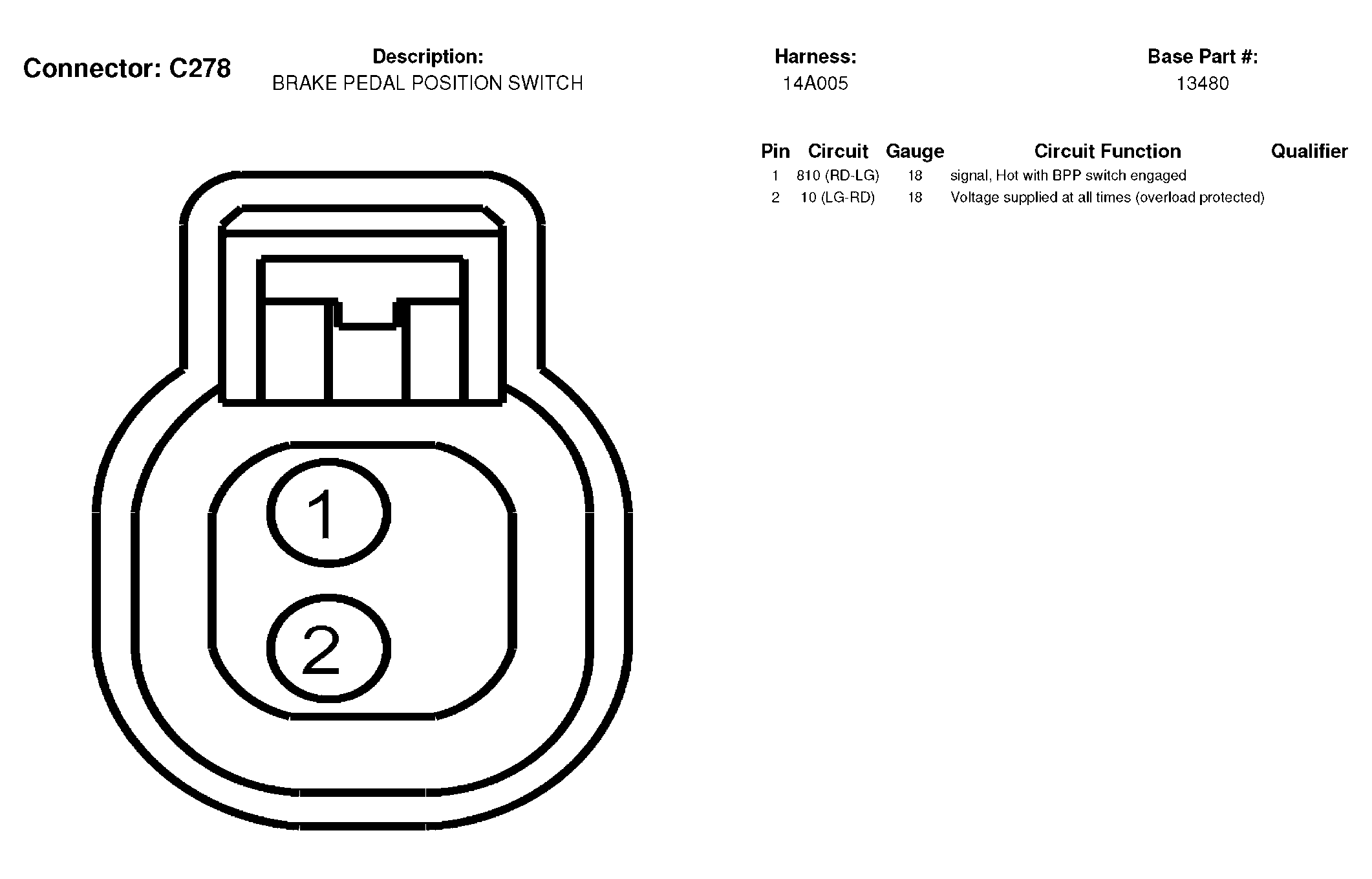

Fig 89: Brake Pedal Position Switch Connector End View (C278)
Courtesy of FORD MOTOR CO.

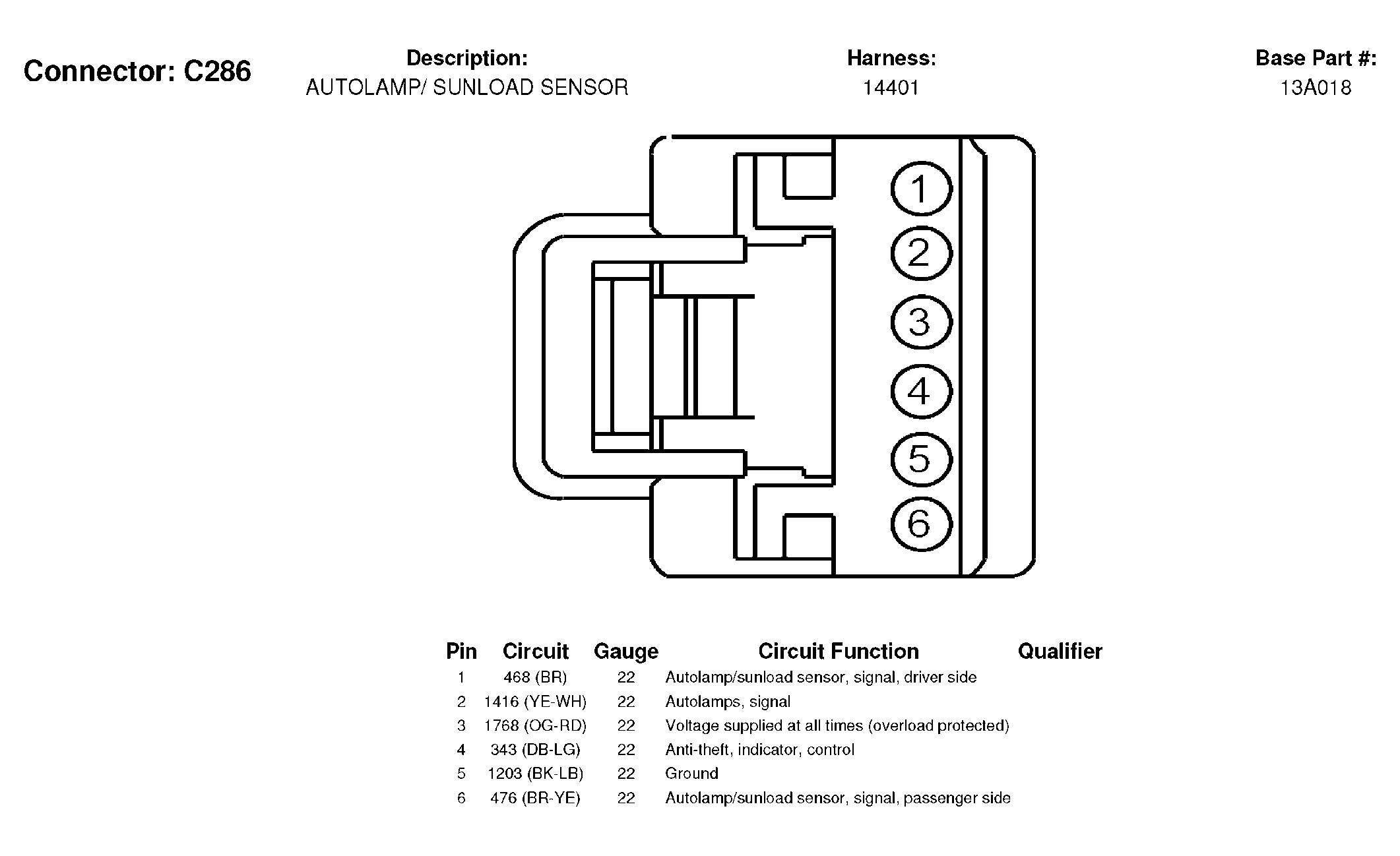

Fig 90: Autolamp/Sunload Sensor Connector End View (C286)
Courtesy of FORD MOTOR CO.

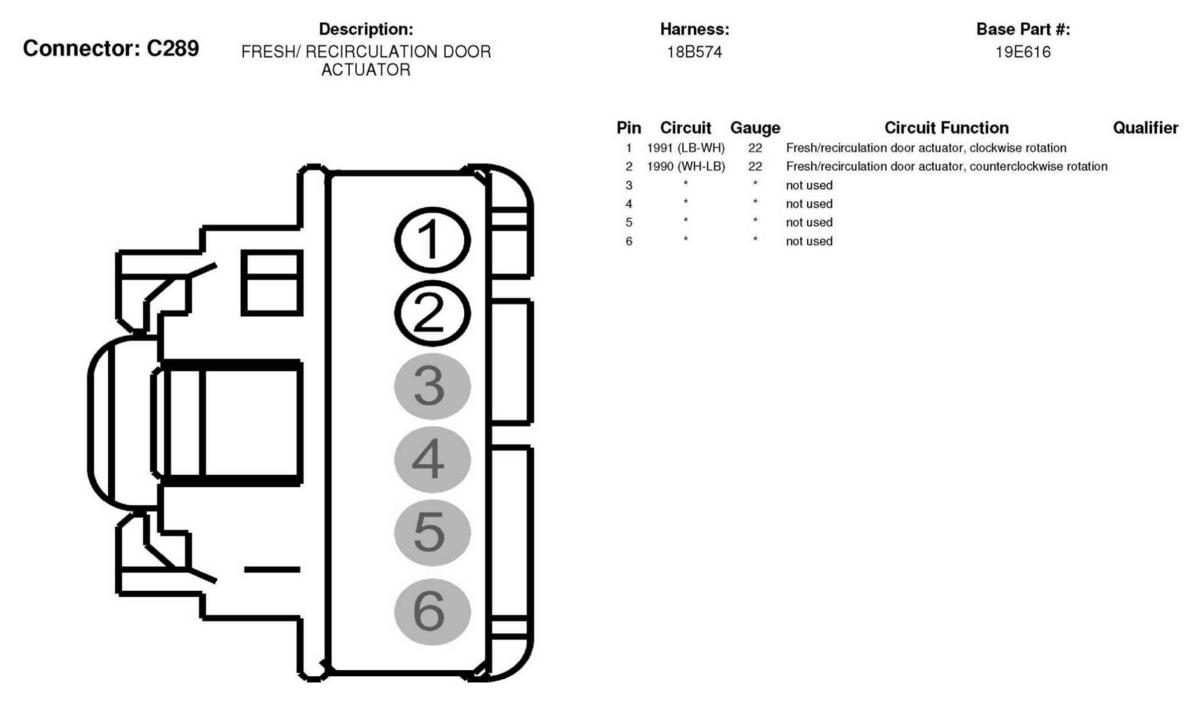

Fig 91: Fresh/Recirculation Door Actuator Connector End View (C289)
Courtesy of FORD MOTOR CO.

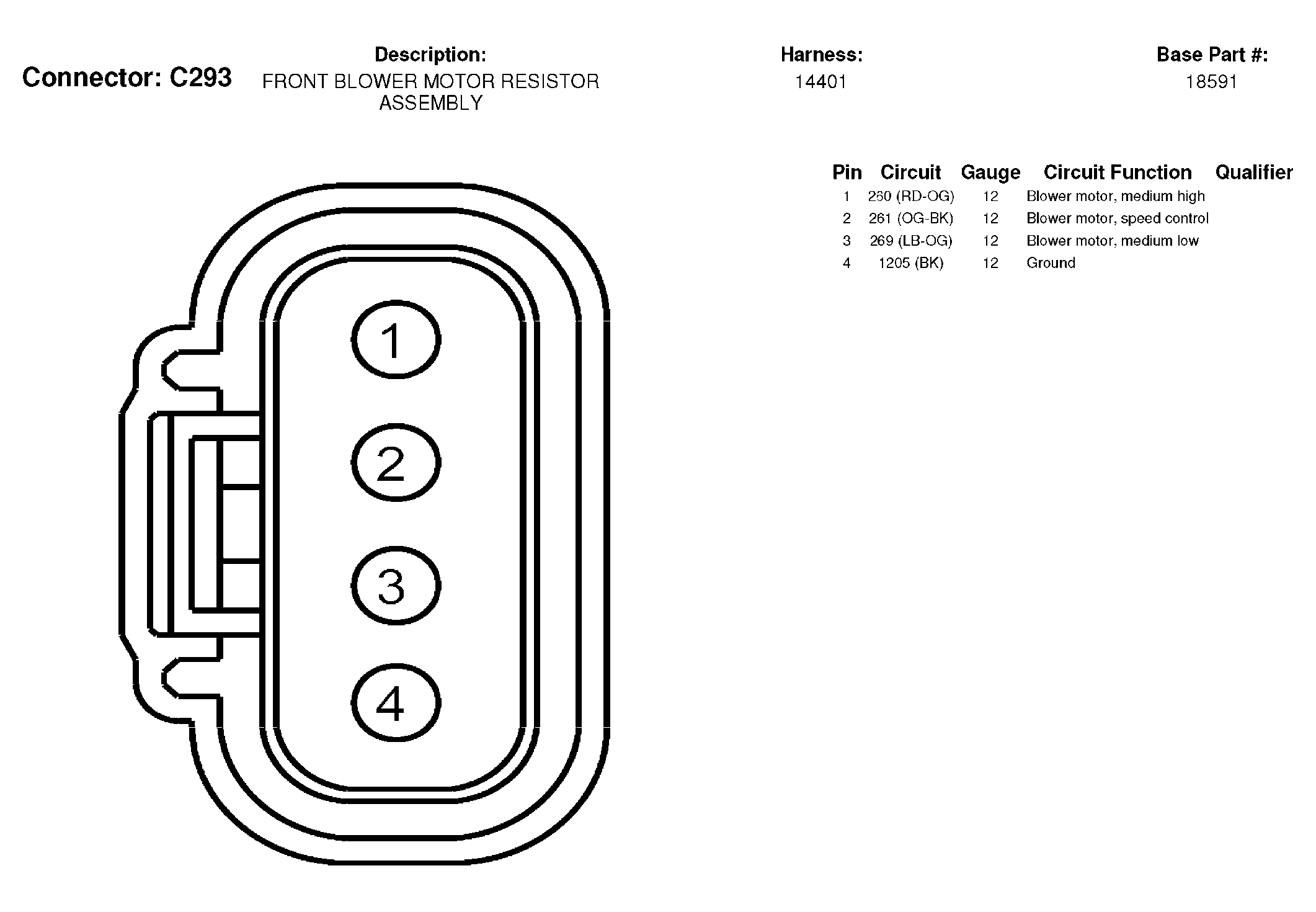

Fig 92: Front Blower Motor Resistor Assembly Connector End View (C293)
Courtesy of FORD MOTOR CO.

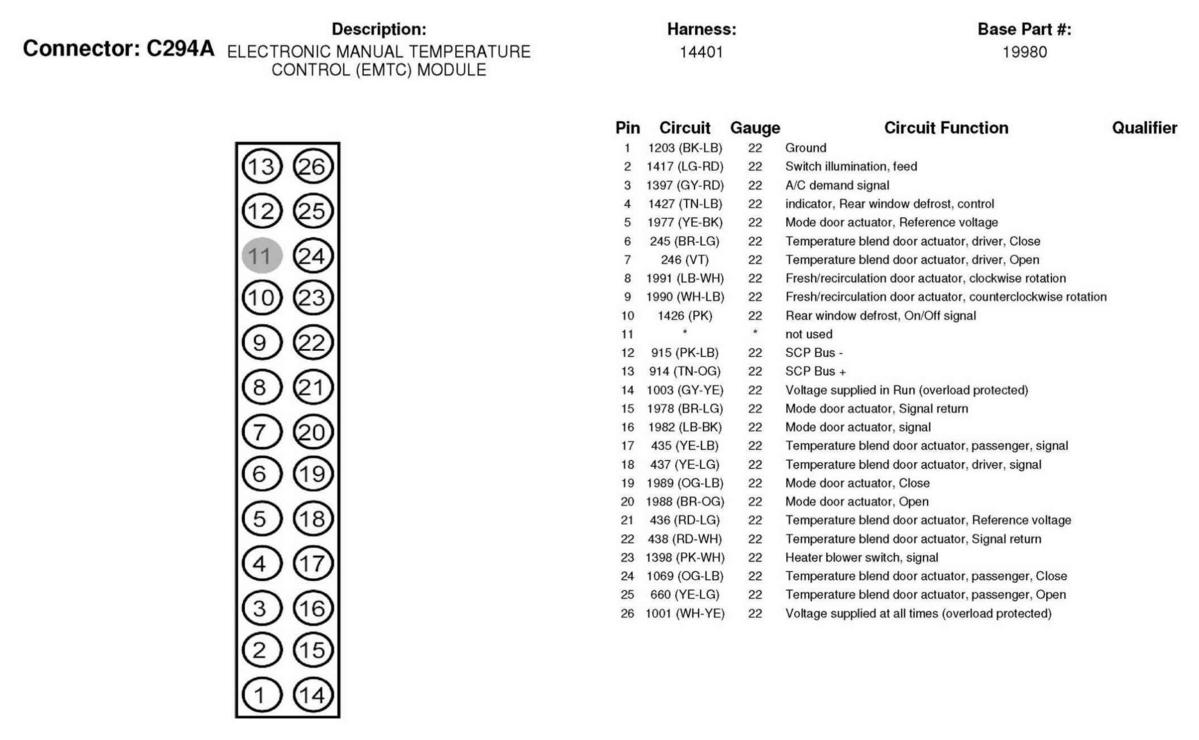

Fig 93: Electronic Automatic Temperature Control (EMTC) Module Connector End View (C294A)
Courtesy of FORD MOTOR CO.

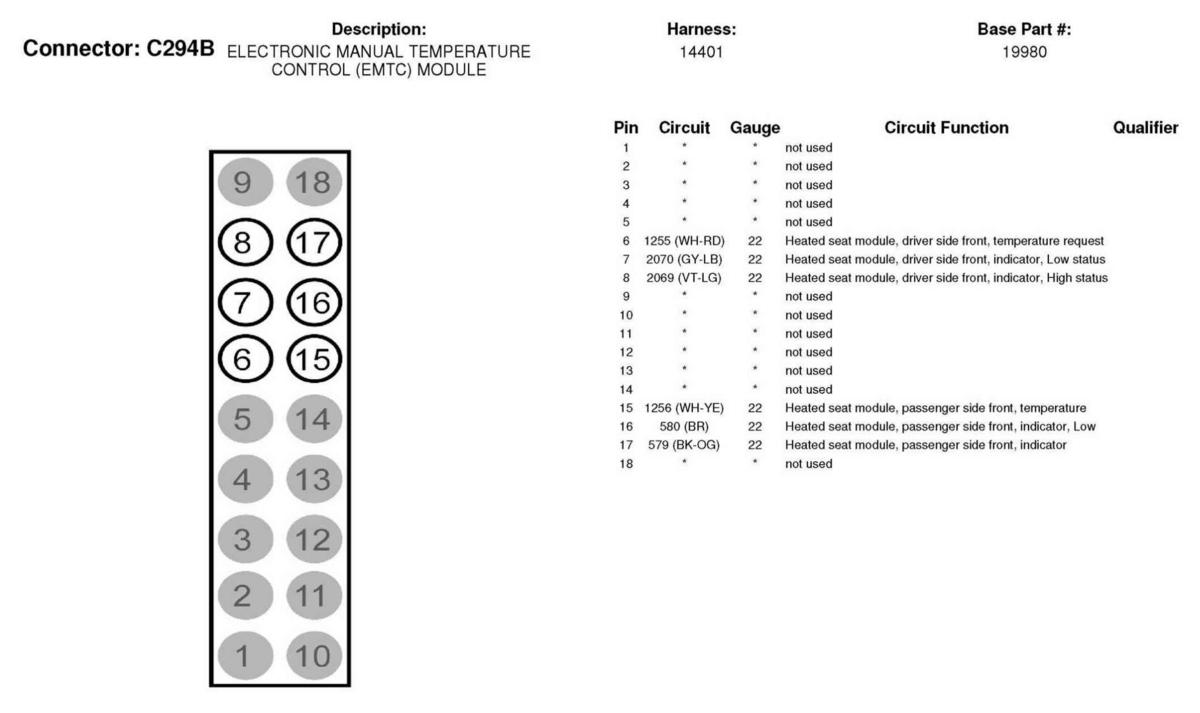

Fig 94: Electronic Automatic Temperature Control (EMTC) Module Connector End View (C294B)
Courtesy of FORD MOTOR CO.

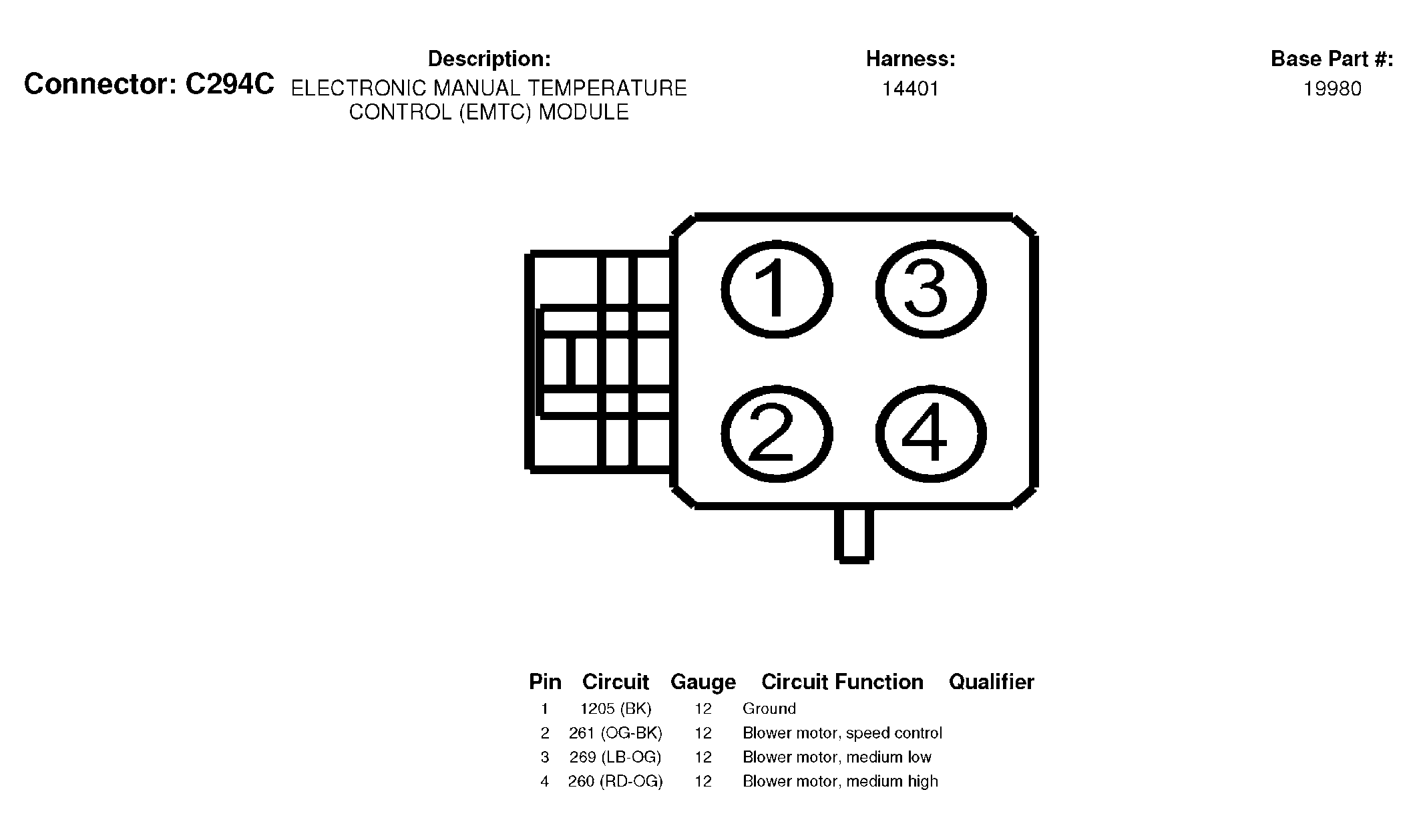

Fig 95: Electronic Manual Temperature Control (EMTC) Module Connector End View (C294C)
Courtesy of FORD MOTOR CO.

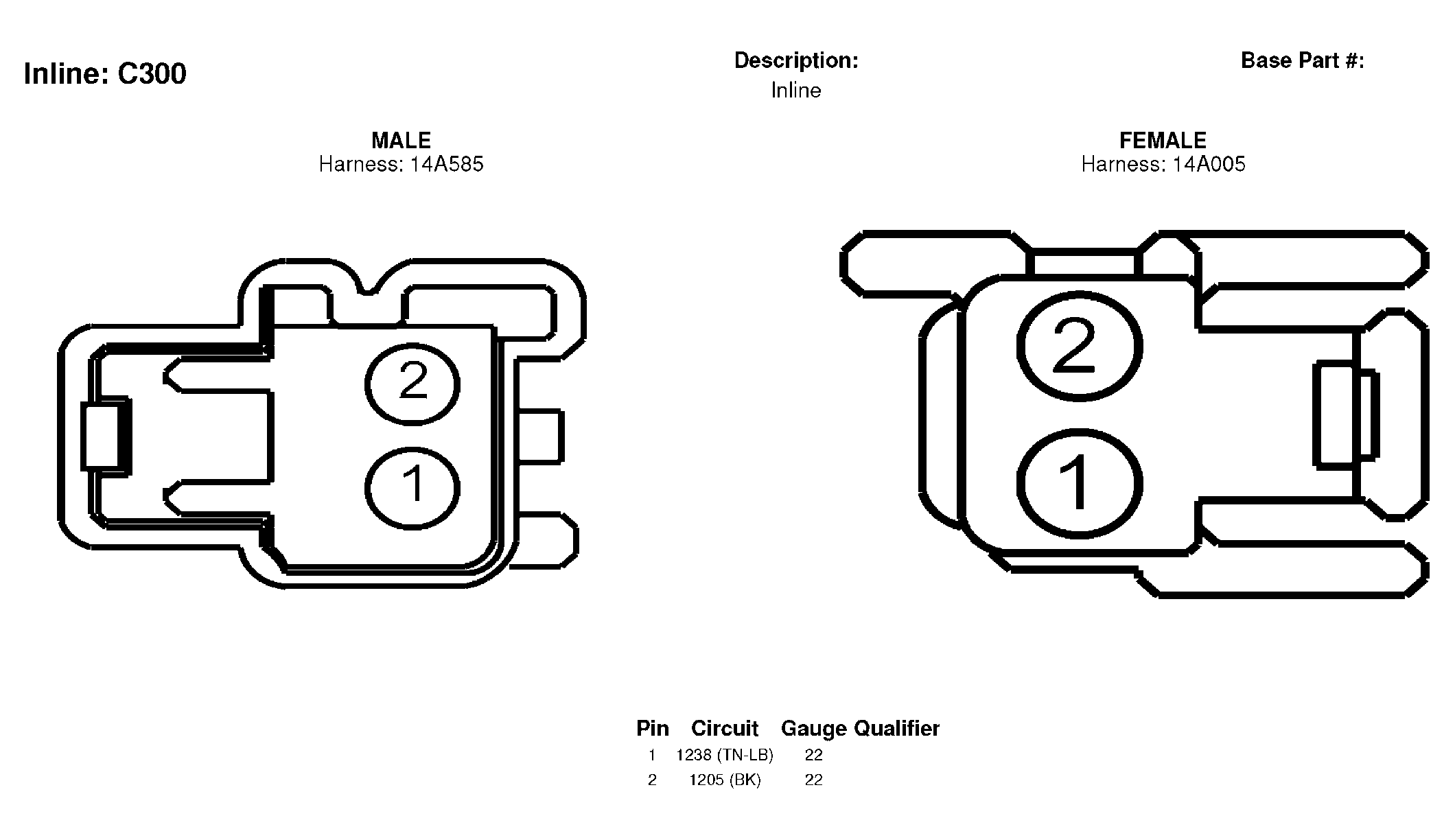

Fig 96: Inline Connector End View (C300)
Courtesy of FORD MOTOR CO.

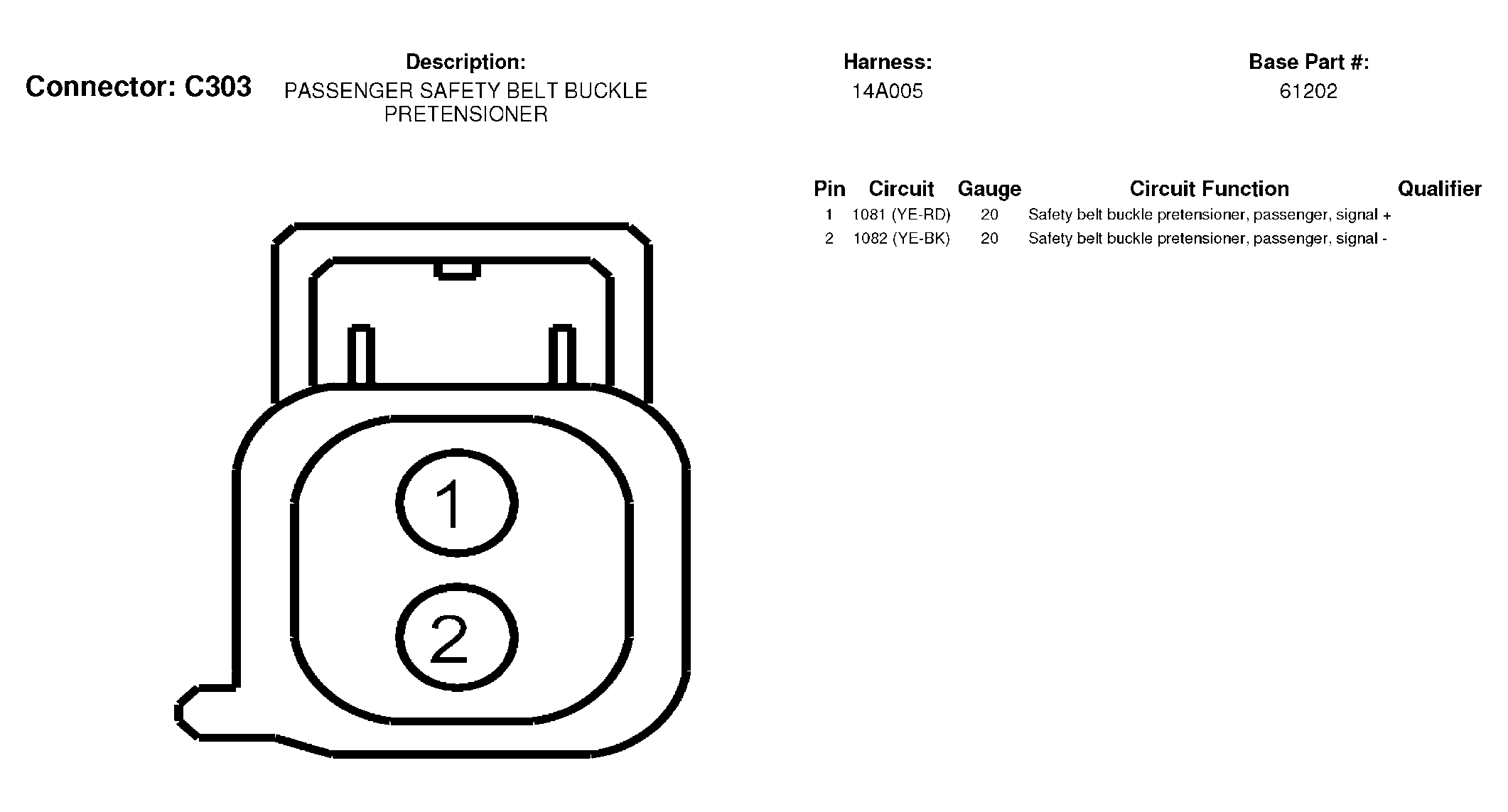

Fig 97: Passenger Safety Belt Buckle Pretensioner Connector End View (C303)
Courtesy of FORD MOTOR CO.

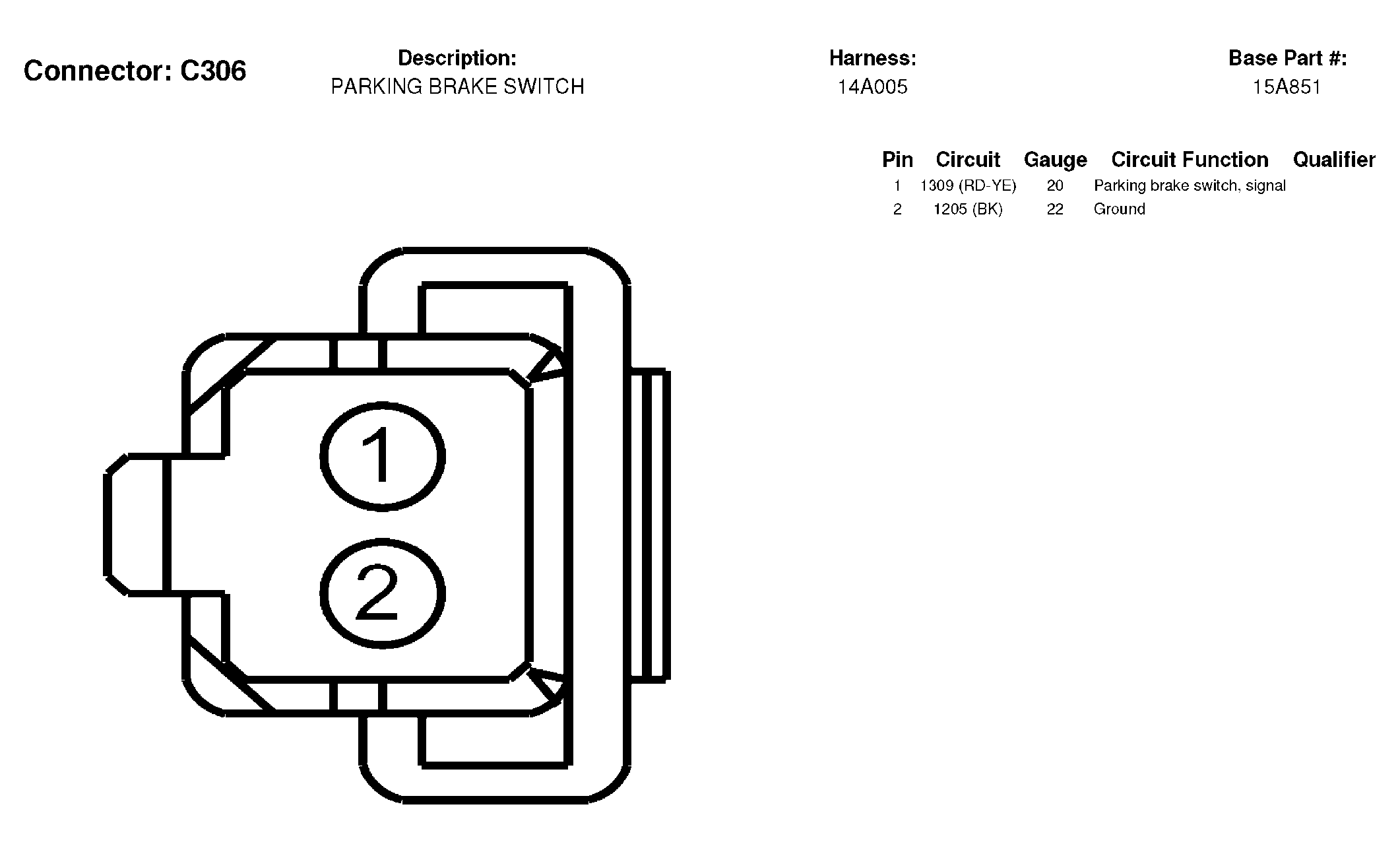

Fig 98: Parking Brake Switch Connector End View (C306)
Courtesy of FORD MOTOR CO.

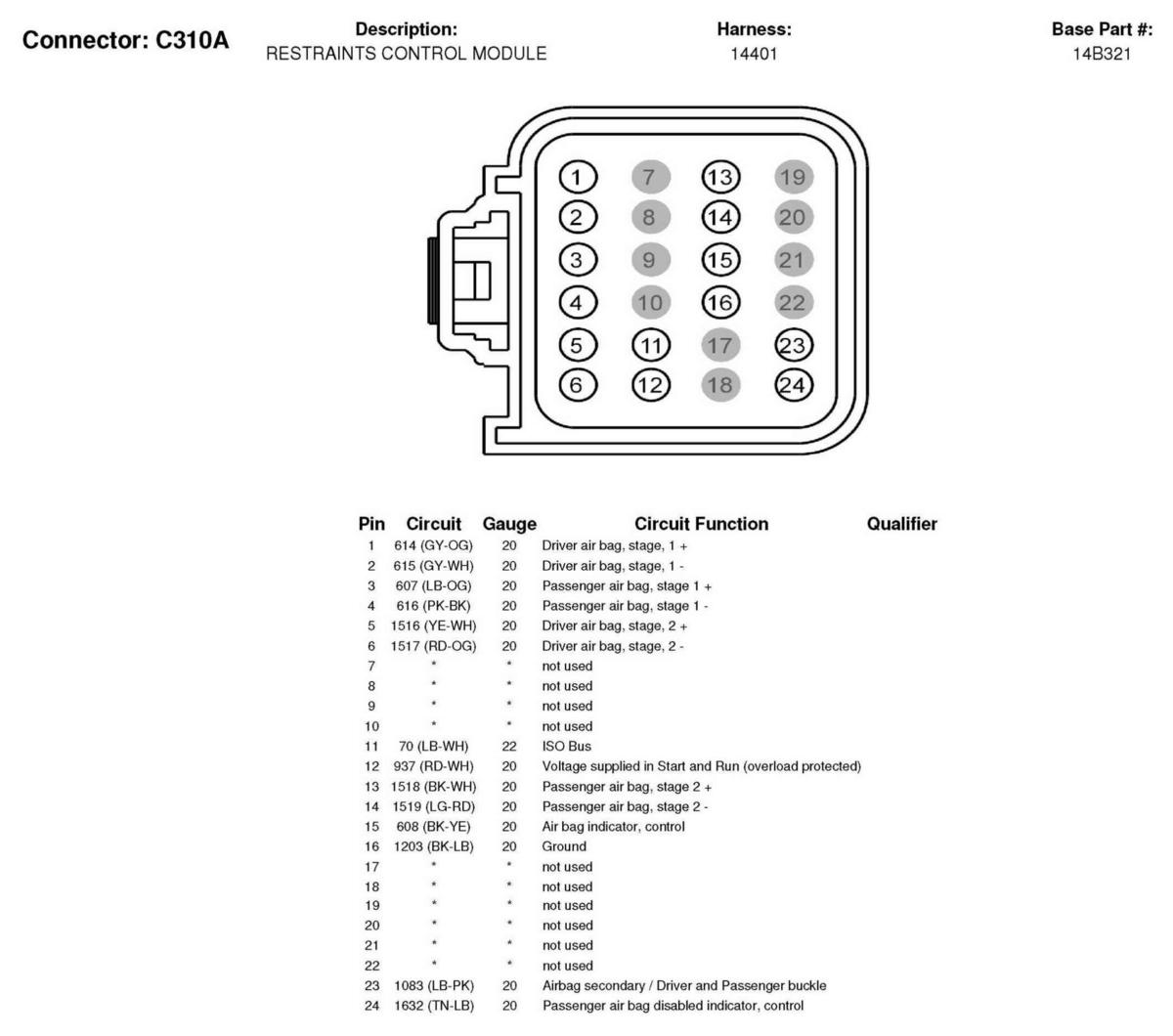

Fig 99: Restraints Control Module Connector End View (C310A)
Courtesy of FORD MOTOR CO.

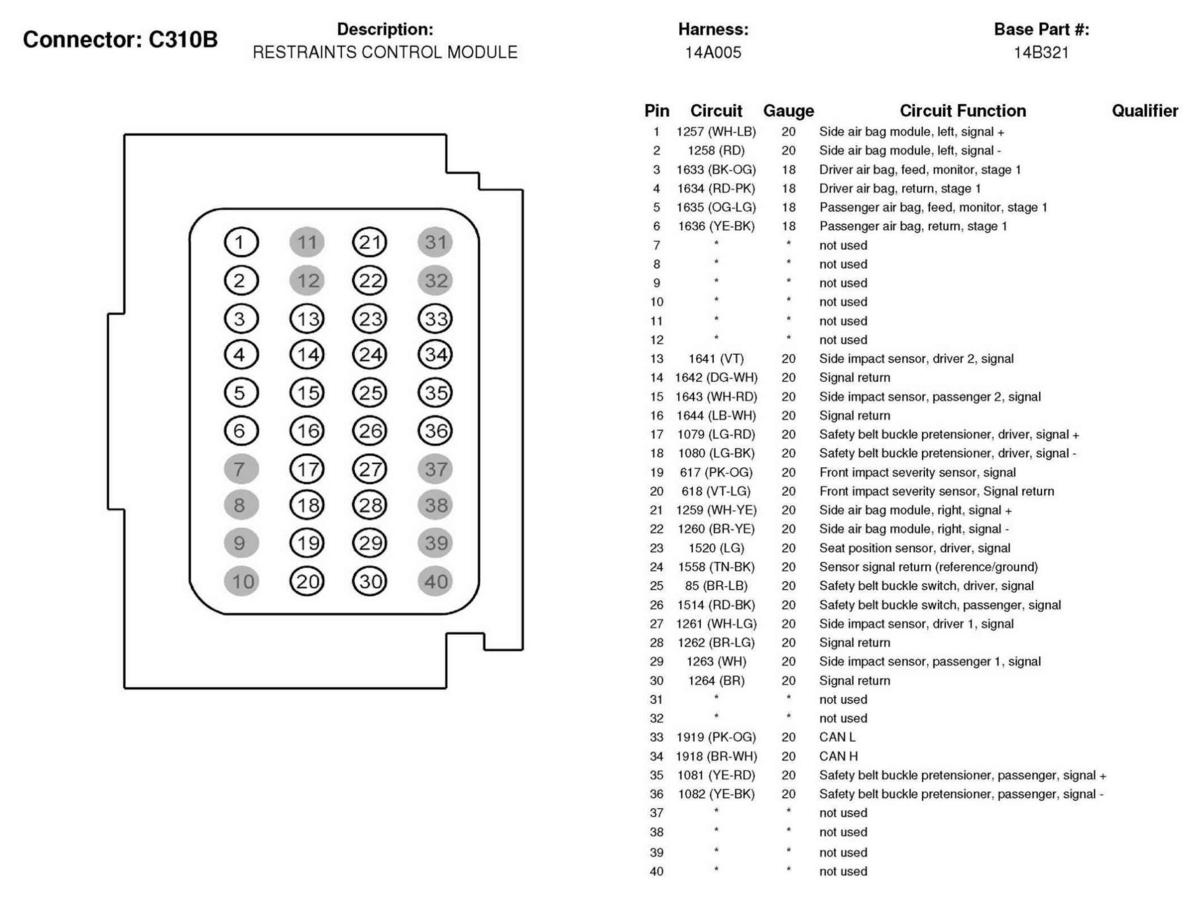

Fig 100: Restraints Control Module Connector End View (C310B)
Courtesy of FORD MOTOR CO.

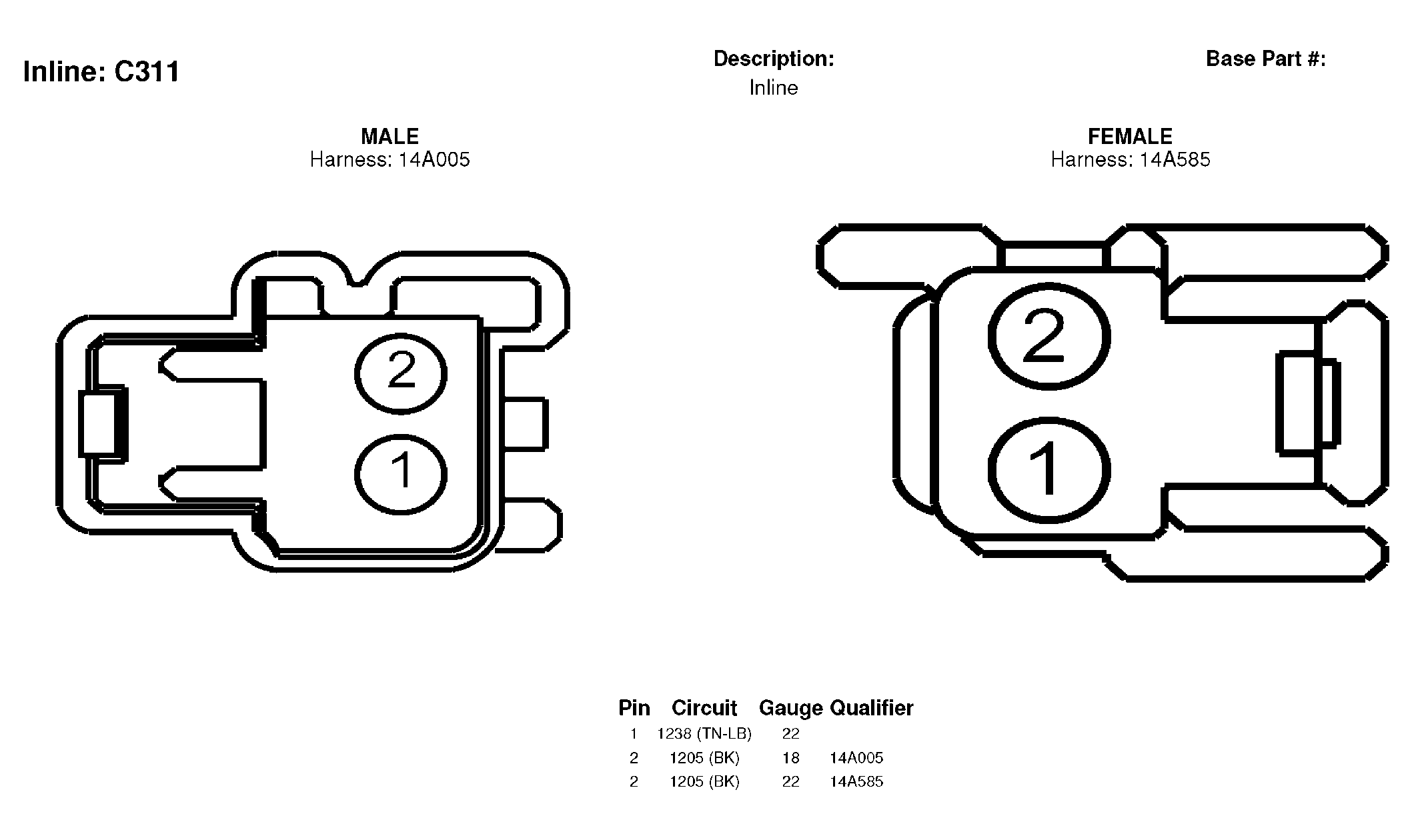

Fig 101: Inline Connector End View (C311)
Courtesy of FORD MOTOR CO.

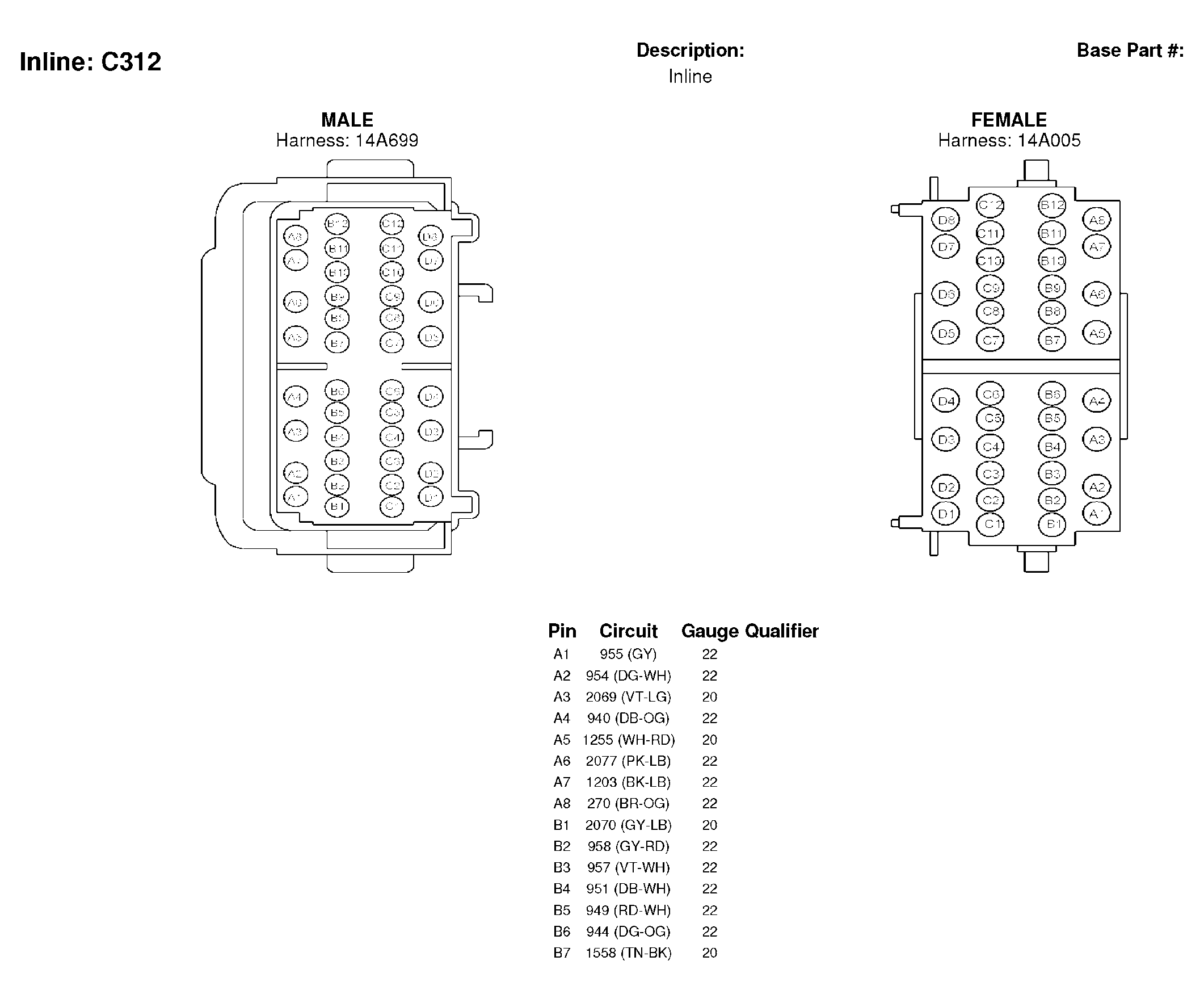

Fig 102: Inline Connector End View (C312) (1 Of 2)
Courtesy of FORD MOTOR CO.

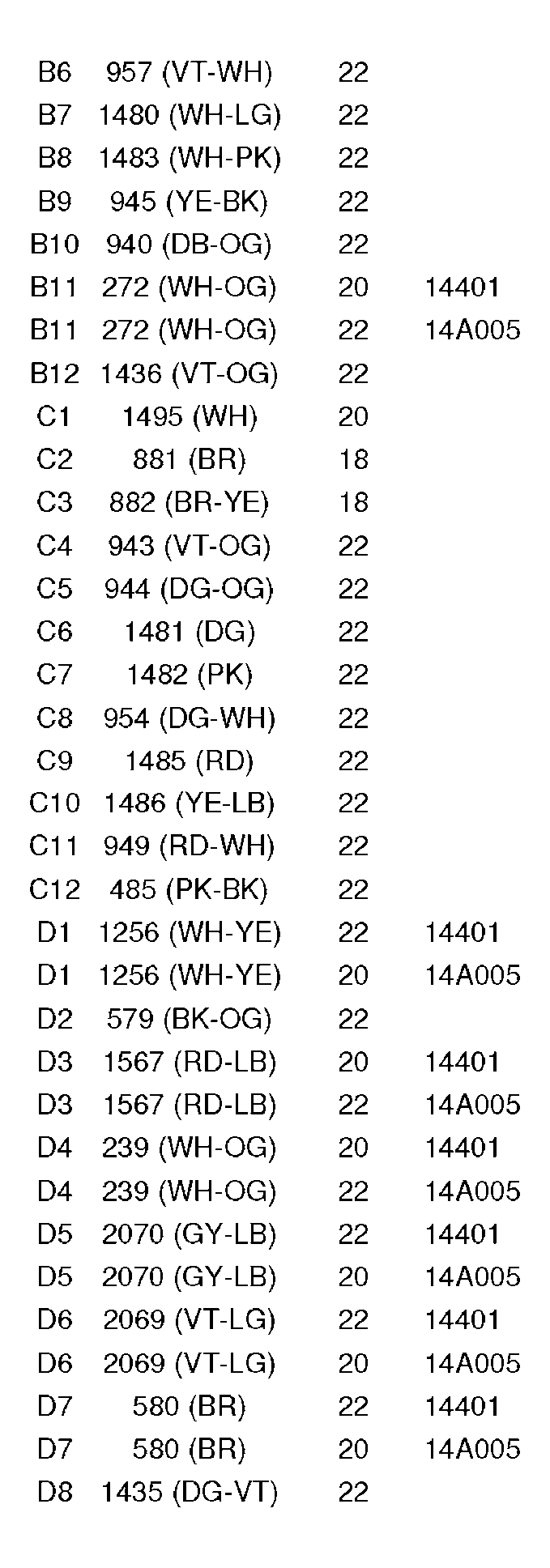

Fig 103: Inline Connector End View (C312) (2 Of 2)
Courtesy of FORD MOTOR CO.

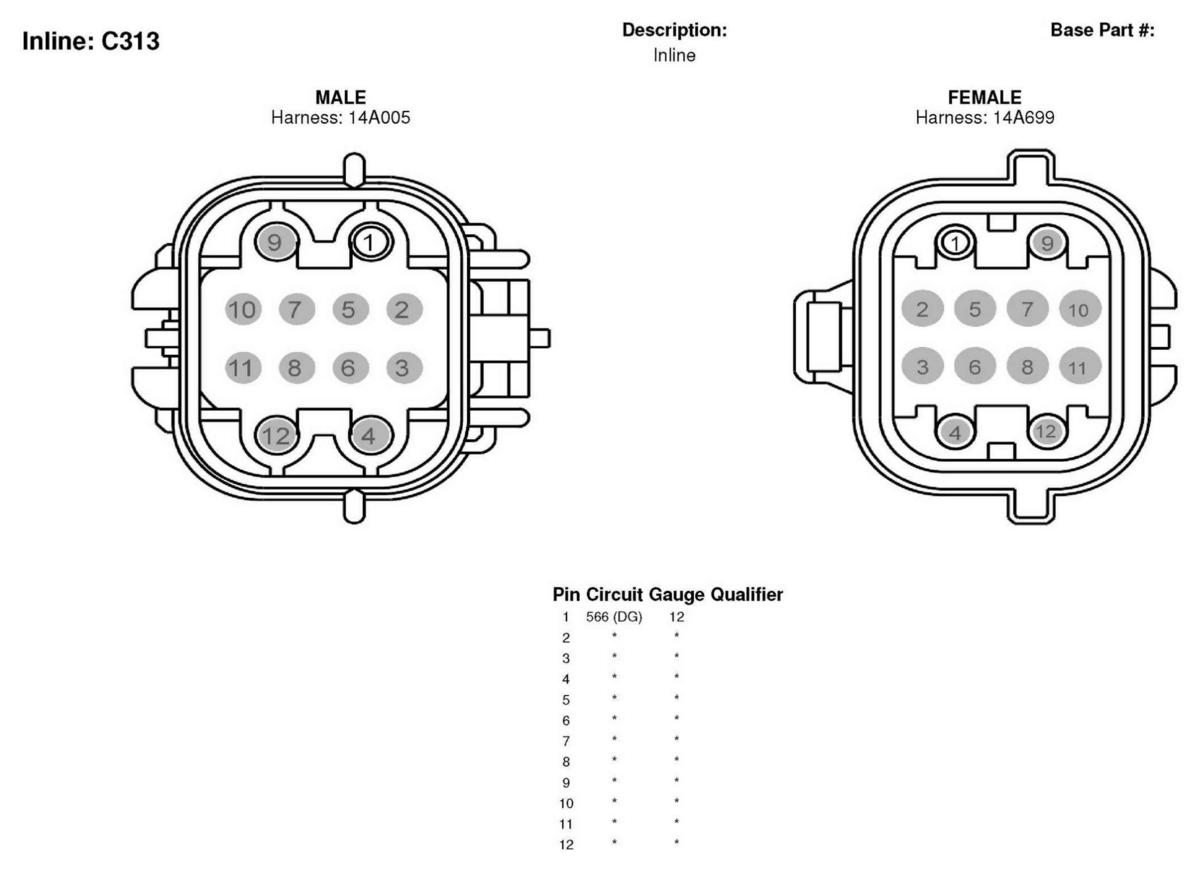

Fig 104: Inline Connector End View (C313)
Courtesy of FORD MOTOR CO.

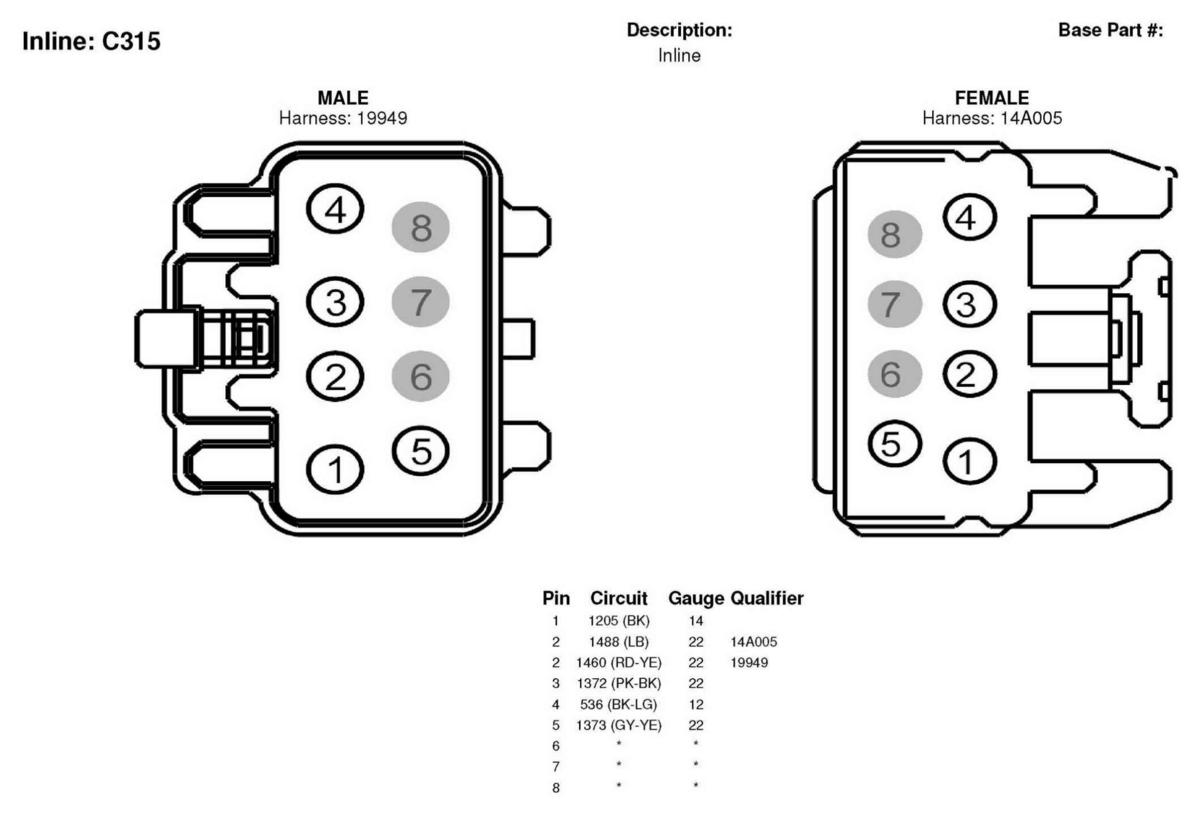

Fig 105: Inline Connector End View (C315)
Courtesy of FORD MOTOR CO.

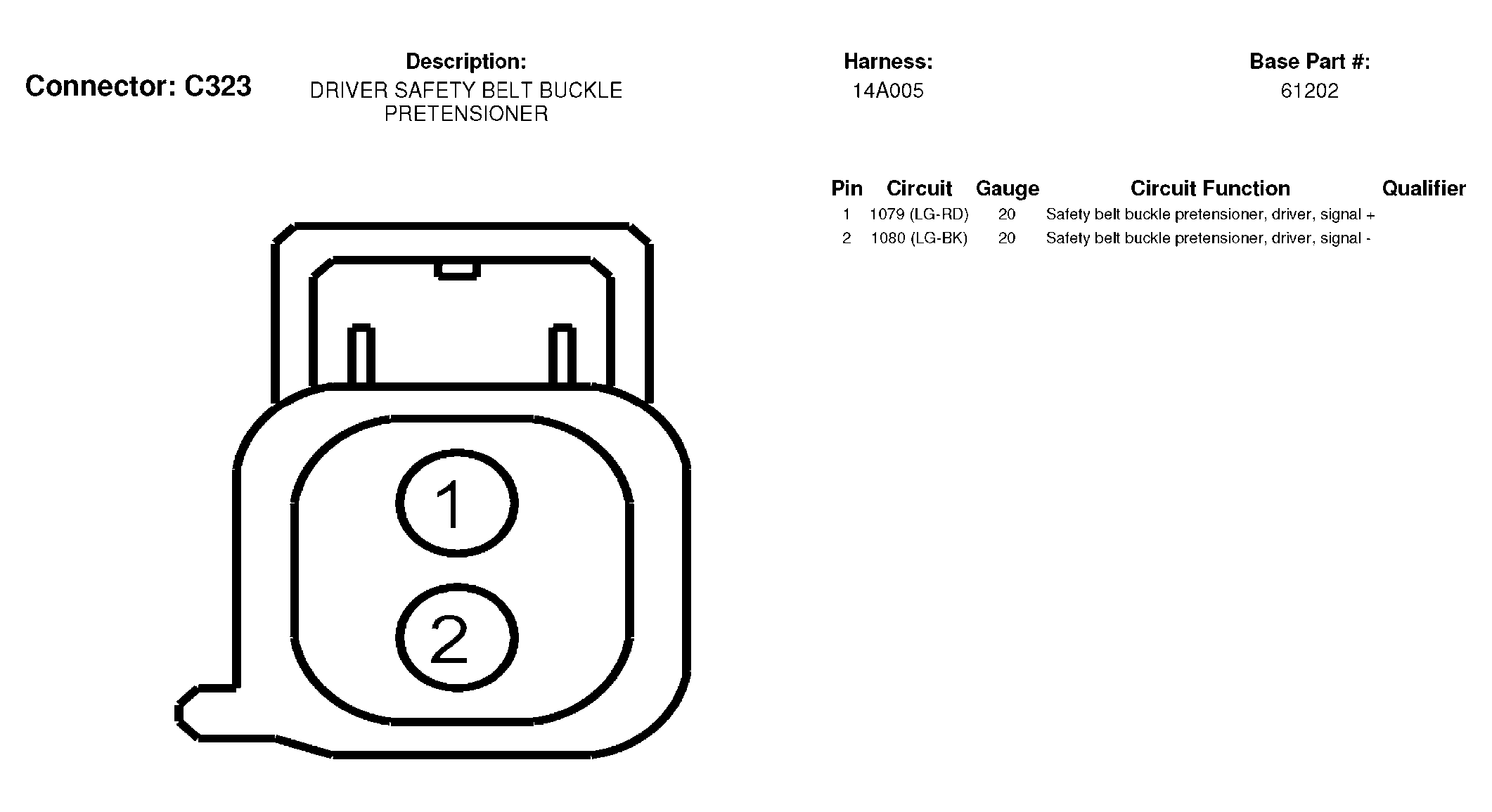

Fig 106: Driver Safety Belt Buckle Pretensioner Connector End View (C323)
Courtesy of FORD MOTOR CO.

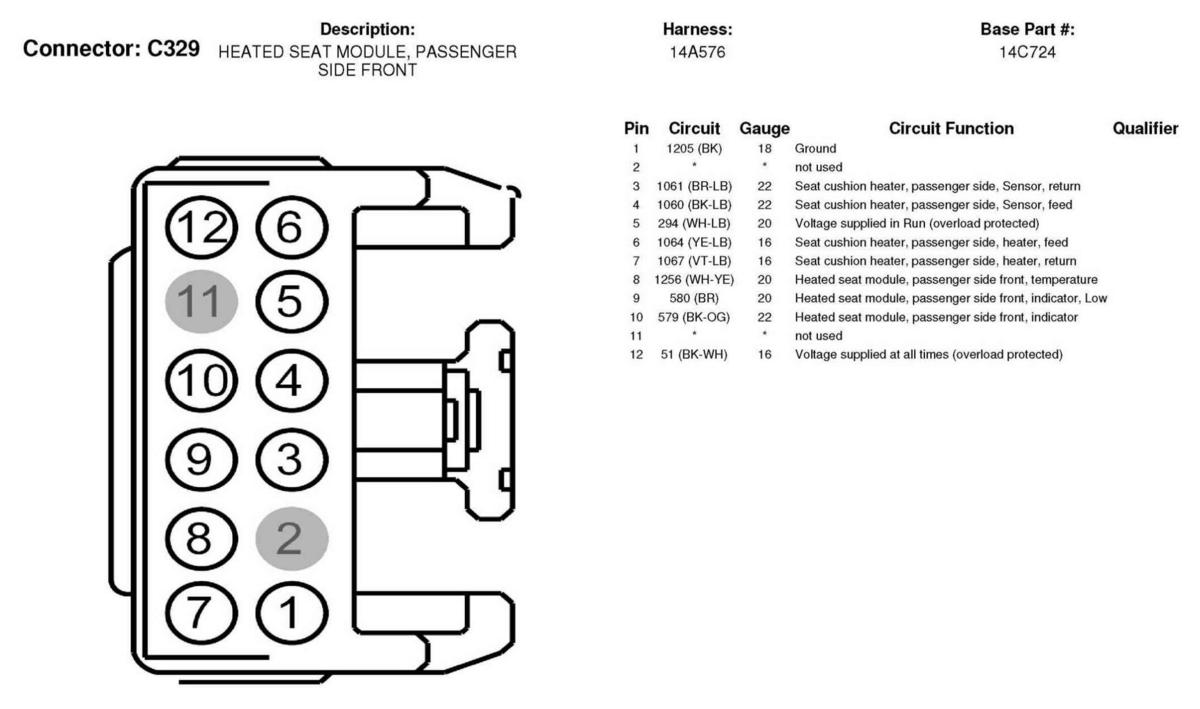

Fig 107: Heated Seat Module, Passenger Side Front Connector End View (C329)
Courtesy of FORD MOTOR CO.

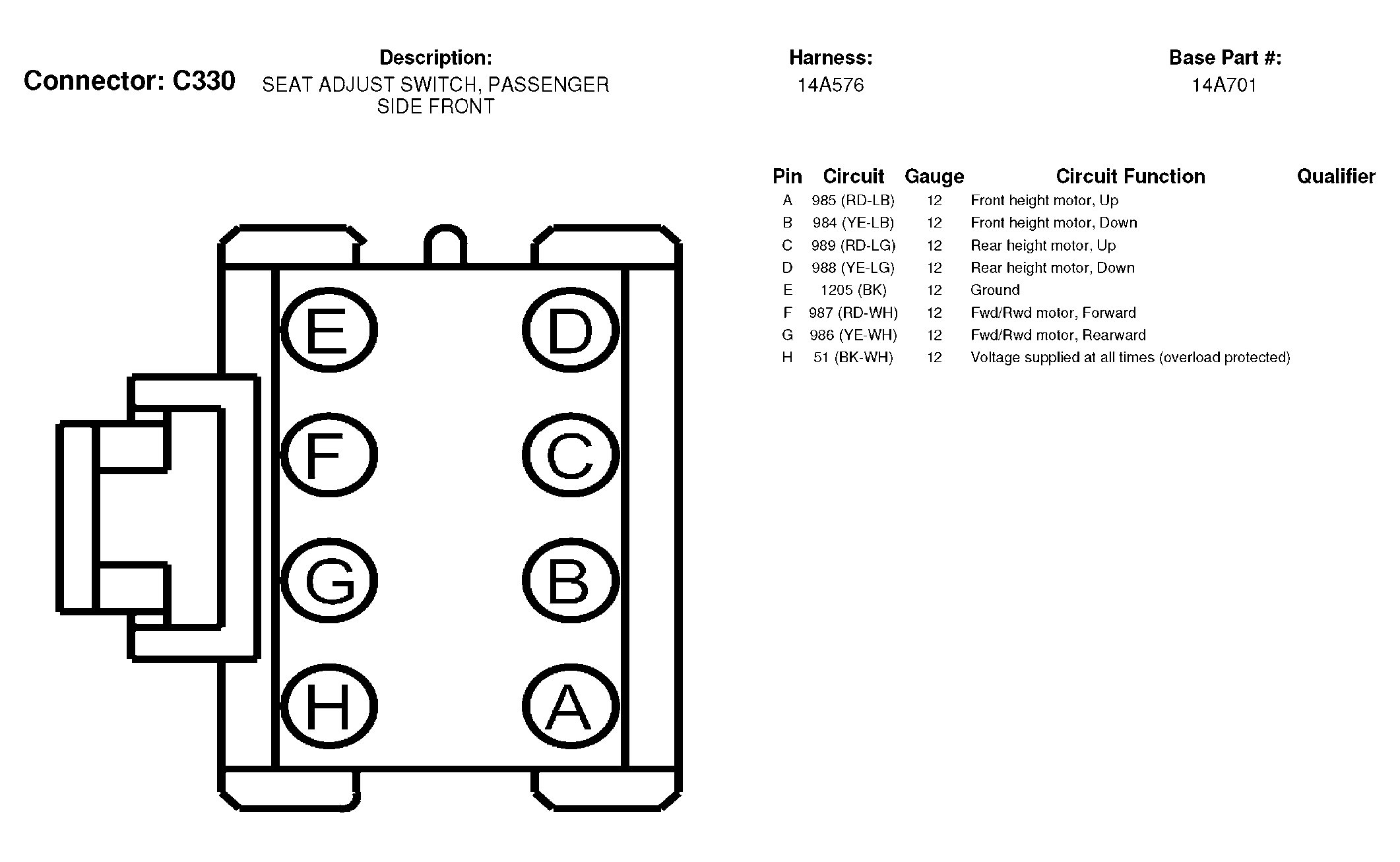

Fig 108: Seat Adjust Switch, Passenger Side Front Connector End View (C330)
Courtesy of FORD MOTOR CO.

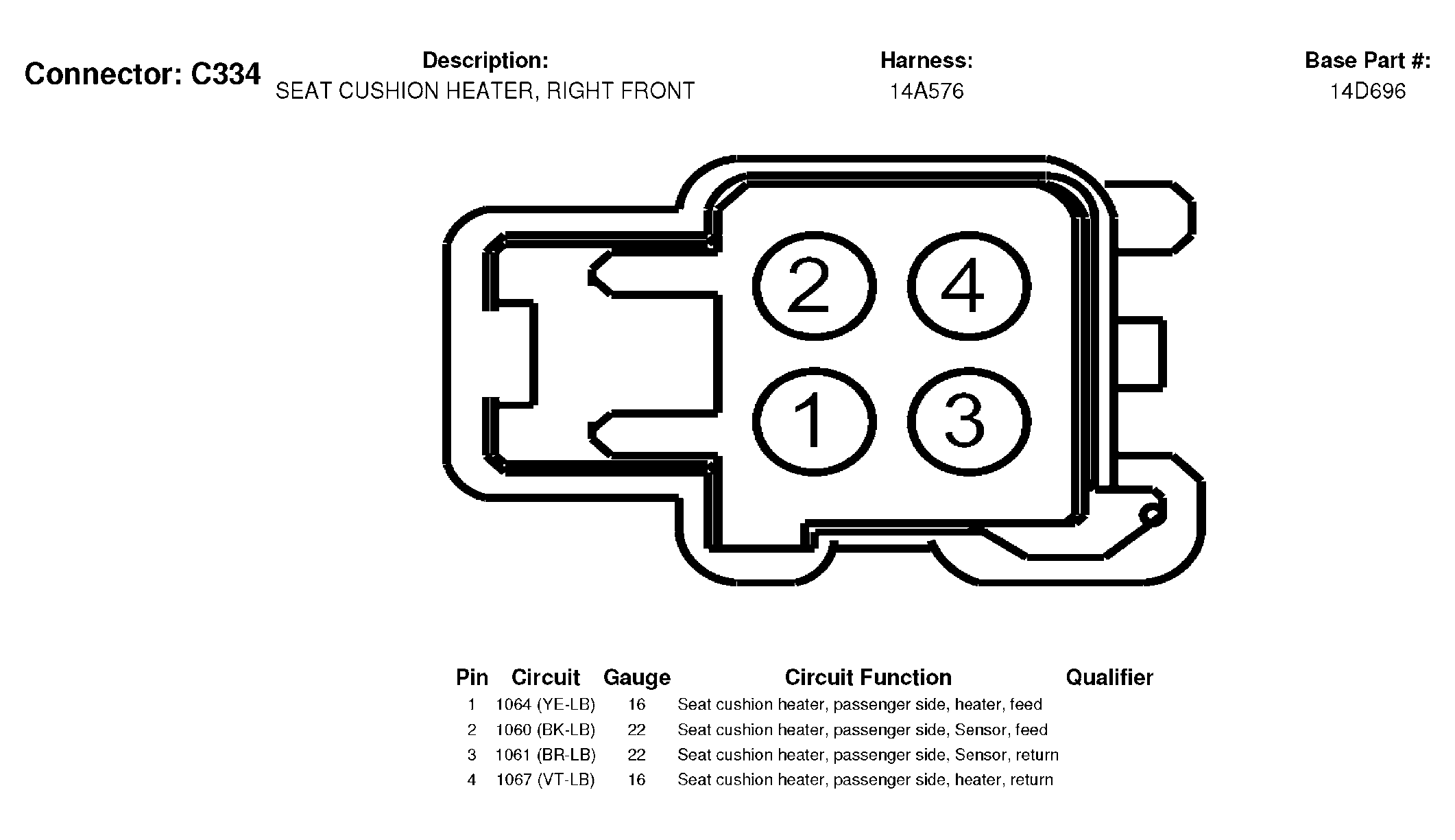

Fig 109: Seat Cushion Heater, Right Front Connector End View (C334)
Courtesy of FORD MOTOR CO.

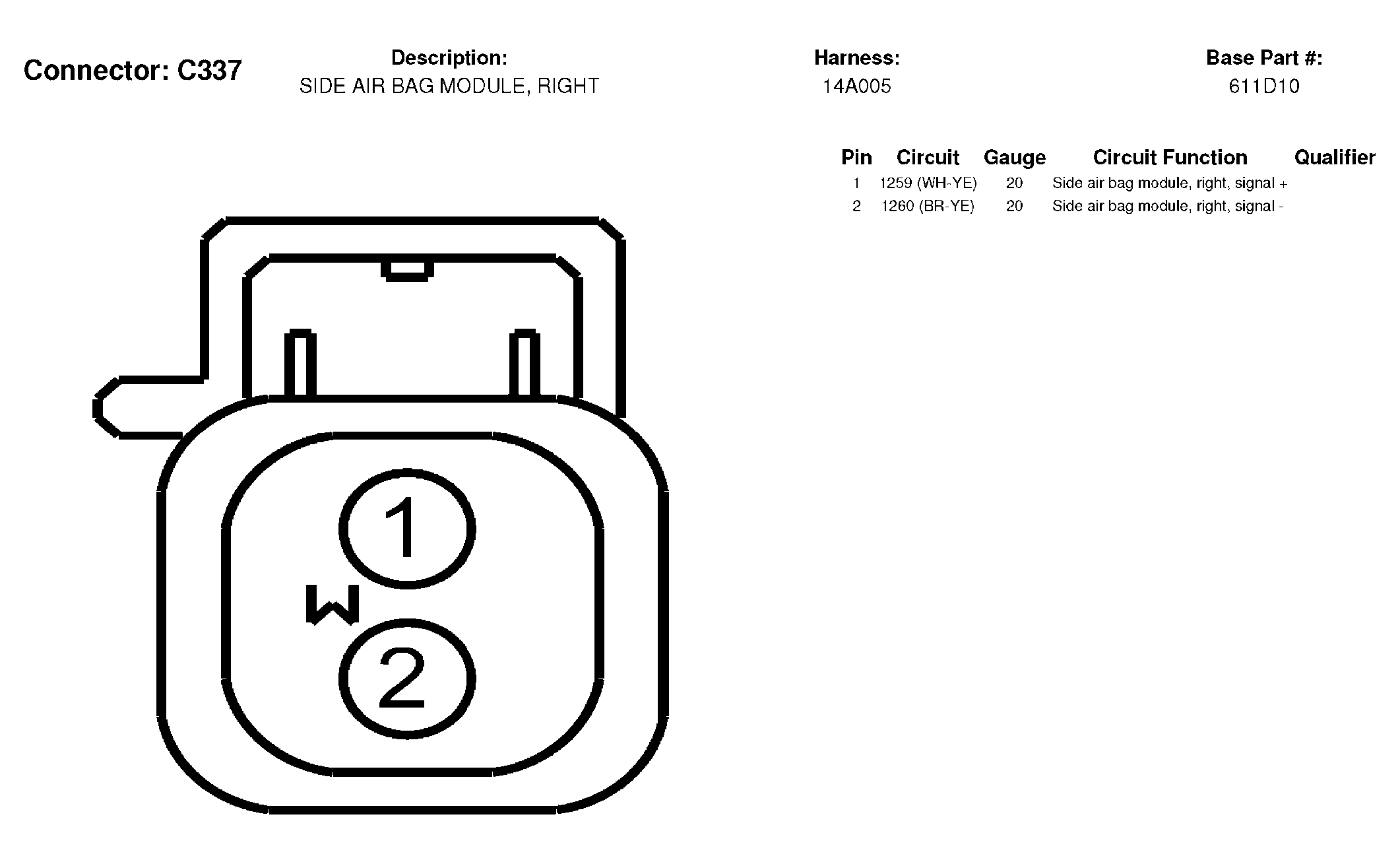

Fig 110: Side Air Bag Module, Right Connector End View (C337)
Courtesy of FORD MOTOR CO.

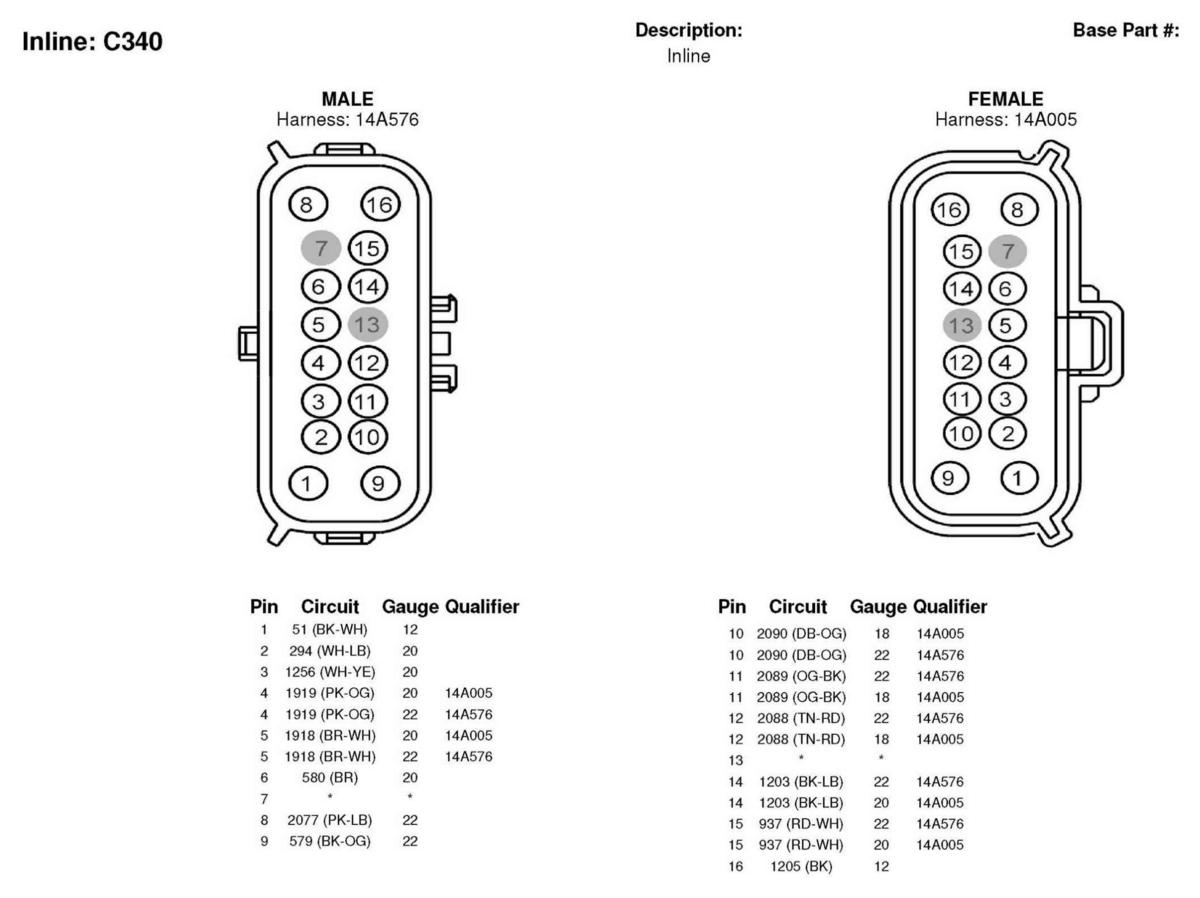

Fig 111: Inline Connector End View (C340)
Courtesy of FORD MOTOR CO.

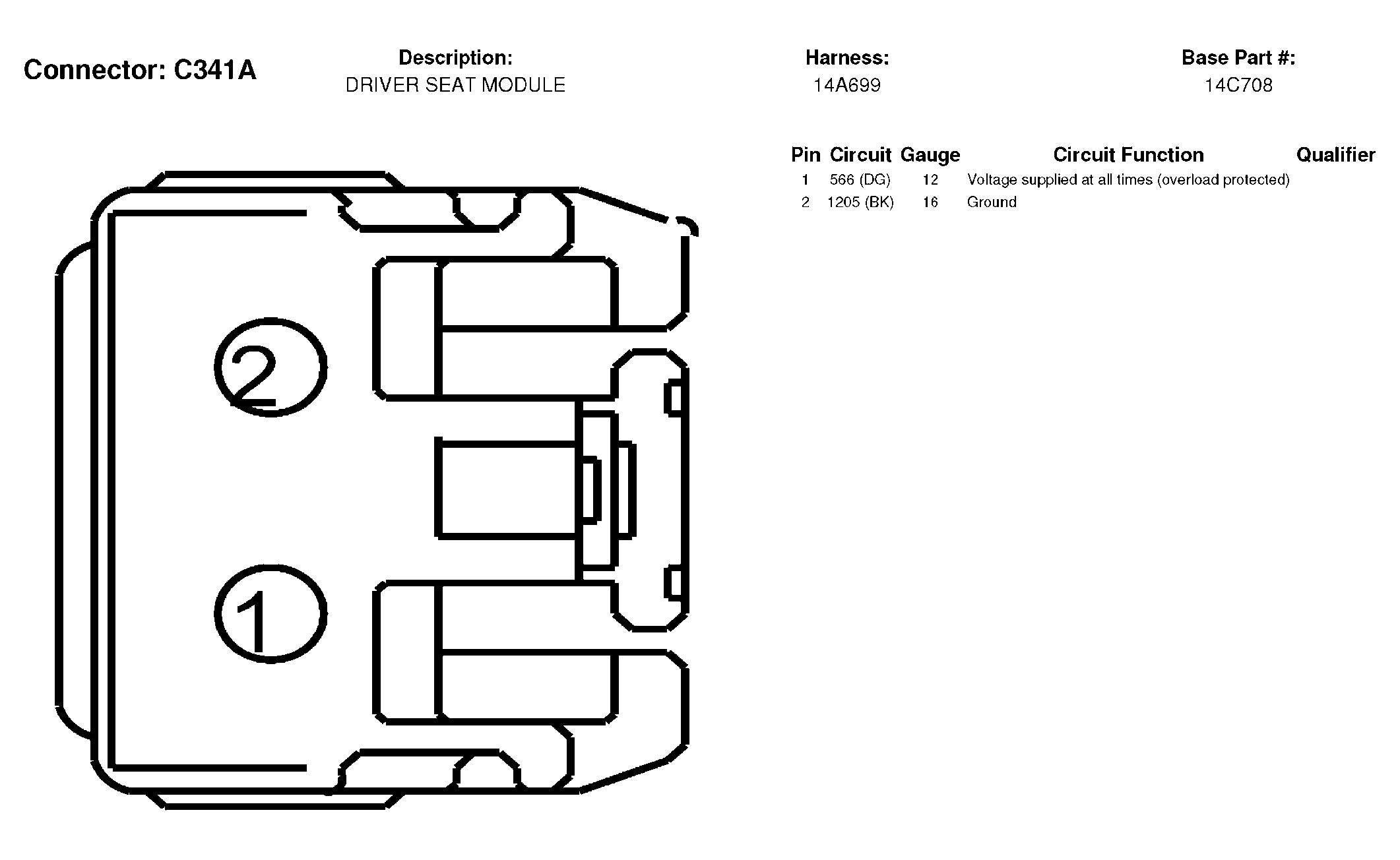

Fig 112: Driver Seat Module Connector End View (C341A)
Courtesy of FORD MOTOR CO.

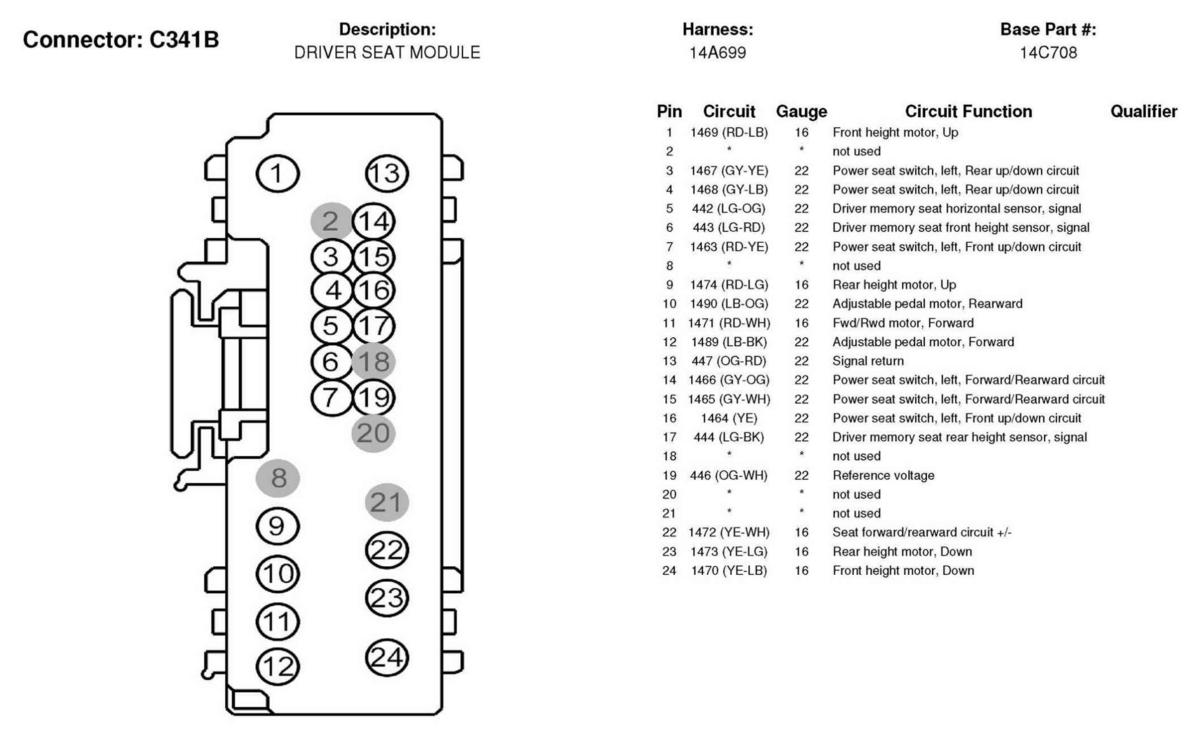

Fig 113: Driver Seat Module Connector End View (C341B)
Courtesy of FORD MOTOR CO.

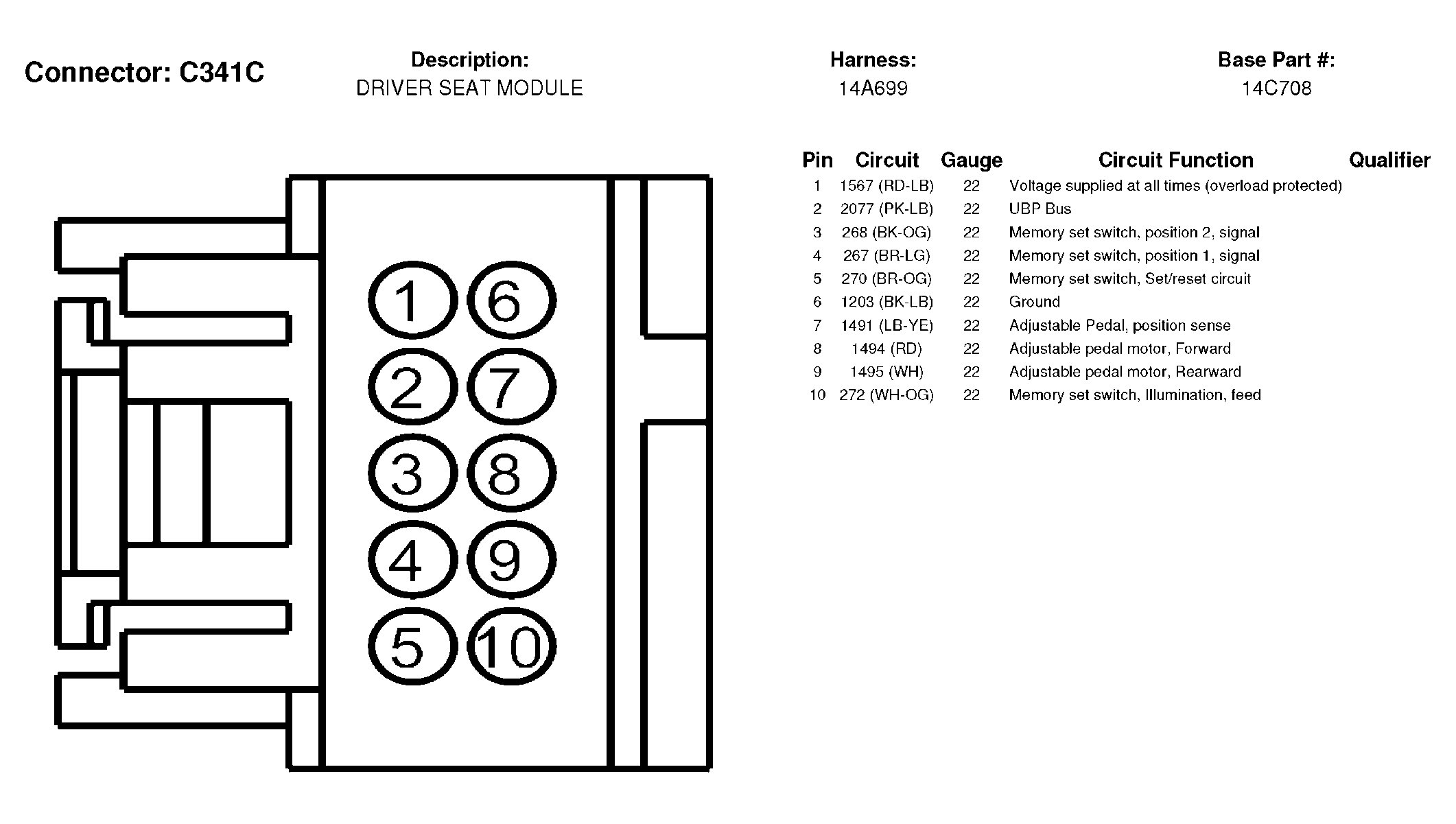

Fig 114: Driver Seat Module Connector End View (C341C)
Courtesy of FORD MOTOR CO.

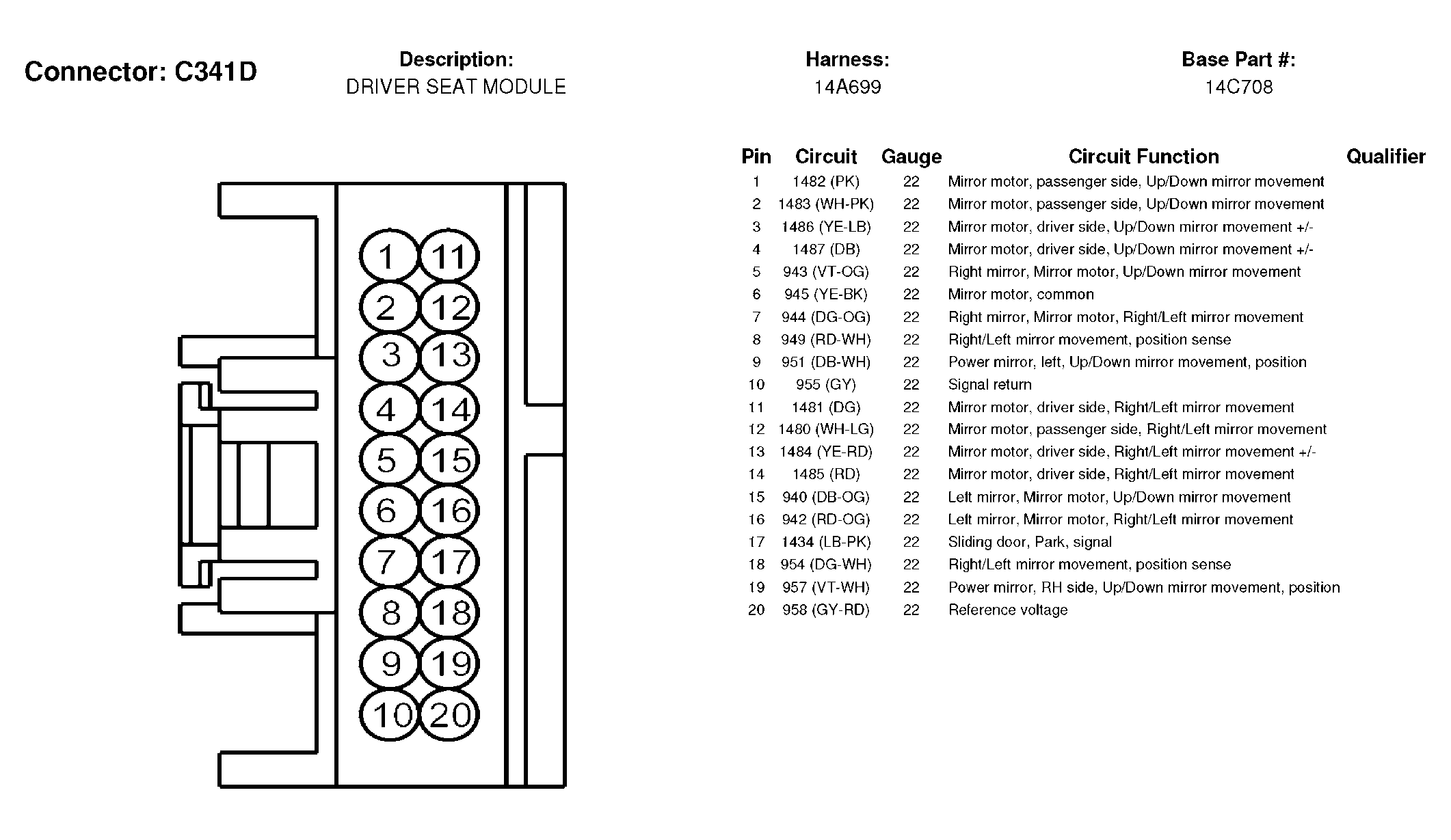

Fig 115: Driver Seat Module Connector End View (C341D)
Courtesy of FORD MOTOR CO.

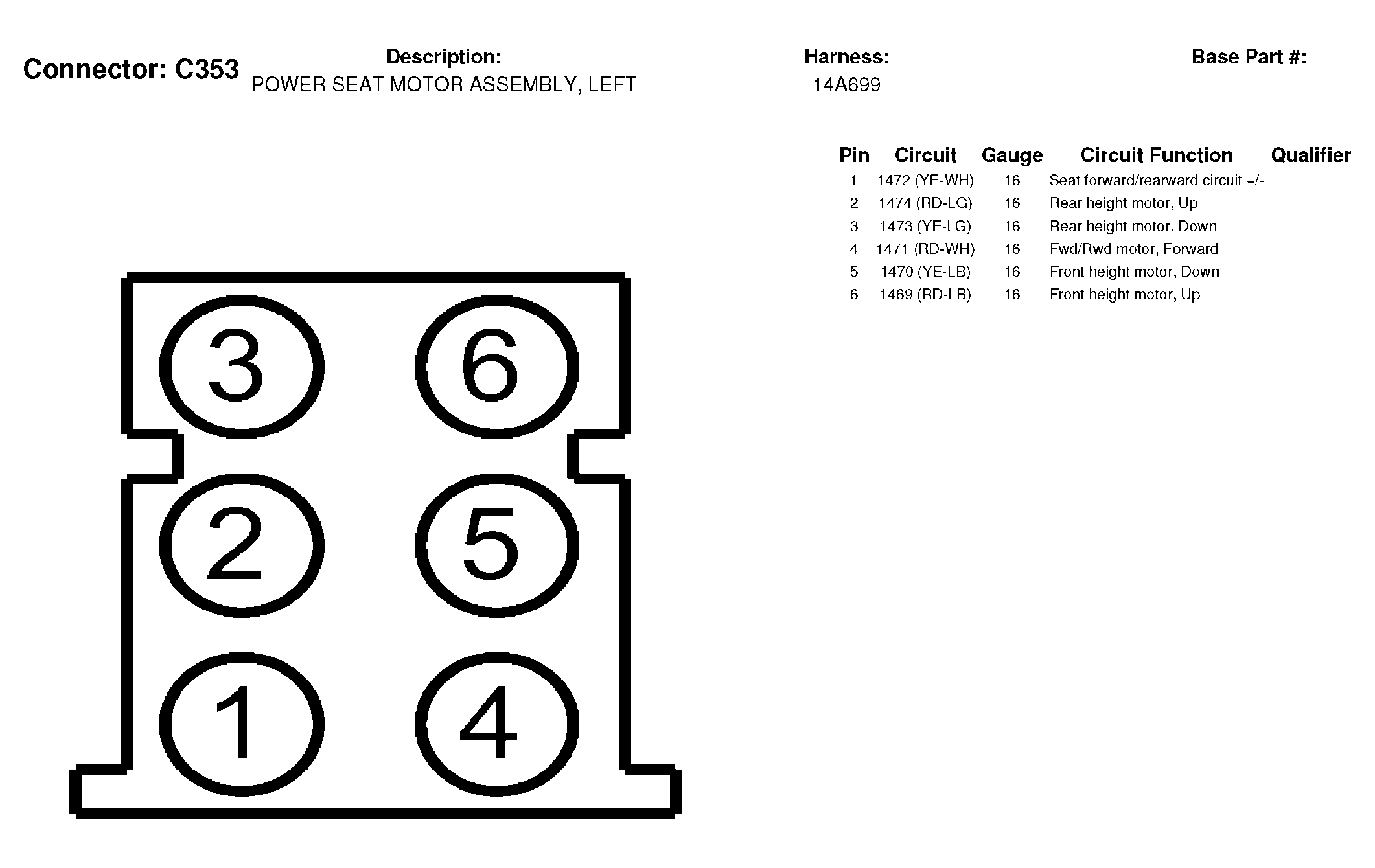

Fig 116: Power Seat Motor Assembly, Left Connector End View (C353)
Courtesy of FORD MOTOR CO.
Fig 117: Seat Position Sensor, Driver Connector End View (C356)
Courtesy of FORD MOTOR CO.

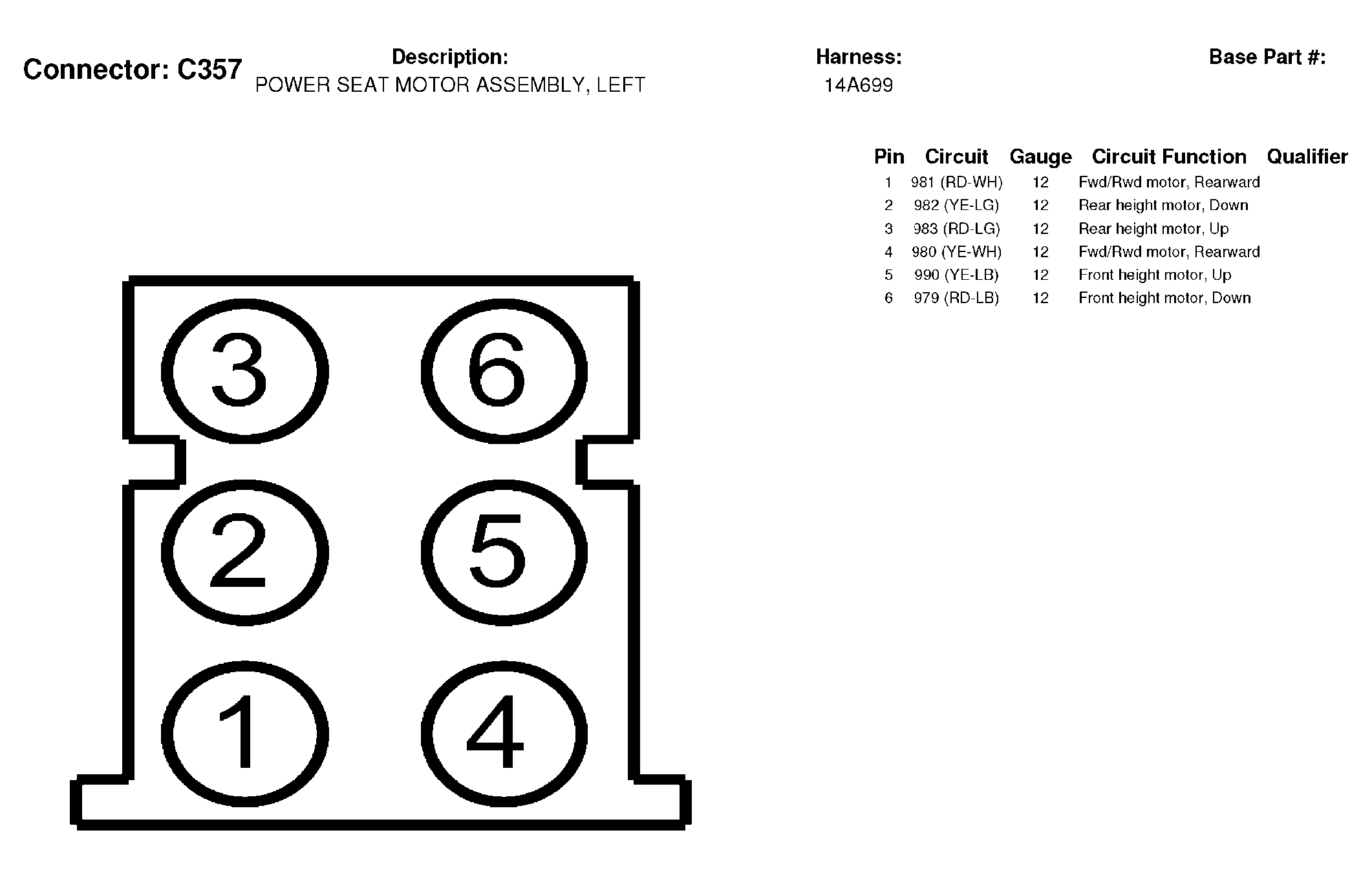

Fig 118: Power Seat Motor Assembly, Left Connector End View (C357)
Courtesy of FORD MOTOR CO.
Fig 119: Heated Seat Module, Driver Side Front Connector End View (C359)
Courtesy of FORD MOTOR CO.

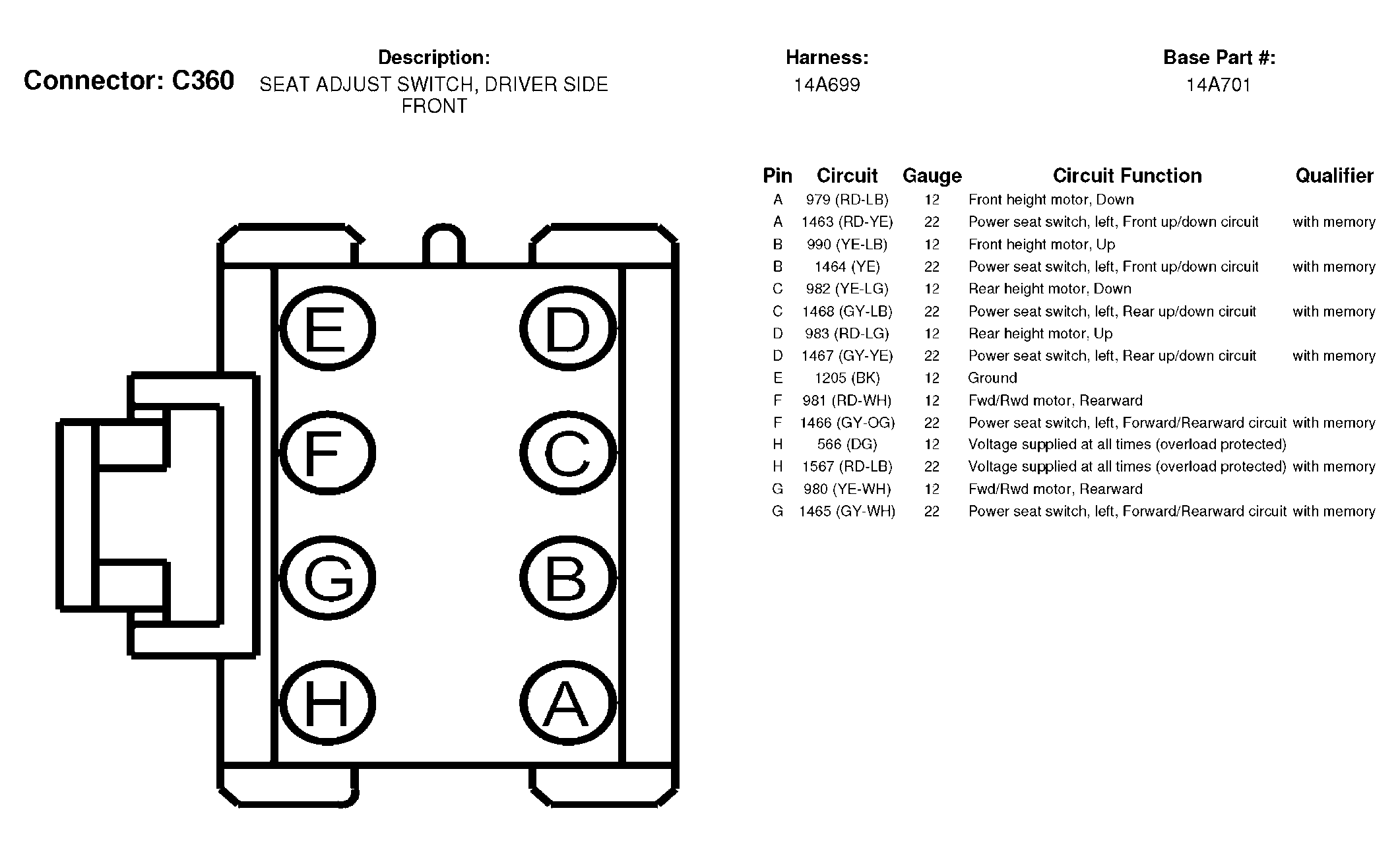

Fig 120: Seat Adjust Switch, Driver Side Front Connector End View (C360)
Courtesy of FORD MOTOR CO.
Fig 121: Seat Cushion Heater, Left Front Connector End View (C364)
Courtesy of FORD MOTOR CO.

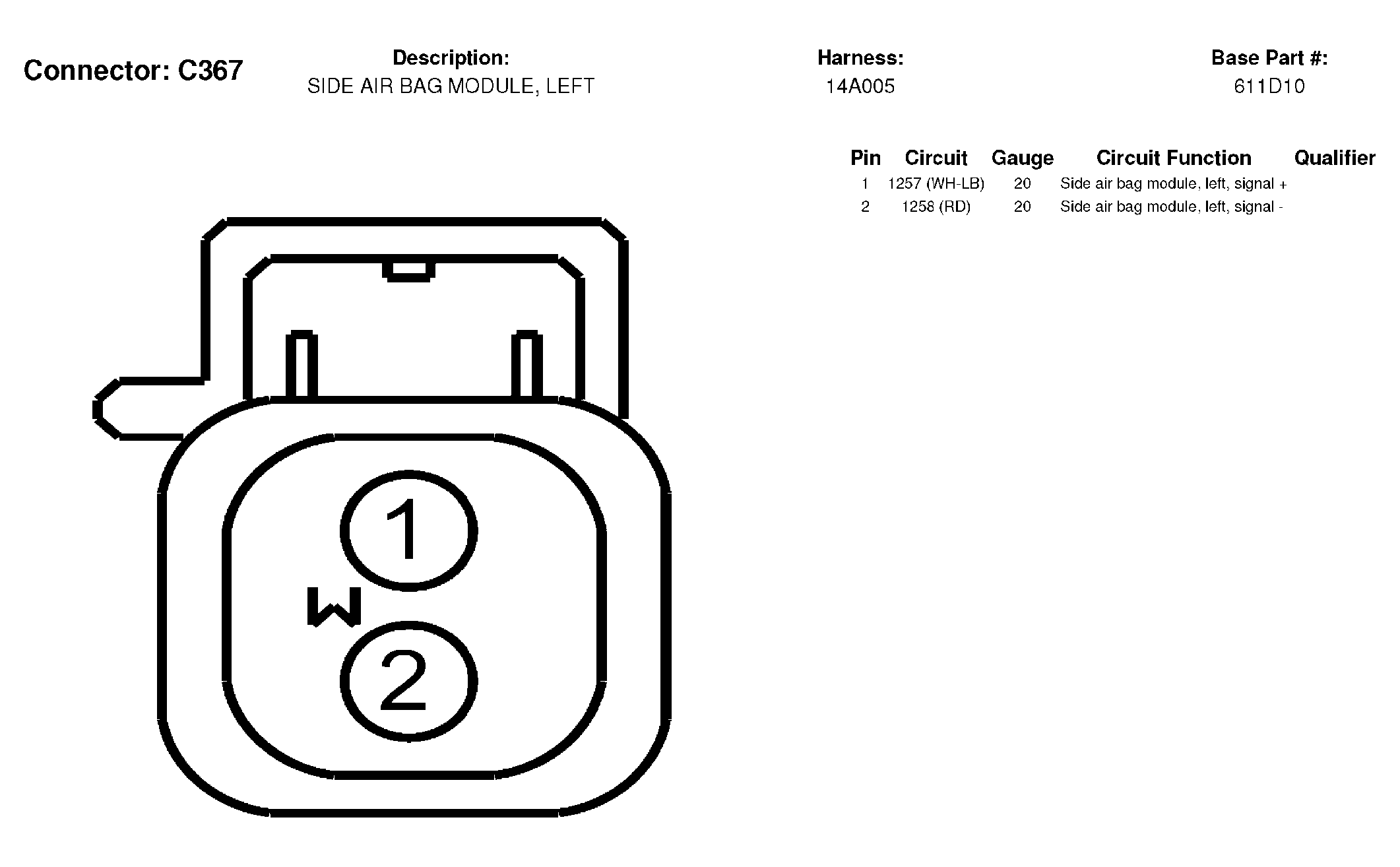

Fig 122: Side Air Bag Module, Left Connector End View (C367)
Courtesy of FORD MOTOR CO.
Fig 123: Sliding Door Entry Lamp, Left Connector End View (C371)
Courtesy of FORD MOTOR CO.

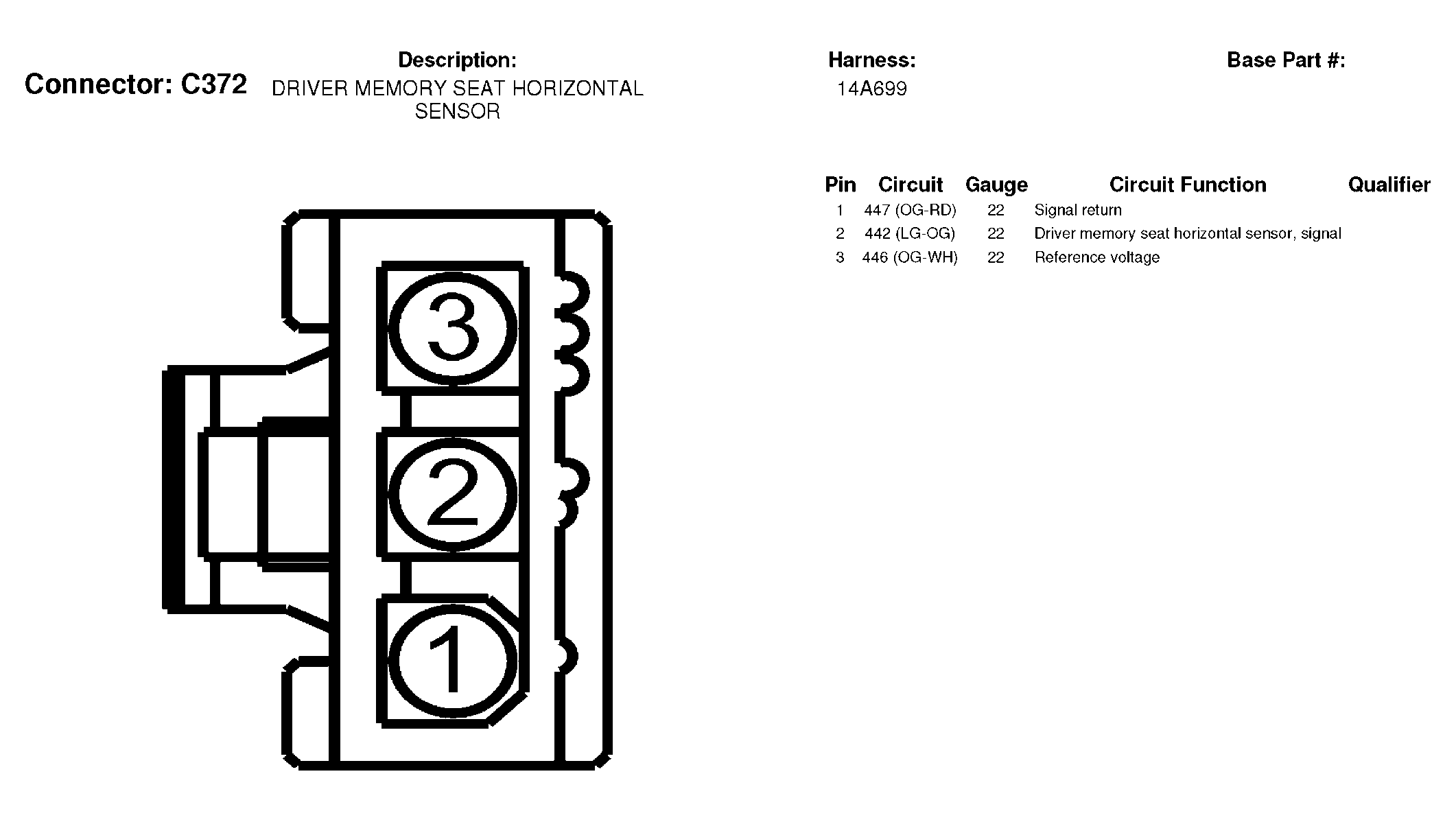

Fig 124: Driver Memory Seat Horizontal Sensor Connector End View (C372)
Courtesy of FORD MOTOR CO.

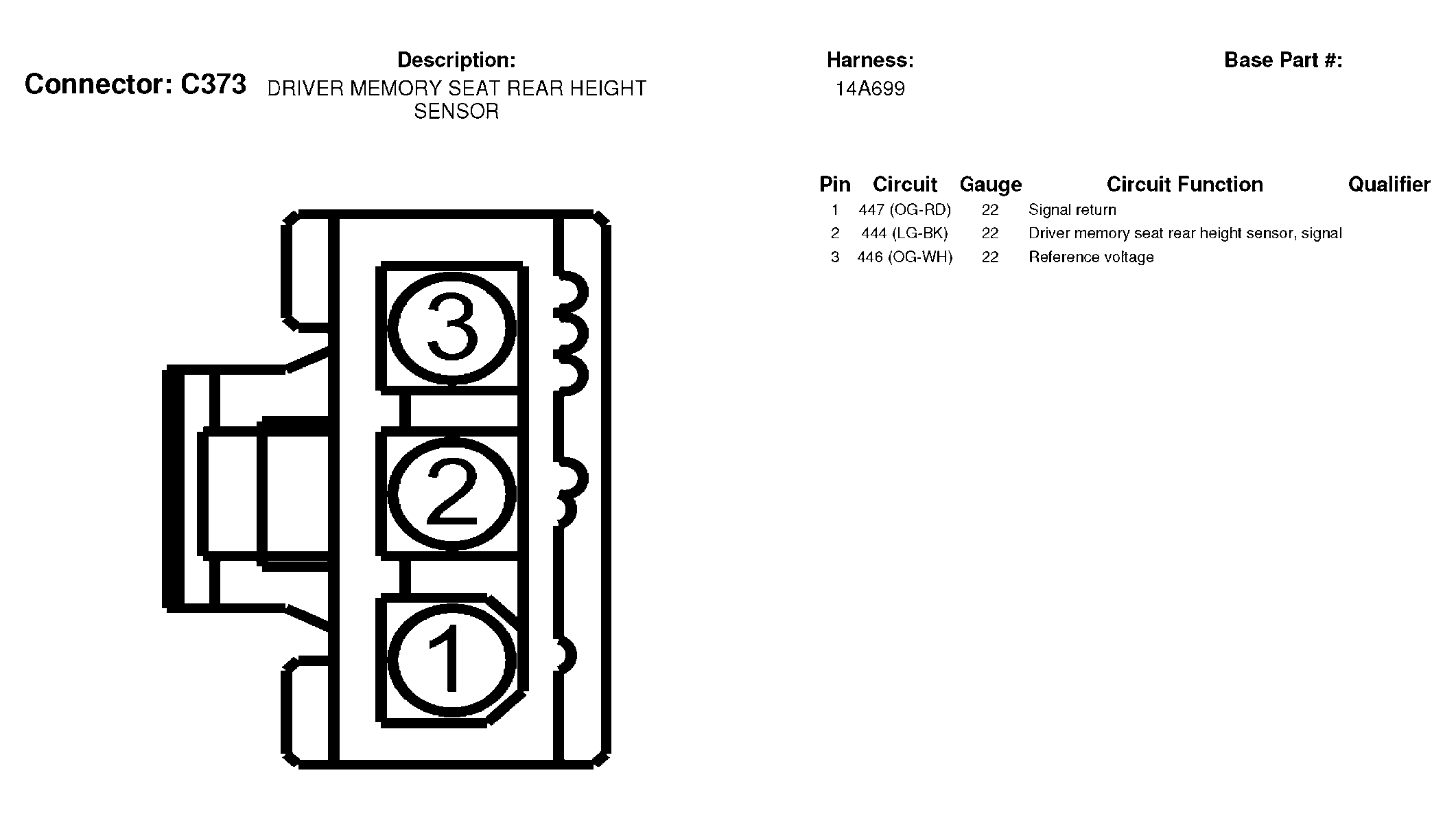

Fig 125: Driver Memory Seat Rear Height Sensor Connector End View (C373)
Courtesy of FORD MOTOR CO.

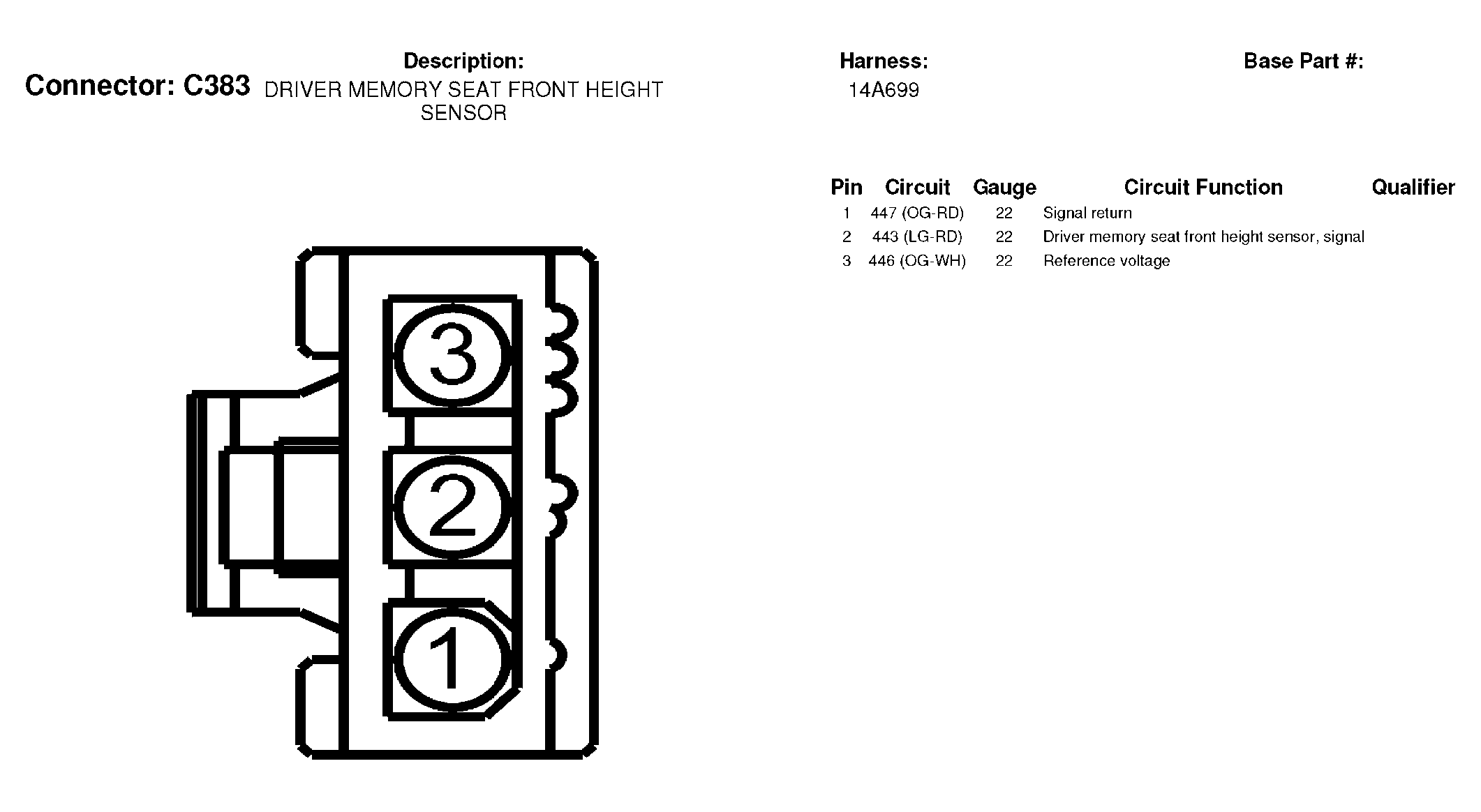

Fig 126: Driver Memory Seat Front Height Sensor Connector End View (C383)
Courtesy of FORD MOTOR CO.
Fig 127: Driver Memory Seat Front Height Sensor Connector End View (C383)
Courtesy of FORD MOTOR CO.

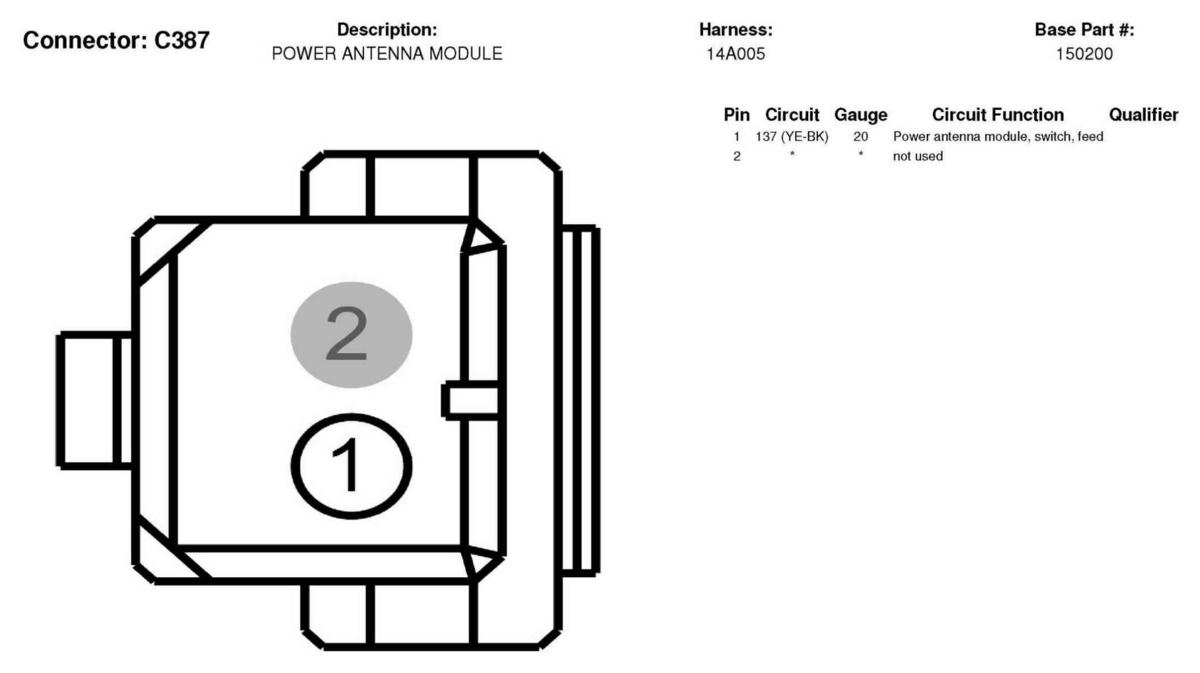

Fig 128: Power Antenna Module Connector End View (C387)
Courtesy of FORD MOTOR CO.

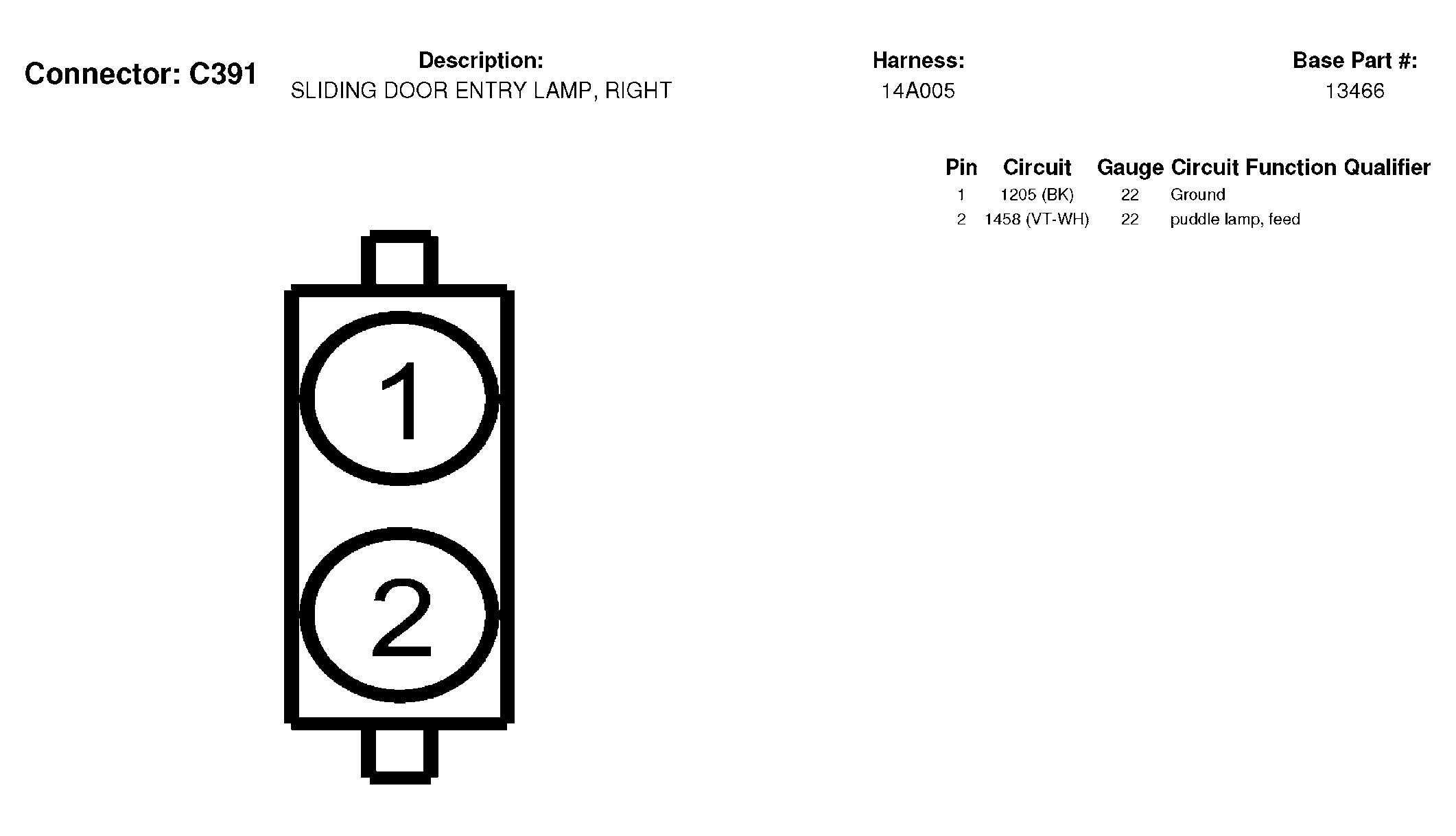

Fig 129: Sliding Door Entry Lamp, Right Connector End View (C391)
Courtesy of FORD MOTOR CO.

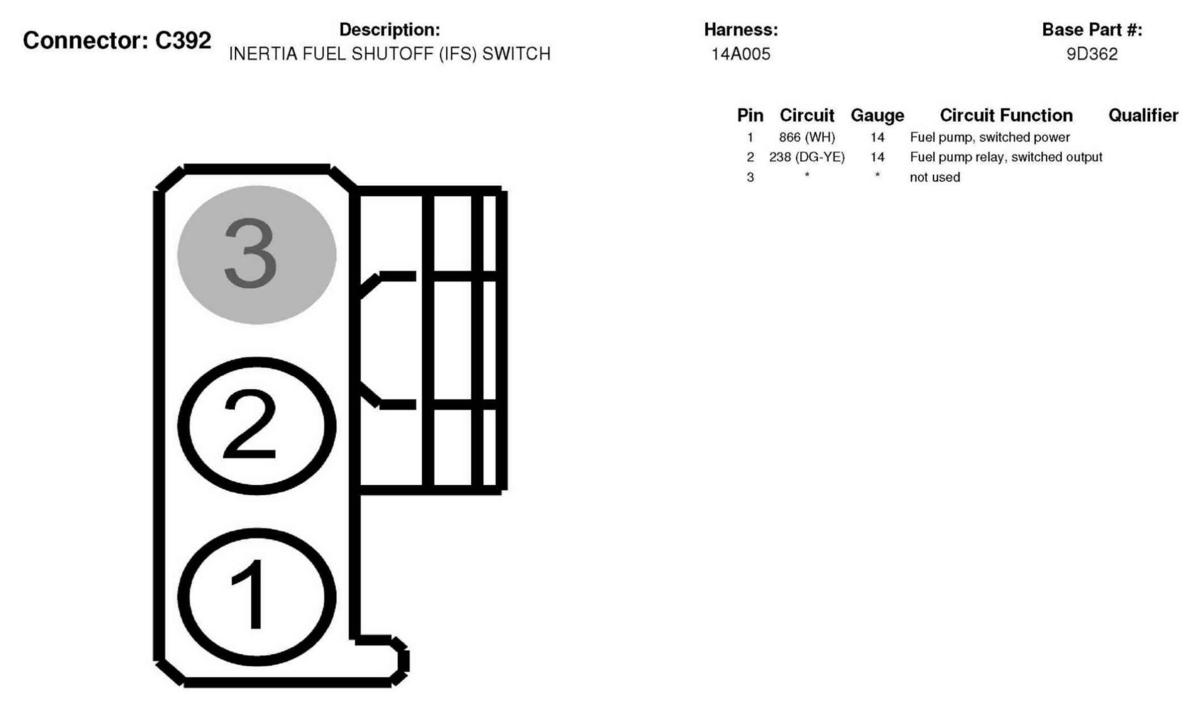

Fig 130: Inertia Fuel Shutoff (IFS) Switch Connector End View (C392)
Courtesy of FORD MOTOR CO.

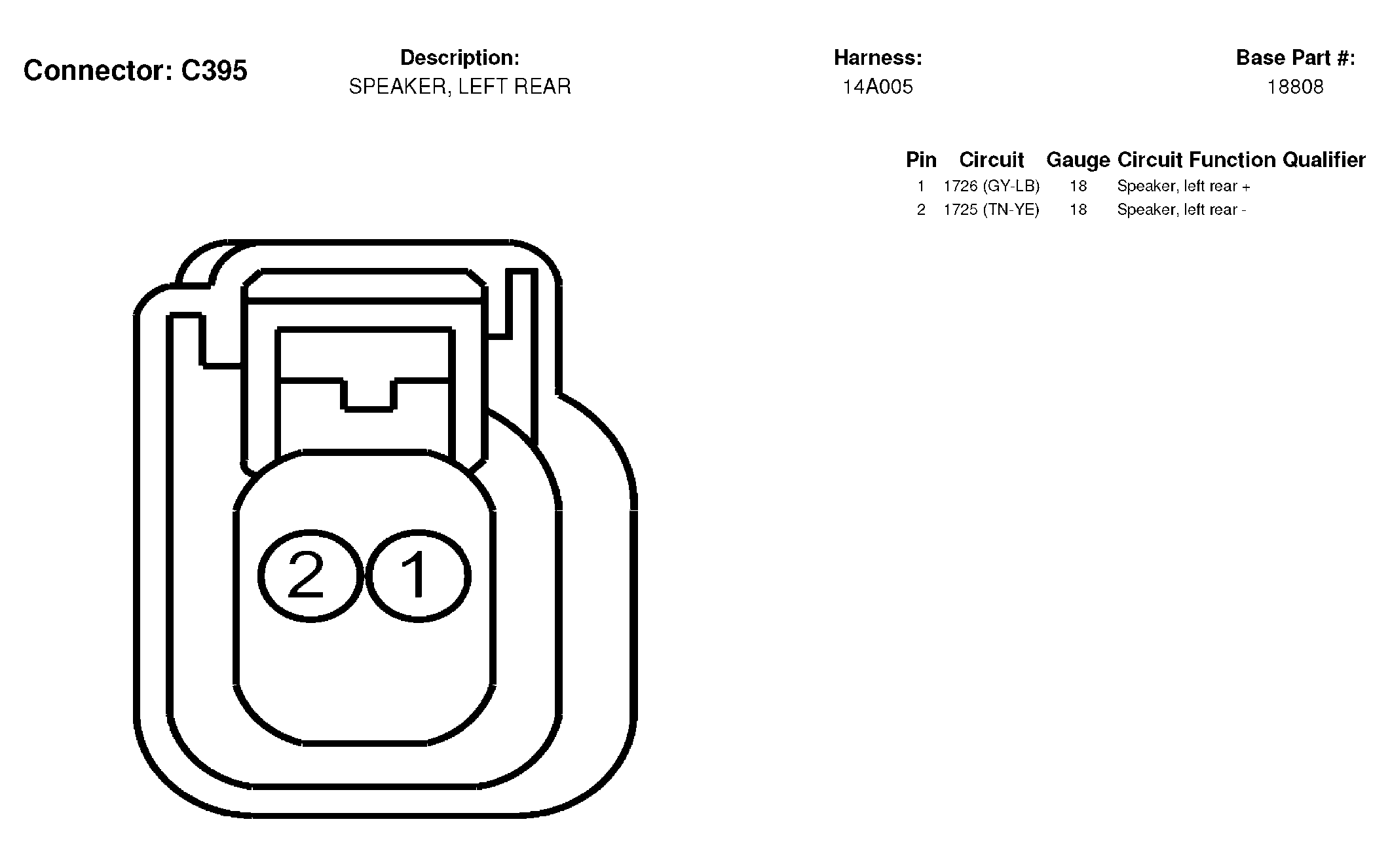

Fig 131: Speaker, Left Rear Connector End View (C395)
Courtesy of FORD MOTOR CO.

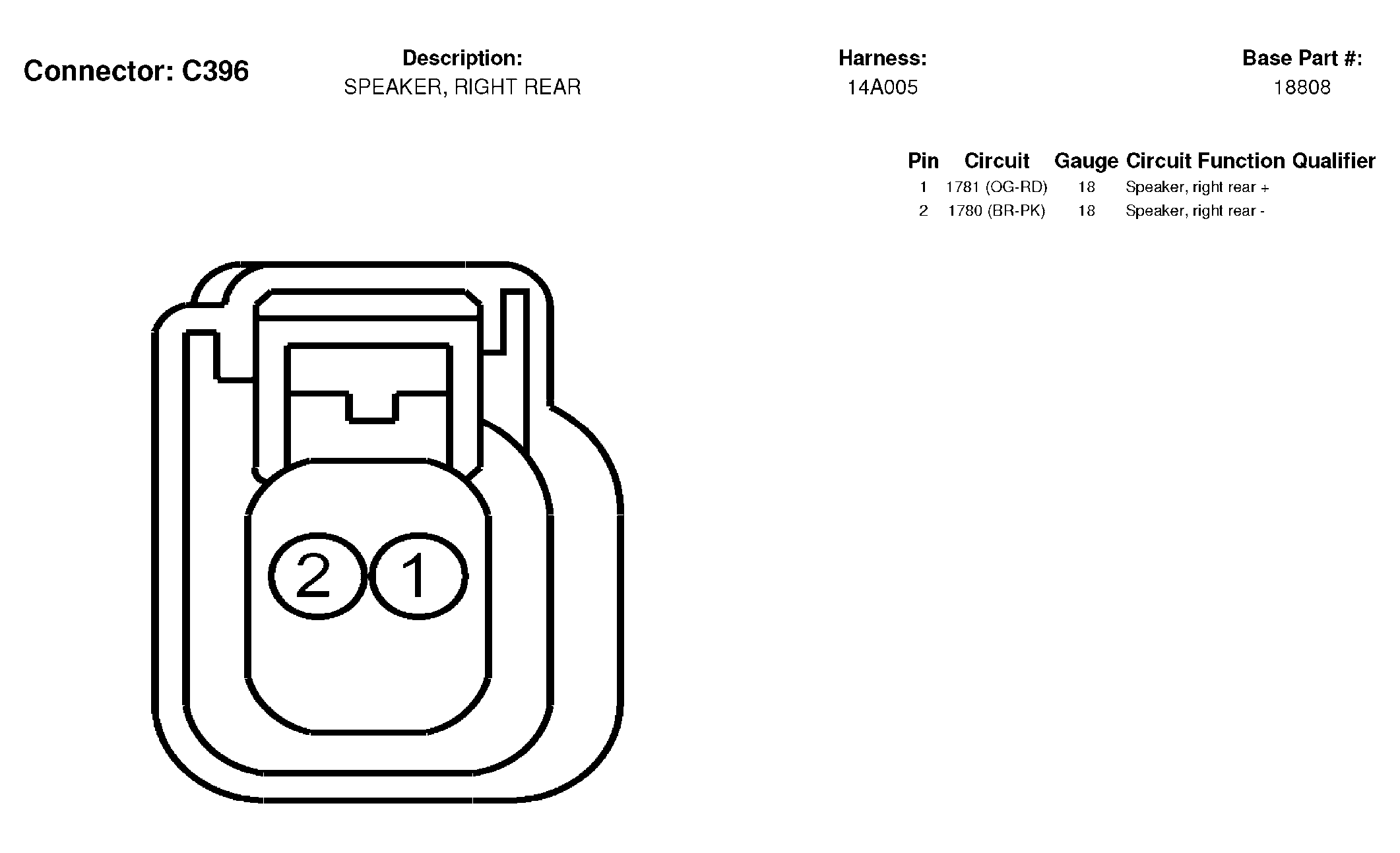

Fig 132: Speaker, Right Rear Connector End View (C396)
Courtesy of FORD MOTOR CO.

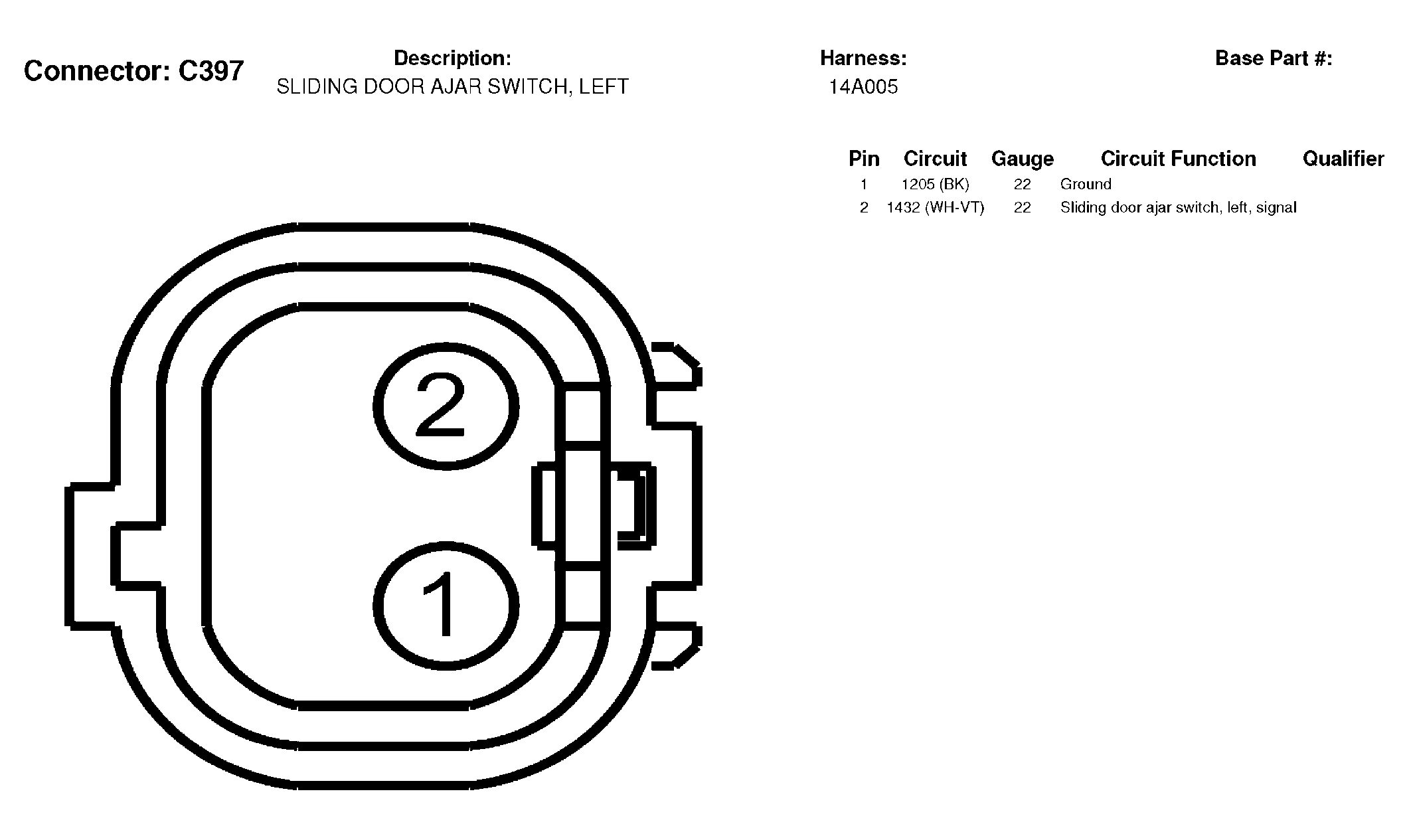

Fig 133: Sliding Door Ajar Switch, Left Connector End View (C397)
Courtesy of FORD MOTOR CO.
Fig 134: Sliding Door Ajar Switch, Right Connector End View (C398)
Courtesy of FORD MOTOR CO.
Fig 135: Windshield Wiper Motor Connector End View (C125)
Courtesy of FORD MOTOR CO.
Fig 136: Rear Window Defrost Grid Connector End View (C402A)
Courtesy of FORD MOTOR CO.

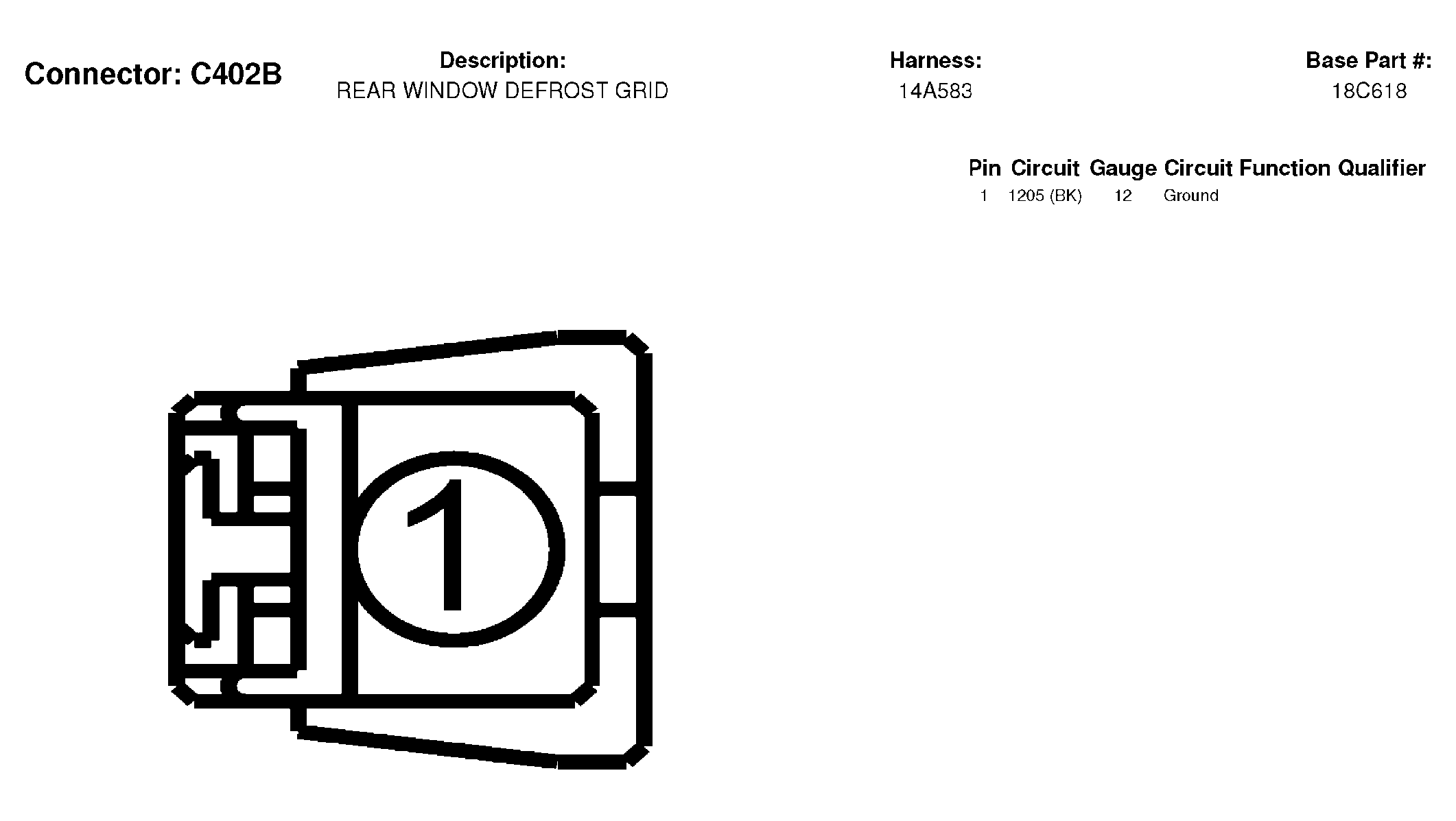

Fig 137: Rear Window Defrost Grid Connector End View (C402B)
Courtesy of FORD MOTOR CO.

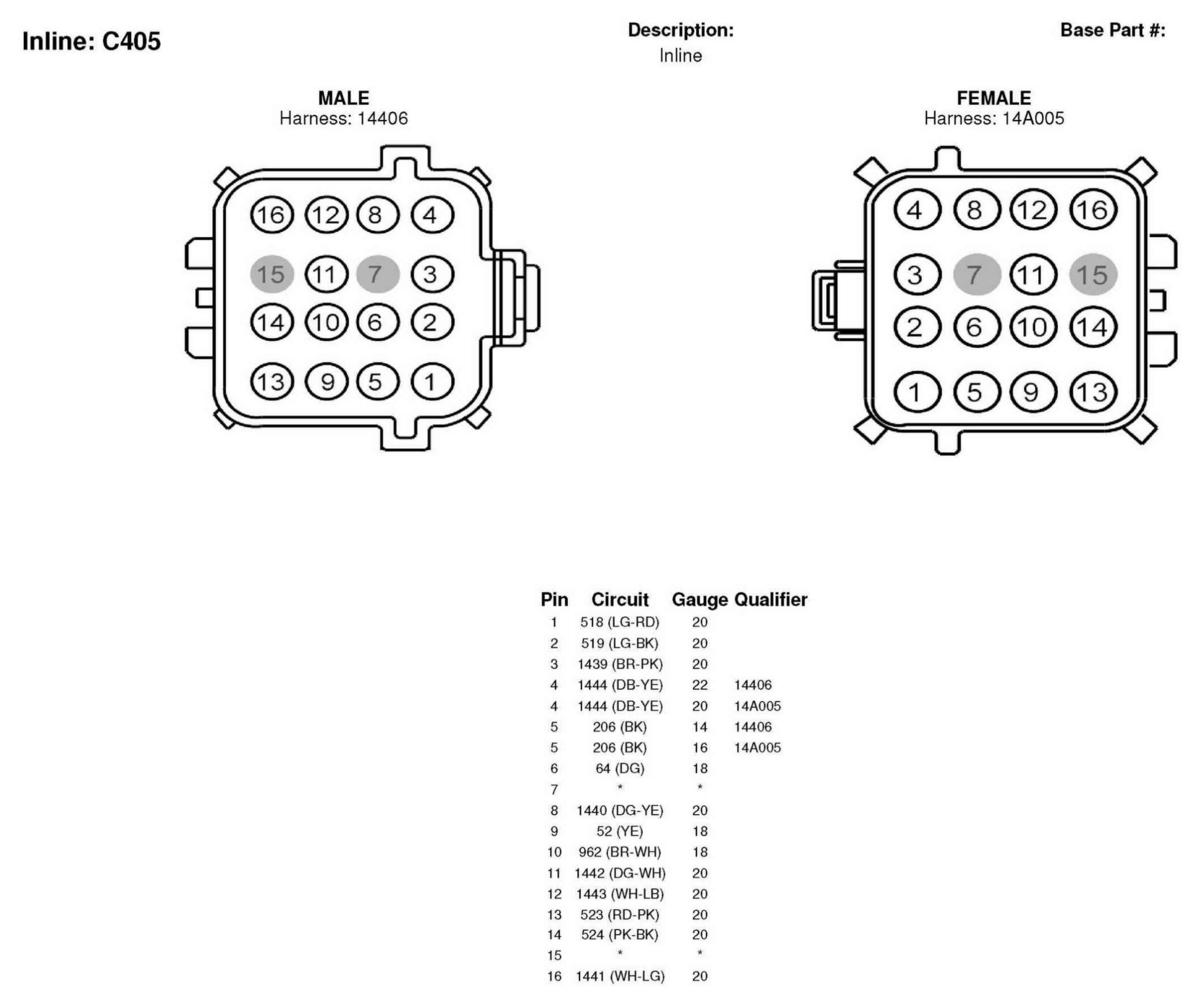

Fig 138: Inline Connector End View (C405)
Courtesy of FORD MOTOR CO.

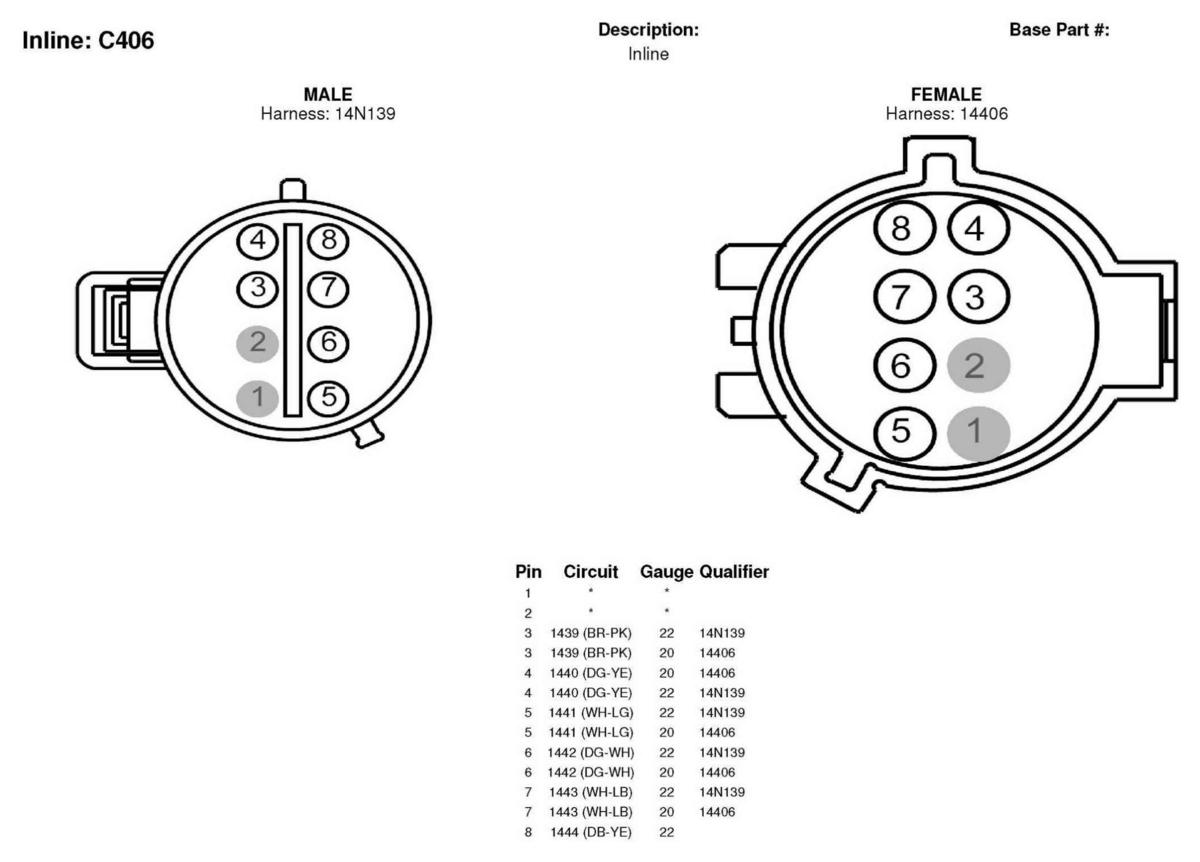

Fig 139: Inline Connector End View (C406)
Courtesy of FORD MOTOR CO.
Fig 140: Inline Connector End View (C406)
Courtesy of FORD MOTOR CO.

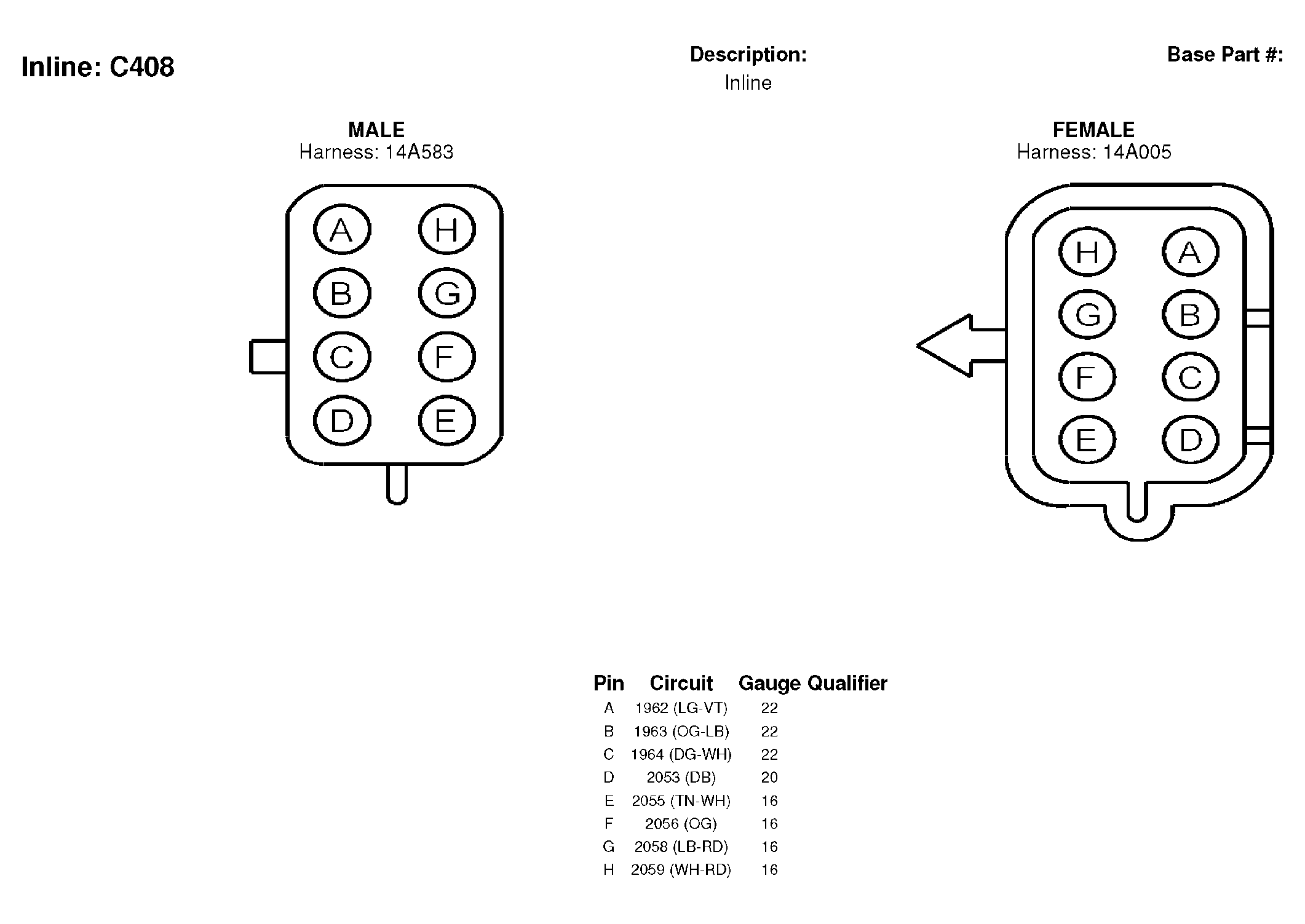

Fig 141: Inline Connector End View (C408)
Courtesy of FORD MOTOR CO.

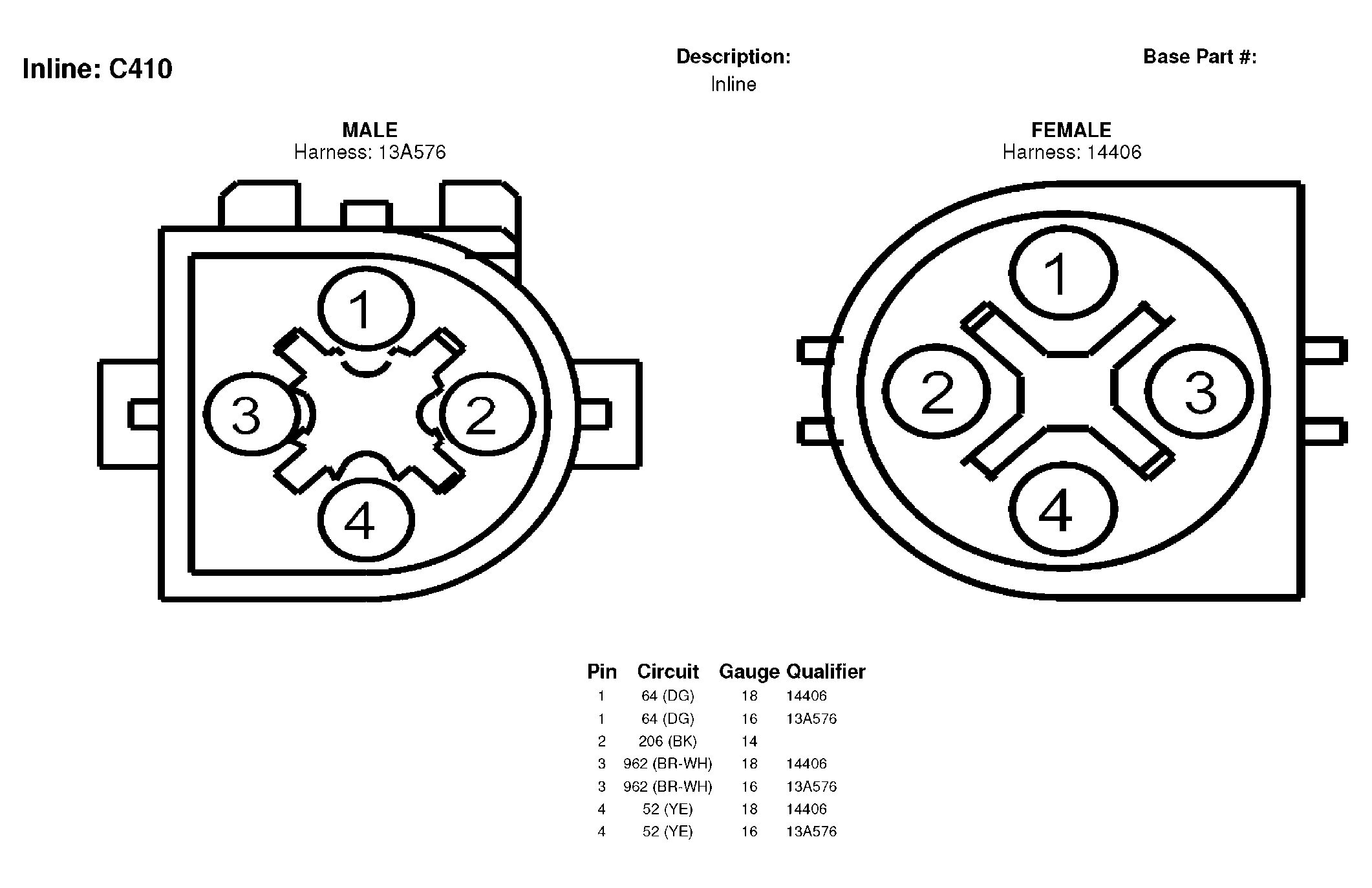

Fig 142: Inline Connector End View (C410)
Courtesy of FORD MOTOR CO.

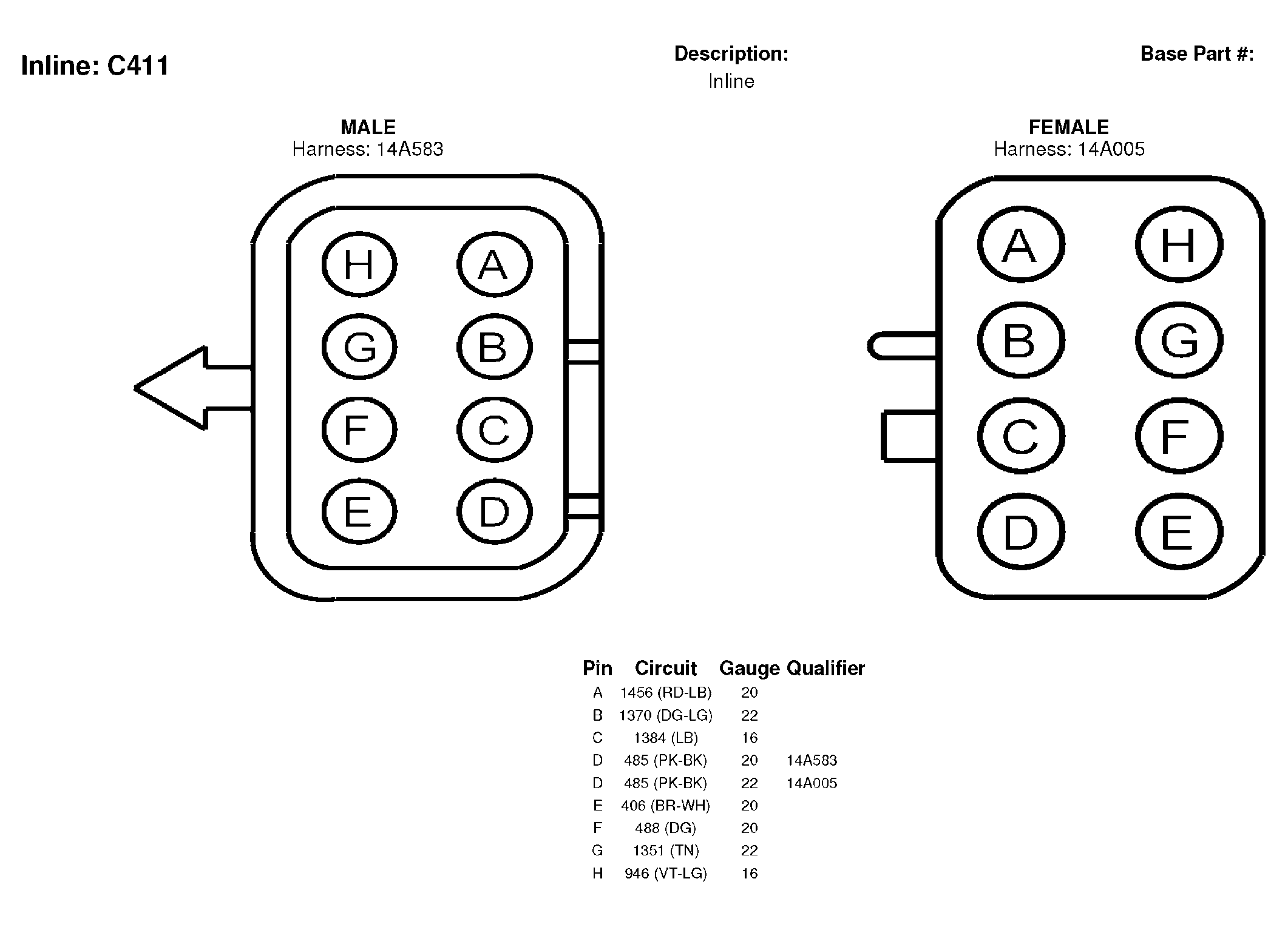

Fig 143: Inline Connector End View (C411)
Courtesy of FORD MOTOR CO.

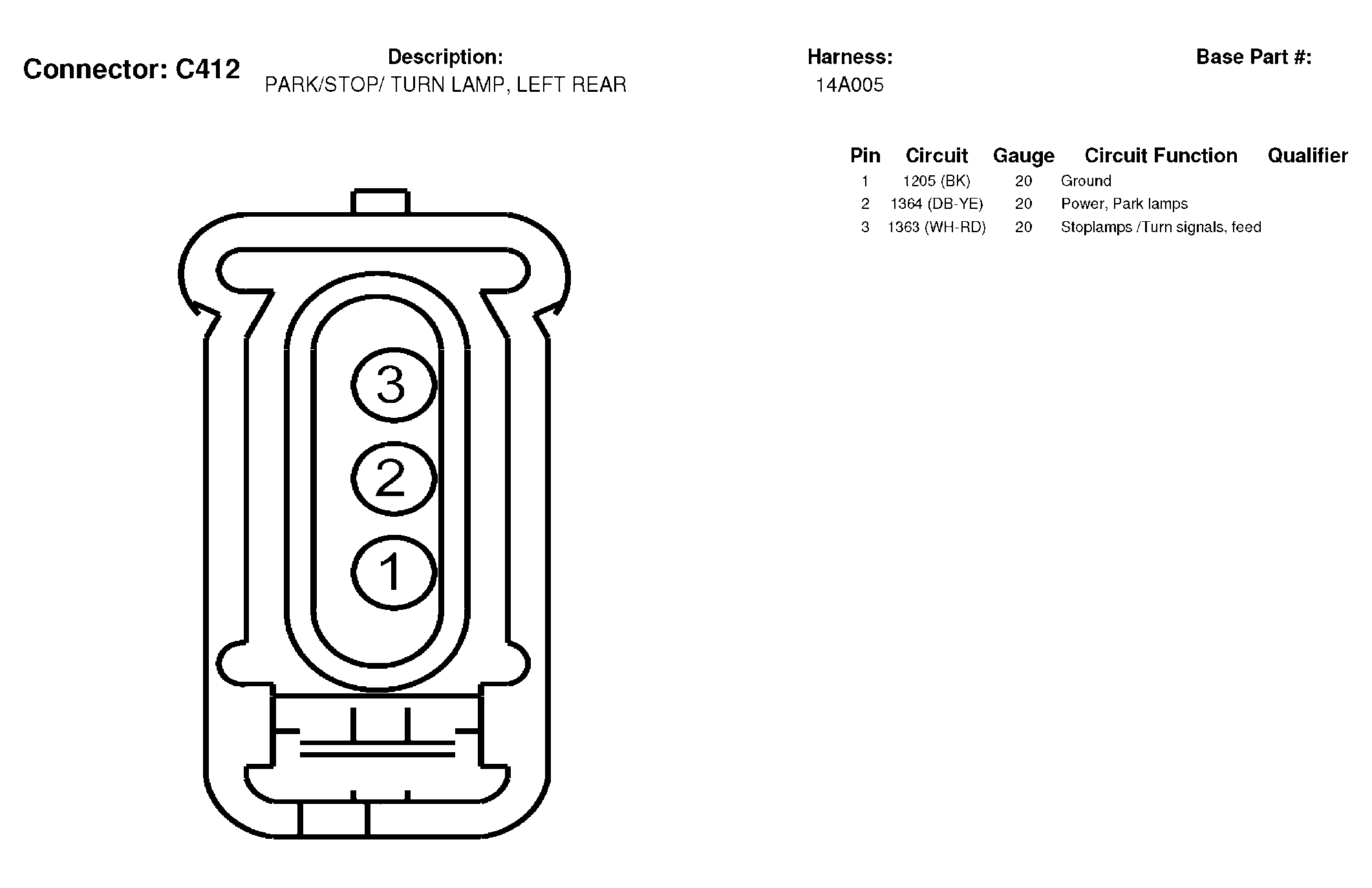

Fig 144: Park/Stop/Turn Lamp, Left Rear Connector End View (C412)
Courtesy of FORD MOTOR CO.

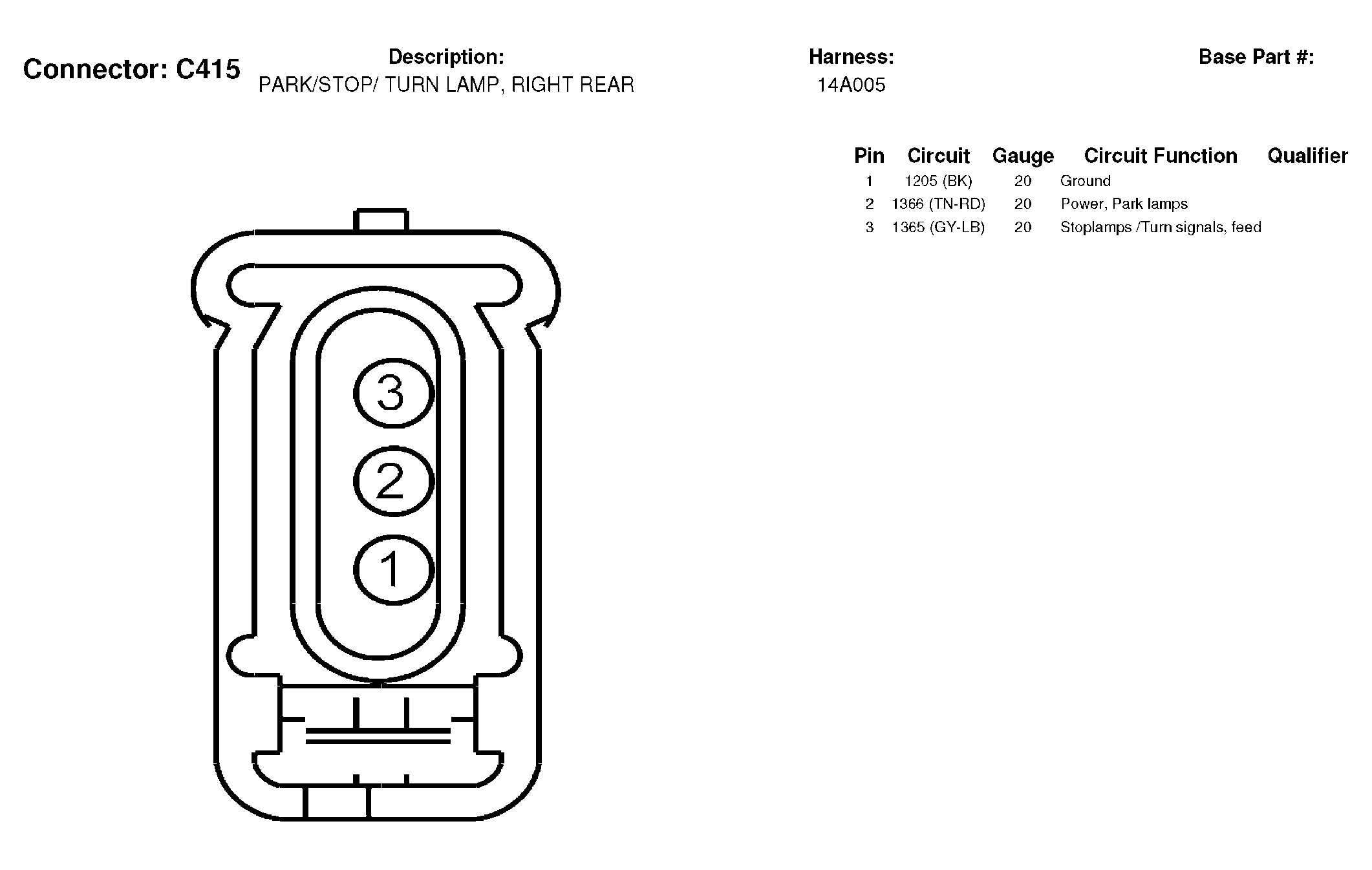

Fig 145: Park/Stop/Turn Lamp, Right Rear Connector End View (C415)
Courtesy of FORD MOTOR CO.

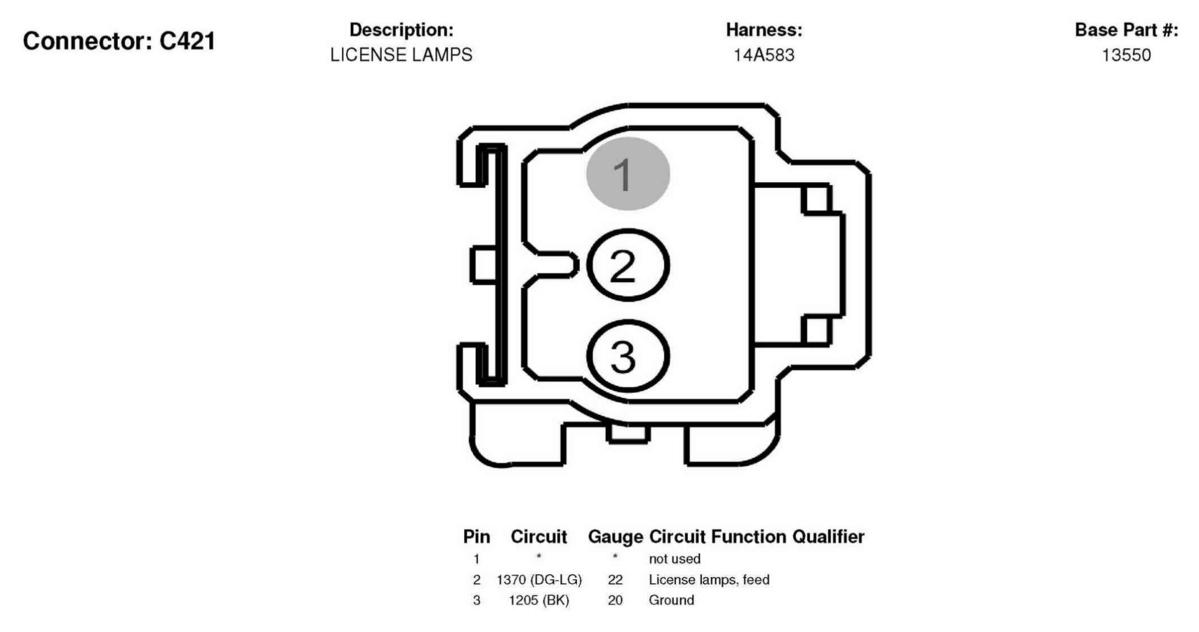

Fig 146: License Lamp Connector End View (C421)
Courtesy of FORD MOTOR CO.

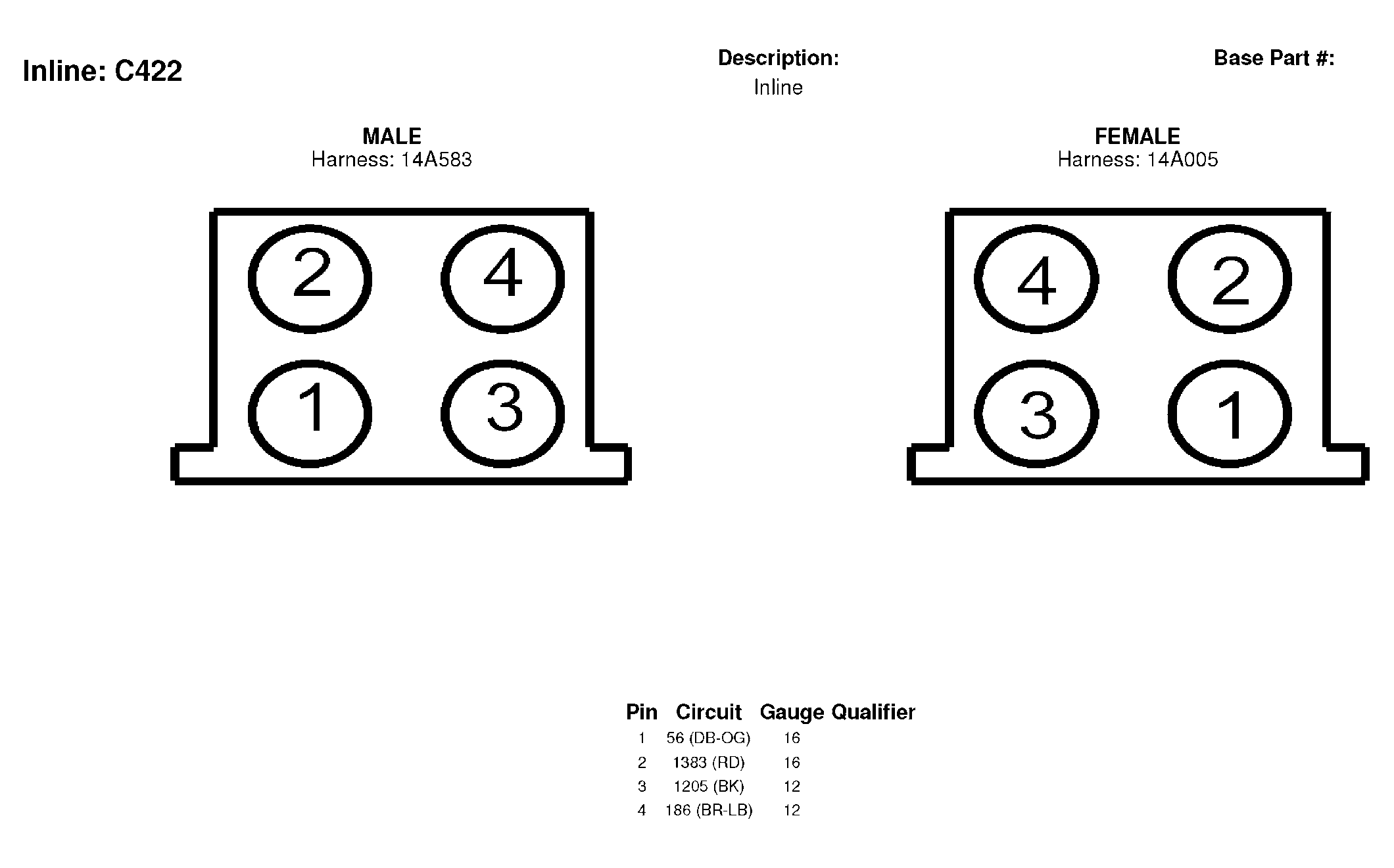

Fig 147: Inline Connector End View (C422)
Courtesy of FORD MOTOR CO.

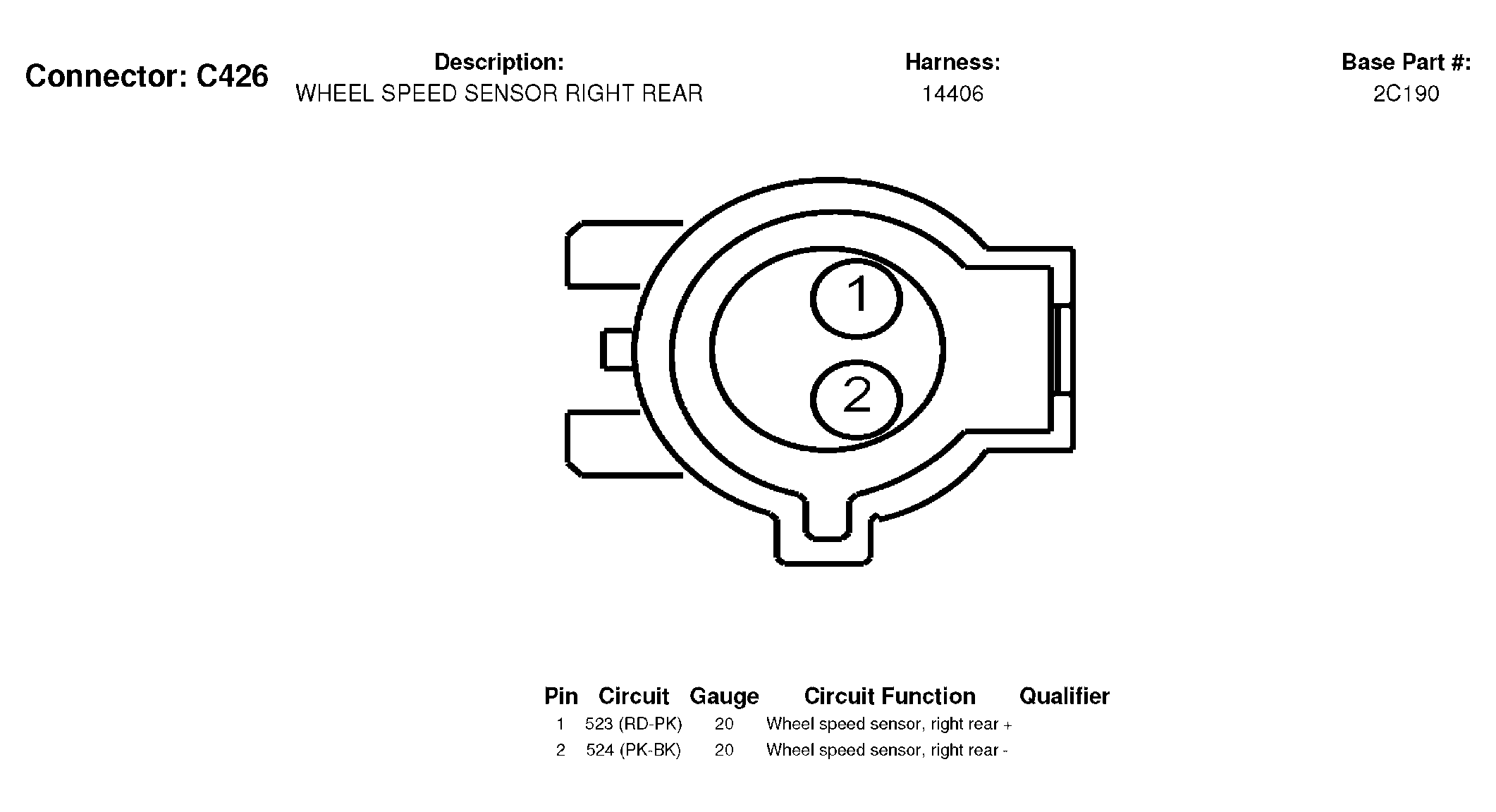

Fig 148: Wheel Speed Sensor Right Rear Connector End View (C426)
Courtesy of FORD MOTOR CO.
Fig 149: Fuel Tank Unit Connector End View (C433)
Courtesy of FORD MOTOR CO.

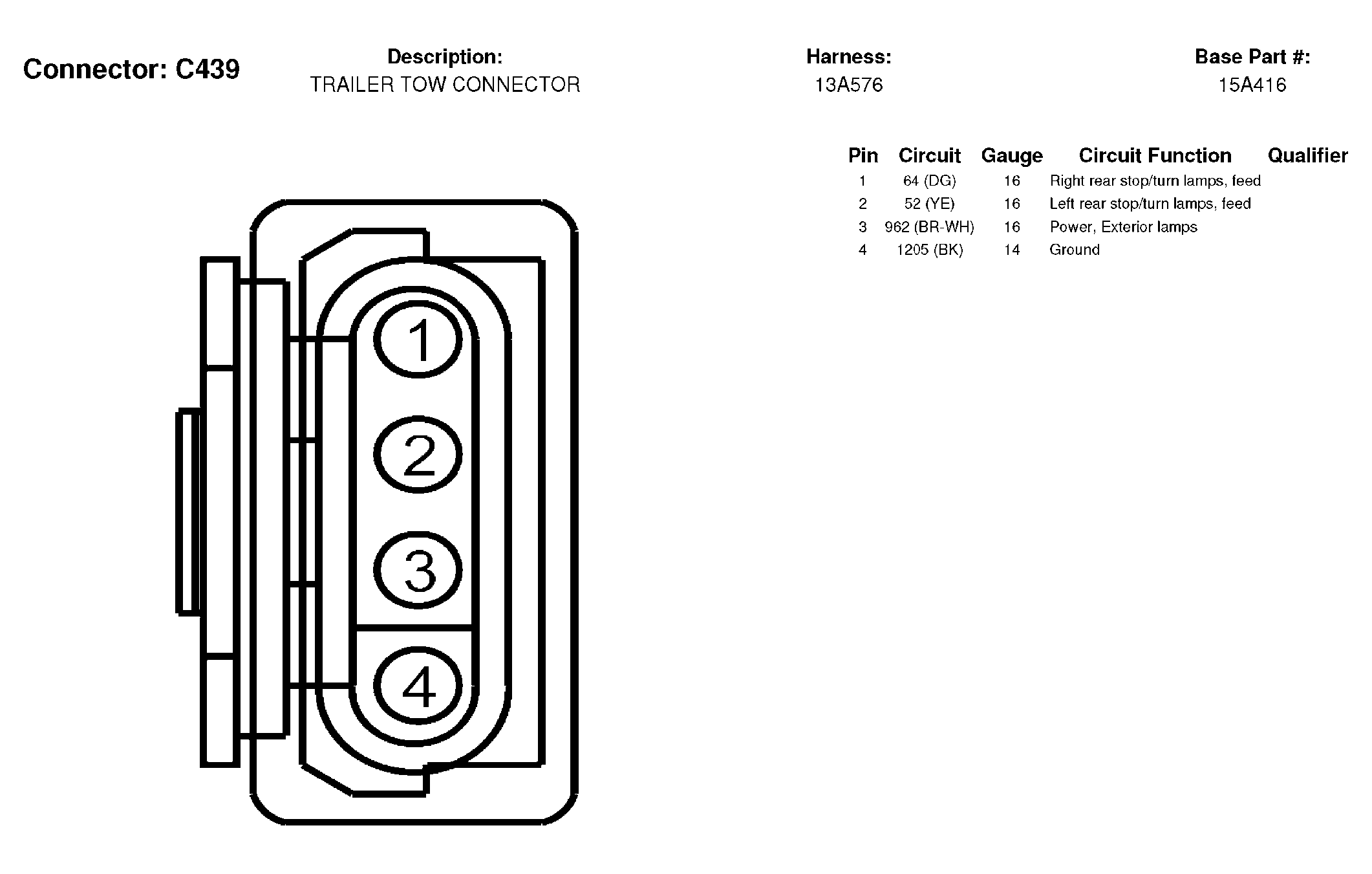

Fig 150: Trailer Tow Connector, Connector End View (C439)
Courtesy of FORD MOTOR CO.
Fig 151: Wheel Speed Sensor Left Rear Connector End View (C440)
Courtesy of FORD MOTOR CO.

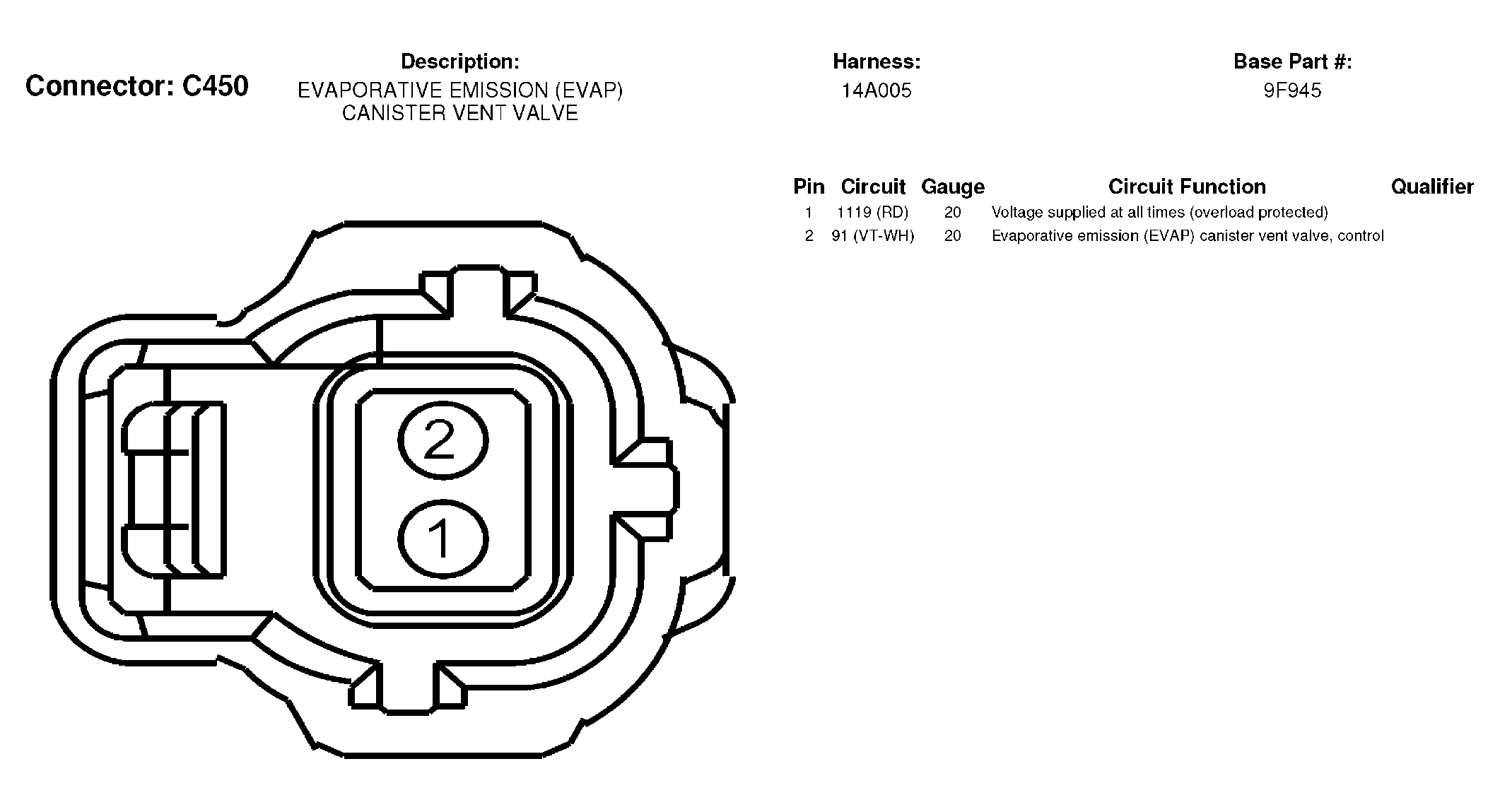

Fig 152: Evaporative Emission (EVAP) Canister Vent Valve Connector End View (C450)
Courtesy of FORD MOTOR CO.
Fig 153: Reversing Lamp, Left Connector End View (C451)
Courtesy of FORD MOTOR CO.

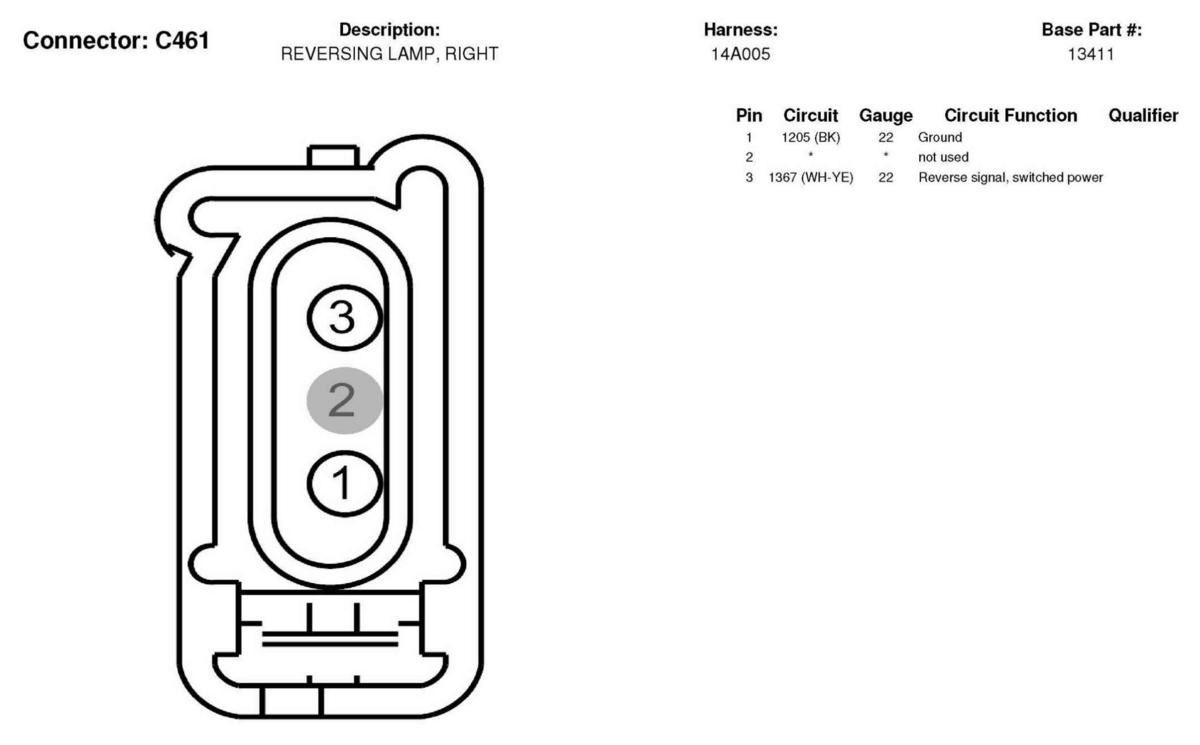

Fig 154: Reversing Lamp, Right Connector End View (C461)
Courtesy of FORD MOTOR CO.

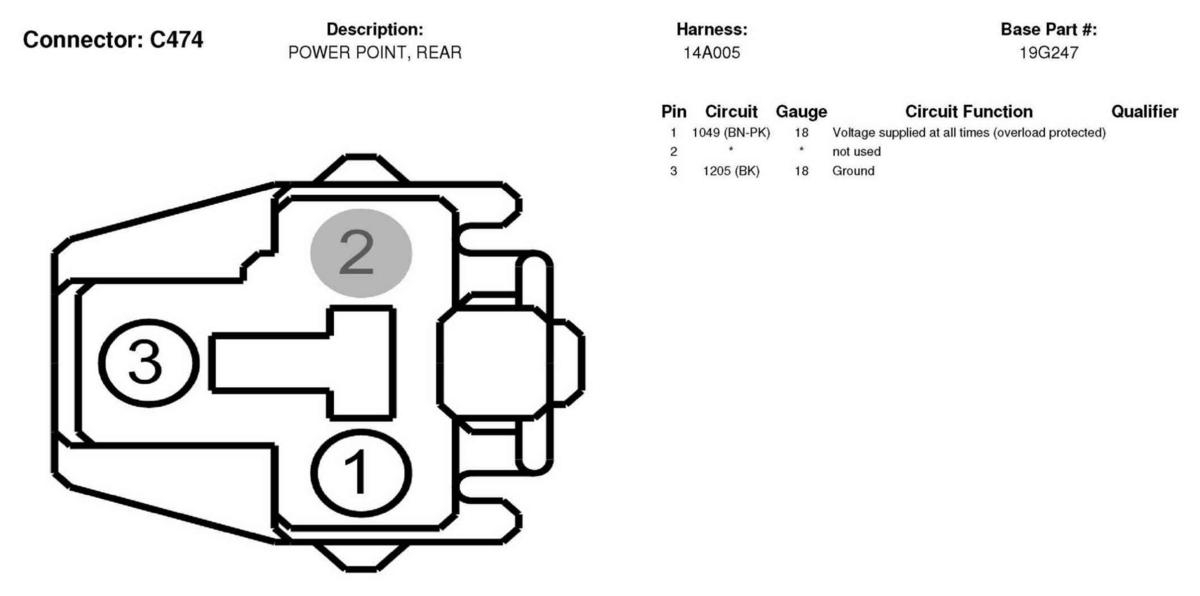

Fig 155: Power Point, Rear Connector End View (C474)
Courtesy of FORD MOTOR CO.
Fig 156: High Mounted Stop Lamp Connector End View (C475)
Courtesy of FORD MOTOR CO.

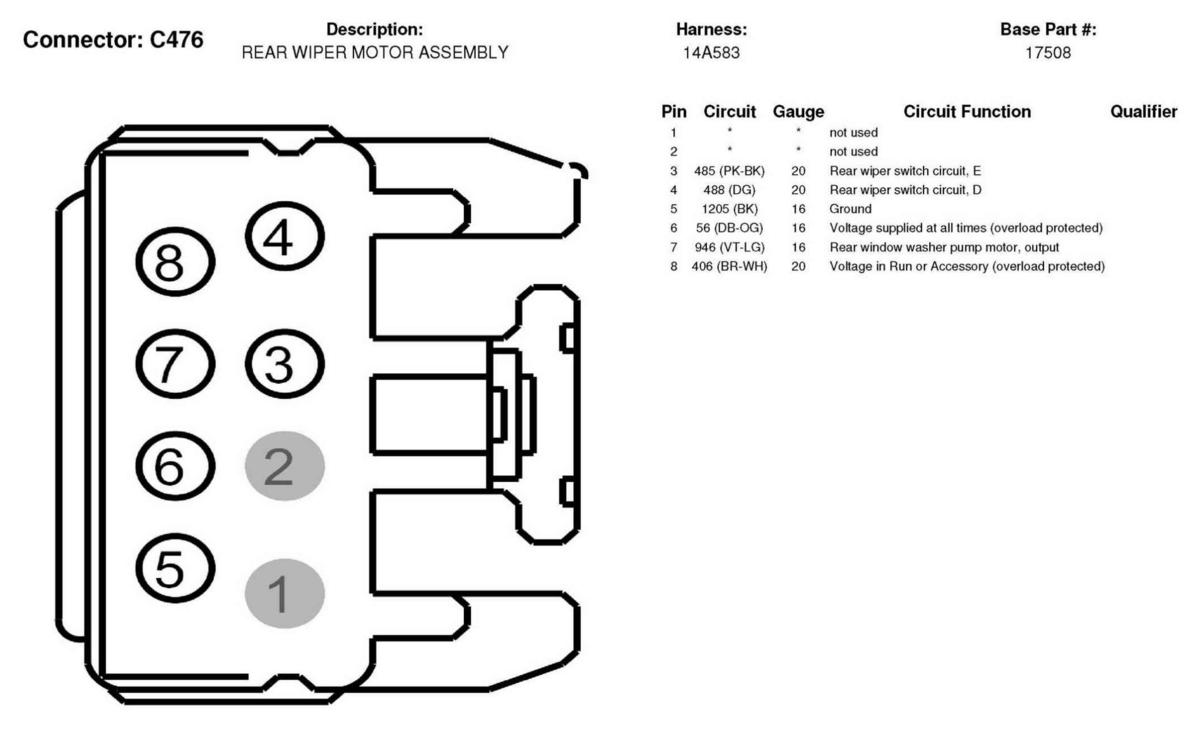

Fig 157: Rear Wiper Motor Assembly Connector End View (C476)
Courtesy of FORD MOTOR CO.

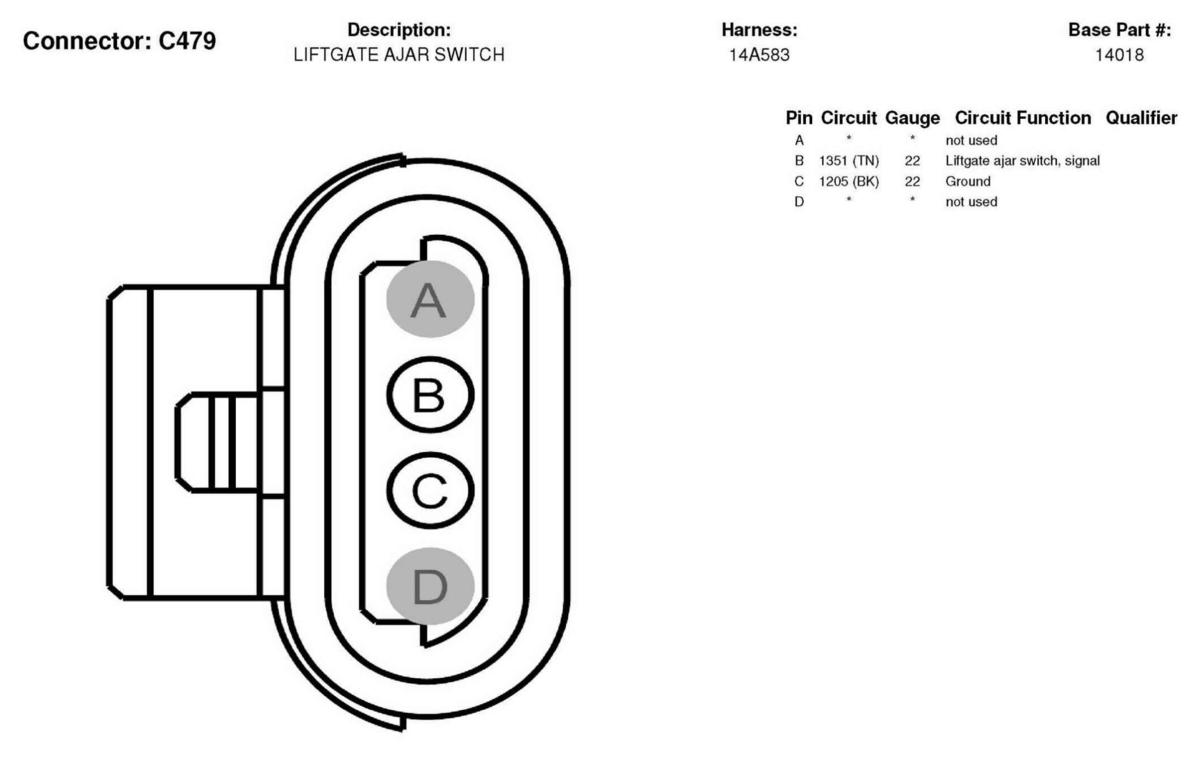

Fig 158: Liftgate Ajar Switch Connector End View (C479)
Courtesy of FORD MOTOR CO.

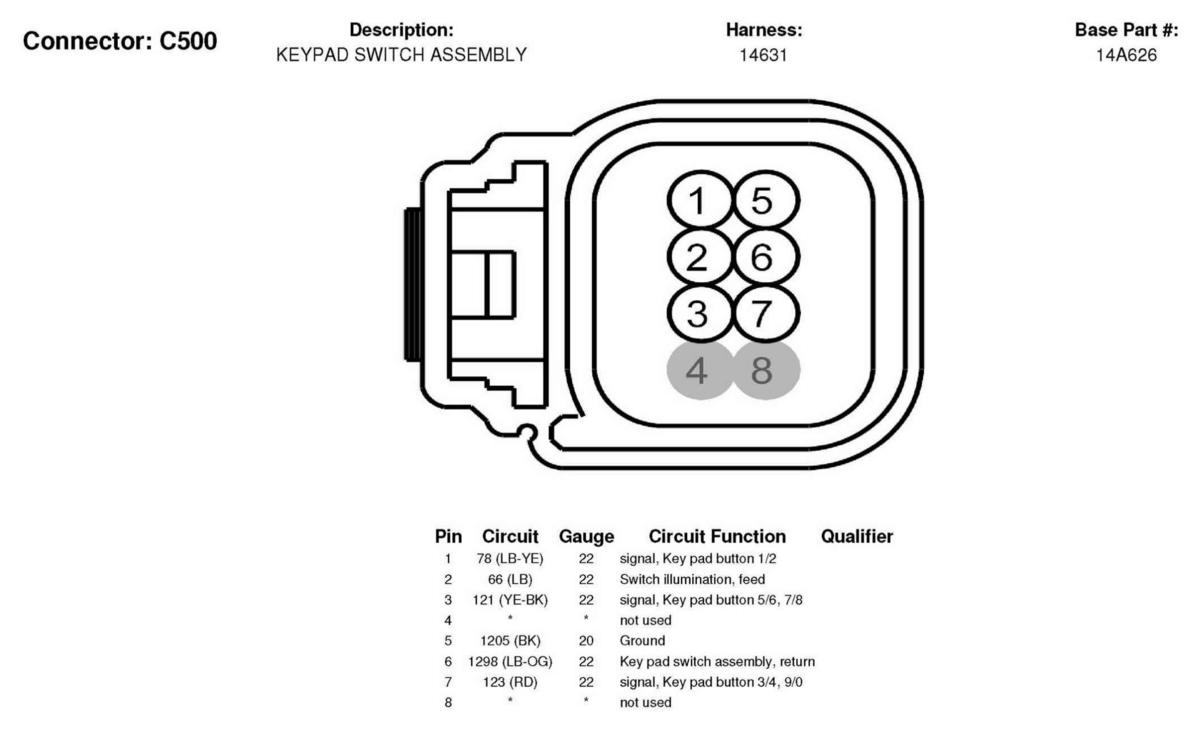

Fig 159: Keypad Switch Assembly Connector End View (C500)
Courtesy of FORD MOTOR CO.

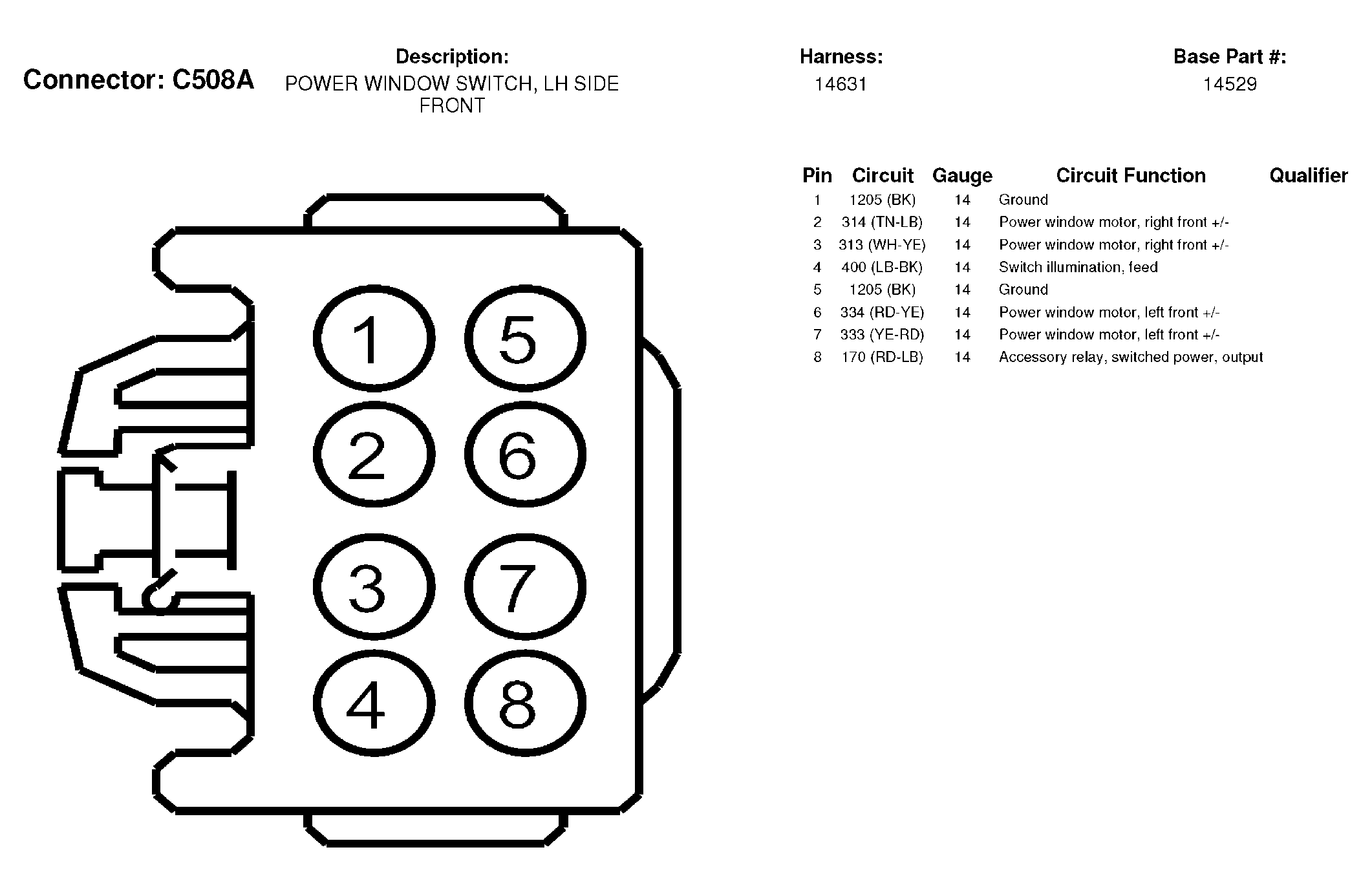

Fig 160: Power Window Switch, LH Side Front Connector End View (C508A)
Courtesy of FORD MOTOR CO.

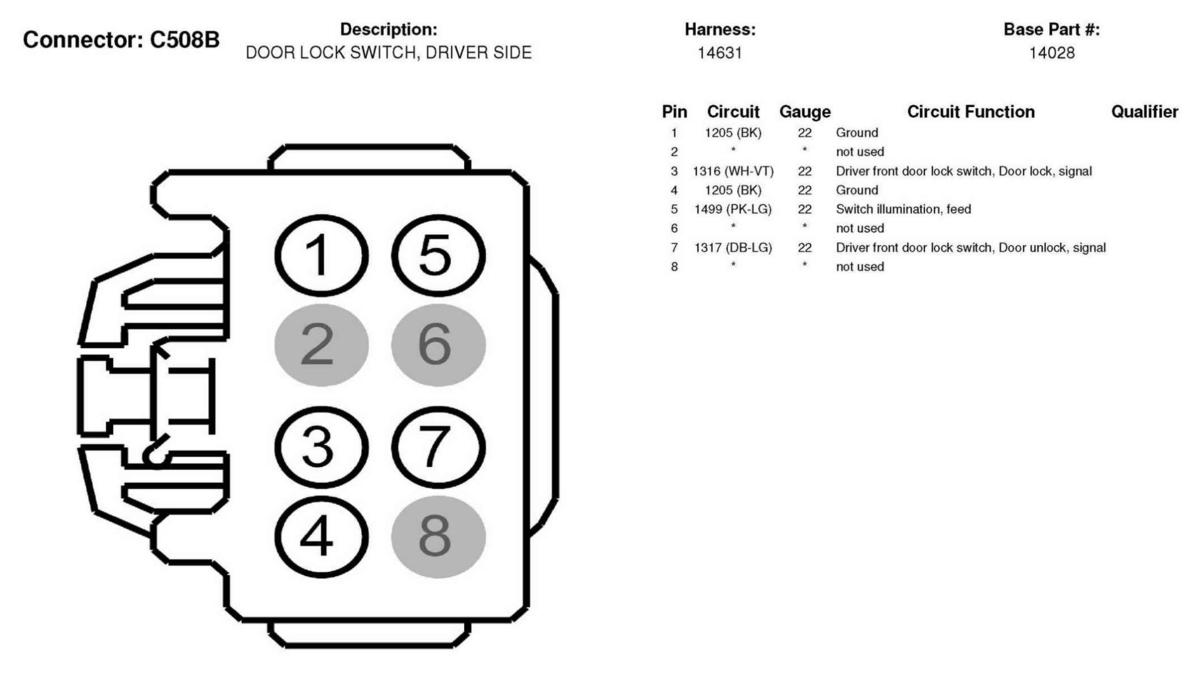

Fig 161: Door Lock Switch, Driver Side Connector End View (C508B)
Courtesy of FORD MOTOR CO.

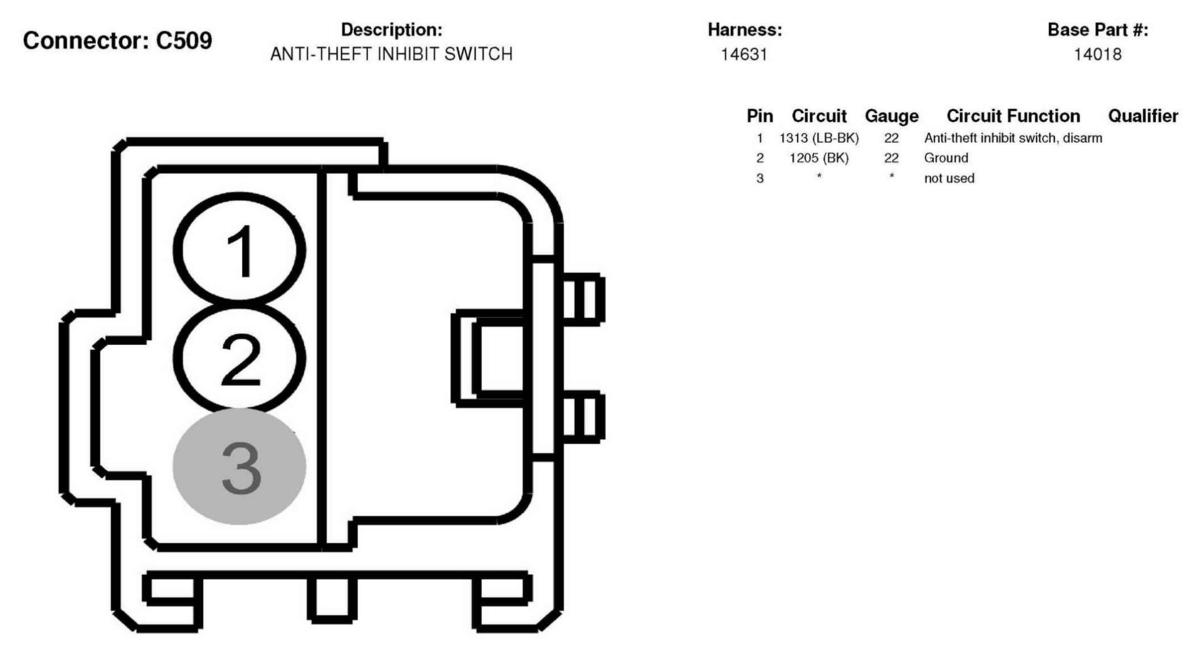

Fig 162: Anti-Theft Inhibit Switch Connector End View (C509)
Courtesy of FORD MOTOR CO.

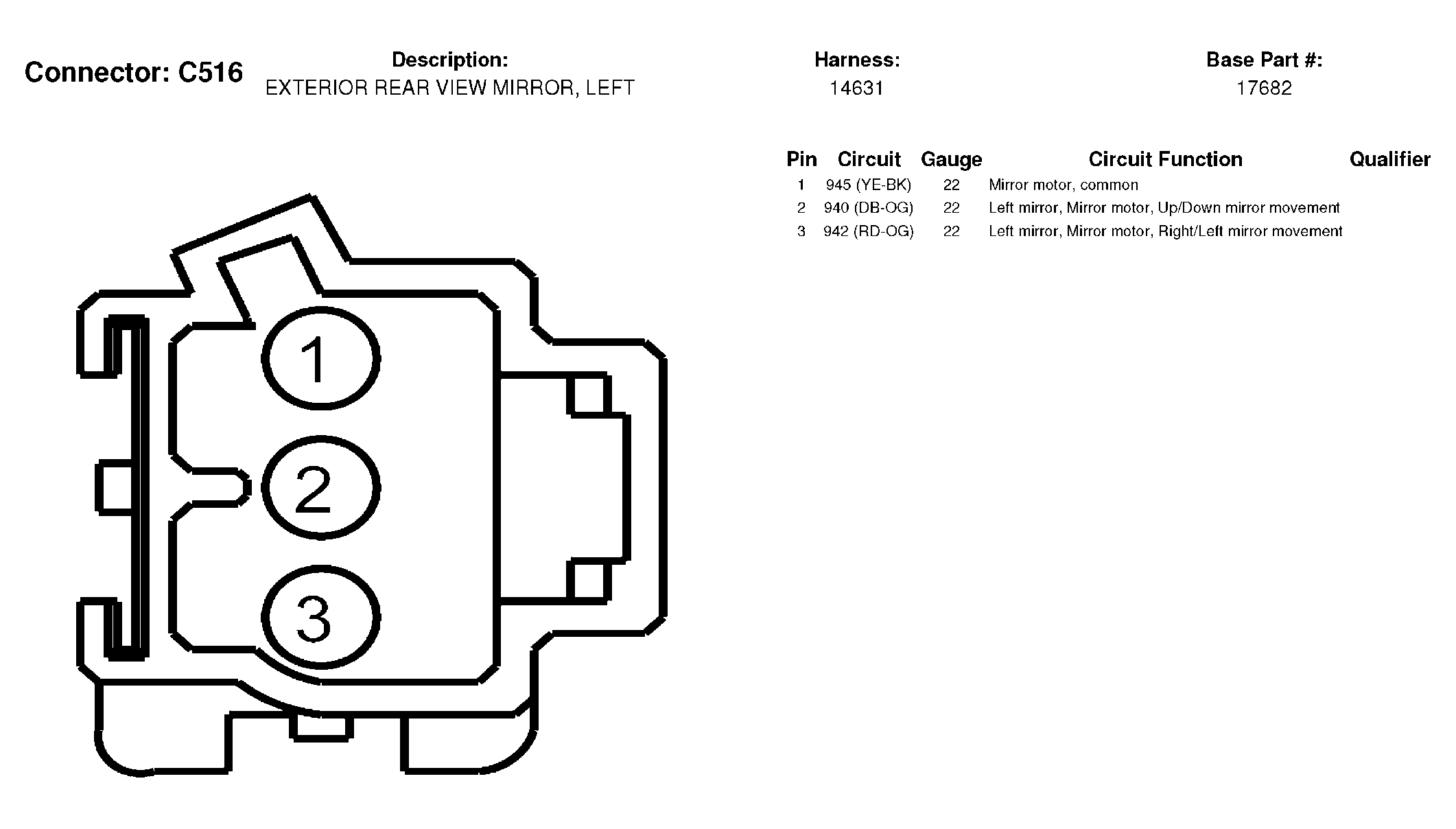

Fig 163: Exterior Rear View Mirror, Left Connector End View (C516)
Courtesy of FORD MOTOR CO.

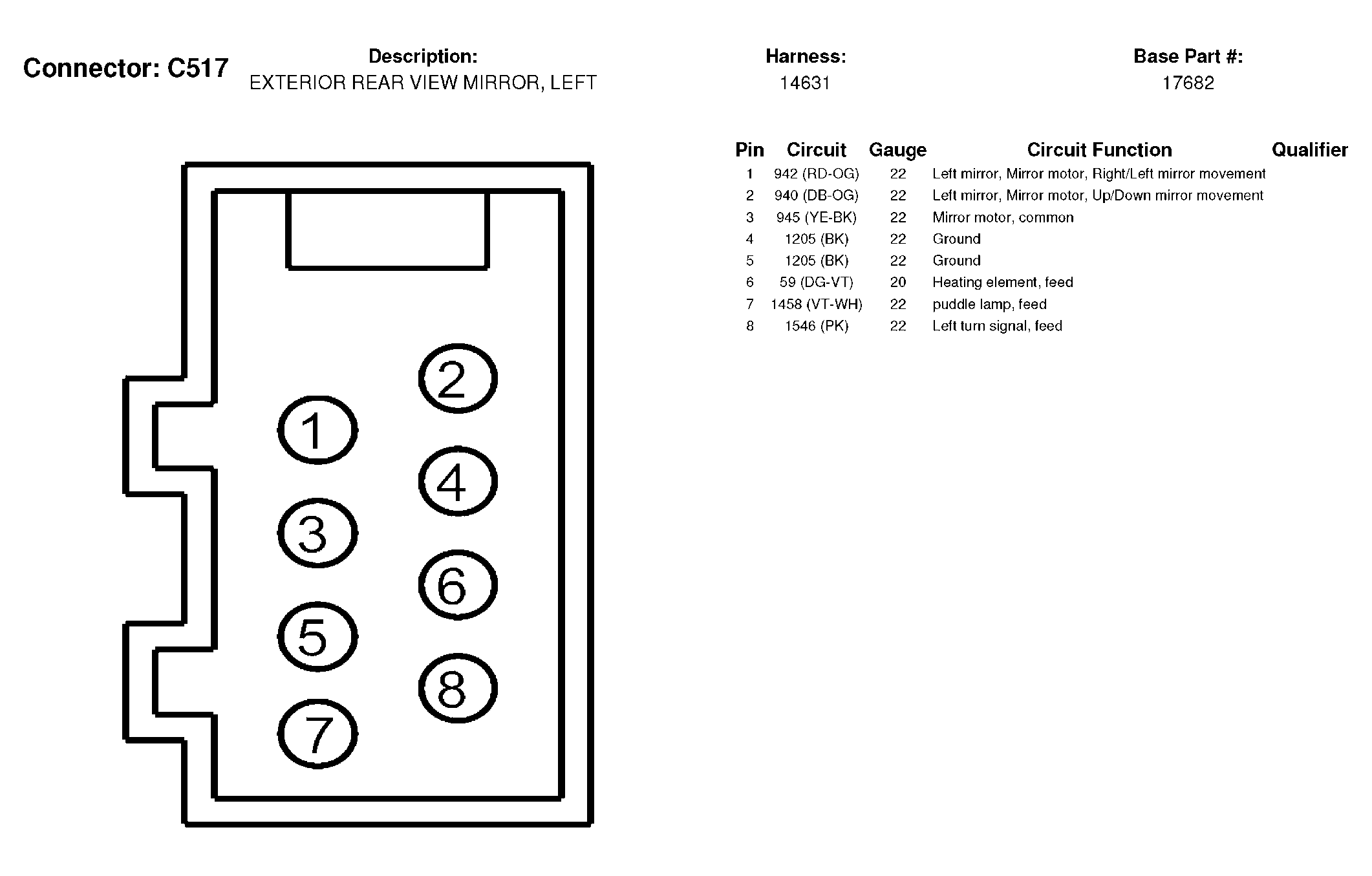

Fig 164: Exterior Rear View Mirror, Left Connector End View (C517)
Courtesy of FORD MOTOR CO.
Fig 165: Power Window Motor, Left Front Connector End View (C518)
Courtesy of FORD MOTOR CO.

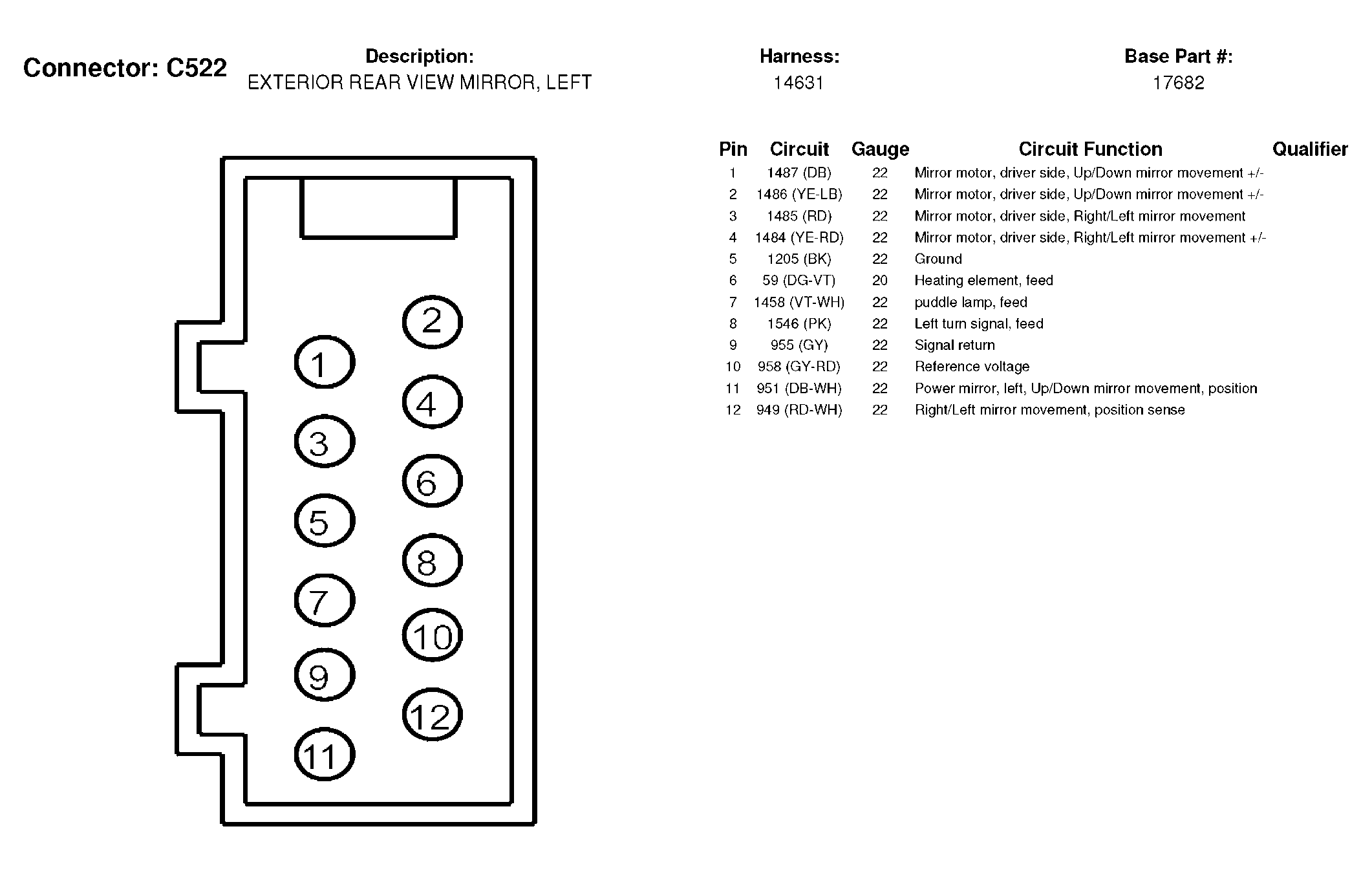

Fig 166: Exterior Rear View Mirror, Left Connector End View (C522)
Courtesy of FORD MOTOR CO.

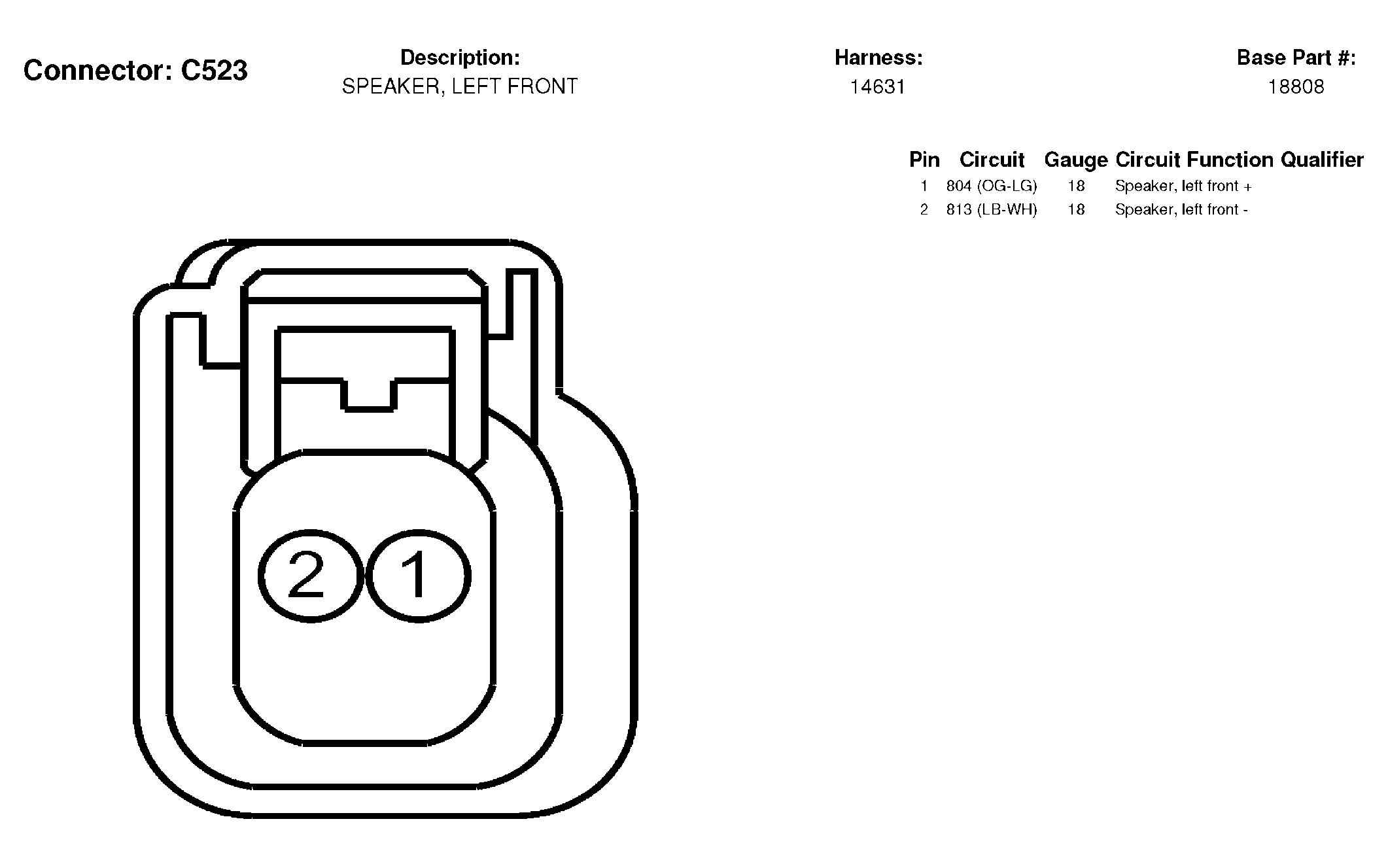

Fig 167: Speaker, Left Front Connector End View (C523)
Courtesy of FORD MOTOR CO.

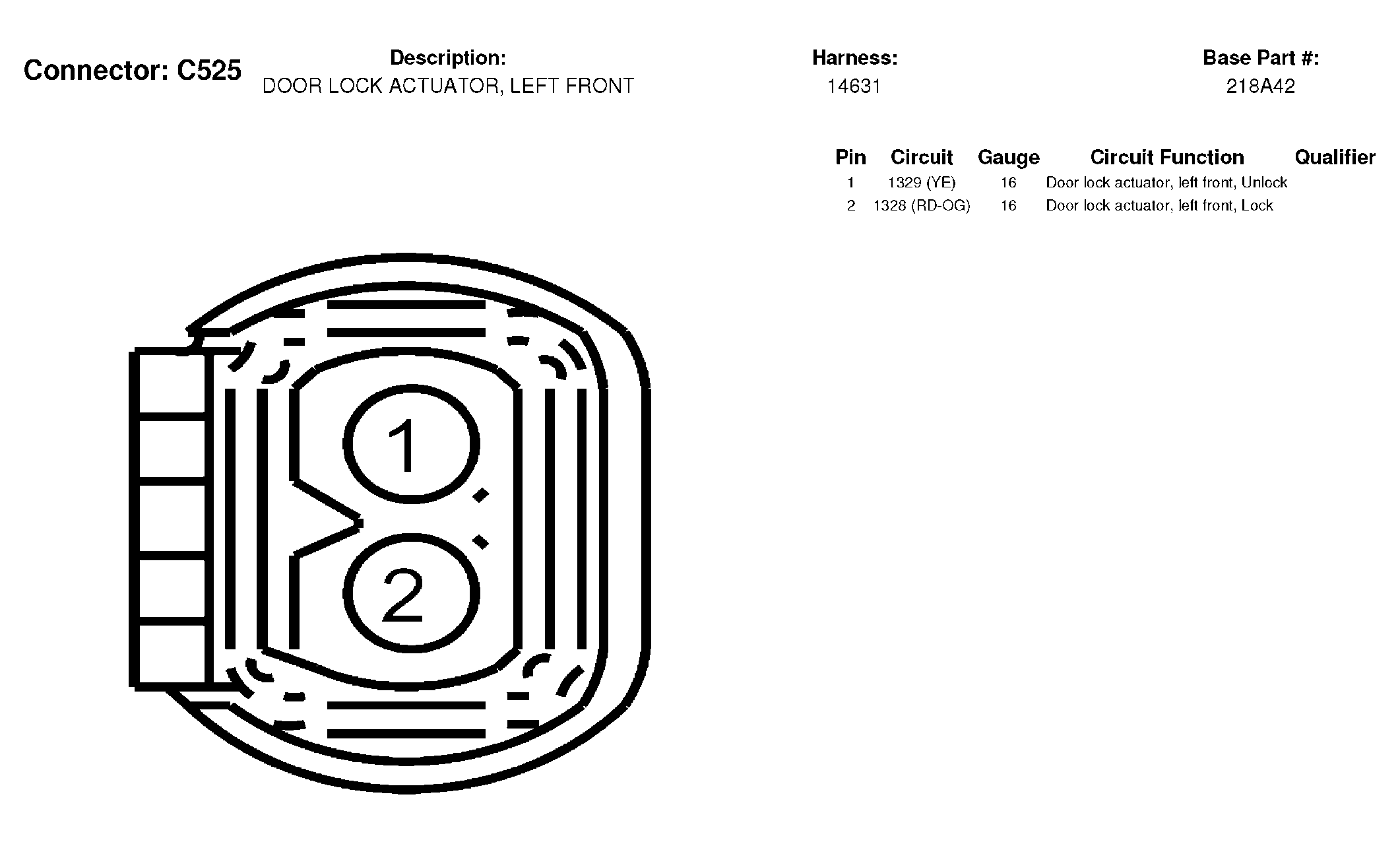

Fig 168: Door Lock Actuator, Left Front Connector End View (C525)
Courtesy of FORD MOTOR CO.

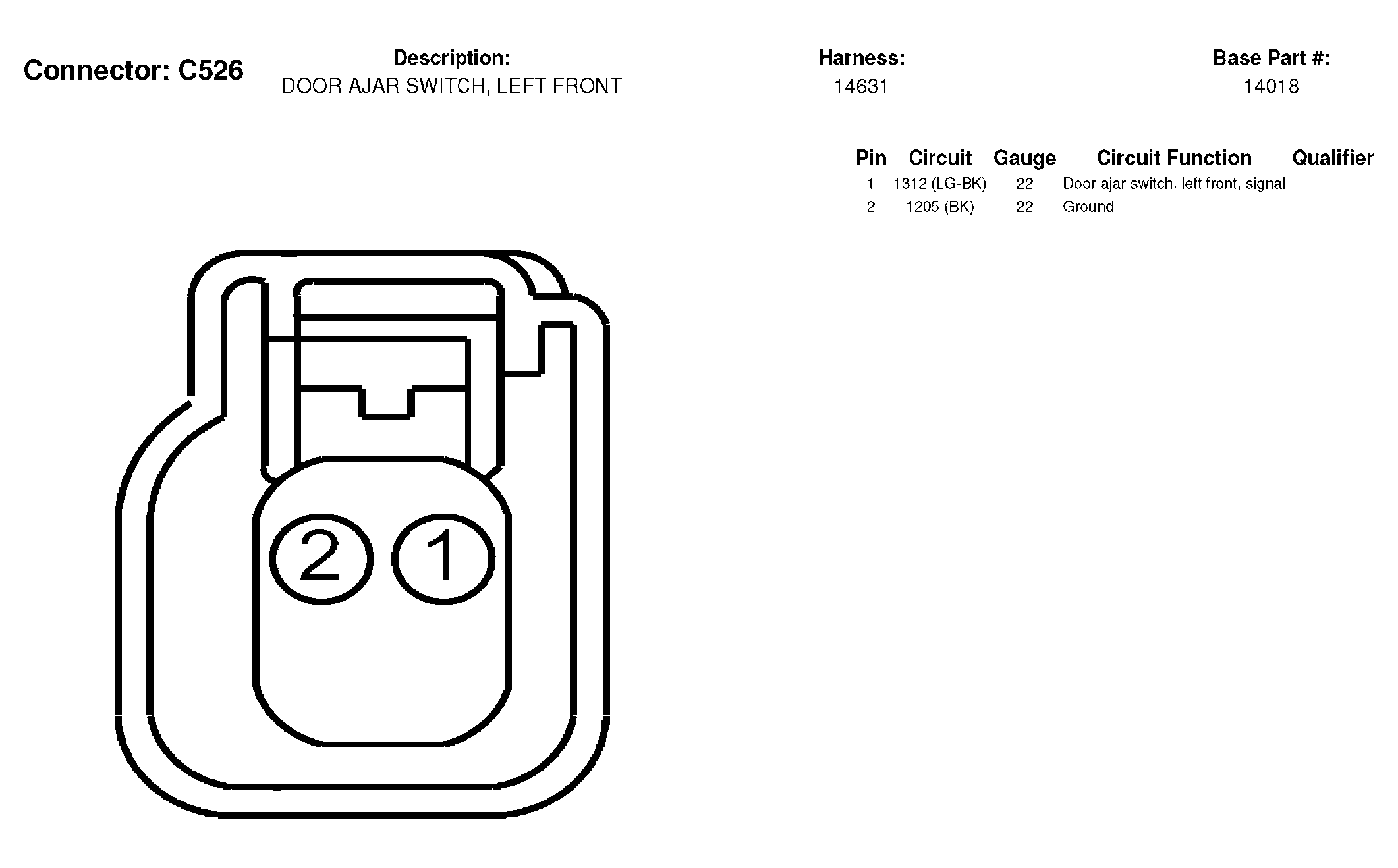

Fig 169: Door Ajar Switch, Left Front Connector End View (C526)
Courtesy of FORD MOTOR CO.

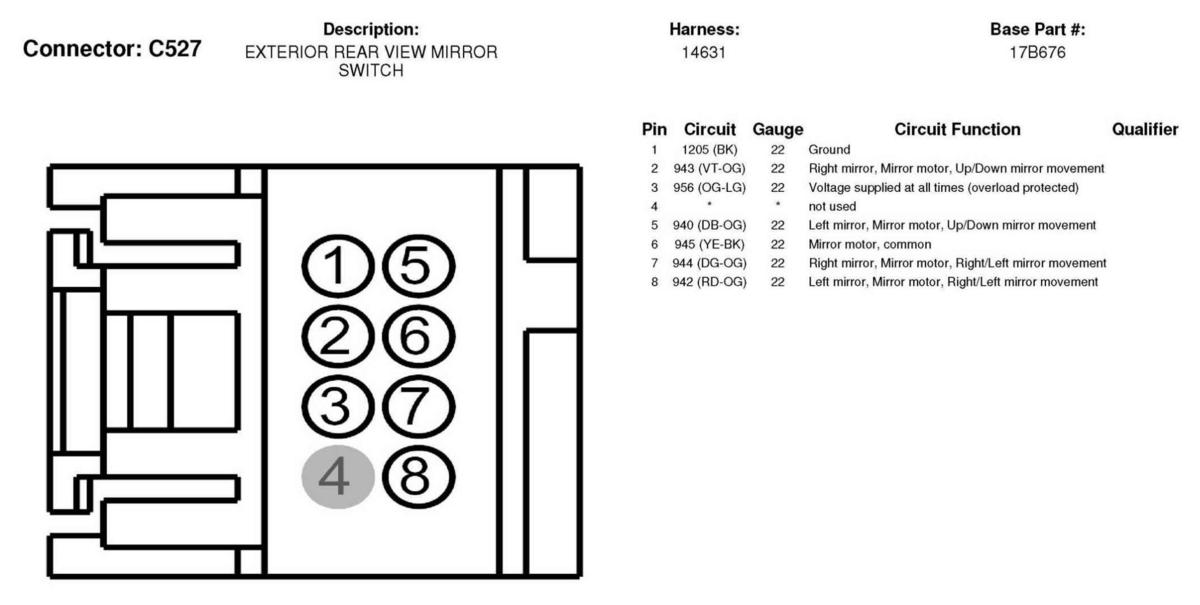

Fig 170: Exterior Rear View Mirror Switch Connector End View (C527)
Courtesy of FORD MOTOR CO.
Fig 171: Door Ajar Switch, Right Front Connector End View (C602)
Courtesy of FORD MOTOR CO.

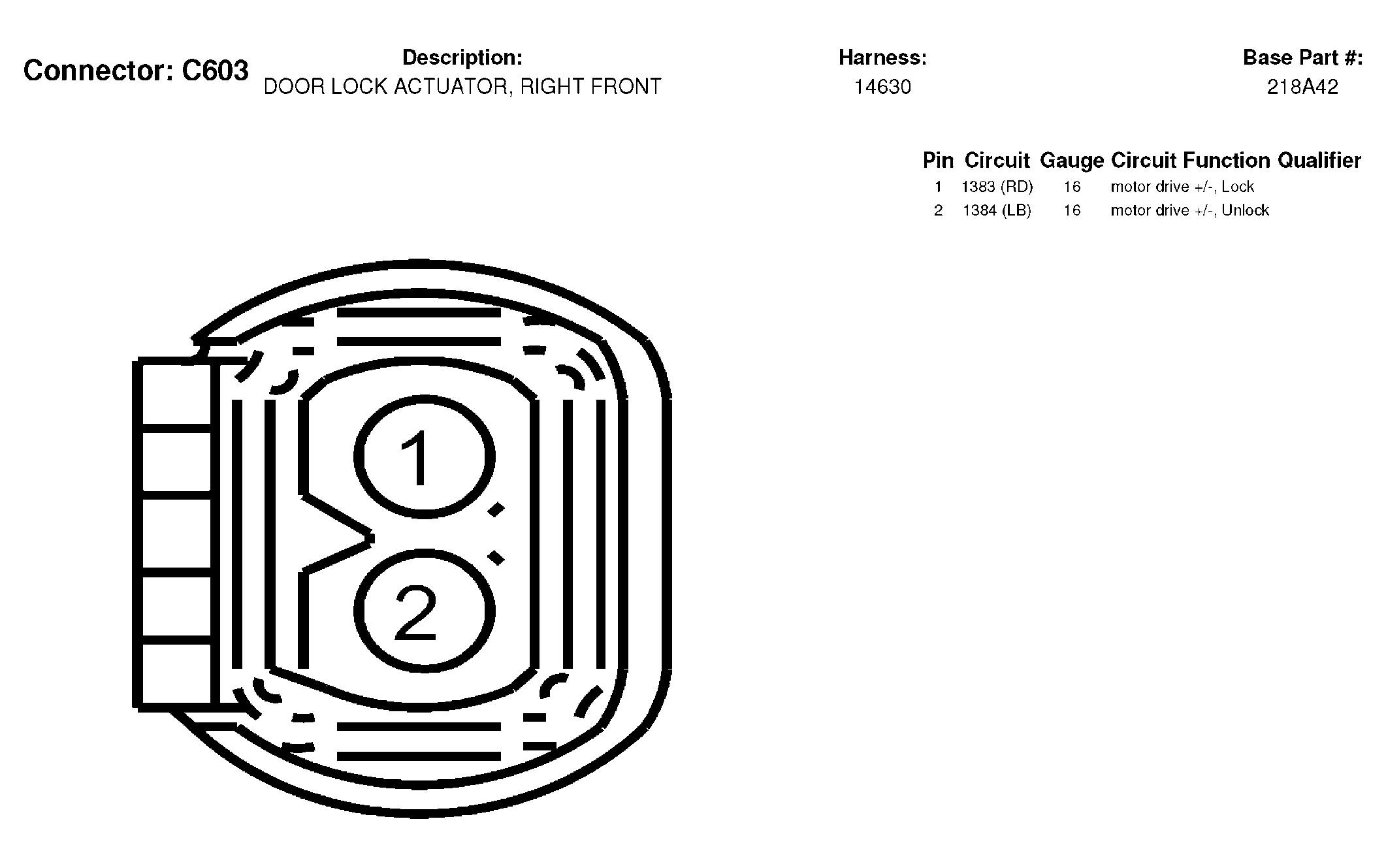

Fig 172: Door Lock Actuator, Right Front Connector End View (C603)
Courtesy of FORD MOTOR CO.

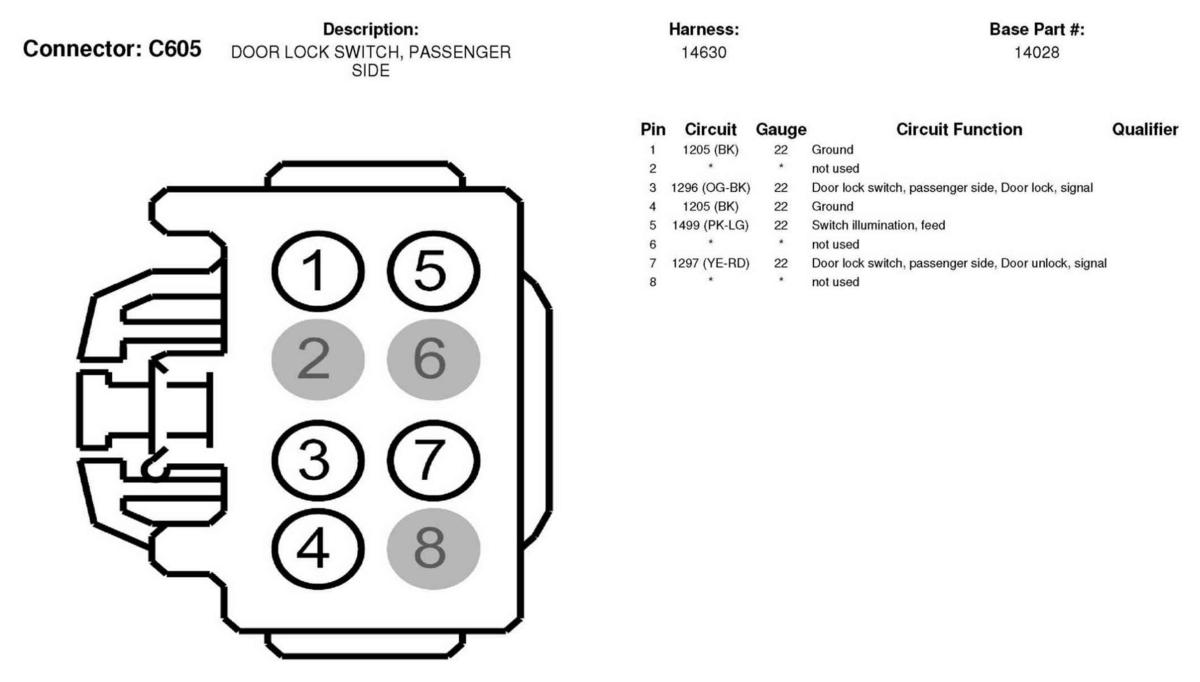

Fig 173: Door Lock Switch, Passenger Side Connector End View (C605)
Courtesy of FORD MOTOR CO.

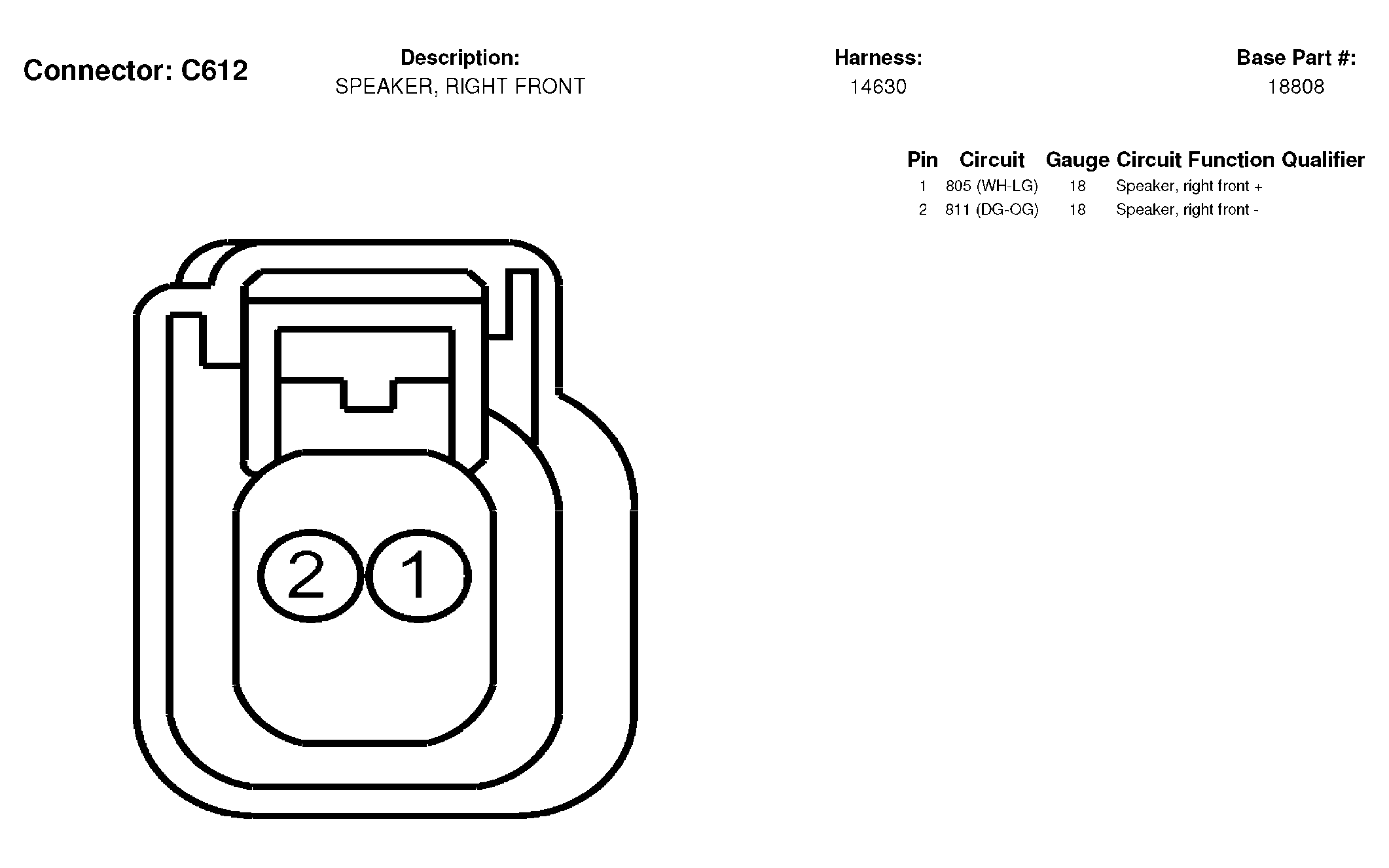

Fig 174: Speaker, Right Front Connector End View (C612)
Courtesy of FORD MOTOR CO.
Fig 175: Exterior Rear View Mirror, Right Connector End View (C622)
Courtesy of FORD MOTOR CO.

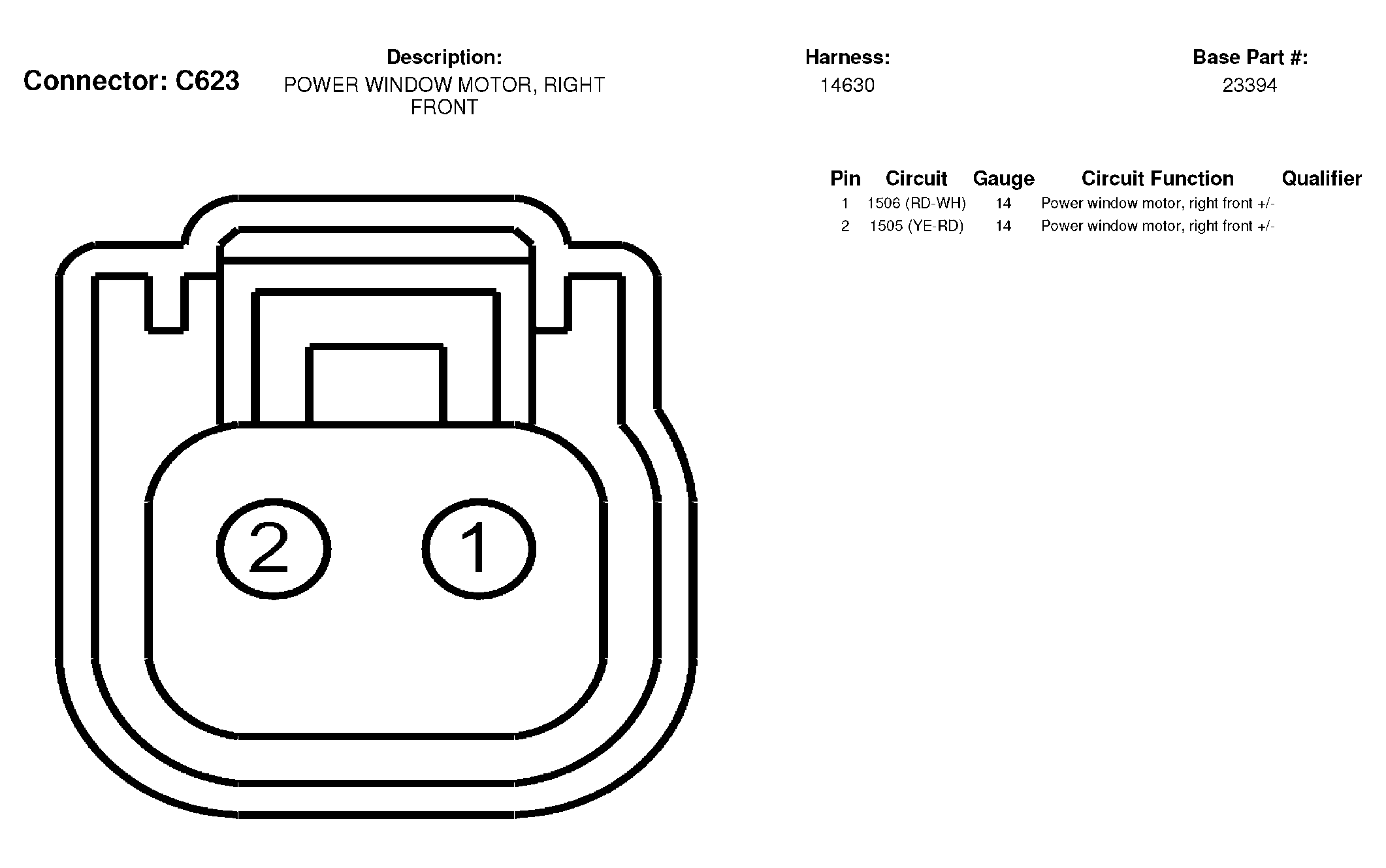

Fig 176: Power Window Motor, Right Front Connector End View (C623)
Courtesy of FORD MOTOR CO.

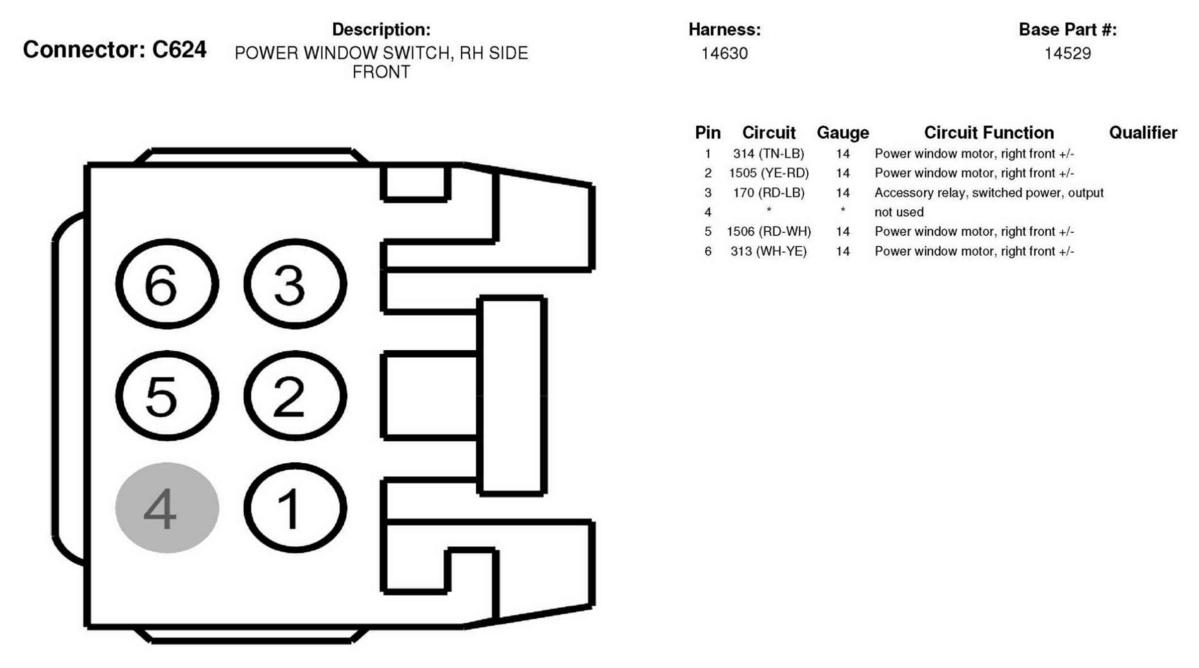

Fig 177: Power Window Switch, RH Side Front Connector End View (C624)
Courtesy of FORD MOTOR CO.
Fig 178: Exterior Rear View Mirror, Right Connector End View (C625)
Courtesy of FORD MOTOR CO.

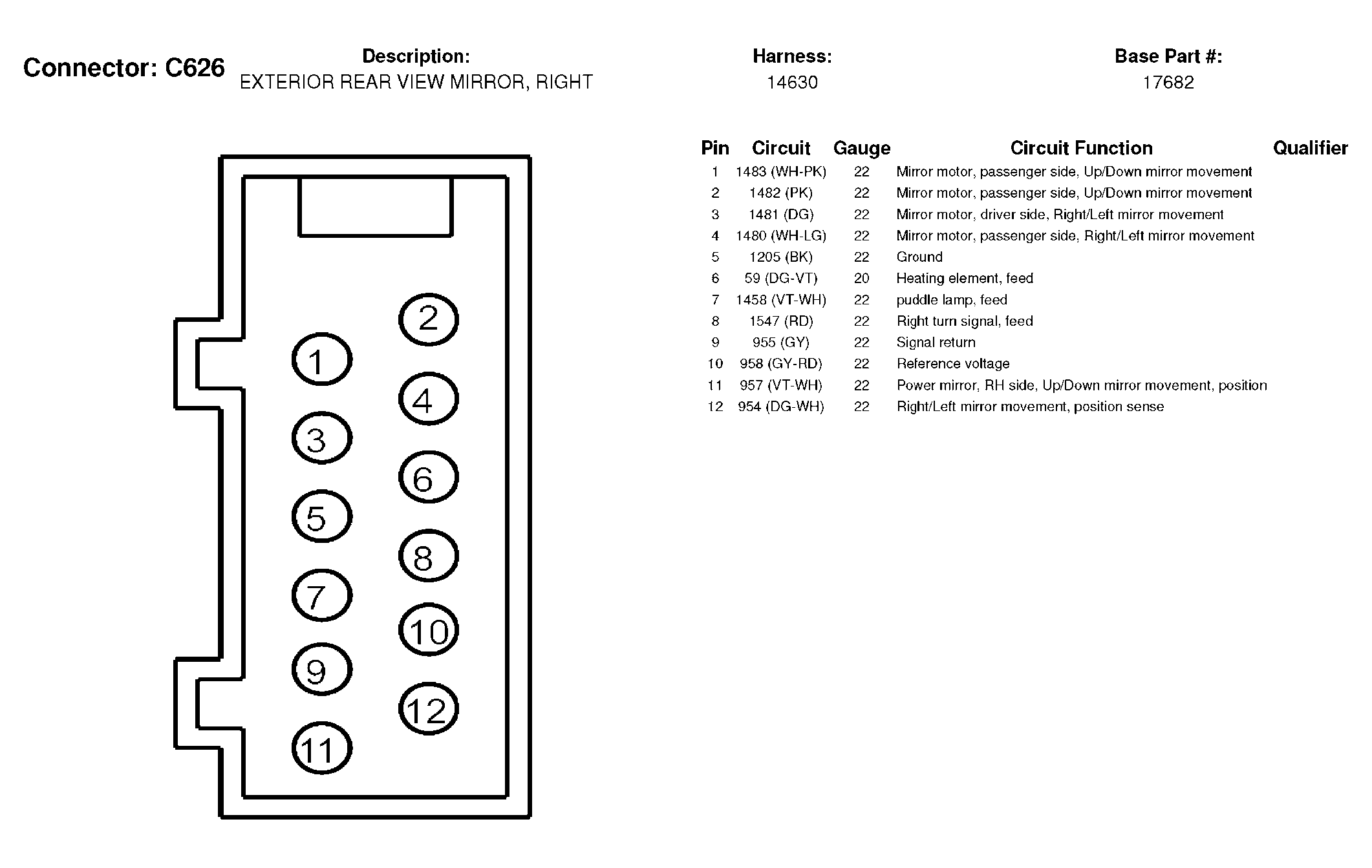

Fig 179: Exterior Rear View Mirror, Right Connector End View (C626)
Courtesy of FORD MOTOR CO.

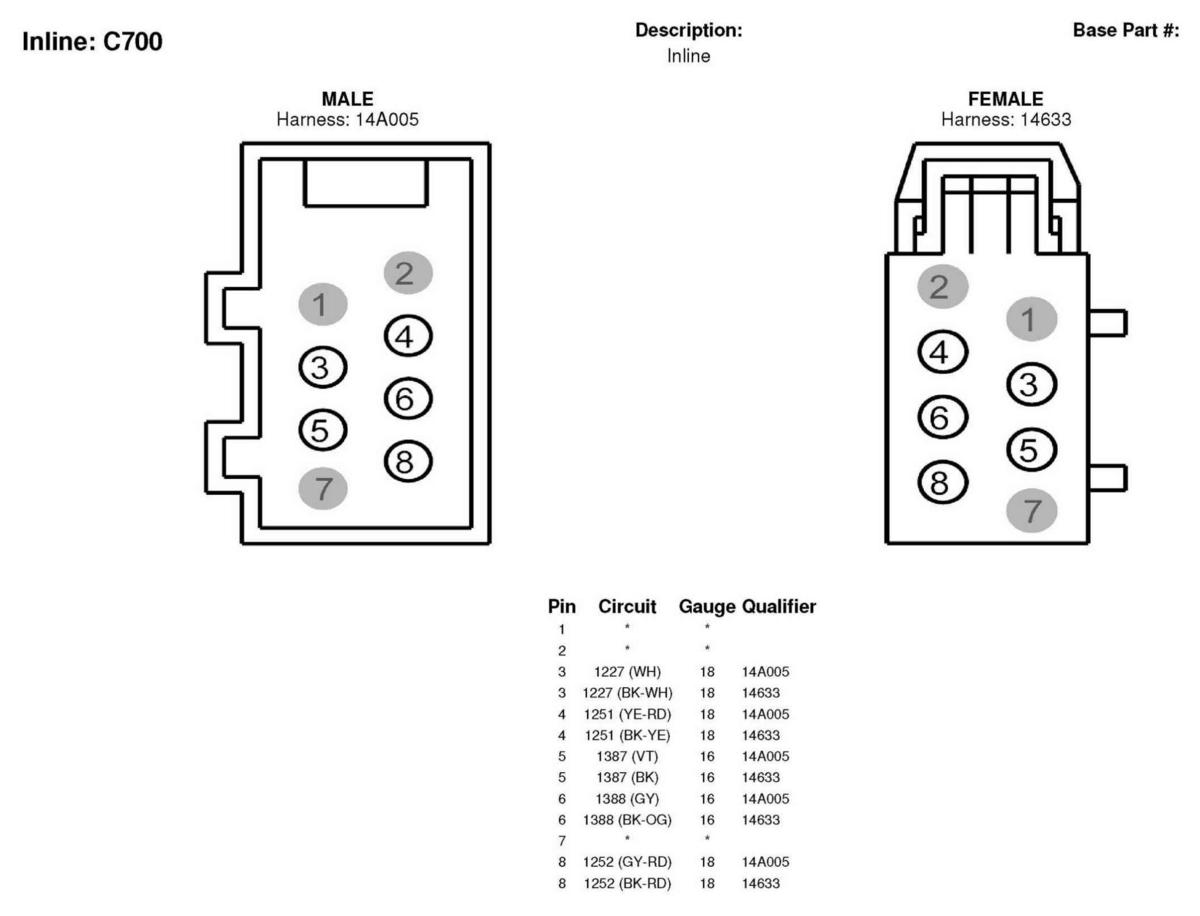

Fig 180: Inline Connector End View (C700)
Courtesy of FORD MOTOR CO.

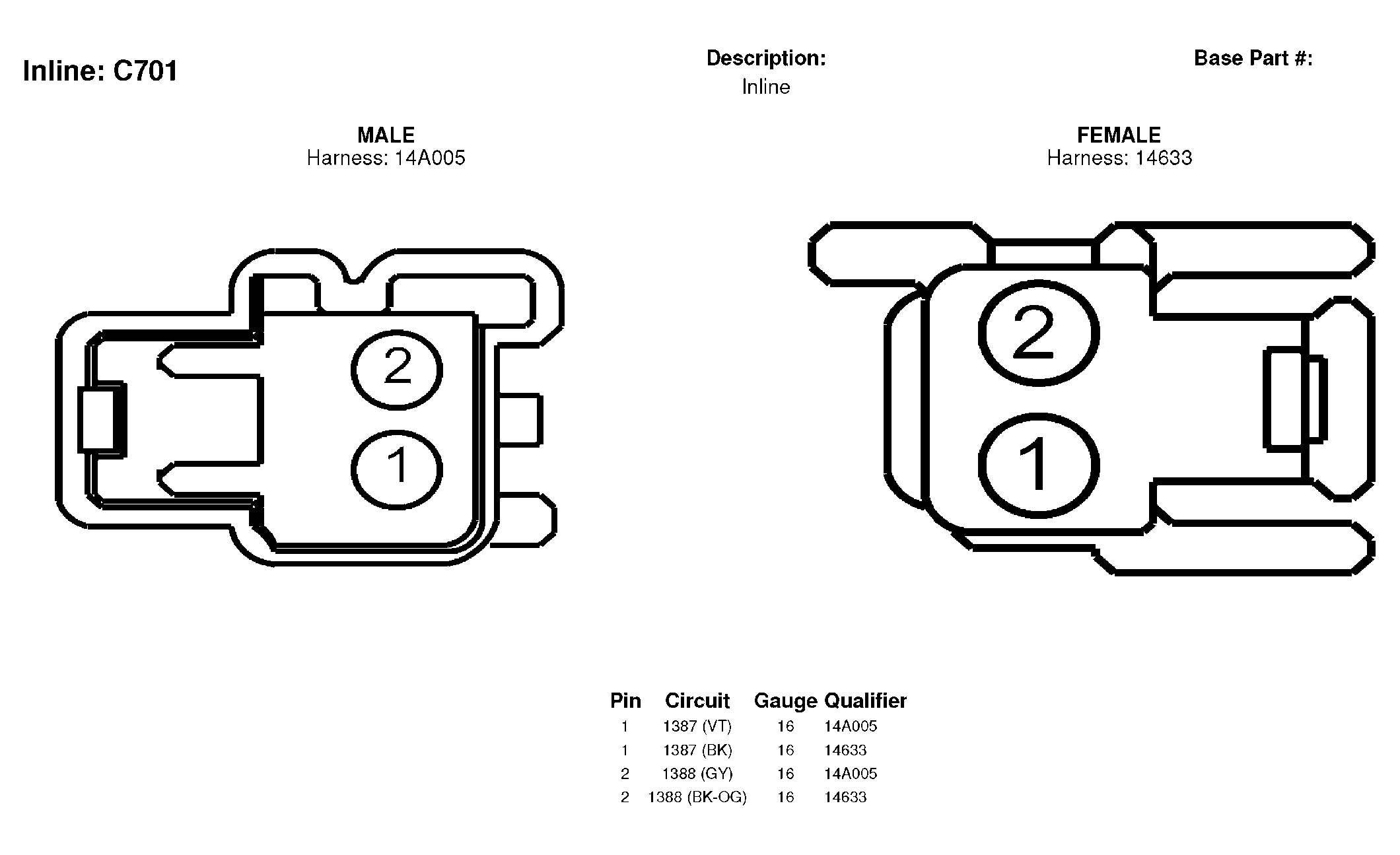

Fig 181: Inline Connector End View (C701)
Courtesy of FORD MOTOR CO.

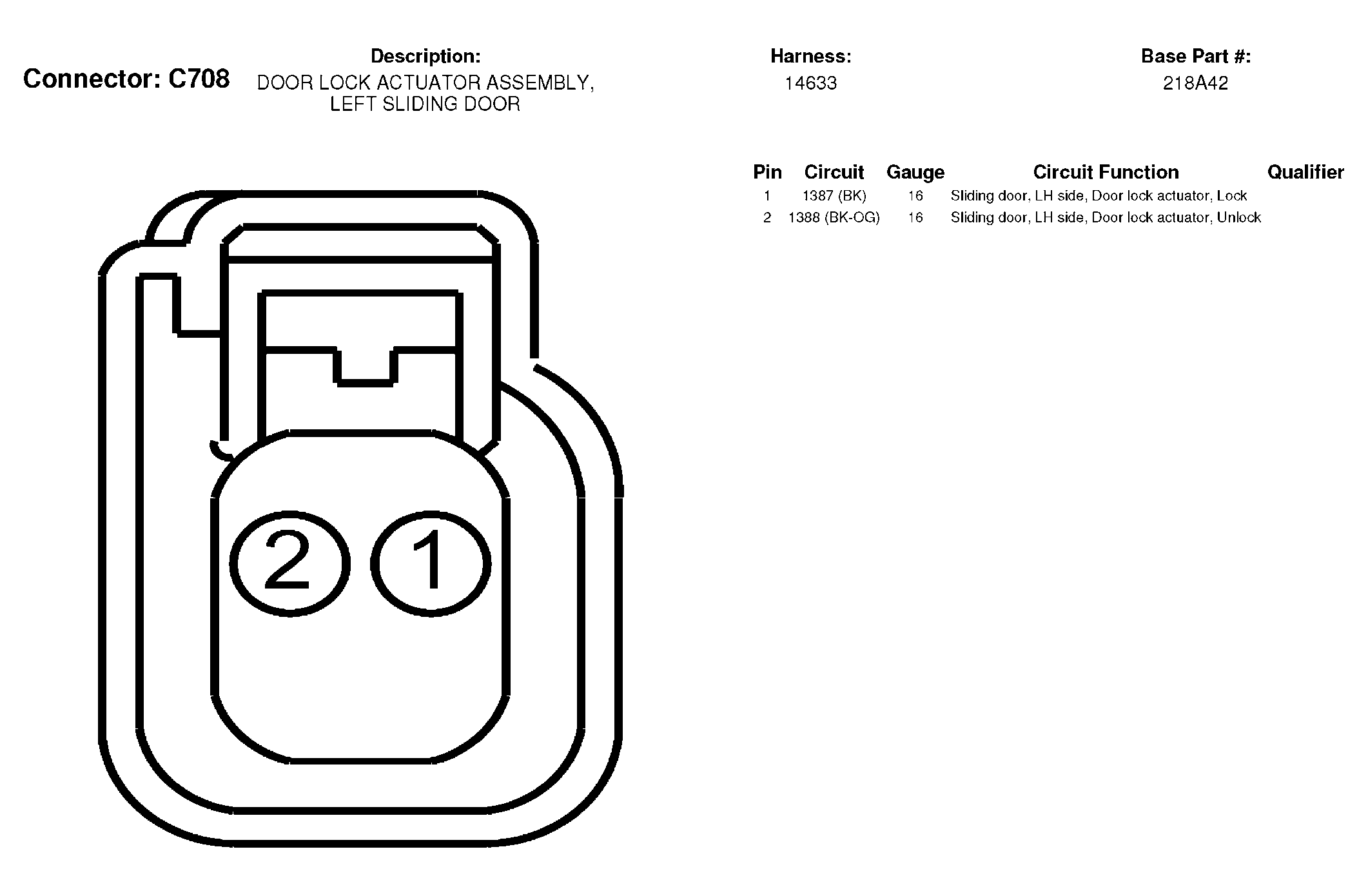

Fig 182: Door Lock Actuator Assembly, Left Sliding Door Connector End View (C708)
Courtesy of FORD MOTOR CO.
Fig 183: Latch Reverse Actuator, Left Power Sliding Door Connector End View (C709)
Courtesy of FORD MOTOR CO.
Fig 184: Detent Switch, LH Connector End View (C711)
Courtesy of FORD MOTOR CO.
Fig 185: Inline Connector End View (C801)
Courtesy of FORD MOTOR CO.
Fig 186: Door Lock Actuator Assembly, Right Sliding Door Connector End View (C808)
Courtesy of FORD MOTOR CO.

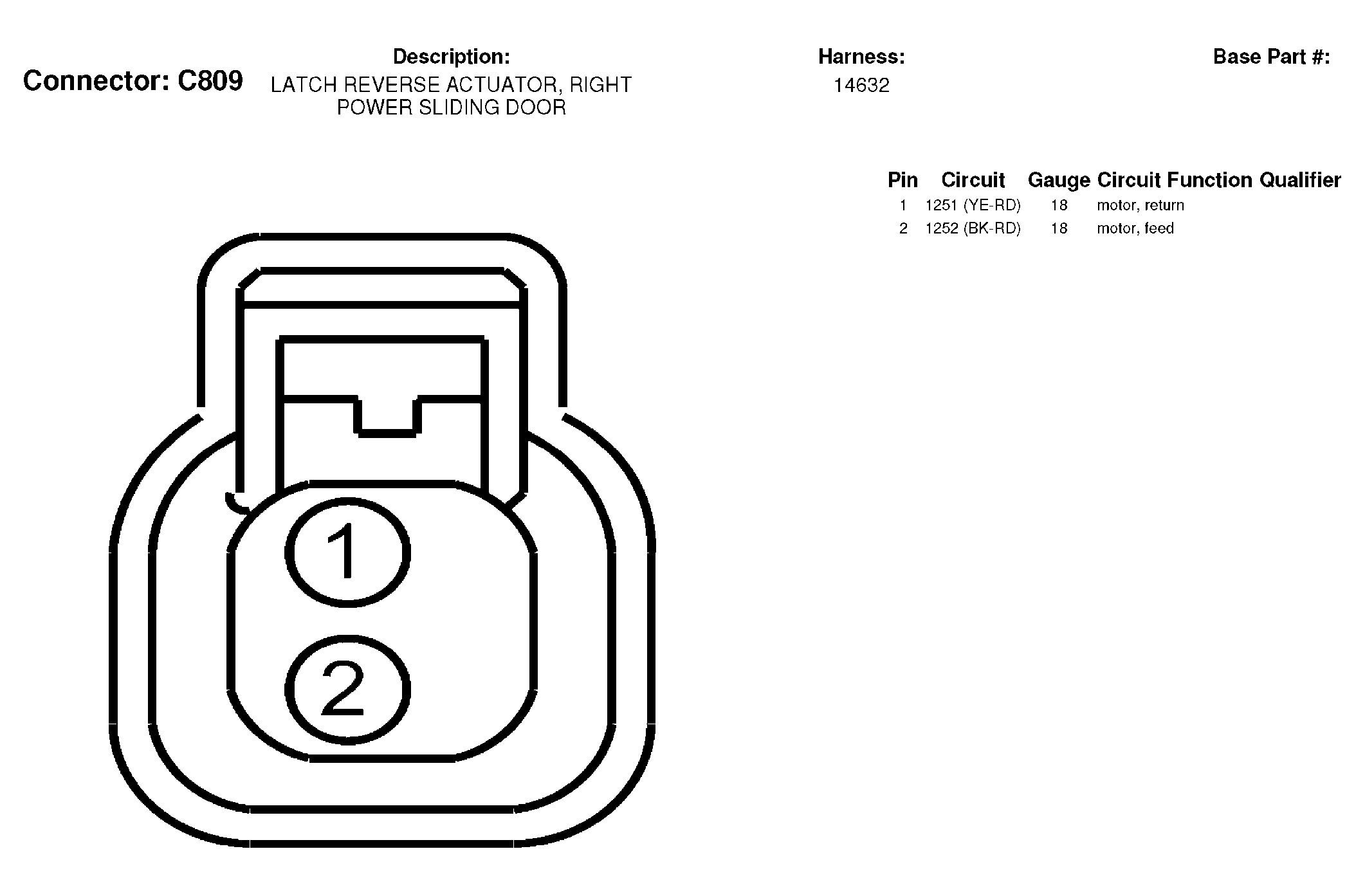

Fig 187: Latch Reverse Actuator, Right Power Sliding Door Connector End View (C809)
Courtesy of FORD MOTOR CO.

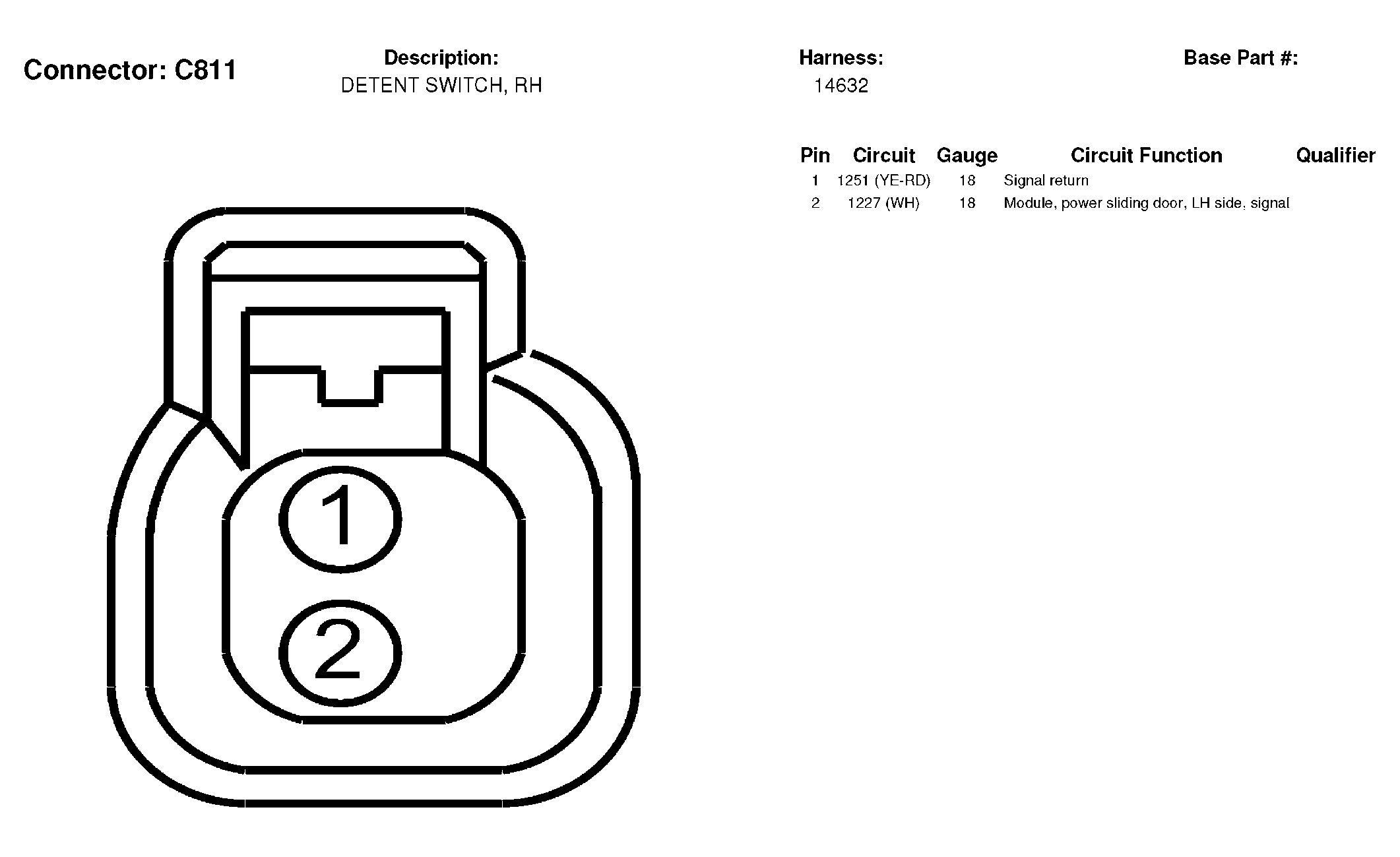

Fig 188: Detent Switch, RH Connector End View (C811)
Courtesy of FORD MOTOR CO.
Fig 189: Vanity Mirror Lamp, Right Connector End View (C906)
Courtesy of FORD MOTOR CO.

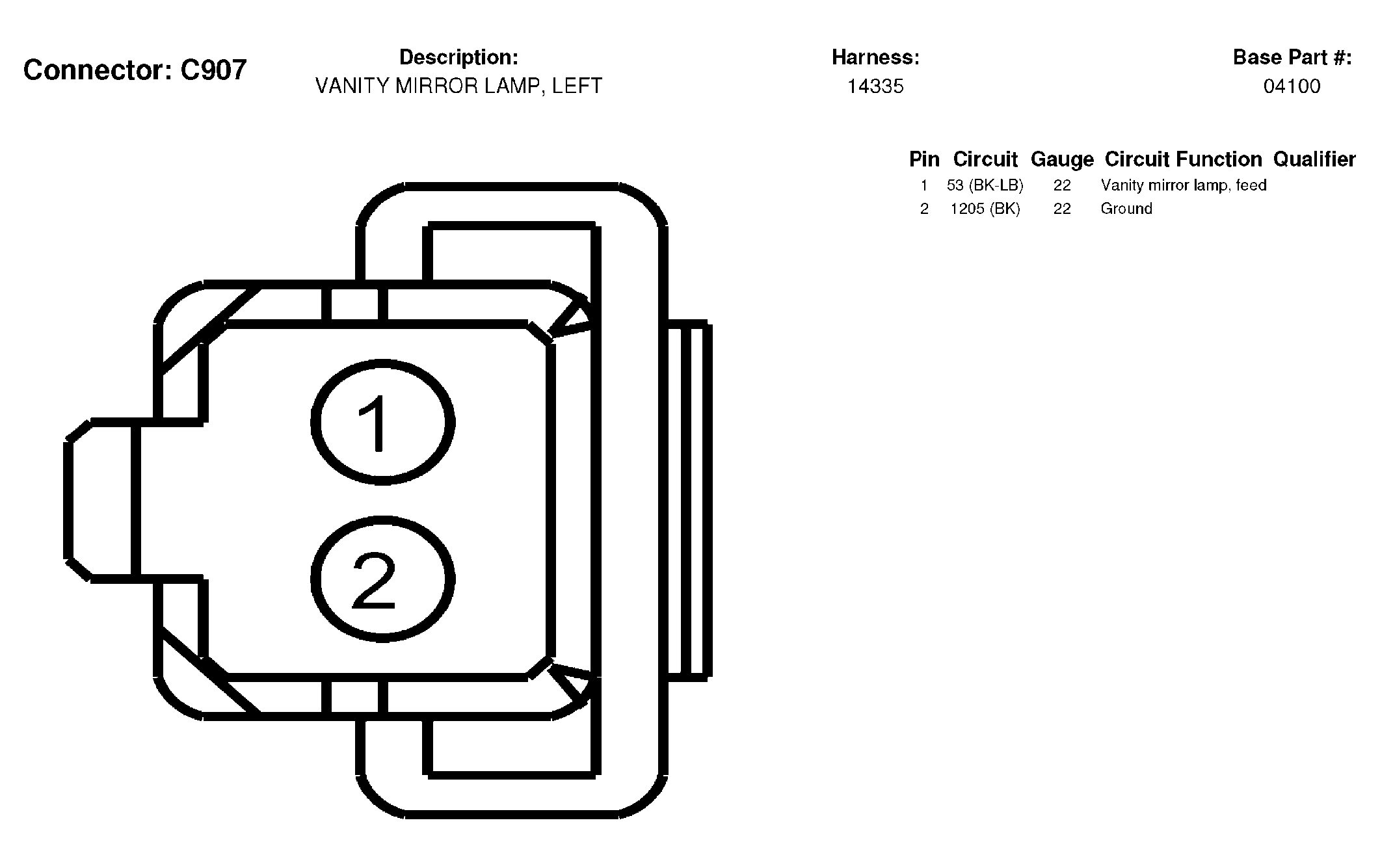

Fig 190: Vanity Mirror Lamp, Left Connector End View (C907)
Courtesy of FORD MOTOR CO.

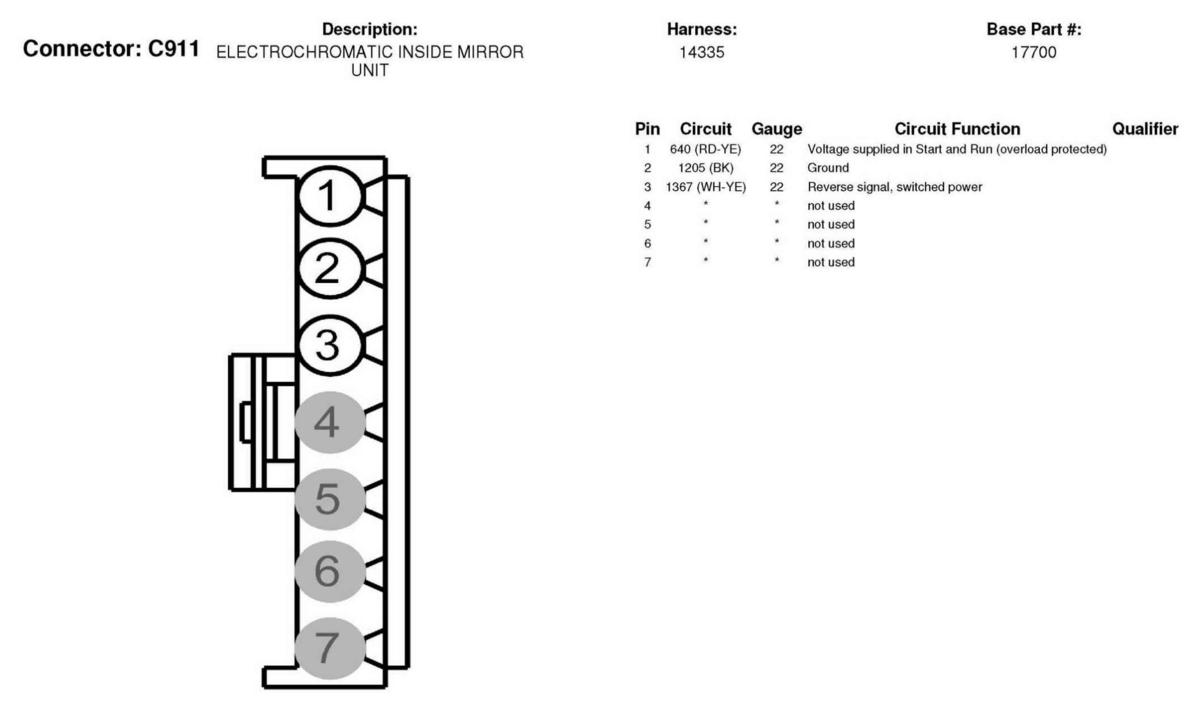

Fig 191: Electrochromatic Inside Mirror Unit Connector End View (C911)
Courtesy of FORD MOTOR CO.

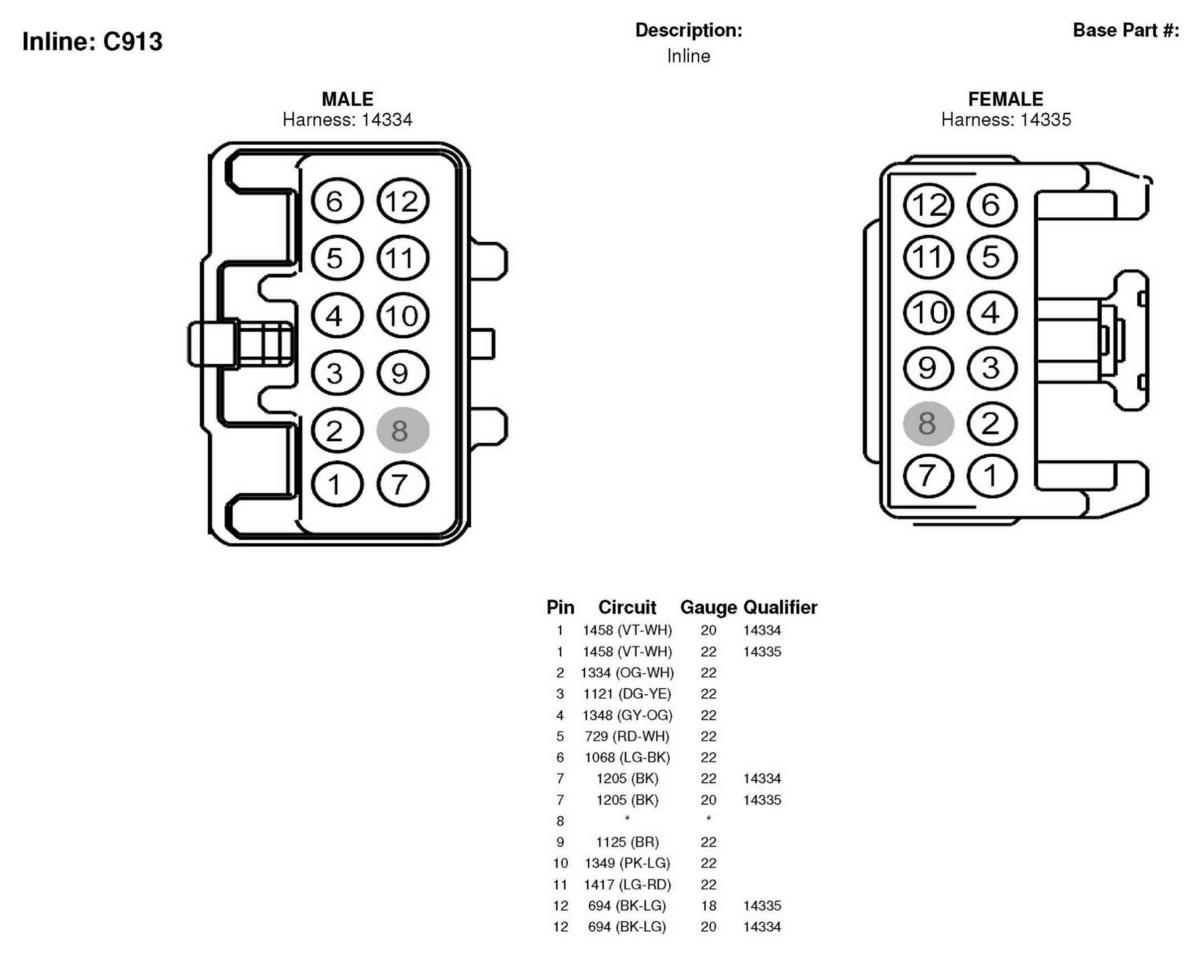

Fig 192: Inline Connector End View (C913)
Courtesy of FORD MOTOR CO.

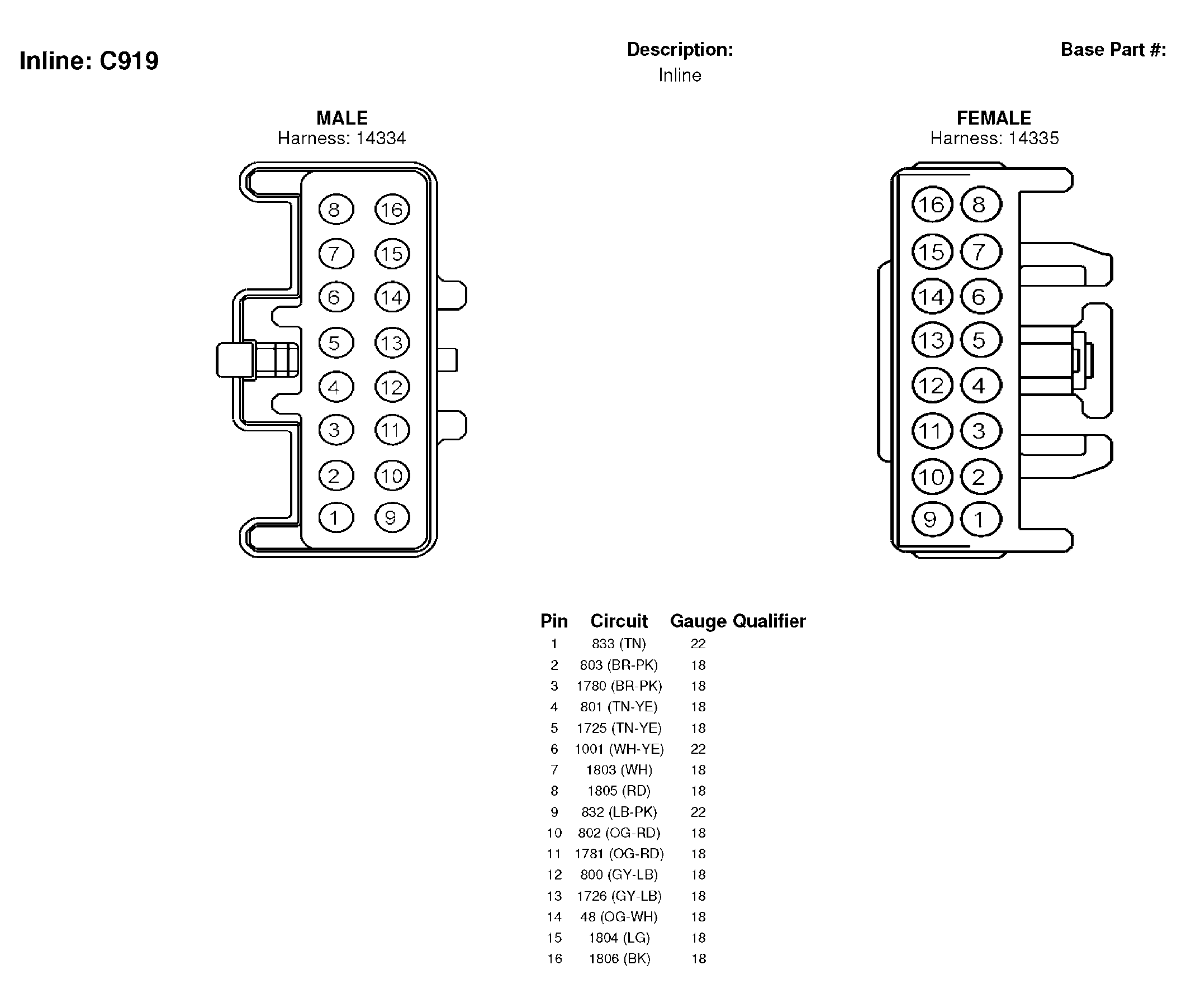

Fig 193: Inline Connector End View (C919)
Courtesy of FORD MOTOR CO.

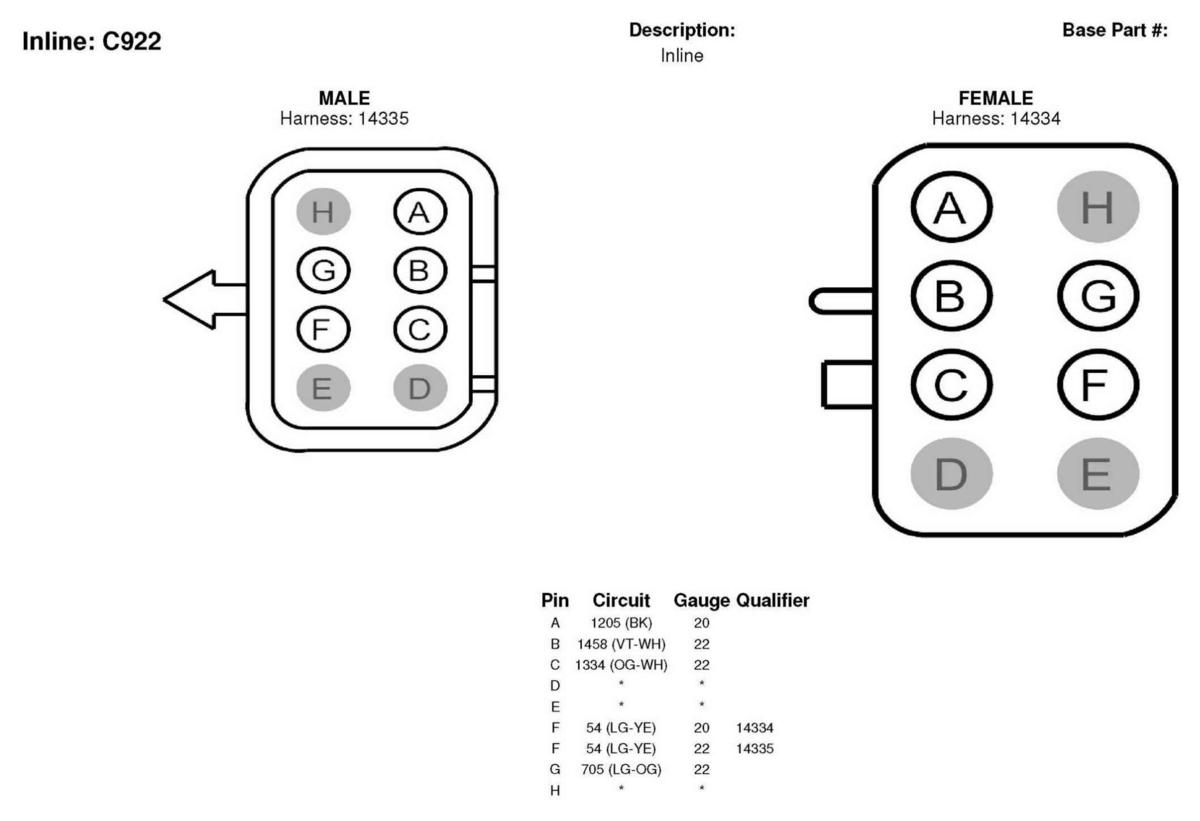

Fig 194: Inline Connector End View (C922)
Courtesy of FORD MOTOR CO.

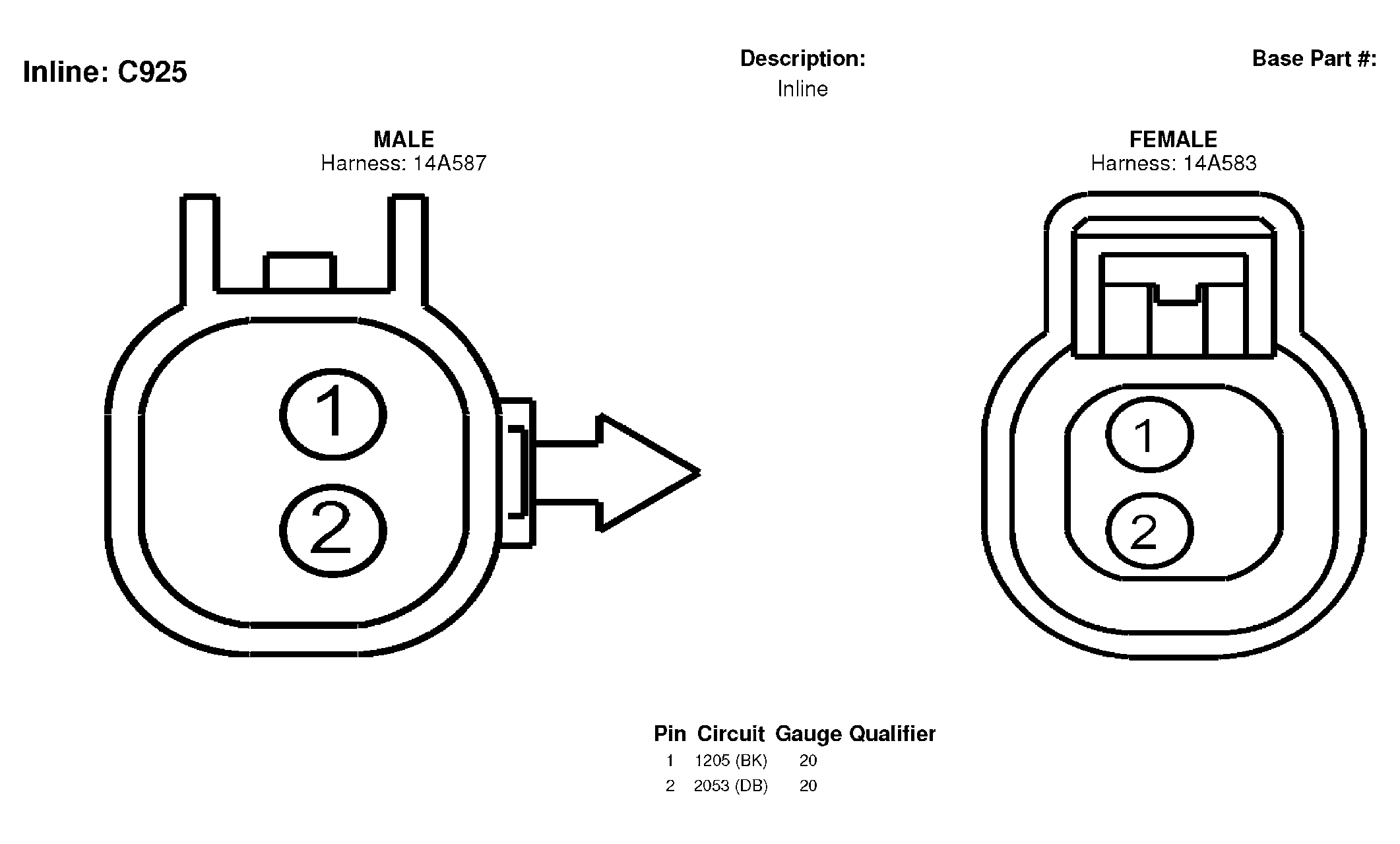

Fig 195: Inline Connector End View (C925)
Courtesy of FORD MOTOR CO.

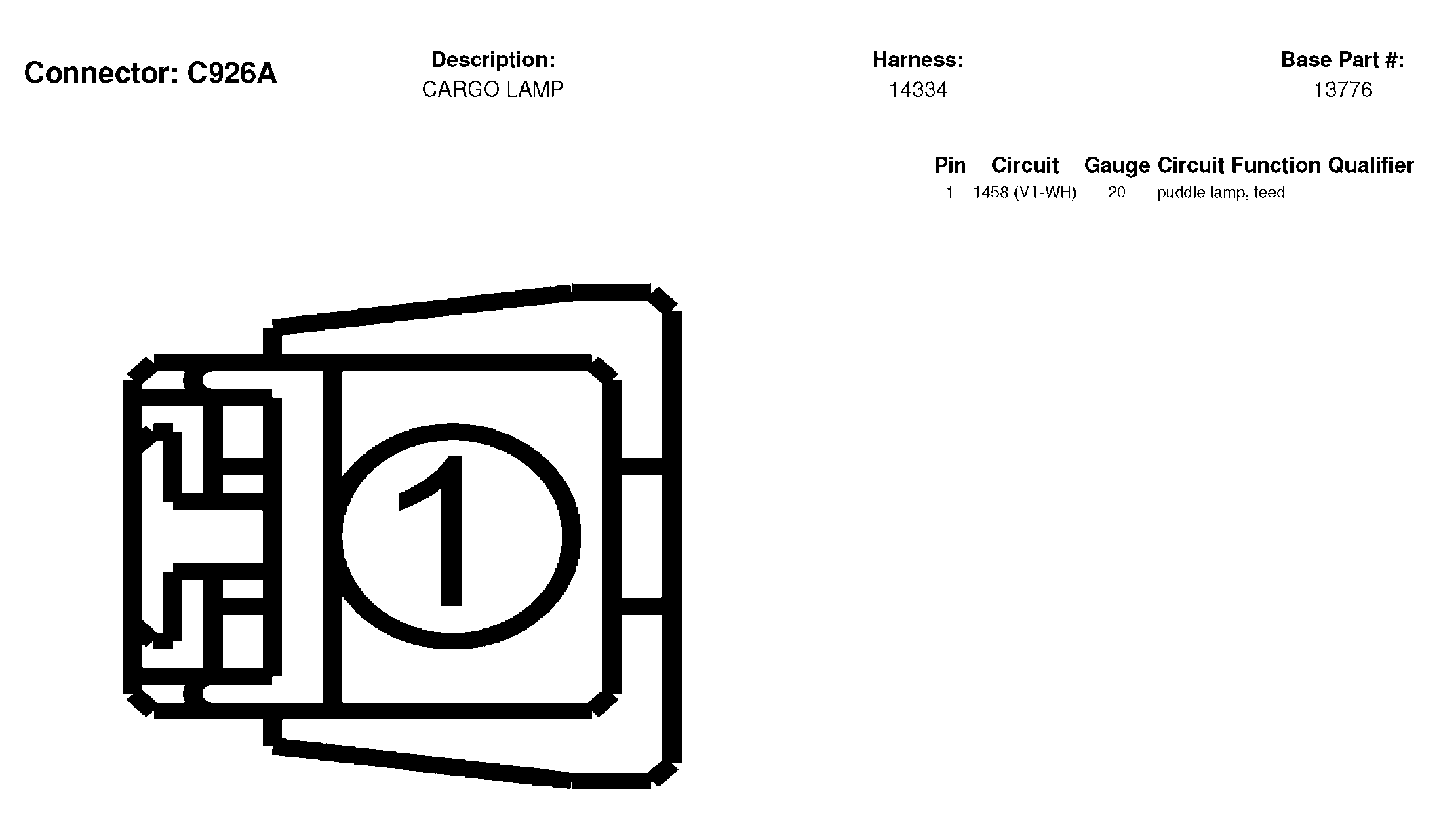

Fig 196: Cargo Lamp Connector End View (C926A)
Courtesy of FORD MOTOR CO.

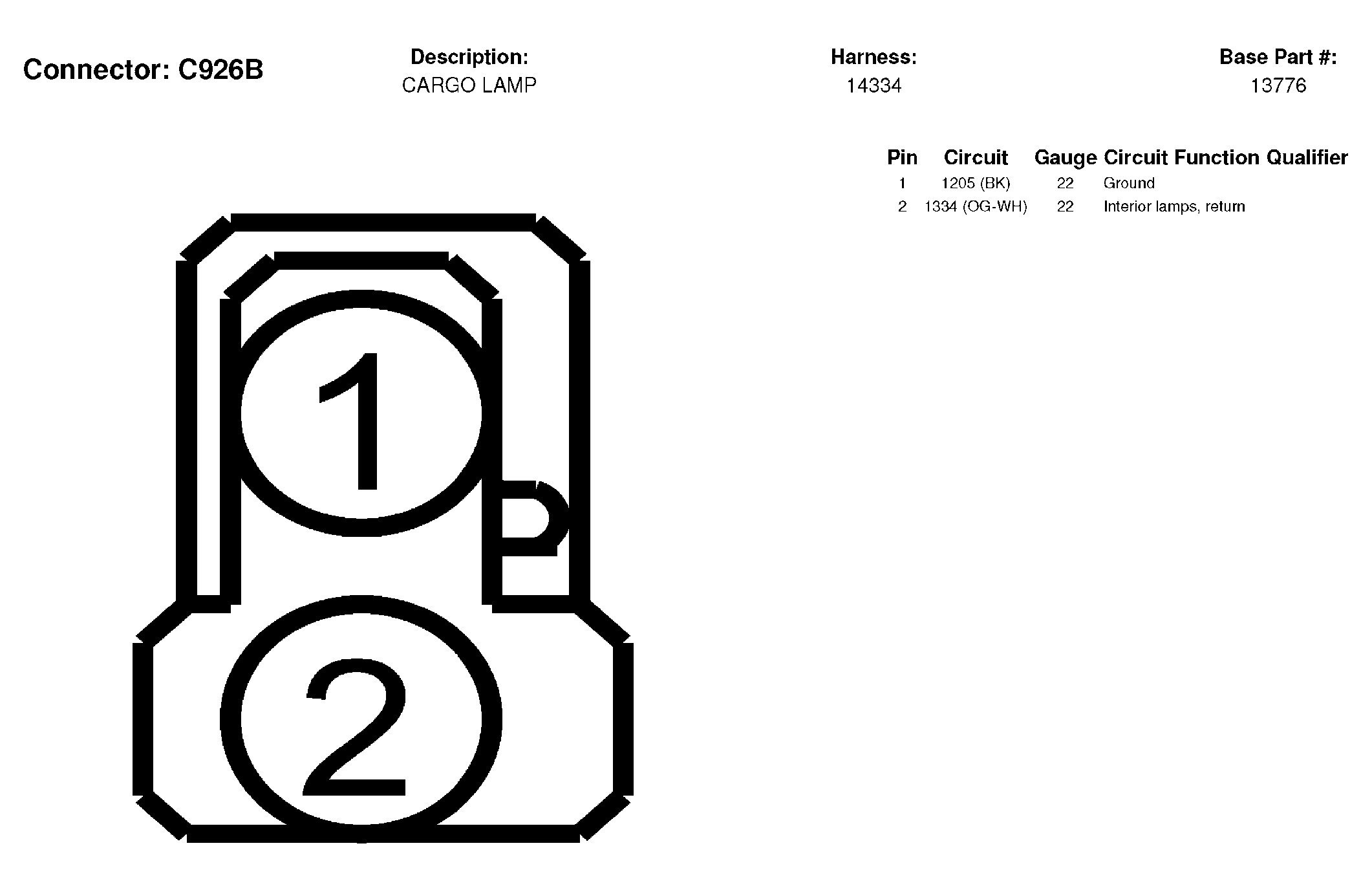

Fig 197: Cargo Lamp Connector End View (C926B)
Courtesy of FORD MOTOR CO.

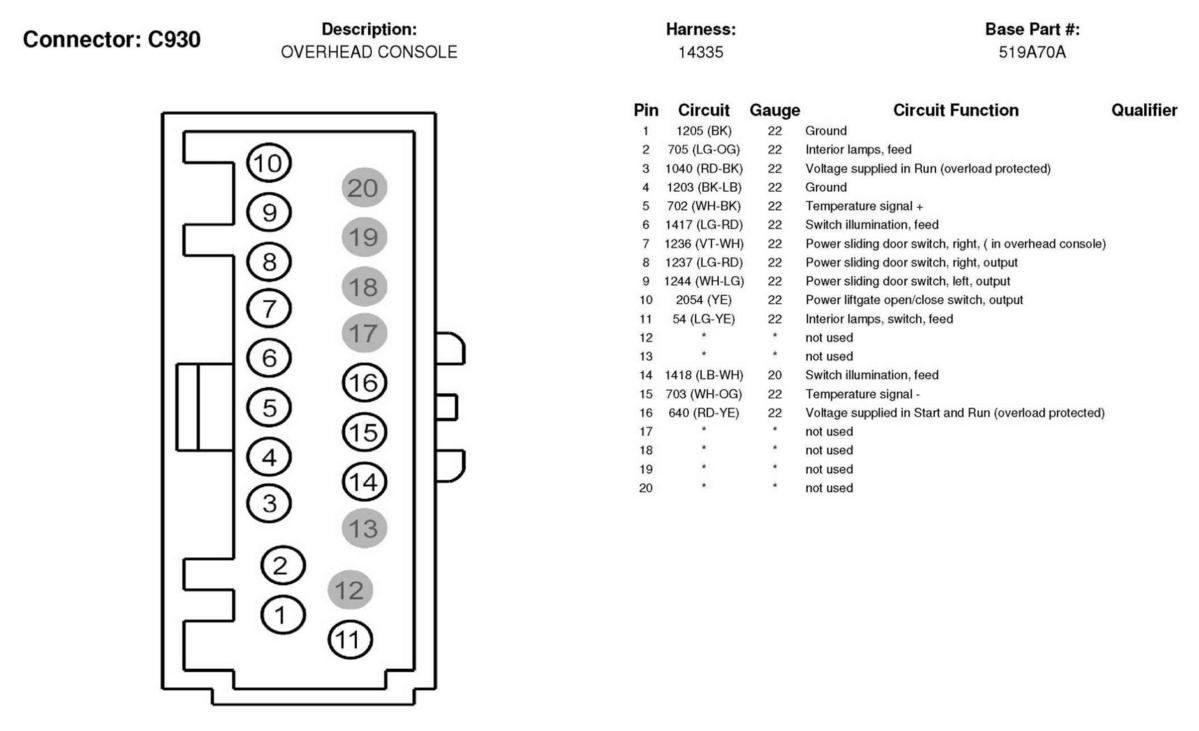

Fig 198: Overhead Console Connector End View (C930)
Courtesy of FORD MOTOR CO.

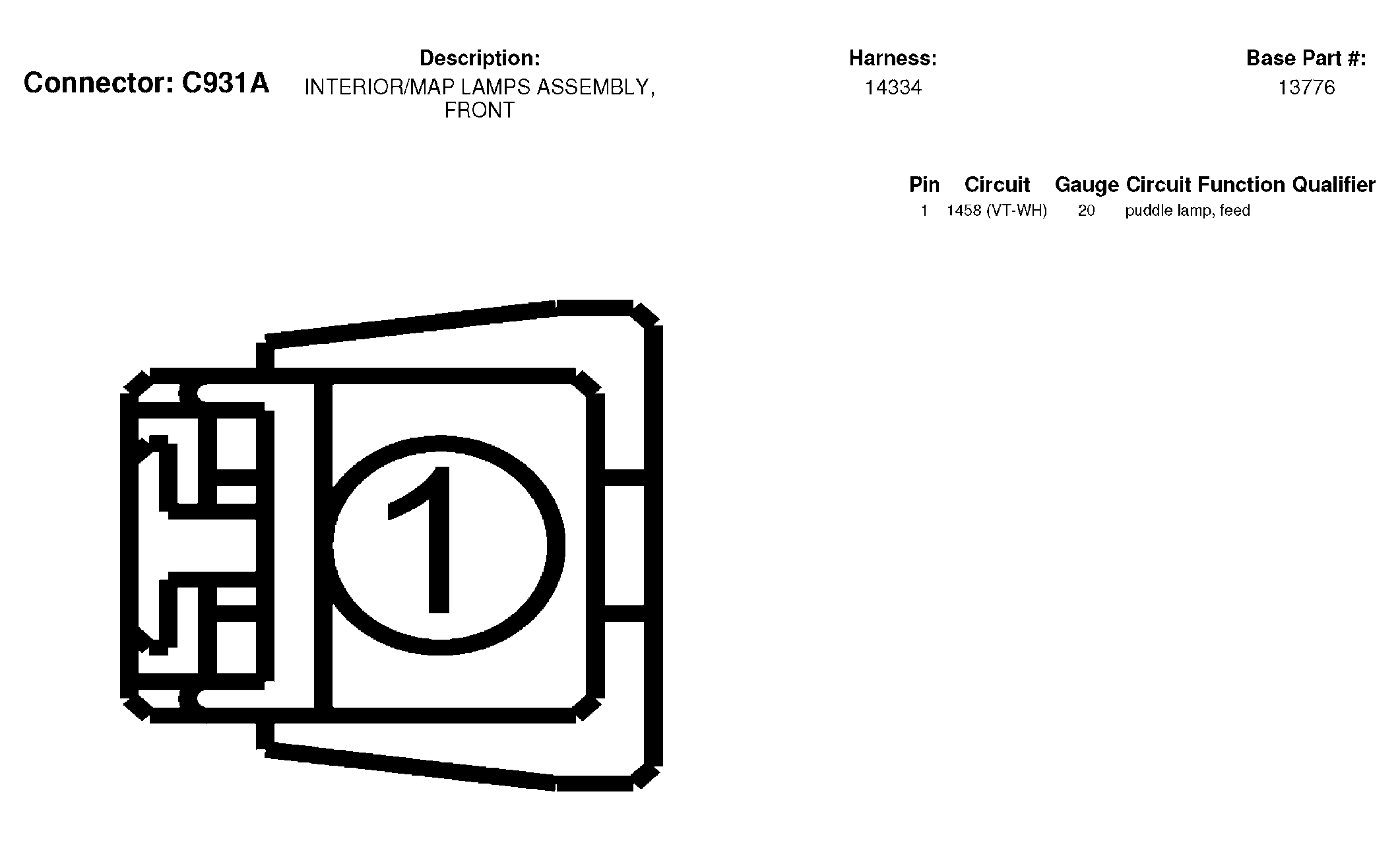

Fig 199: Interior/MAP Lamps Assembly, Front Connector End View (C931A)
Courtesy of FORD MOTOR CO.
Fig 200: Interior/MAP Lamps Assembly, Front Connector End View (C931B)
Courtesy of FORD MOTOR CO.
Fig 201: Interior/MAP Lamps Assembly, Rear Connector End View (C932A)
Courtesy of FORD MOTOR CO.

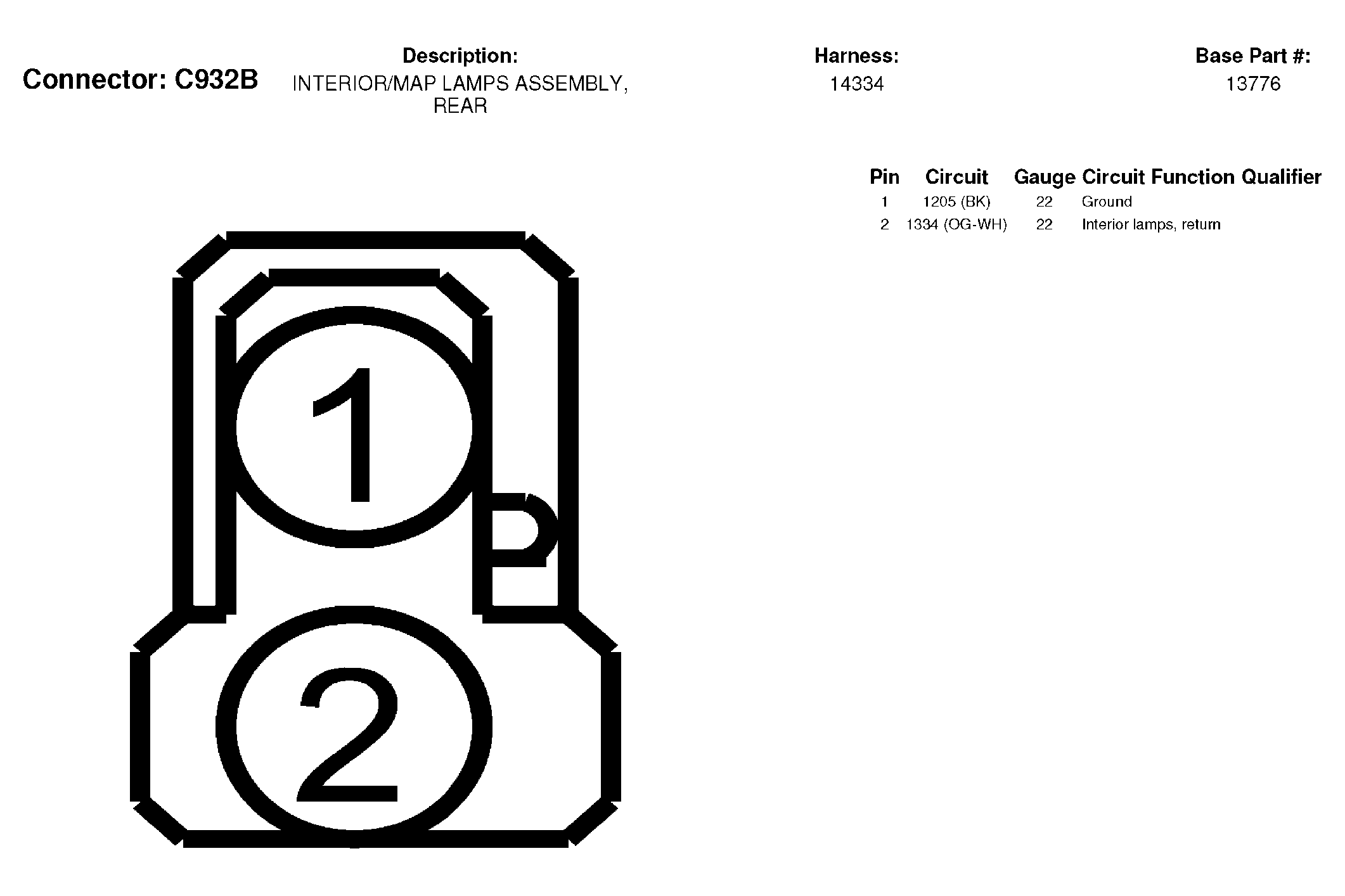

Fig 202: Interior/MAP Lamps Assembly, Rear Connector End View (C932B)
Courtesy of FORD MOTOR CO.

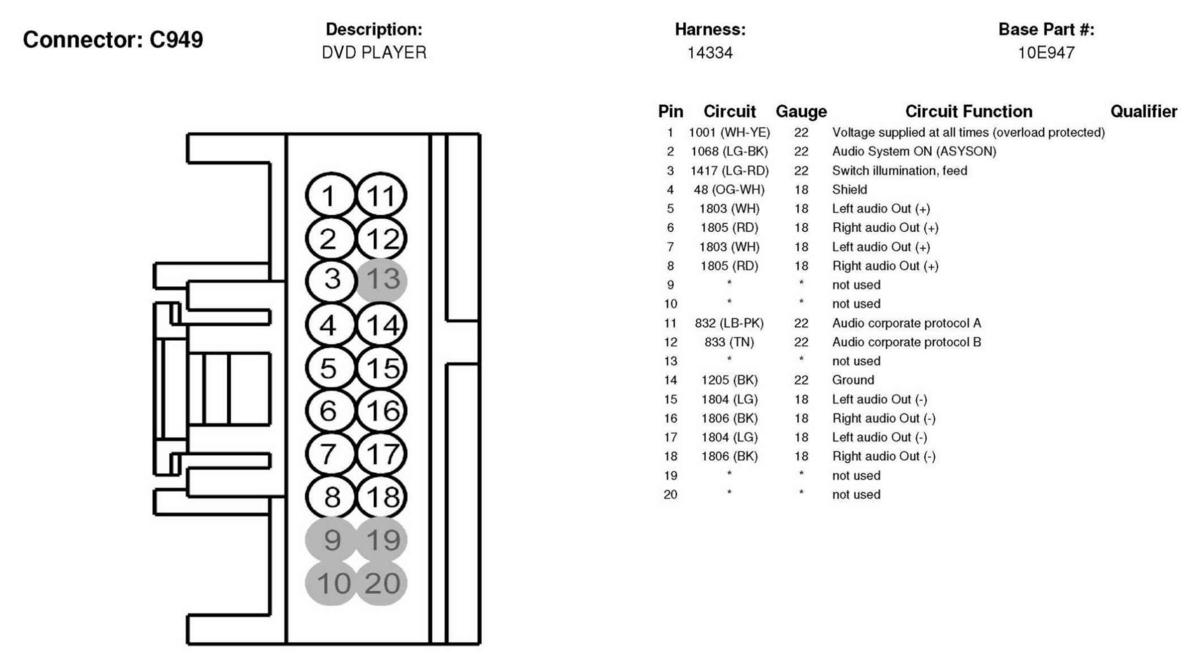

Fig 203: DVD Player Connector End View (C949)
Courtesy of FORD MOTOR CO.

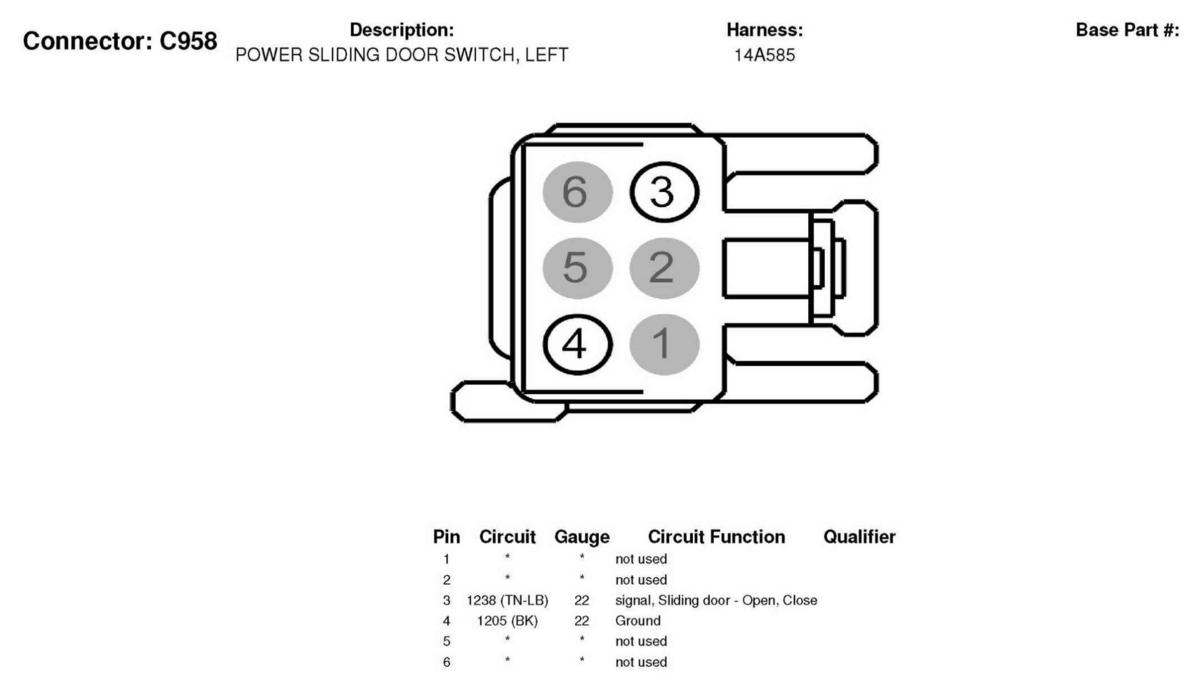

Fig 204: Power Sliding Door Switch, Left Connector End View (C958)
Courtesy of FORD MOTOR CO.

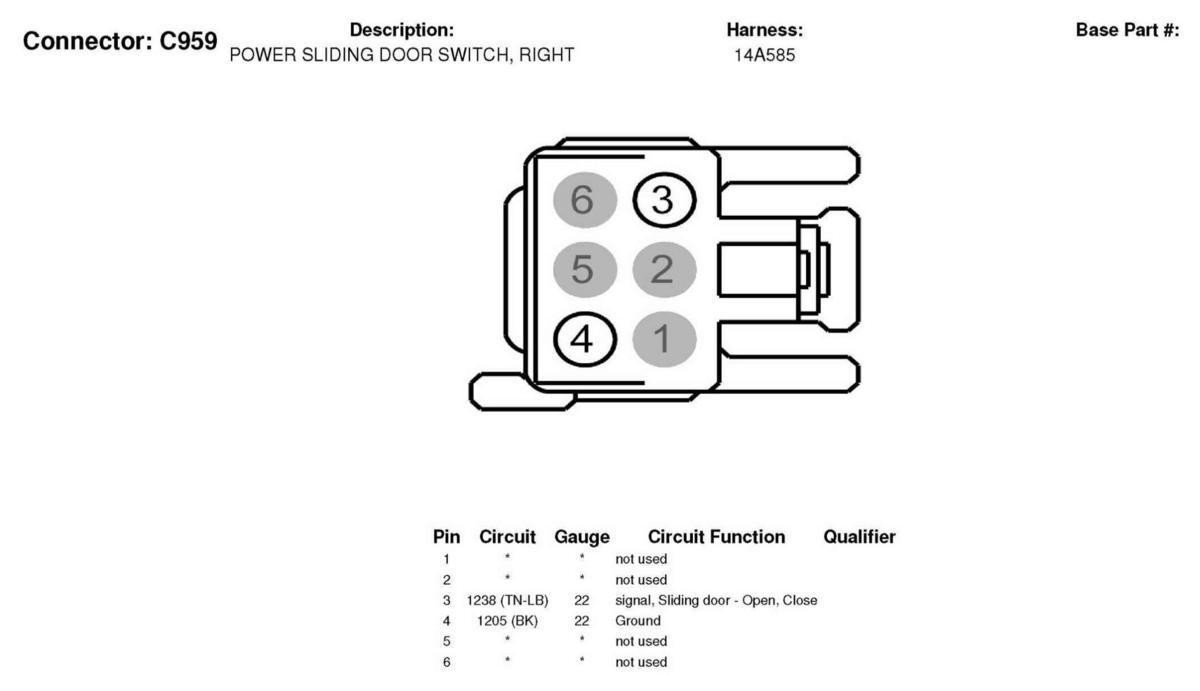

Fig 205: Power Sliding Door Switch, Right Connector End View (C959)
Courtesy of FORD MOTOR CO.

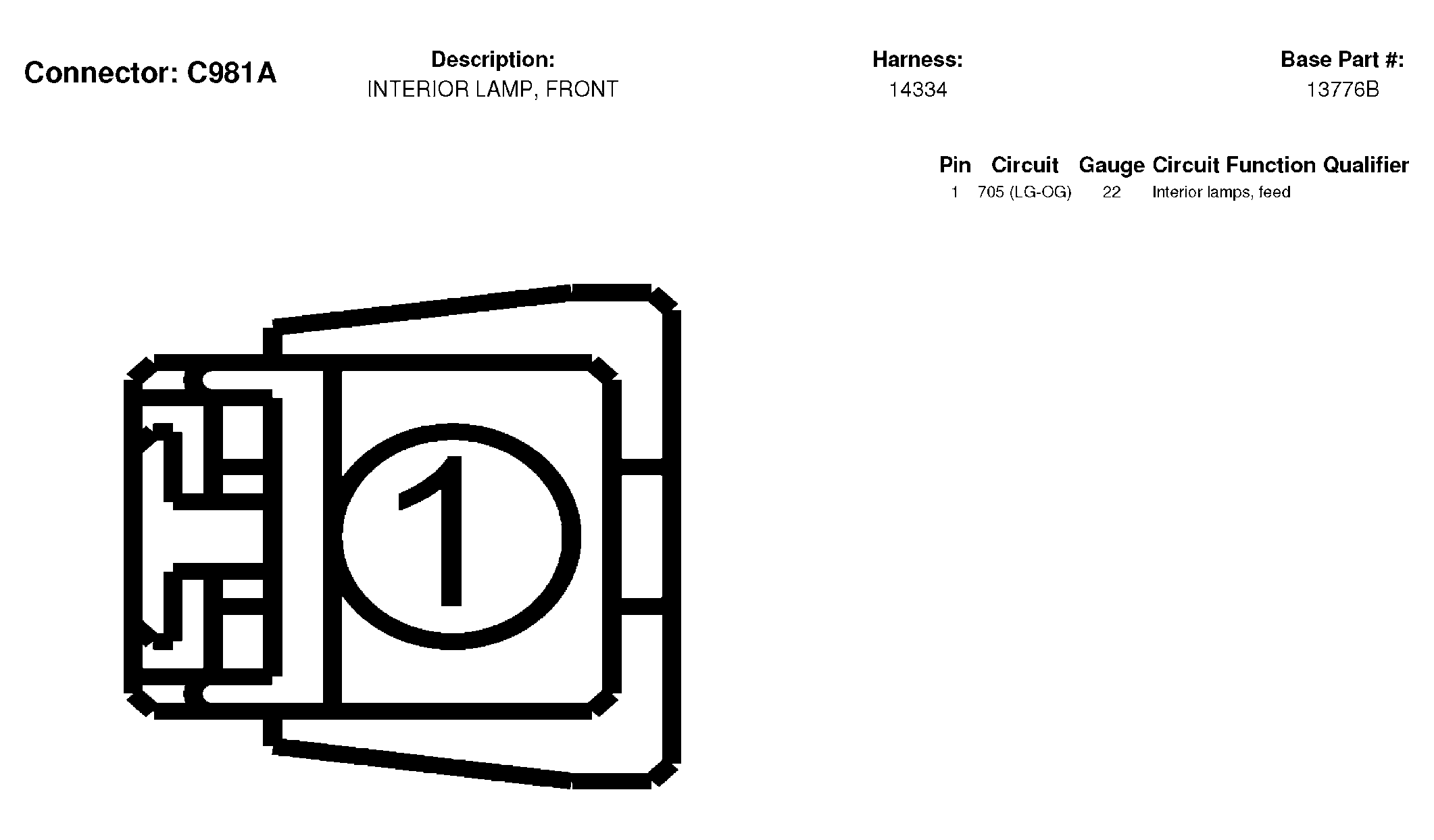

Fig 206: Interior Lamp, Front Connector End View (C981A)
Courtesy of FORD MOTOR CO.

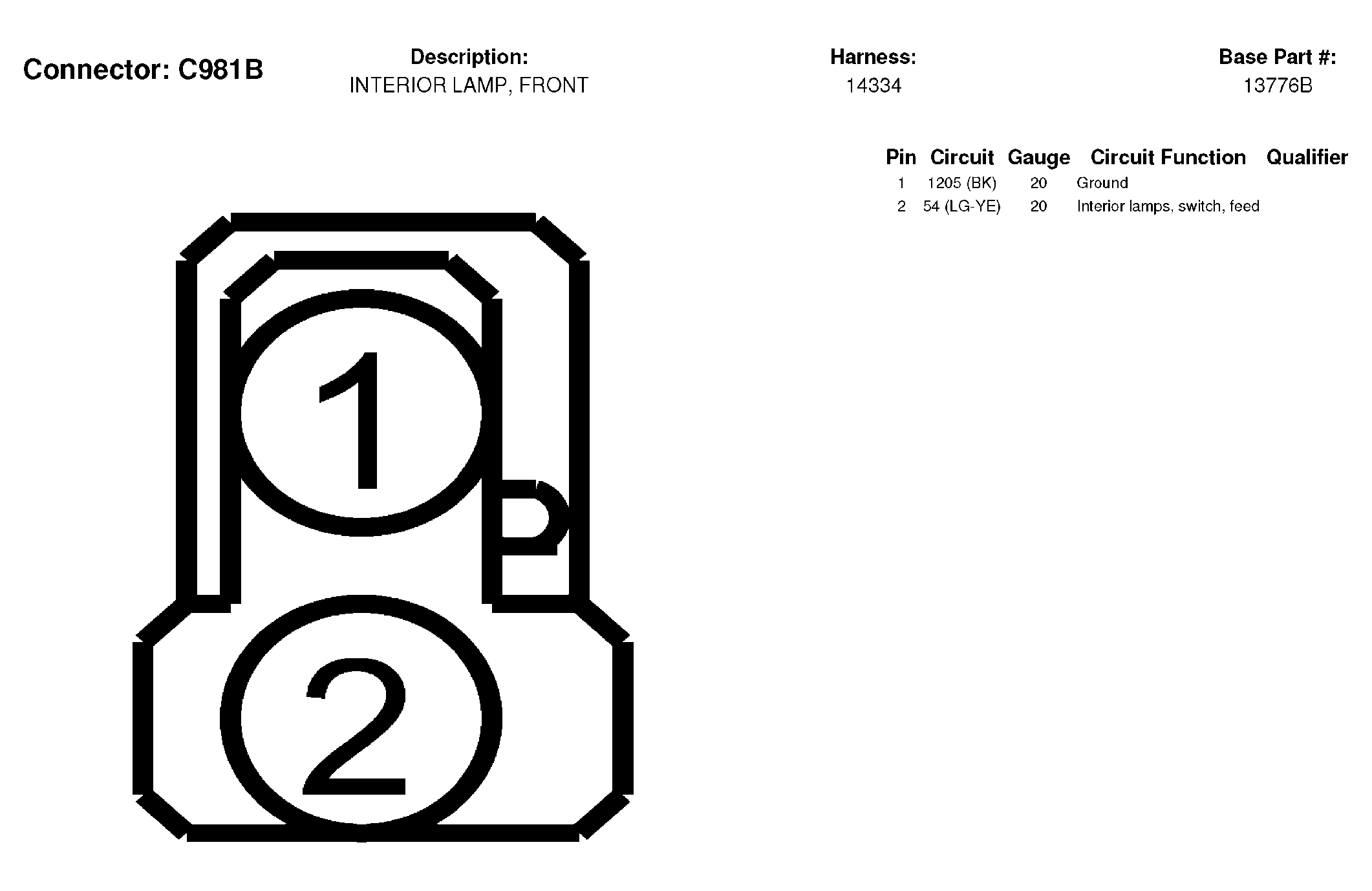

Fig 207: Interior Lamp, Front Connector End View (C981B)
Courtesy of FORD MOTOR CO.

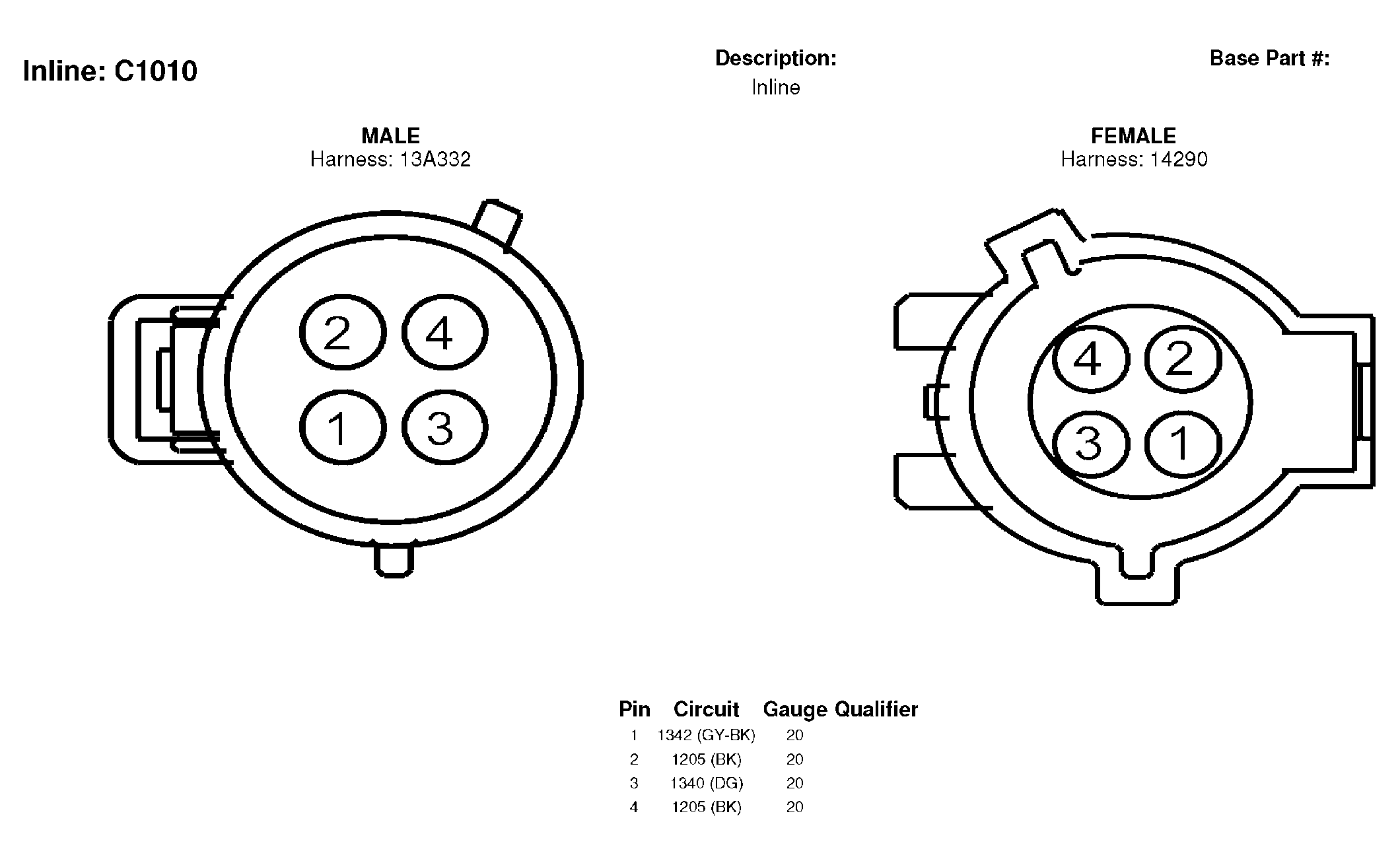

Fig 208: Inline Connector End View (C1010)
Courtesy of FORD MOTOR CO.

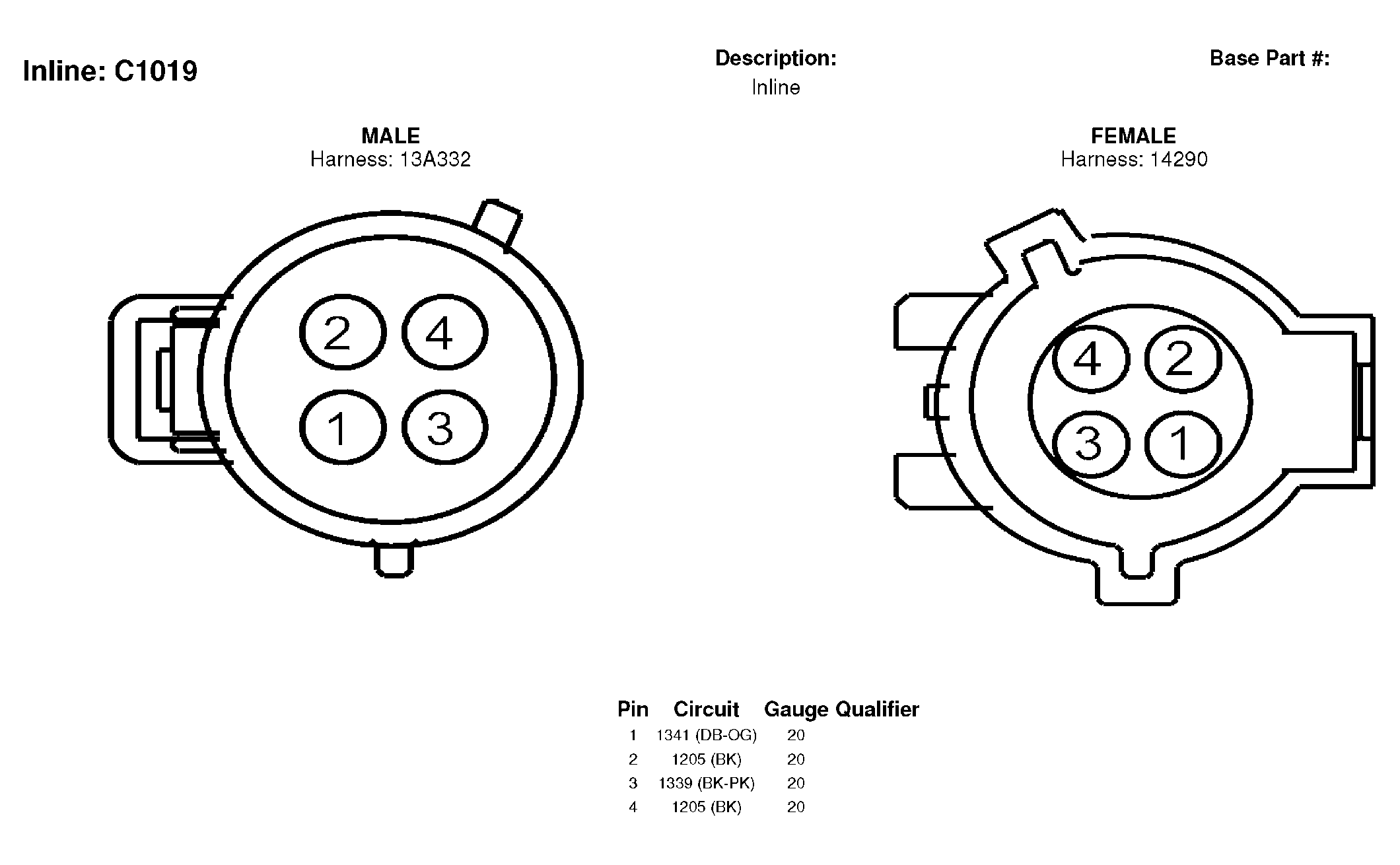

Fig 209: Inline Connector End View (C1019)
Courtesy of FORD MOTOR CO.

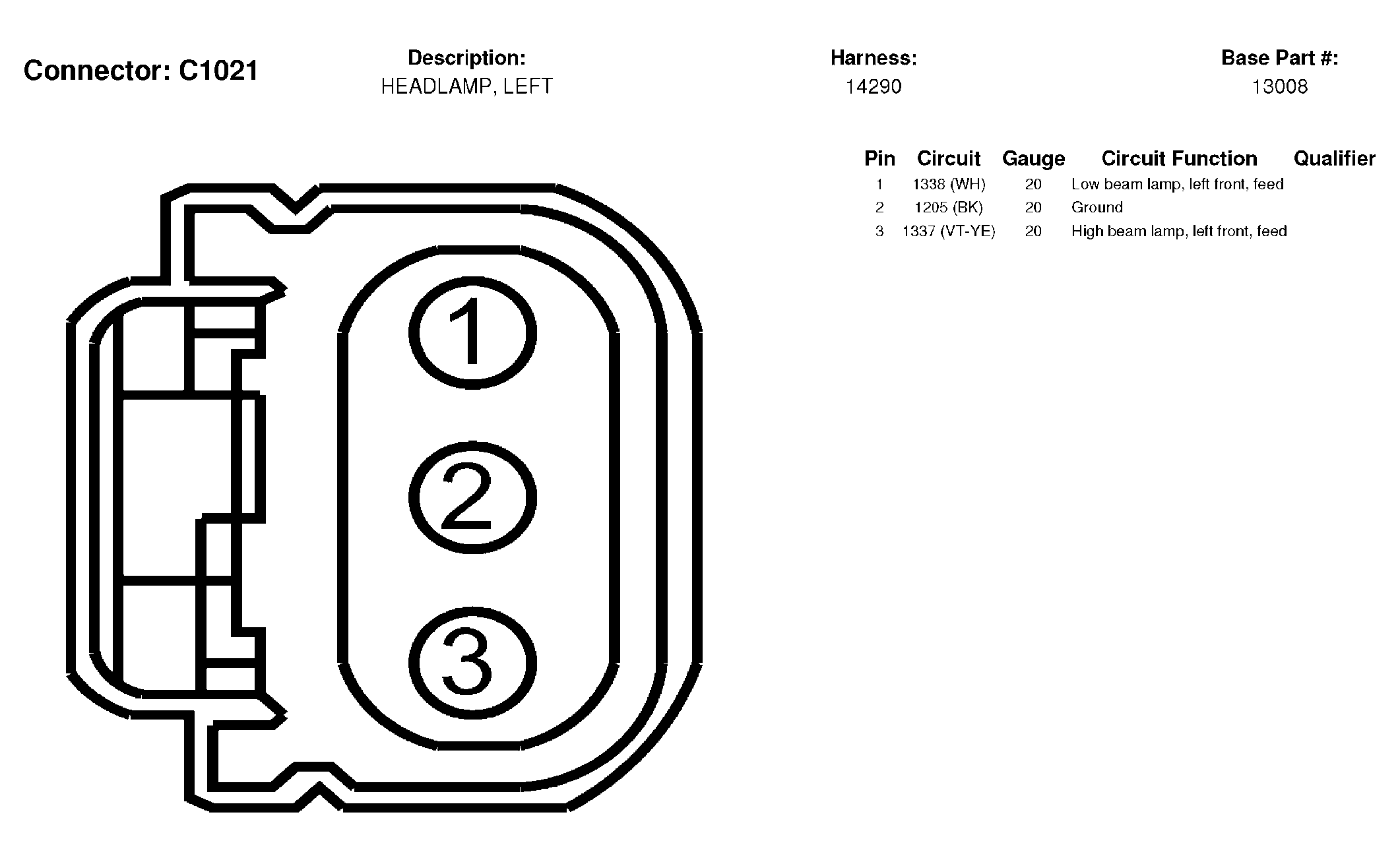

Fig 210: Headlamp, Left Connector End View (C1021)
Courtesy of FORD MOTOR CO.

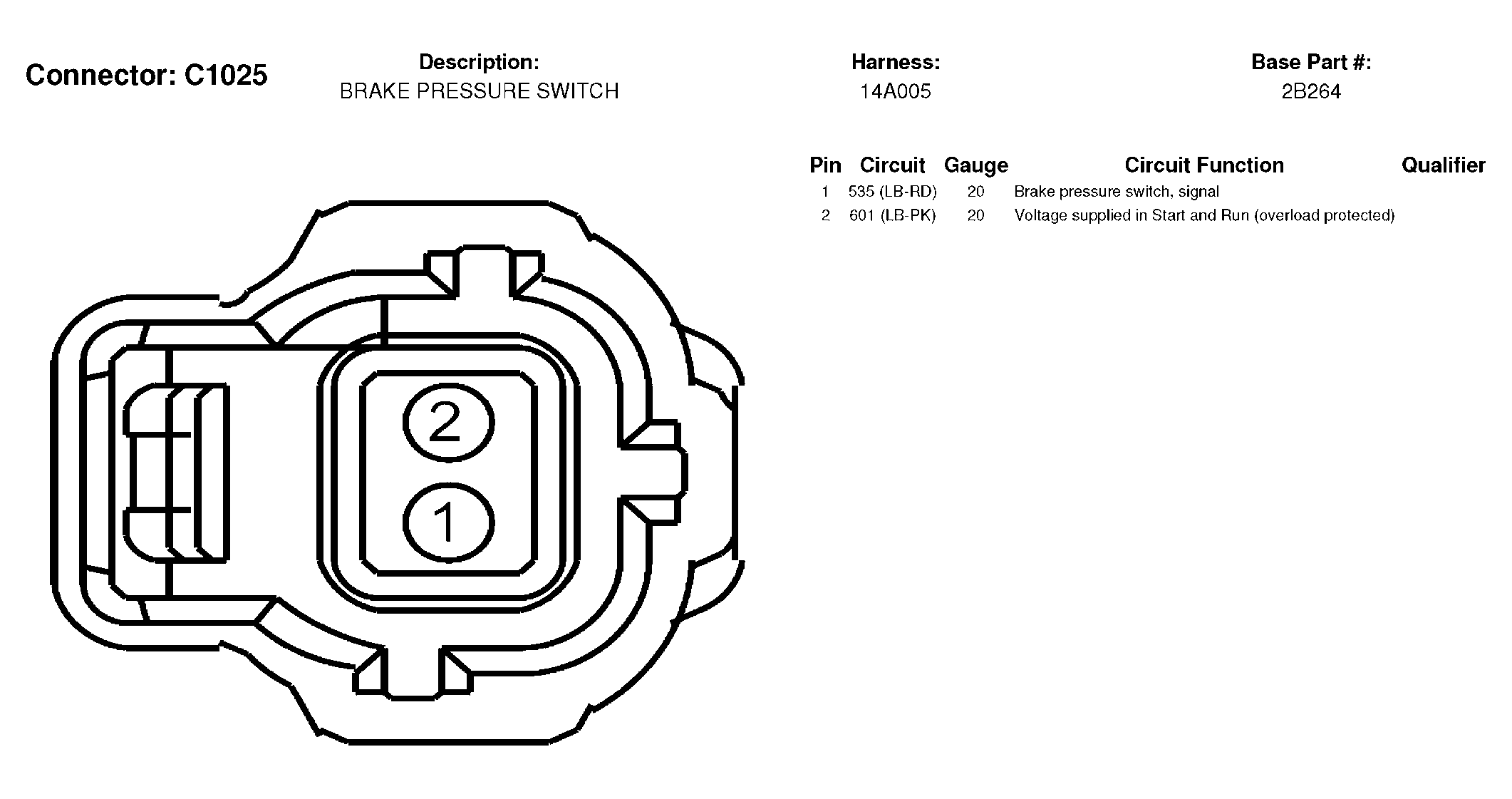

Fig 211: Brake Pressure Switch Connector End View (C1025)
Courtesy of FORD MOTOR CO.

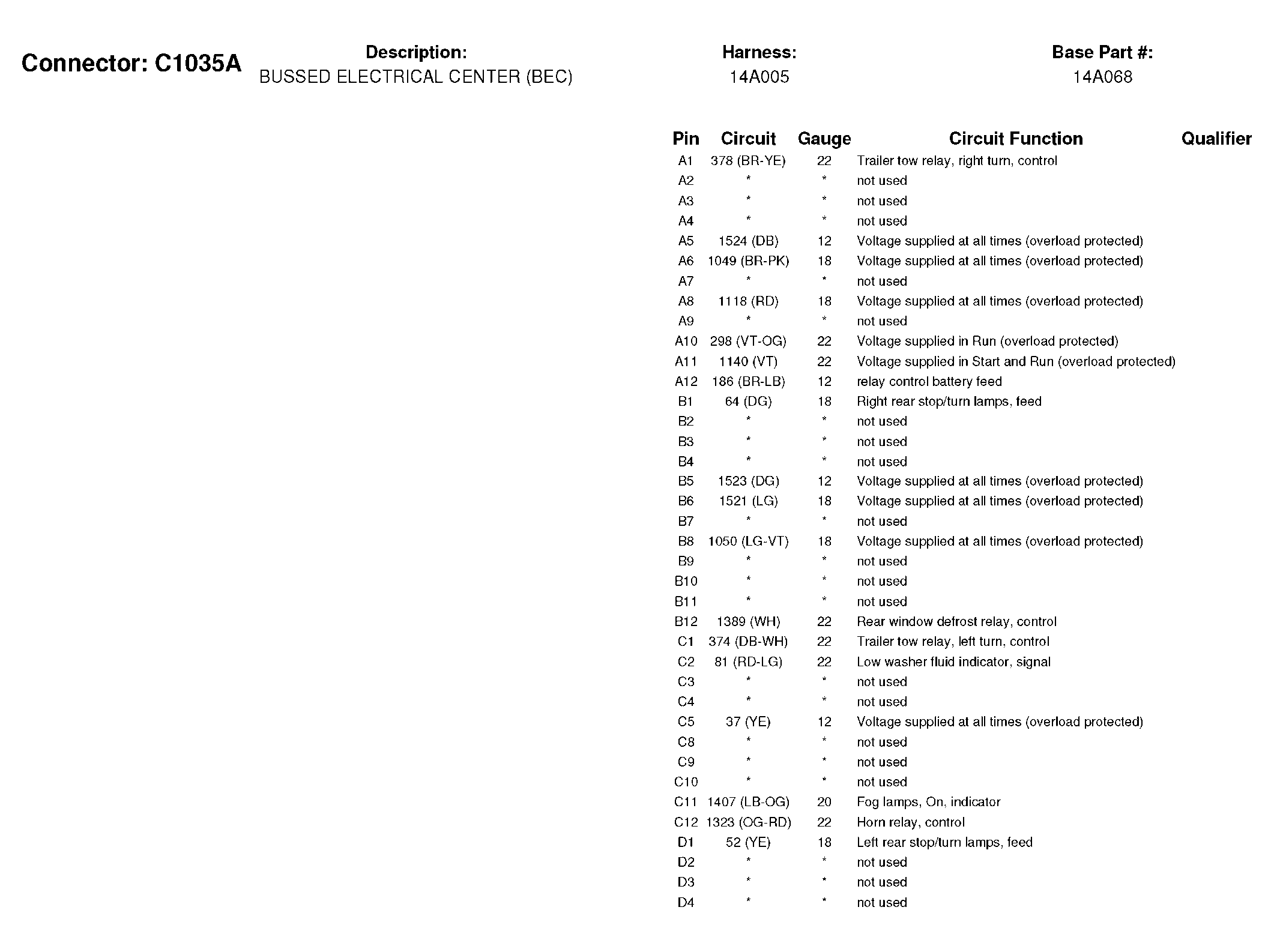

Fig 212: Bussed Electrical Center (BEC) Connector End View (C1035A) (1 Of 2)
Courtesy of FORD MOTOR CO.

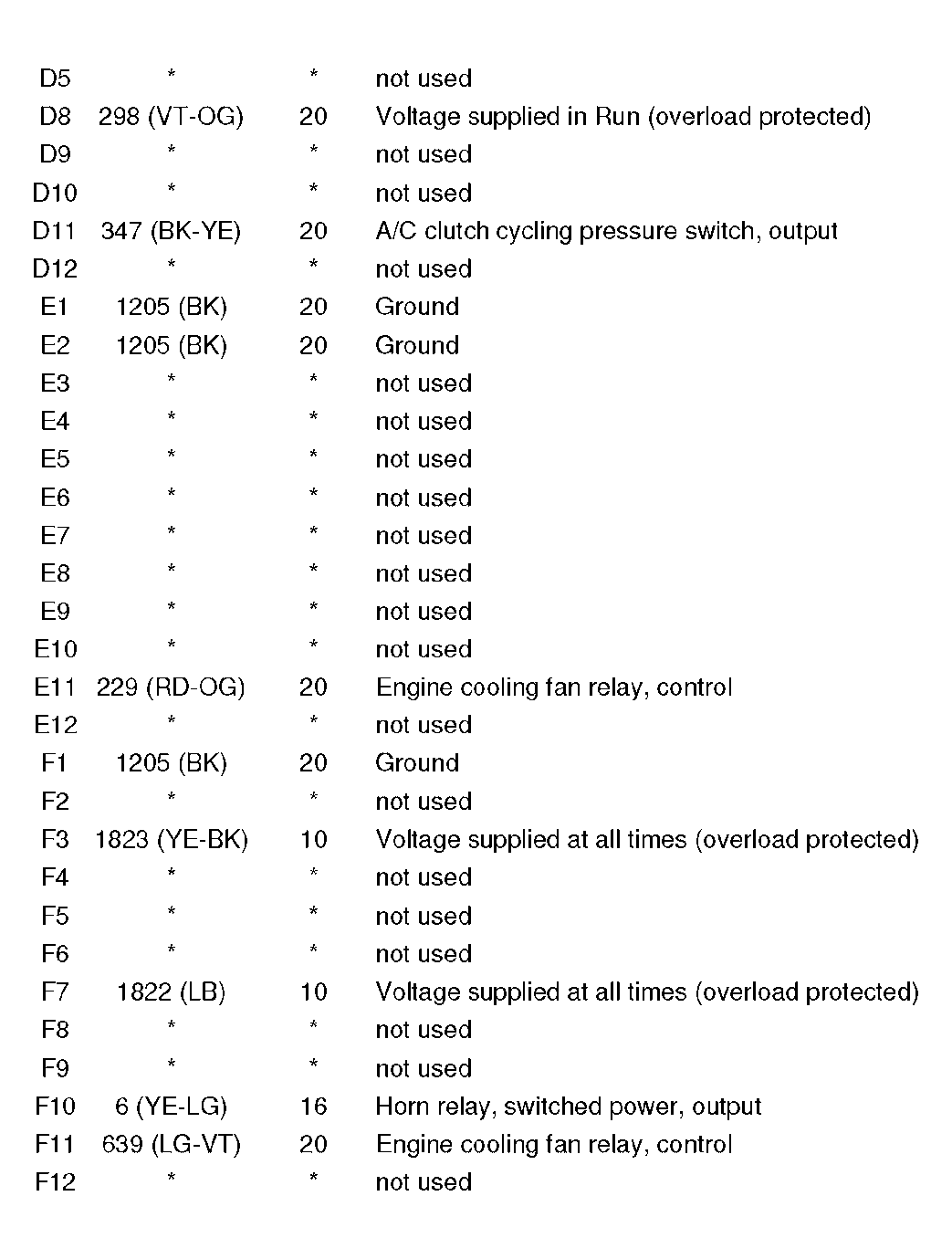

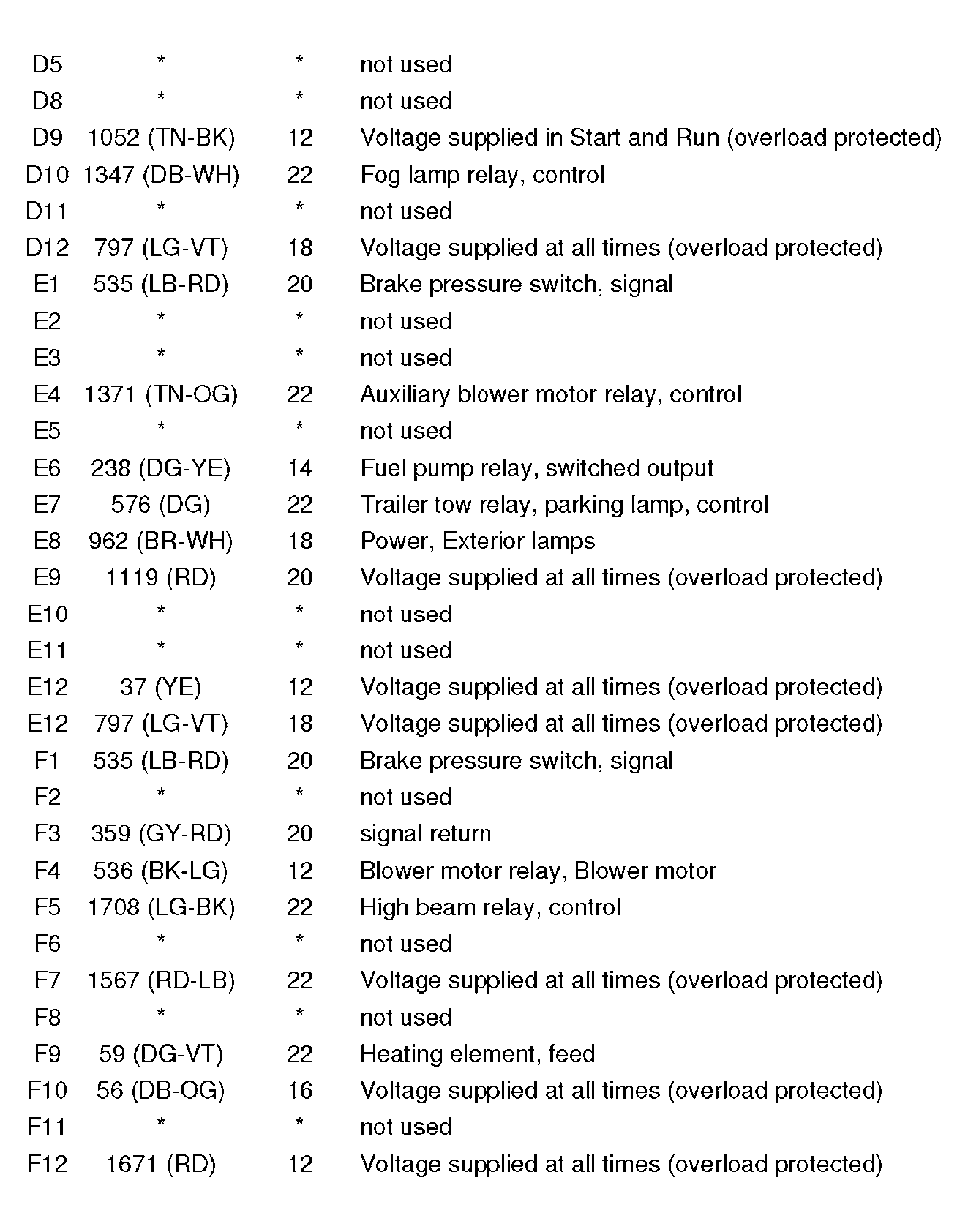

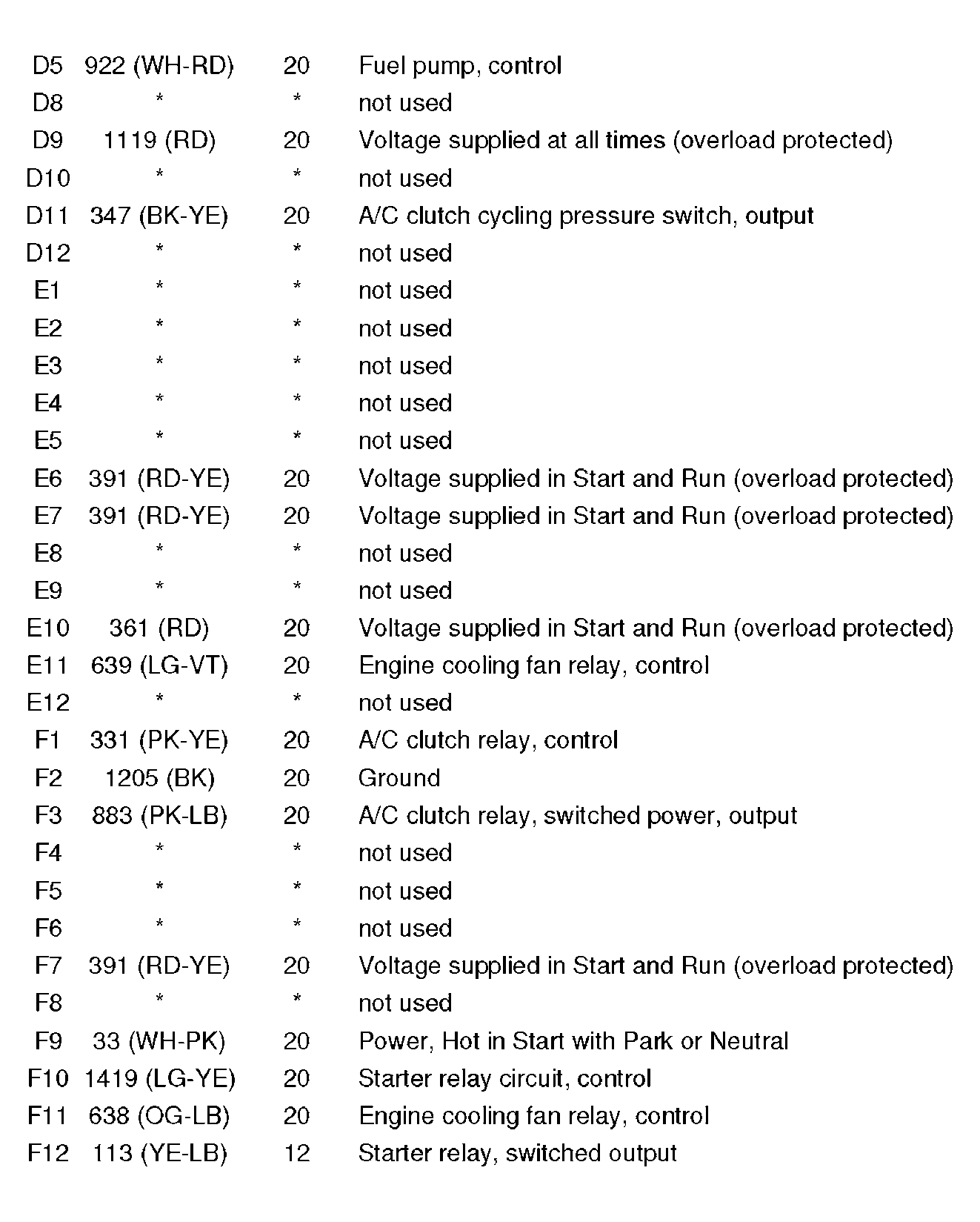

Fig 213: Bussed Electrical Center (BEC) Connector End View (C1035A) (2 Of 2)
Courtesy of FORD MOTOR CO.

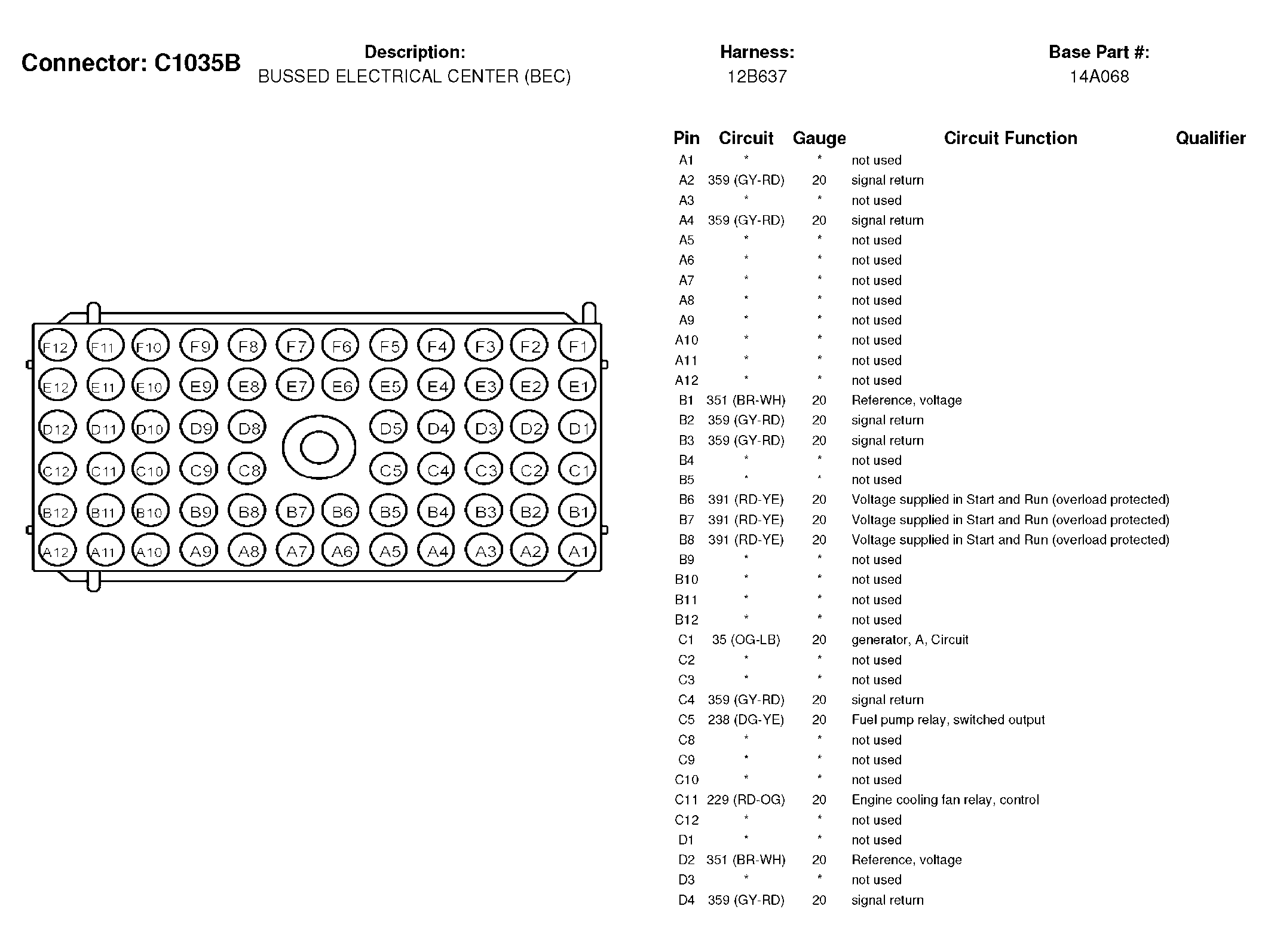

Fig 214: Bussed Electrical Center (BEC) Connector End View (C1035B) (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 215: Bussed Electrical Center (BEC) Connector End View (C1035B) (2 Of 2)
Courtesy of FORD MOTOR CO.

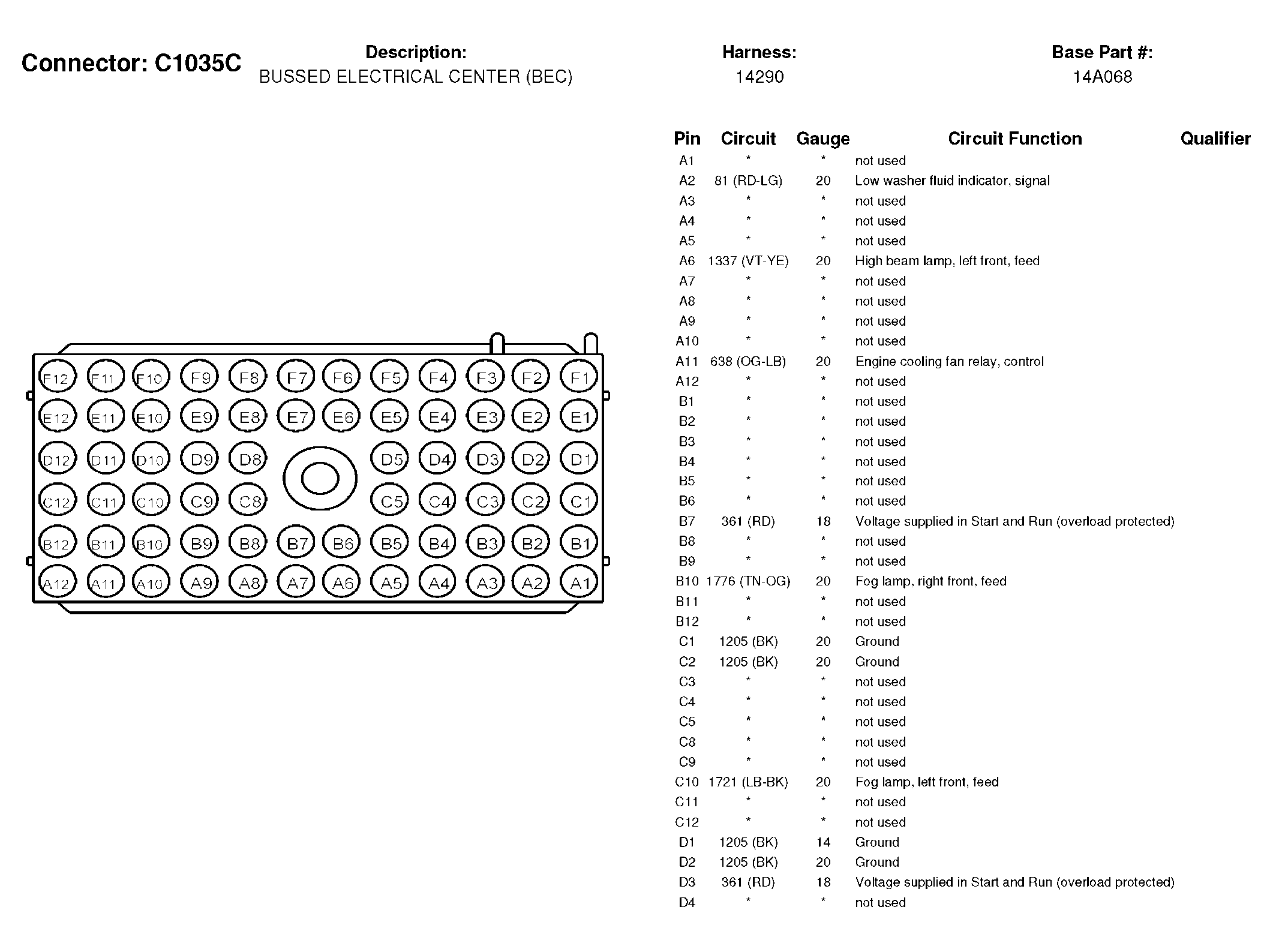

Fig 216: Bussed Electrical Center (BEC) Connector End View (C1035C) (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 217: Bussed Electrical Center (BEC) Connector End View (C1035C) (2 Of 2)
Courtesy of FORD MOTOR CO.

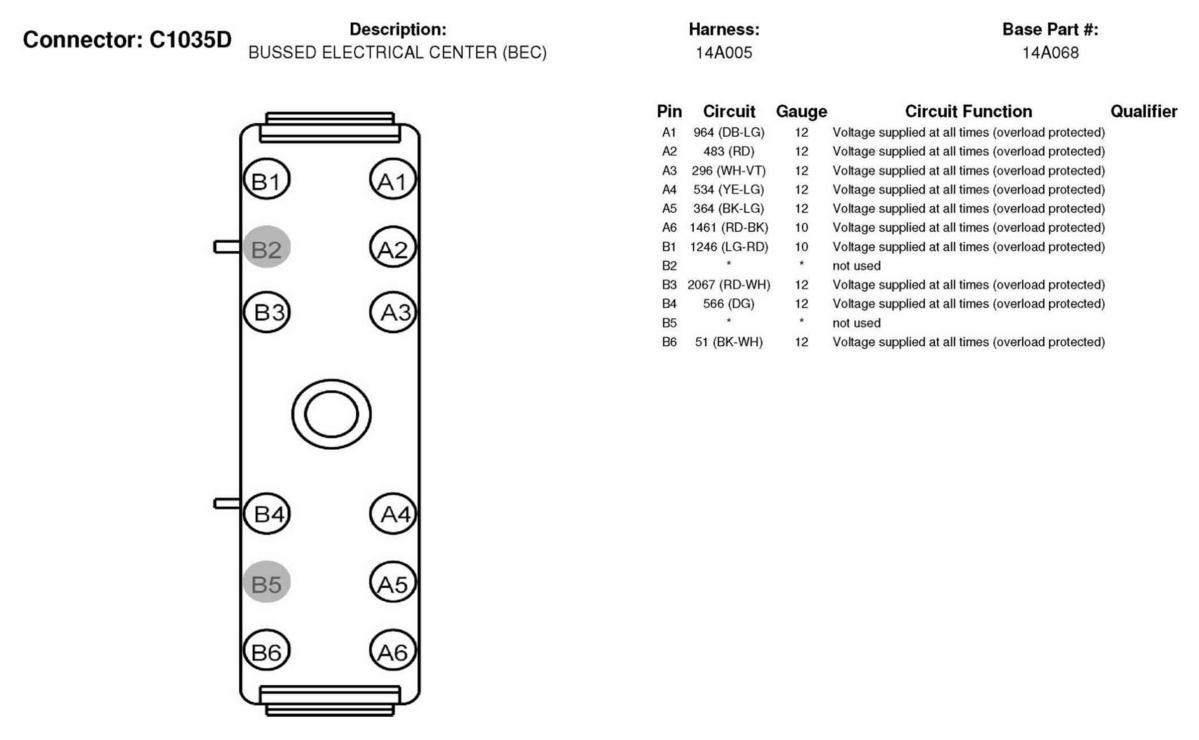

Fig 218: Bussed Electrical Center (BEC) Connector End View (C1035D)
Courtesy of FORD MOTOR CO.

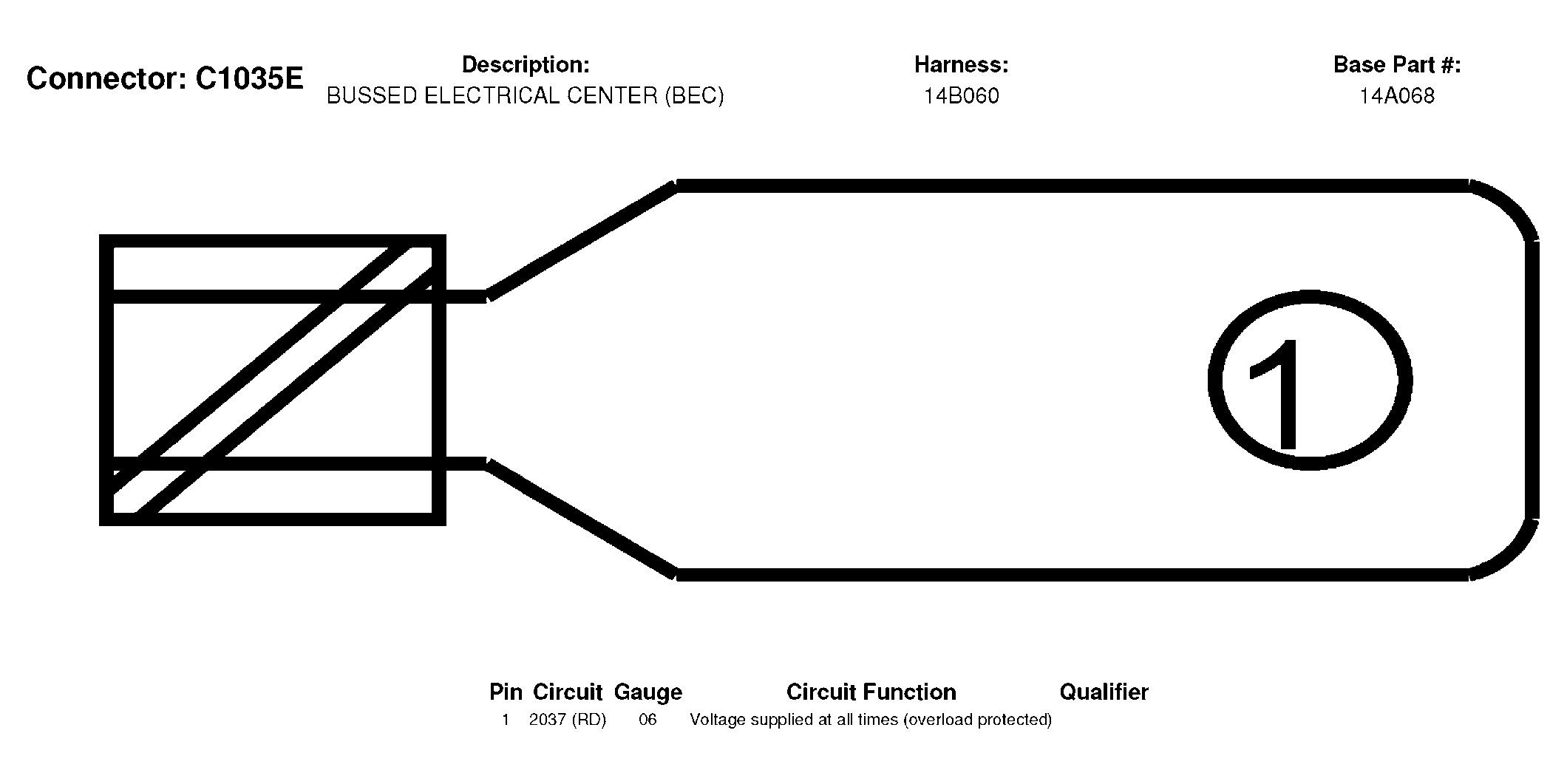

Fig 219: Bussed Electrical Center (BEC) Connector End View (C1035E)
Courtesy of FORD MOTOR CO.
Fig 220: Headlamp, Right Connector End View (C1041)
Courtesy of FORD MOTOR CO.

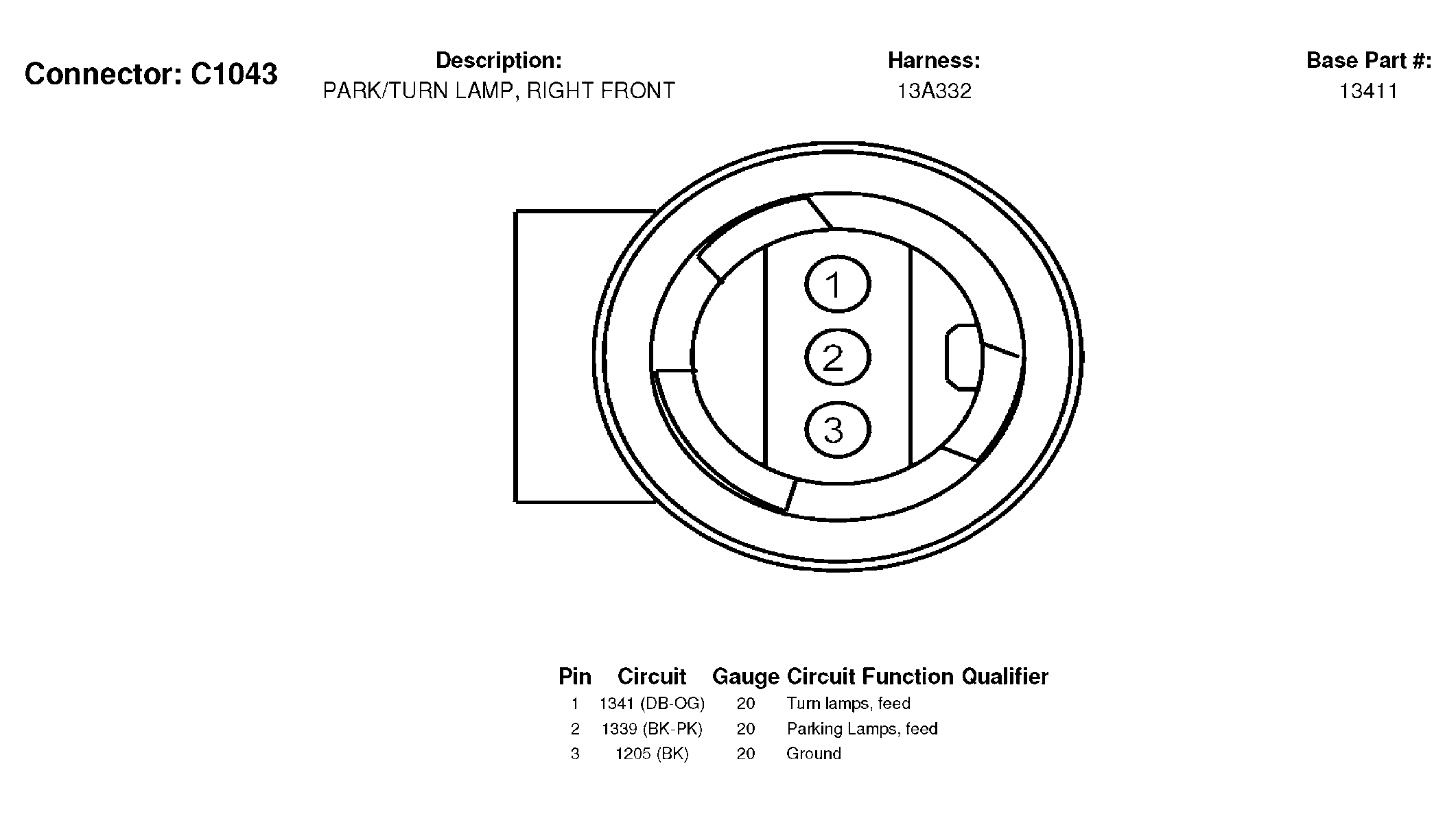

Fig 221: Park/Turn Lamp, Right Front Connector End View (C1043)
Courtesy of FORD MOTOR CO.

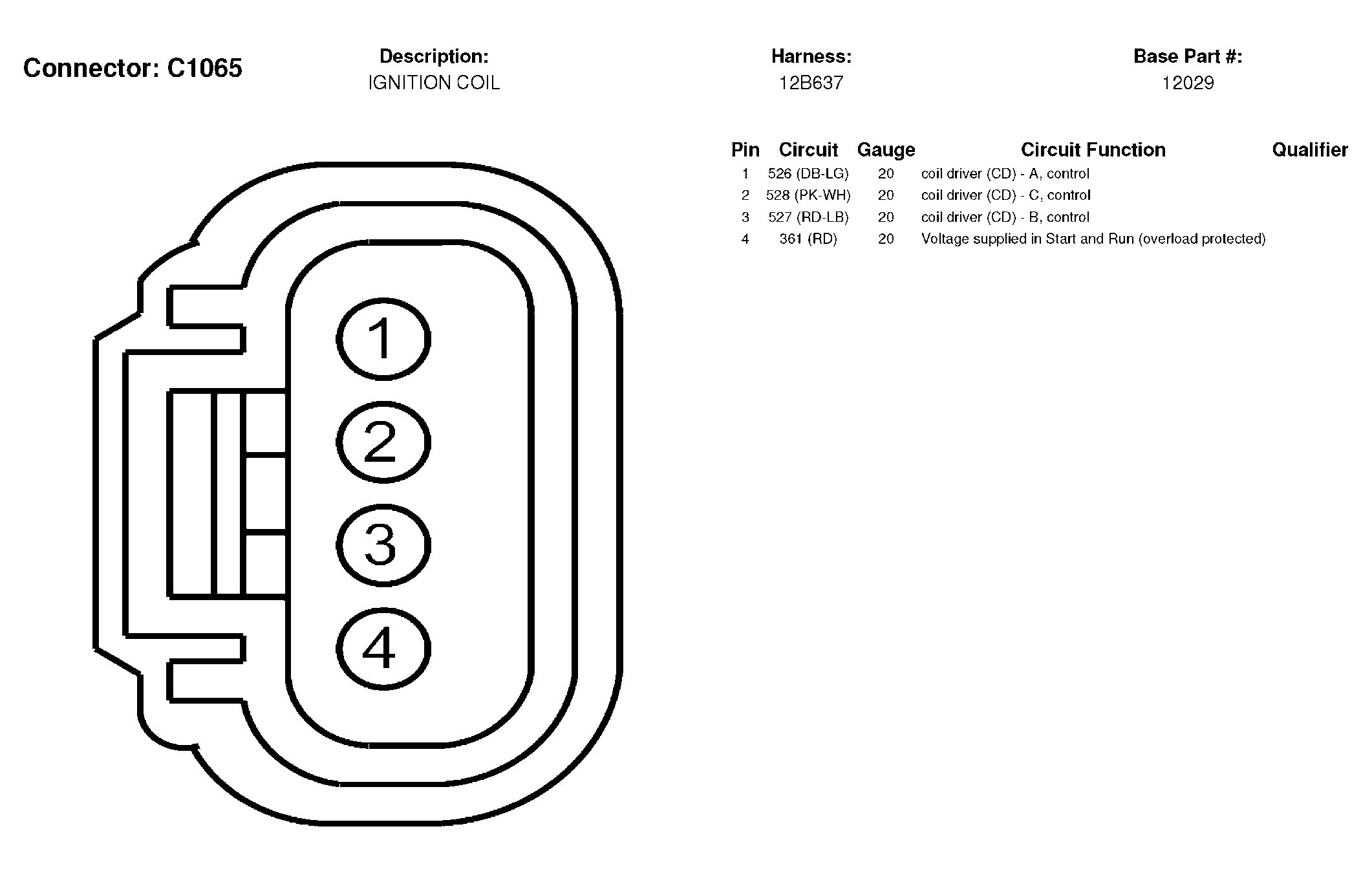

Fig 222: Ignition Coil Connector End View (C1065)
Courtesy of FORD MOTOR CO.

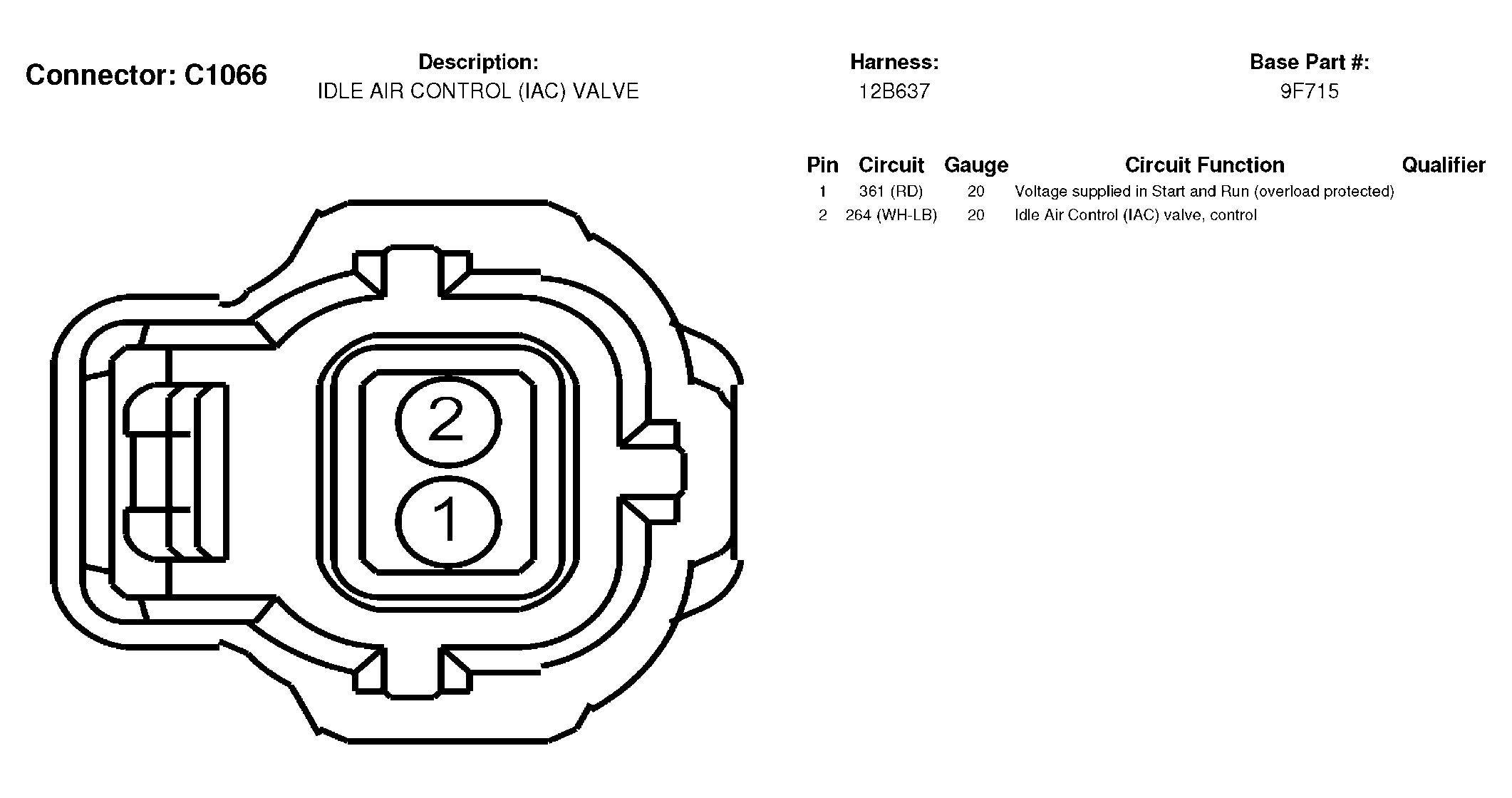

Fig 223: Idle Air Control (IAC) Valve Connector End View (C1066)
Courtesy of FORD MOTOR CO.

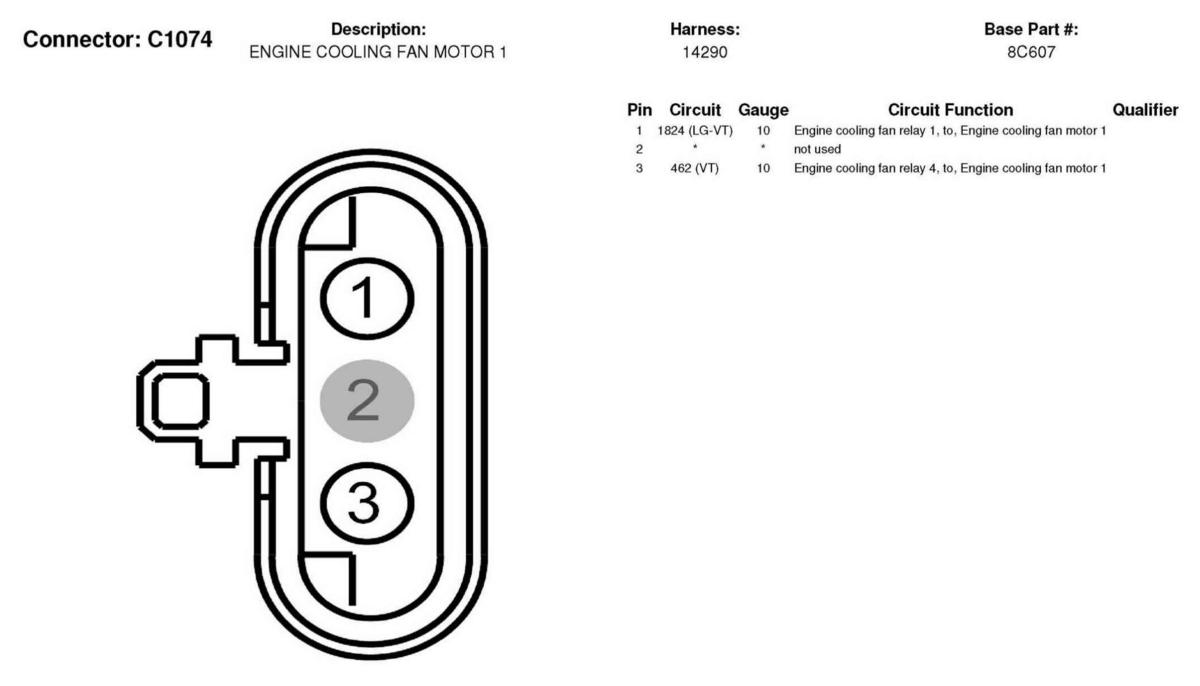

Fig 224: Engine Coolant Fan Motor 1 Connector End View (C1074)
Courtesy of FORD MOTOR CO.

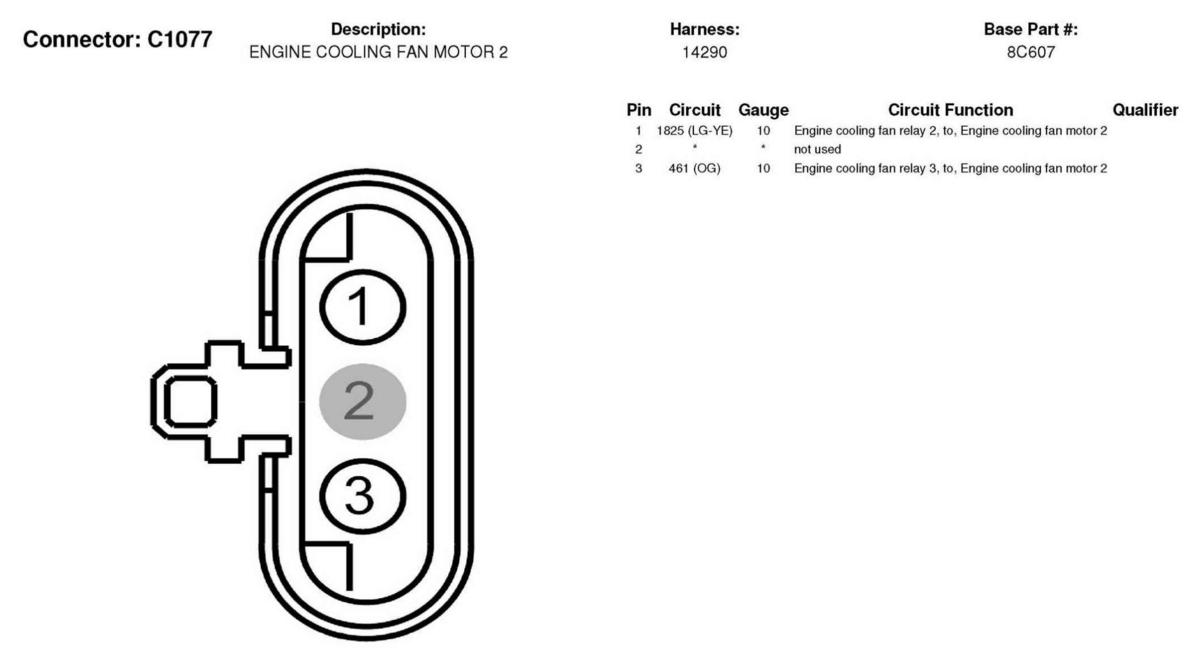

Fig 225: Engine Coolant Fan Motor 2 Connector End View (C1077)
Courtesy of FORD MOTOR CO.

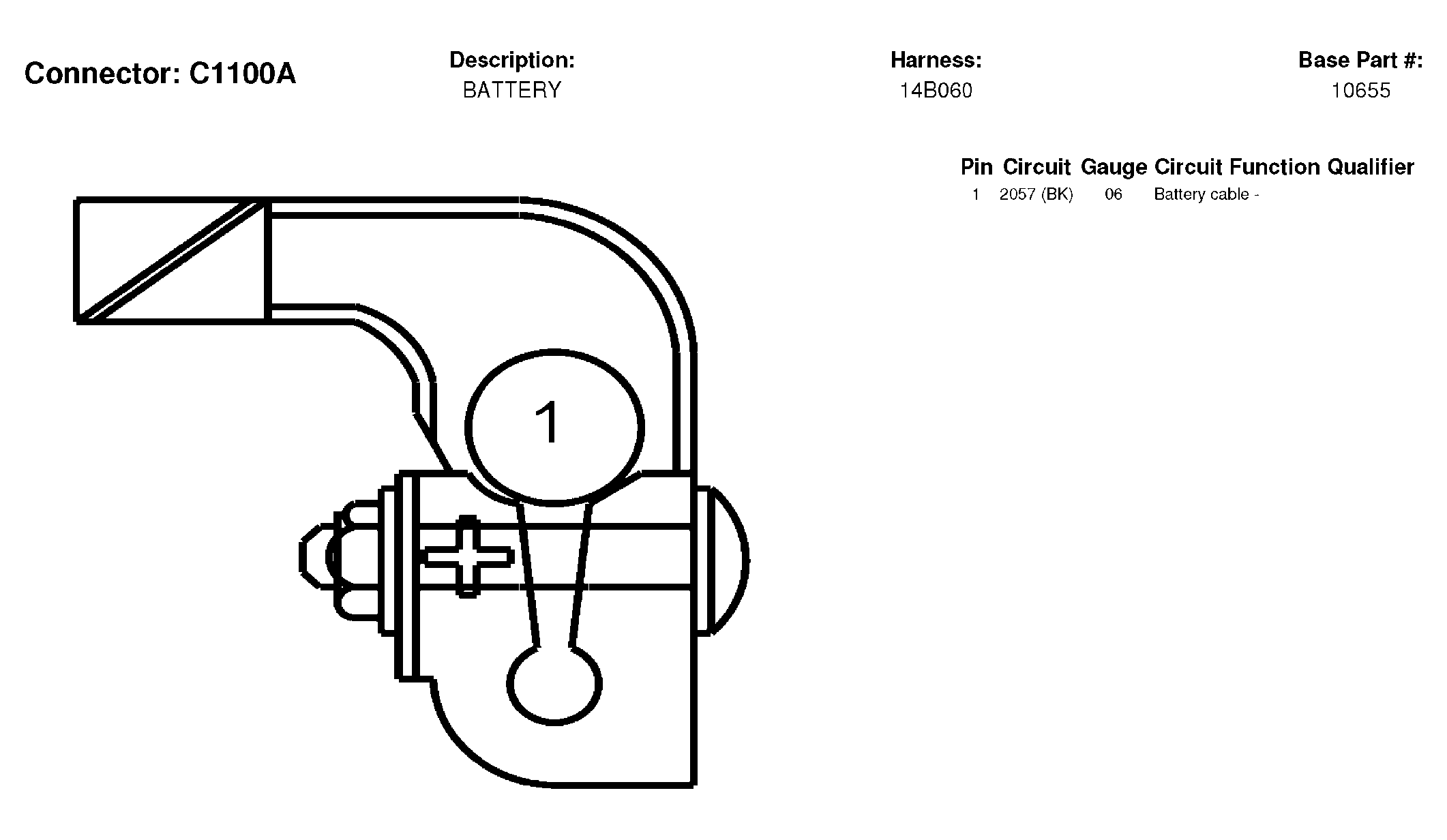

Fig 226: Battery Connector End View (C1100A)
Courtesy of FORD MOTOR CO.

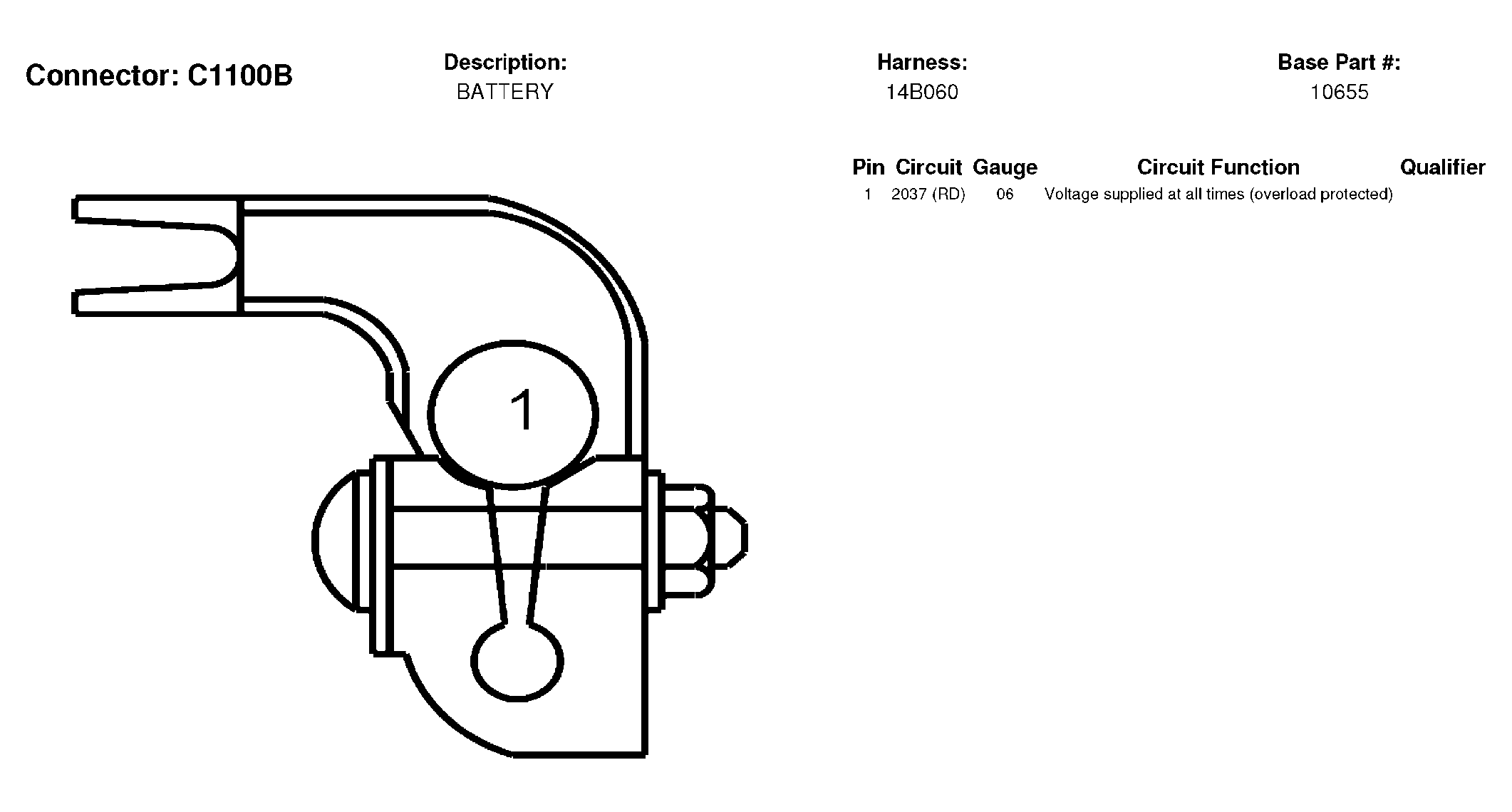

Fig 227: Battery Connector End View (C1100B)
Courtesy of FORD MOTOR CO.

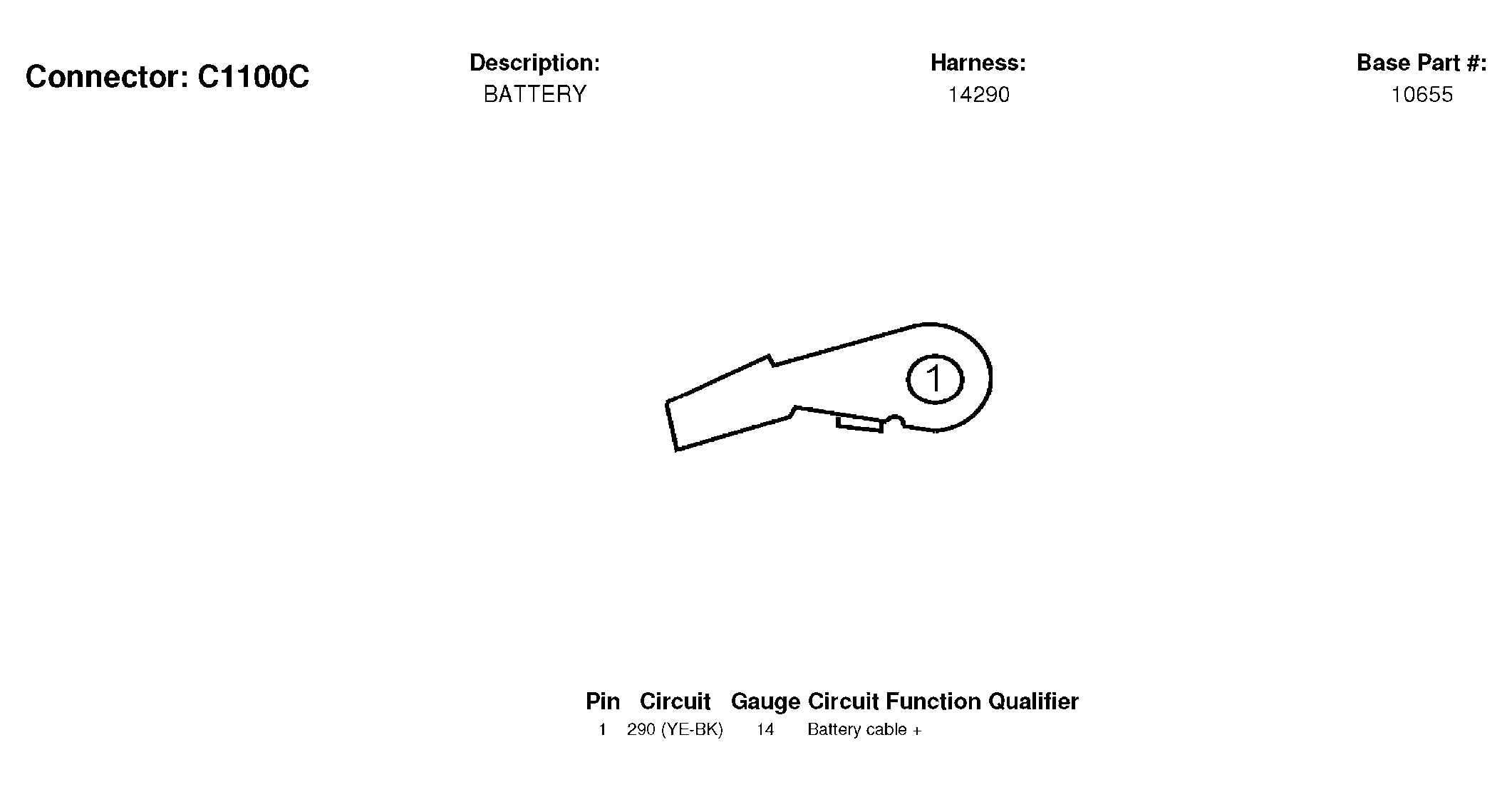

Fig 228: Battery Connector End View (C1100C)
Courtesy of FORD MOTOR CO.

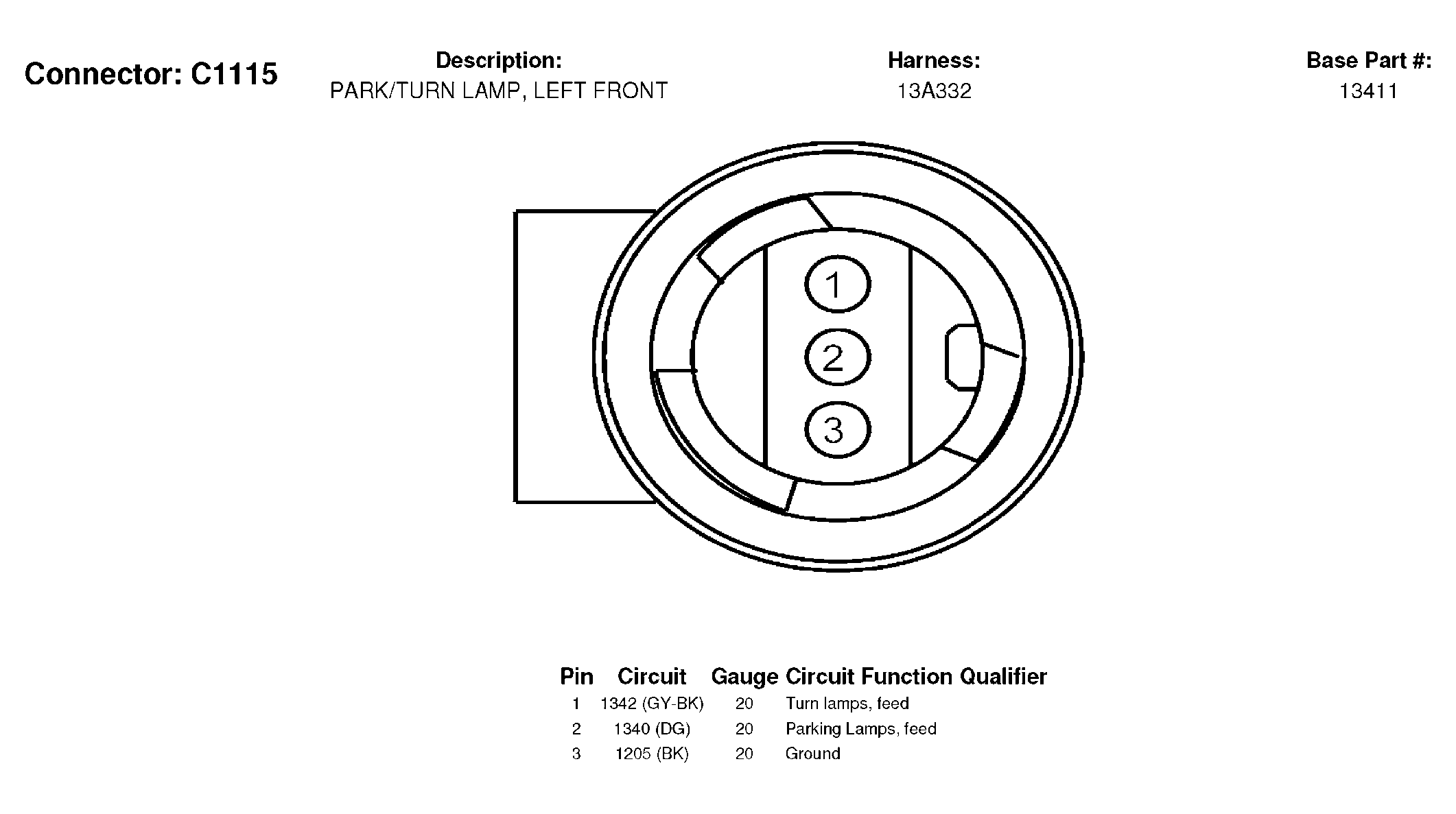

Fig 229: Park/Turn Lamp, Left Front Connector End View (C1115)
Courtesy of FORD MOTOR CO.

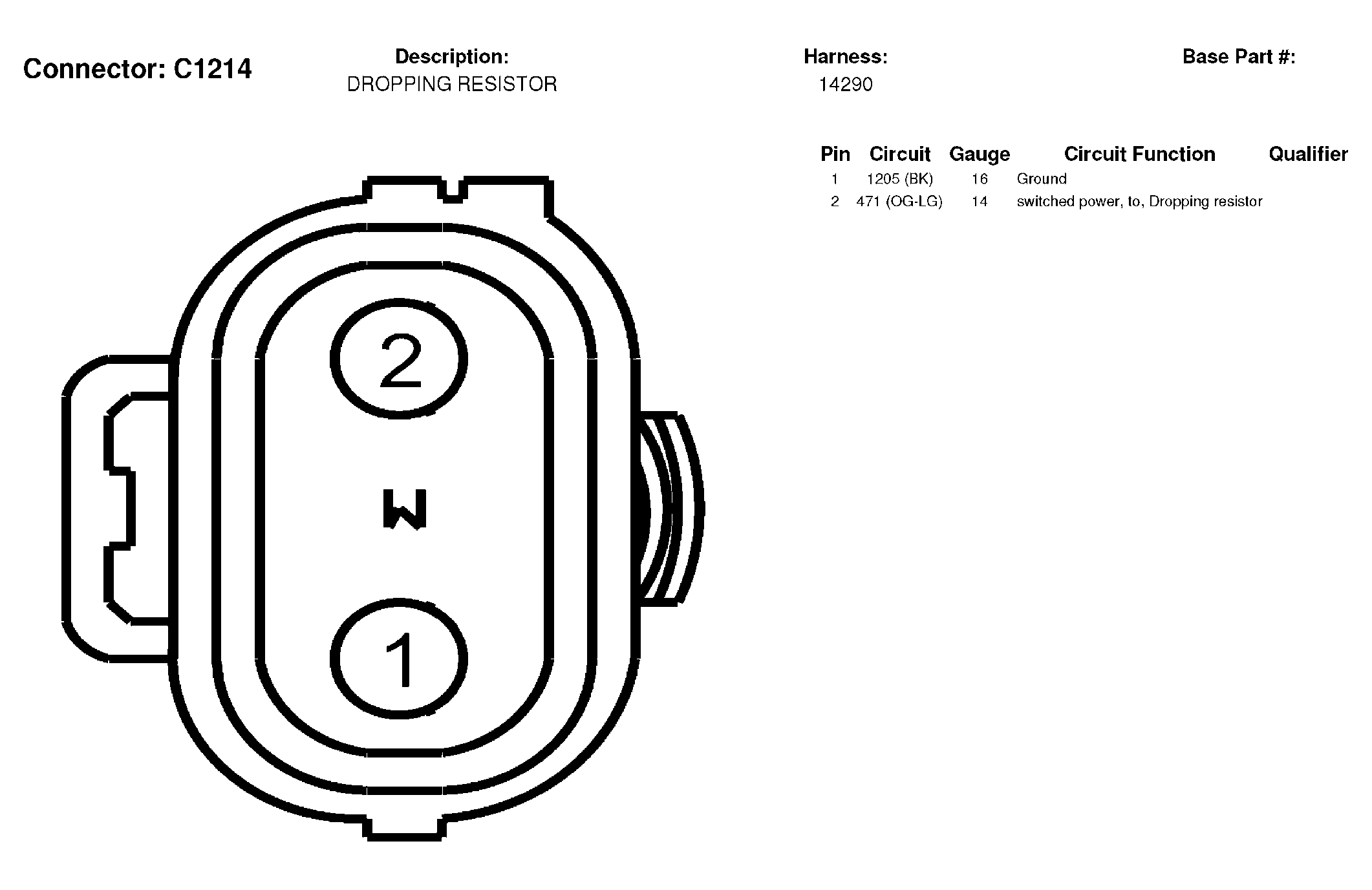

Fig 230: Dropping Resistor Connector End View (C1214)
Courtesy of FORD MOTOR CO.

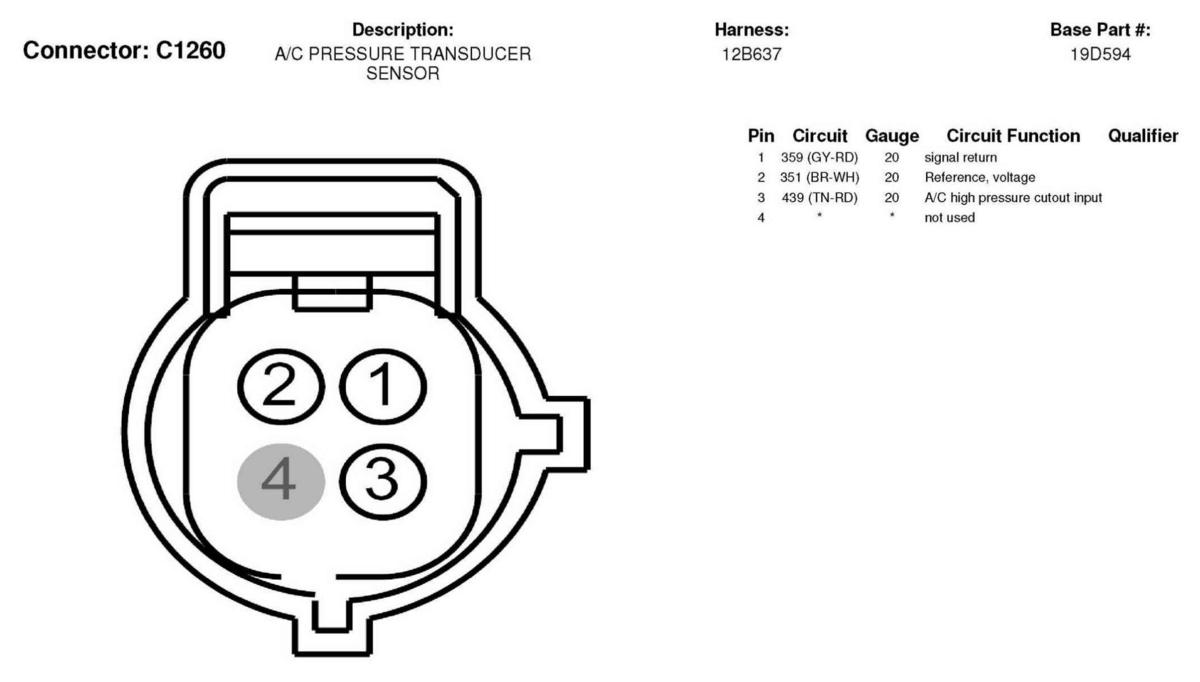

Fig 231: A/C Pressure Transducer Sensor Connector End View (C1260)
Courtesy of FORD MOTOR CO.
Fig 232: Parking Aid Sensor, Front Outer Left Connector End View (C1428)
Courtesy of FORD MOTOR CO.
Fig 233: Parking Aid Sensor, Front Outer Left Connector End View (C1428)
Courtesy of FORD MOTOR CO.

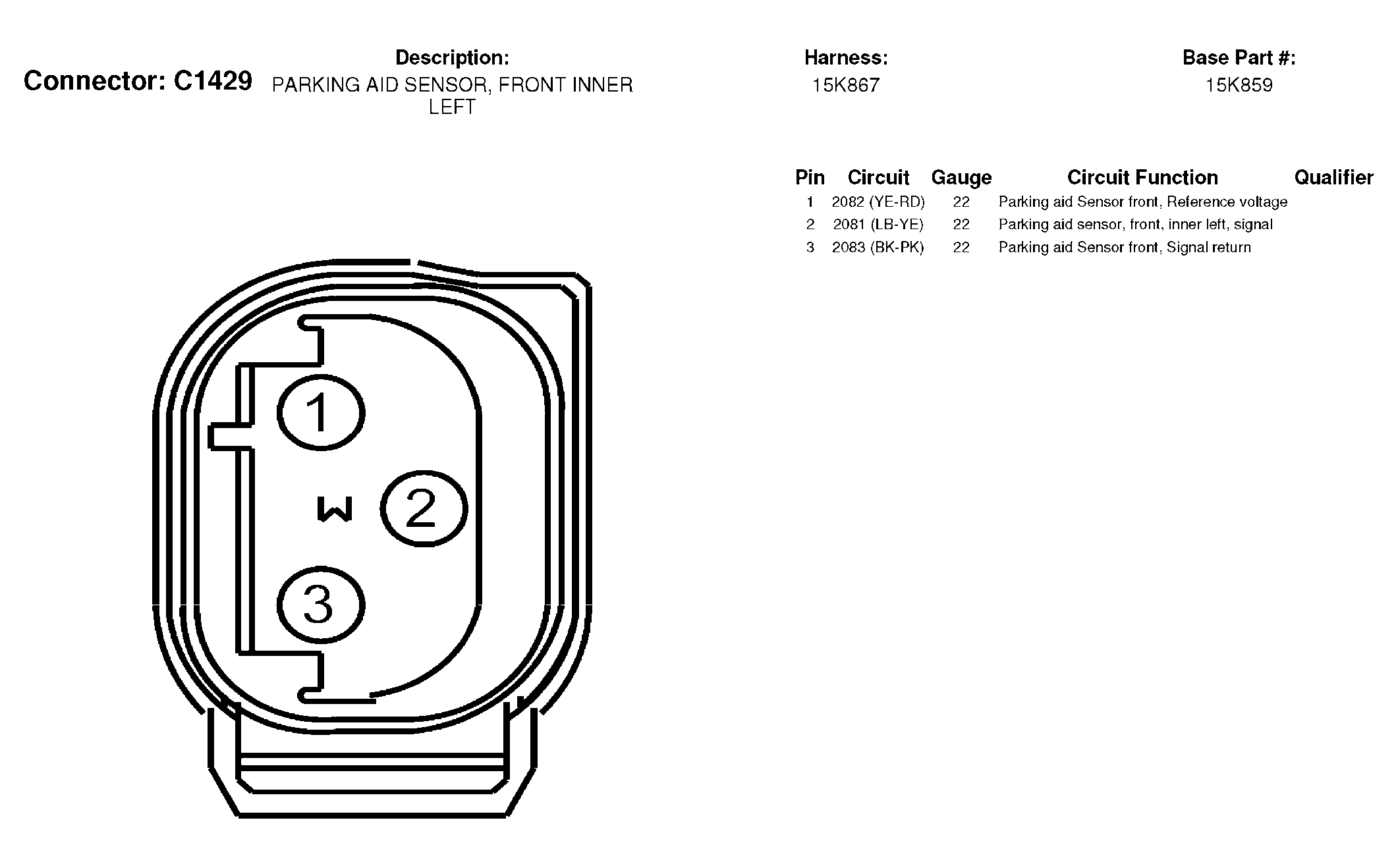

Fig 234: Parking Aid Sensor, Front Inner Left Connector End View (C1429)
Courtesy of FORD MOTOR CO.

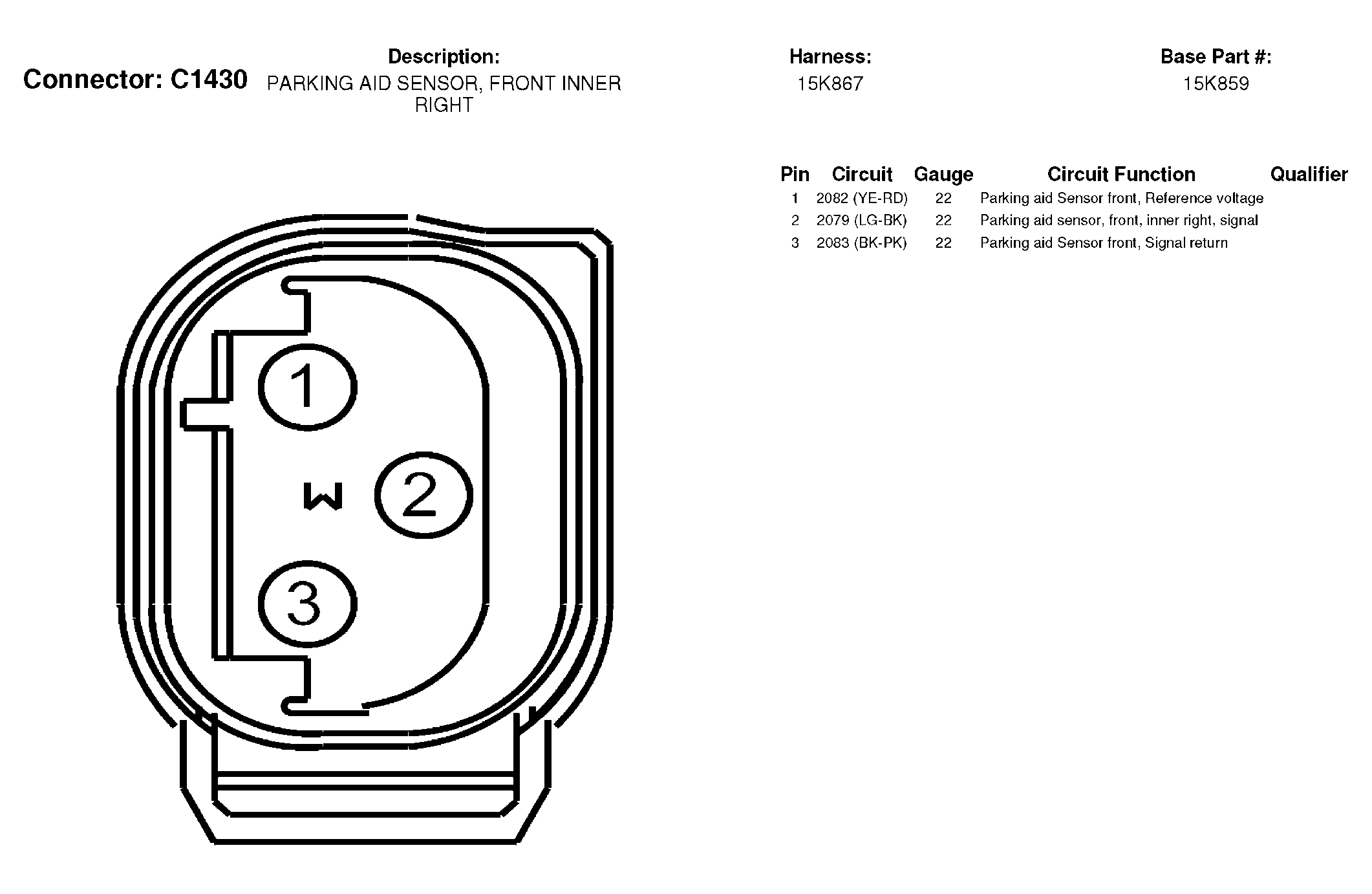

Fig 235: Parking Aid Sensor, Front Inner Right Connector End View (C1430)
Courtesy of FORD MOTOR CO.
Fig 236: Parking Aid Sensor, Front Outer Right Connector End View (C1431)
Courtesy of FORD MOTOR CO.

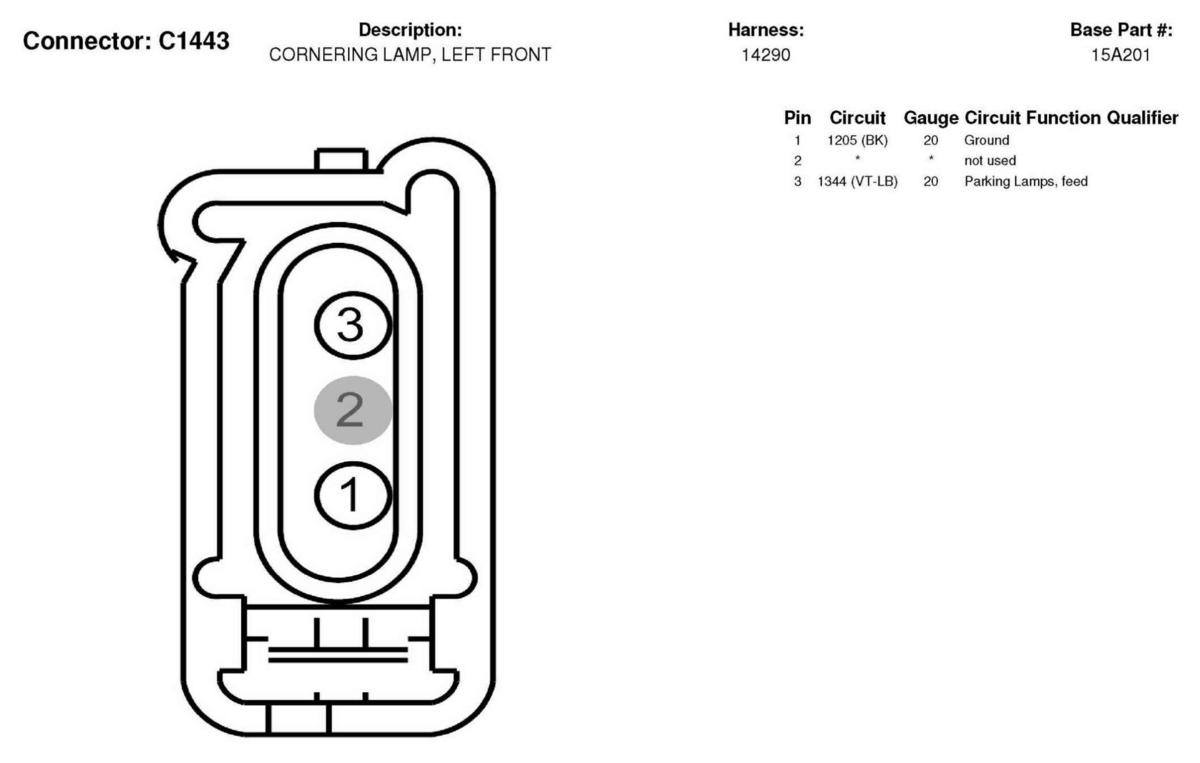

Fig 237: Cornering Lamp, Left Front Connector End View (C1443)
Courtesy of FORD MOTOR CO.

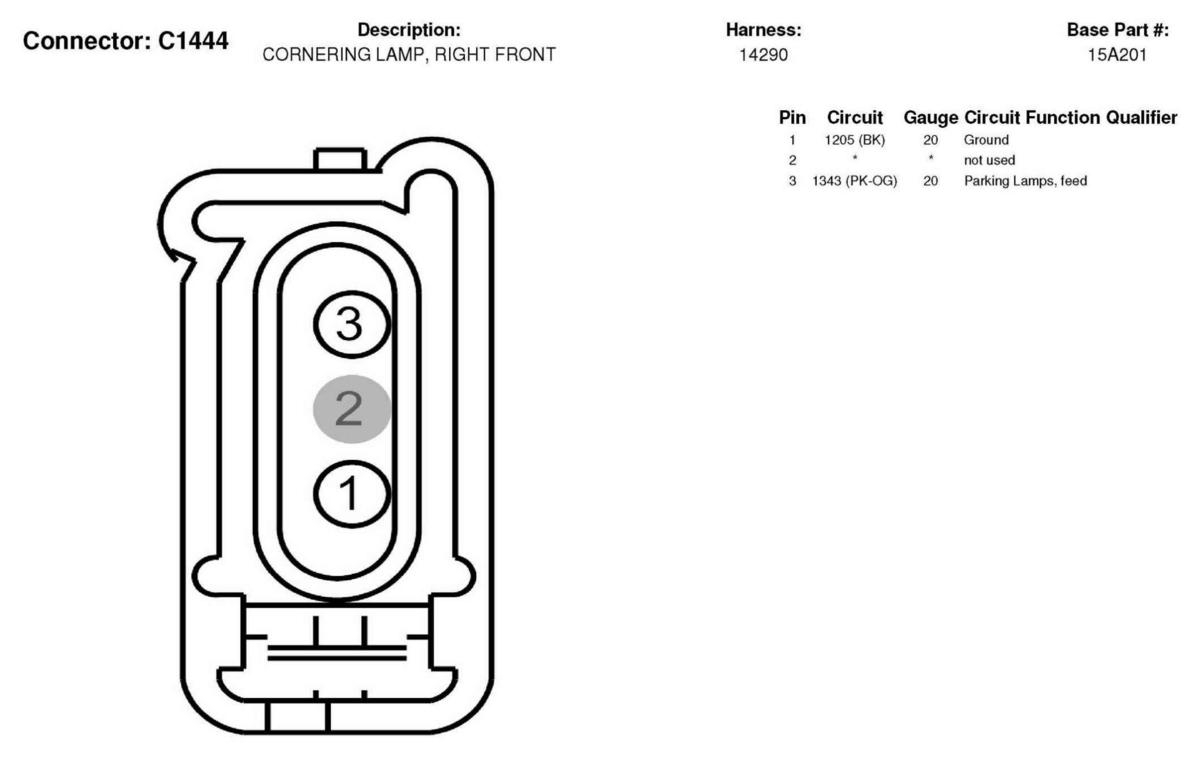

Fig 238: Cornering Lamp, Right Front Connector End View (C1444)
Courtesy of FORD MOTOR CO.

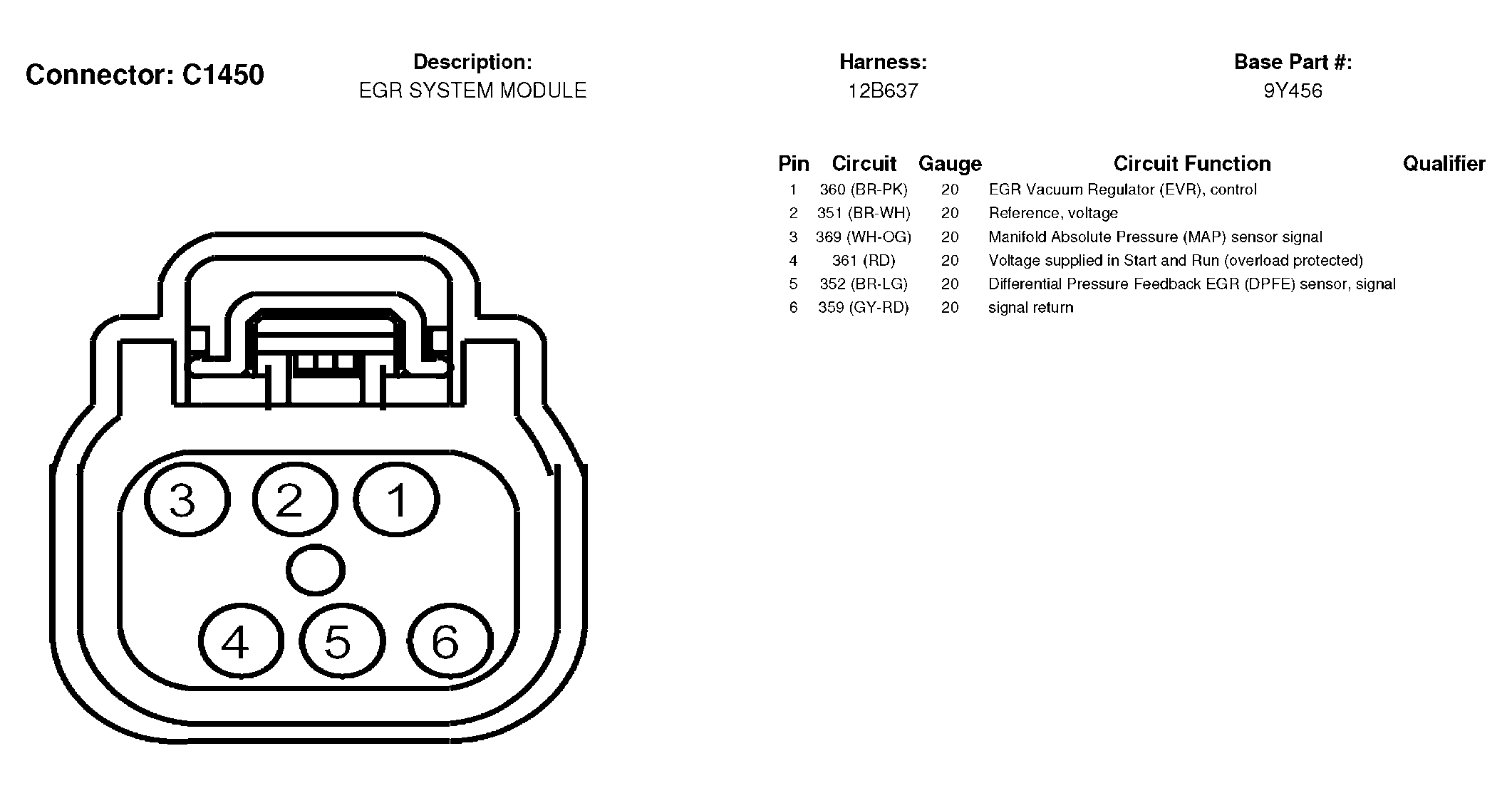

Fig 239: EGR System Module Connector End View (C1450)
Courtesy of FORD MOTOR CO.

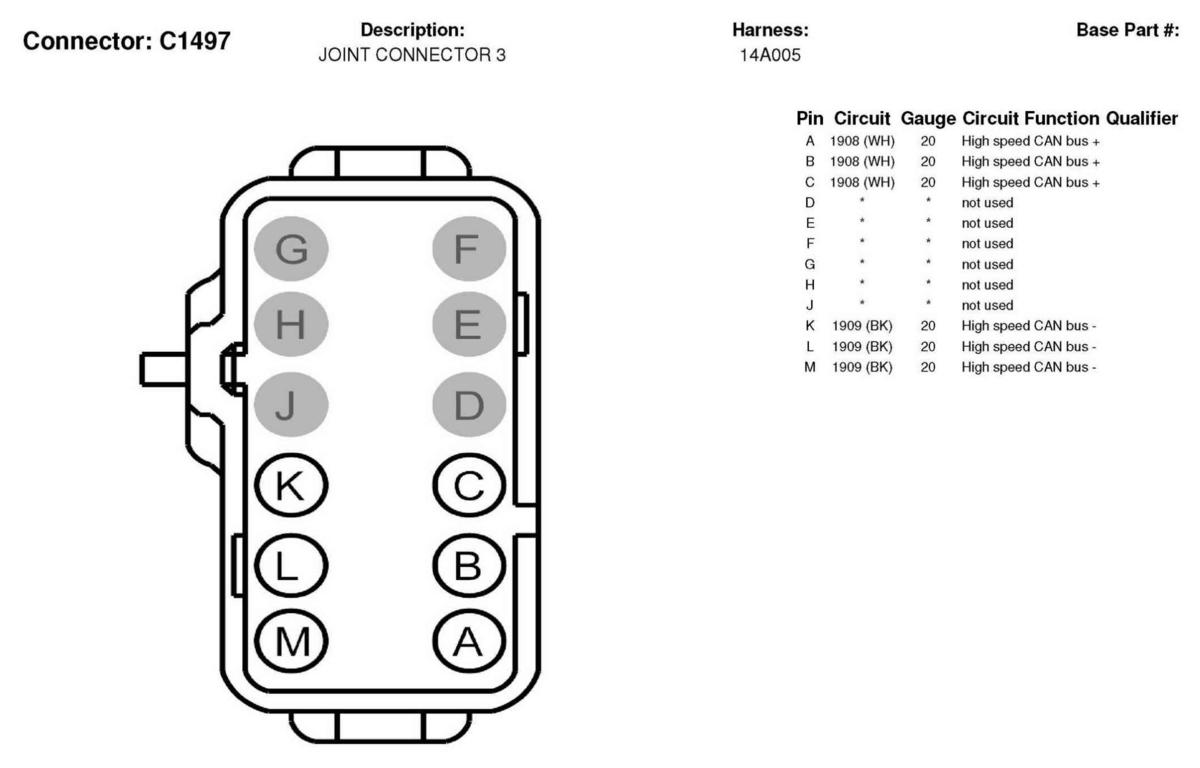

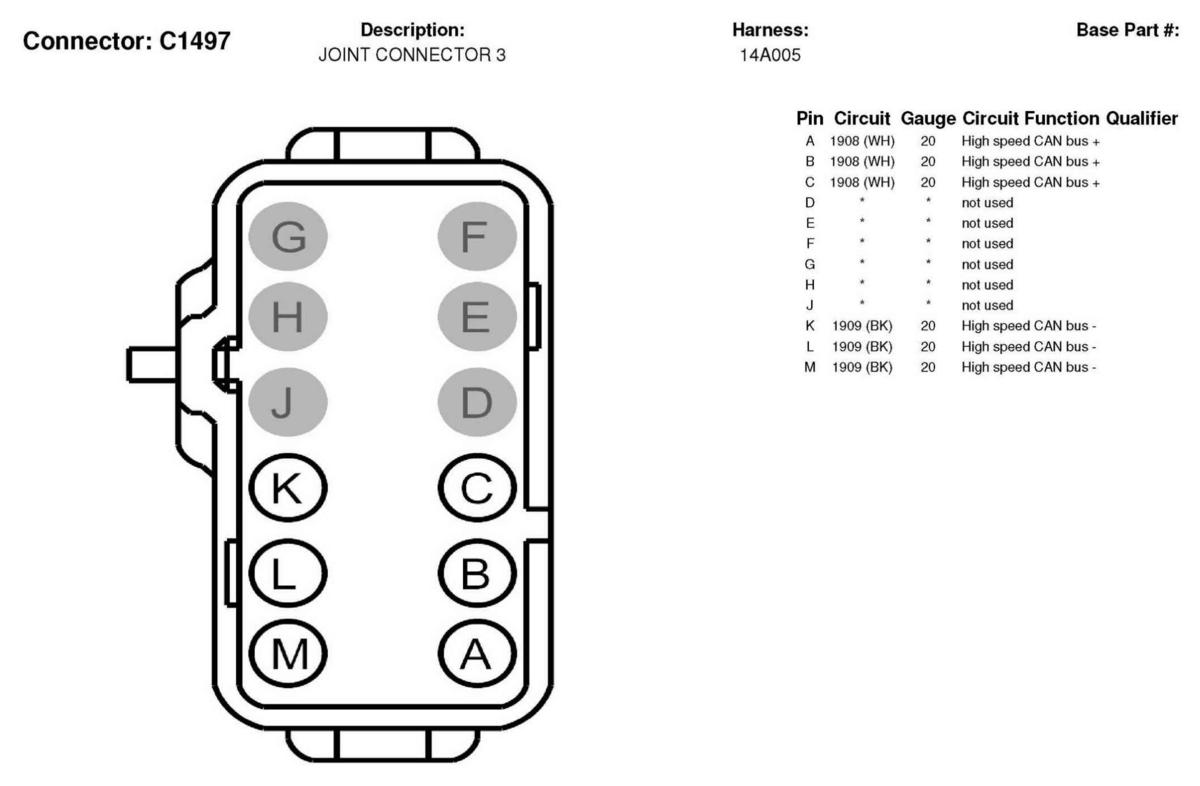

Fig 240: Joint Connector 3 Connector End View (C1497)
Courtesy of FORD MOTOR CO.
Fig 241: Joint Connector 3 Connector End View (C1497)
Courtesy of FORD MOTOR CO.

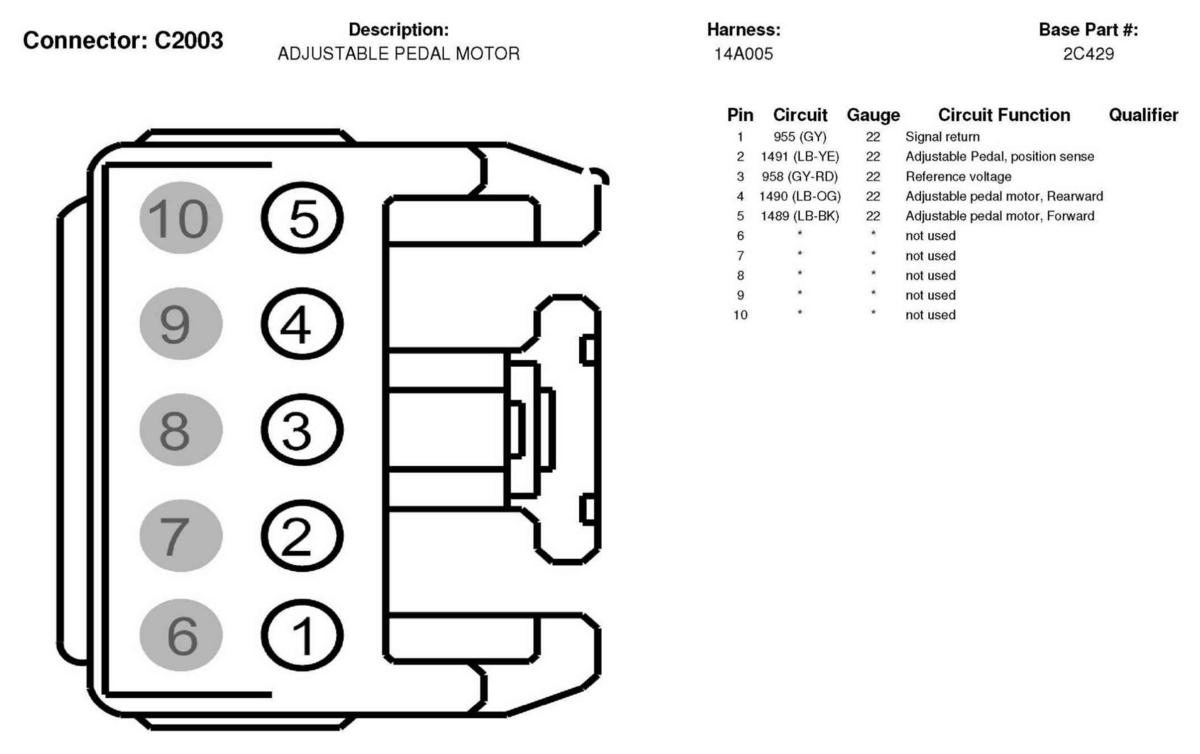

Fig 242: Adjustable Pedal Motor Connector End View (C2003)
Courtesy of FORD MOTOR CO.
Fig 243: Front Blower Motor Connector End View (C2004)
Courtesy of FORD MOTOR CO.

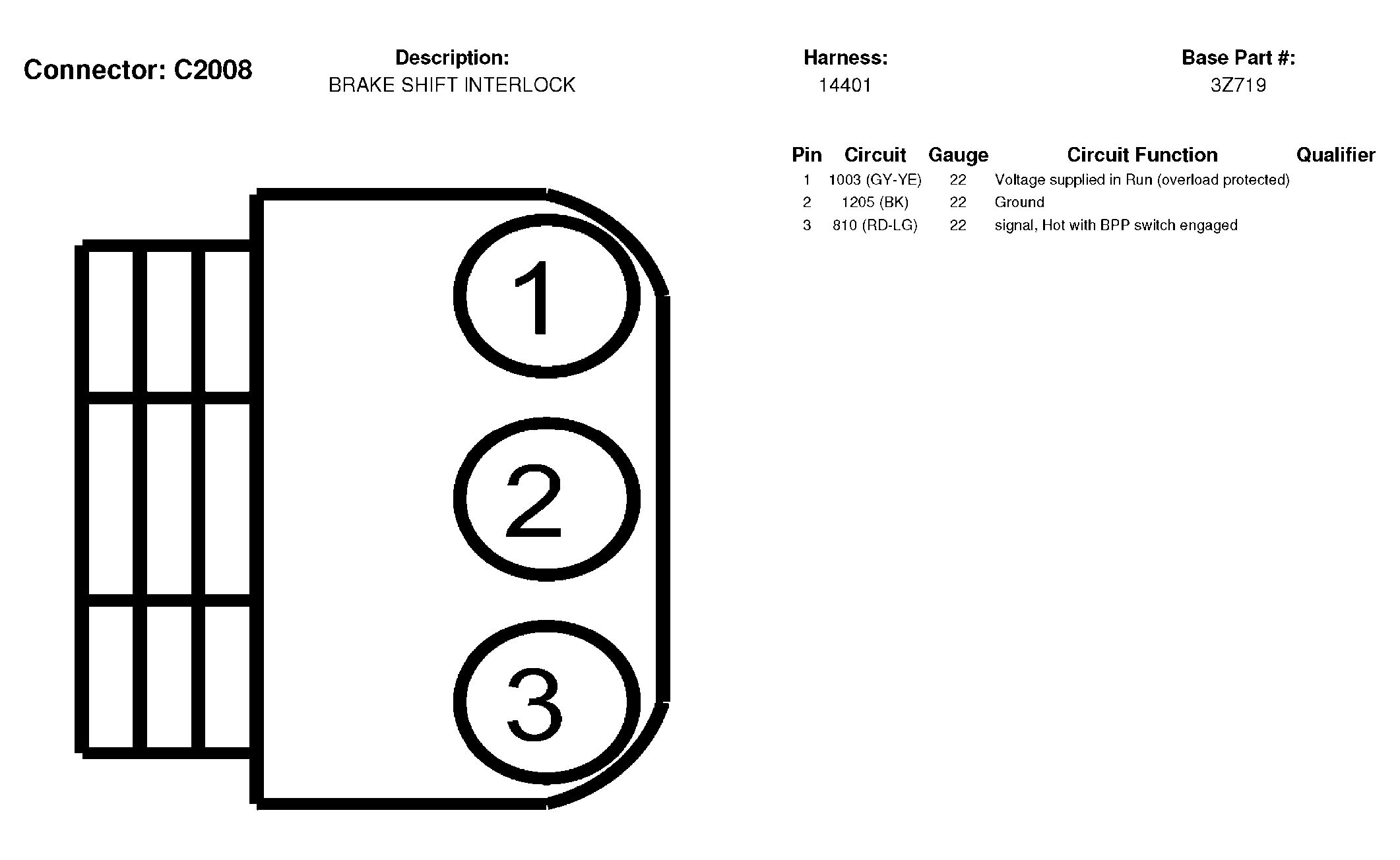

Fig 244: Brake Shift Interlock Connector End View (C2008)
Courtesy of FORD MOTOR CO.

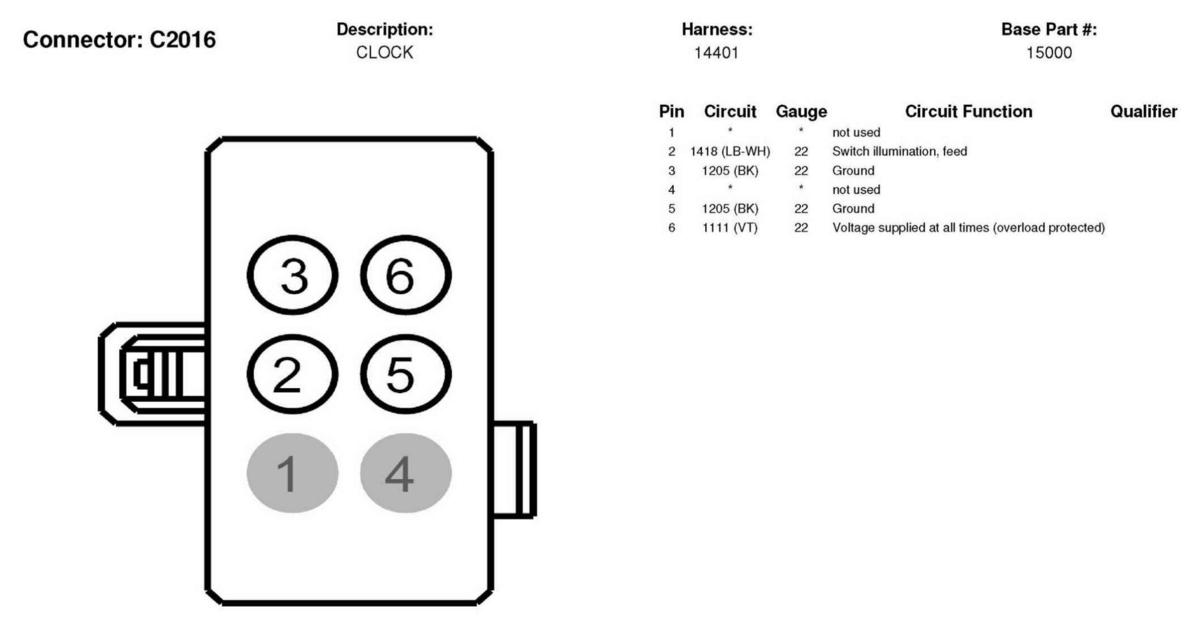

Fig 245: Clock Connector End View (C2016)
Courtesy of FORD MOTOR CO.

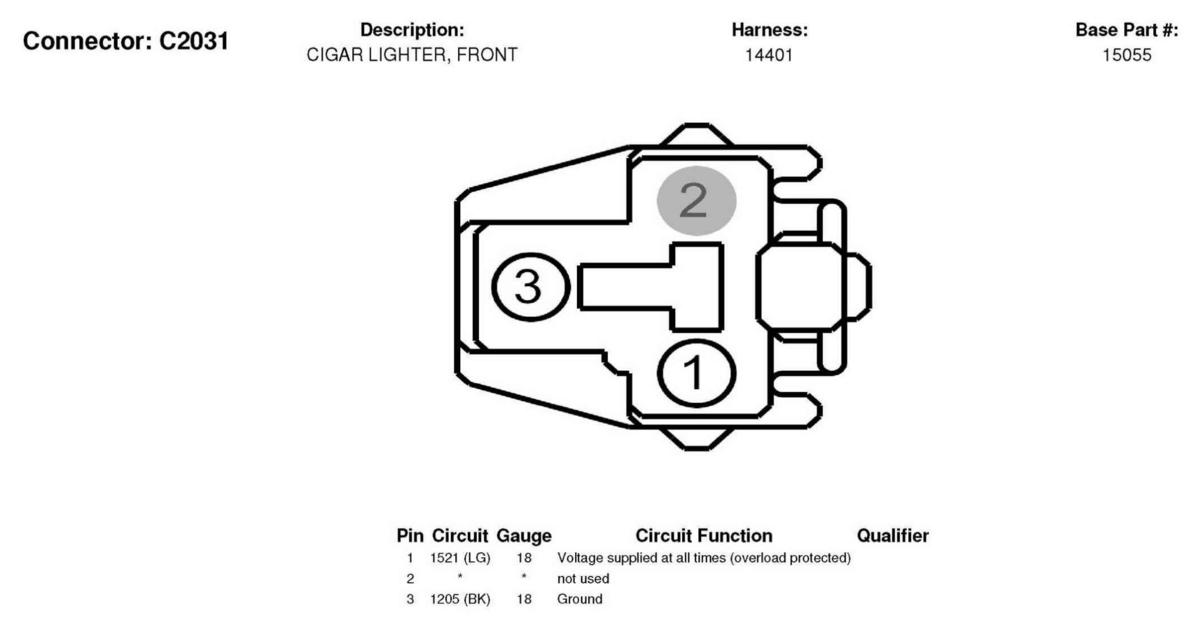

Fig 246: Cigar Lighter, Front Connector End View (C2031)
Courtesy of FORD MOTOR CO.

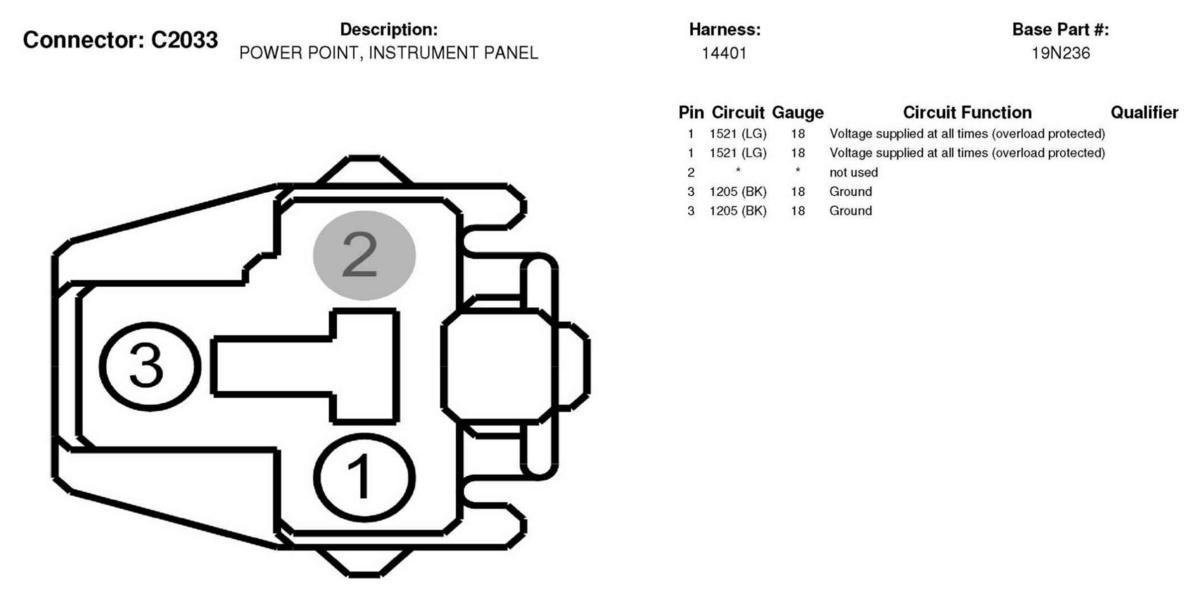

Fig 247: Power Point, Instrument Panel Connector End View (C2033)
Courtesy of FORD MOTOR CO.

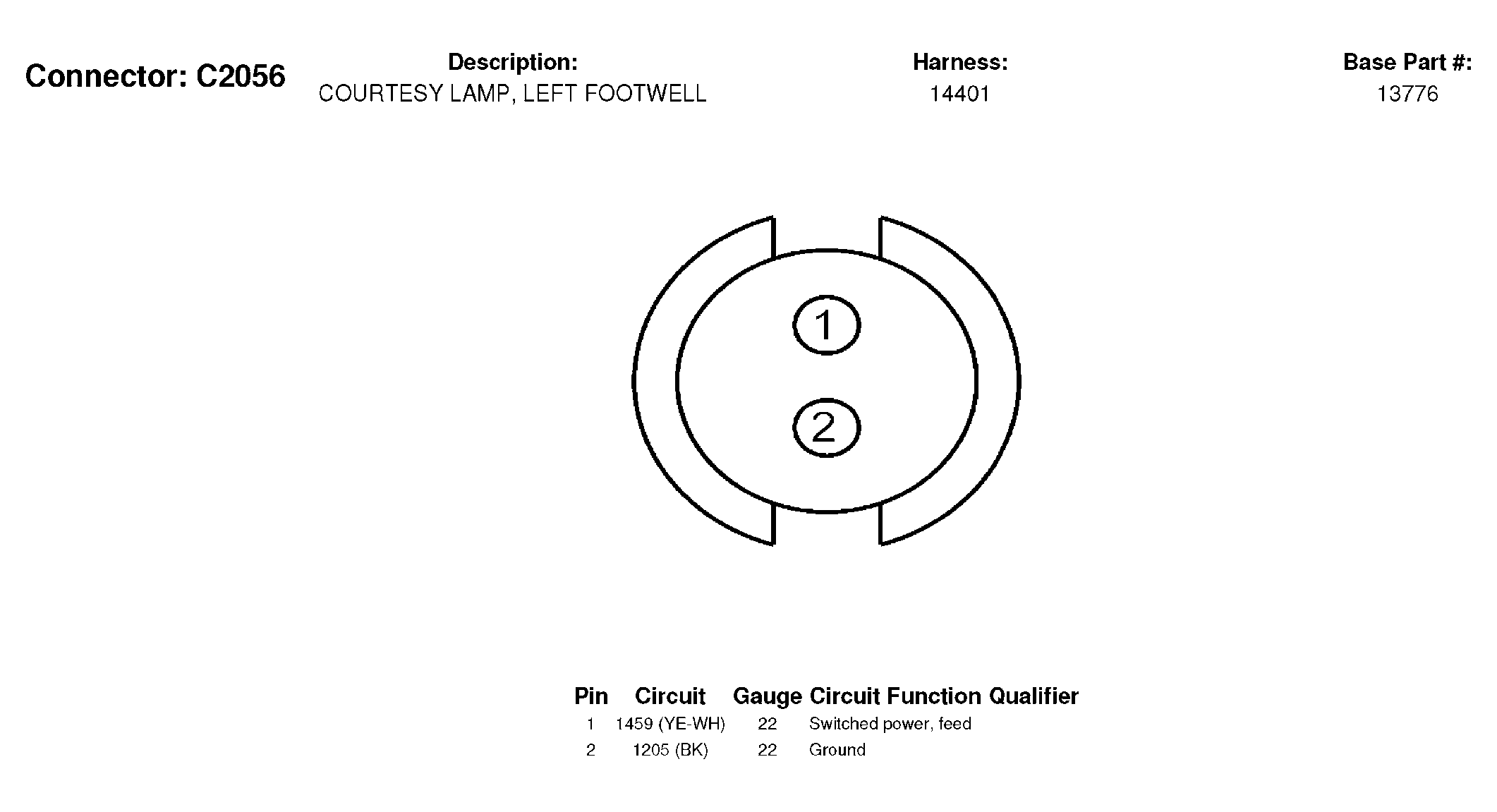

Fig 248: Courtesy Lamp, Left Footwell Connector End View (C2056)
Courtesy of FORD MOTOR CO.
Fig 249: Courtesy Lamp, Right Footwell Connector End View (C2057)
Courtesy of FORD MOTOR CO.

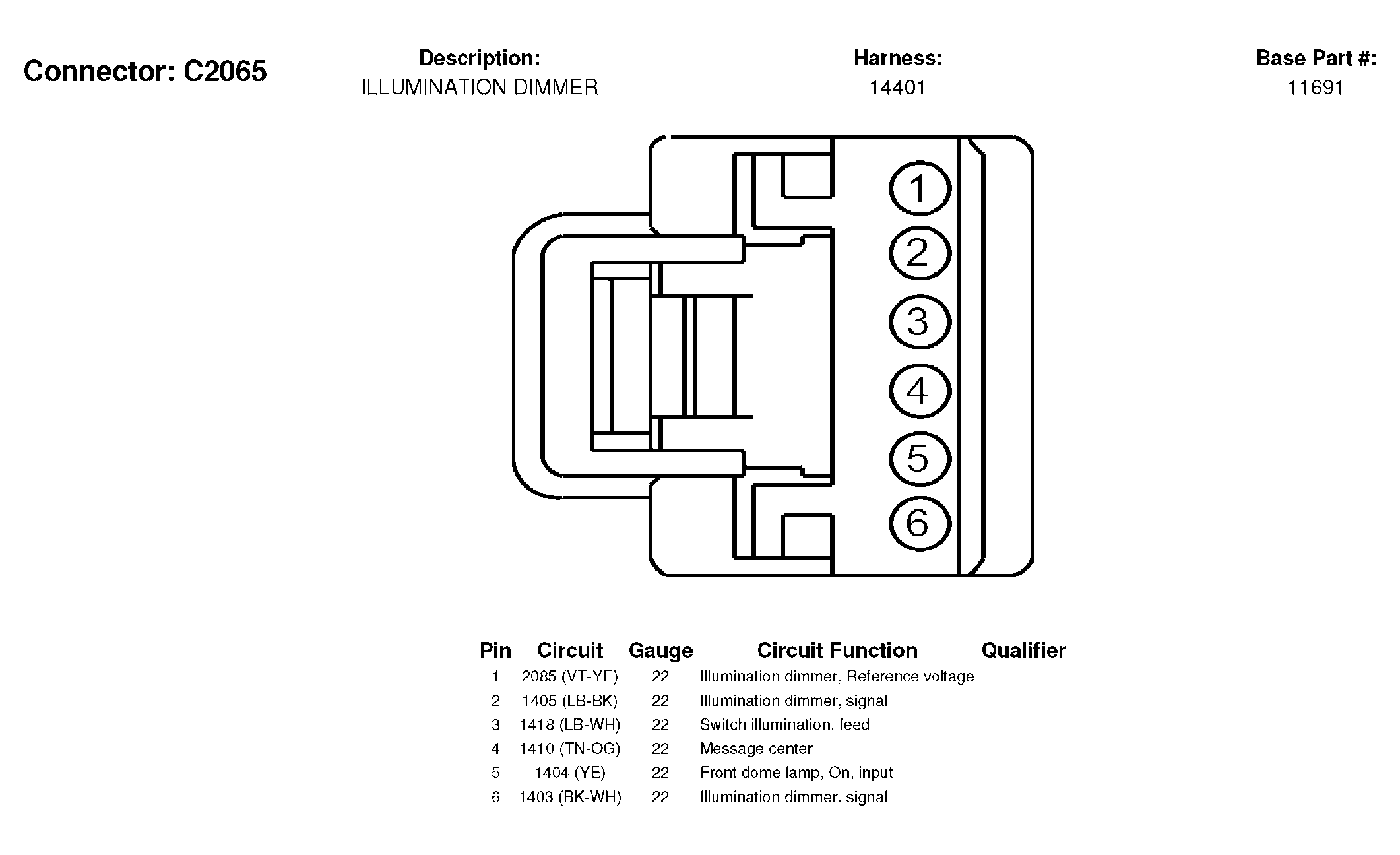

Fig 250: Illumination Dimmer Connector End View (C2065)
Courtesy of FORD MOTOR CO.

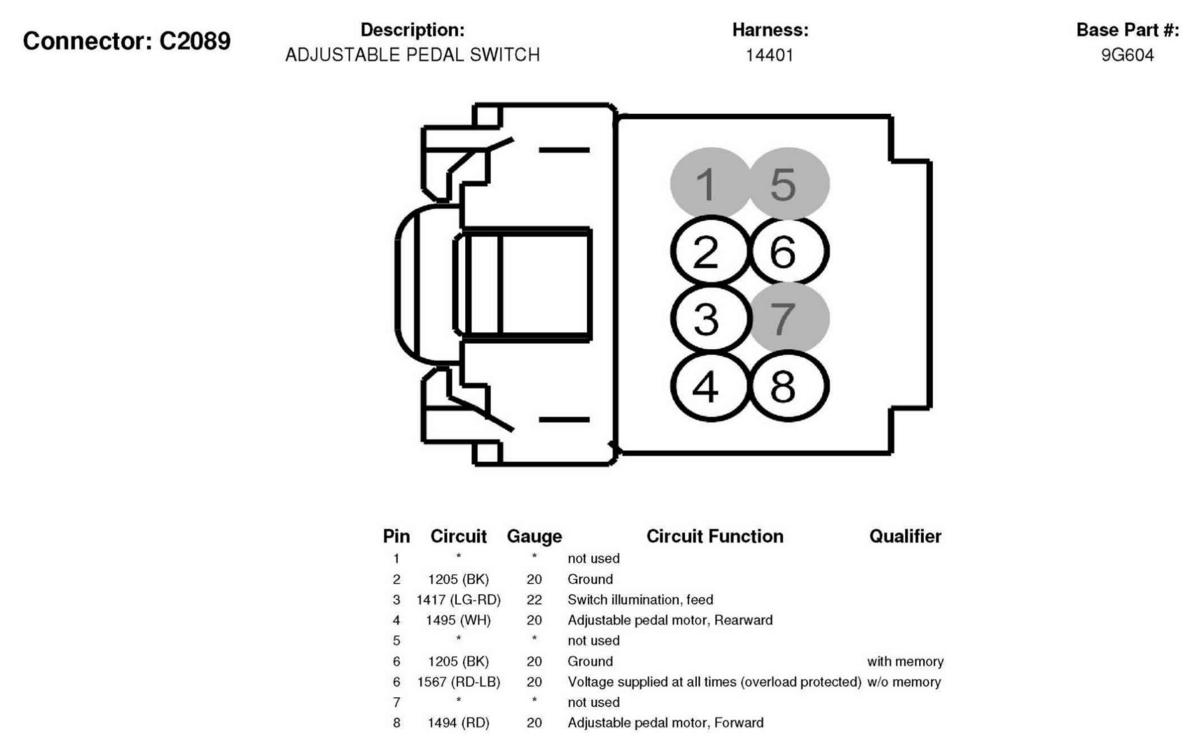

Fig 251: Adjustable Pedal Switch Connector End View (C2089)
Courtesy of FORD MOTOR CO.

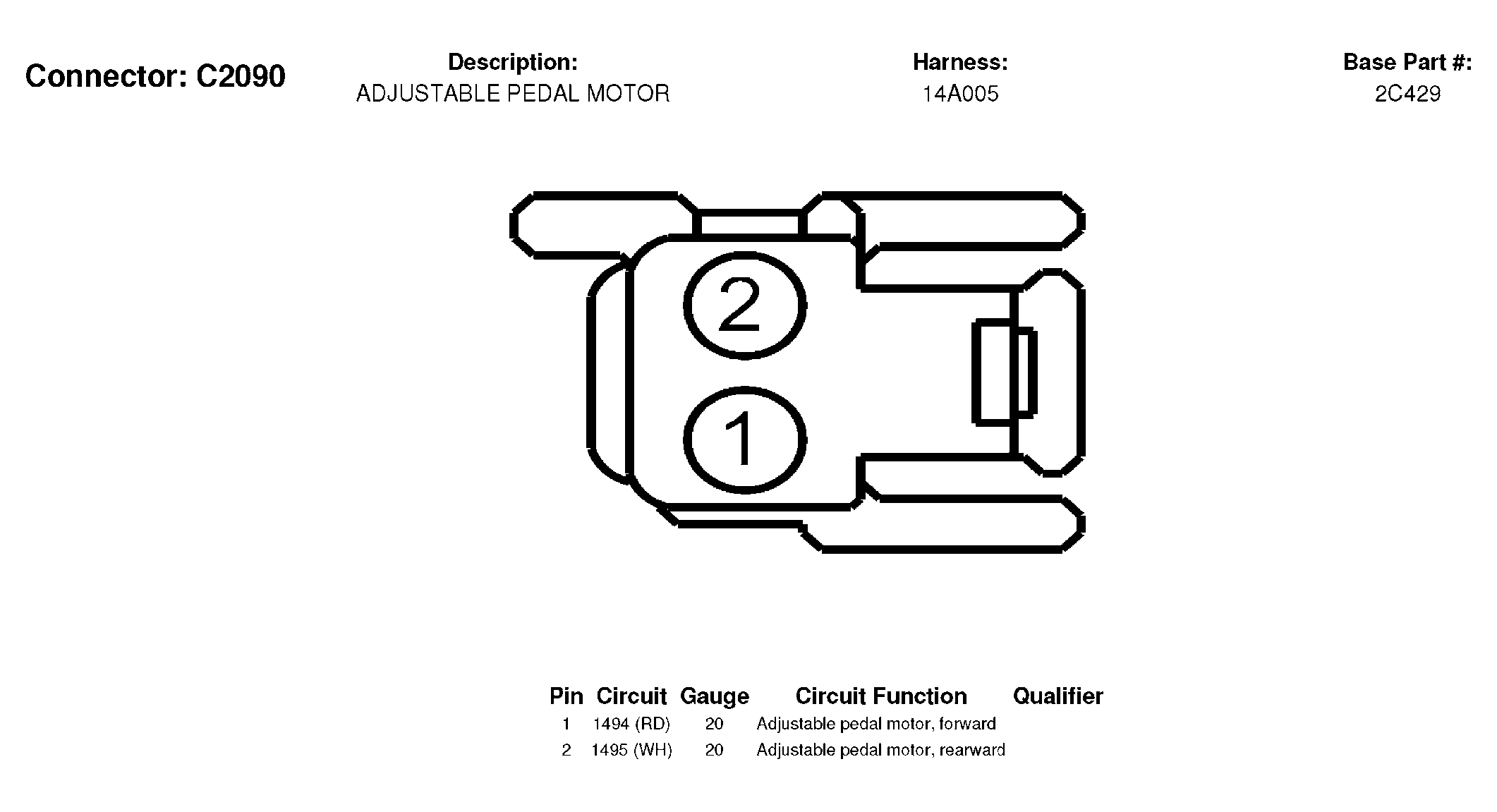

Fig 252: Adjustable Pedal Motor Connector End View (C2090)
Courtesy of FORD MOTOR CO.
Fig 253: Temperature Blend Door Actuator, Driver Connector End View (C2091)
Courtesy of FORD MOTOR CO.

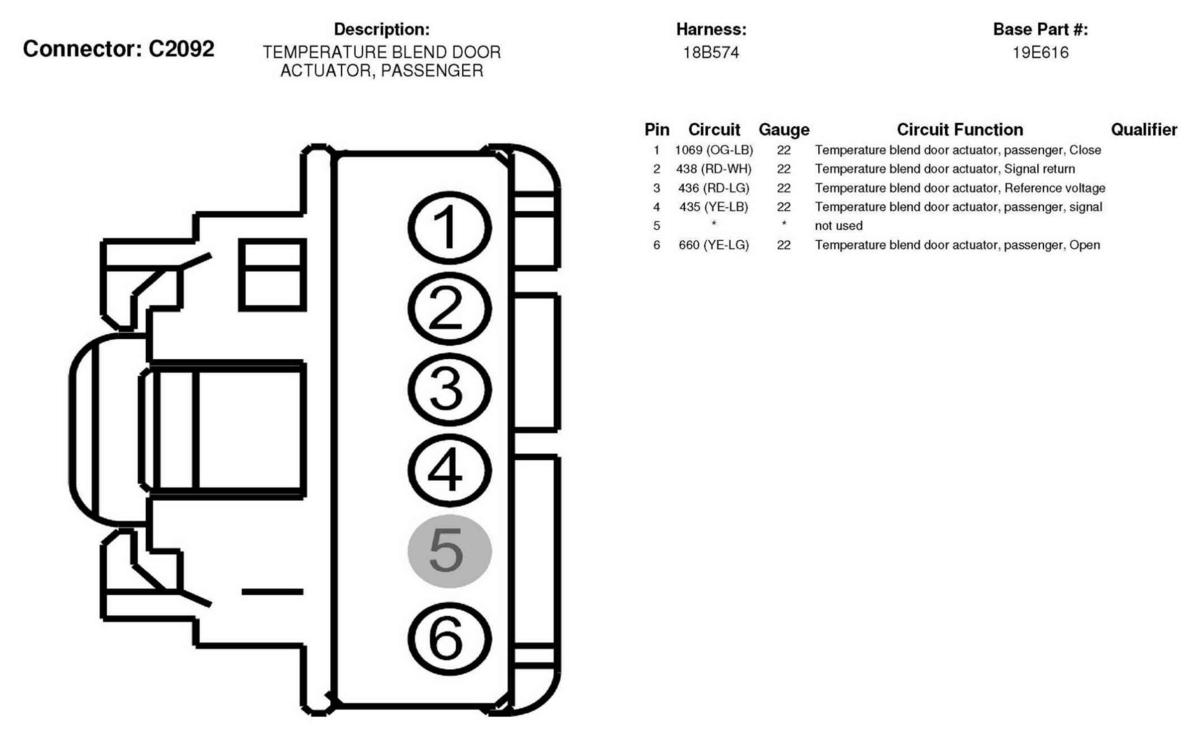

Fig 254: Temperature Blend Door Actuator, Passenger Connector End View (C2092)
Courtesy of FORD MOTOR CO.

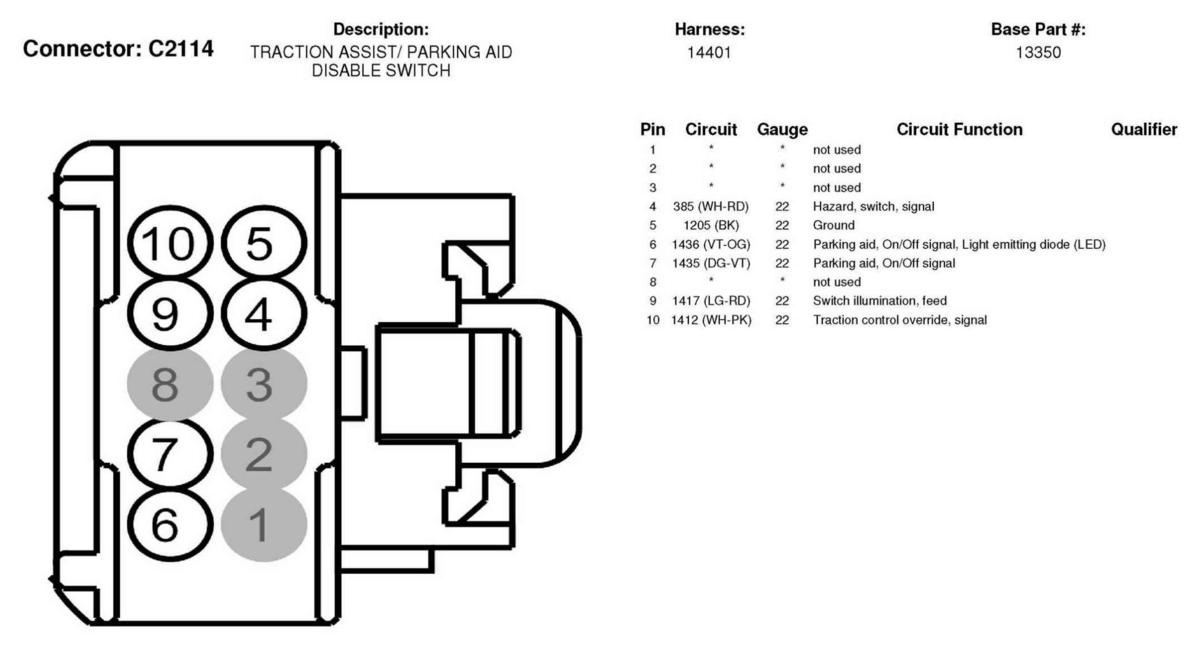

Fig 255: Traction Assist/Parking Aid Disable Switch Connector End View (C2114)
Courtesy of FORD MOTOR CO.

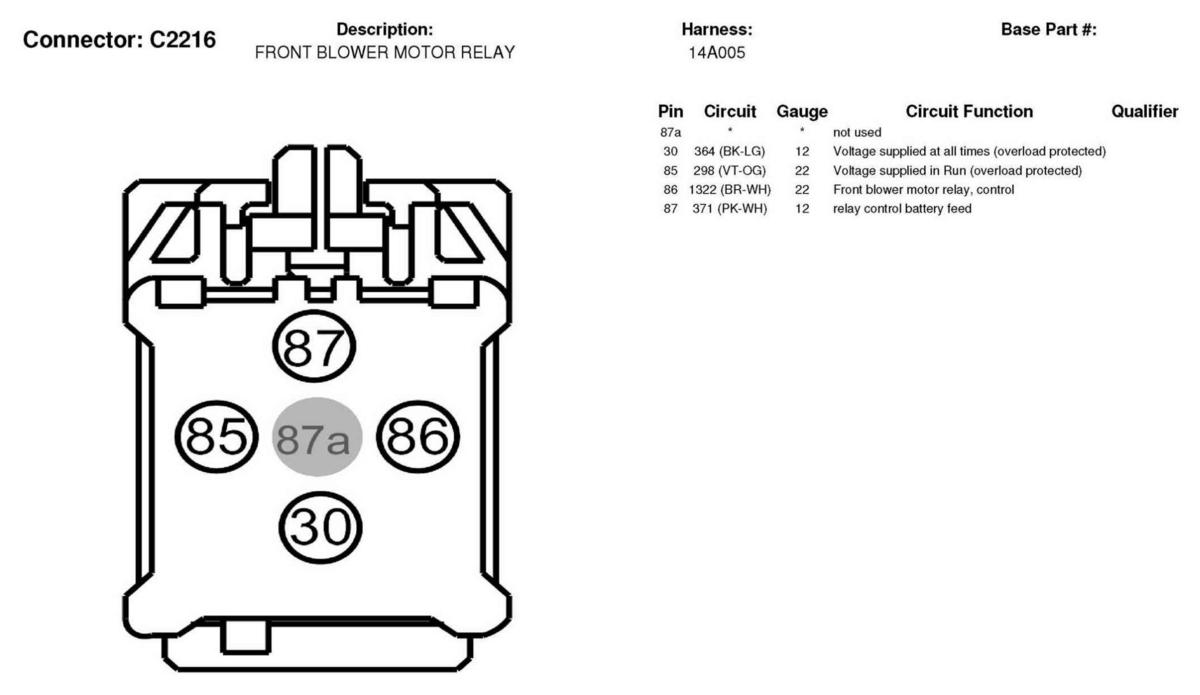

Fig 256: Front Blower Motor Relay Connector End View (C2216)
Courtesy of FORD MOTOR CO.
Fig 257: Parking Aid Speaker, Front Connector End View (C2277)
Courtesy of FORD MOTOR CO.

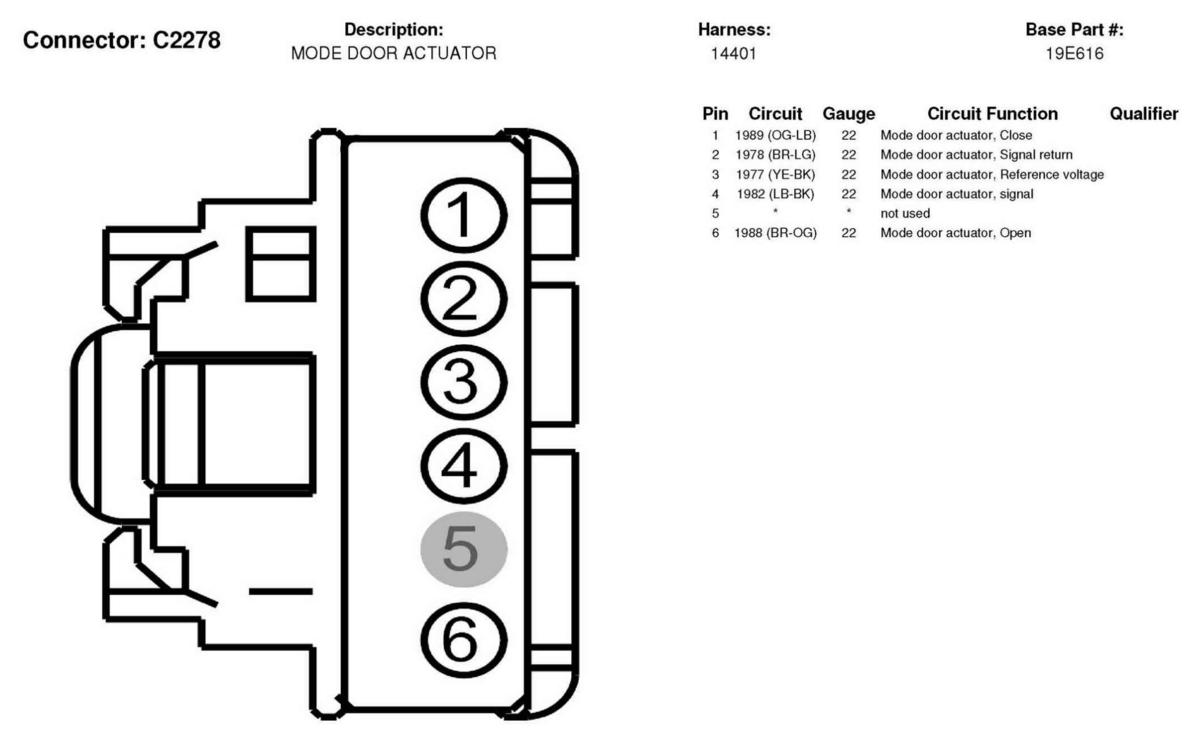

Fig 258: Mode Door Actuator Connector End View (C2278)
Courtesy of FORD MOTOR CO.

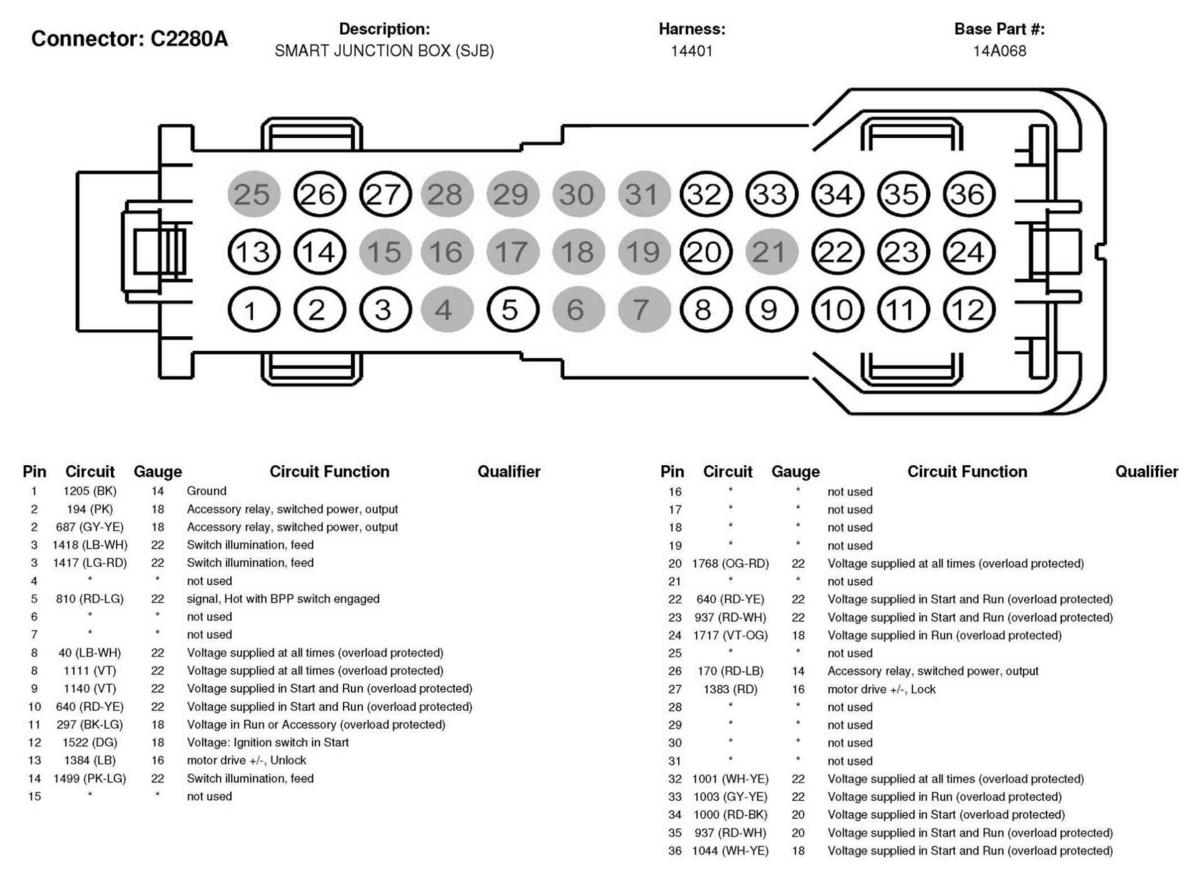

Fig 259: Smart Junction Box (SJB) Connector End View (C2280A)
Courtesy of FORD MOTOR CO.

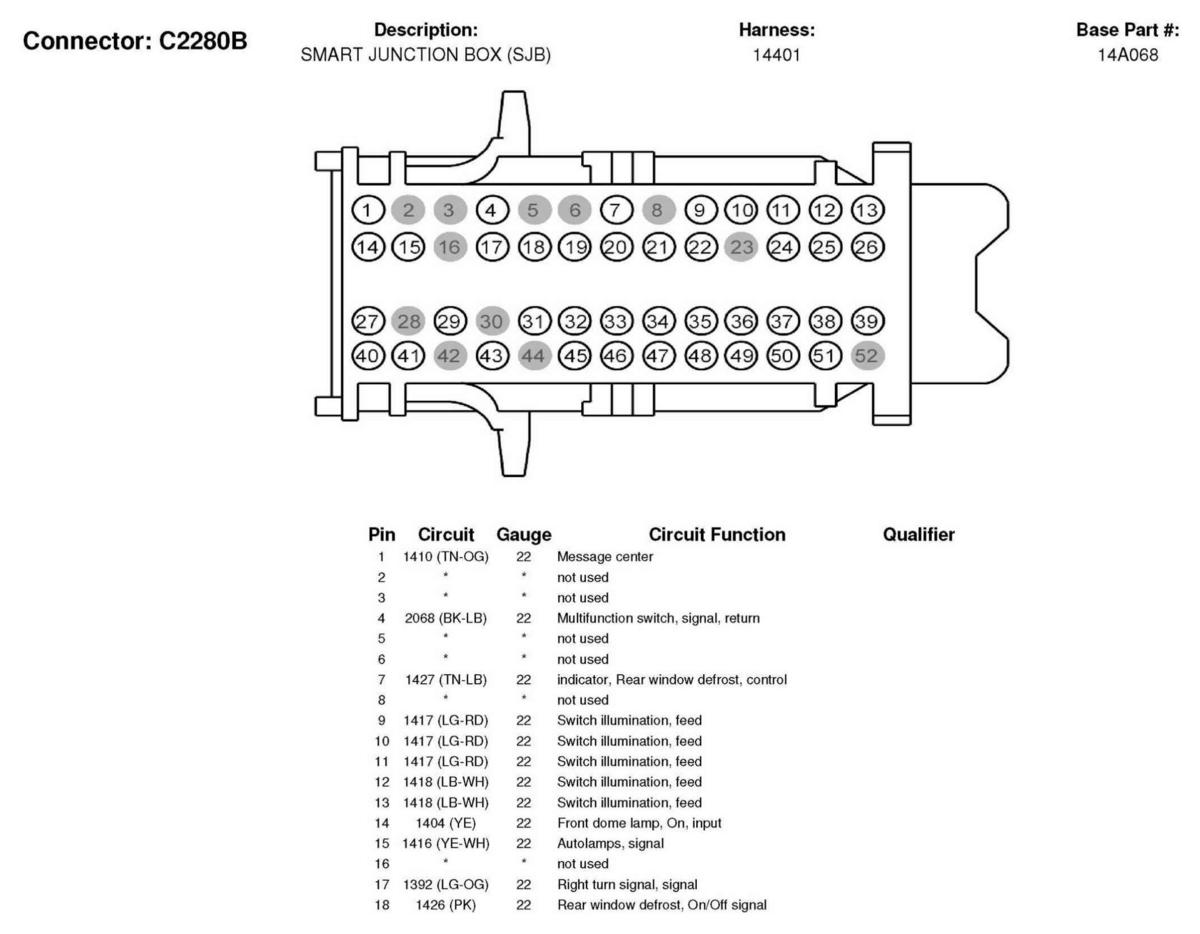

Fig 260: Smart Junction Box (SJB) Connector End View (C2280B) (1 Of 2)
Courtesy of FORD MOTOR CO.

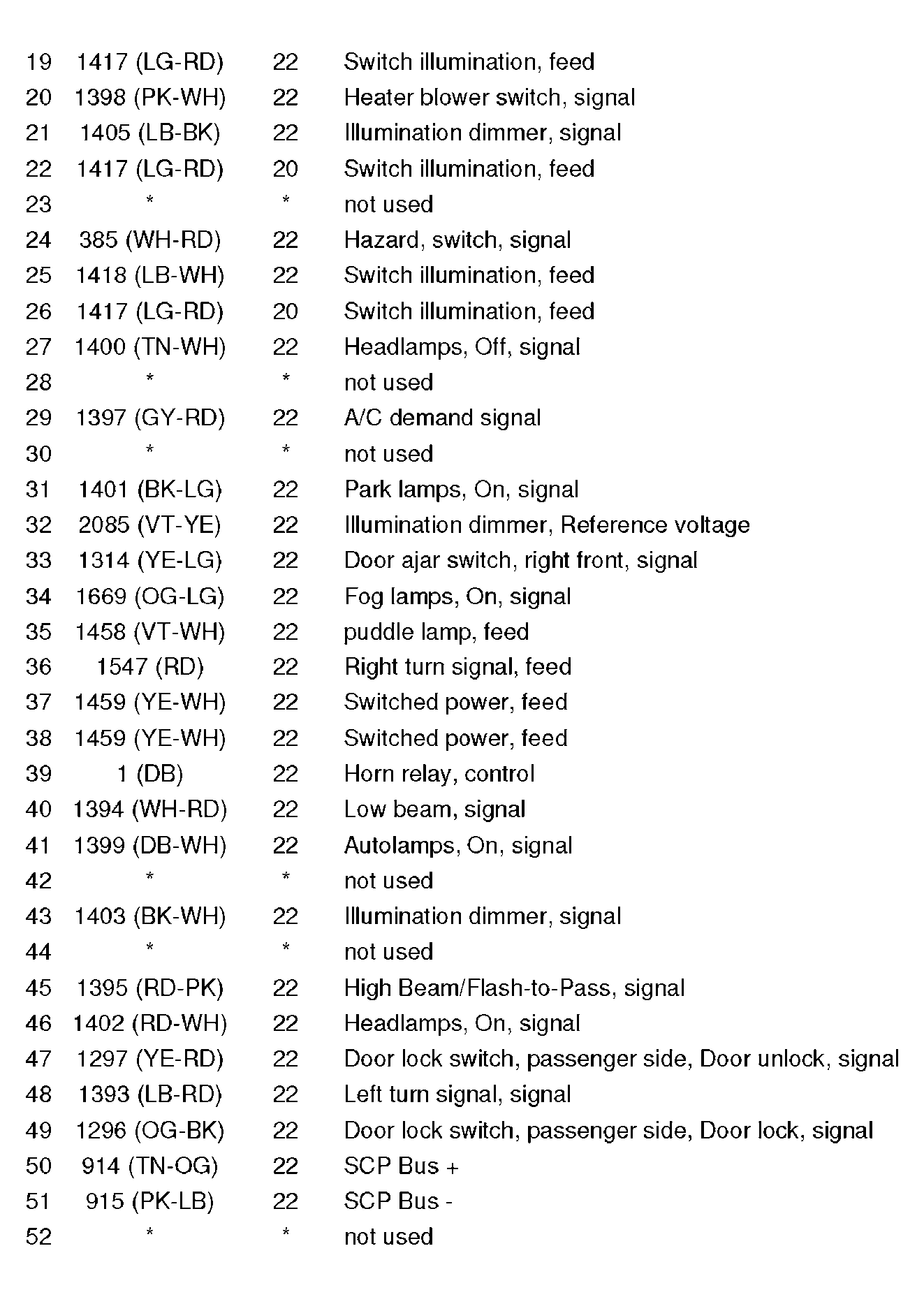

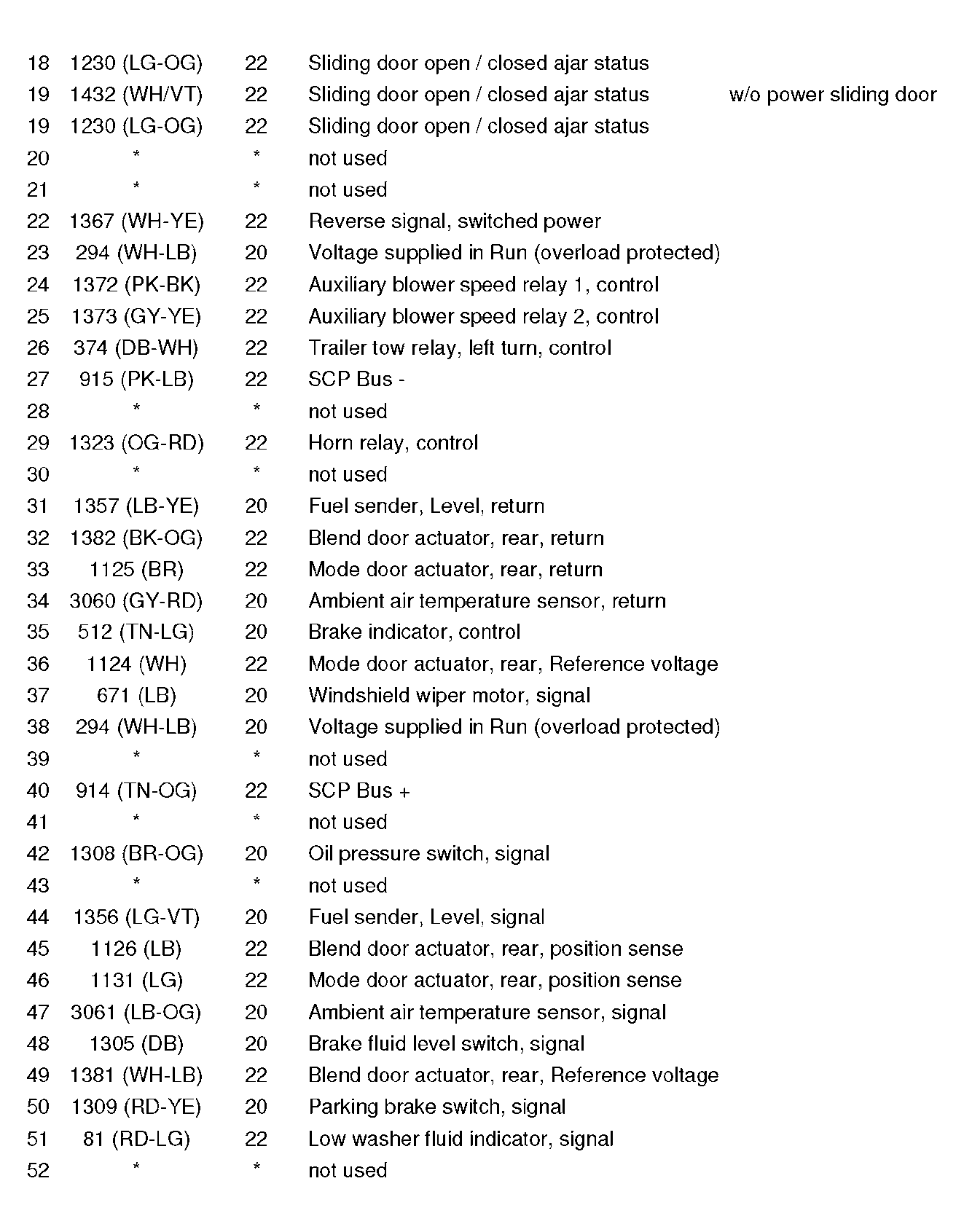

Fig 261: Smart Junction Box (SJB) Connector End View (C2280B) (2 Of 2)
Courtesy of FORD MOTOR CO.

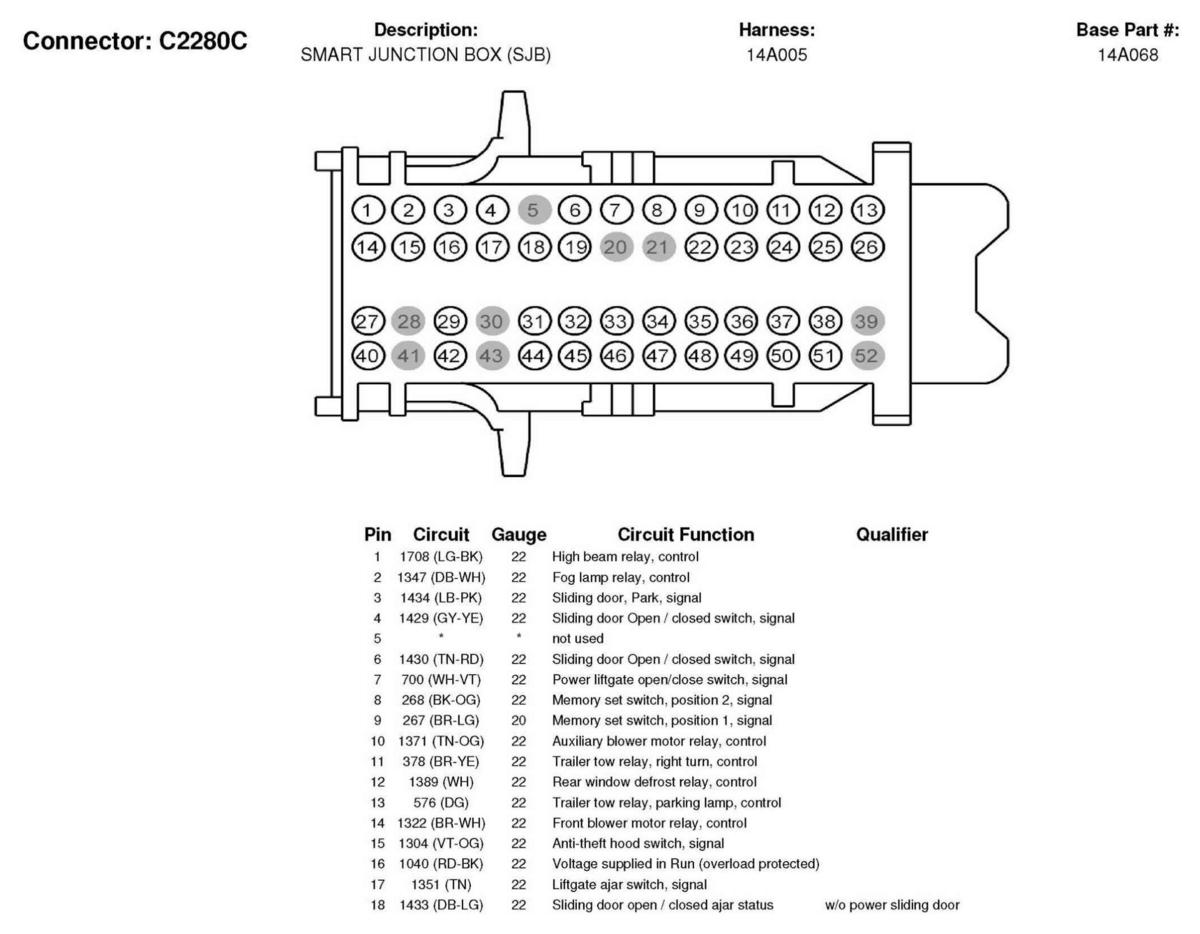

Fig 262: Smart Junction Box (SJB) Connector End View (C2280C) (1 Of 2)
Courtesy of FORD MOTOR CO.

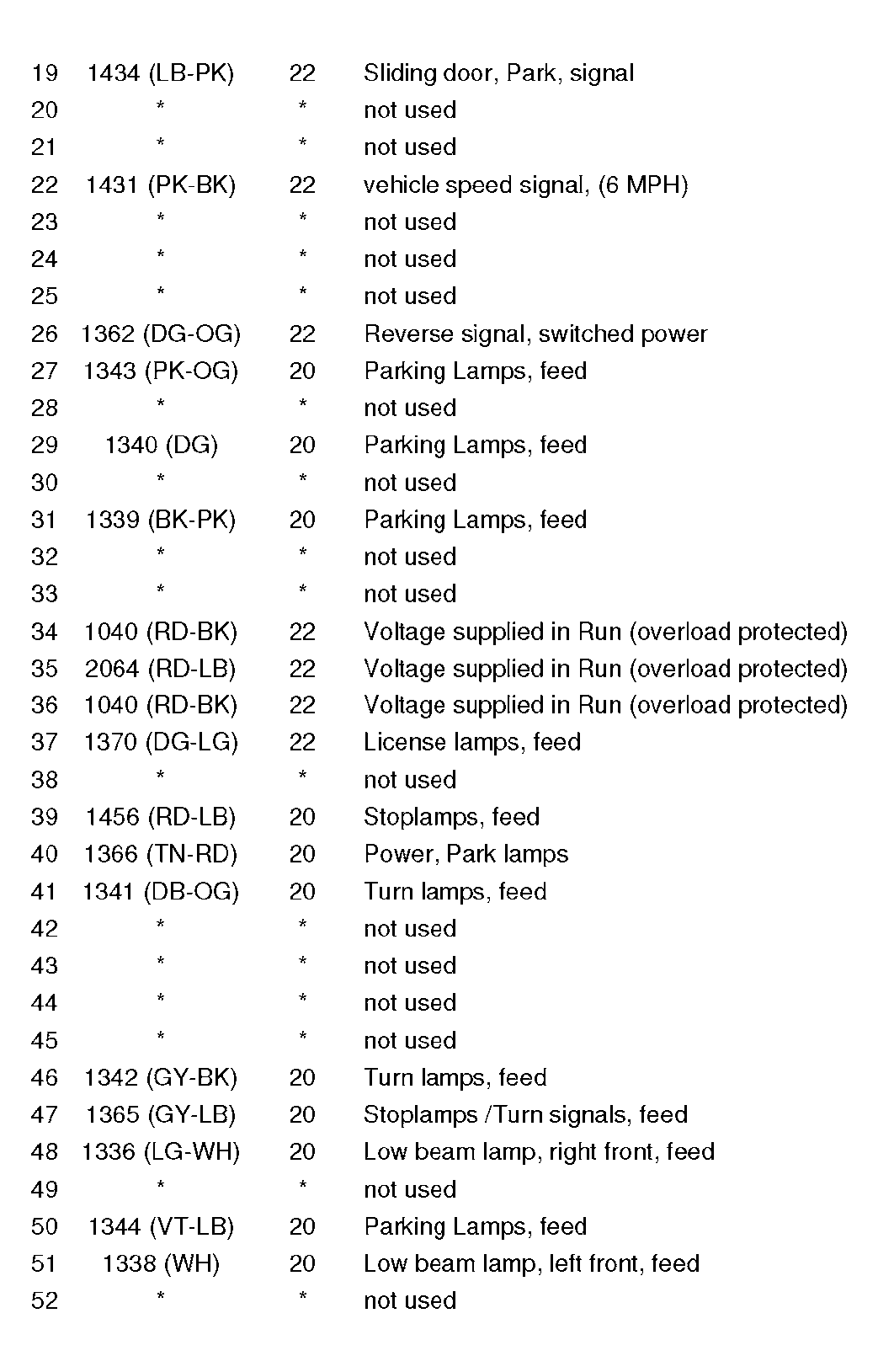

Fig 263: Smart Junction Box (SJB) Connector End View (C2280C) (2 Of 2)
Courtesy of FORD MOTOR CO.

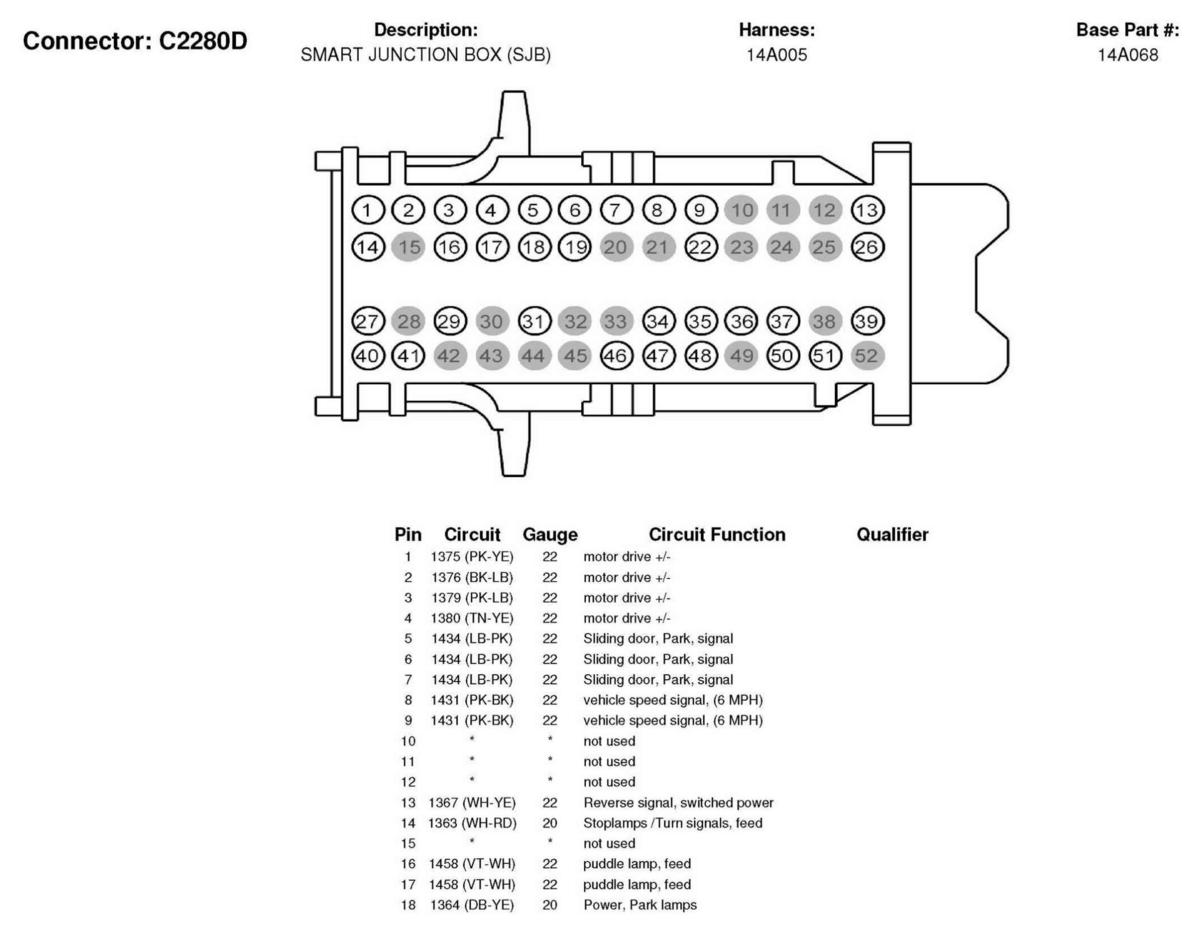

Fig 264: Smart Junction Box (SJB) Connector End View (C2280D) (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 265: Smart Junction Box (SJB) Connector End View (C2280D) (2 Of 2)
Courtesy of FORD MOTOR CO.

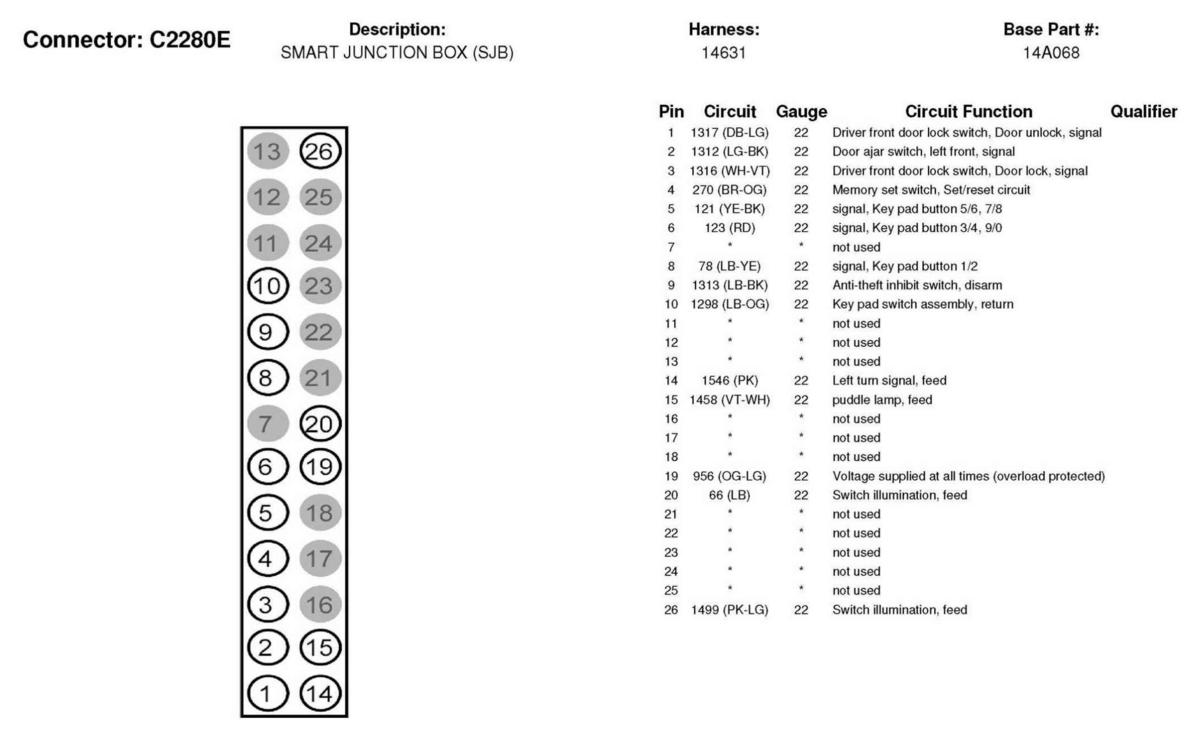

Fig 266: Smart Junction Box (SJB) Connector End View (C2280E)
Courtesy of FORD MOTOR CO.

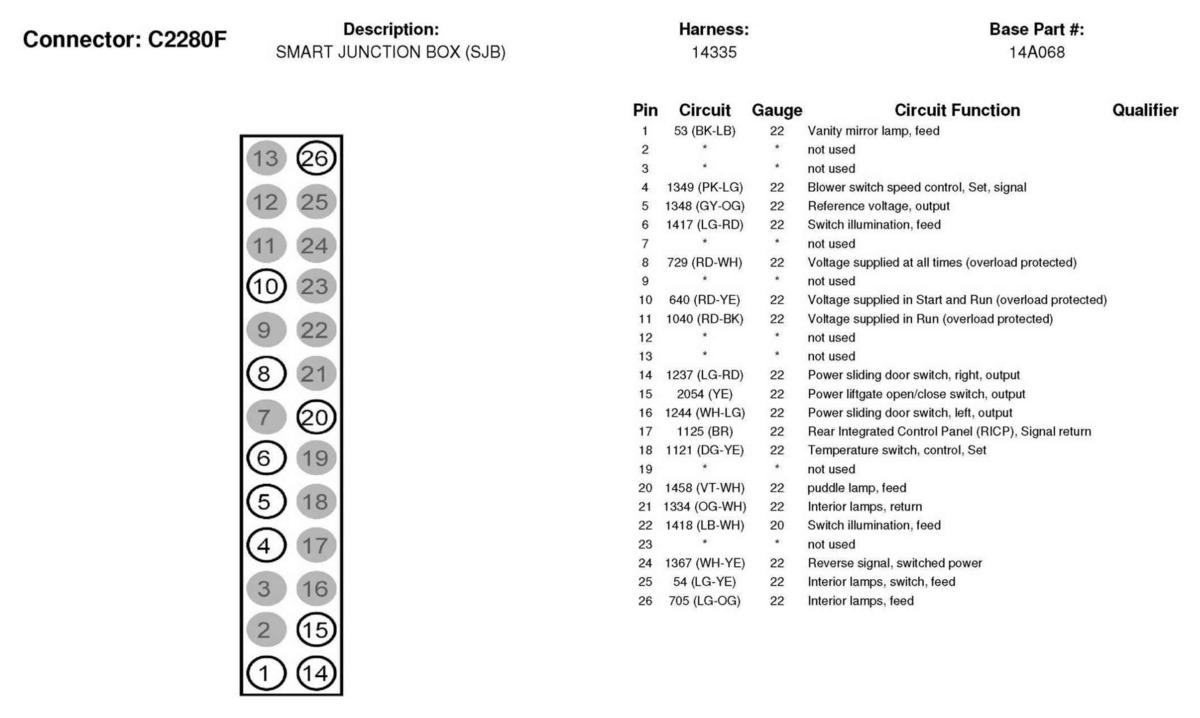

Fig 267: Smart Junction Box (SJB) Connector End View (C2280F)
Courtesy of FORD MOTOR CO.

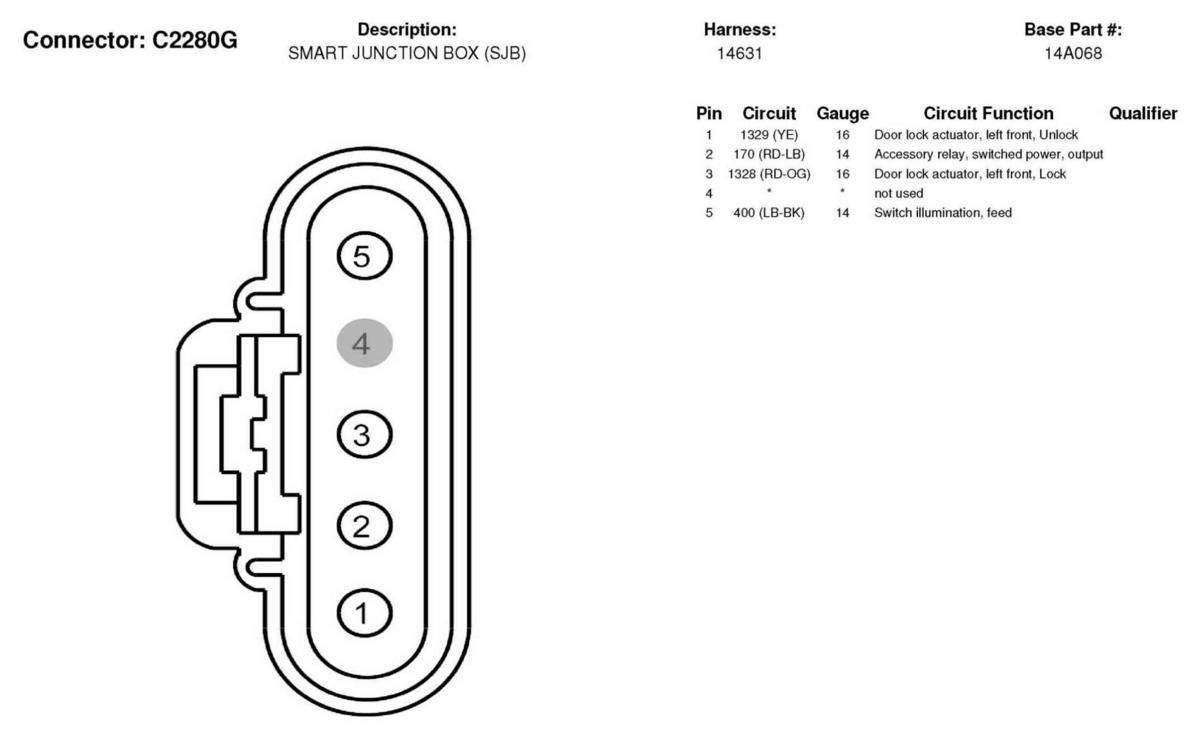

Fig 268: Smart Junction Box (SJB) Connector End View (C2280G)
Courtesy of FORD MOTOR CO.

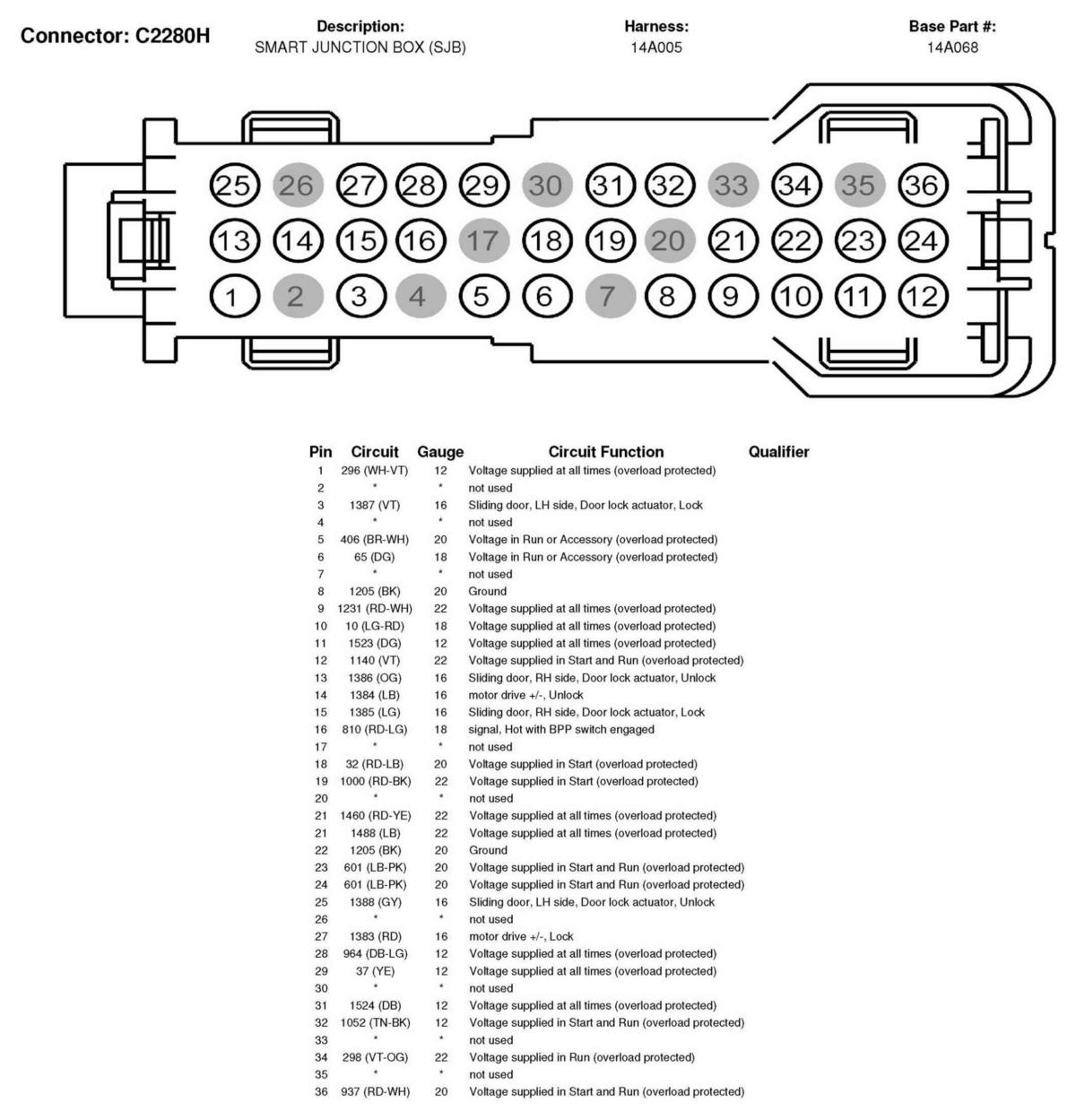

Fig 269: Smart Junction Box (SJB) Connector End View (C2280H)
Courtesy of FORD MOTOR CO.

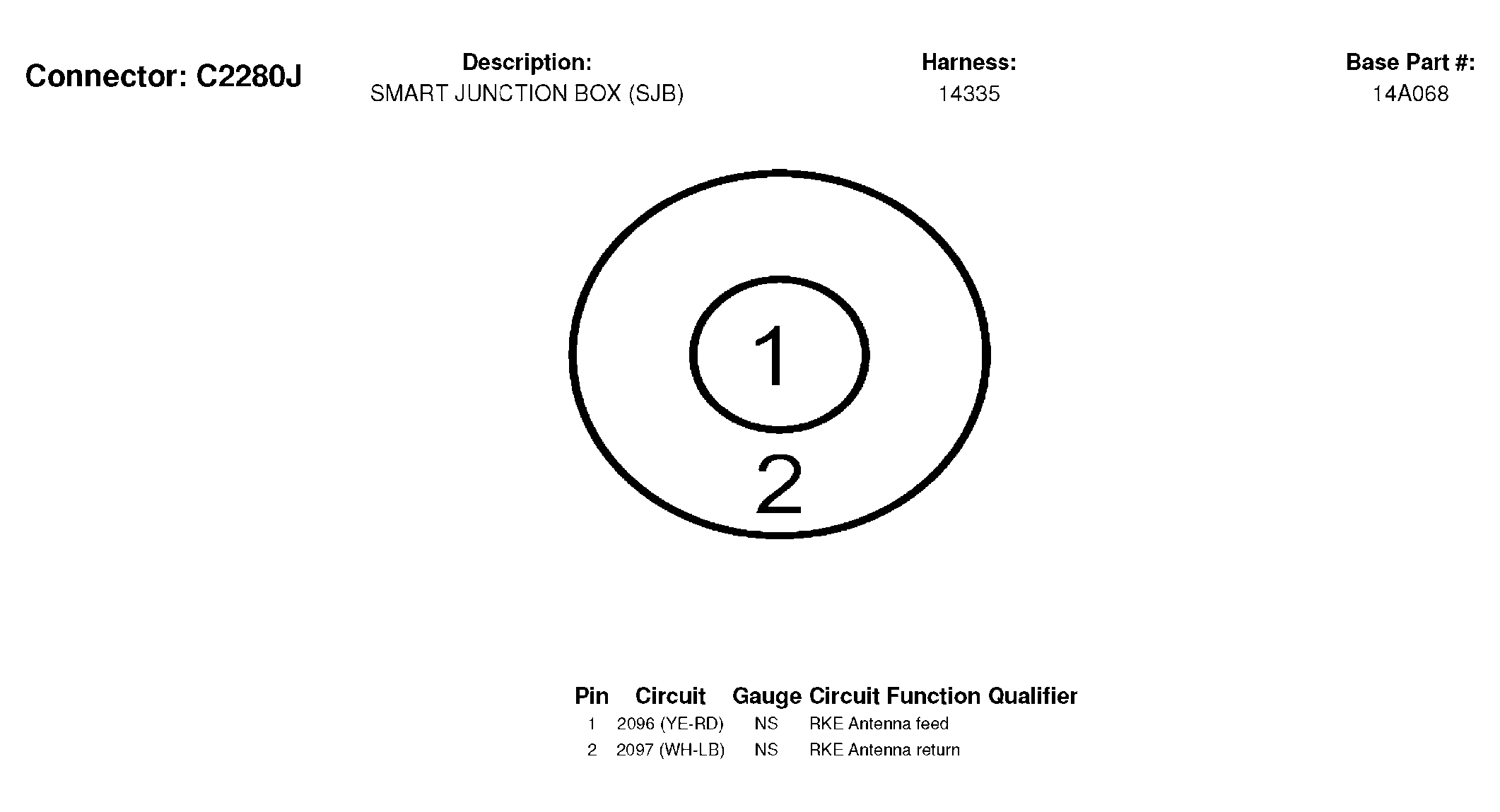

Fig 270: Smart Junction Box (SJB) Connector End View (C2280J)
Courtesy of FORD MOTOR CO.

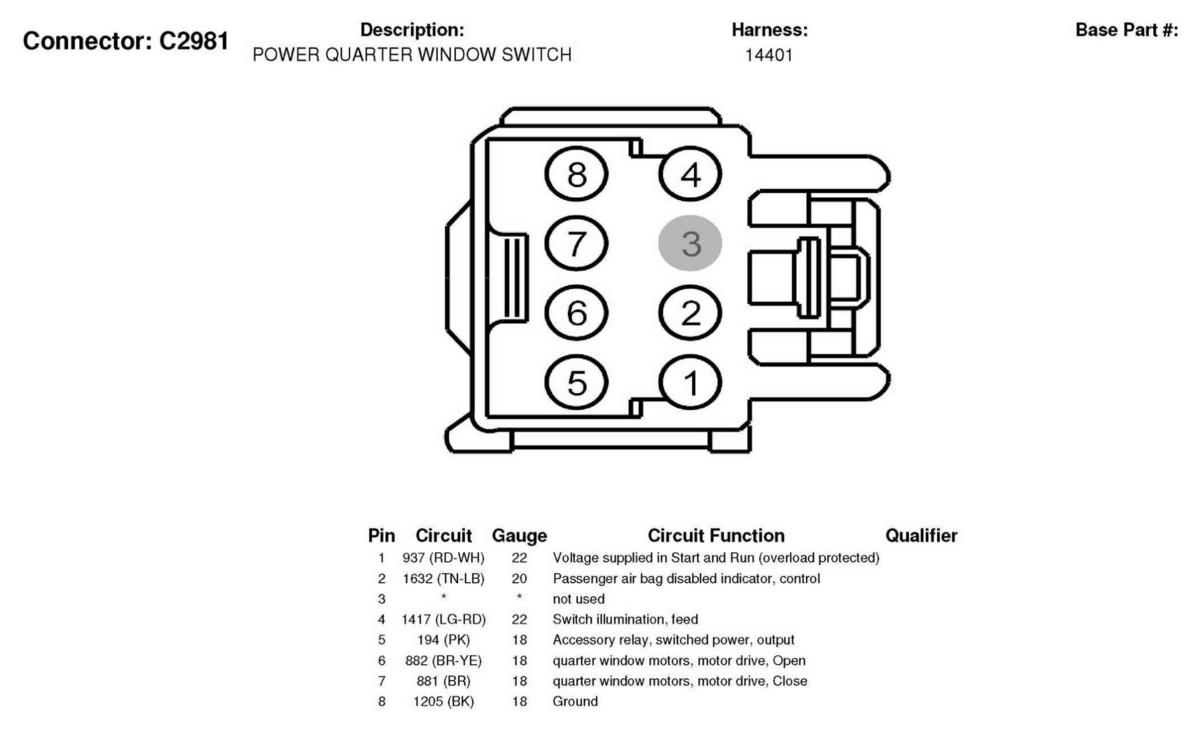

Fig 271: Power Quarter Window Switch Connector End View (C2981)
Courtesy of FORD MOTOR CO.

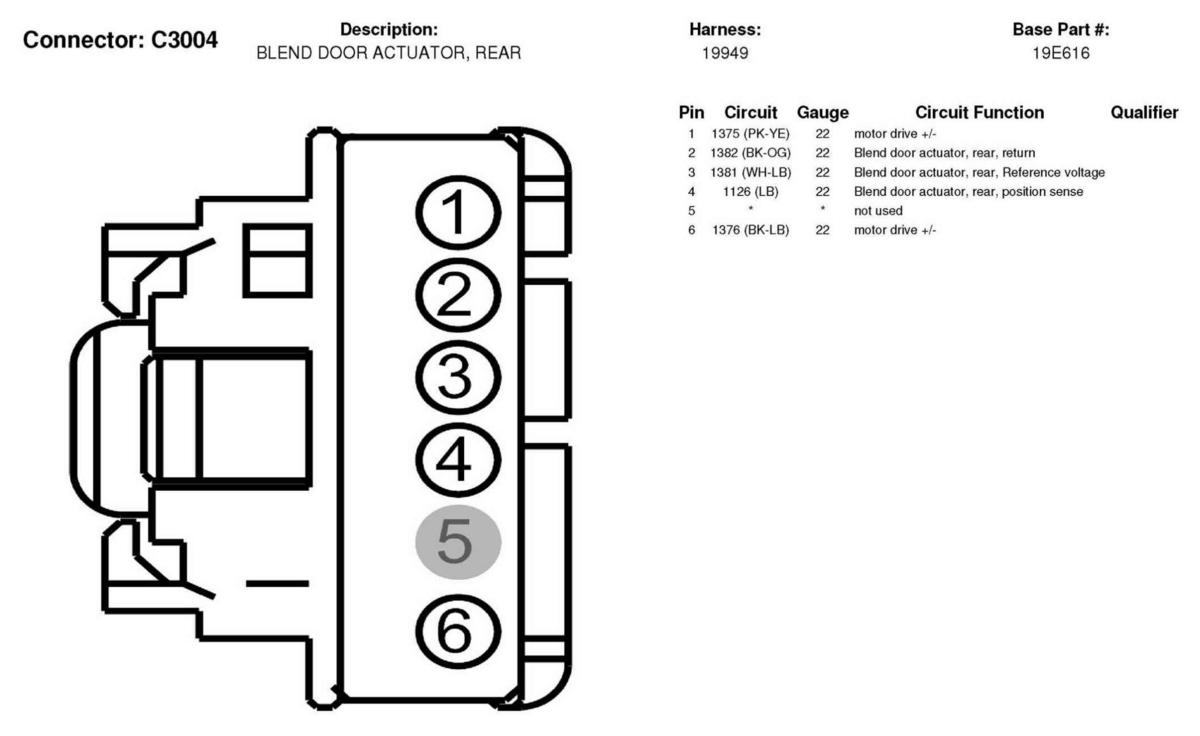

Fig 272: Blend Door Actuator, Rear Connector End View (C3004)
Courtesy of FORD MOTOR CO.

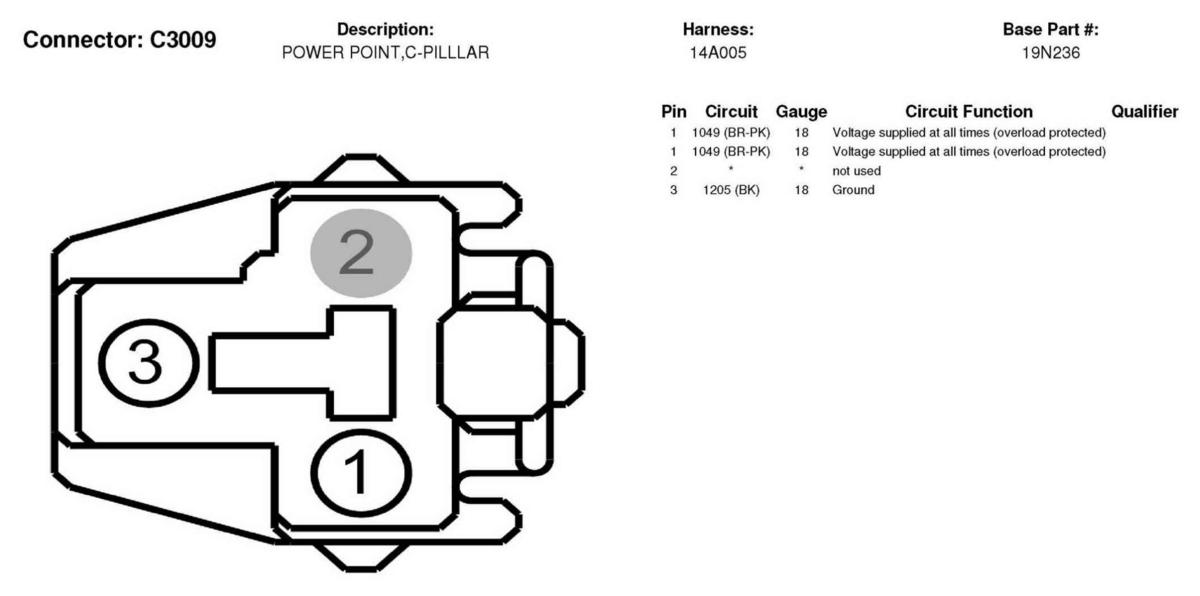

Fig 273: Power Point, C-Pillar Connector End View (C3009)
Courtesy of FORD MOTOR CO.

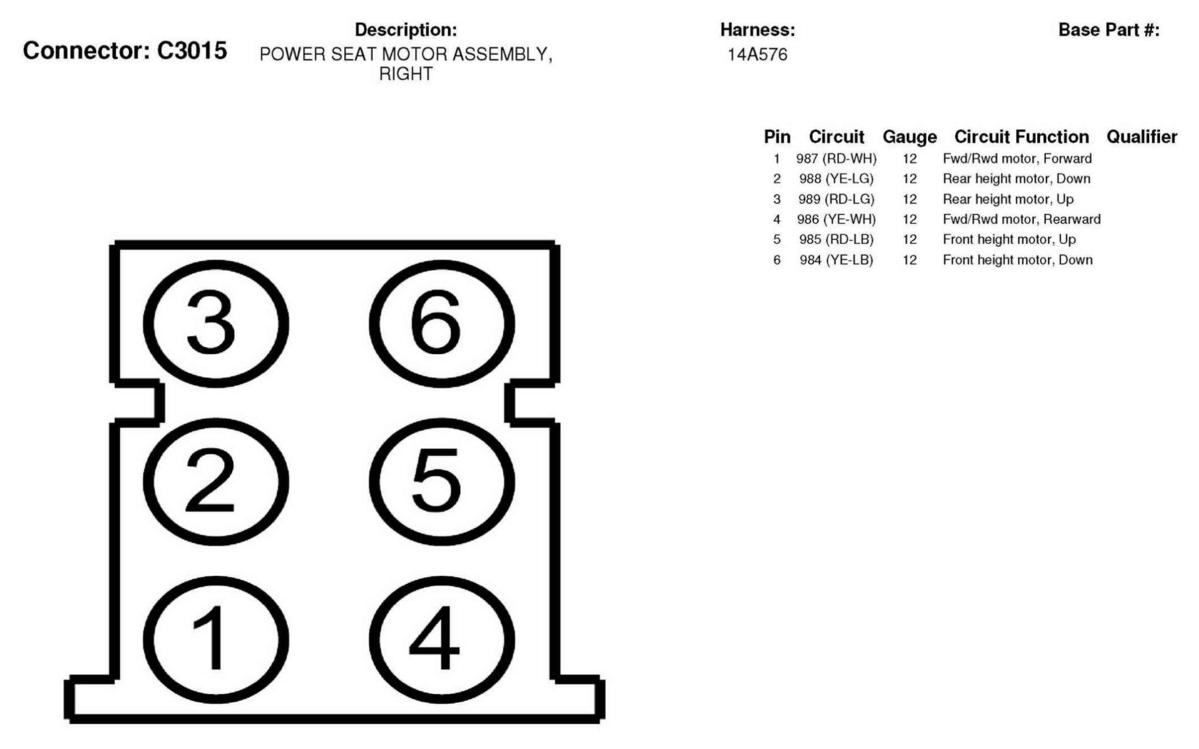

Fig 274: Power Seat Motor Assembly, Right Connector End View (C3015)
Courtesy of FORD MOTOR CO.

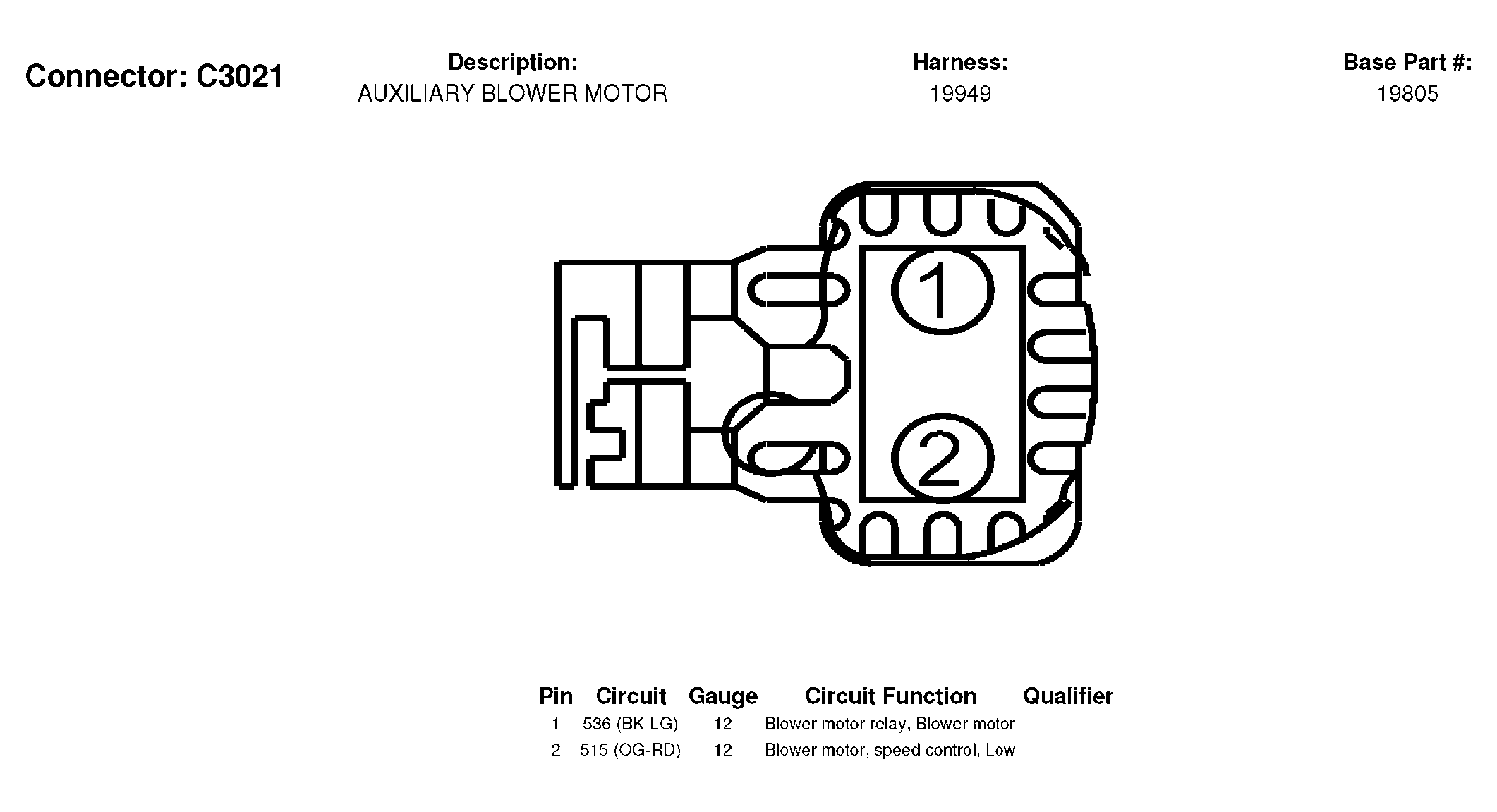

Fig 275: Auxiliary Blower Motor Connector End View (C3021)
Courtesy of FORD MOTOR CO.

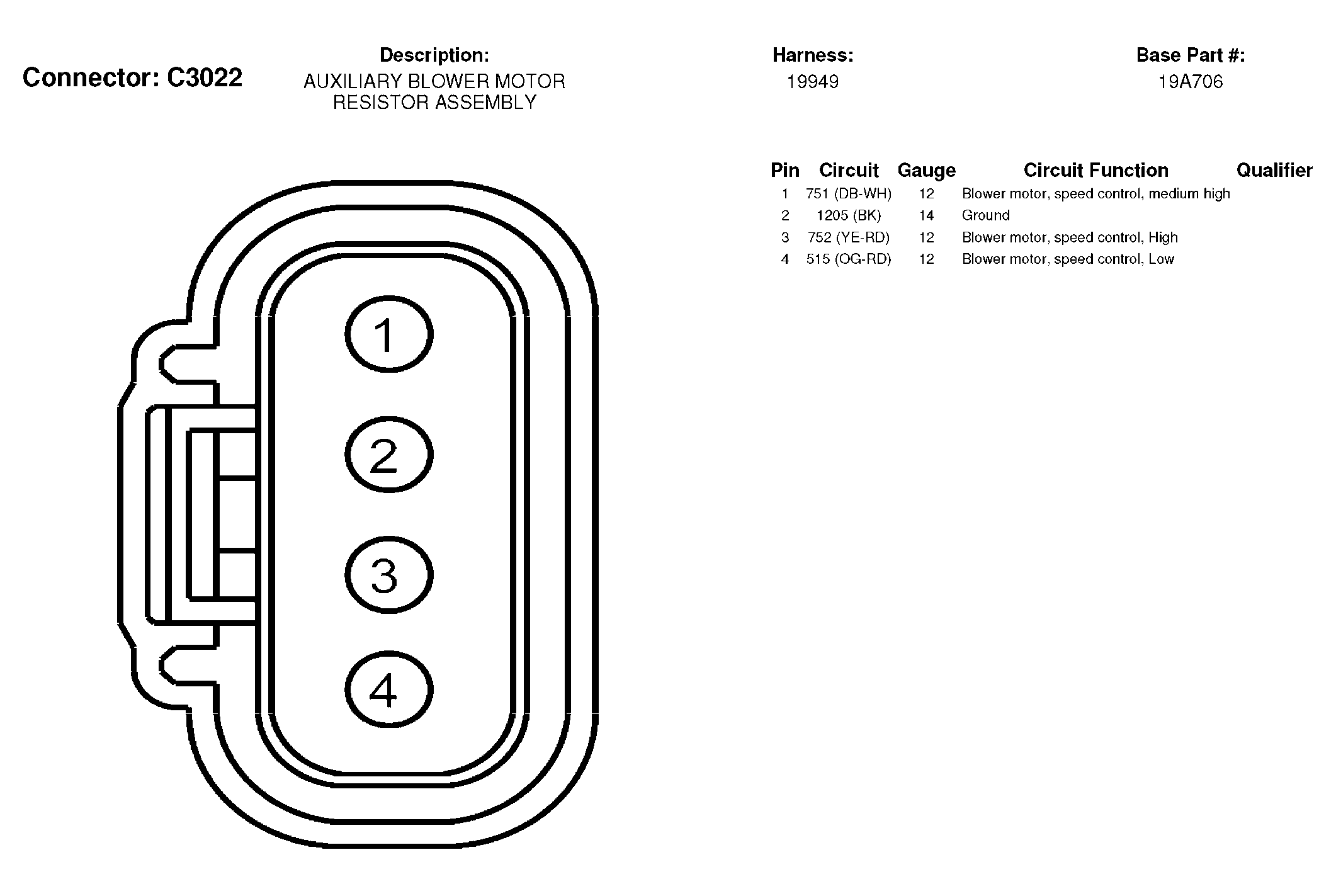

Fig 276: Auxiliary Blower Motor Resistor Assembly Connector End View (C3022)
Courtesy of FORD MOTOR CO.
Fig 277: Climate Controlled Seat Module, Driver Side Connector End View (C3031A)
Courtesy of FORD MOTOR CO.

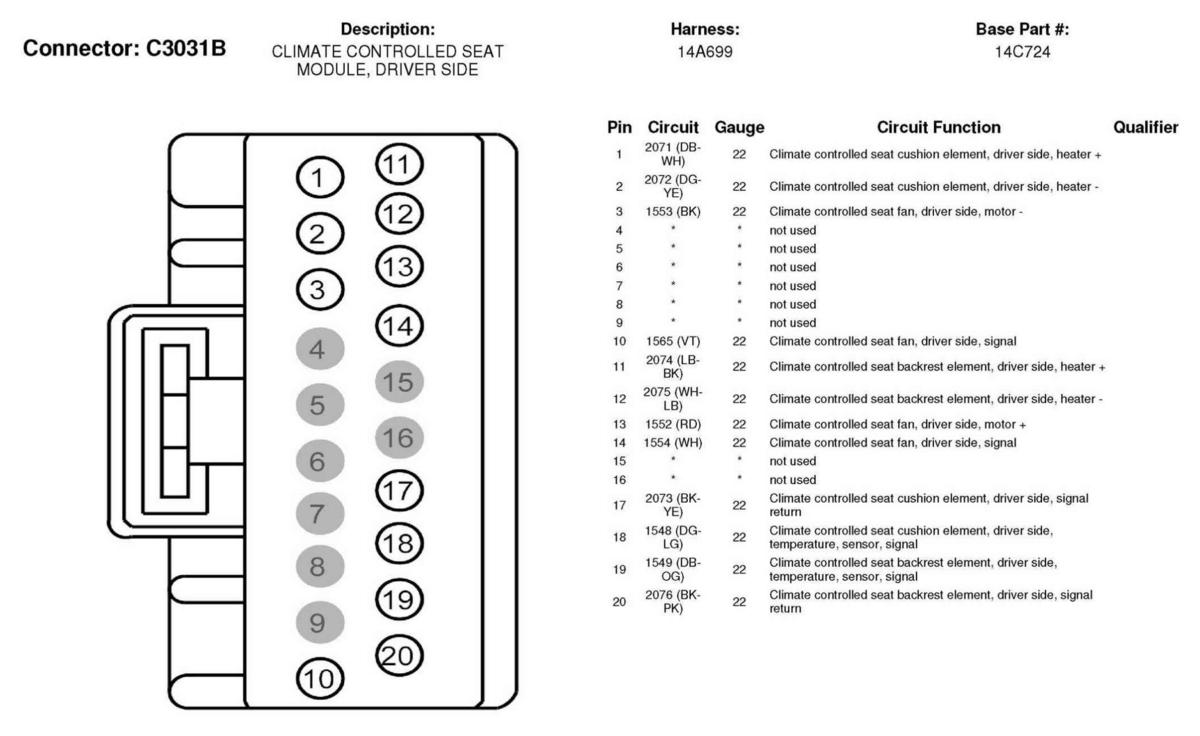

Fig 278: Climate Controlled Seat Module, Driver Side Connector End View (C3031B)
Courtesy of FORD MOTOR CO.
Fig 279: Climate Controlled Seat Fan, Driver Side Connector End View (C3033)
Courtesy of FORD MOTOR CO.

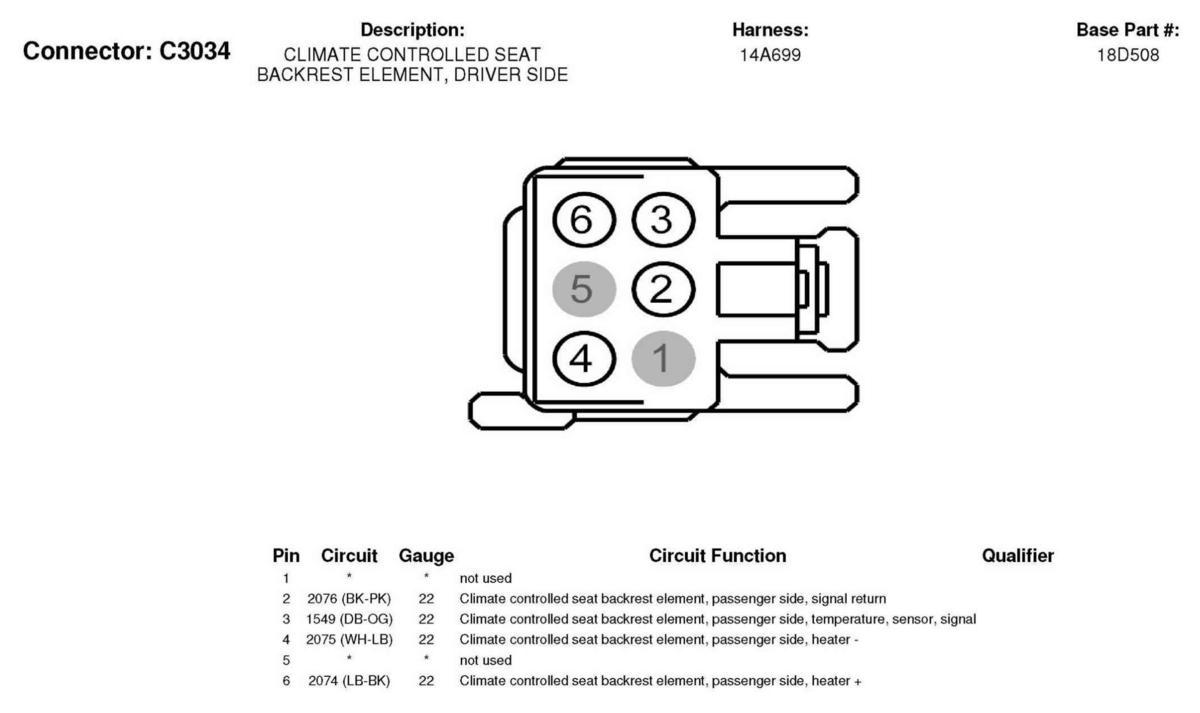

Fig 280: Climate Controlled Seat Backrest Element, Driver Side Connector End View (C3034)
Courtesy of FORD MOTOR CO.

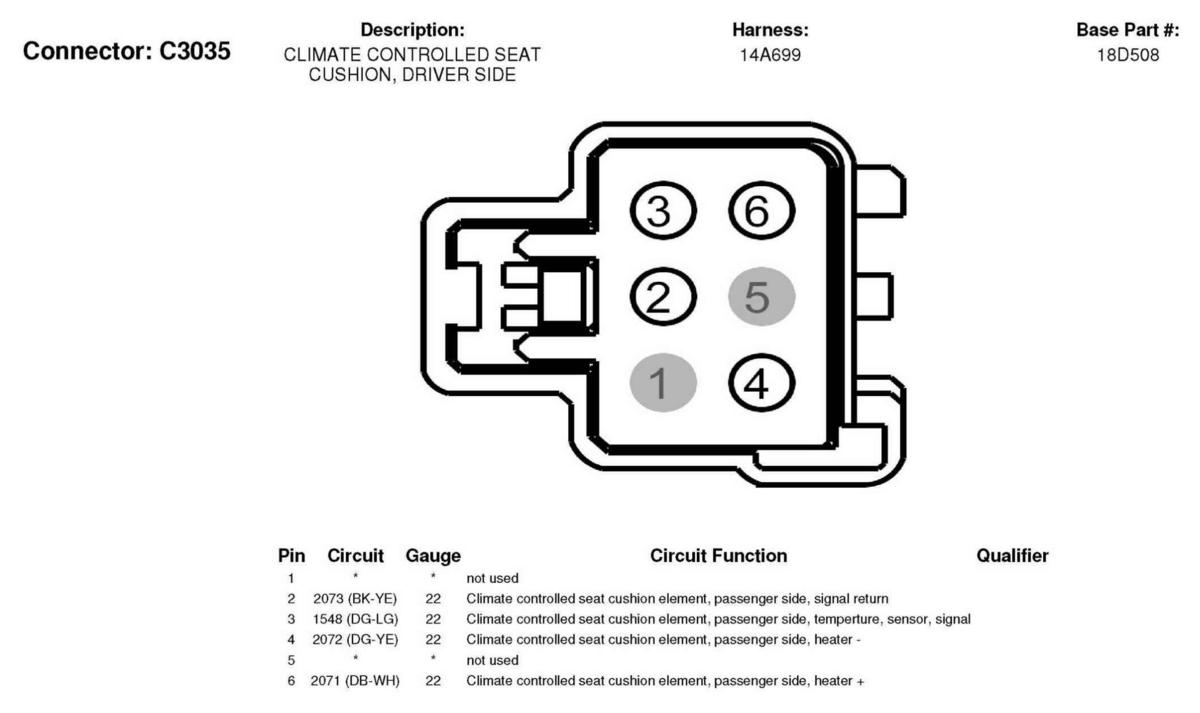

Fig 281: Climate Controlled Seat Cushion, Driver Side Connector End View (C3035)
Courtesy of FORD MOTOR CO.

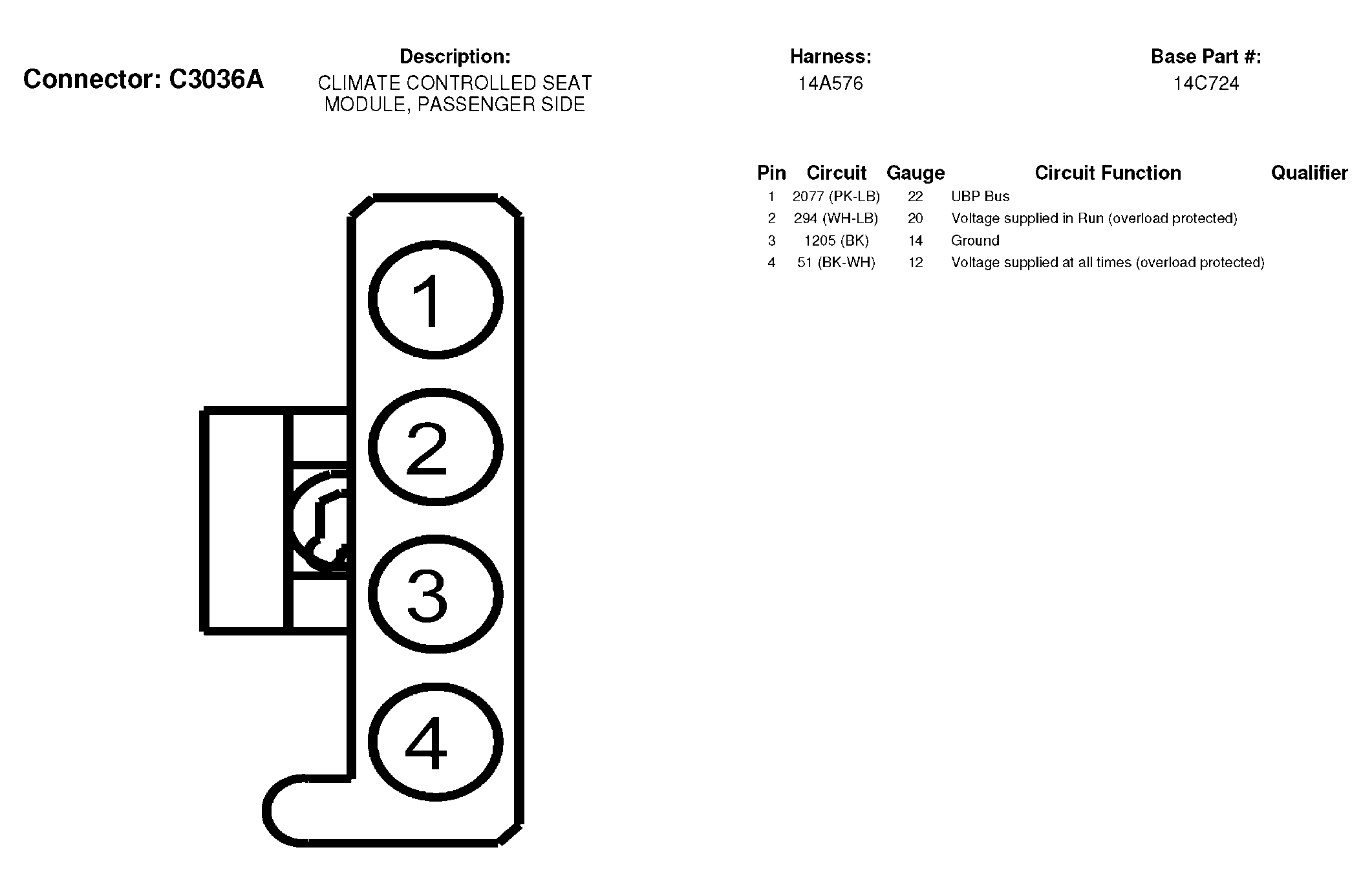

Fig 282: Climate Controlled Seat Module, Passenger Side Connector End View (C3036A)
Courtesy of FORD MOTOR CO.

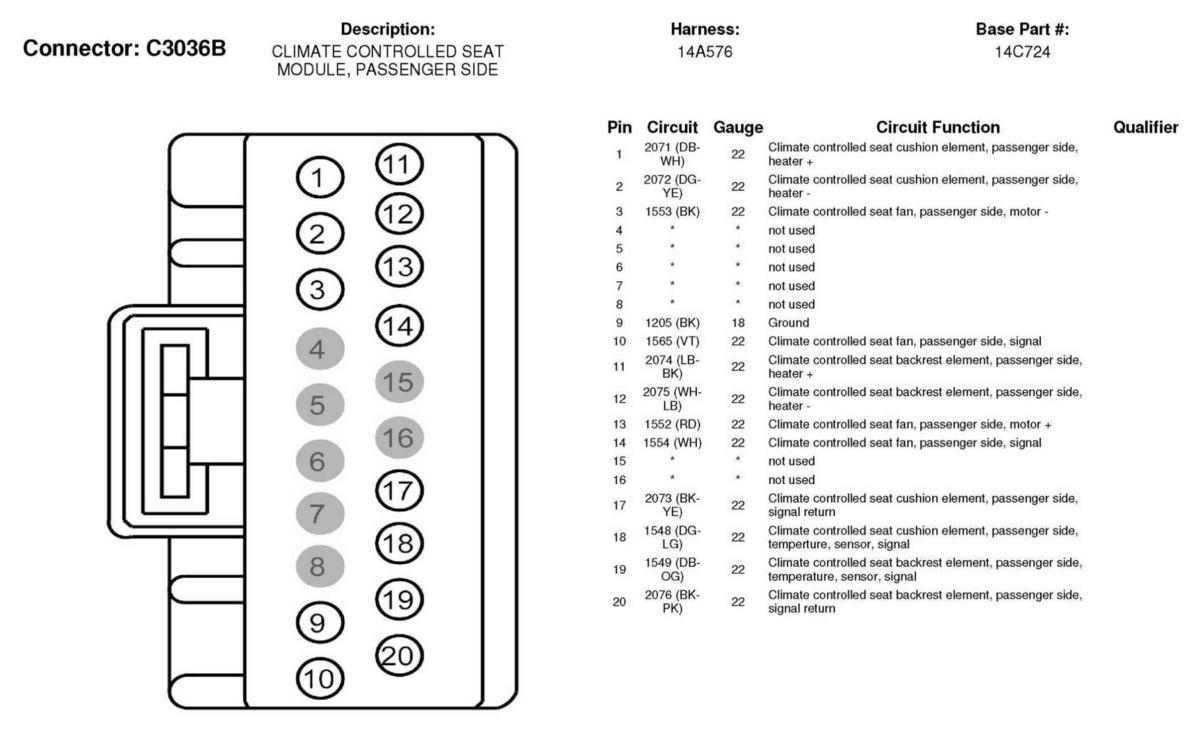

Fig 283: Climate Controlled Seat Module, Passenger Side Connector End View (C3036B)
Courtesy of FORD MOTOR CO.

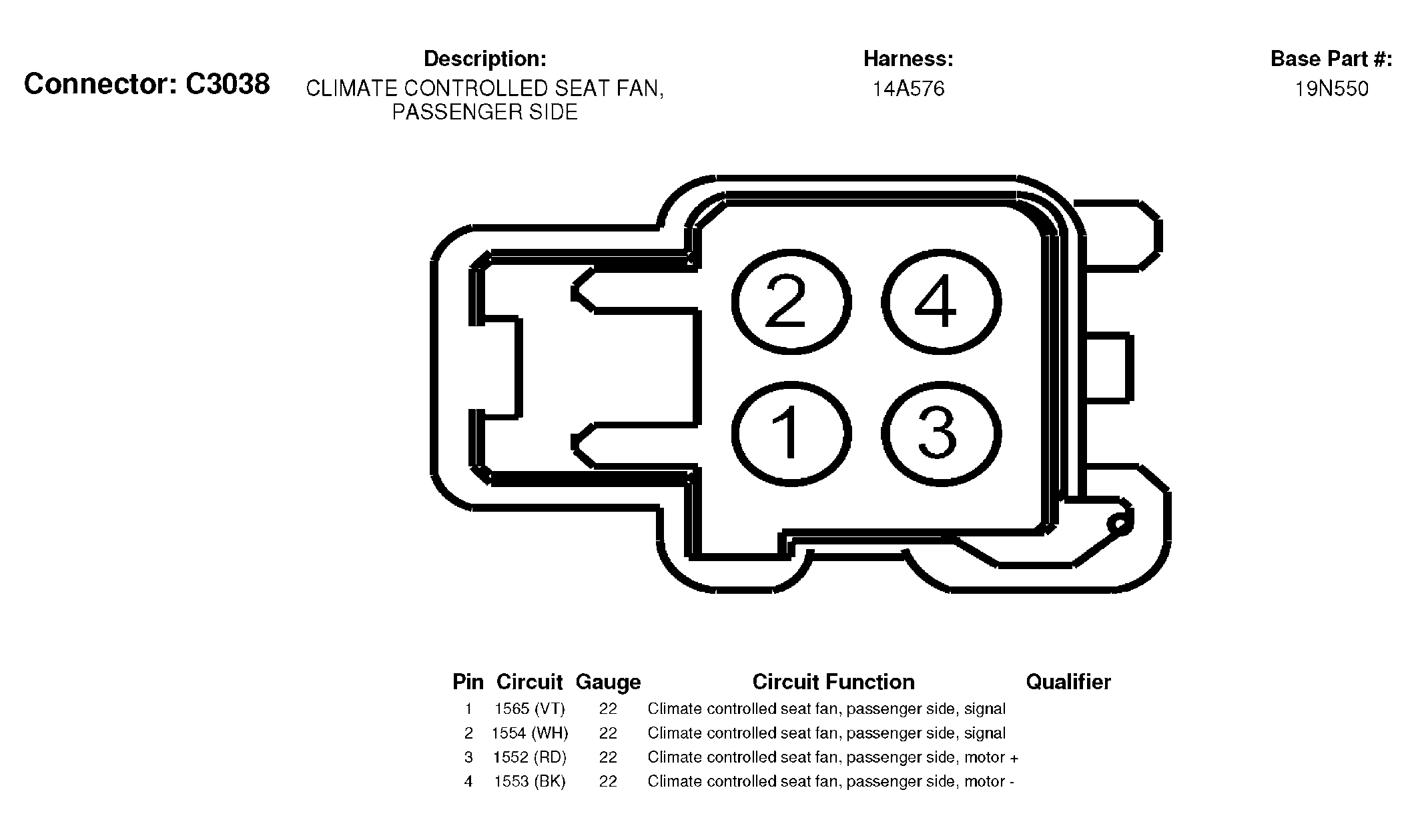

Fig 284: Climate Controlled Seat Fan, Passenger Side Connector End View (C3038)
Courtesy of FORD MOTOR CO.

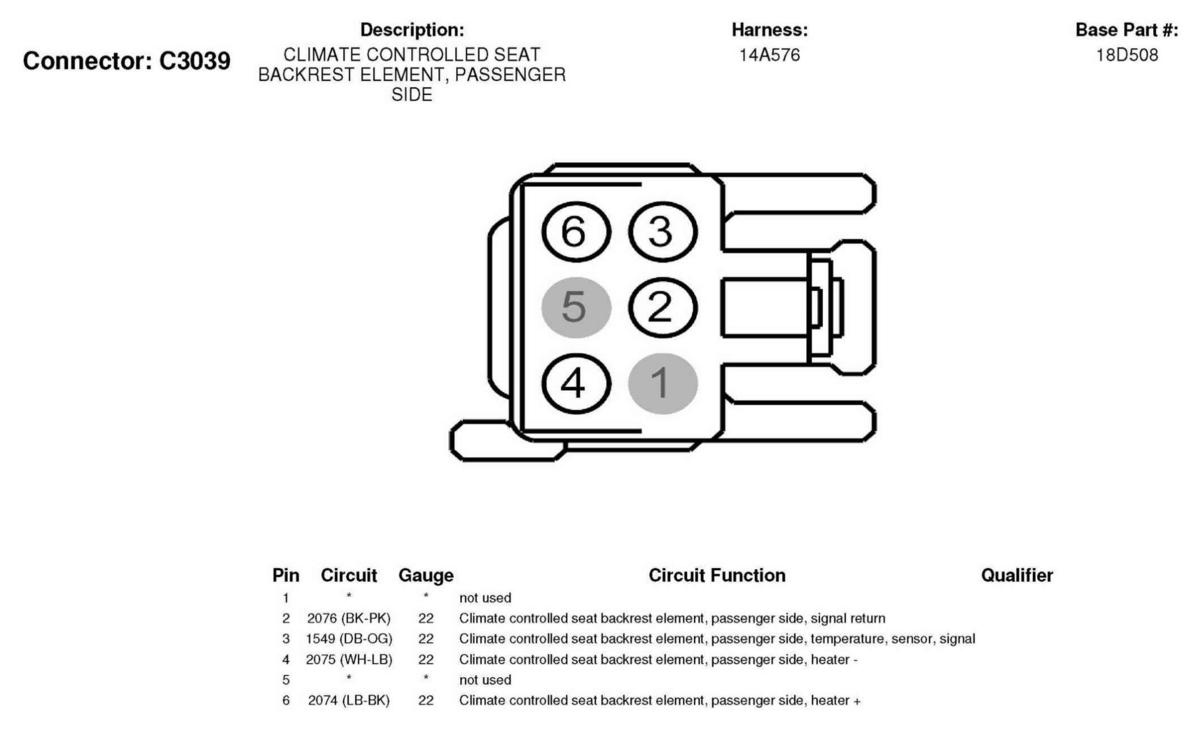

Fig 285: Climate Controlled Seat Backrest Element, Passenger Side Connector End View (C3039)
Courtesy of FORD MOTOR CO.

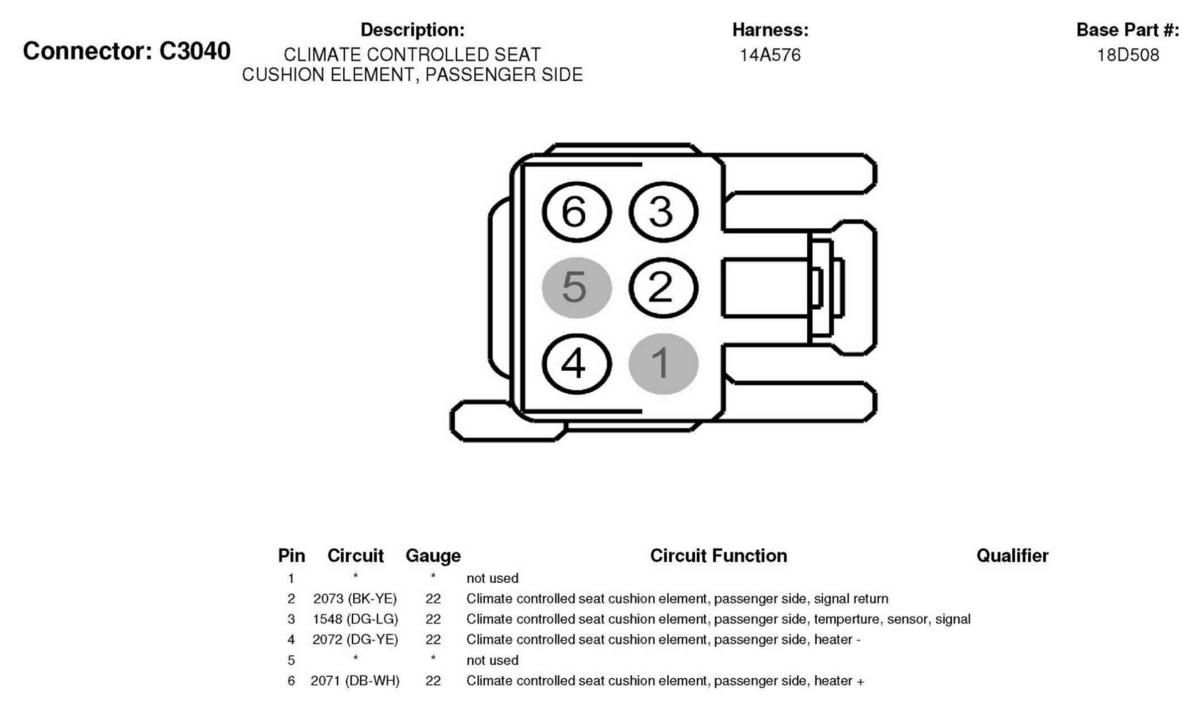

Fig 286: Climate Controlled Seat Cushion Element, Passenger Side Connector End View (C3040)
Courtesy of FORD MOTOR CO.

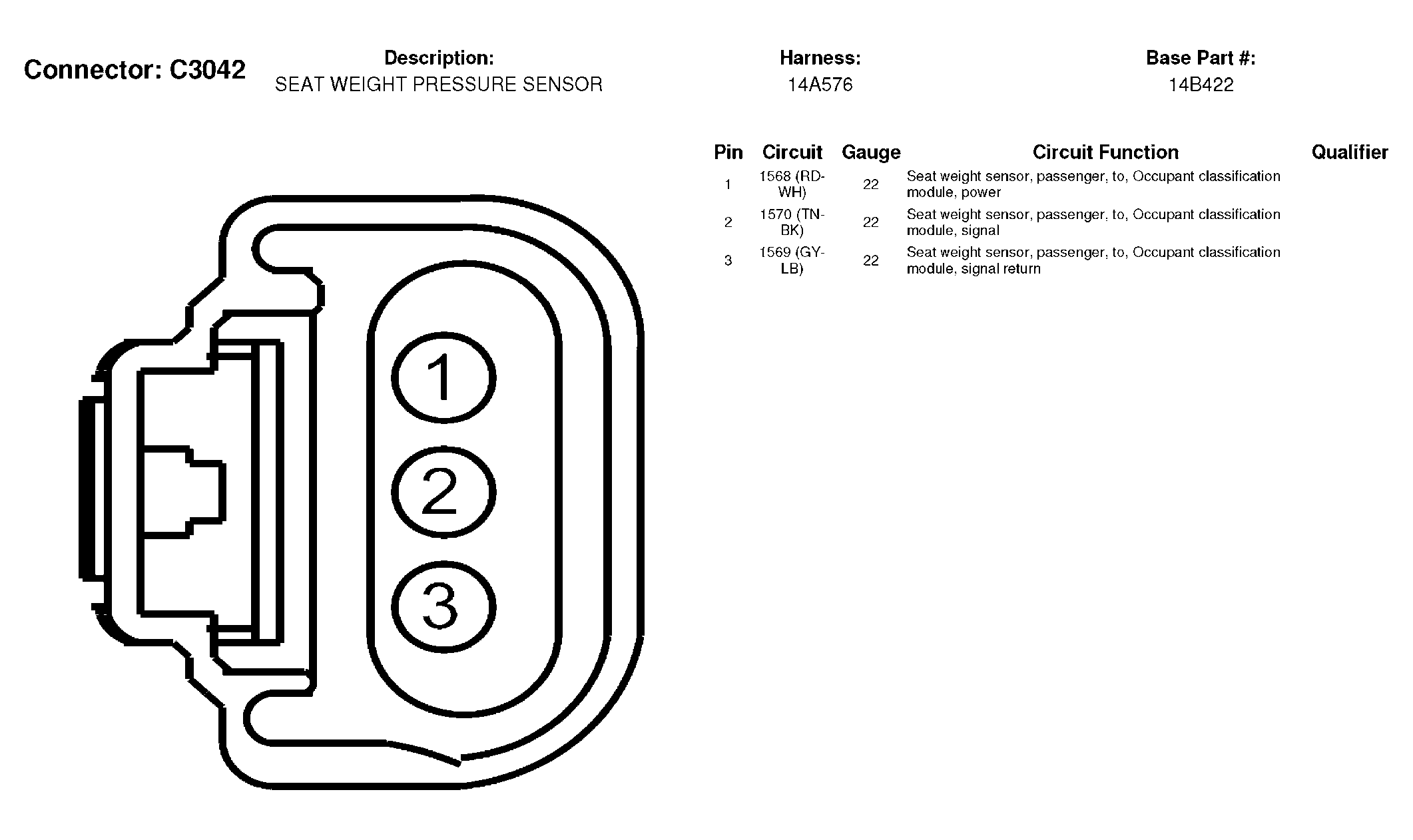

Fig 287: Seat Weight Pressure Sensor Connector End View (C3042)
Courtesy of FORD MOTOR CO.

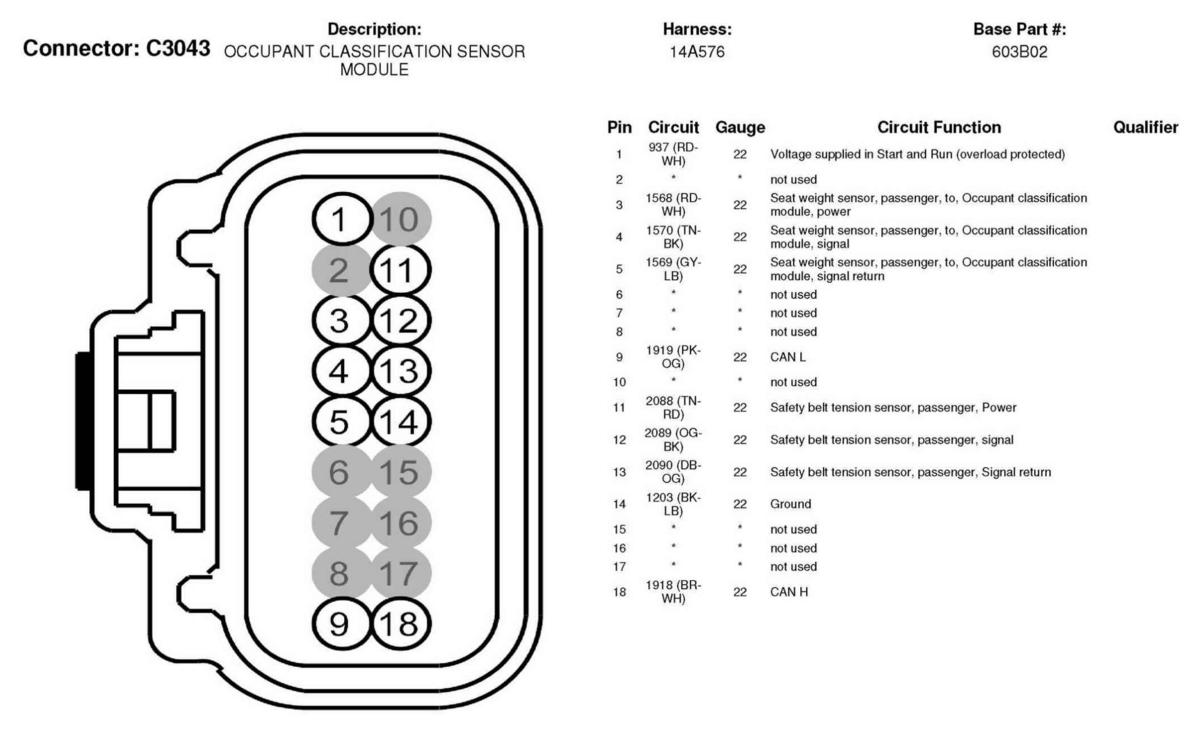

Fig 288: Occupant Classification Sensor Module Connector End View (C3043)
Courtesy of FORD MOTOR CO.

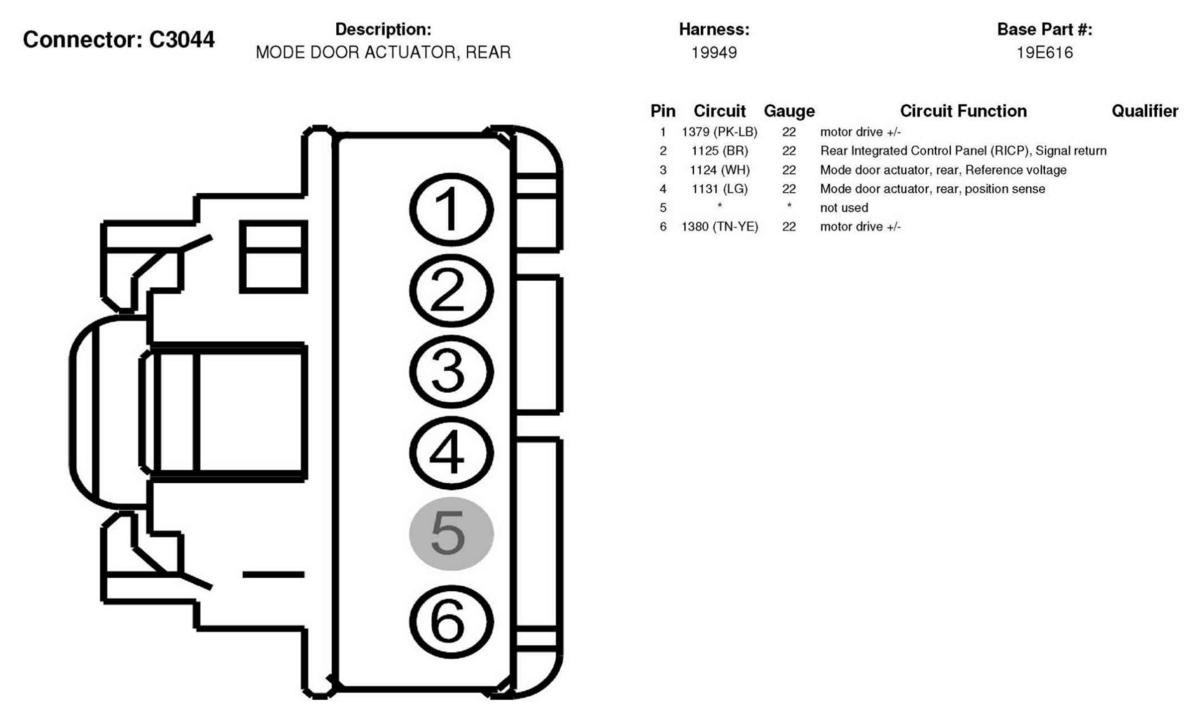

Fig 289: Mode Door Actuator, Rear Connector End View (C3044)
Courtesy of FORD MOTOR CO.

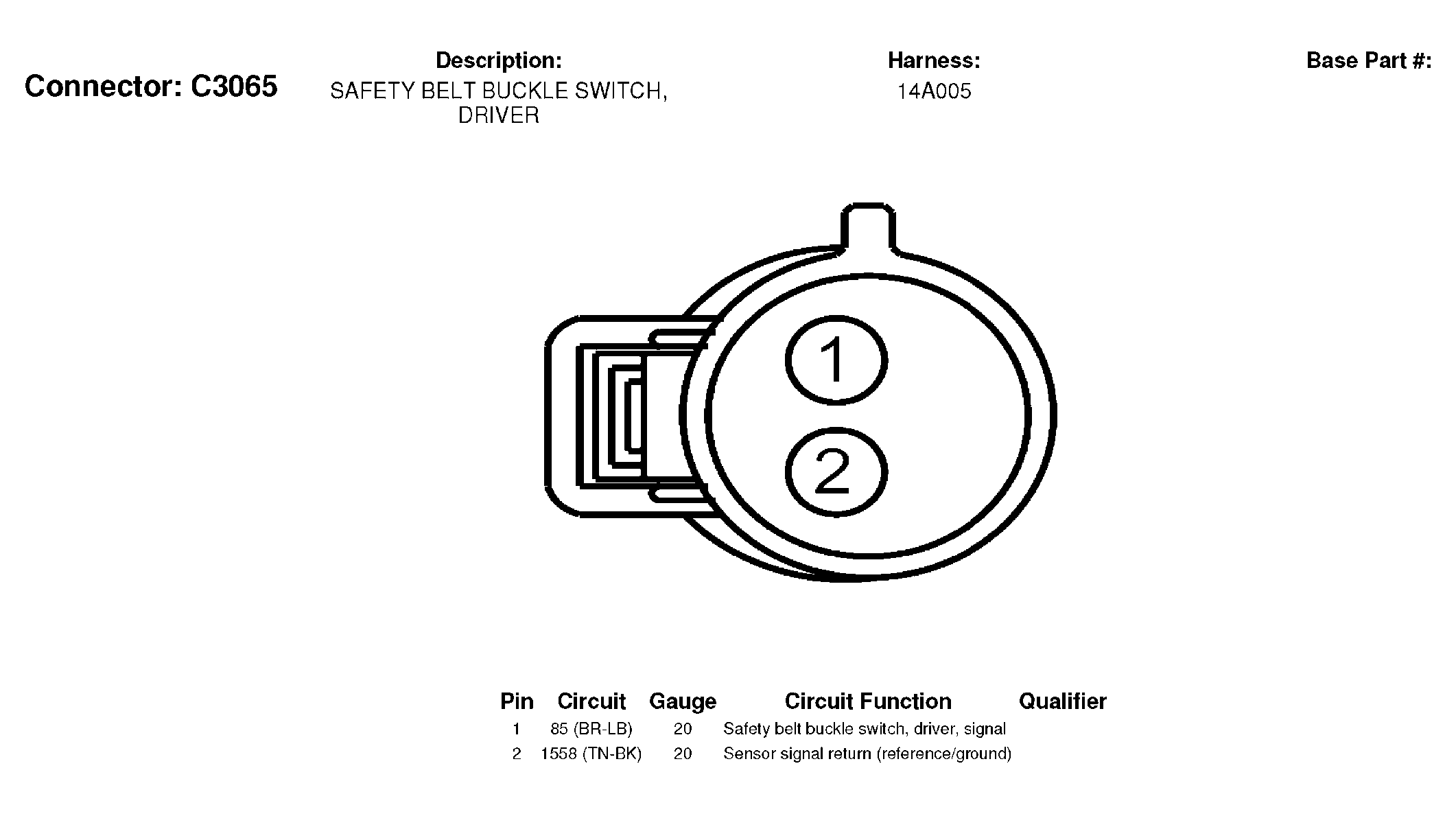

Fig 290: Safety Belt Buckle Switch, Driver Connector End View (C3065)
Courtesy of FORD MOTOR CO.

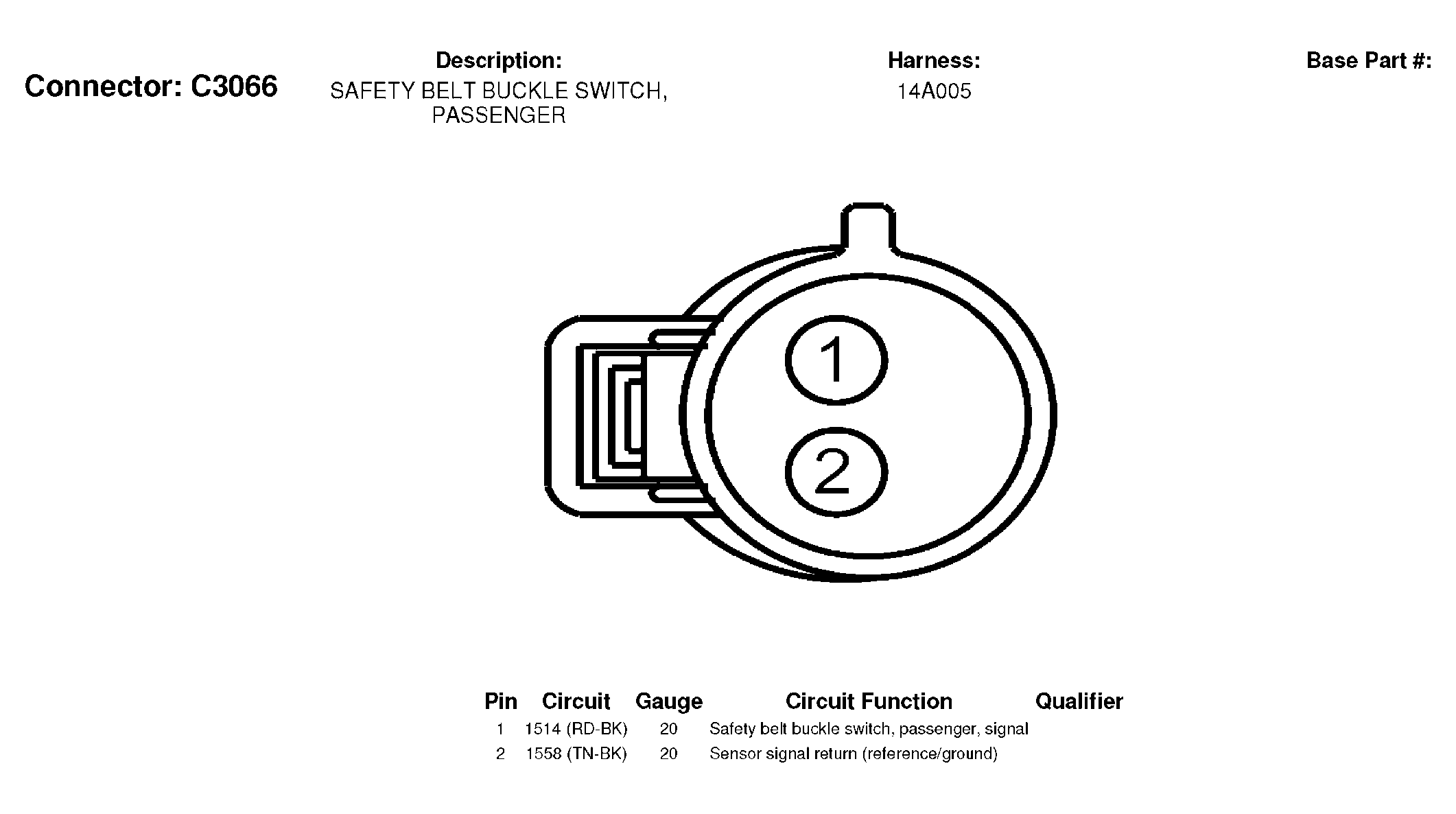

Fig 291: Safety Belt Buckle Switch, Passenger Connector End View (C3066)
Courtesy of FORD MOTOR CO.

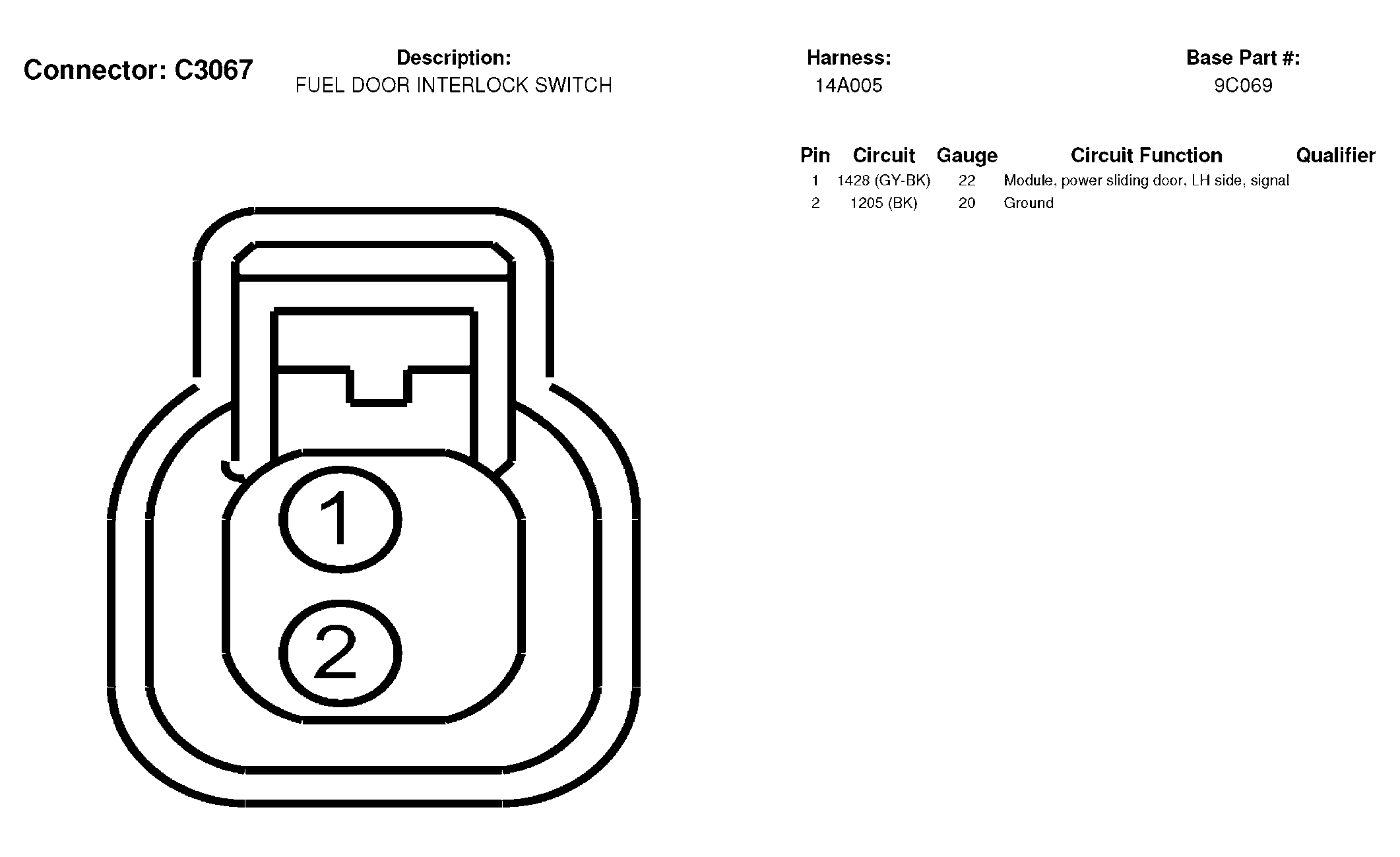

Fig 292: Fuel Door Interlock Switch Connector End View (C3067)
Courtesy of FORD MOTOR CO.

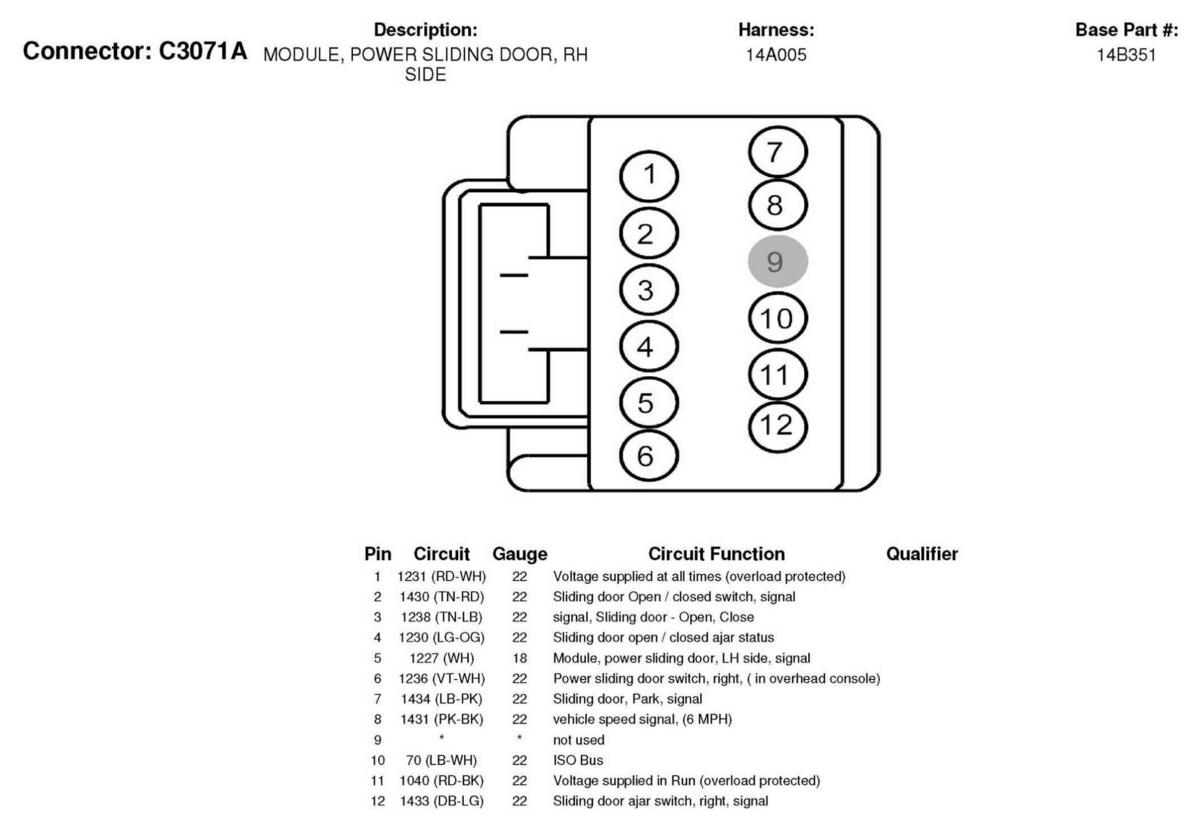

Fig 293: Module, Power Sliding Door, RH Side Connector End View (C3071A)
Courtesy of FORD MOTOR CO.

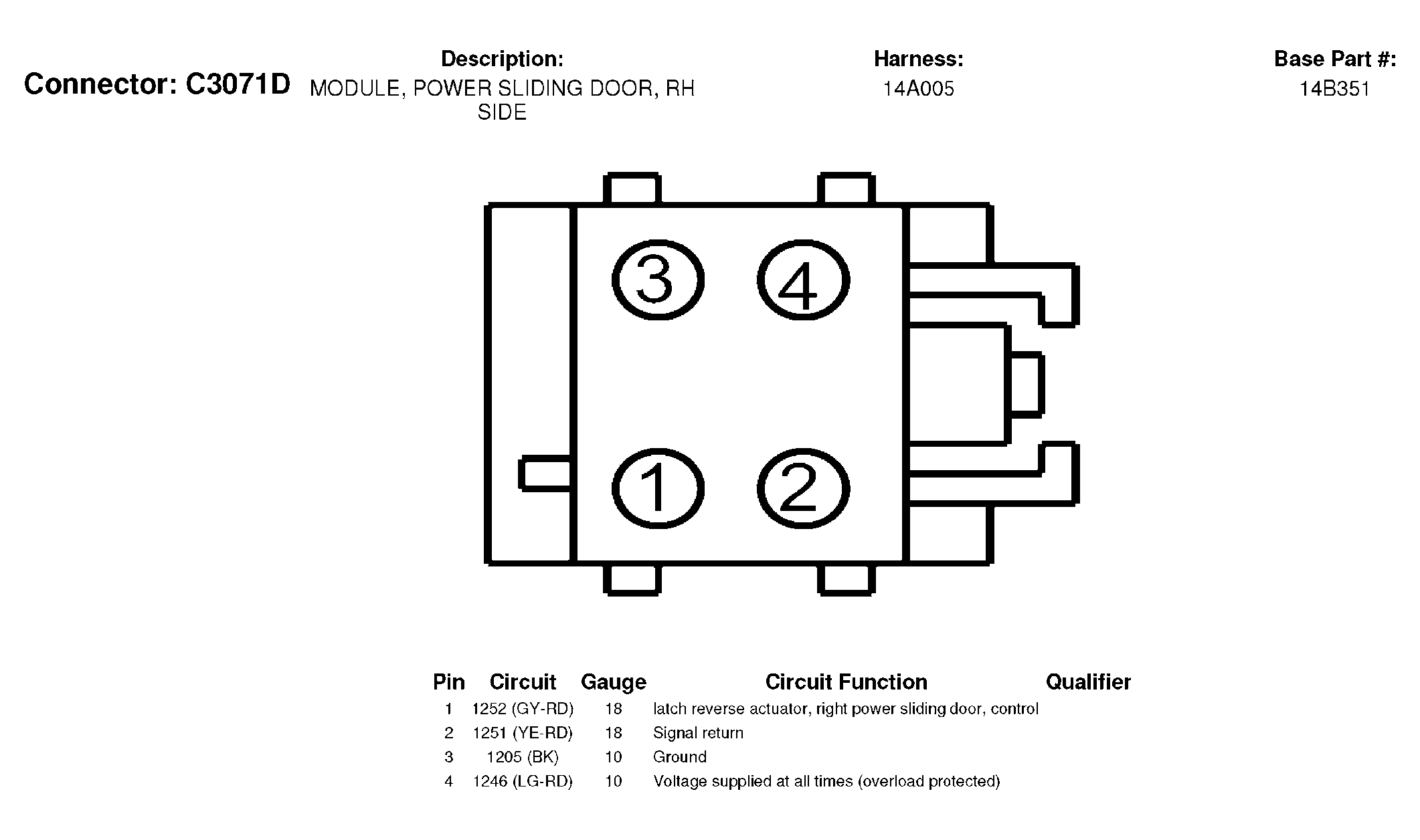

Fig 294: Module, Power Sliding Door, RH Side Connector End View (C3071D)
Courtesy of FORD MOTOR CO.

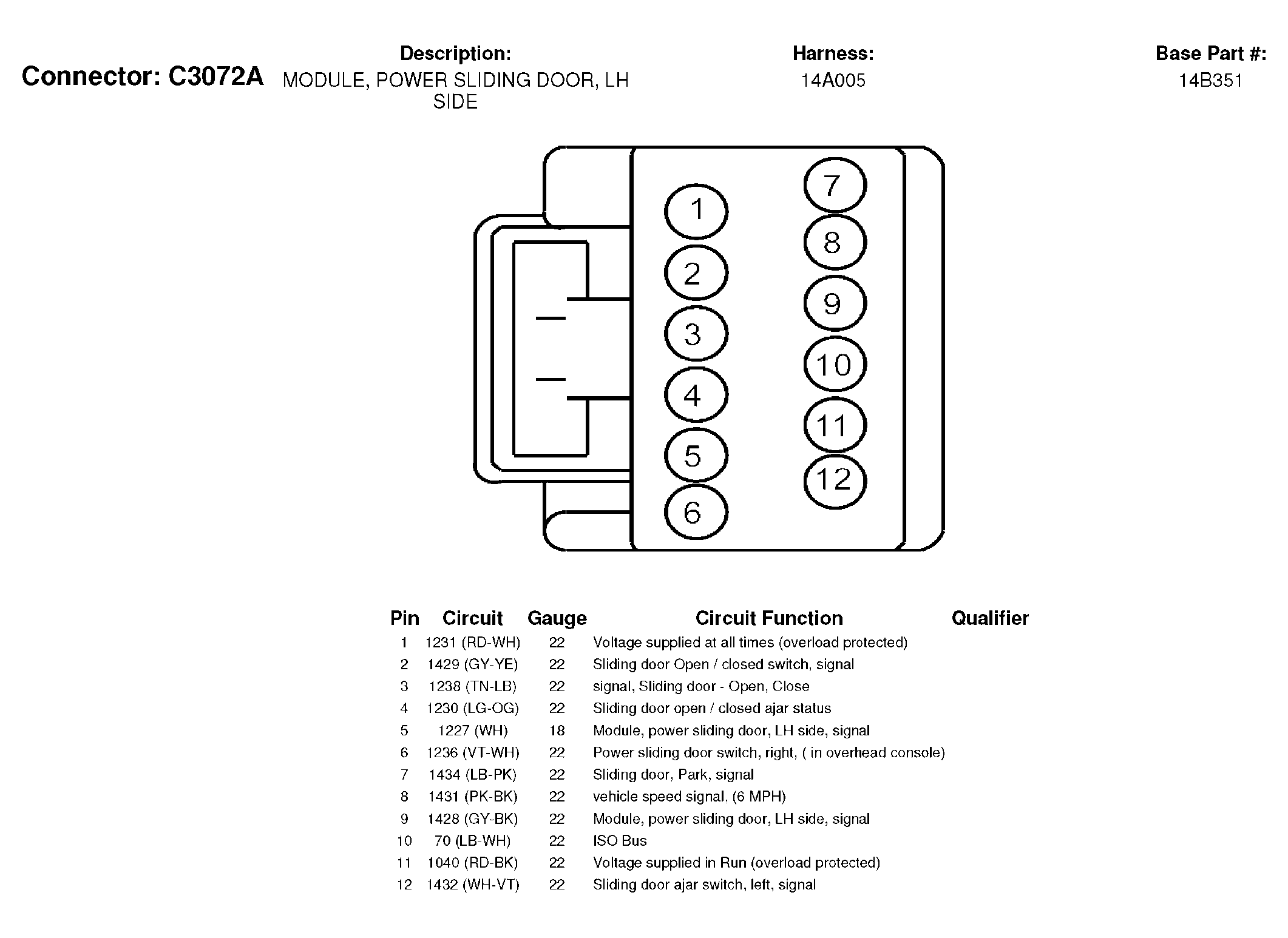

Fig 295: Module, Power Sliding Door, LH Side Connector End View (C3072A)
Courtesy of FORD MOTOR CO.
Fig 296: Module, Power Sliding Door, LH Side Connector End View (C3072D)
Courtesy of FORD MOTOR CO.

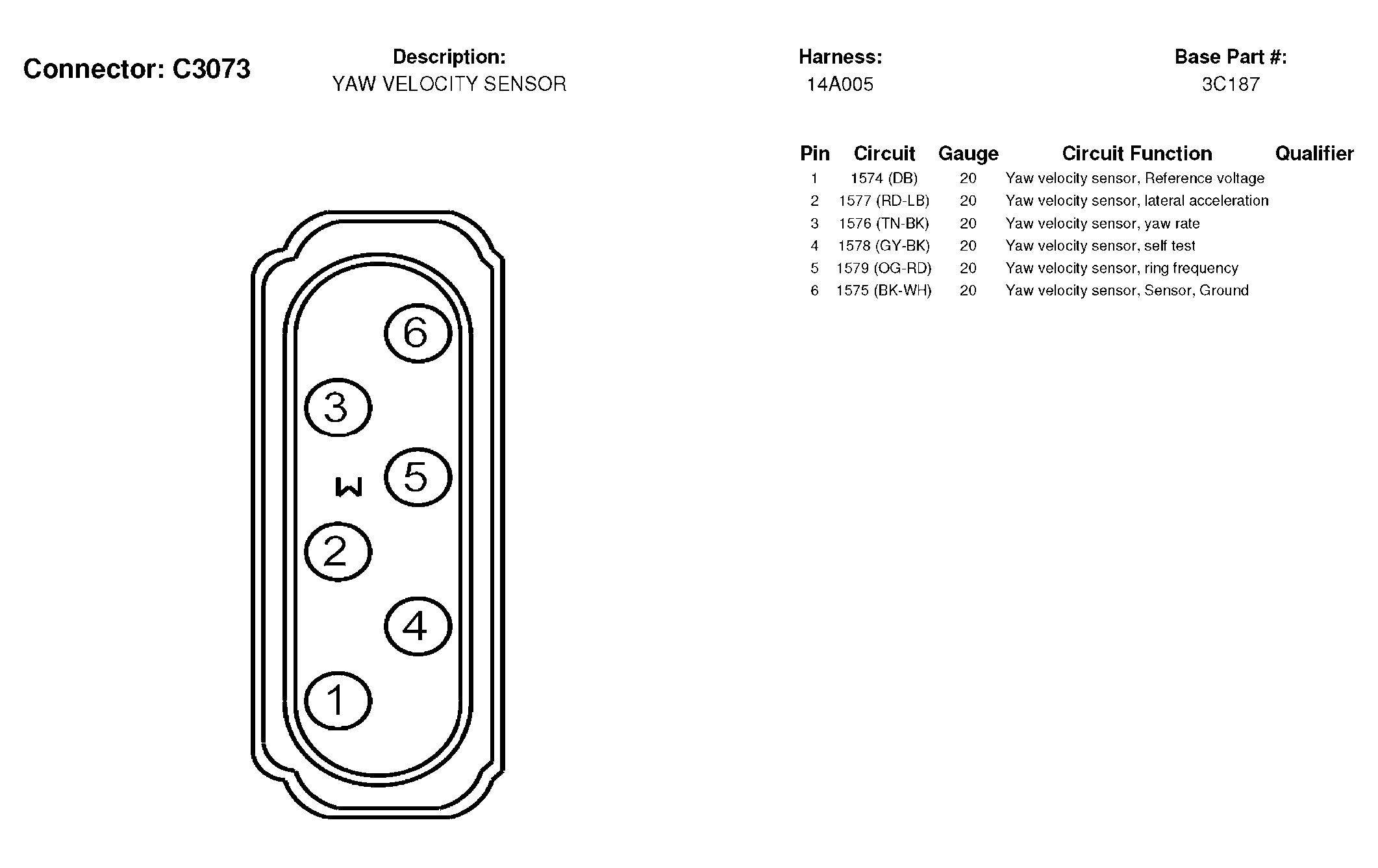

Fig 297: Yaw Velocity Sensor Connector End View (C3073)
Courtesy of FORD MOTOR CO.

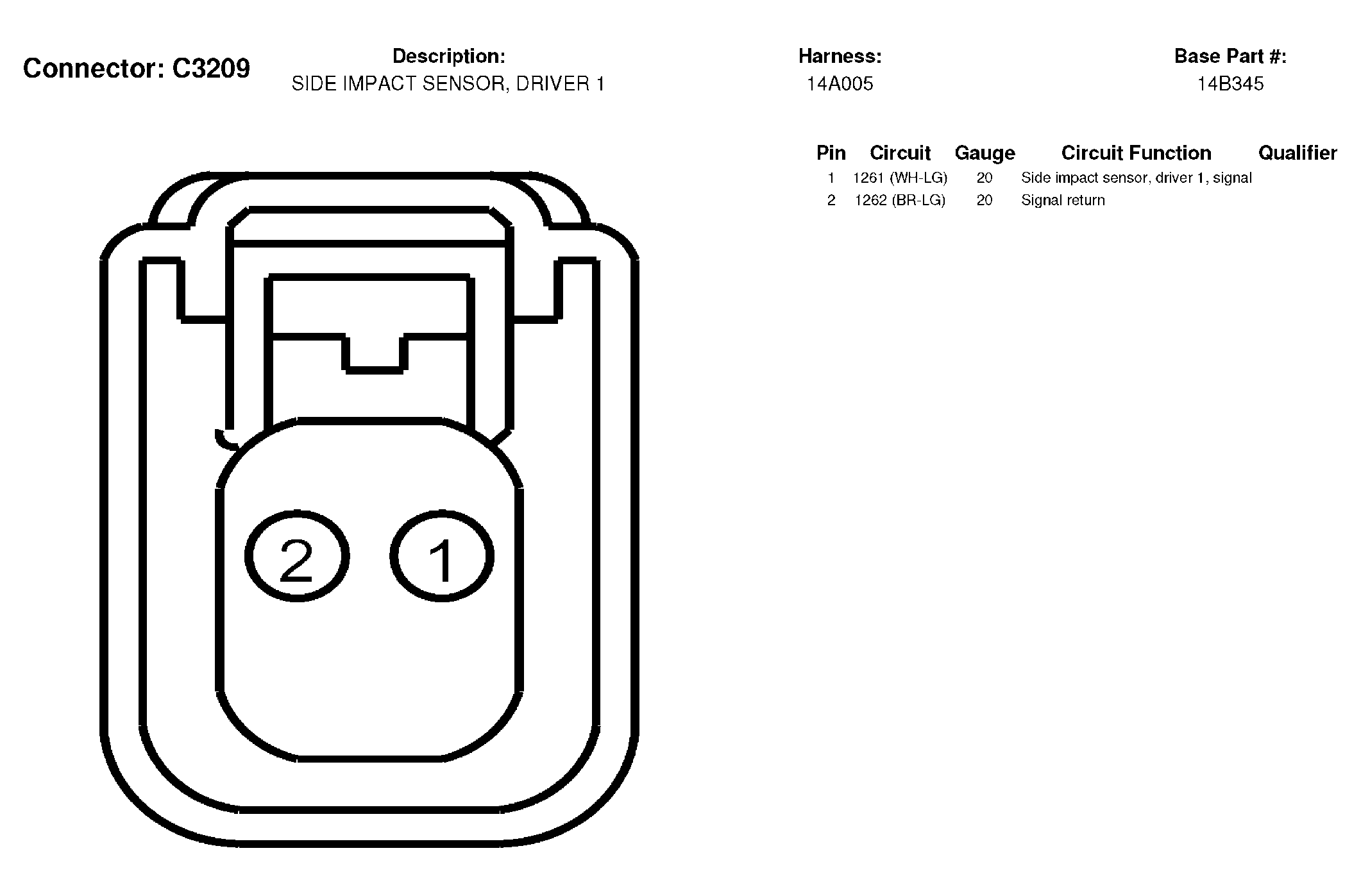

Fig 298: Side Impact Sensor, Driver 1 Connector End View (C3209)
Courtesy of FORD MOTOR CO.
Fig 299: Side Impact Sensor, Driver 2 Connector End View (C3210)
Courtesy of FORD MOTOR CO.
Fig 300: Side Impact Sensor, Passenger 1 Connector End View (C3211)
Courtesy of FORD MOTOR CO.

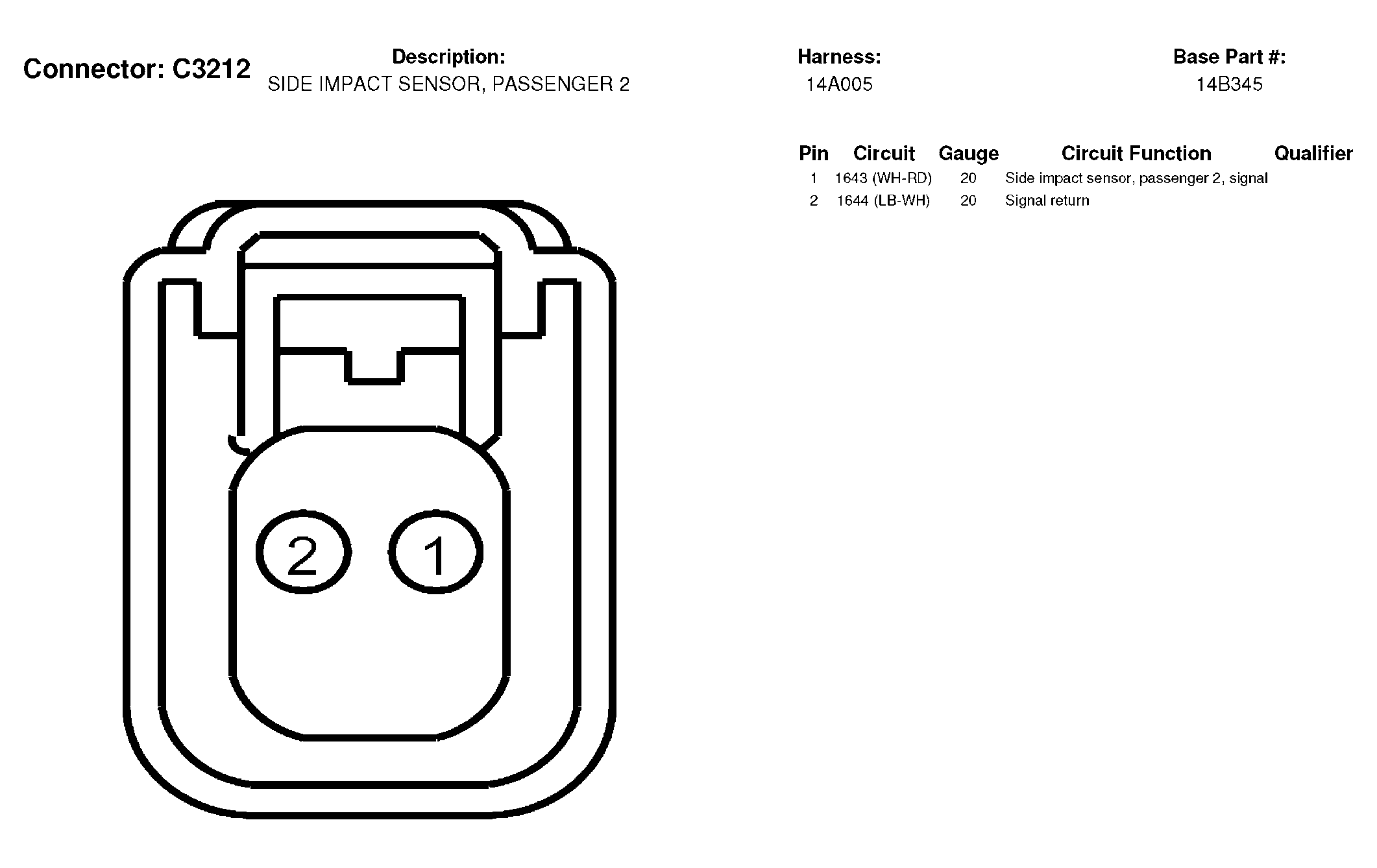

Fig 301: Side Impact Sensor, Passenger 2 Connector End View (C3212)
Courtesy of FORD MOTOR CO.

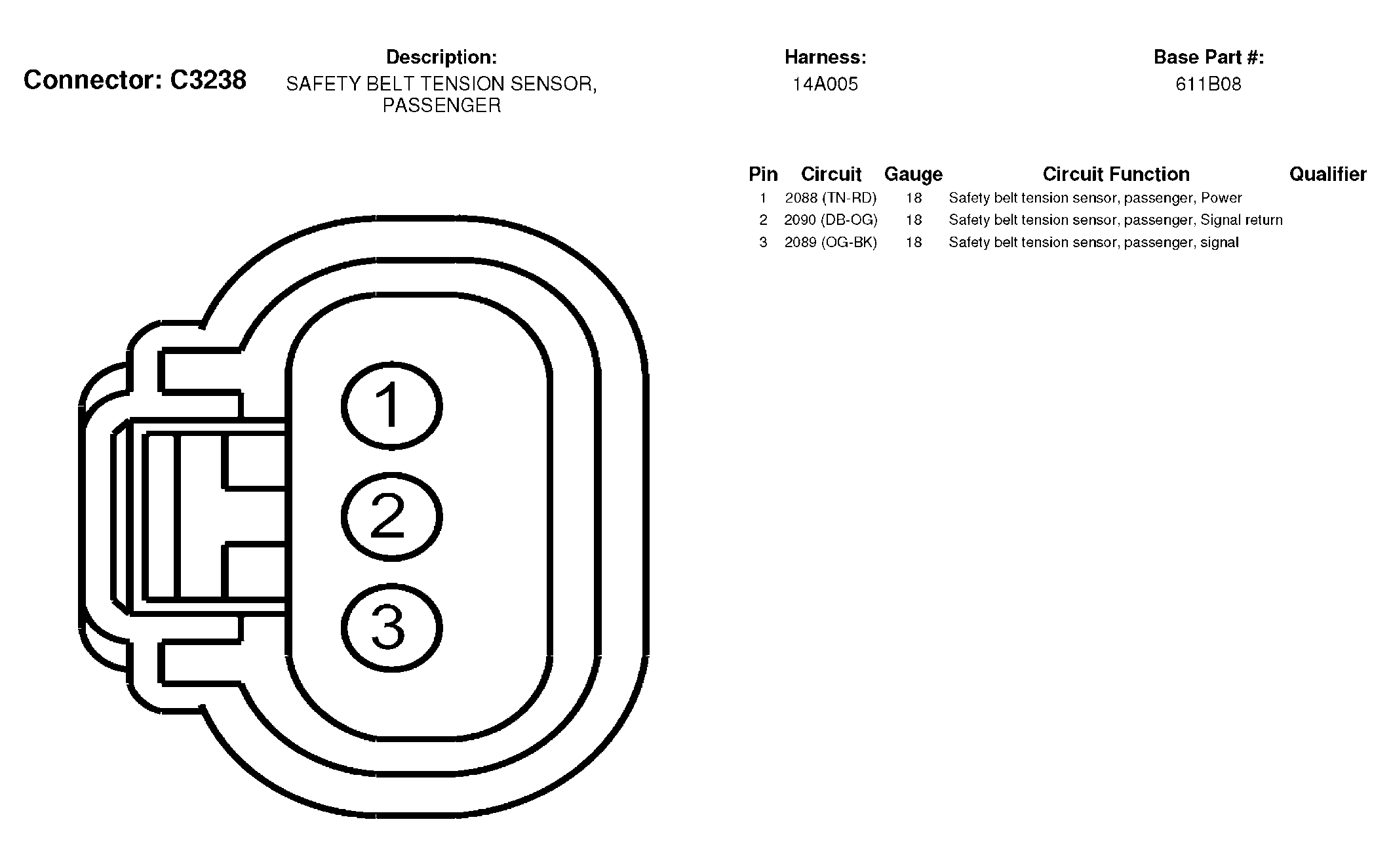

Fig 302: Safety Belt Tension Sensor, Passenger Connector End View (C3238)
Courtesy of FORD MOTOR CO.

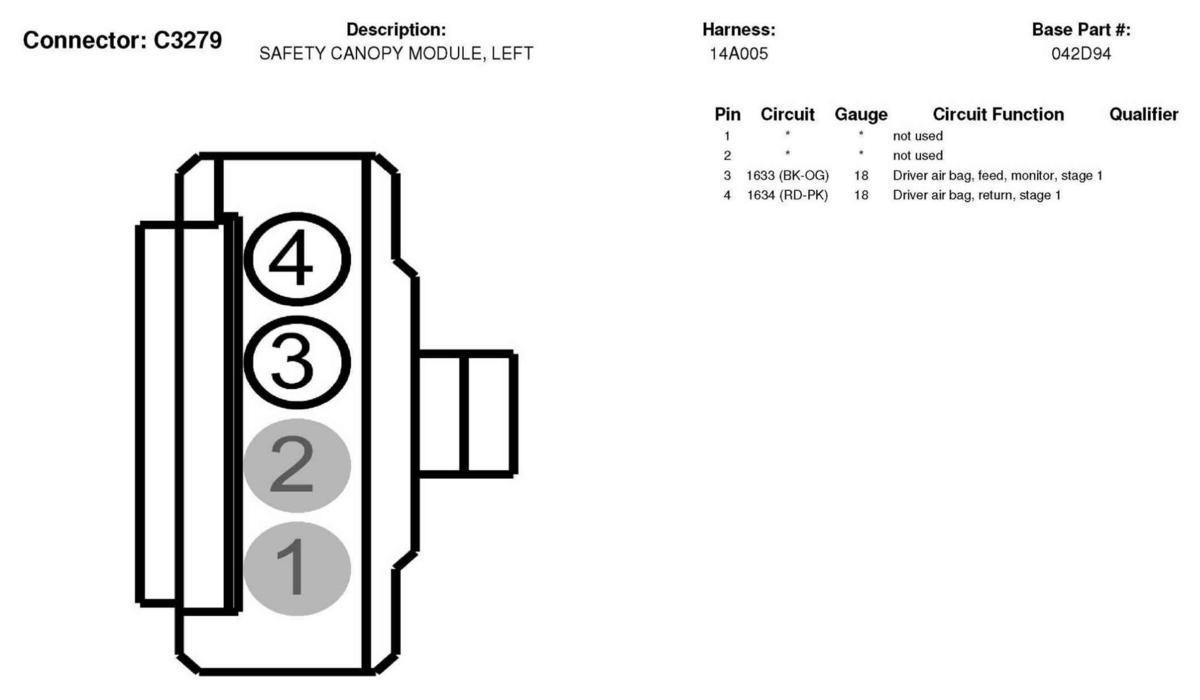

Fig 303: Safety Canopy Module, Left Connector End View (C3279)
Courtesy of FORD MOTOR CO.
Fig 304: Safety Canopy Module, Right Connector End View (C3280)
Courtesy of FORD MOTOR CO.

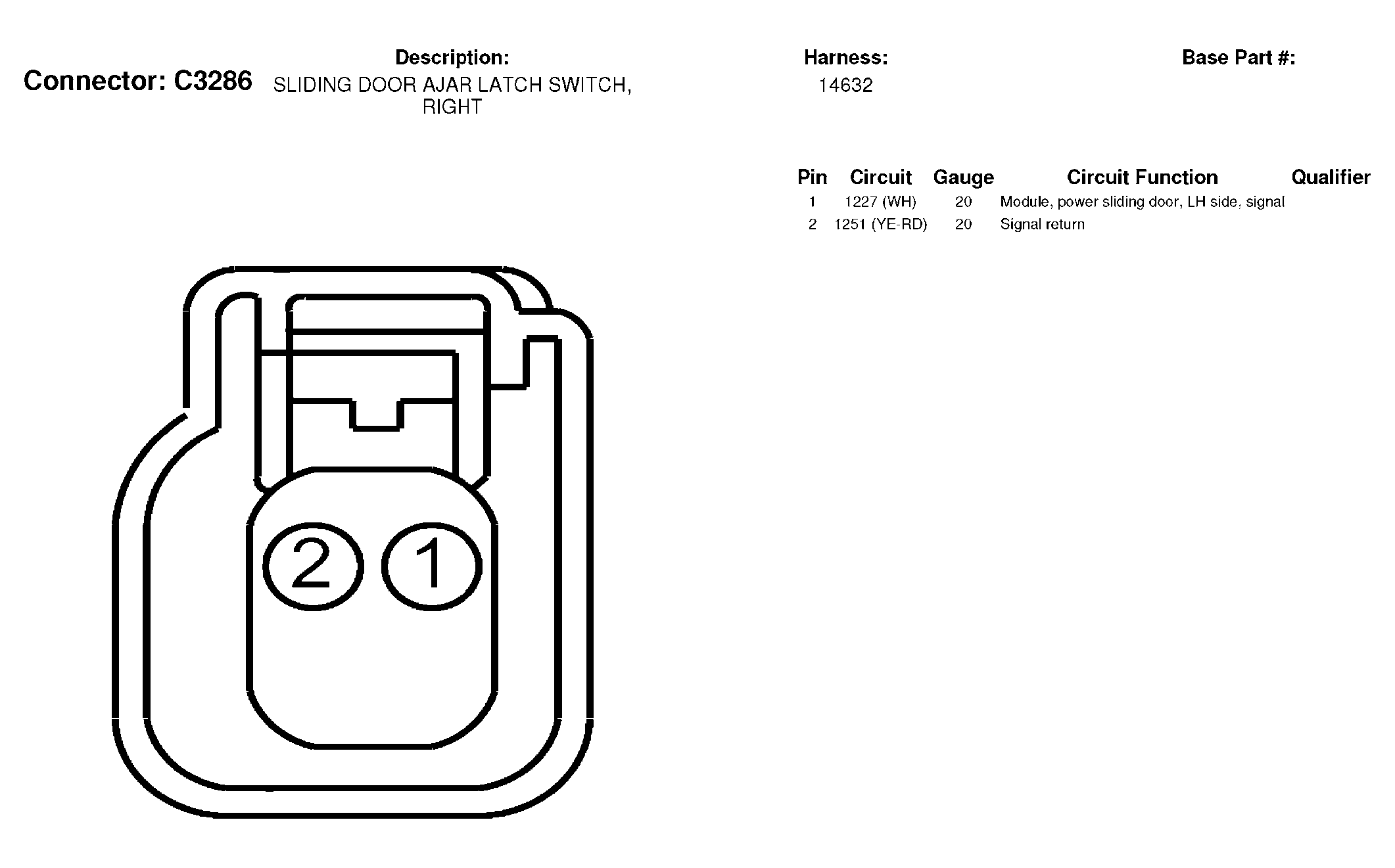

Fig 305: Sliding Door Ajar Latch Switch, Right Connector End View (C3286)
Courtesy of FORD MOTOR CO.

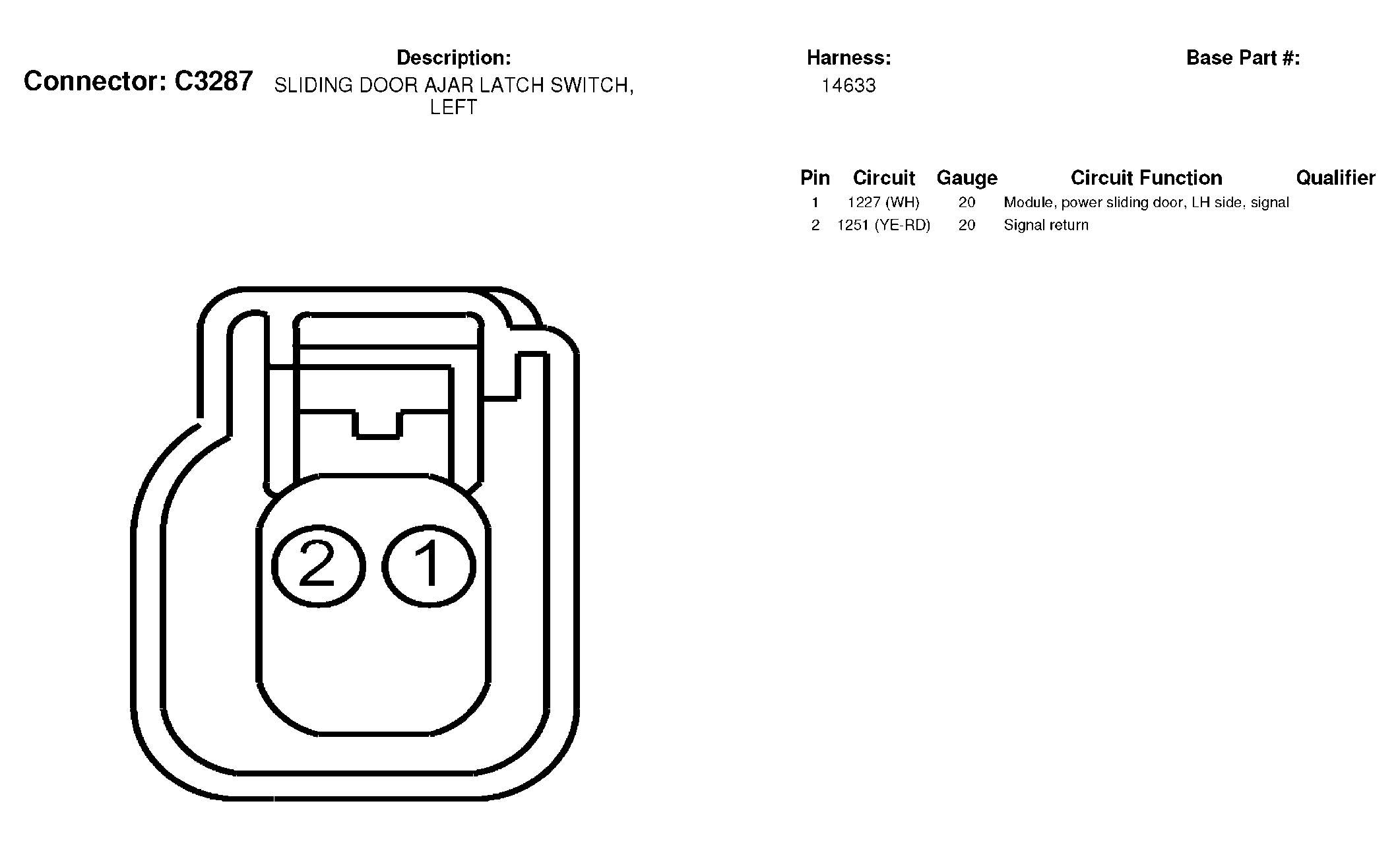

Fig 306: Sliding Door Ajar Latch Switch, Left Connector End View (C3287)
Courtesy of FORD MOTOR CO.
Fig 307: Parking Aid Sensor, Outer Left Connector End View (C4009)
Courtesy of FORD MOTOR CO.

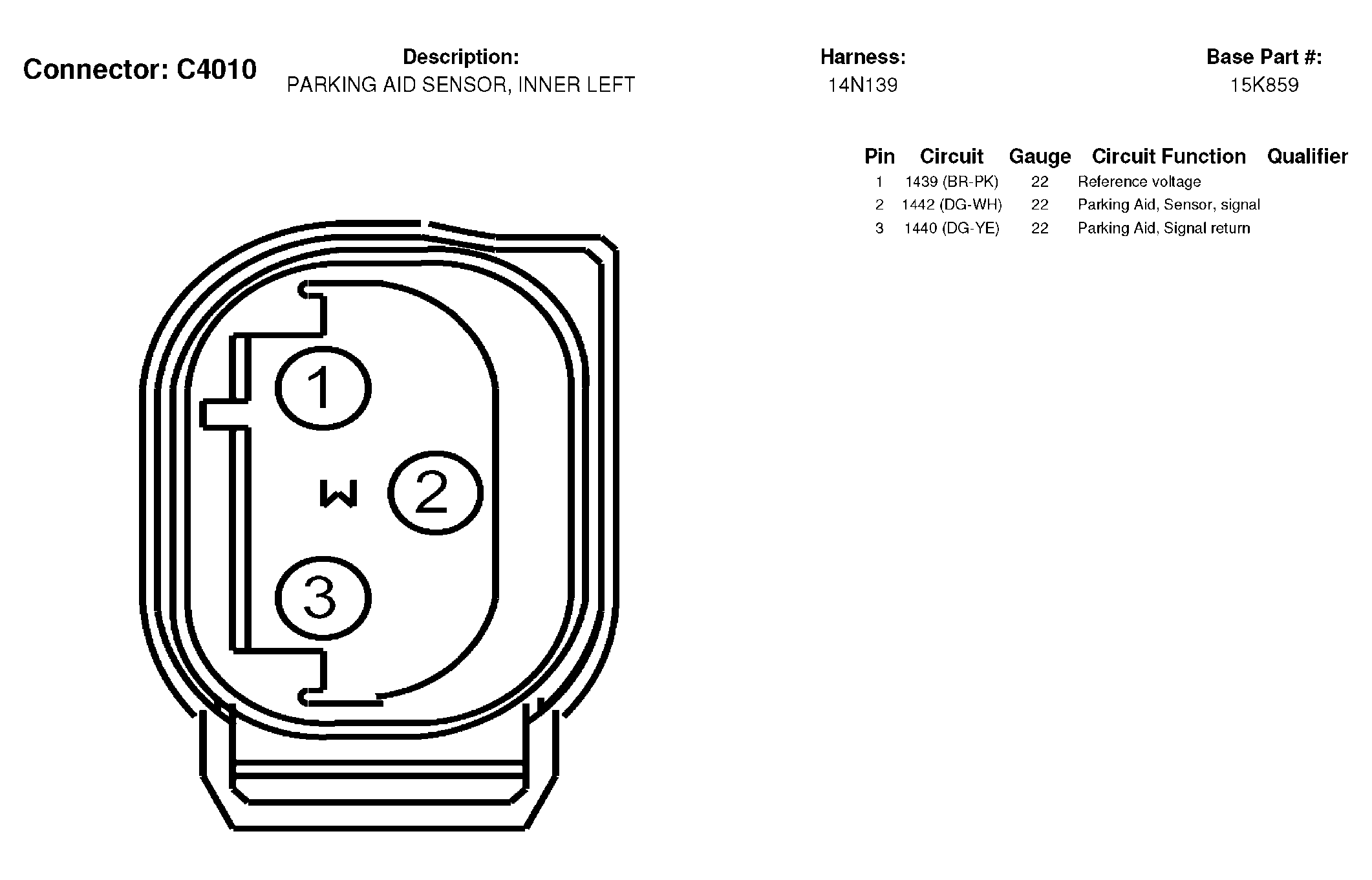

Fig 308: Parking Aid Sensor, Inner Left Connector End View (C4010)
Courtesy of FORD MOTOR CO.
Fig 309: Parking Aid Sensor, Outer Right Connector End View (C4011)
Courtesy of FORD MOTOR CO.

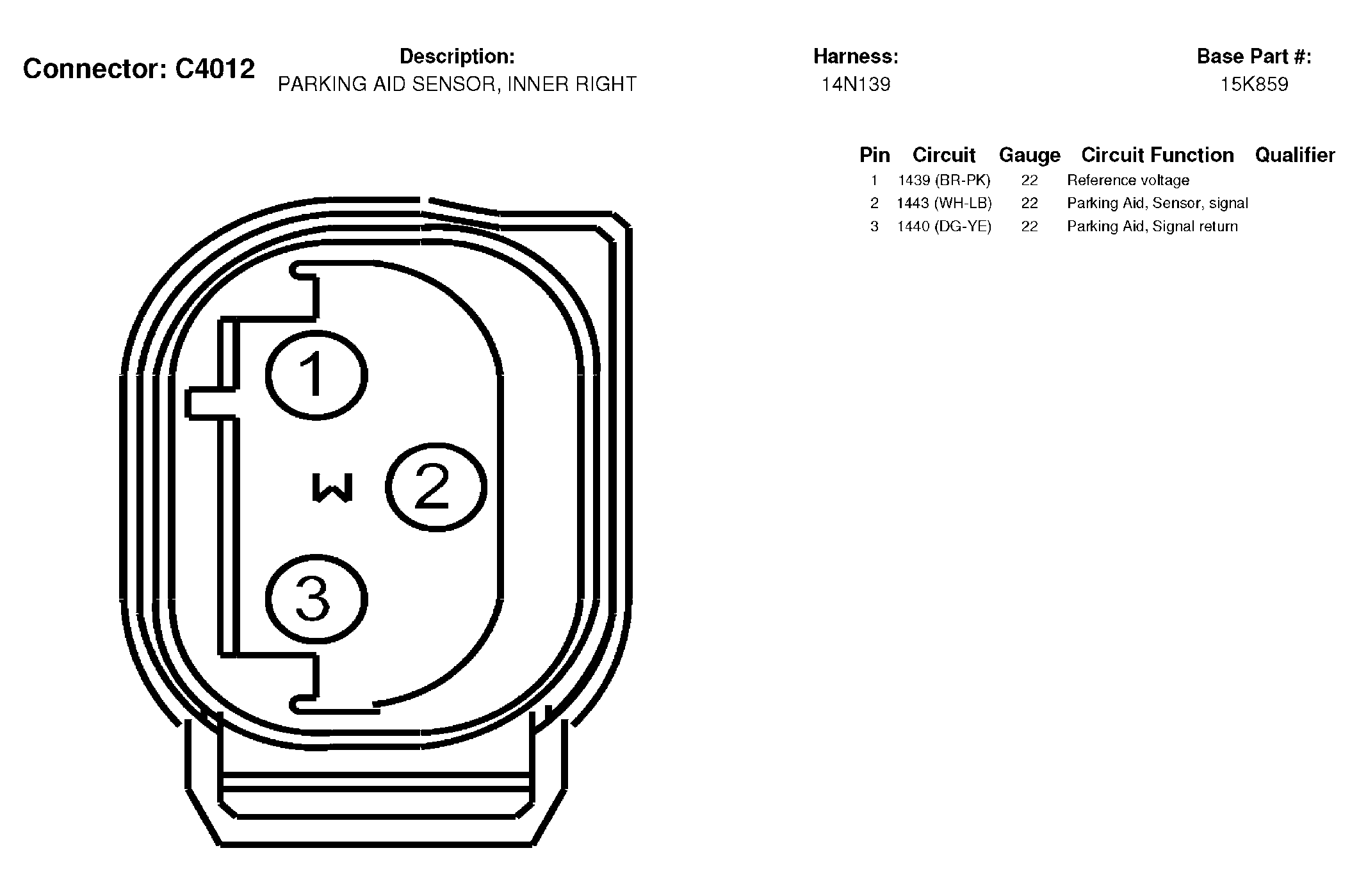

Fig 310: Parking Aid Sensor, Inner Right Connector End View (C4012)
Courtesy of FORD MOTOR CO.

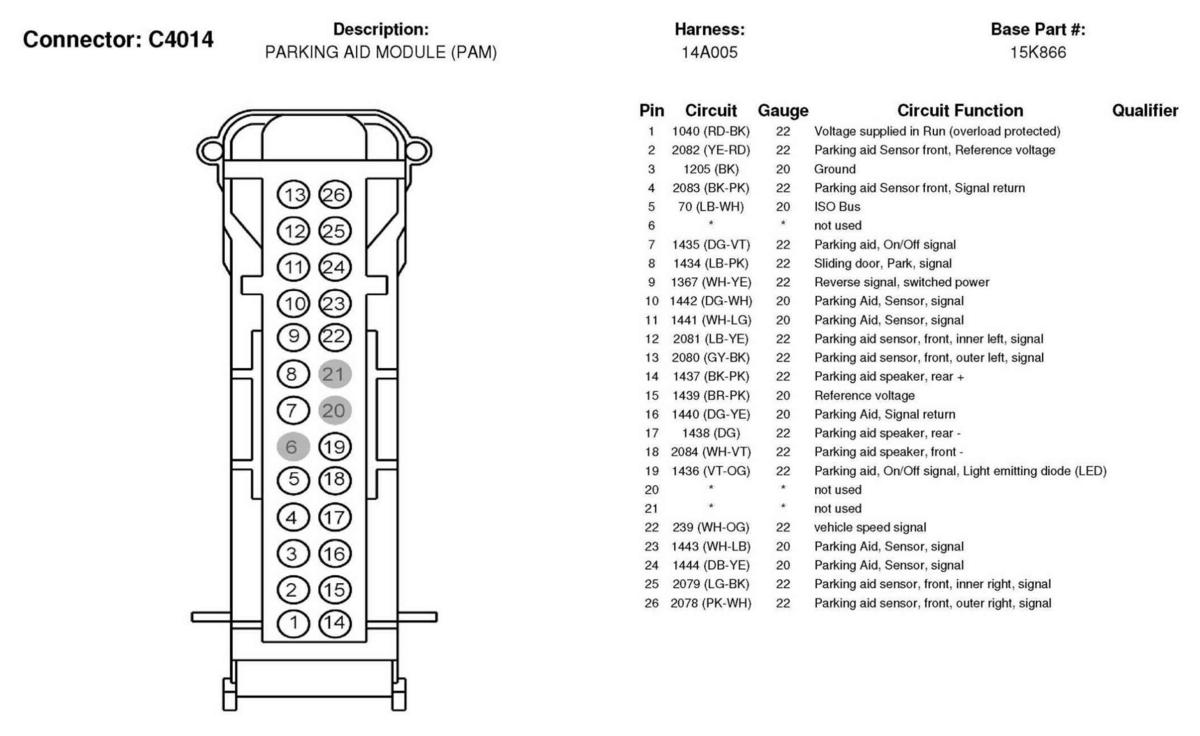

Fig 311: Parking Aid Module (PAM) Connector End View (C4014)
Courtesy of FORD MOTOR CO.
Fig 312: Quarter Window Motor, LH Side Rear Connector End View (C4048)
Courtesy of FORD MOTOR CO.

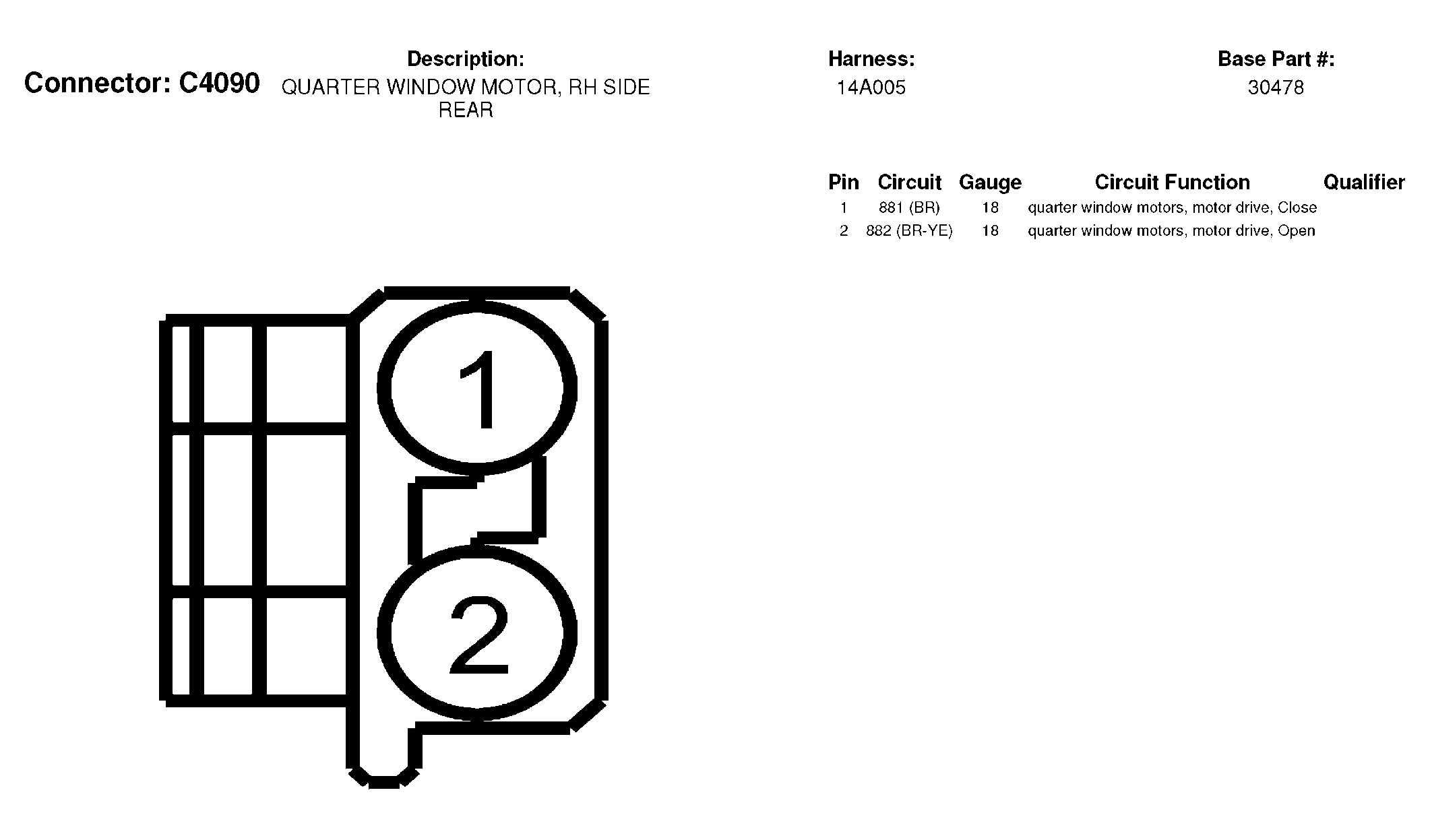

Fig 313: Quarter Window Motor, RH Side Rear Connector End View (C4090)
Courtesy of FORD MOTOR CO.

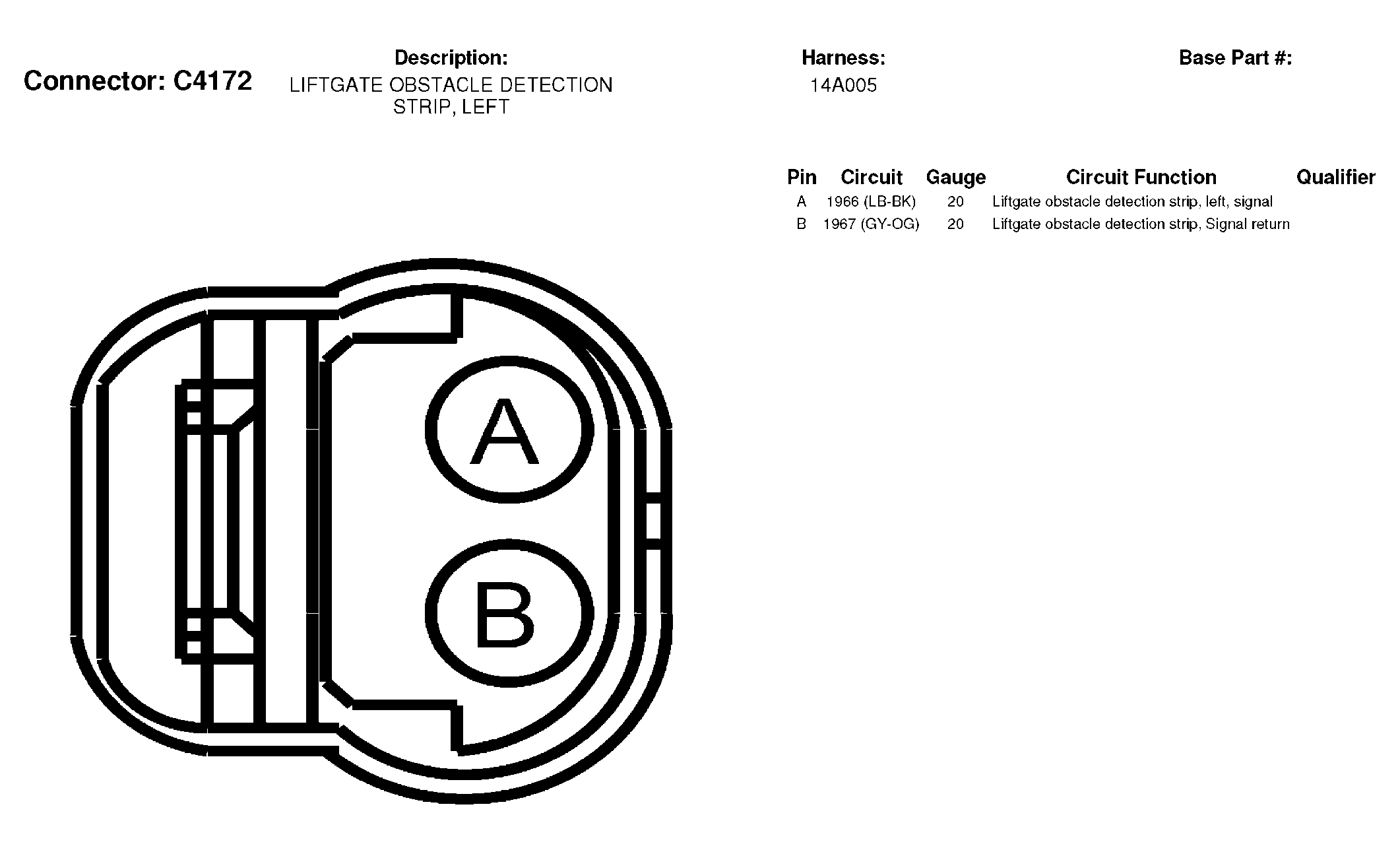

Fig 314: Liftgate Obstacle Detection Strip, Left Connector End View (C4172)
Courtesy of FORD MOTOR CO.

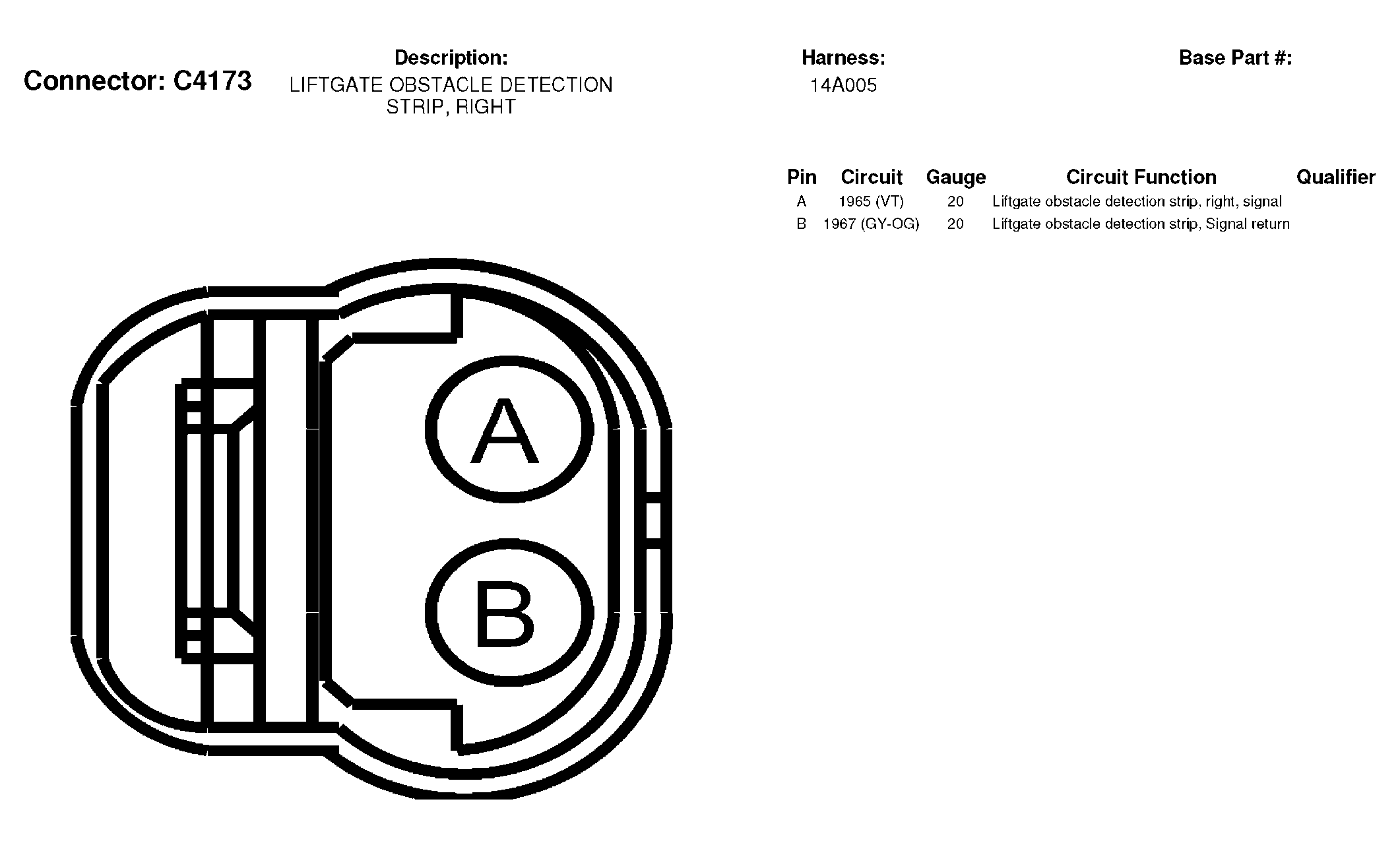

Fig 315: Liftgate Obstacle Detection Strip, Right Connector End View (C4173)
Courtesy of FORD MOTOR CO.

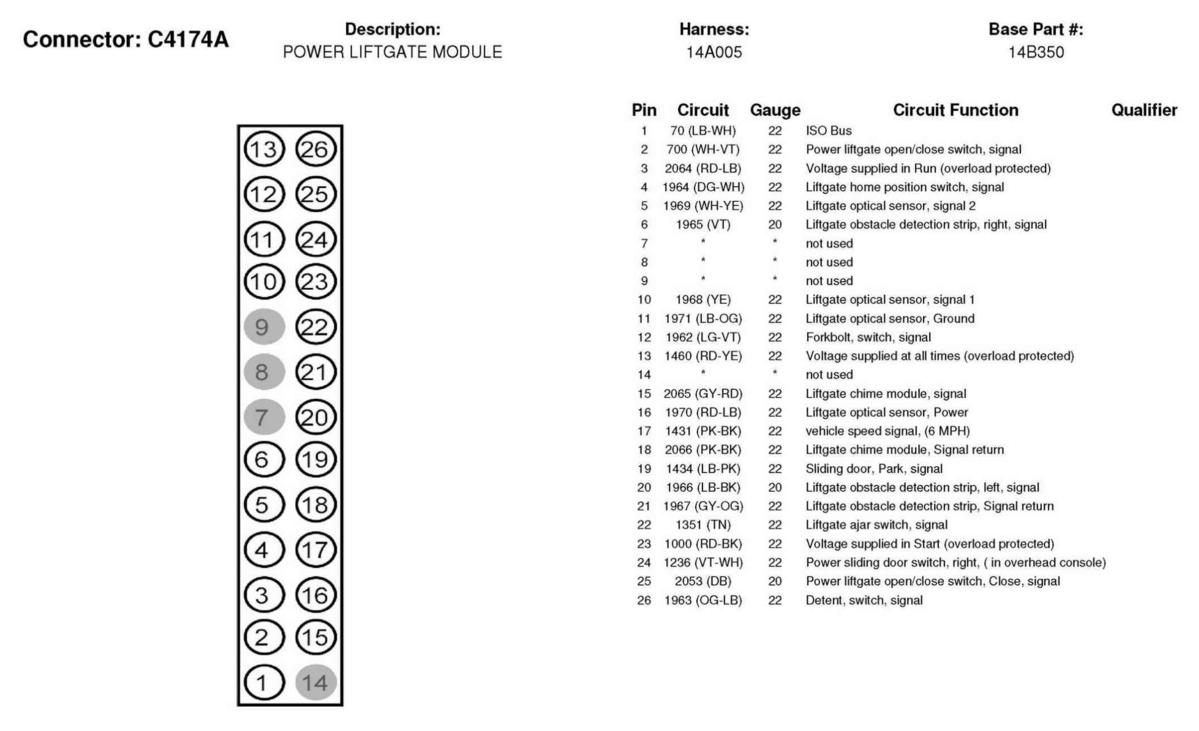

Fig 316: Power Liftgate Module Connector End View (C4174A)
Courtesy of FORD MOTOR CO.

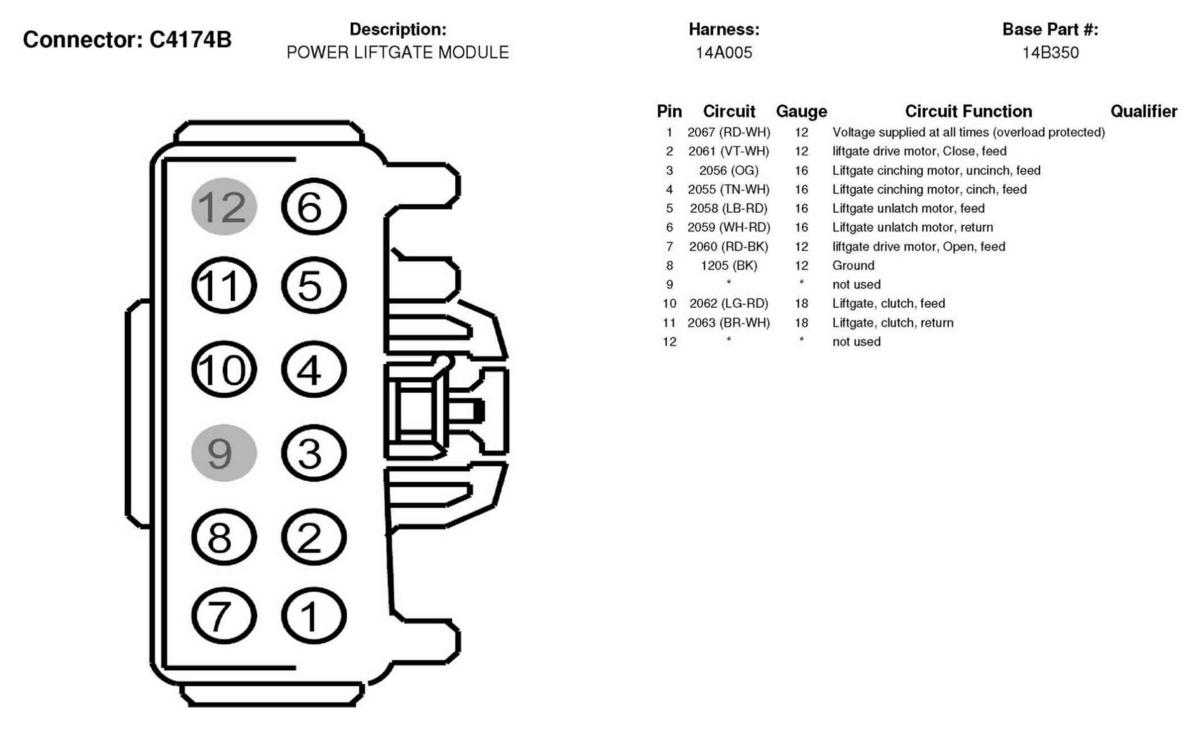

Fig 317: Power Liftgate Module Connector End View (C4174B)
Courtesy of FORD MOTOR CO.

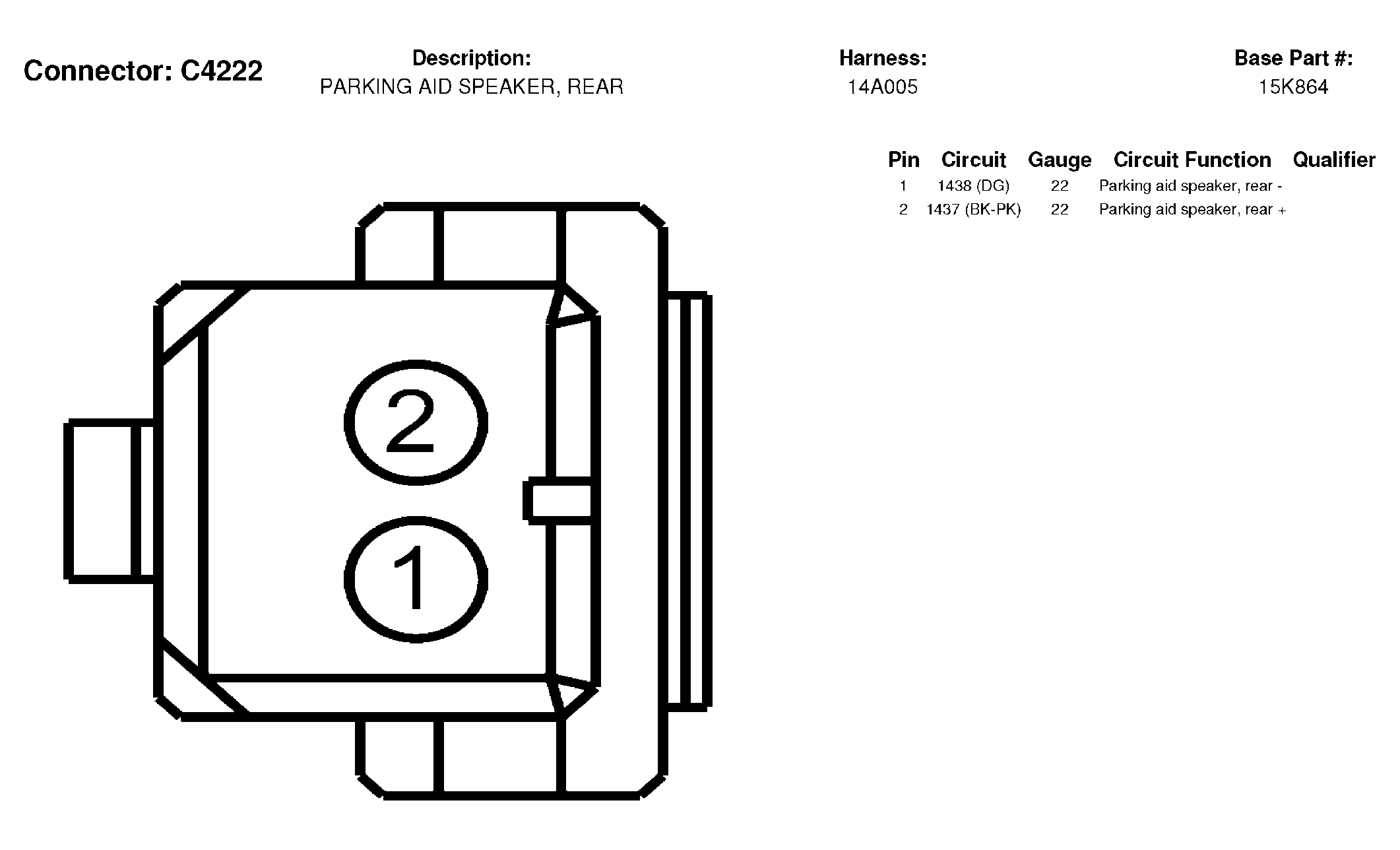

Fig 318: Parking Aid Speaker, Rear Connector End View (C4222)
Courtesy of FORD MOTOR CO.

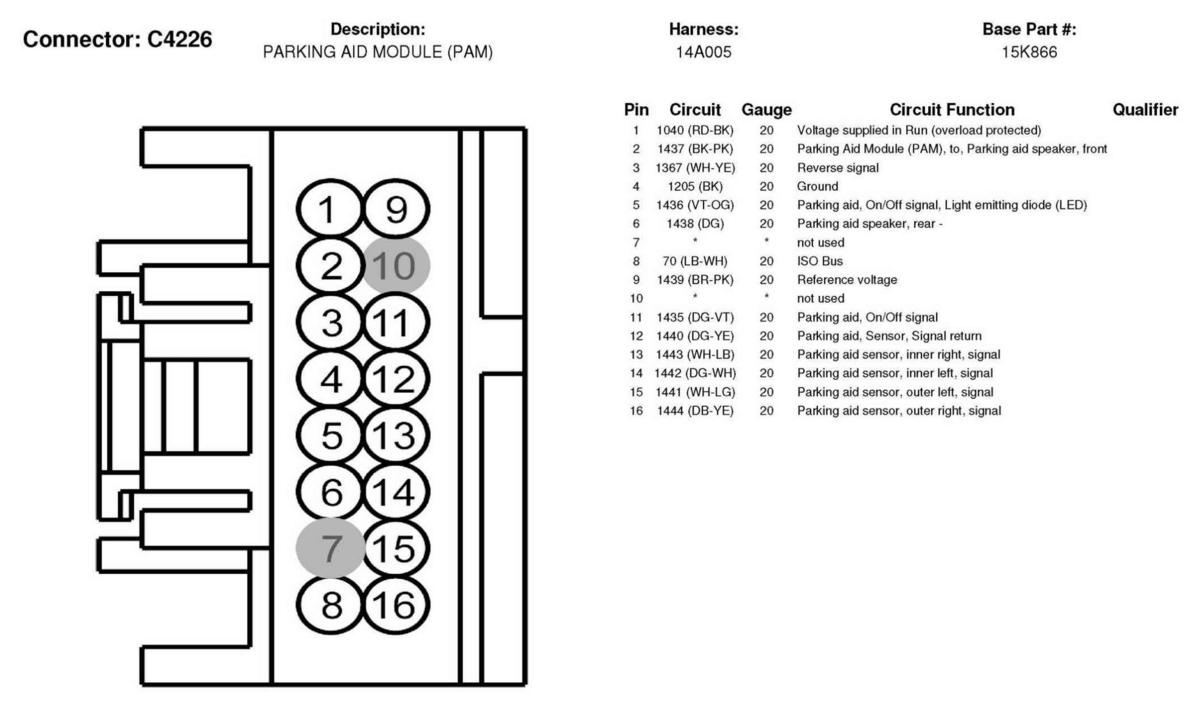

Fig 319: Parking Aid Module (PAM) Connector End View (C4226)
Courtesy of FORD MOTOR CO.

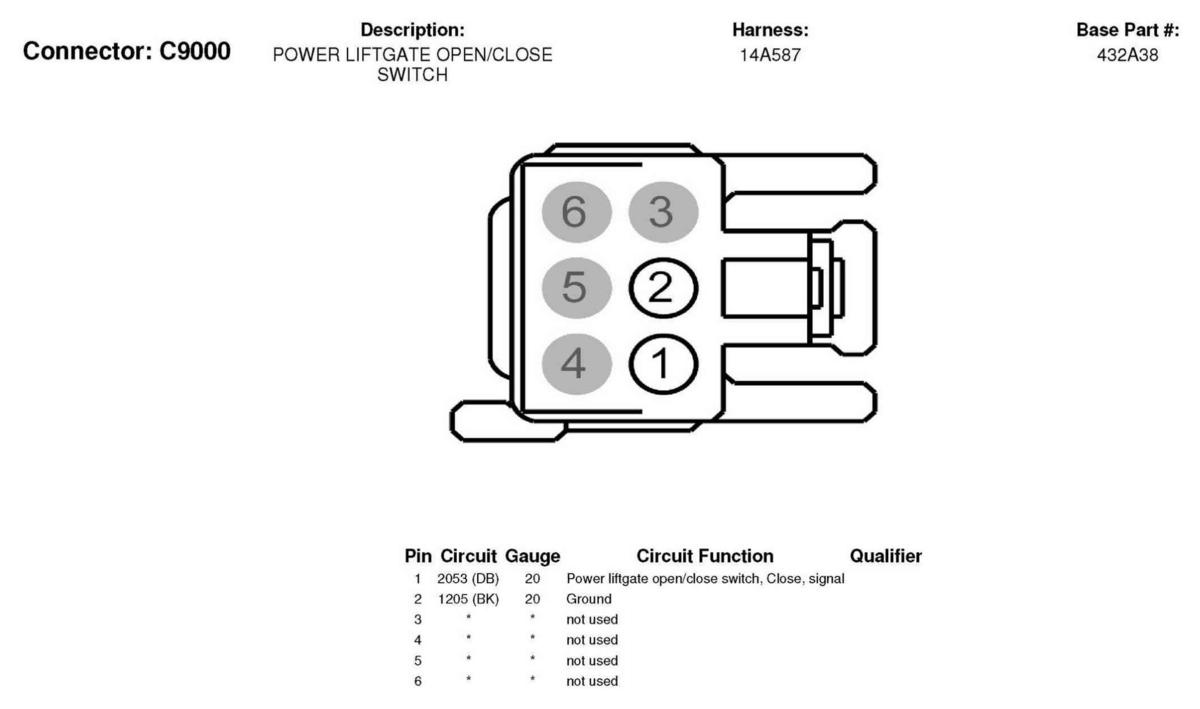

Fig 320: Power Liftgate Open/Close Switch Connector End View (C9000)
Courtesy of FORD MOTOR CO.

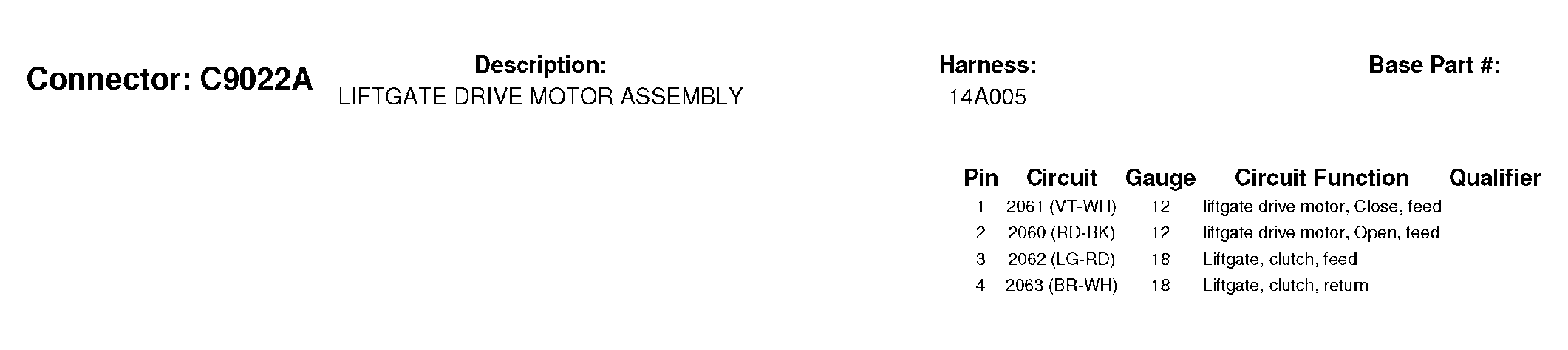

Fig 321: Liftgate Driver Motor Assembly Connector End View (C9022A)
Courtesy of FORD MOTOR CO.

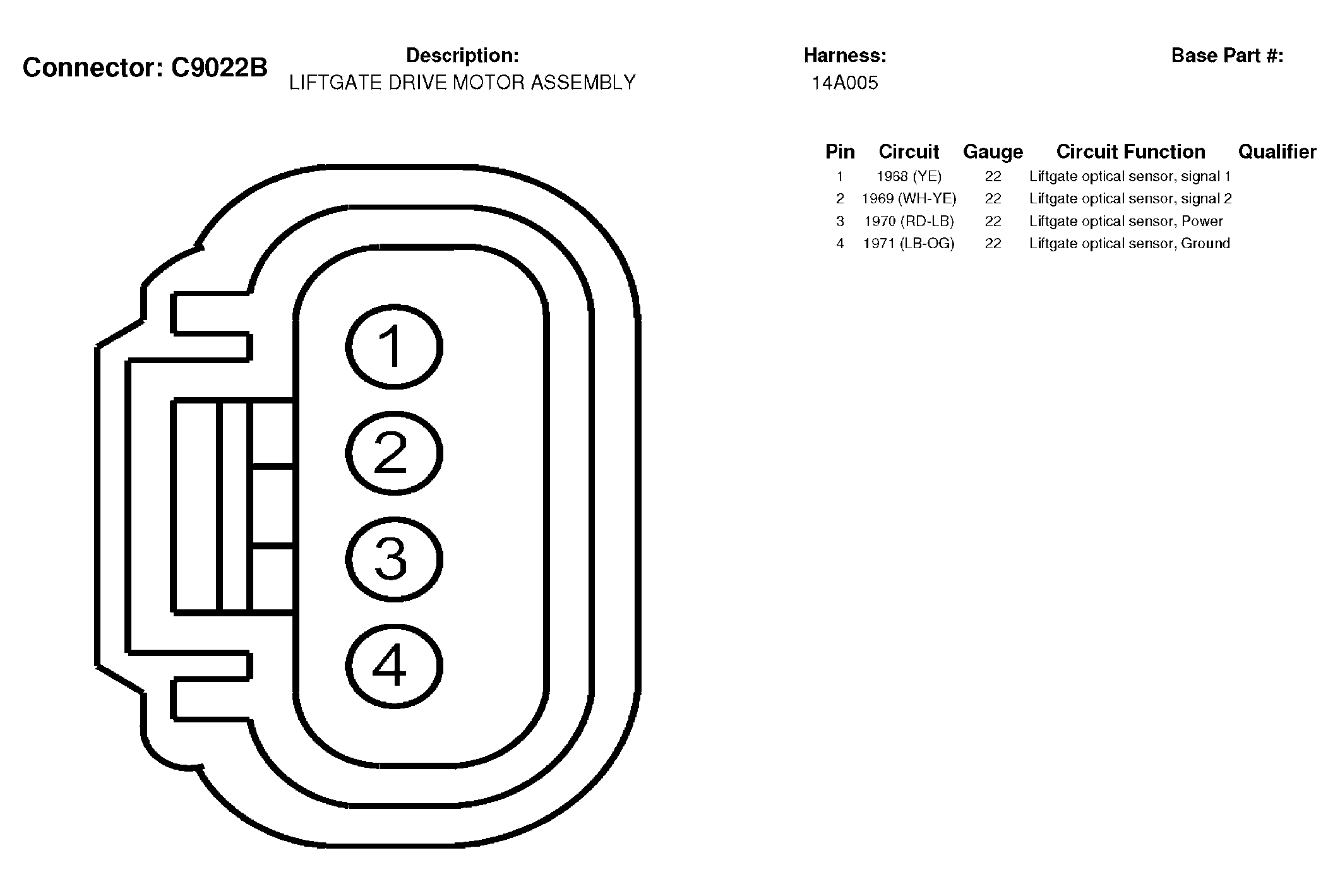

Fig 322: Liftgate Drive Motor Assembly Connector End View (C9022B)
Courtesy of FORD MOTOR CO.

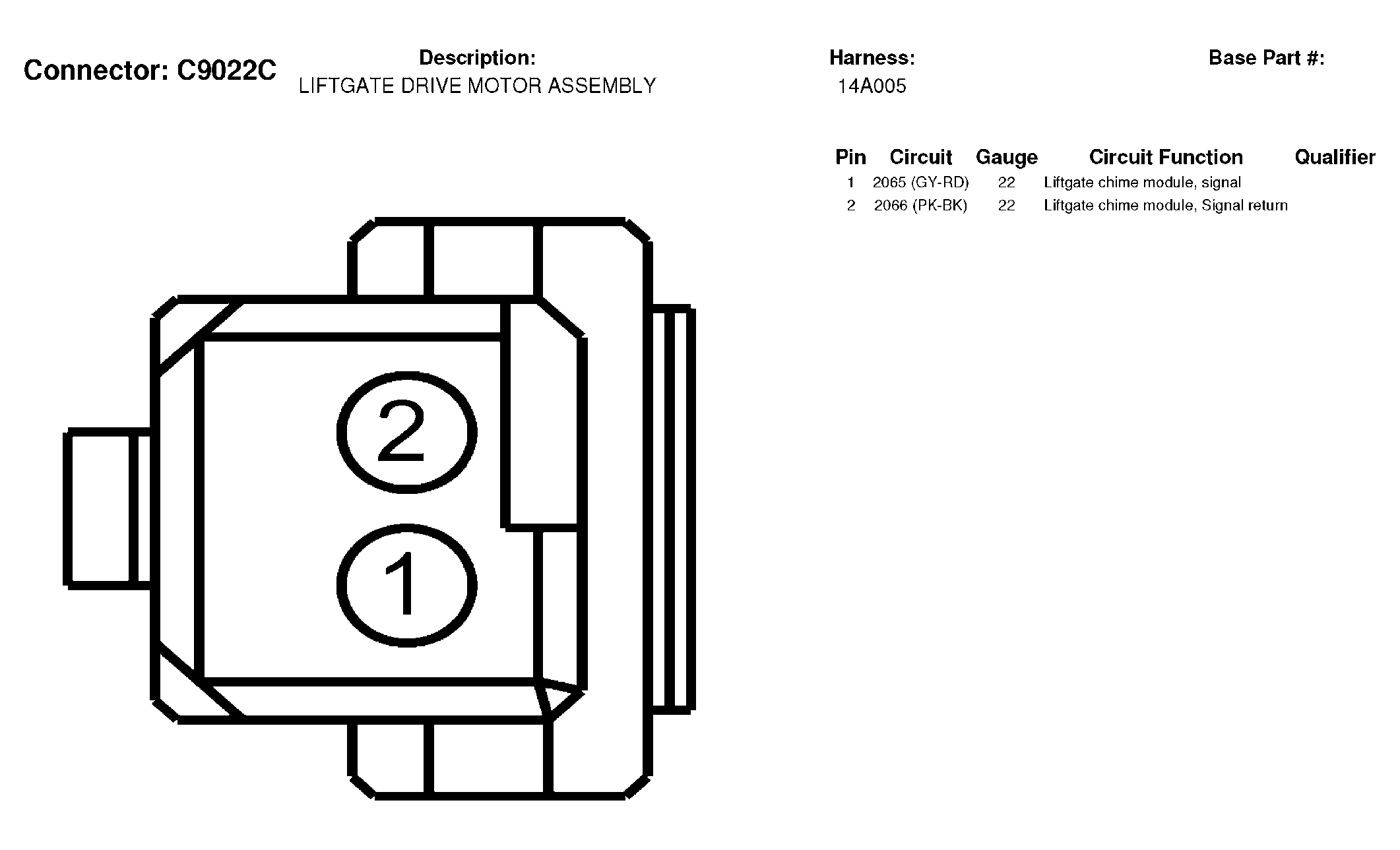

Fig 323: Liftgate Drive Motor Assembly Connector End View (C9022C)
Courtesy of FORD MOTOR CO.

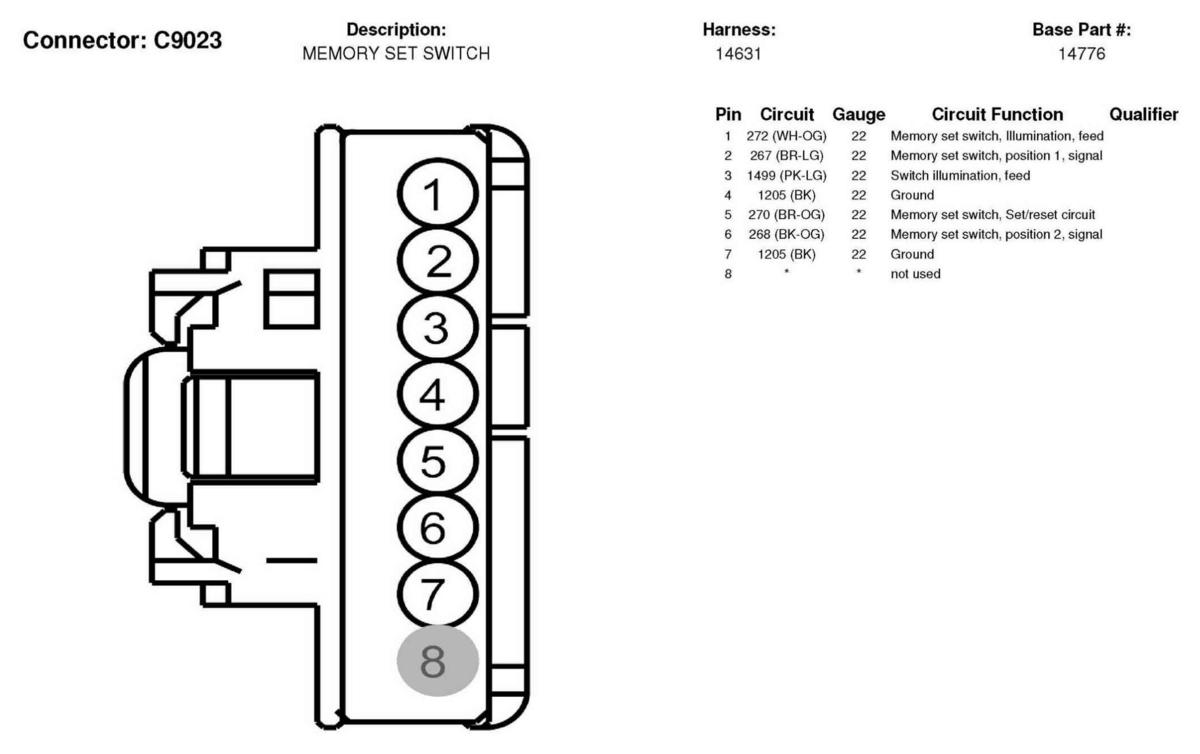

Fig 324: Memory Set Switch Connector End View (C9023)
Courtesy of FORD MOTOR CO.

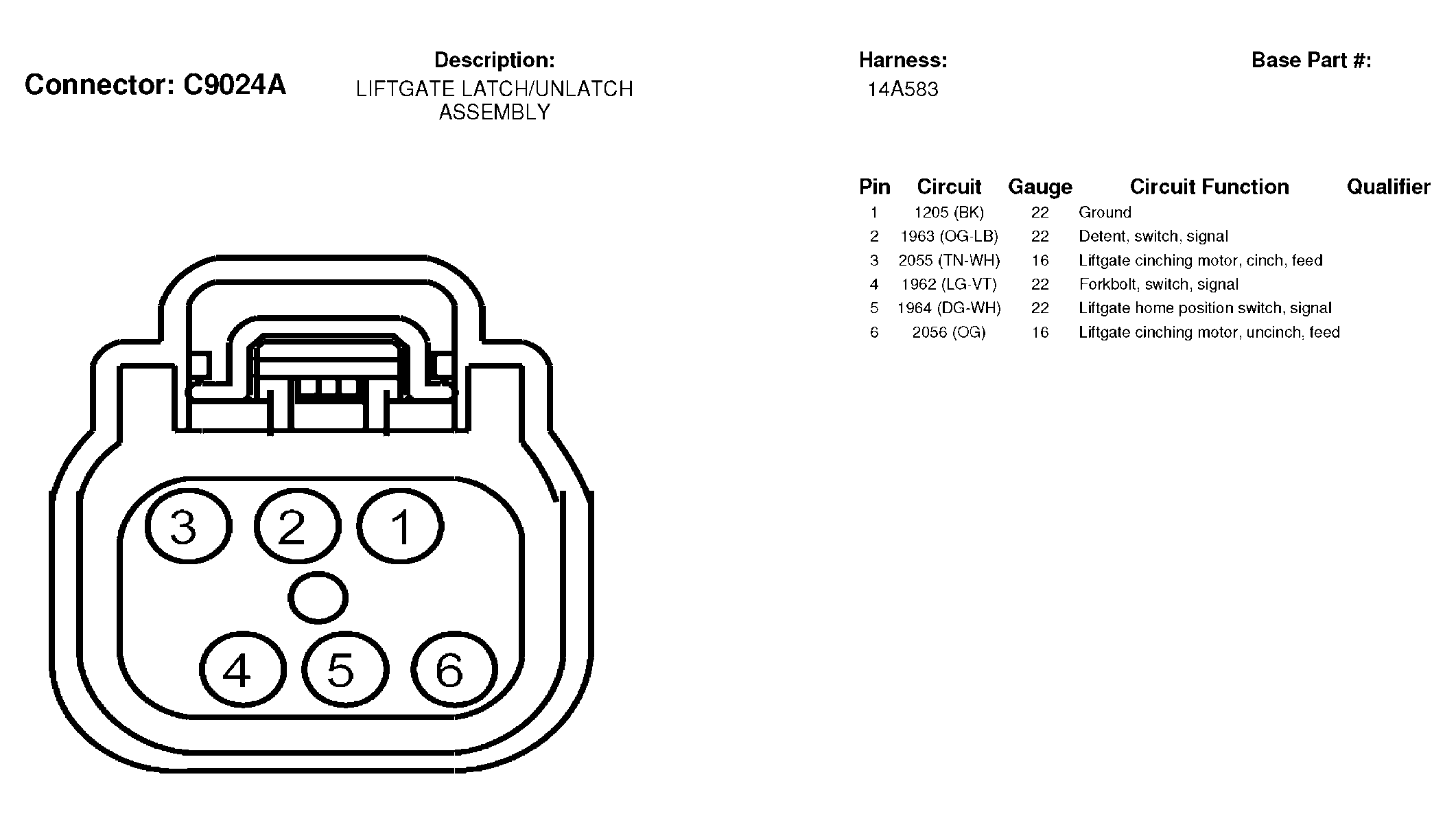

Fig 325: Liftgate Latch/Unlatch Assembly Connector End View (C9024A)
Courtesy of FORD MOTOR CO.
Fig 326: Liftgate Latch/Unlatch Assembly Connector End View (C9024B)
Courtesy of FORD MOTOR CO.

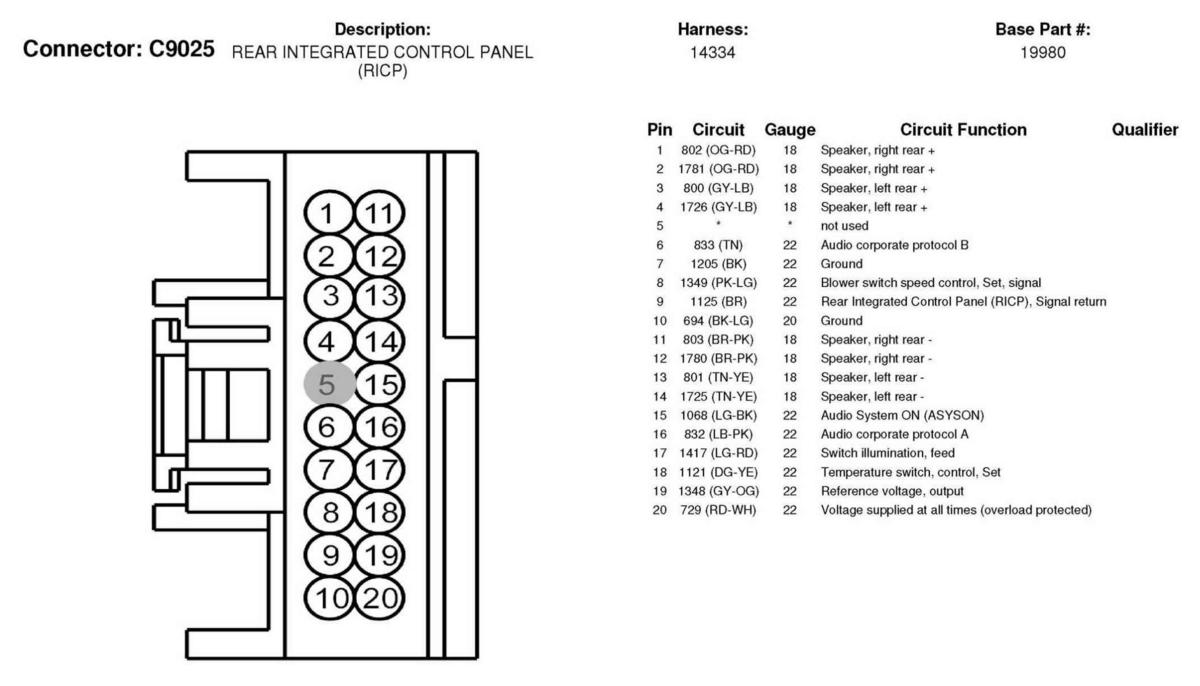

Fig 327: Rear Integrated Control Panel (RICP) Connector End View (C9025)
Courtesy of FORD MOTOR CO.

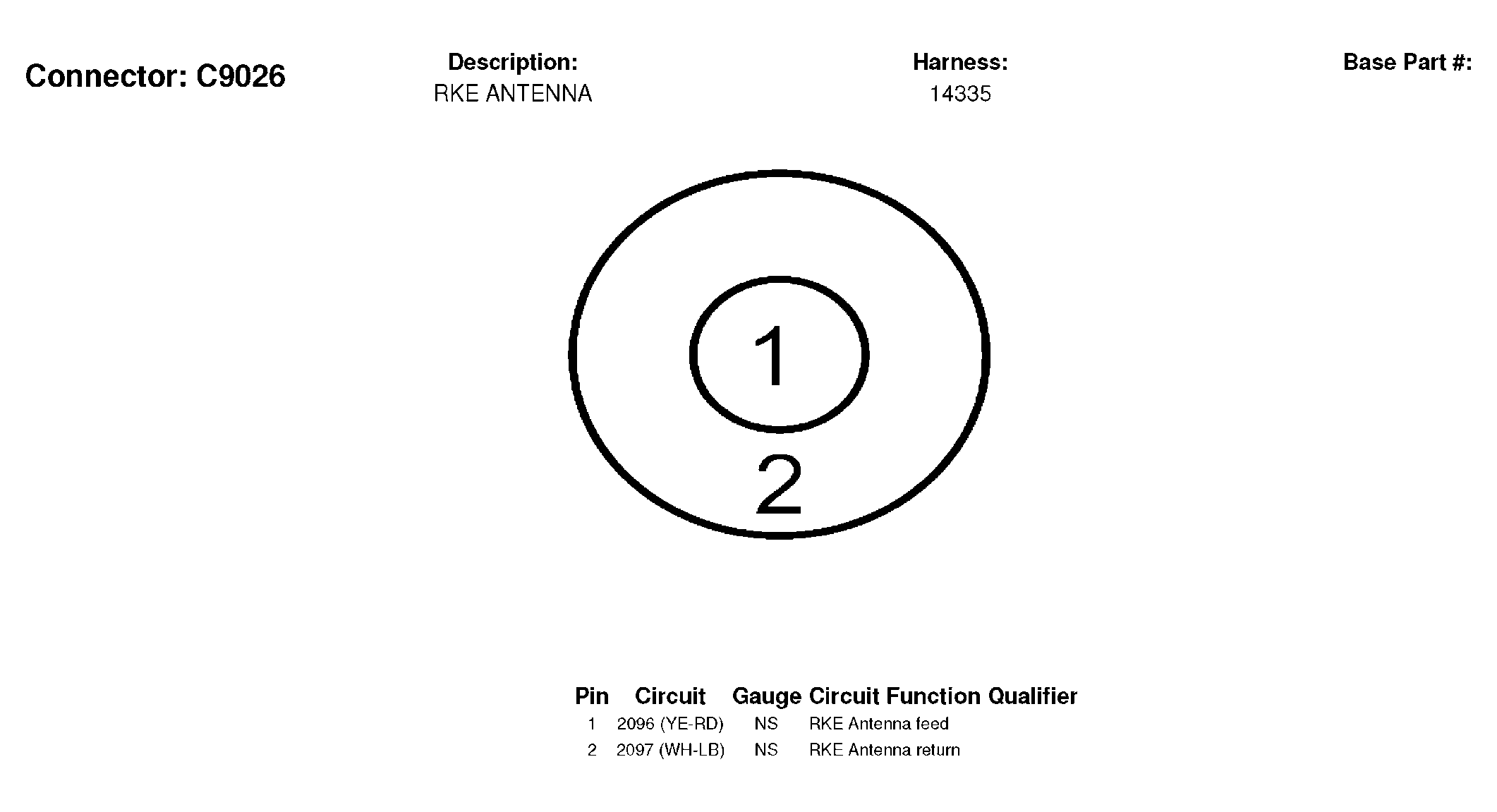

Fig 328: RKE Antenna Connector End View (C9026)
Courtesy of FORD MOTOR CO.
