Home >> Ford >> 2006 >> Freestar Base >> Repair and Diagnosis >> Electrical >> Starter >> Starting System >> Removal And Installation >> Starter Motor >> Notes

Starter Motor: Notes

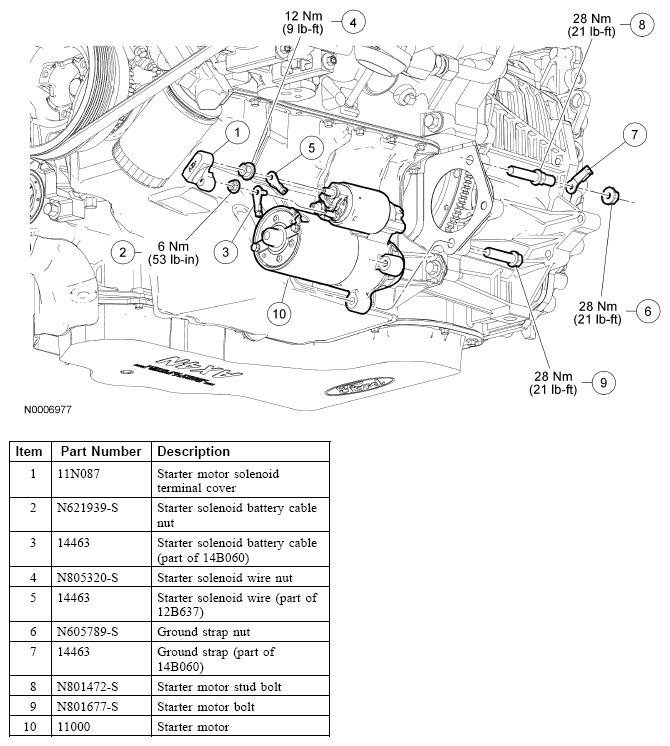

Fig 1: Identifying Starter Motor Components

G04660850

Courtesy of FORD MOTOR CO.
