Removal And Installation
>>
Steering Column - Exploded View
Steering Column - Exploded View

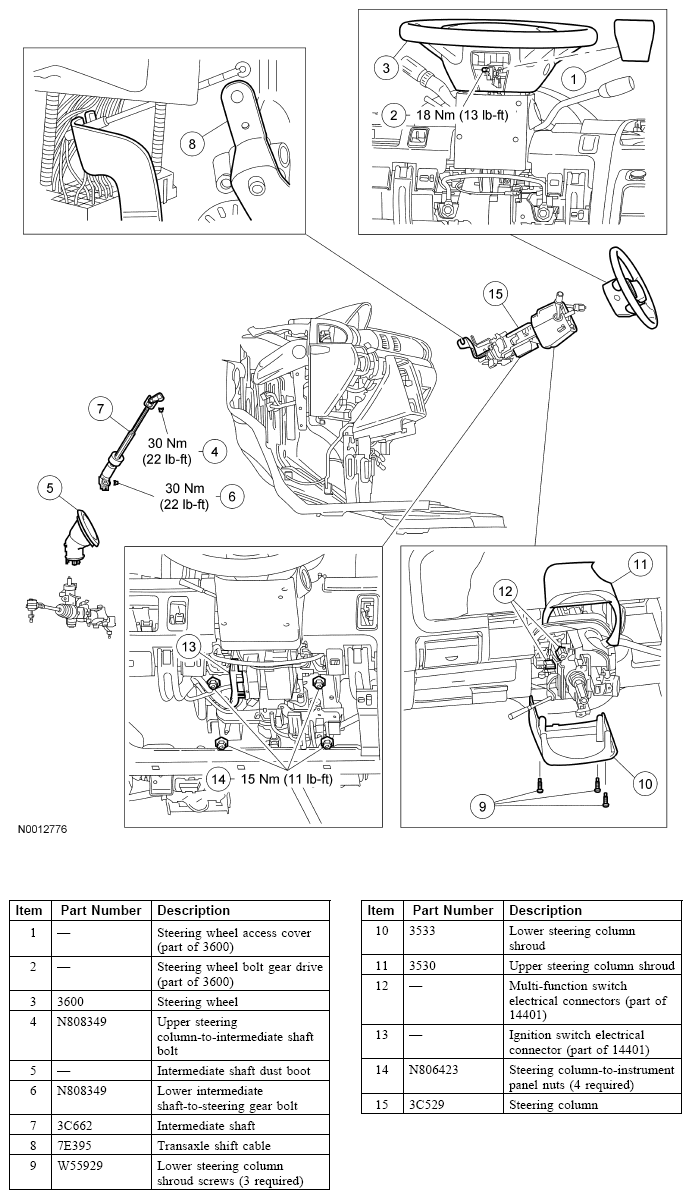

Fig 1: Exploded View Of Steering Column
Courtesy of FORD MOTOR CO.
For additional information, refer to the appropriate procedure.
Courtesy of FORD MOTOR CO.
