Engine Ignition - 2.3L
>>
Removal And Installation
>>
Engine Ignition Components - Exploded View
Engine Ignition Components - Exploded View

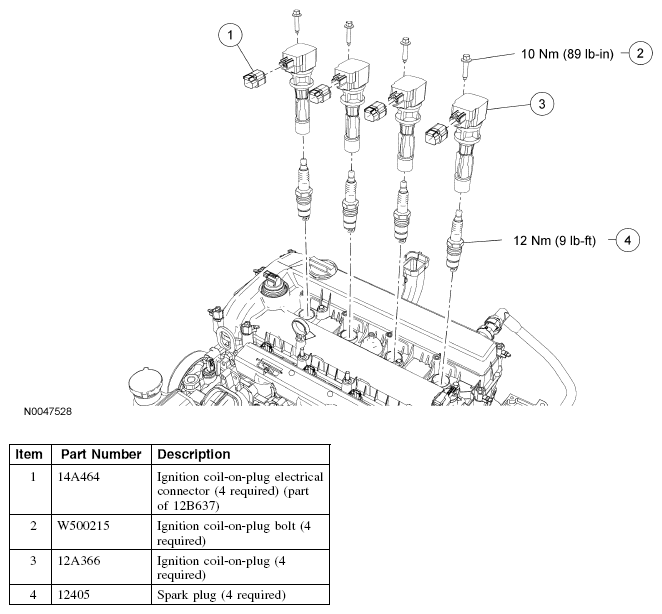

Fig 1: Engine Ignition Components - Exploded View
Courtesy of FORD MOTOR CO.
For additional information, refer to the appropriate procedure.
Courtesy of FORD MOTOR CO.
