Home >> Ford >> 2006 >> Taurus SE, 3.0 2 >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System-General Information >> General Procedures >> Spring Lock Couplings >> Connect

Spring Lock Couplings: Connect

  1. To connect, push both of the coupling ends together until the spring lock is in place.
    • Inspect and clean both coupling ends.
    • Lubricate the O-ring seals with engine oil.

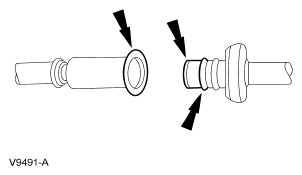

Fig 1: Locating Coupling Components
G04710602Courtesy of FORD MOTOR CO.
