Steering Column - Column Shift: Notes

SPECIAL TOOL(S) DESCRIPTION CHART

Courtesy of FORD MOTOR CO.

Steering Column Locking Lever Tool (Shop Fabricated)

MATERIAL SPECIFICATION

Item	Specification
Premium Long-Life Grease XG-1-C	ESA-M1C75-B

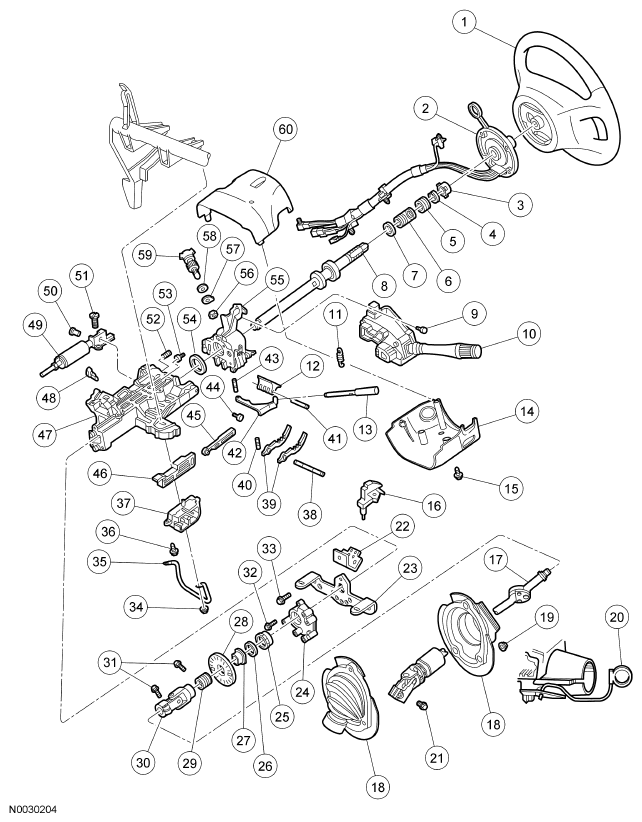

Fig 1: Exploded View Of Steering Column - Column Shift

Courtesy of FORD MOTOR CO.

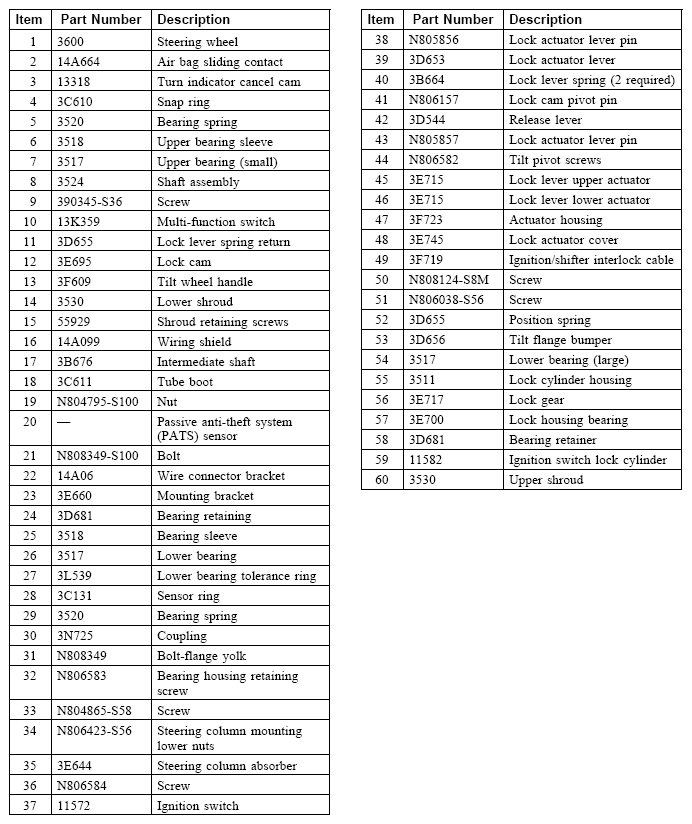

Fig 2: Steering Column - Column Shift Legends Description

Courtesy of FORD MOTOR CO.
