Liftgate Module / Trunk Module Connector

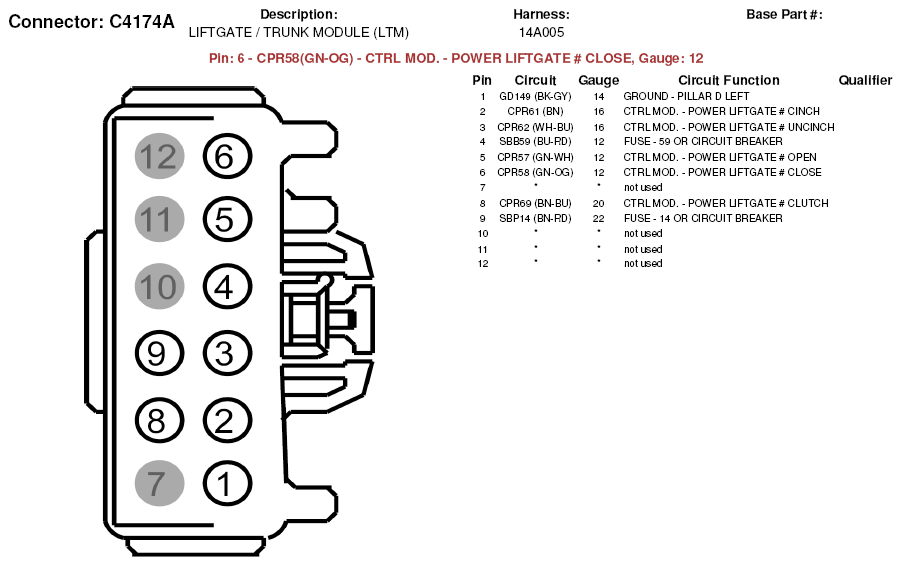

Fig 1: Liftgate Module / Trunk Module Connector End View (C4174A)
G05182812Courtesy of FORD MOTOR CO.

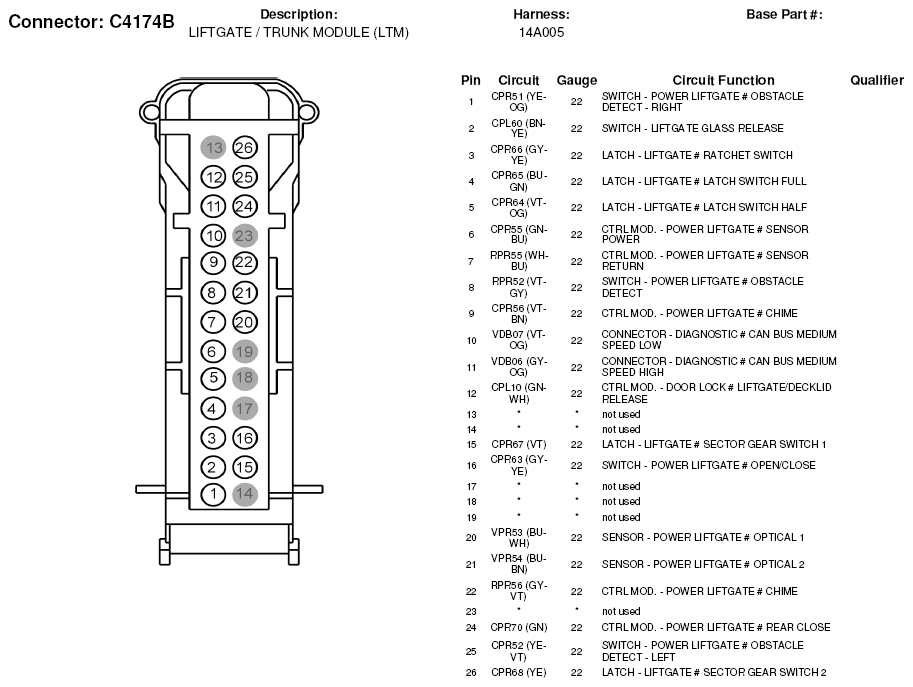

Fig 2: Liftgate Module / Trunk Module Connector End View (C4174B)
G05182813Courtesy of FORD MOTOR CO.
