Solenoid Body Assembly: Notes

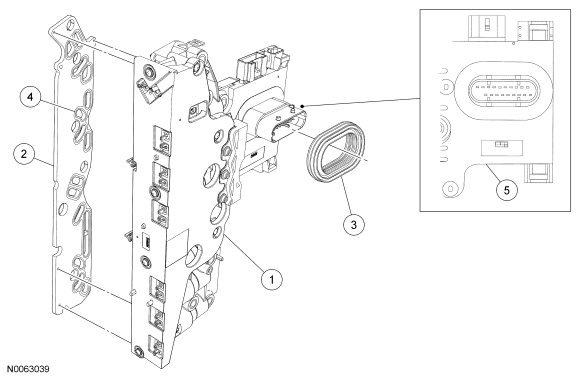

Fig 1: Exploded View Of Solenoid Body Assembly
GF0031593Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7Z369 Solenoid body
2 7H200 Solenoid body filter
3 7J213 Seal - solenoid body electrical connector
4 - Solenoid body filter screens
5 - Lead frame area
