Powertrain Control Module (PCM): Notes

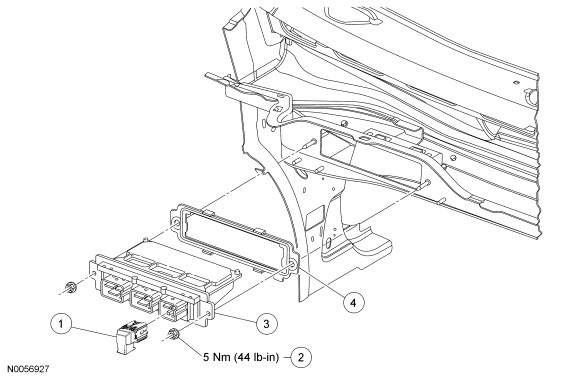

Fig 1: Exploded View Of Powertrain Control Module (PCM) With Torque Specifications
GF0031451Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Powertrain control module (PCM) electrical connector (part of 12B637) (3 required)
2 N804795 PCM nut (2 required)
3 12A650 PCM
4 12A696 PCM gasket
