Electronic Throttle Control Module Connectors

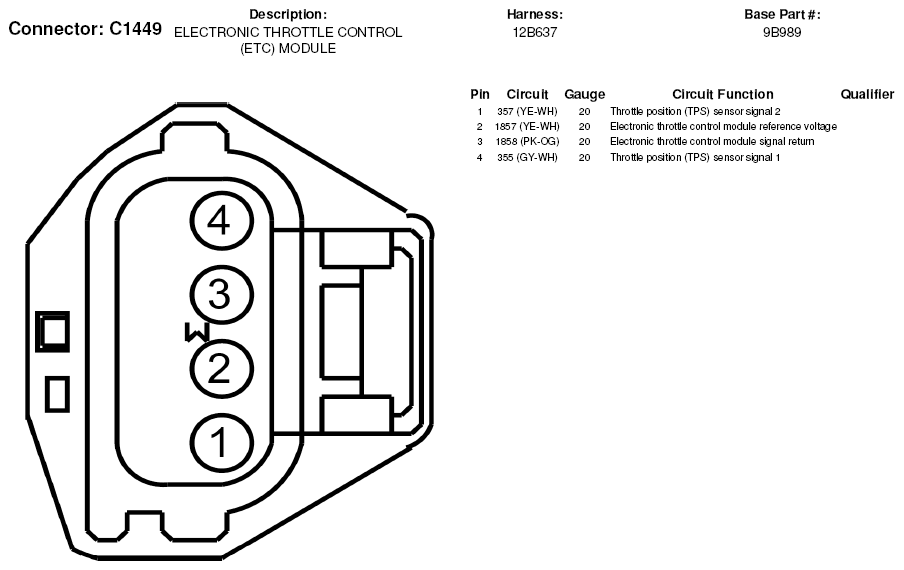

Fig 1: Electronic Throttle Control Module Connector End View (C1449)

G05179290

Courtesy of FORD MOTOR CO.
