Multifunction Switch Connectors

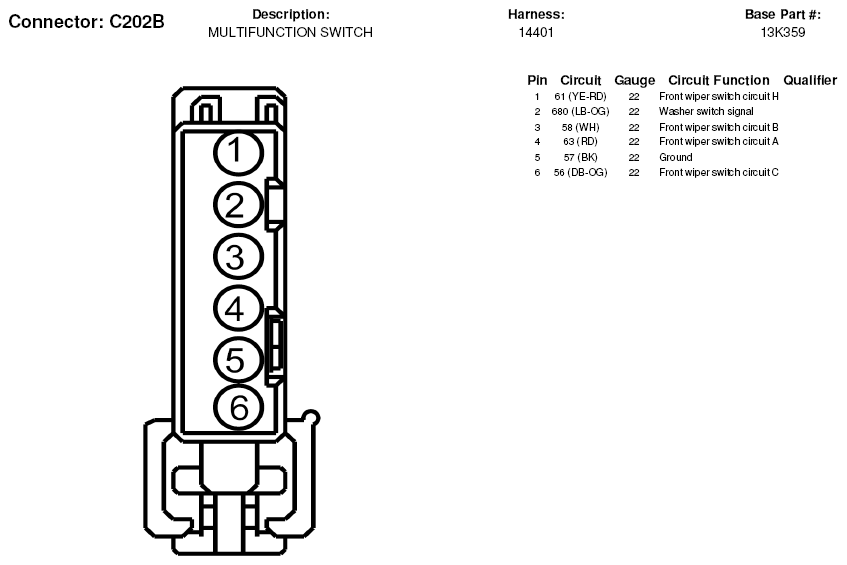

Fig 1: Multifunction Switch Connector End View (C202B)
Courtesy of FORD MOTOR CO.
Fig 2: Multifunction Switch Connector End View (C202C)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
