Restraints Control Module Connectors

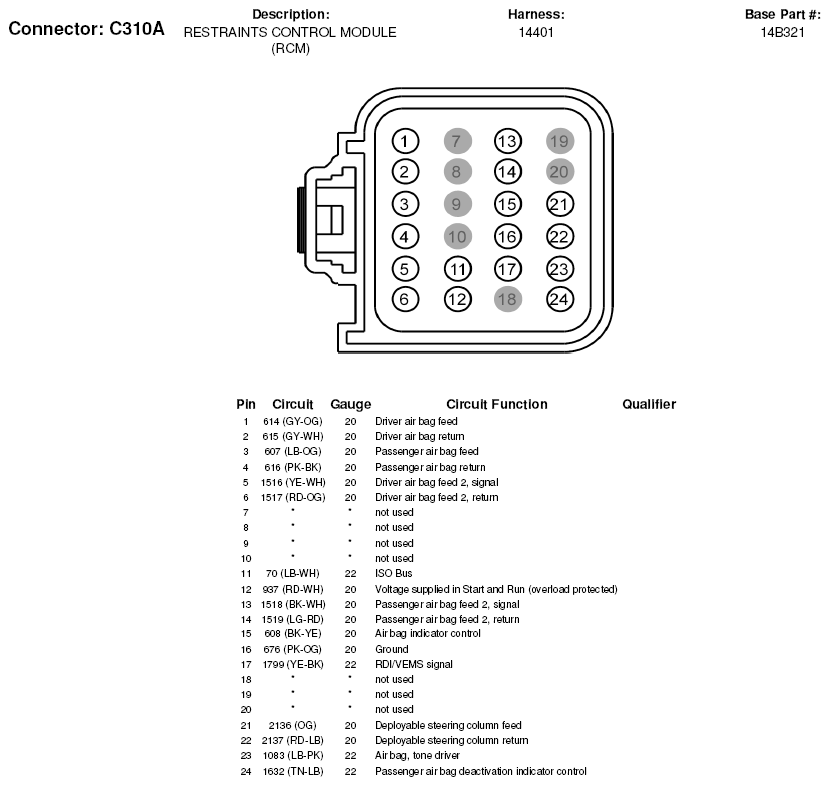

Fig 1: Restraints Control Module Connector End View (C310A)
G05179152Courtesy of FORD MOTOR CO.

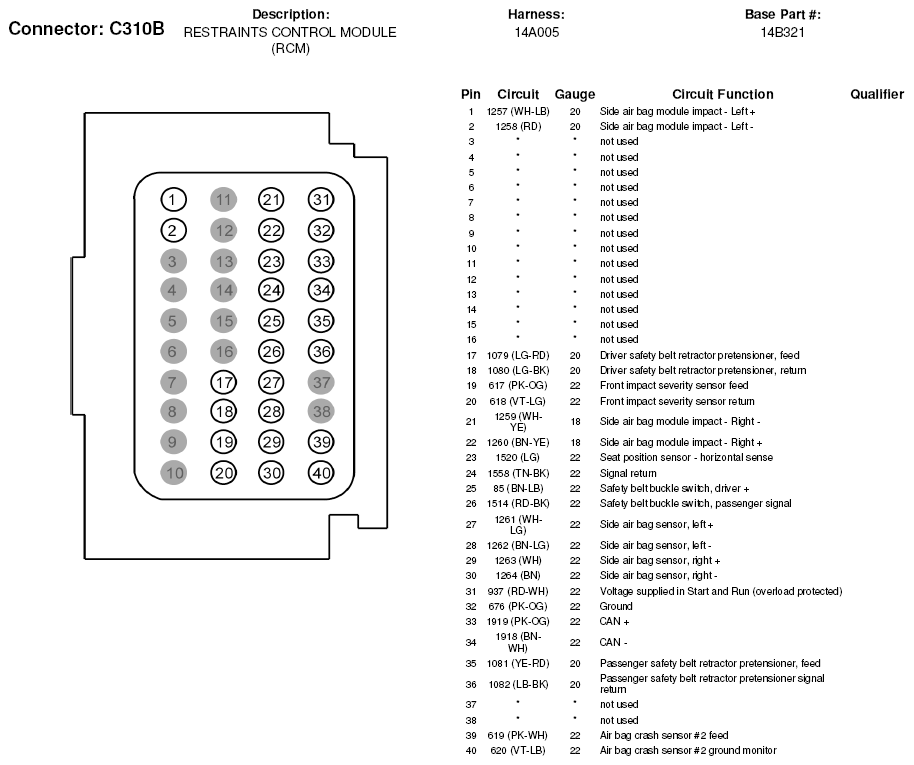

Fig 2: Restraints Control Module Connector End View (C310B)
G05179153Courtesy of FORD MOTOR CO.
