Home >> Ford >> 2007 >> Expedition 4WD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector Views >> Vehicle Dynamics Module Connector

Vehicle Dynamics Module Connector

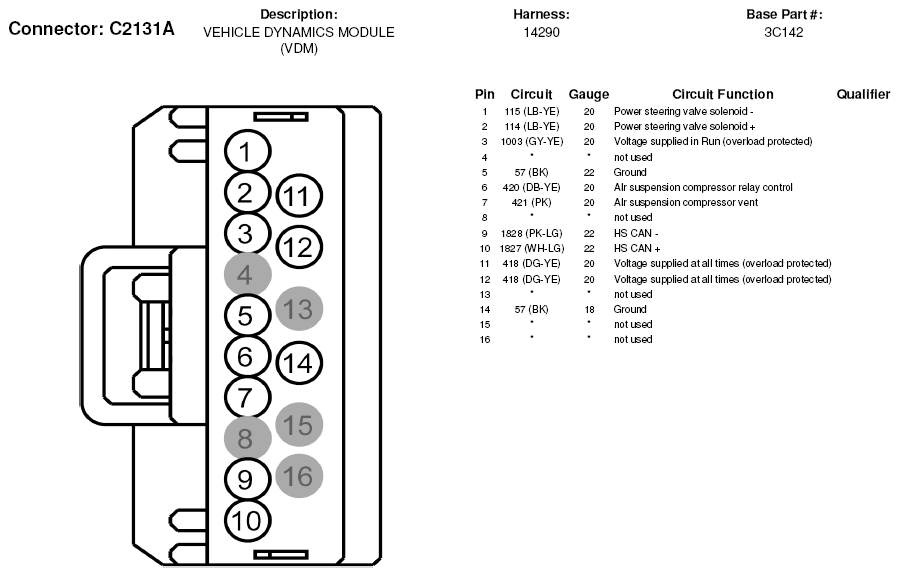

Fig 1: Vehicle Dynamics Module Connector End View (C2131A)
G05179309Courtesy of FORD MOTOR CO.

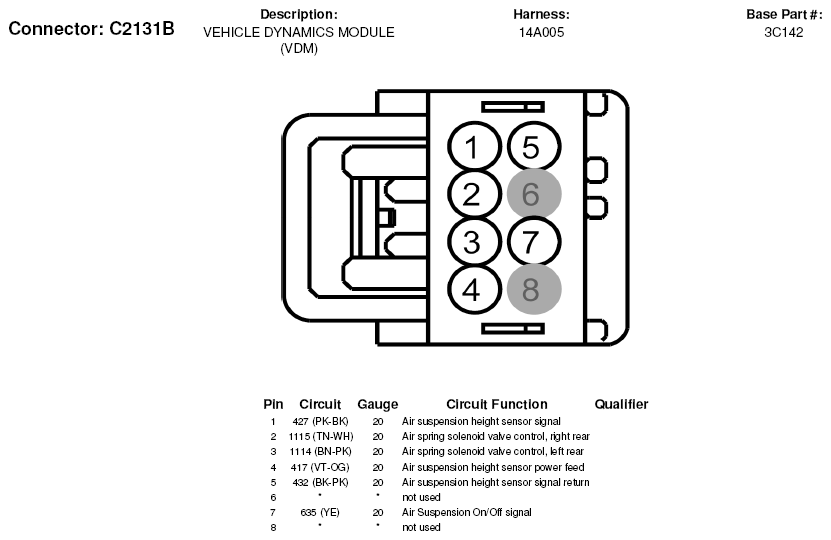

Fig 2: Vehicle Dynamics Module Connector End View (C2131B)
G05179310Courtesy of FORD MOTOR CO.
