Steering Column: Notes

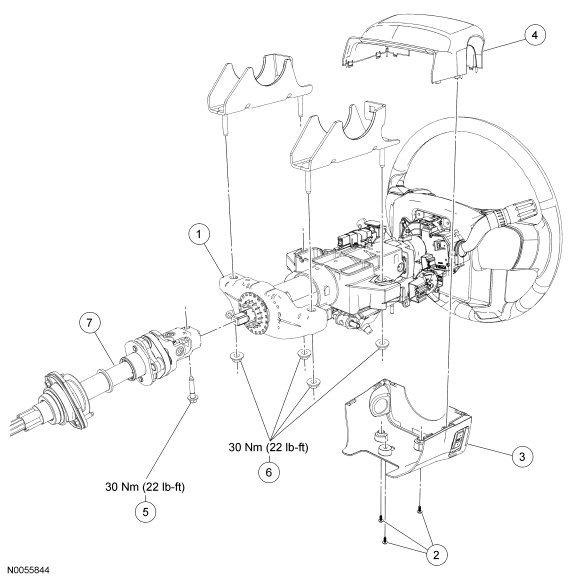

Fig 1: Exploded View Of Steering Column With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3C529	Steering column
2	W710485	Lower steering column shroud screws (3 required)
3	3533	Lower steering column shroud
4	3530	Upper steering column shroud
5	N808684	Upper steering column shaft-to-steering column bolt
6	N806423	Steering column support-to-instrument panel nuts (4 required)
7	14A099	Upper steering column shaft
