Engine Lubrication Components - Exploded View

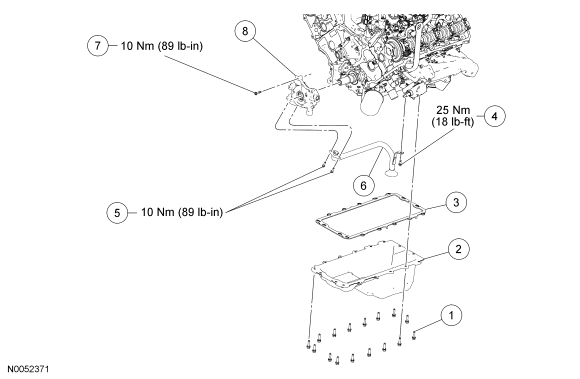

Fig 1: Exploded View Of Engine Lubrication Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W701605	Oil pan bolt (16 required)
2	6675	Oil pan
3	6710	Oil pan gasket
4	N605904	Oil pump screen and pickup tube-to-spacer bolt
5	N806155	Oil pump screen and pickup tube-to-oil pump bolts (2 required)
6	6622	Oil pump screen and pickup tube
7	N806183	Oil pump bolt (3 required)
8	6621	Oil pump

1. For additional information, refer to the following procedures.
