Radio Remote Control Switch Connector

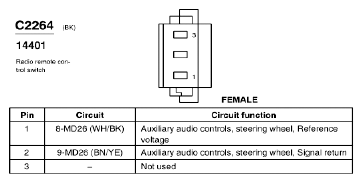

Fig 1: Radio Remote Control Switch Connector End View (C2264)

G07850544

Courtesy of FORD MOTOR CO.
