Fuel Pump Module: Notes

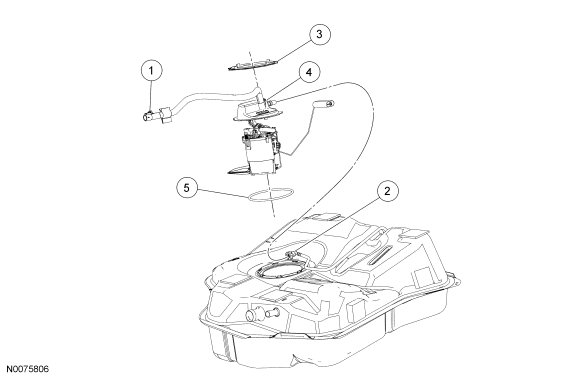

Fig 1: Exploded View Of Fuel Pump Module
GF0040251Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Fuel pump module electrical connector
2 9A322 Fuel filter inlet tube
3 9C385 Fuel pump module lock ring
4 9H307 Fuel pump module
5 9E275 Fuel pump module O-ring
