Wheel Speed Sensor - Front: Notes

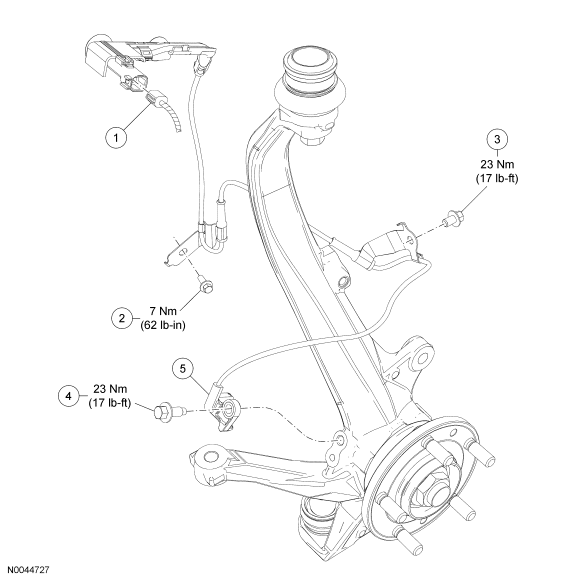

Fig 1: Exploded View Of Front Wheel Speed Sensor With Torque Specifications
GF0029613Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Wheel speed sensor electrical connector (part of 14A227)
2 W500020 Wheel speed sensor harness bracket-to-body bolt
3 - Wheel speed sensor harness bracket-to-wheel knuckle bolt
4 W500222 Wheel speed sensor bolt
5 2C204 RH/ 2C205 LH Wheel speed sensor
