Home >> Ford >> 2007 >> Fusion S, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission External Controls >> Removal And Installation >> Selector Lever >> Notes

Selector Lever: Notes

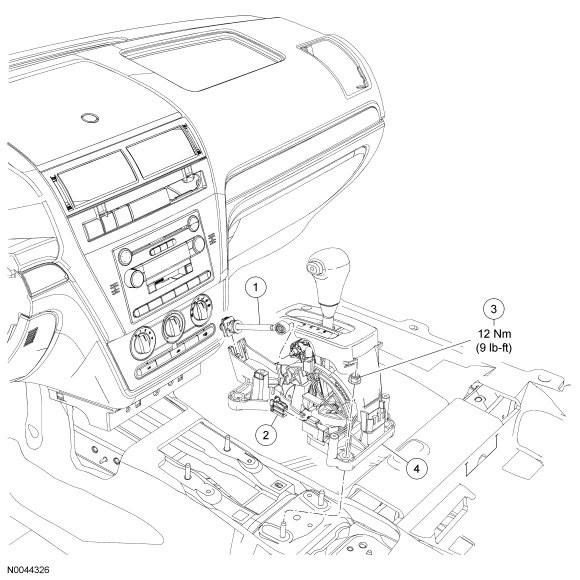

Fig 1: Exploded View Of Selector Lever With Torque Specification
GF0029896Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7E395 Selector lever cable
2 14489 Floor shifter electrical connector
3 W520102 Selector lever nut (4 required)
4 7K004 Selector lever assembly
