Multifunction Switch Connectors

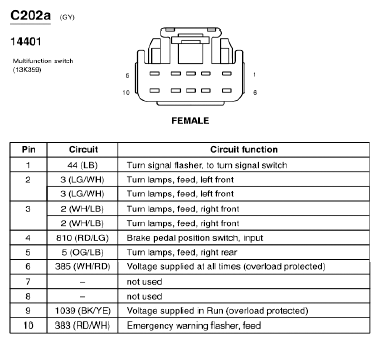

Fig 1: Multifunction Switch Connector End View (C202a)
G07850168Courtesy of FORD MOTOR CO.

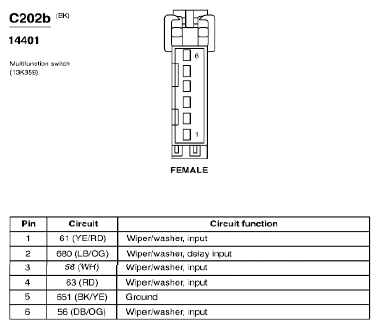

Fig 2: Multifunction Switch Connector End View (C202b)
G07850169Courtesy of FORD MOTOR CO.

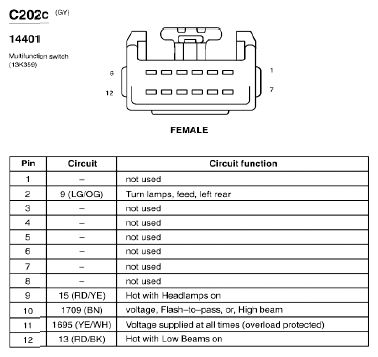

Fig 3: Multifunction Switch Connector End View (C202c)
G07850170Courtesy of FORD MOTOR CO.
