Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |

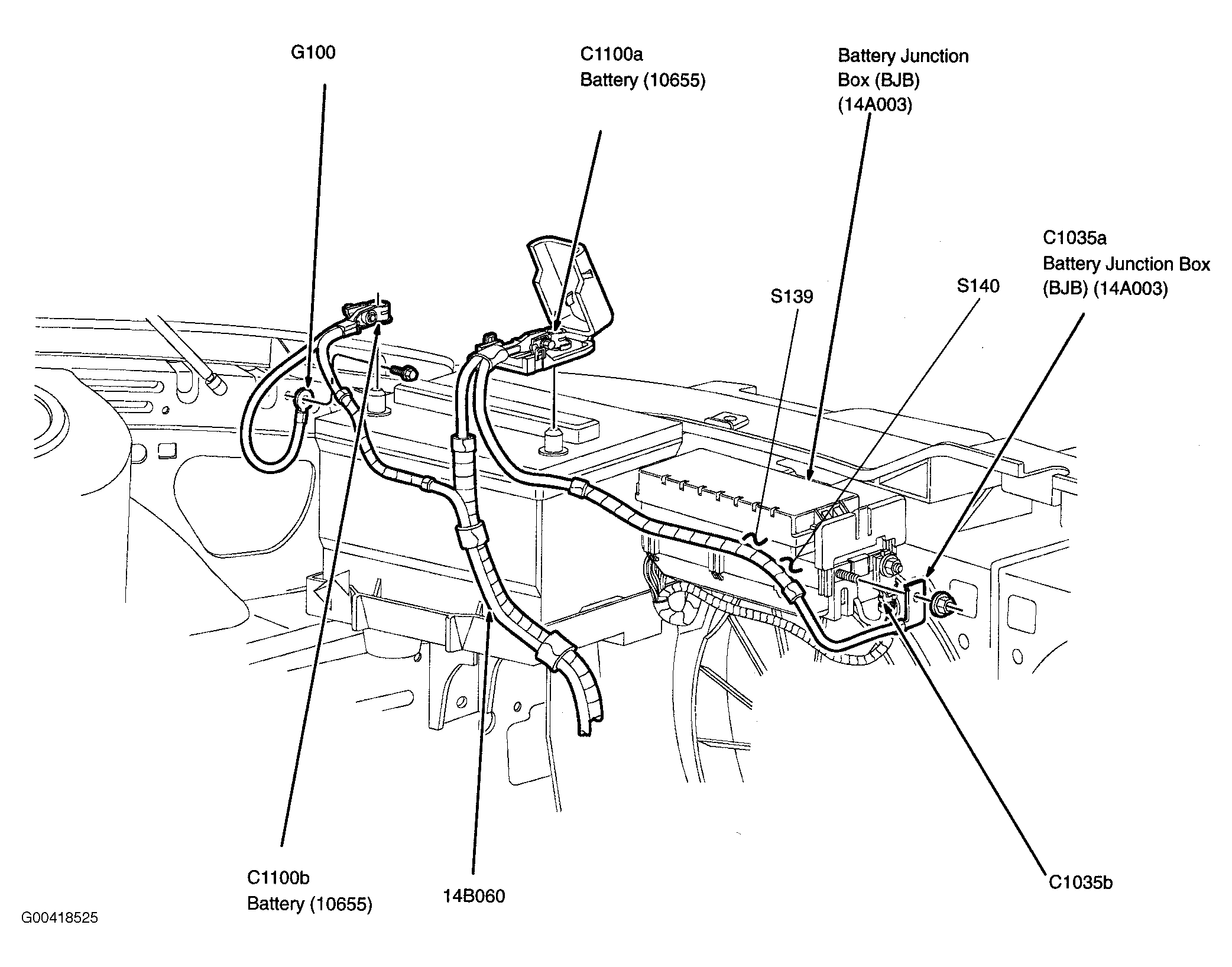

| Battery Junction Box |
Front center of engine compartment, behind radiator. See Figure. |
| Relay Center Box No. 1 |
Left front of engine compartment. See Figure. |
| Smart Junction Box |
Under left side of dash. See Figure. |
