Home >> Ford >> 2007 >> Taurus SE >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Disassembly And Assembly Of Subassemblies >> Planet Assembly >> Assembly

Planet Assembly: Assembly

  1. Install the retaining ring.
    1. Install rear planetary gear assembly.
    2. Install the No. 13 needle bearing with black side of bearing facing up.
    3. Install the front planetary gear assembly.
    4. Install the retaining ring.

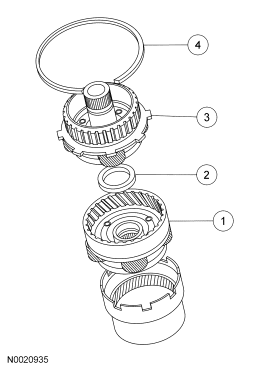

    2. Fig 1: Exploded View Of Rear Planetary Gear Assembly
    GF0020373Courtesy of FORD MOTOR CO.
    NOTE: Make sure that the reverse clutch assembly is fully seated.
  2. Install the reverse clutch assembly.
    3. Fig 2: Reverse Clutch Assembly
    GF0020374Courtesy of FORD MOTOR CO.
