Audio Control Module Connector

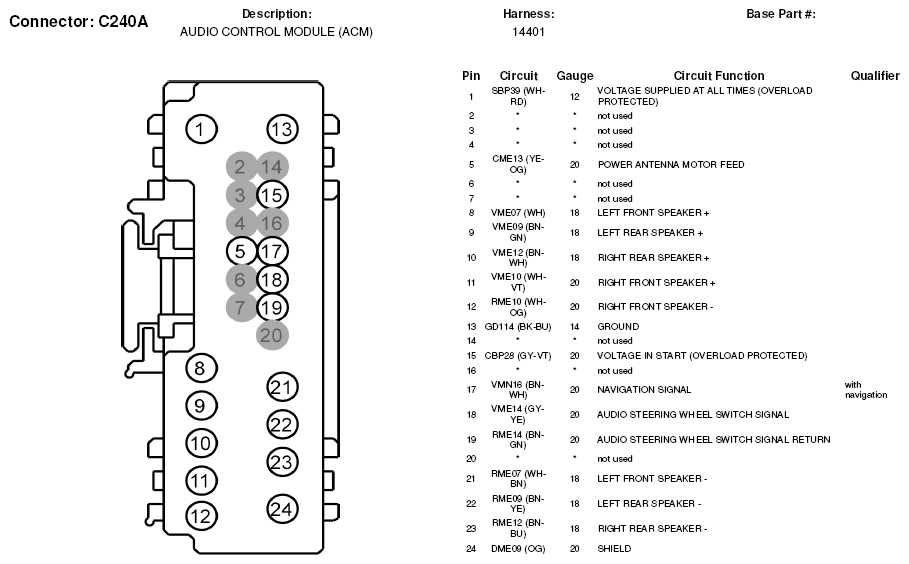

Fig 1: Audio Control Module Connector End View (C240A)

G05599836

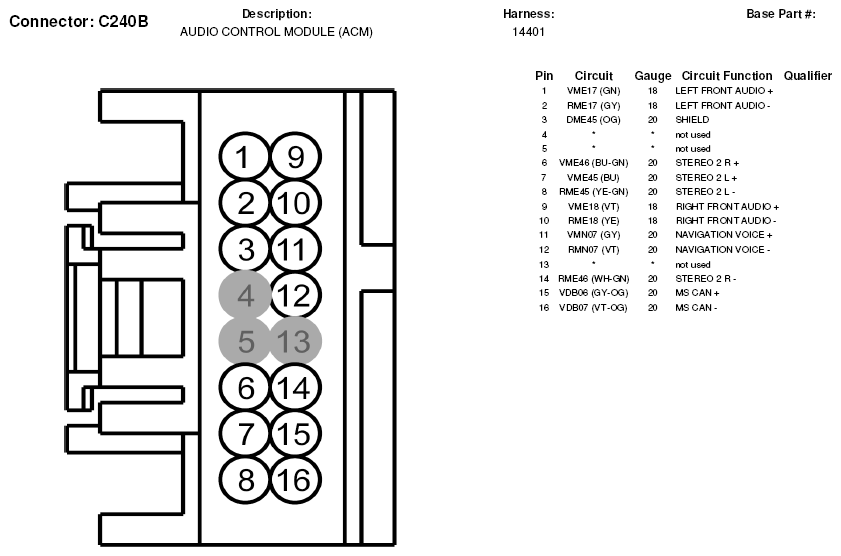

Fig 2: Audio Control Module Connector End View (C240B)

G05599837

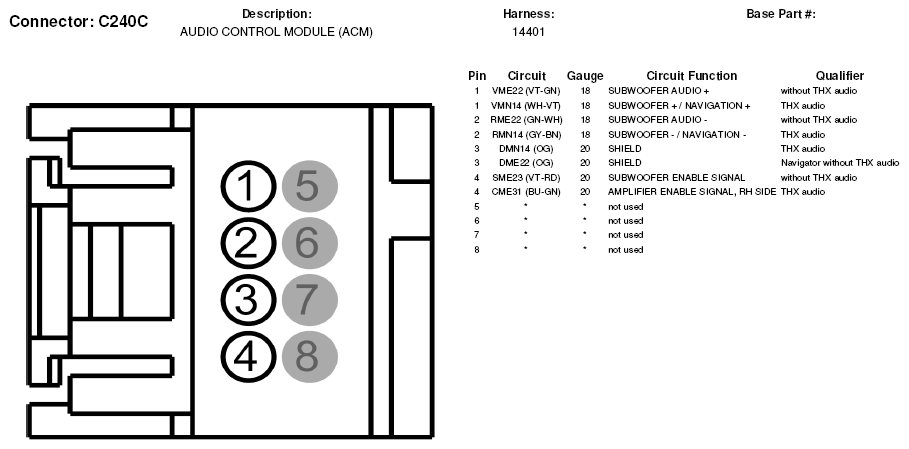

Fig 3: Audio Control Module Connector End View (C240C)

G05599838
