DATC HVAC Module Connector
DATC HVAC Module Connector

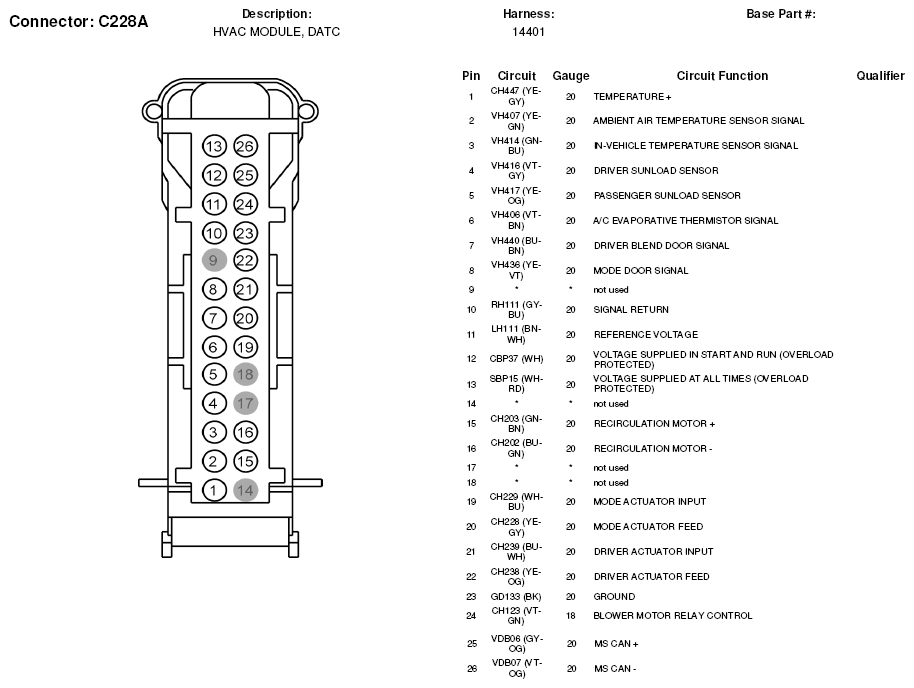

Fig 1: DATC HVAC Module Connector End View (C228A)

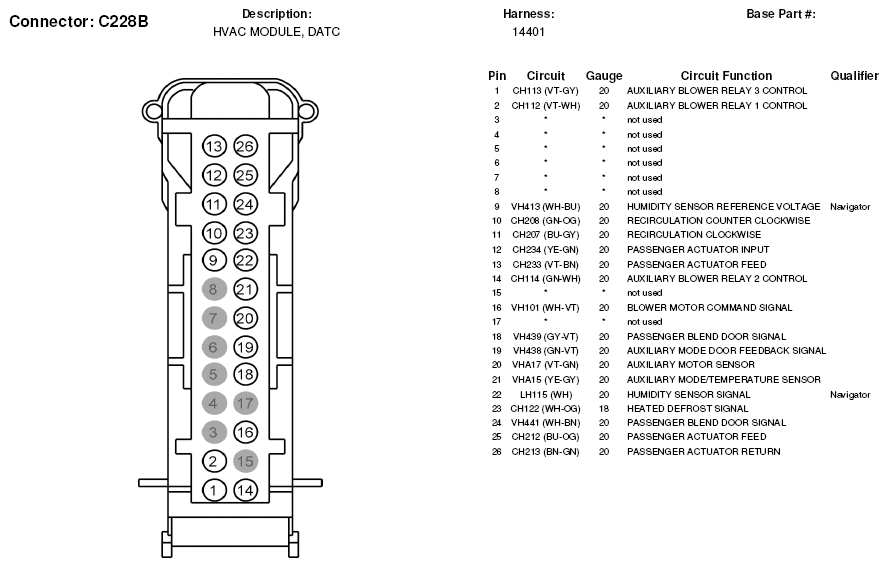

Fig 2: DATC HVAC Module Connector End View (C228B)
