Home >> Ford >> 2008 >> Expedition RWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector Views >> Four Wheel Drive Control Module Connector

Four Wheel Drive Control Module Connector

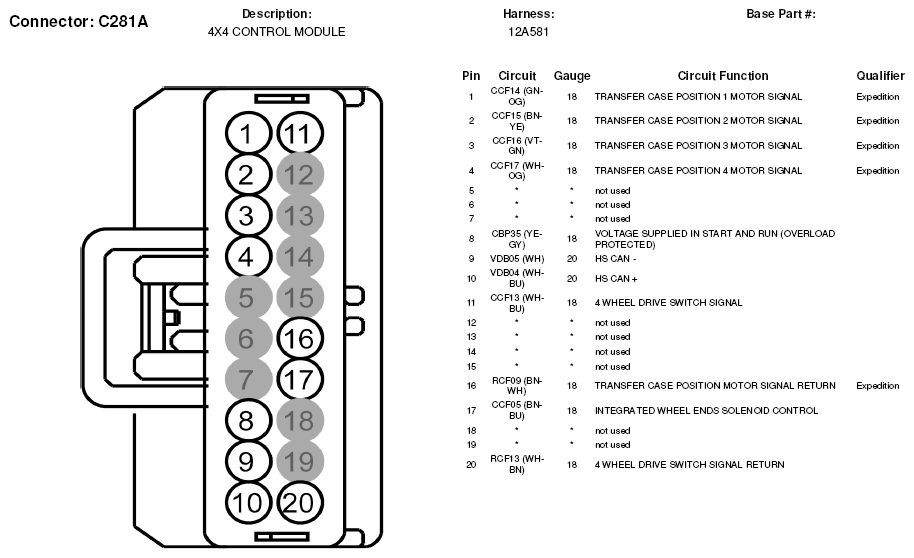

Fig 1: Four Wheel Drive Control Module Connector End View (C281A)
G05599846

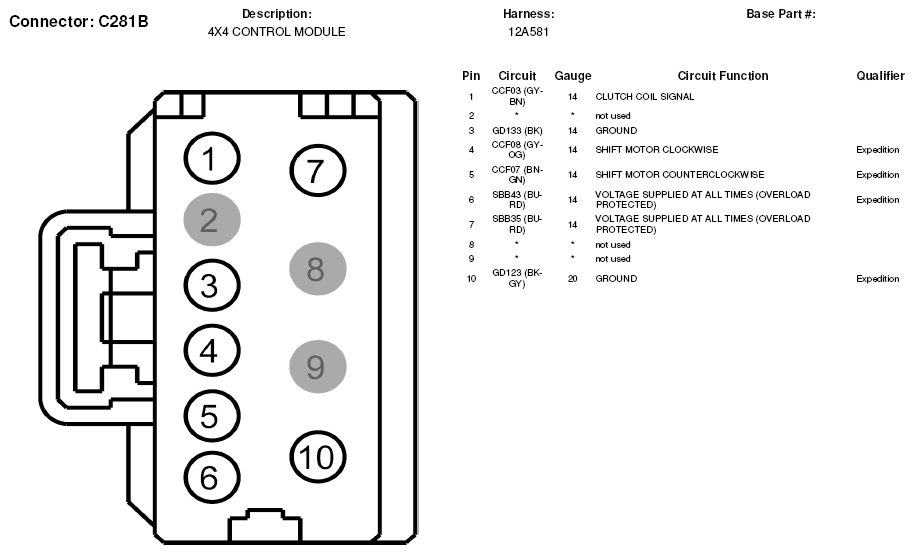

Fig 2: Four Wheel Drive Control Module Connector End View (C281B)
G05599847
