Master window control switch: Schematic

WARNING: This page is about a different car, the 2009 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.

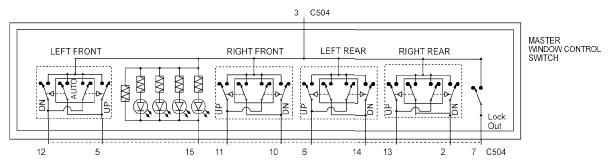

Fig 1: Master Window Control Switch Schematic
G05787645Courtesy of FORD MOTOR CO.
