Fuel Pump Control Module: Notes

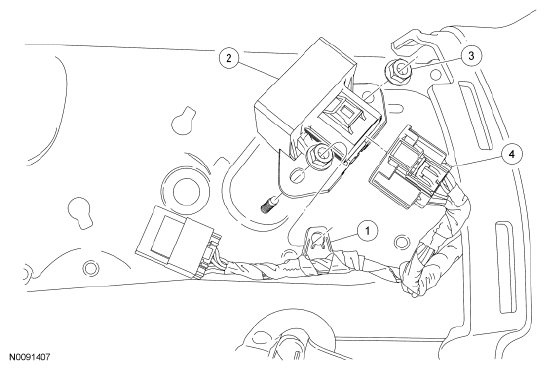

Fig 1: Exploded View Of Fuel Pump Control Module

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	-	Wire harness retainer clip (part of 14A464)
2	9D412	Fuel Pump (FP) control module
3	W505256	FP control module nut (2 required)
4	14A464	FP control module electrical connector
