Selector Lever: Notes

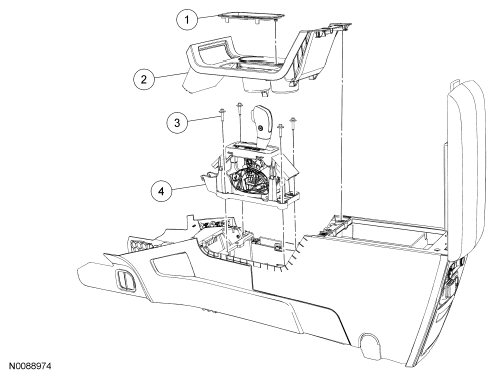

Fig 1: Identifying Selector Lever Components
G06064305Courtesy of FORD MOTOR CO.
PART DESCRIPTION CHART

Item Part Number Description
1 7E391 Selector lever trim ring
2 045A76 Upper console finish panel
3 N606678 Selector lever bolt
4 7K004 Selector lever
