Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

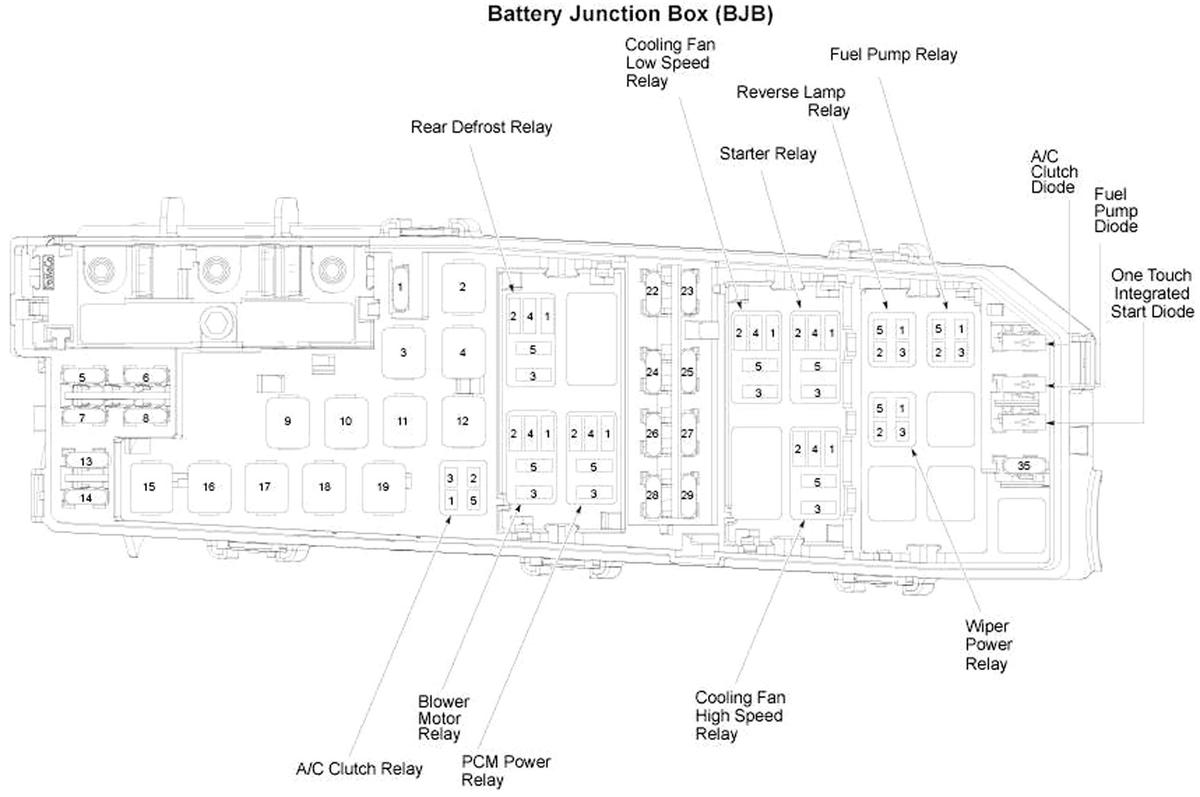

| A/C Clutch Diode | Battery junction box. See Figure. |

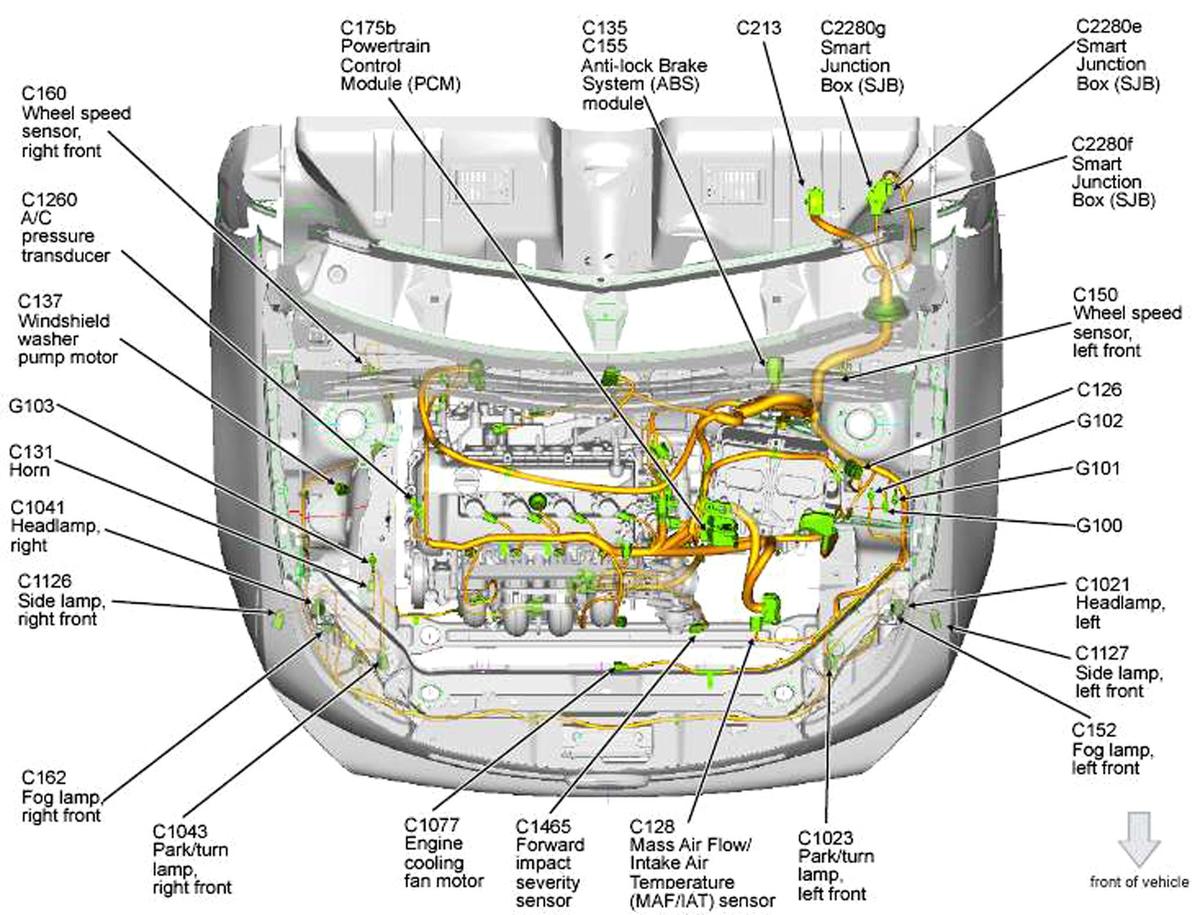

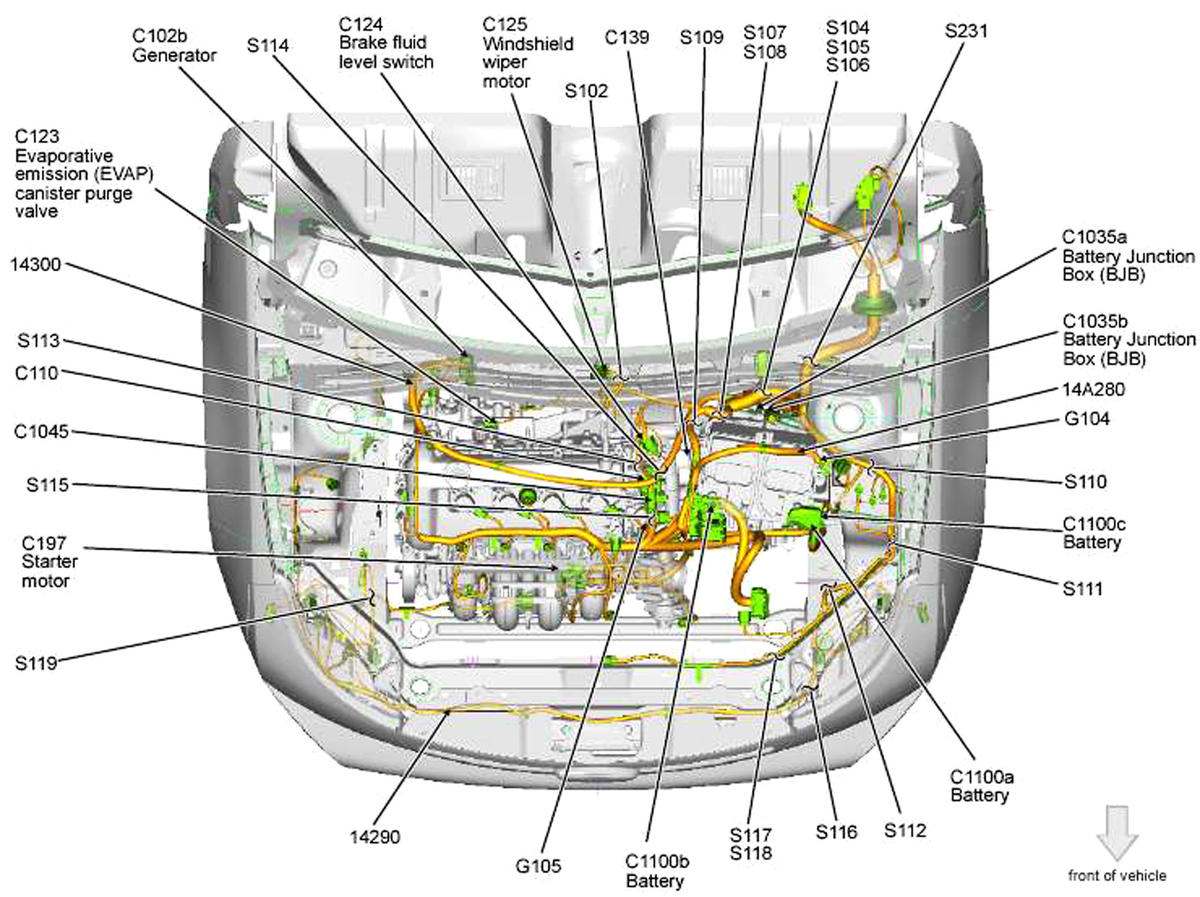

| Battery Junction Box (BJB) | Left rear corner of engine compartment. See Figure. |
| Fuel Pump Diode | Battery junction box. See Figure. |
| One Touch Integrated Start Diode | Battery junction box. See Figure. |
| Smart Junction Box (SJB) | Behind left side of dash. See Figure. |
