Home >> Ford >> 2009 >> Taurus SE >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector Views >> Occupant Classification System Module Connector - C3285

Occupant Classification System Module Connector - C3285

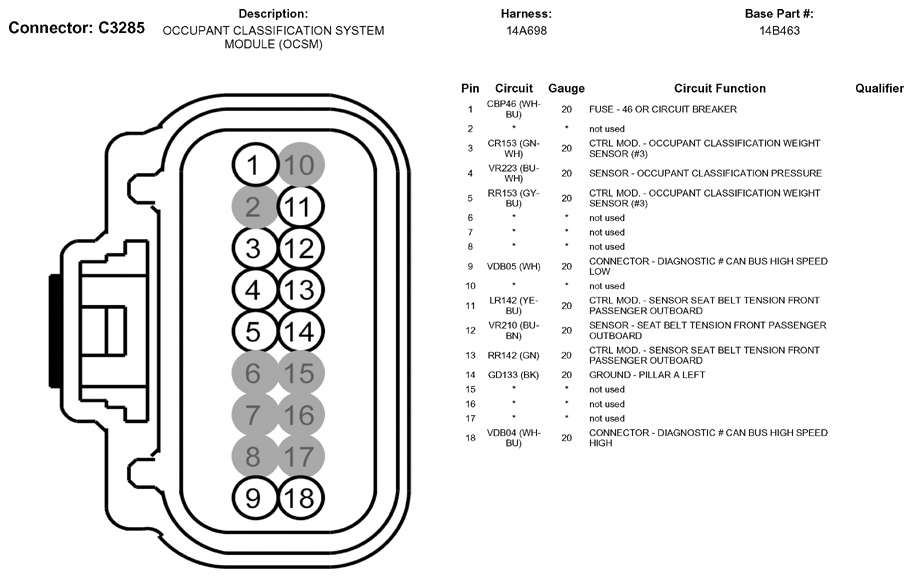

Fig 1: Occupant Classification System Module Connector End View (C3285)

G05790183

Courtesy of FORD MOTOR CO.
