Fuel Pump Control Module: Notes

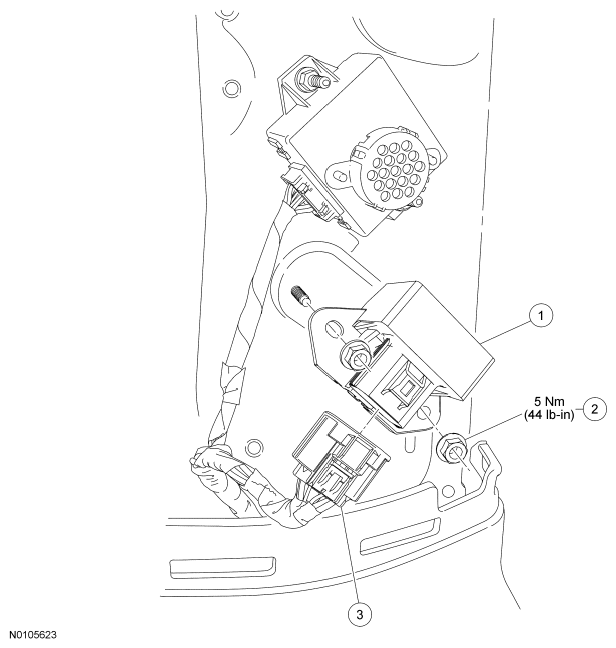

Fig 1: Exploded View Of Fuel Pump Control Module With Torque Specifications

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	9D412	Fuel Pump (FP) control module
2	N805320	FP control module nut (2 required)
3	14A464	FP control module electrical connector
