Home >> Ford >> 2011 >> Explorer Limited, FWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector Views >> Front Controls Interface Module Connector - C2402

Front Controls Interface Module Connector - C2402

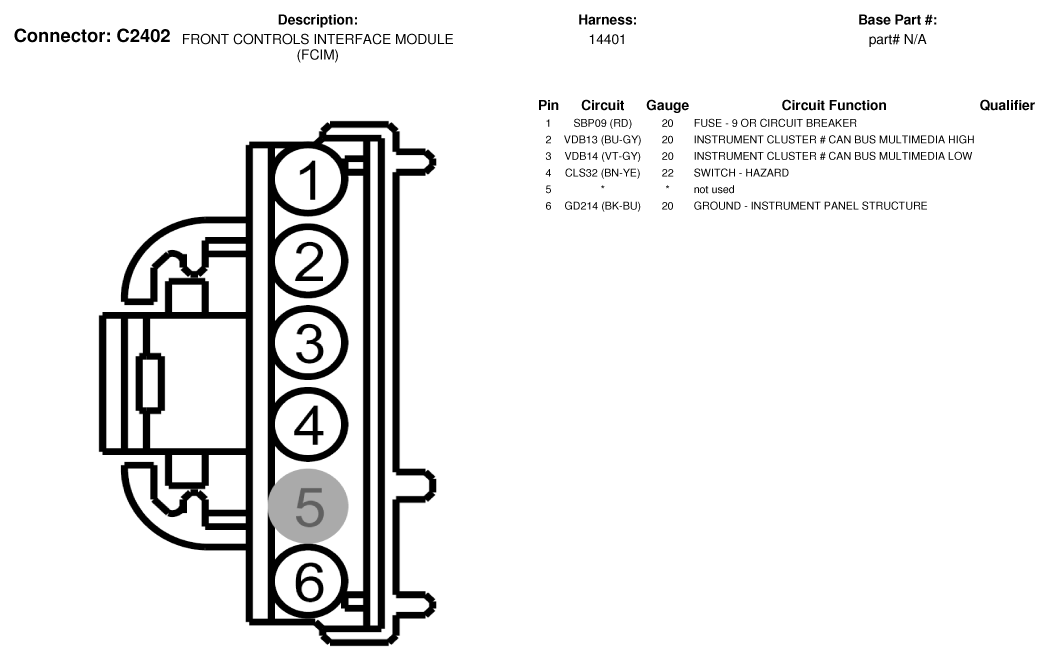

Fig 1: Front Controls Interface Module Connector End View (C2402)

G07328121

Courtesy of FORD MOTOR CO.
