Home >> Ford >> 2011 >> Explorer Limited, FWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector Views >> Front Lighting Control Module Connector - C205

Front Lighting Control Module Connector - C205

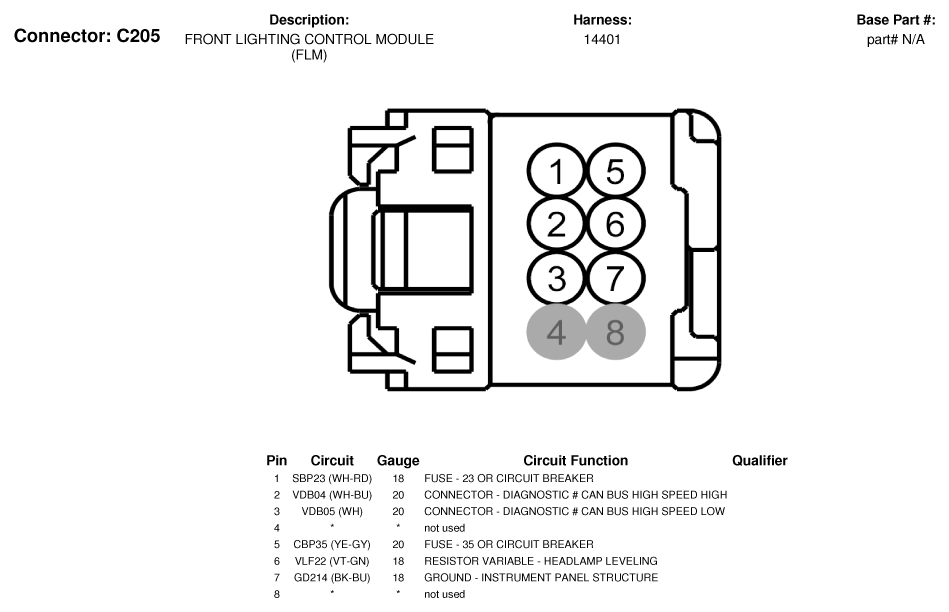

Fig 1: Front Lighting Control Module Connector End View (C205)

G07327893

Courtesy of FORD MOTOR CO.
