Component Location Views
Component Location Views

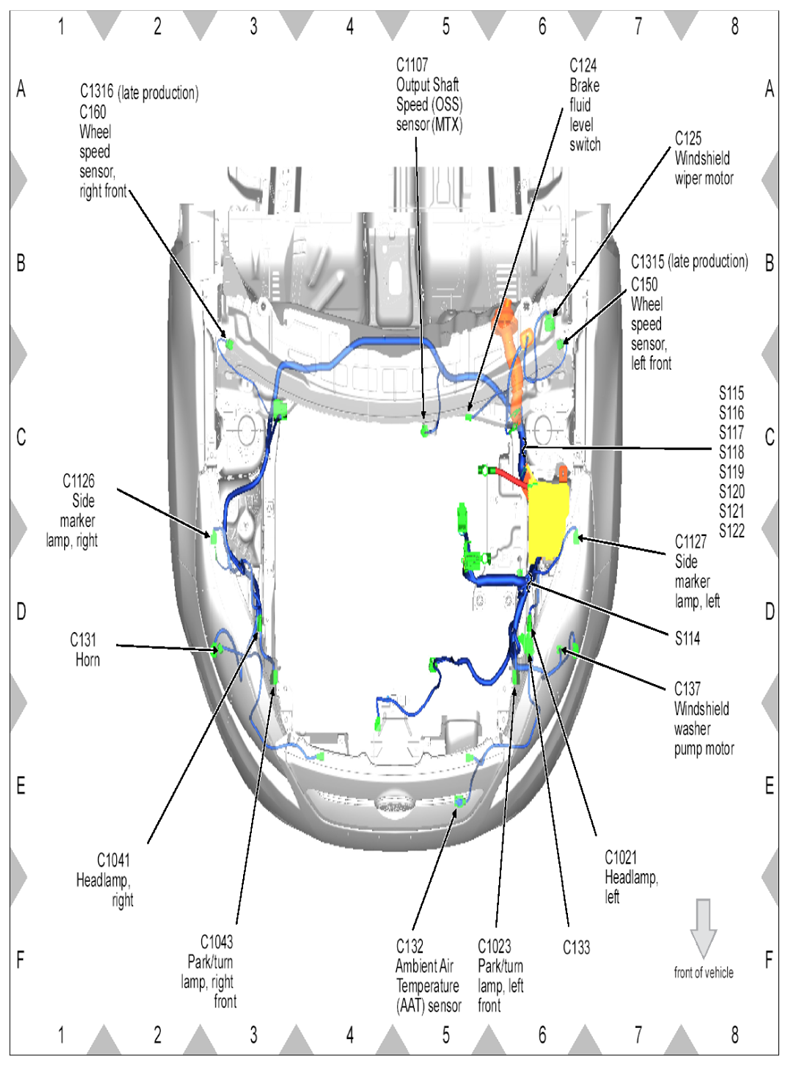

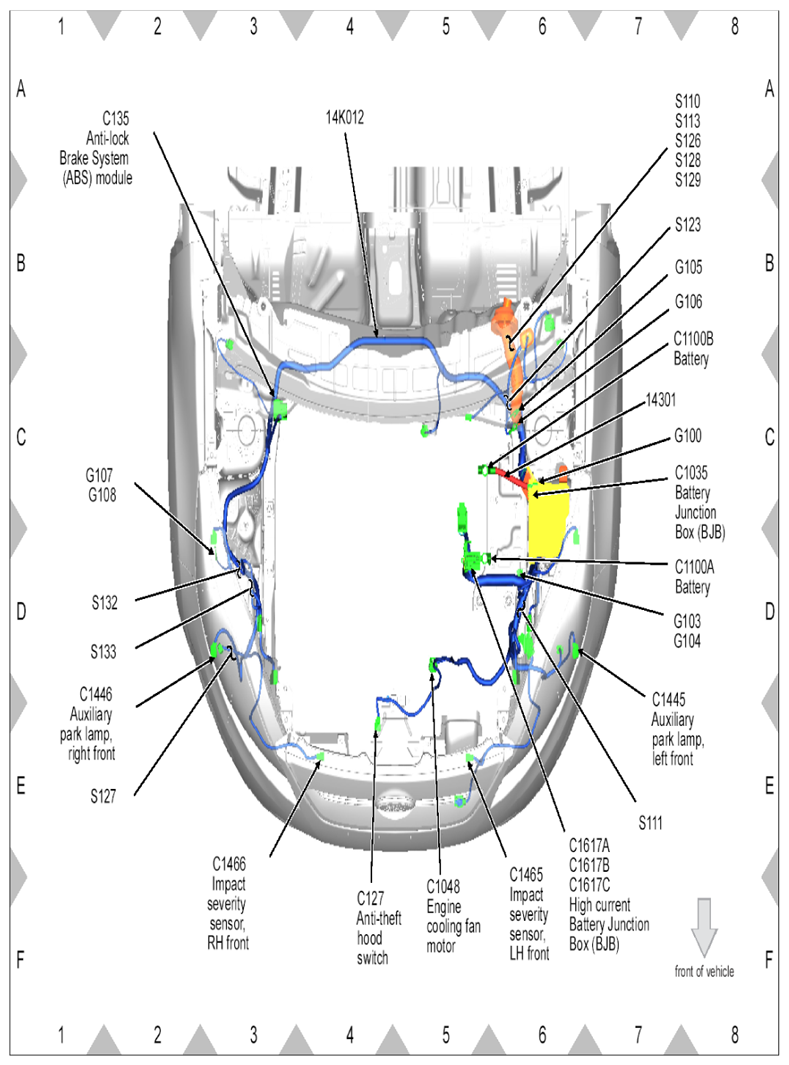

Fig 1: Identifying Engine Compartment Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 2: Identifying Engine Compartment Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.

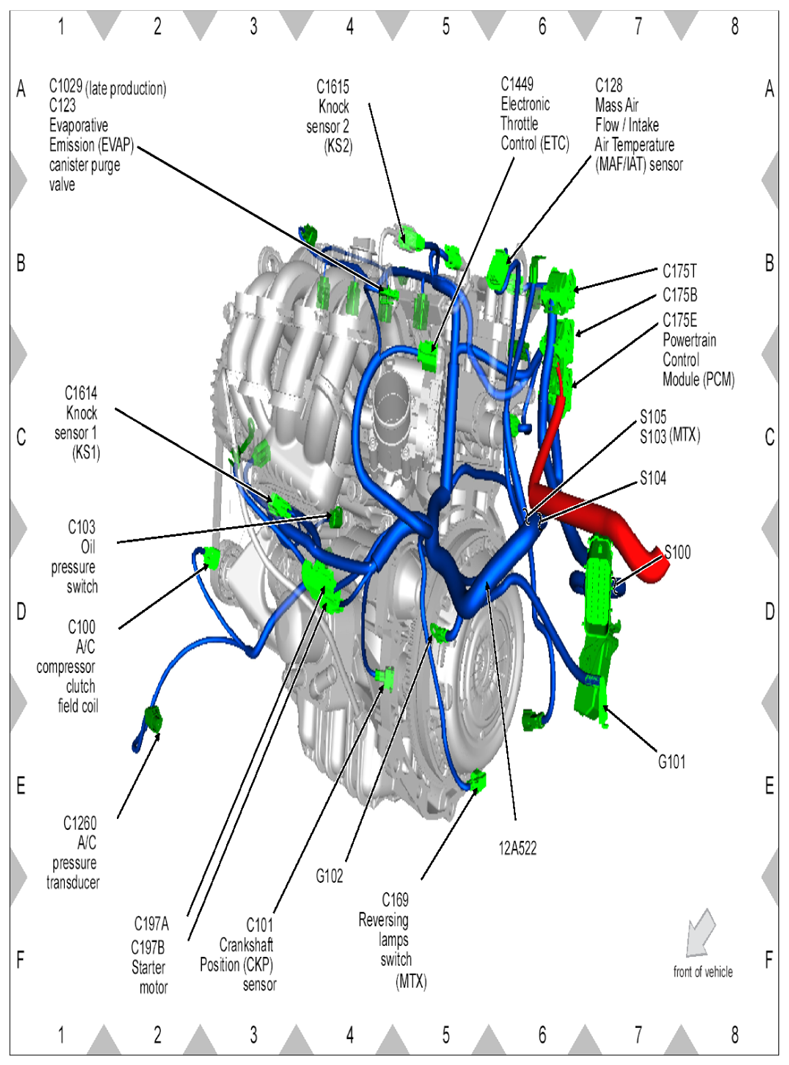

Fig 3: Identifying Engine Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.

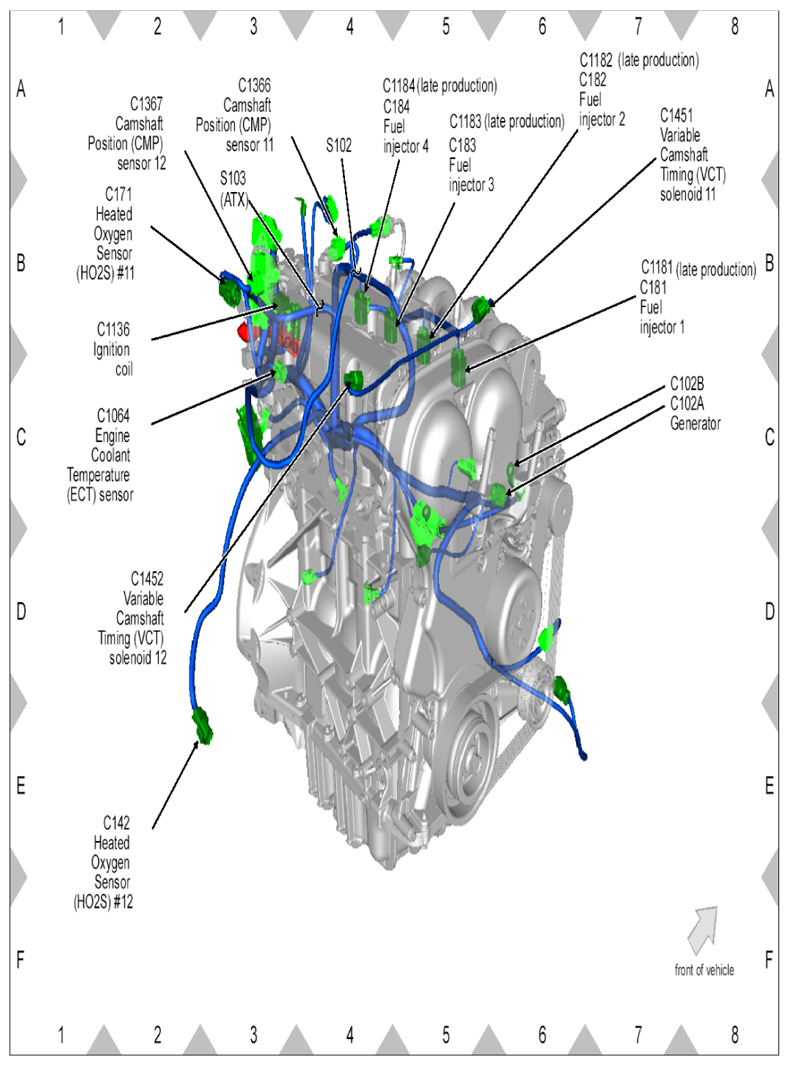

Fig 4: Identifying Engine Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.

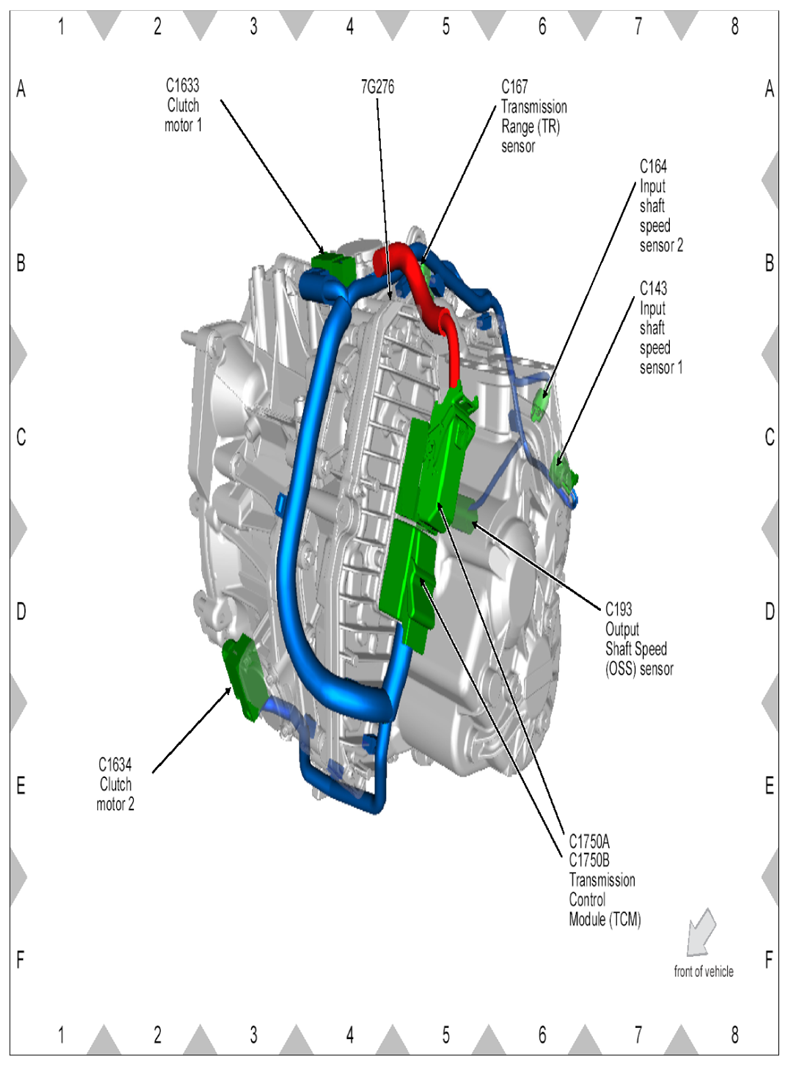

Fig 5: Identifying Transmission Control Module Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

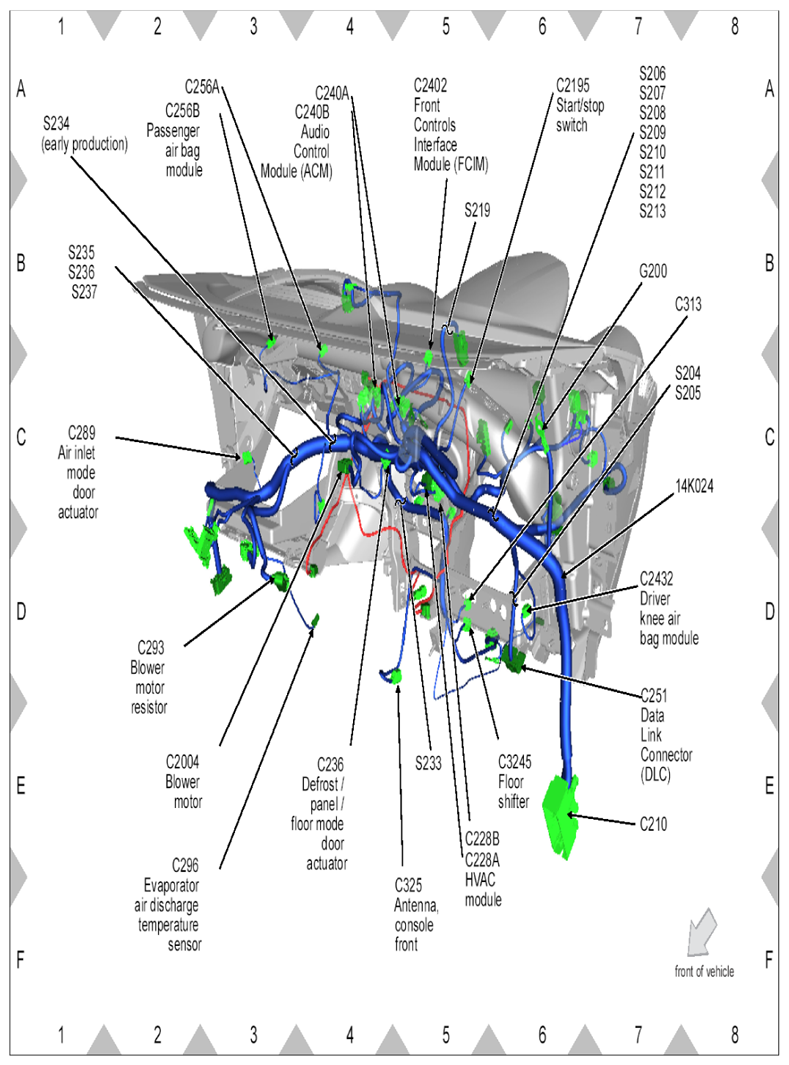

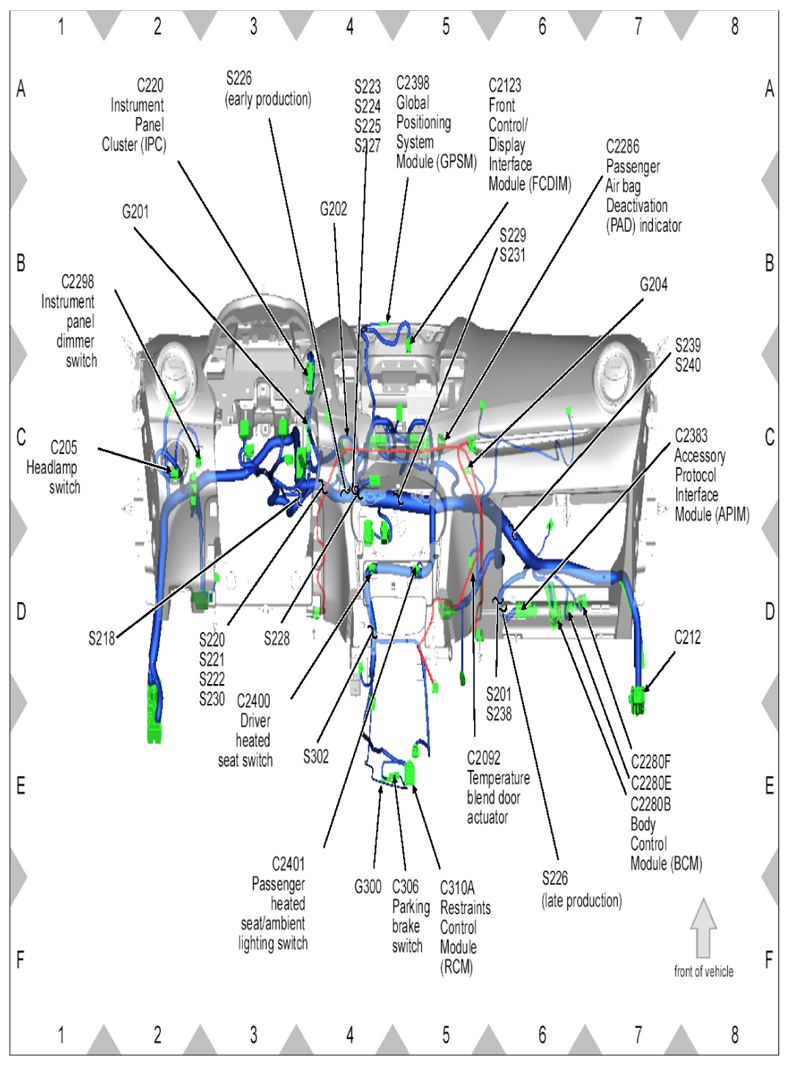

Fig 6: Identifying Dash Panel Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 7: Identifying Dash Panel Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.

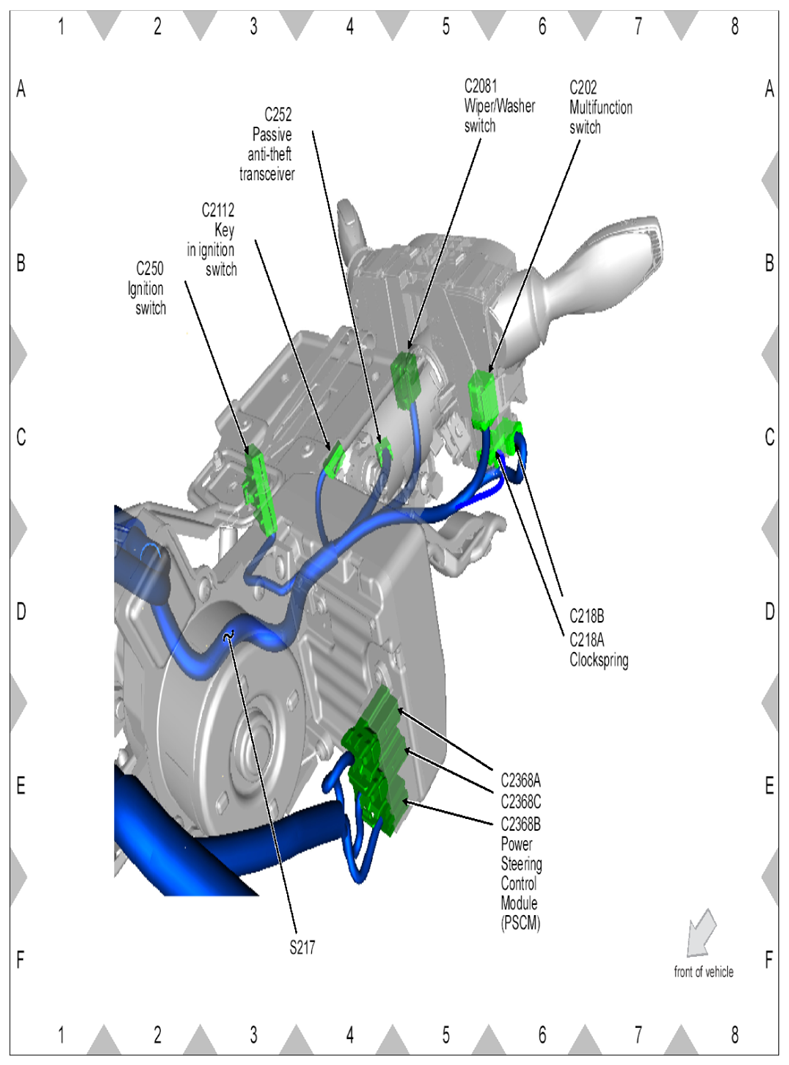

Fig 8: Identifying Steering Column Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.
Fig 9: Identifying Steering Wheel Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

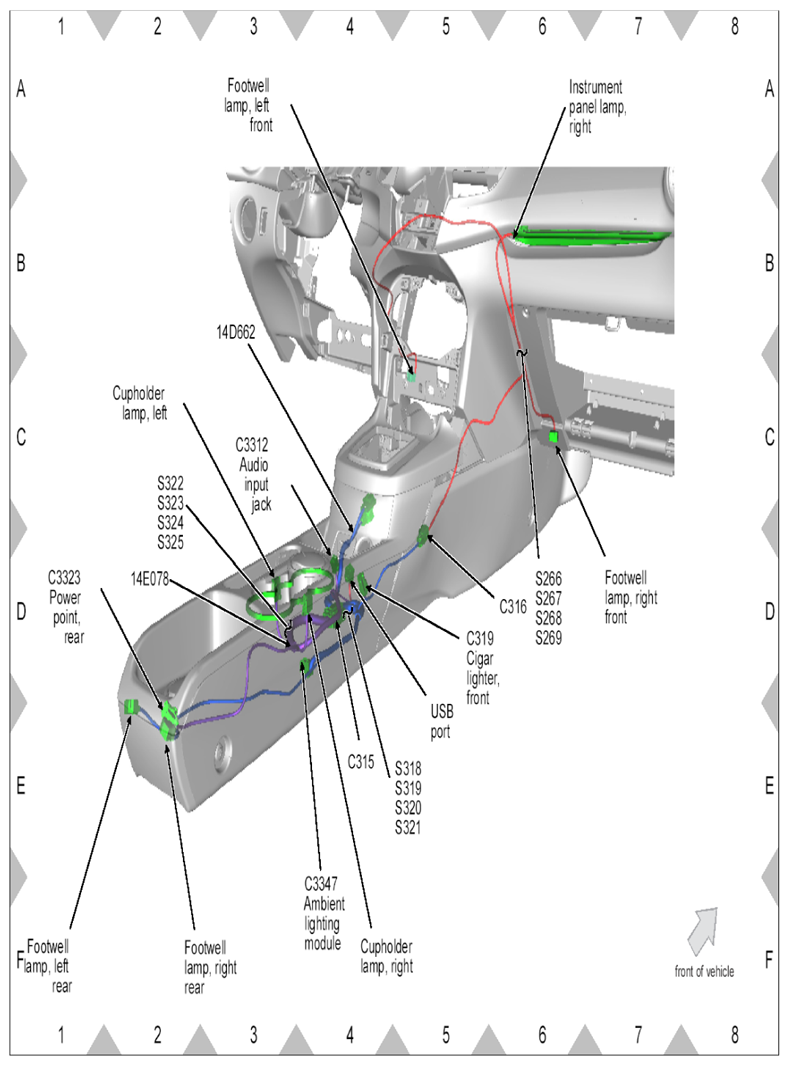

Fig 10: Identifying Center Console Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

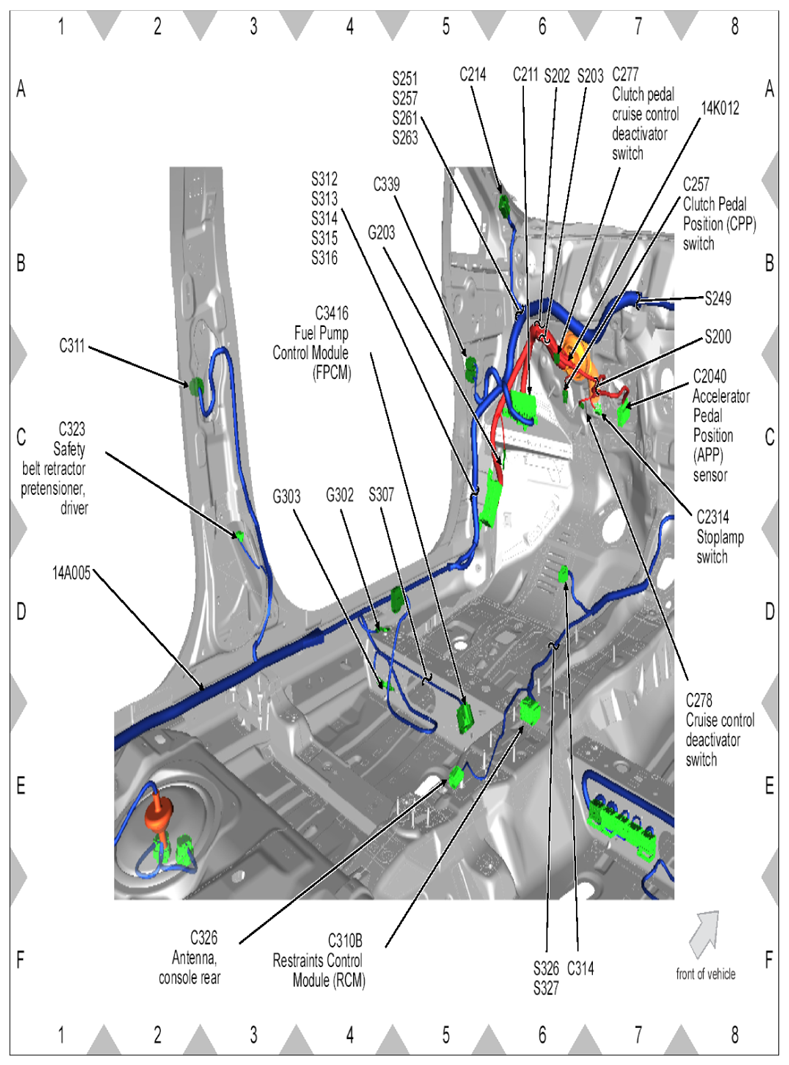

Fig 11: Identifying LH Front Compartment Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

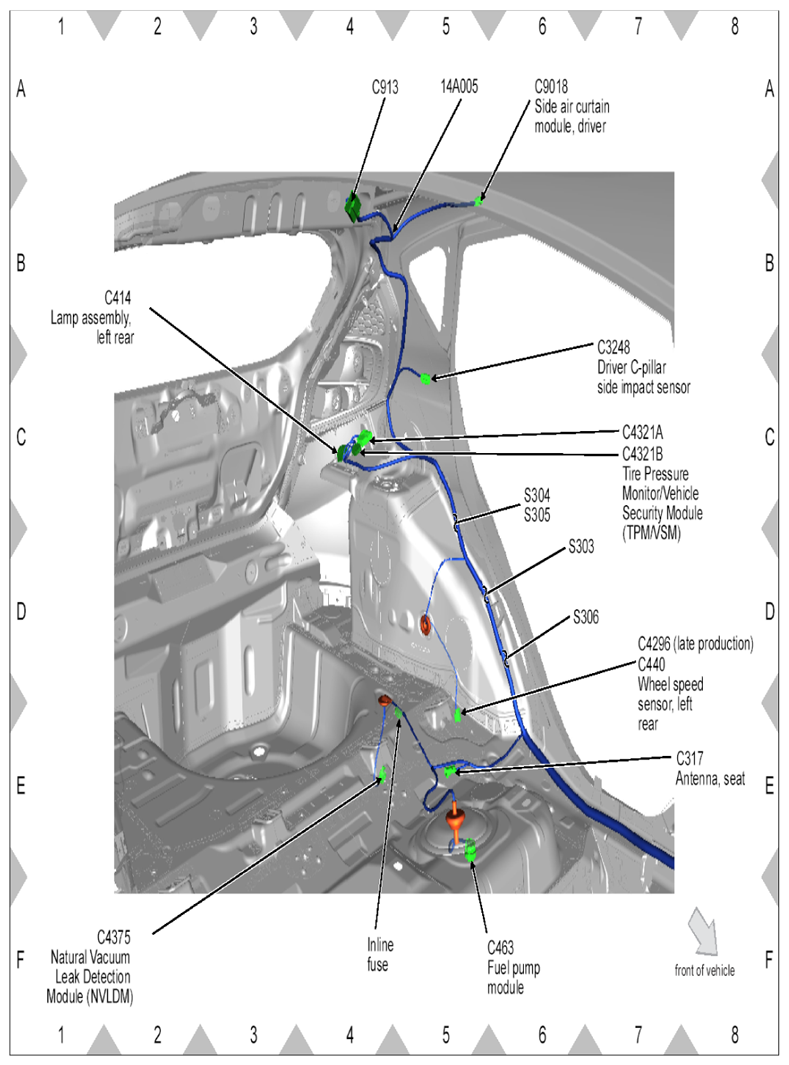

Fig 12: Identifying LH Rear Compartment Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

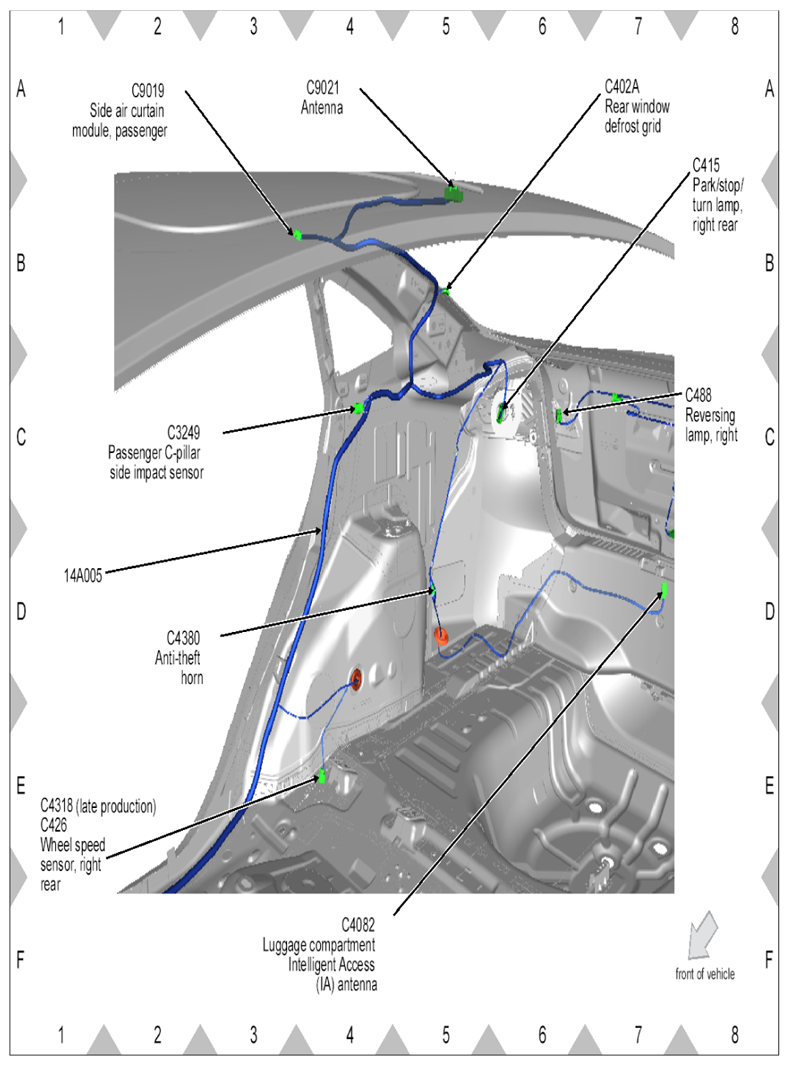

Fig 13: Identifying RH Rear Compartment Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

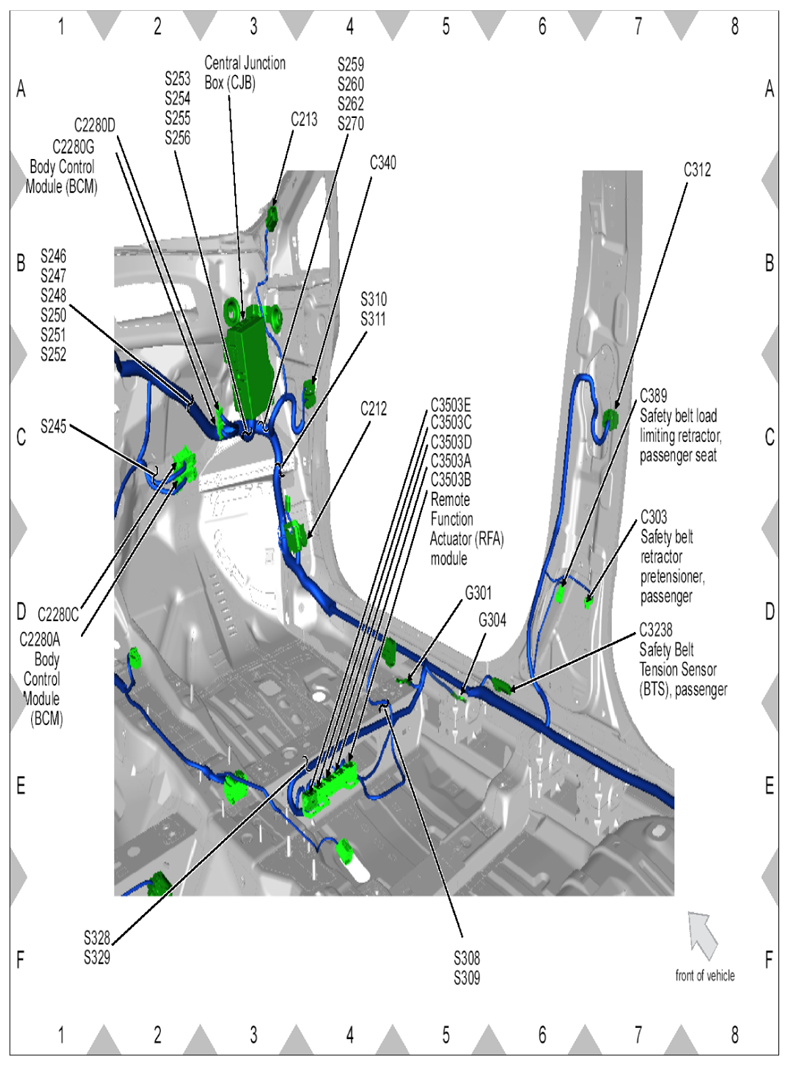

Fig 14: Identifying RH Front Compartment Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

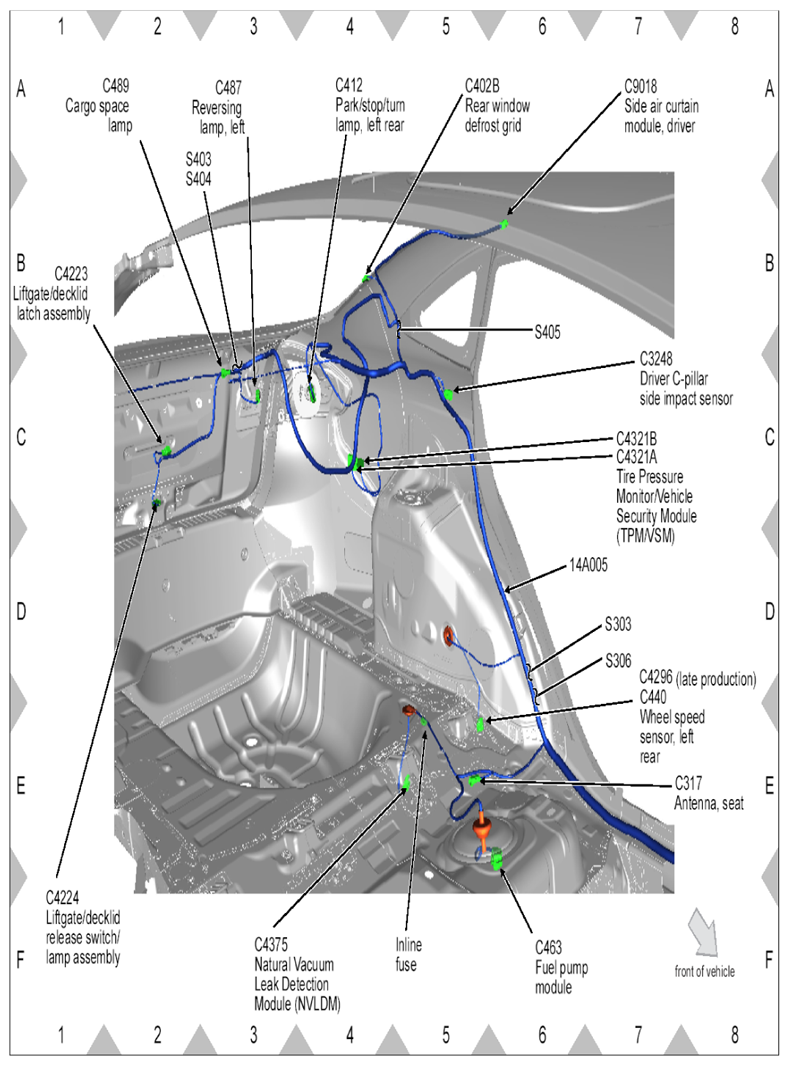

Fig 15: Identifying Luggage Compartment Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.

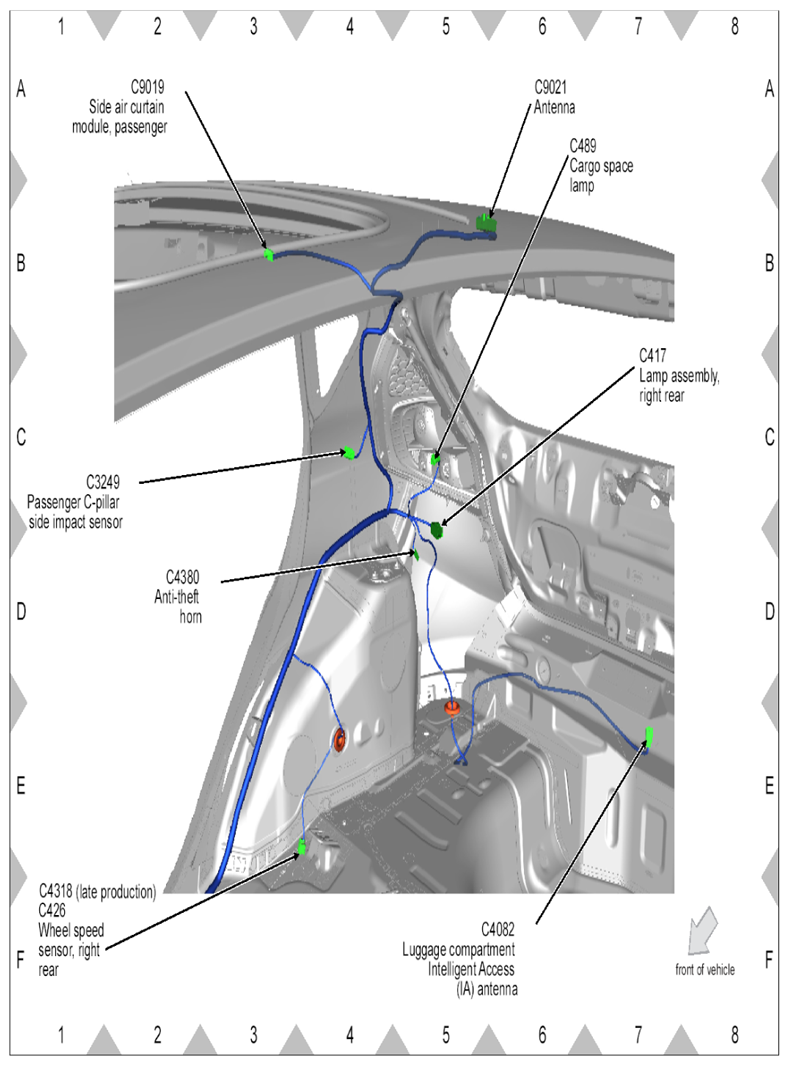

Fig 16: Identifying Luggage Compartment Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.

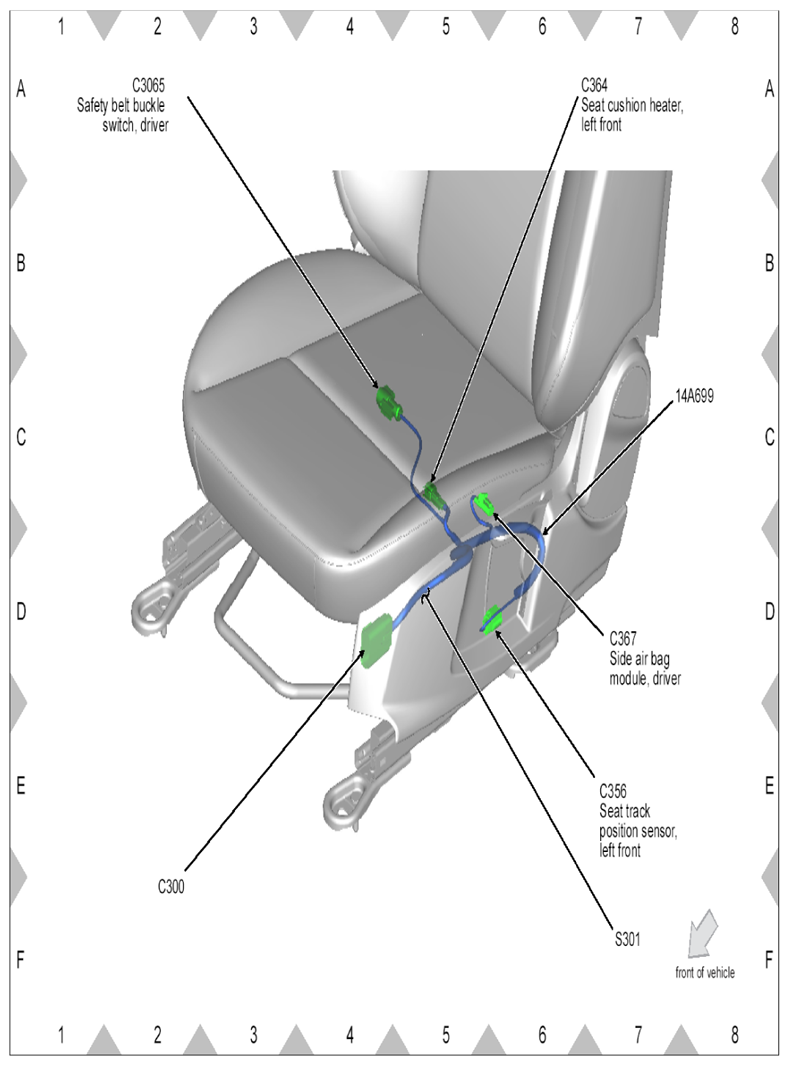

Fig 17: Identifying Driver Seat Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

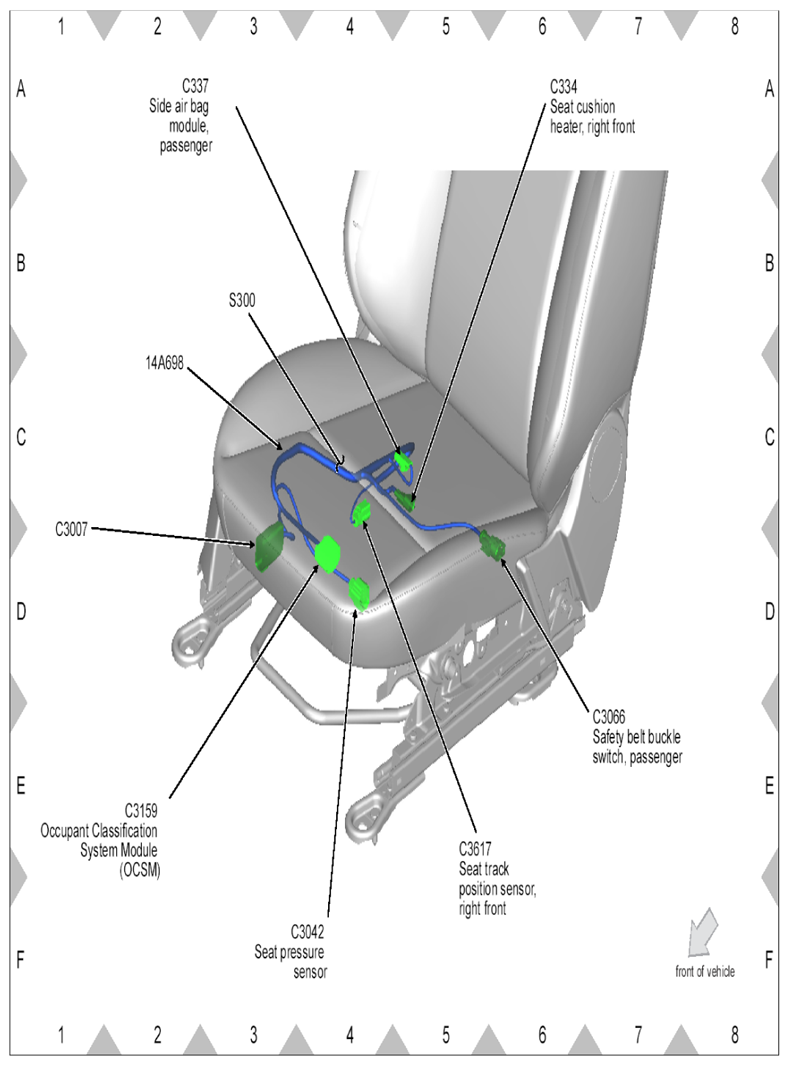

Fig 18: Identifying Passenger Seat Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

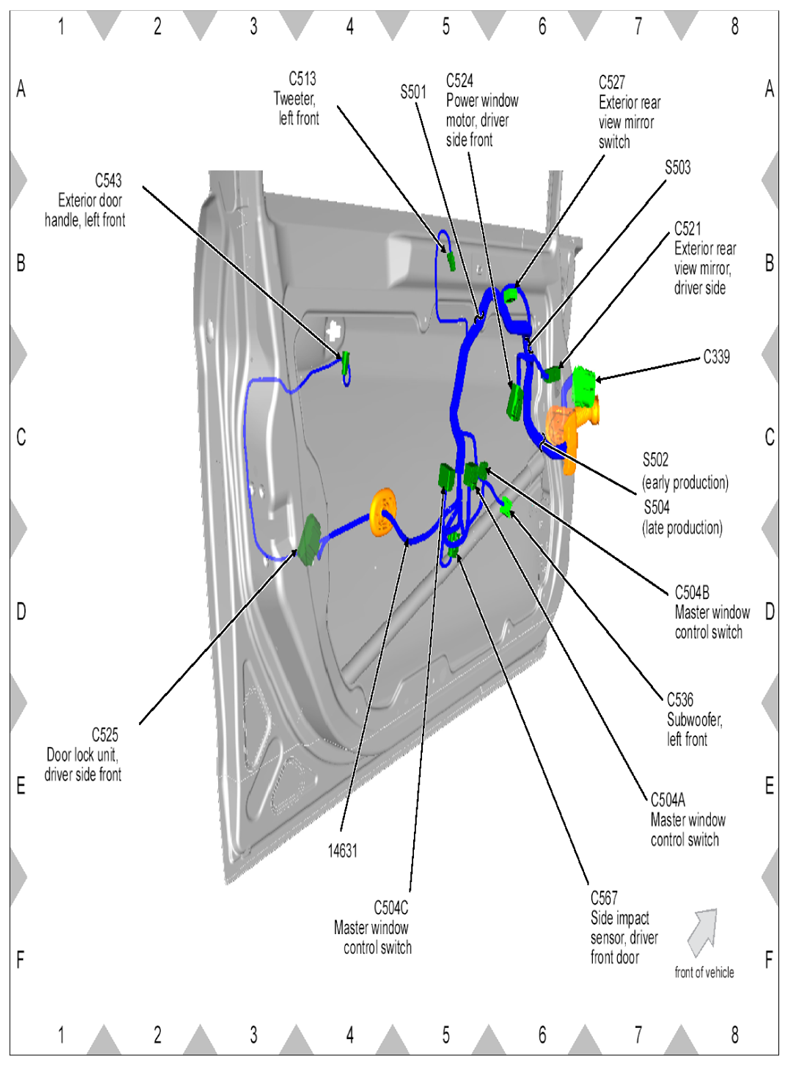

Fig 19: Identifying Driver Front Door Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

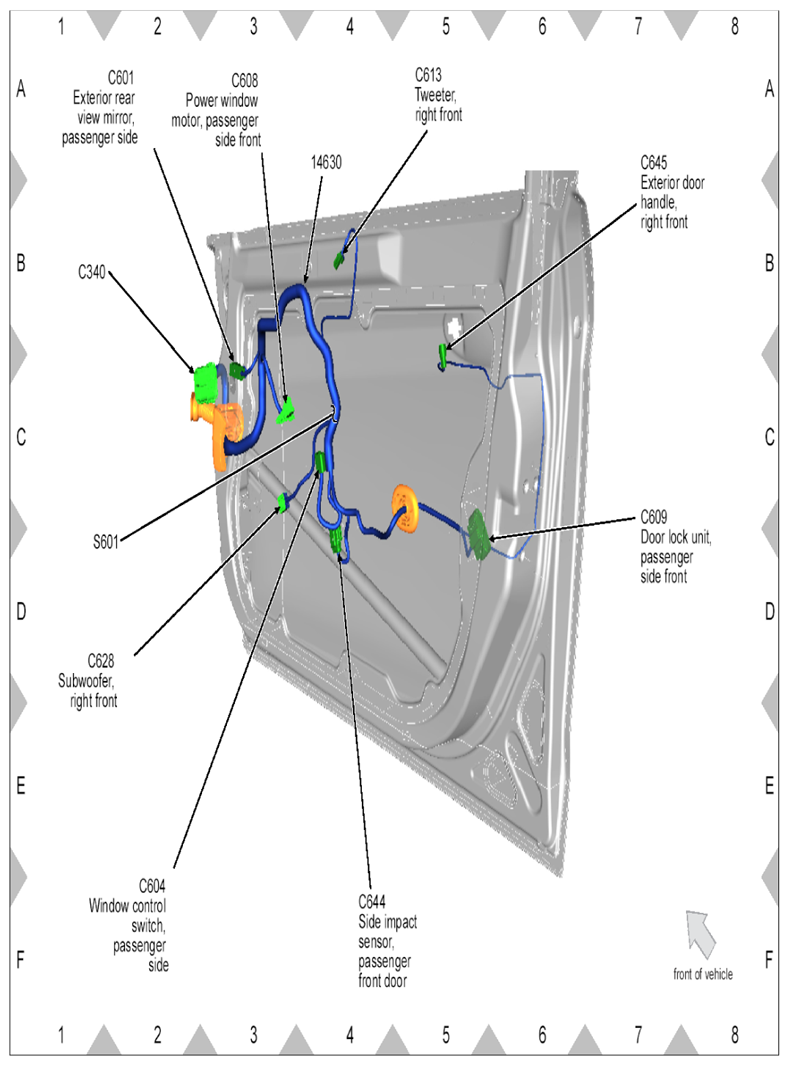

Fig 20: Identifying Passenger Side Door Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

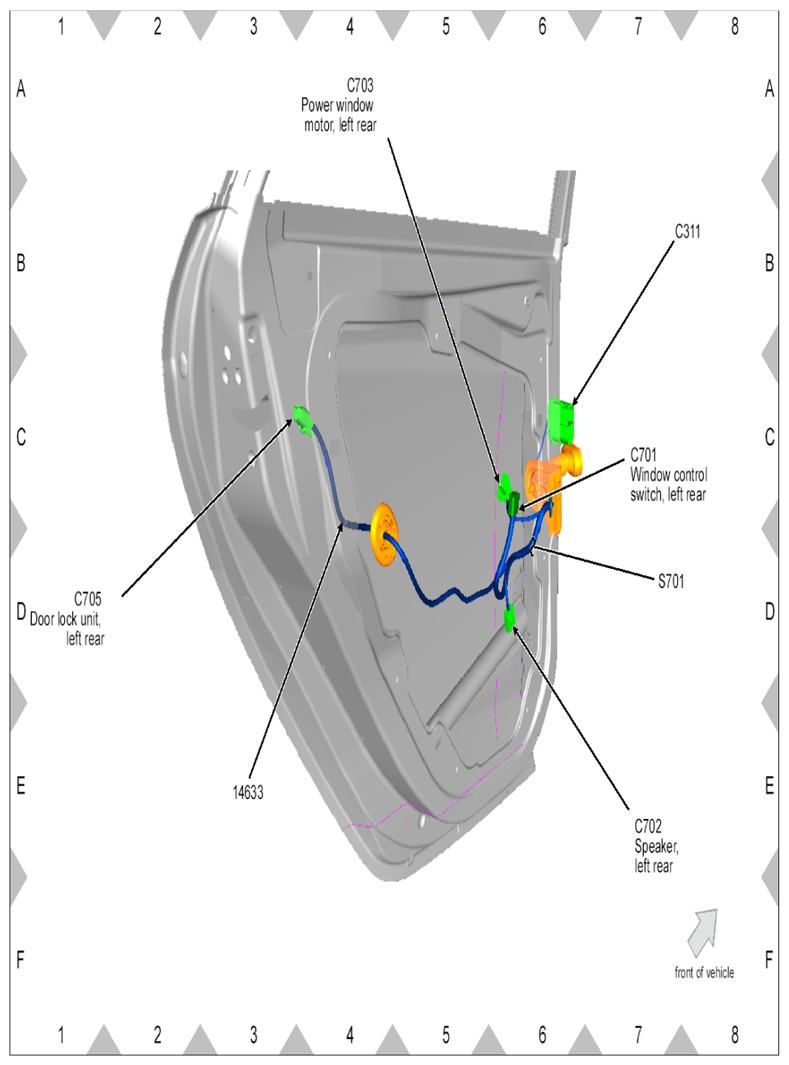

Fig 21: Identifying Left Rear Door Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

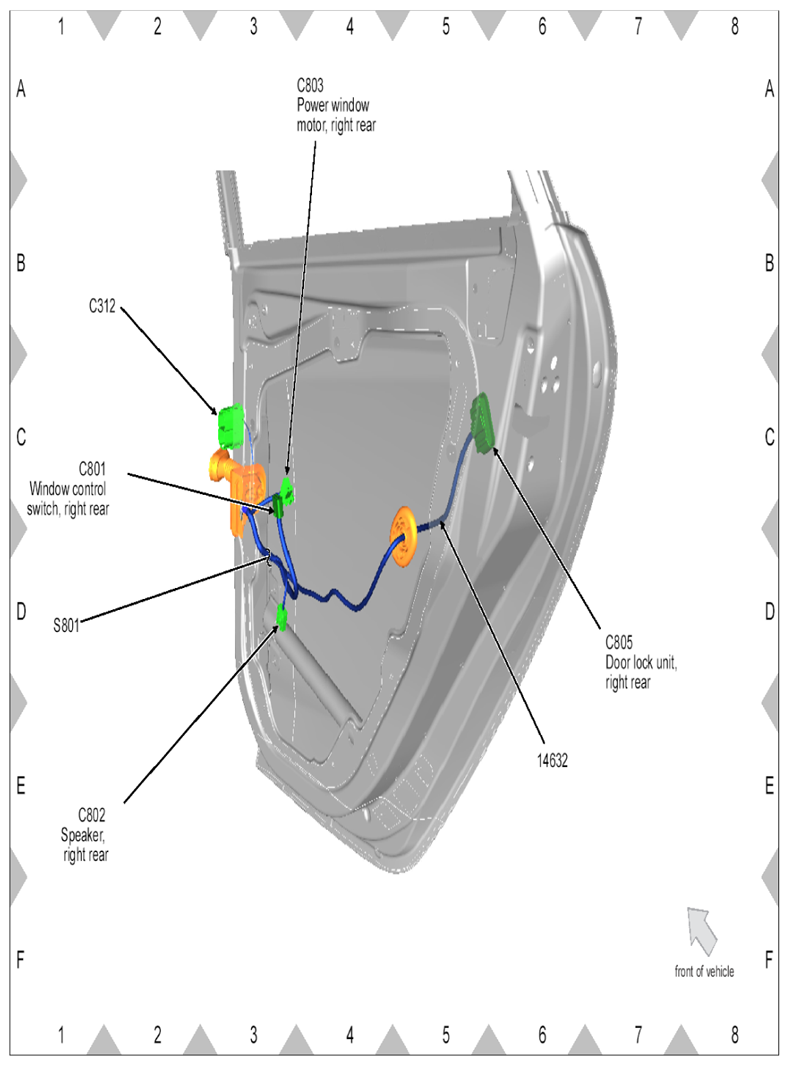

Fig 22: Identifying Right Rear Door Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

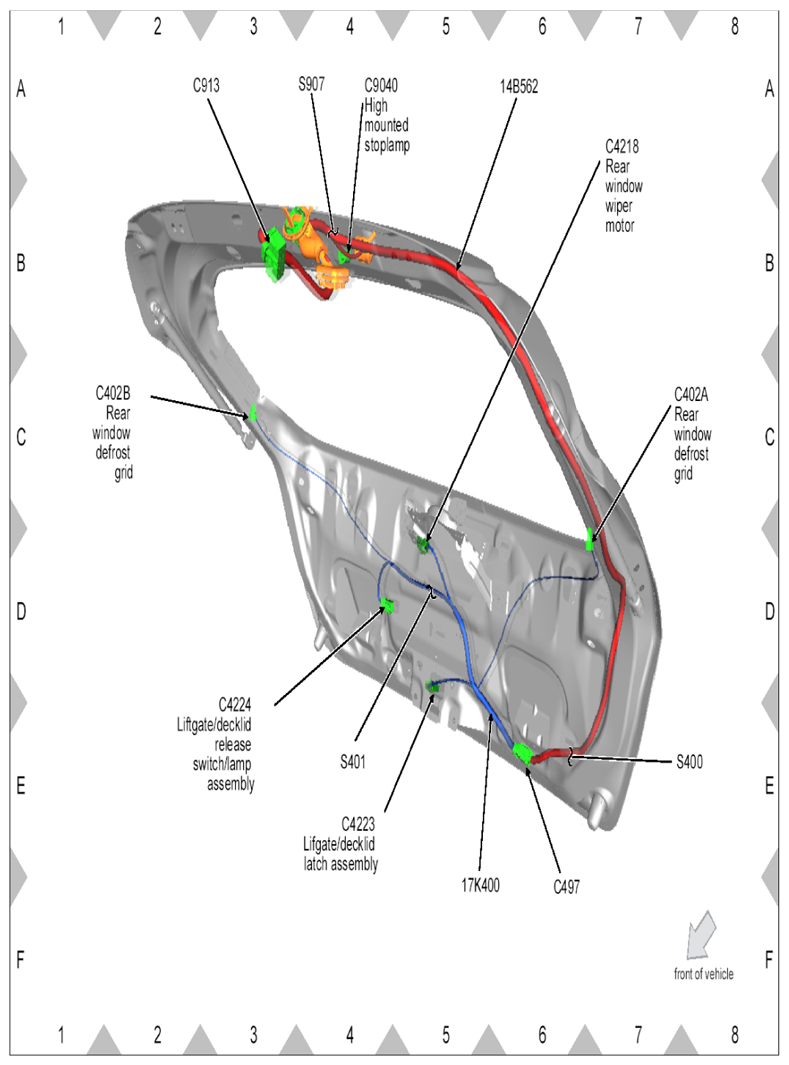

Fig 23: Identifying Liftgate Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.
Fig 24: Identifying Roof Paneling Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.
