Home >> Ford >> 2011 >> Flex SE >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector Views >> Front Display Interface Module Connector - C2123

Front Display Interface Module Connector - C2123

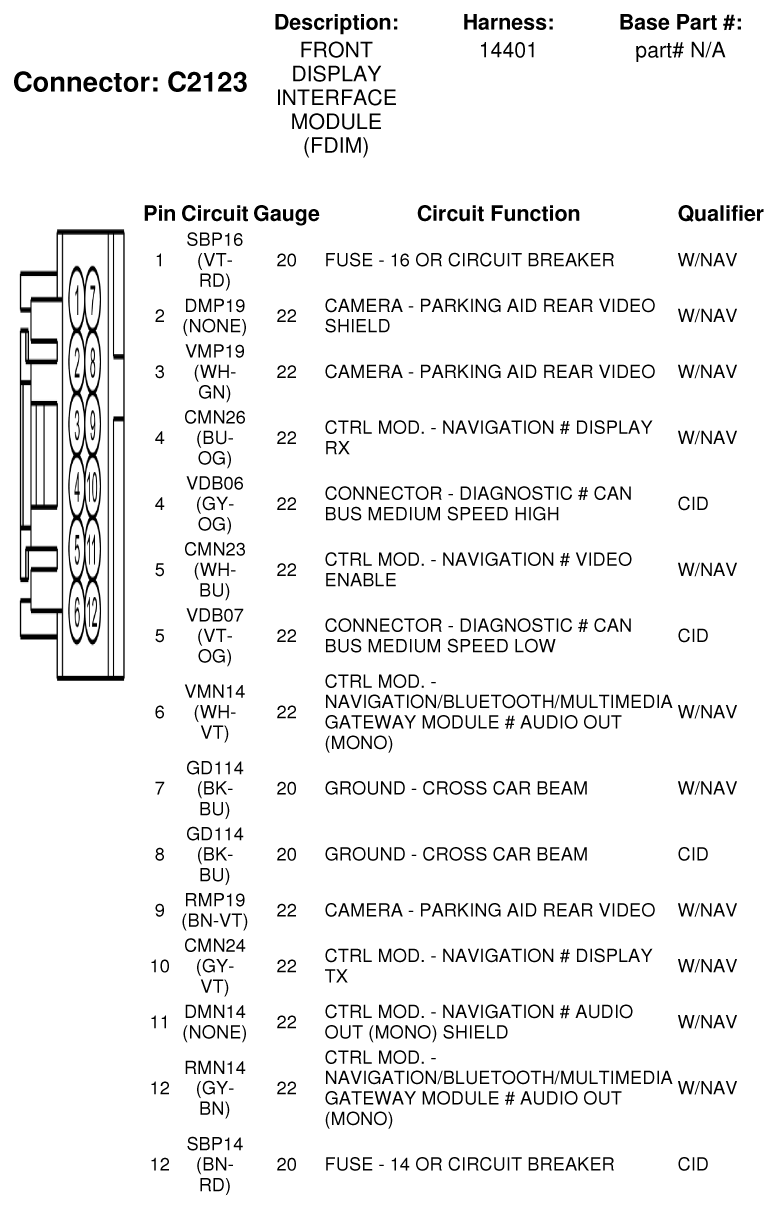

Fig 1: Front Display Interface Module Connector End View (C2123)

G07335050

Courtesy of FORD MOTOR CO.
