Liftgate Module / Trunk Module Connector - C4174B

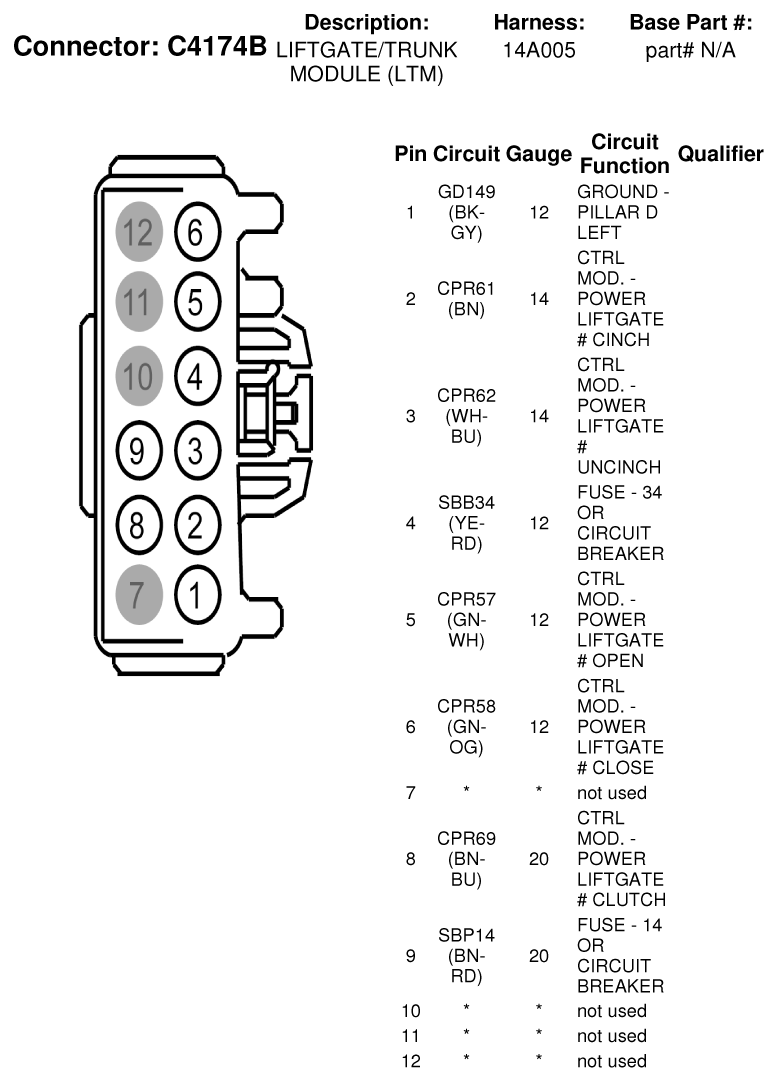

Fig 1: Liftgate Module / Trunk Module Connector End View (C4174B)

G07335176

Courtesy of FORD MOTOR CO.
